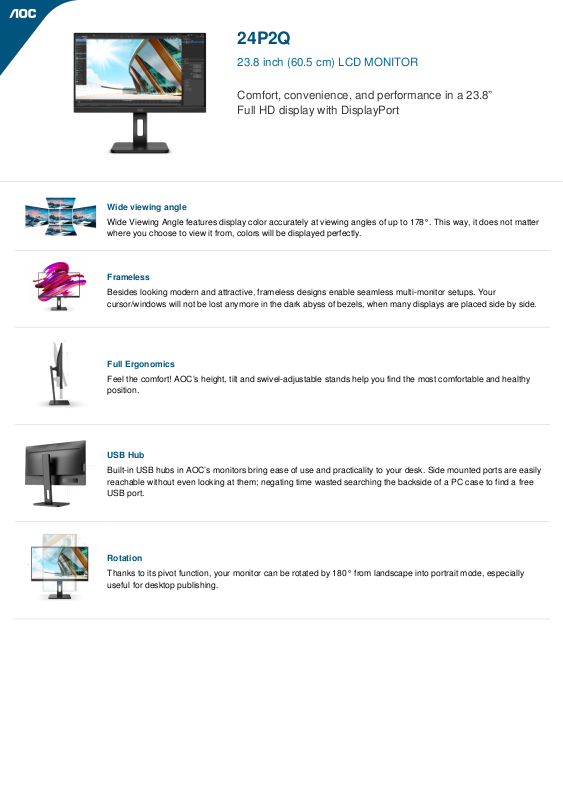

AOC 24P2Q User Manual
24P2Q
23.8 inch (60.5 cm) LCD MONITOR
Comfort, convenience, and performance in a 23.8”
Full HD display with DisplayPort
Wide viewing angle
Wide Viewing Angle features display color accurately at viewing angles of up to 178°. This way, it does not matter
where you choose to view it from, colors will be displayed perfectly.
Frameless
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your
cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.
Full Ergonomics
Feel the comfort! AOC’s height, tilt and swivel-adjustable stands help you find the most comfortable and healthy
position.
USB Hub
Built-in USB hubs in AOC’s monitors bring ease of use and practicality to your desk. Side mounted ports are easily
reachable without even looking at them; negating time wasted searching the backside of a PC case to find a free
USB port.
Rotation
Thanks to its pivot function, your monitor can be rotated by 180° from landscape into portrait mode, especially
useful for desktop publishing.
Screen Details
Ergonomics
Monitor colour Black
Resolution 1920x1080
Refresh rate 75Hz
Response time (GtG) 4 ms
Panel Type IPS
Backlight WLED
sRGB Coverage (%) 107
Flicker-free ✔
Aspect ratio 16:9
Brightness (typical) 250 cd/m²
Contrast (dynamic) 50M:1
Contrast (static) 1000:1
Pixel Pitch 0.2745
Screen size (inch) 23.8 inch
Active Screen Area (HxW) 527.04（H) X 296.46(V) mm mm
Viewing angle (CR10) 178/178 º
Display Colours 16.7 Million
Scanning Frequency VGA/DVI/HDMI1.4/DP1.2 : 30 -
85KHz (H)
VGA/DVI/HDMI1.4/DP1.2 : 48 -75
Hz (V)
Adobe RGB Coverage (%) 79
OSD languages EN, FR , ES, PT, DE, IT, NL, SE, FI,
PL ,CZ, RU, KR, CN (T), CN (S), JP
Pivot ✔
Swivel 180 °
Tilt -5~35° °
Height Adjust Amount 150mm
Removable Stand ✔
Vesa Wallmount 100x100
Power details
Powersupply Internal
Powersource 100 - 240V 50/60Hz
EnergyClass A
Power Consumption On 20 watt, Off 0.3 watt
Standby 0.3 watt,
Dimensions
Product dimensions incl base 540.2*513*200,1
Product dimensions excl base 540.2*326.4*50,7
Net Weight (excl package) 4.63 Kg
Warranty
Warranty Period 3 Years
EAN 4038986147293
Regulations
Connections
Signal Input HDMI 1.4 x 1, DisplayPort 1.2 x 1,
USB input USB 3.2 (Gen1) x 4
Audio Input Line in
Audio output Headphone out (3,5mm)
Built-in Speakers 2 W x 2
What's in the box
VGA cable (1,8 m), DVI cable (1,8 m), HDMI cable (1,8 m), Displayport
Cable (1,8 m), Audio Cable (1,5 m), USB cable (1,8 m), Power Cable C13
(1,8 m),
Sustainability
• Environmental and energy: RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
VGA, DVI
