www.aoc.com
©2022 AOC.All Rights Reserved
LCD Monitor
User Manual
24G2SPE/24G2SPAE
1
Safety ................................................................................................................................................................................... 1
National Conventions ................................................................................................................................................ 1
Power ........................................................................................................................................................................ 2
Installation ................................................................................................................................................................. 3
Cleaning .................................................................................................................................................................... 4
Other ......................................................................................................................................................................... 5
Setup .................................................................................................................................................................................... 6
Contents in Box ......................................................................................................................................................... 6
Setup Stand & Base .................................................................................................................................................. 7
Adjusting Viewing Angle ............................................................................................................................................ 8
Connecting the Monitor ............................................................................................................................................. 9
Wall Mounting.......................................................................................................................................................... 10
Adaptive-Sync function ............................................................................................................................................11
Adjusting ............................................................................................................................................................................. 12
Hotkeys ................................................................................................................................................................... 12
OSD Setting ............................................................................................................................................................ 13
Luminance ................................................................................................................................................... 14
Image Setup ............................................................................................................................................... 15
Color Setup .................................................................................................................................................. 16
Picture Boost ............................................................................................................................................... 17
OSD Setup ................................................................................................................................................... 18
Game Setting ............................................................................................................................................... 19
Extra ............................................................................................................................................................ 20
Exit ............................................................................................................................................................... 21
LED Indicator .......................................................................................................................................................... 21
Troubleshoot ....................................................................................................................................................................... 22
Specication ....................................................................................................................................................................... 23
General Specication .............................................................................................................................................. 23
Preset Display Modes ............................................................................................................................................. 25

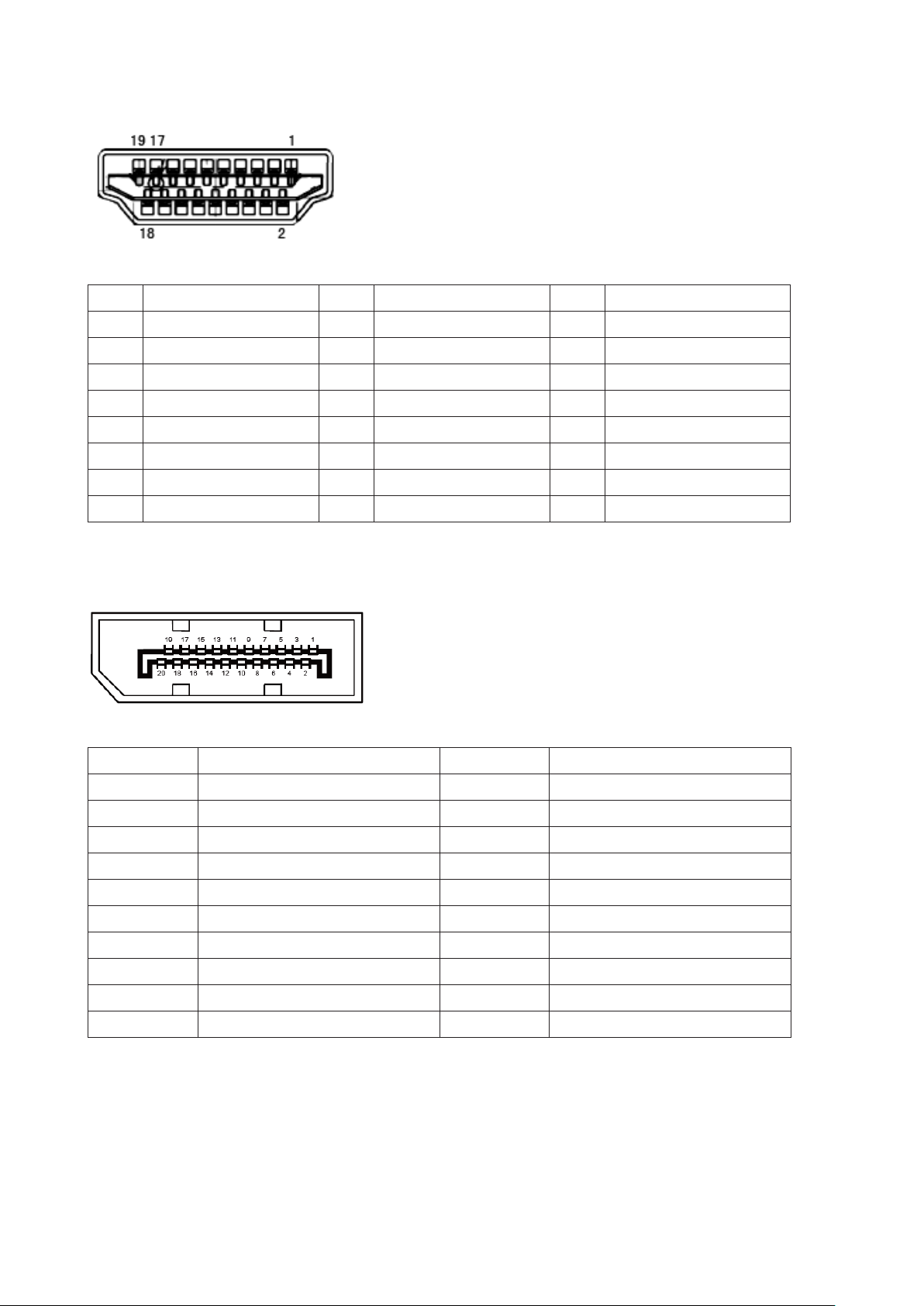

Pin Assignments ...................................................................................................................................................... 26
Plug and Play .......................................................................................................................................................... 28
i
Safety
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These
blocks are notes, cautions, and warnings, and they are used as follows:
NOTE:
CAUTION:
problem.
WARNING:
may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specic presentation of the
warning is mandated by regulatory authority.
A NOTE indicates important information that helps you make better use of your computer system.
A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings
1
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will t
only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an
electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of
the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in re or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate congured
receptacles marked between 100-240V AC, Min. 5A.
The wall socket shall be installed near the equipment and shall be easily accessible.
2
Installation
Installed with stand
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use
mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a re or electric
shock. Never spill liquids on the monitor.
Do not place the front of the product on the oor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a re or damage to the monitor.
To avoid potential damage, for example the panel peeling from the bezel, ensure that the monitor does not tilt
downward by more than -5 degrees. If the -5 degree downward tilt angle maximum is exceeded, the monitor damage will
not be covered under warranty.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the
stand:
Installed with stand
12 inches
30cm
4 inches
10cm
4 inches
10cm
Leave at least this much
space around the set
4 inches
10cm
3
Cleaning
Clean the cabinet regularly with a water-dampened, soft cloth.
When cleaning use a soft cotton or microber cloth. The cloth should be damp and almost dry, do not allow liquid
into the case.
Please disconnect the power cord before cleaning the product.
4
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a
Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
5
Setup
*
*
*
*
*
CD Manual
Power Cable DP Cable HDMI Cable VGA Cable Audio Cable
Warranty Card Stand Base
*
Contents in Box
Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch
oce for conrmation.
6

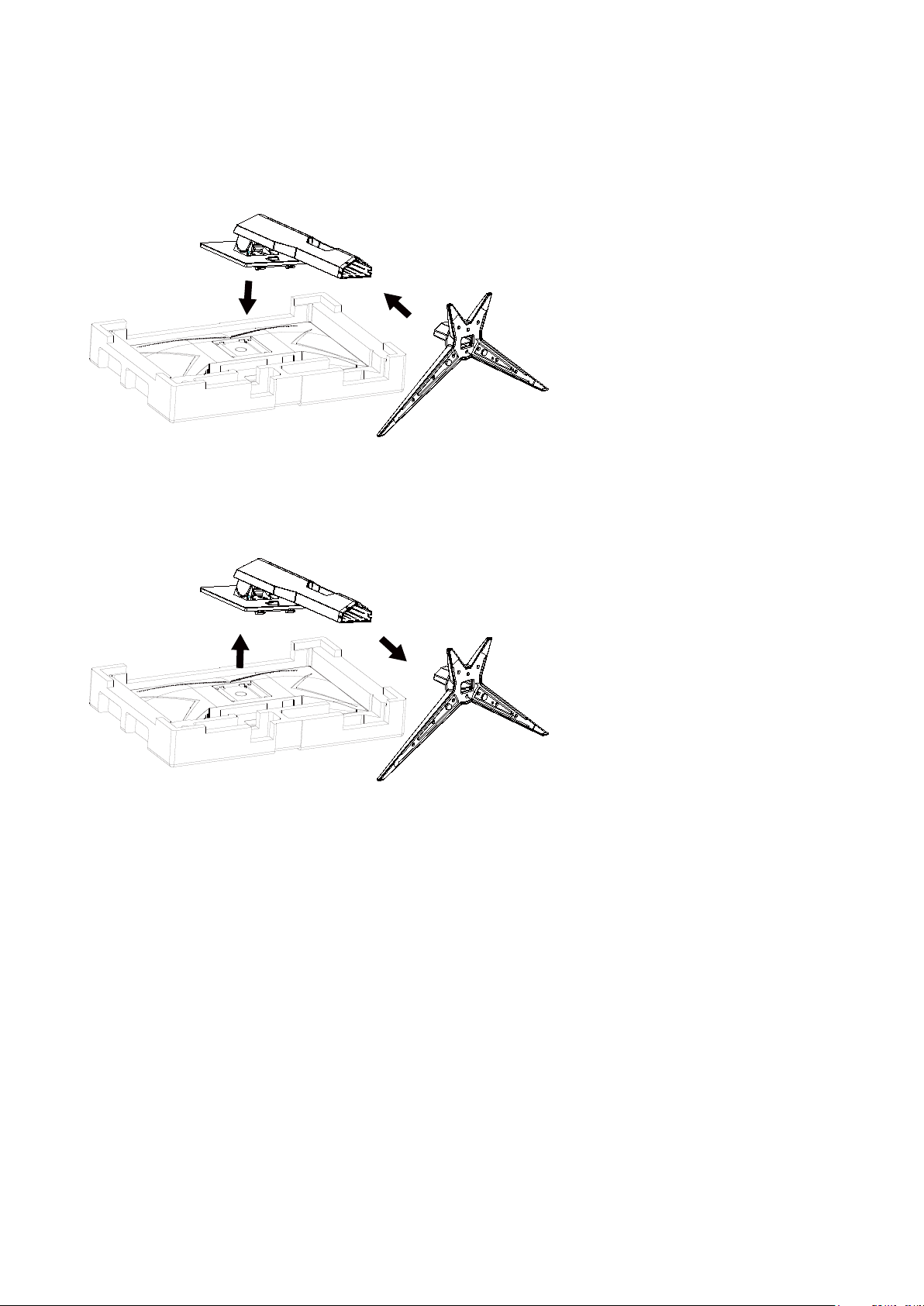

Setup Stand & Base
Please setup or remove the base following the steps as below.
Setup:
Remove:
7
Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own
preference.
Hold the stand so you will not topple the monitor when you change the monitor’s angle.
You are able to adjust the monitor as below:
NOTE:
Do not touch the LCD screen when you change the angle. Touching the LCD screen may cause damage.
WARNING:
1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than
-5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
8
Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
24G2SPE 24G2SPAE
2
4 6
3
1
1. HDMI-2
2. HDMI-1
3. DP
4. D-SUB
5. Audio in
6. Earphone
7. Power
Connect to PC
1. Connect the power cord to the back of the display rmly.
2. Turn o your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on the back of your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn o the PC and LCD monitor before connecting.
7
2
4 6
3
1
5
7
9
Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of
the monitor.
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Note: VESA mounting screw holes are not available for all models, please check with the dealer or ocial
department of AOC.
0° 90°
-5°
* Display design may dier from those illustrated.
WARNING:
1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than
-5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.
10
Adaptive-Sync function
1. Adaptive-Sync function is working with DP/HDMI
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com
• Radeon™ RX Vega series
• Radeon™ RX 500 series
• Radeon™ RX 400 series
• Radeon™ R9/R7 300 series （R9 370/X, R7 370/X, R7 265 except
• Radeon™ Pro Duo (2016)
• Radeon™ R9 Nano series
• Radeon™ R9 Fury series
• Radeon™ R9/R7 200 series (R9 270/X, R9 280/X except)
）
11
Adjusting
1 2 3 4 5
Hotkeys
1 Source/Auto/Exit
2 Game Mode/<
3 Dial Point/>
4 Menu/Enter
5 Power
Power
Press the Power button to turn on the monitor.
Menu/Enter
When there is no OSD, Press to display the OSD or conrm the selection. Press about 2 second to turn o the monitor.
Game Mode/<
When there is no OSD, press ”<” key to open game mode function, then press ”<” or “>” key to select game mode (FPS,
RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the dierent game types.
Dial Point/>
When there is no OSD, press Dial Point button to show / hide Dial Point.
Source/Auto/Exit
When the OSD is closed, press Source/Auto/Exit button will be Source hot key function.
When the OSD is closed, press Source/Auto/Exit button continuously about 2 second to do auto congure (Only for the
models with D-Sub).
12
OSD Setting
Luminance Image Setup Color Setup Picture Boost OSD Setup Game Setting ExitExtra
Contrast 50
Brightness 70
Eco mode Standard
Gamma Gamma 1
DCR Off
HDR Mode Off
Basic and simple instruction on the control keys.
1). Press the
2). Press < or > to navigate through the functions. Once the desired function is highlighted, press the
MENU-button
to activate the OSD window.
MENU-button
activate it, press < or > to navigate through the sub-menu functions. Once the desired function is highlighted, press
MENU-button
3). Press < or > to change the settings of the selected function. Press
to activate it.
AUTO–button
to exit. If you want to adjust any
other function, repeat steps 2-3.
4). OSD Lock Function: To lock the OSD, press and hold the
power button
and then press
to turn the monitor on. To un-lock the OSD - press and hold the
power button
to turn the monitor on.
MENU-button
while the monitor is o and then press
MENU-button
while the monitor is o
Notes:
1). If the product has only one signal input, the item of “Input Select” is disable to adjust.
2). DCR, Color Boost and Picture Boost, for these states that only one state can exist
to
13

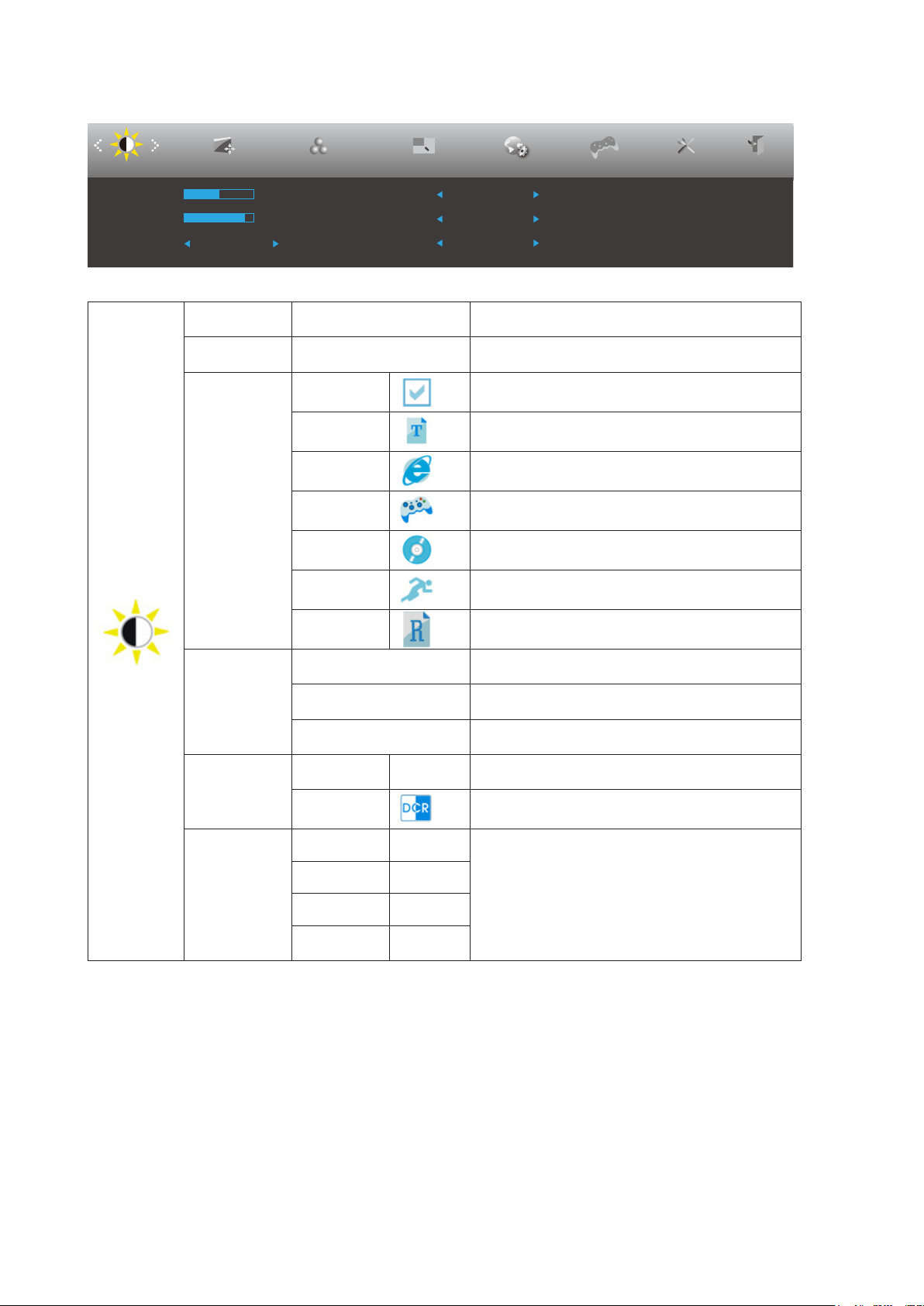

Luminance
Luminance Image Setup Color Setup Picture Boost OSD Setup Game Setting ExitExtra
Contrast 50
Brightness 70
Eco mode Standard
Gamma Gamma 1
DCR Off
HDR Mode Off
Contrast 0-100 Contrast from Digital-register.
Brightness 0-100 Backlight Adjustment
Standard Standard Mode
Text Text Mode
Internet Internet Mode
Eco mode
Gamma
DCR
HDR Mode
Game Game Mode
Movie Movie Mode
Sports Sports Mode
Reading Reading Mode
Gamma1 Adjust to Gamma 1
Gamma2 Adjust to Gamma 2
Gamma3 Adjust to Gamma 3
O Disable dynamic contrast ratio
On Enable dynamic contrast ratio
OFF
HDR Picture
Adjust HDR Mode.
HDR Movie
HDR Game
Note:
When “HDR Mode” is set to “non-o”, the items “Contrast”, “Brightness”, “Gamma” cannot be adjusted.
14
Image Setup
Color Setup Picture Boost OSD Setup ExitExtra
Image Setup
Clock 50
Phase 50
H. Position 50
V. Position 50
Sharpness 50
Luminance
Game Setting
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise
Sharpness 0-100 Adjust picture sharpness
H. Position 0-100 Adjust the horizontal position of the picture.
V. Position 0-100 Adjust the vertical position of the picture.
15
Color Setup
Picture Boost OSD Setup ExitExtra
Luminance
Red 50
Green 50
Blue 50DCB Demo Off
Color Temp. Warm
DCB Mode Off
Color Setup
Image Setup
Game Setting
Warm Recall Warm Color Temperature from EEPROM.
Normal Recall Normal Color Temperature from EEPROM.
Color Temp.
Cool Recall Cool Color Temperature from EEPROM.
sRGB Recall SRGB Color Temperature from EEPROM.
User Restore Color Temperature from EEPROM.
Full Enhance On or O Disable or Enable Full Enhance Mode
Nature Skin On or O Disable or Enable Nature Skin Mode
DCB Mode
Green Field On or O Disable or Enable Green Field Mode
Sky-blue On or O Disable or Enable Sky-blue Mode
AutoDetect On or O Disable or Enable AutoDetect Mode
O On or O Disable or Enable O Mode
DCB Demo On or O Disable or Enable Demo
Red 0-100 Red gain from Digital-register.
Green 0-100 Green gain from Digital-register.
Blue 0-100 Blue gain from Digital-register.
Note:
When “HDR Mode” under “Luminance” is set to “non-o”, all items under “Color Setup” cannot be adjusted.
16
Picture Boost
OSD Setup ExitExtra
Luminance
Image Setup
Brightness 50
Contrast 50
H. Position 0
V. Position 0
Bright Frame off
Frame Size 14
Picture Boost
Color Setup
Game Setting
Bright Frame on or o Disable or Enable Bright Frame
Frame Size 14-100 Adjust Frame Size
Brightness 0-100 Adjust Frame Brightness
Contrast 0-100 Adjust Frame Contrast
H. position 0-100 Adjust Frame horizontal Position
V. position 0-100 Adjust Frame vertical Position
Note:
Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.
When “HDR Mode” under “Luminance” is set to “non-o”, all items under “Picture Boost” cannot be adjusted.
17
OSD Setup
ExitExtra
Luminance
Image Setup
Color Setup
H. Position 50
V. Position 0
Transparence 25
50
Language English
Timeout 10
DP Capability 1.2 Volume
Break Reminder Off
OSD Setup
Picture Boost
Game Setting
Language Select the OSD language
Timeout 5-120 Adjust the OSD Timeout
DP Capability 1.1/1.2
Please be noted that only DP1.2 support Adaptive-
Sync function
H. Position 0-100 Adjust the horizontal position of OSD
V. Position 0-100 Adjust the vertical position of OSD
Volume 0-100 Volume Adjustment.
Transparence 0-100 Adjust the transparence of OSD
Break Reminder
on or o
Break reminder if the user continuously work for
more than 1hrs
Note:
If the DP video content supports DP1.2, please select DP1.2 for DP Capability; otherwise, please select DP1.1
18
Game Setting
Picture Boost OSD SetupExitExtra
Luminance
Overdrive
LowBlue Mode
MBR
Shadow Control
Game Mode Off
Off
Off
Image Setup
Color Setup
Game Setting
50
Game Color
10
Adaptive-Sync
Off
Off
Frame Counter
0
For playing FPS (First Person Shooters) games.
Improves dark theme black level details.
For playing RTS (Real Time Strategy). Improves the
image quality.
For playing Racing games, Provides fastest response
time and high color saturation.
Game Mode
FPS
RTS
Racing
Gamer 1 User’s preference settings saved as Gamer 1.
Gamer 2 User’s preference settings saved as Gamer 2.
Gamer 3 User’s preference settings saved as Gamer 3.
O No optimization by Smart image game
Shadow Control Default is 50, then end-user can adjust
from 50 to 100 or 0 to increase contrast for clear picture.
Shadow Control 0-100
1. If picture is too dark to be saw the detail clearly,
adjusting from 50 to100 for clear picture.
2. If picture is too white to be saw the detail clearly,
adjusting from 50 to0 for clear picture
Weak
Medium
Overdrive
Strong
Adjust the response time.
Boost
O
Game Color 0-20
Game Color will provide 0-20 level for adjusting
saturation to get better picture.
Reading / Oce
LowBlue Mode
/ Internet /
Decrease blue light wave by controlling color
temperature.
Multimedia / O
MBR 0 ~ 20 Adjust the Motion Blur Reduction.
Note:
The function MBR and Overdrive Boost are available only when Adaptive-Sync is o and the vertical frequency is up to
75 Hz.
When “HDR Mode” under “Luminance” is set to “non-o”, the items “Game Mode”, “Shadow Control”, “Game Color”, “Low
Blue Mode” cannot be adjusted.
Adaptive-Sync On/O Adjust the Adaptive-Sync.
O / Right-up /
Frame Counter
Right-Down / Left-
Display V frequency on the corner selected
Down / Left-Up
19
Extra
Picture Boost OSD SetupExit
Luminance
Image Setup
Color Setup
Off Timer 00
Input Select Auto
Auto Config. No
Reset No
Image Ratio Wide
DDC/CI Yes
Resolution : 1920(H)X1080(V)
H. Frequency : 67KHz
V. Frequency : 60Hz
Extra
Game Setting
Input Select Select Input Signal Source
Auto Cong. yes or no Auto adjust the picture to default
O timer 0-24hrs Select DC o time
Wide
Image Ratio
Select image ratio for display.
4:3
DDC/CI yes or no Turn ON/OFF DDC/CI Support
Reset yes or no Reset the menu to default.
20
Exit
Picture Boost OSD Setup
Luminance
Image Setup
Color Setup
Exit
Extra
Game Setting
Exit Exit the main OSD
LED Indicator
Status LED Color
Full Power Mode White
Active-o Mode Orange
21
Troubleshoot
Problem & Question
Power LED Is Not ON
No images on the screen
Possible Solutions
Make sure the power button is ON and the Power Cord is properly connected to
a grounded power outlet and to the monitor.
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the video cable connected correctly?
(Connected using the VGA cable)
Check the VGA cable connection.
(Connected using the HDMI cable)
Check the HDMI cable connection.
(Connected using the DP cable)
Check the DP cable connection.
* VGA/HDMI/DP input is not available on every model.
If the power is on, reboot the computer to see the initial screen (the login
screen.)
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the safe mode for Windows 7/8/10) and then change the
frequency of the video card.
(Refer to the Setting the Optimal Resolution)
If the initial screen (the login screen) does not appear, contact the Service
Center or your dealer.
Can you see “Input Not Supported” on the screen?
You can see this message when the signal from the video card exceeds the
maximum resolution and frequency that the monitor can handle properly.
Adjust the maximum resolution and frequency that the monitor can handle
properly.
Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Monitor Is Stuck In Active O-
Mode”
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Screen image is not centered
or sized properly
Picture has color defects
(white does not look white)
Horizontal or vertical
disturbances on the screen
Regulation & Service
Adjust the Contrast and Brightness Controls.
Press to auto adjust.
Make sure you are not using an extension cable or switch box. We recommend
plugging the monitor directly to the video card output connector on the back.
Move electrical devices that may cause electrical interference as far away from
the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution you
are using.
The Computer Power Switch should be in the ON position.
Press hot-key (AUTO) to auto-adjust.
Make sure the monitor’s video cable is properly connected to the computer.
Inspect the monitor’s video cable and make sure no pin is bent.
Make sure your computer is operational by hitting the CAPS LOCK key on the
keyboard while observing the CAPS LOCK LED. The LED should either turn ON
or OFF after hitting the CAPS LOCK key.
Inspect the monitor’s video cable and make sure that no pin is damaged.
Make sure the monitor’s video cable is properly connected to the computer.
Adjust H-Position and V-Position or press hot-key (AUTO).
Adjust RGB color or select desired color temperature.
Use Windows 7/8/10 shut-down mode to adjust CLOCK and FOCUS.
Press hot-key (AUTO) to auto-adjust.
Please refer to Regulation & Service Information which is in the CD manual
or www.aoc.com (to nd the model you purchase in your country and to nd
Regulation & Service Information in Support page.)
22
Specification
General Specification
Model name 24G2SPE
Driving system TFT Color LCD
Viewable Image Size 60.5 cm diagonal
Panel
Others
Physical
Characteristics
Environmental
Pixel pitch
Video R, G, B Interface & HDMI lnterface & DP Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Horizontal scan range
Horizontal scan Size(Maximum) 527.04 mm
Vertical scan range
Vertical Scan Size(Maximum) 296.46 mm
Optimal preset resolution 1920x1080@60Hz
Max resolution
Plug & Play VESA DDC2B/CI
Input Connector HDMIx2/DP/VGA
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, TMDS
Output Connector Earphone out
Power Source
Power Consumption
Connector Type VGA/HDMI/DP/Earphone out
Signal Cable Type
Temperature
Humidity
Altitude
0.2745mm(H) x 0.2745mm(V)
30k-160kHz(D-SUB/HDMI)
30k-200kHz(DP)
48-144Hz(HDMI)
48-165Hz(DP)
1920 x 1080@60Hz (D-SUB)
1920 x 1080@144Hz (HDMI)
1920 x 1080@165Hz (DP)
100-240V~, 50/60Hz,1.5A
Typical(default brightness and contrast) 22W
Max. (brightness = 100, contrast =100)
Standby mode
Detachable
Operating 0°C~ 40°C
Non-Operating -25°C~ 55°C
Operating 10% ~ 85% (non-condensing)
Non-Operating 5% ~ 93% (non-condensing)
Operating 0~ 5000 m (0~ 16404ft )
Non-Operating 0~ 12192m (0~ 40000ft )
≤
≤
36W
0.3W
23
Panel
Others
Physical
Characteristics
Environmental
Model name 24G2SPAE / 24G2SPAE/BK
Driving system TFT Color LCD
Viewable Image Size 60.5 cm diagonal
Pixel pitch
Video R, G, B Interface & HDMI lnterface & DP Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Horizontal scan range
Horizontal scan Size(Maximum) 527.04 mm
Vertical scan range
Vertical Scan Size(Maximum) 296.46 mm
Optimal preset resolution 1920x1080@60Hz
Max resolution
Plug & Play VESA DDC2B/CI
Input Connector HDMIx2/DP/VGA
Input Video Signal
Output Connector Earphone out
Power Source 100-240V~, 50/60Hz,1.5A
Power Consumption
Connector Type VGA/HDMI/DP/Audio in/Earphone out
Signal Cable Type
Temperature
Humidity
Altitude
0.2745mm(H) x 0.2745mm(V)
30k-160kHz(D-SUB/HDMI)
30k-200kHz(DP)
48-144Hz(HDMI)
48-165Hz(DP)
1920 x 1080@60Hz (D-SUB)
1920 x 1080@144Hz (HDMI)
1920 x 1080@165Hz (DP)
Analog: 0.7Vp-p(standard), 75 OHM, TMDS
Typical(default brightness and contrast) 22W
Max. (brightness = 100, contrast =100)
Standby mode
Detachable
Operating 0°C~ 40°C
Non-Operating -25°C~ 55°C
Operating 10% ~ 85% (non-condensing)
Non-Operating 5% ~ 93% (non-condensing)
Operating 0~ 5000 m (0~ 16404ft )
Non-Operating 0~ 12192m (0~ 40000ft )
≤
≤
36W
0.3W
24G2SPAE/BK
24
Preset Display Modes
STANDARD RESOLUTION
VGA 640x480@60Hz 31.469 59.94
VGA 640x480@72Hz 37.861 72.809
VGA 640x480@75Hz 37.5 75
VGA 640x480@100Hz 50.313 99.826
VGA 640x480@120Hz 60.938 119.72
SVGA 800x600@56Hz 35.156 56.25
SVGA 800x600@60Hz 37.879 60.317
SVGA 800x600@72Hz 48.077 72.188
SVGA 800x600@75Hz 46.875 75
SVGA 800x600@100Hz 62.76 99.778
SVGA 800x600@120Hz 76.302 119.972
XGA 1024x768@60Hz 48.363 60.004
XGA 1024x768@70Hz 56.476 70.069
XGA 1024x768@75Hz 60.023 75.029
XGA 1024x768@100Hz 80.448 99.811
XGA 1024x768@120Hz 97.551 119.989
HORIZONTAL
FREQUENCY(kHz)
VERTICAL
FREQUENCY(Hz)
SXGA 1280x1024@60Hz 63.981 60.02
SXGA 1280x1024@75Hz 79.976 75.025
WXGA+ 1440x900@60Hz 55.935 59.887
WXGA+ 1440x900@60Hz 55.469 59.901
WSXGA 1680x1050@60Hz 65.29 59.954
WSXGA 1680x1050@60Hz 64.674 59.883
FHD 1920x1080@60Hz 67.5 60
FHD(HDMI) 1920x1080@100Hz 113.221 99.93
FHD(HDMI/DP) 1920x1080@120Hz 137.26 119.982
FHD(HDMI/DP) 1920x1080@144Hz 158.113 144.001
FHD(DP) 1920x1080@165Hz 183.154 165.003
IBM MODES
DOS 640x350@70Hz 31.469 70.087
DOS 720x400@70Hz 31.469 70.087
MAC MODES
VGA 640x480@67Hz 35 66.667
SVGA 832x624@75Hz 49.725 74.551
XGA 1024x768@75Hz 60.241 74.927
25
Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR
26
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
27
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor
to inform the host system of its identity and, depending on the level of DDC used, communicate additional information
about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the
DDC2B channel.
28
Loading...
