Page 1

AT-598

Mobile Radiao

FCC ID:T4KAT598V

FUNC

V/M

TX/DCS

CAL

MINI

Page 2

Thank you for choosing this vehicle transceiver, always pro vi des high qualit y products, And this t ra nsceiver is n o exception. As you learn how to use this transceiver, you will find that

Mobile radio

is pursuing "user friendliness". For example, each time you

change the menu no. in Menu mode, you will see a text message on the

display that lets you know what you are conguring.

Th o ugh frie n dly desi g n f o r us e r, th i s tr ansc e iver is tech n ical l y complicated and som e features may be new to you. Cons ider this manual to be a personal tutorial from the designers, allow the manual to guide you through the learning process now, then act as a reference in the coming years.

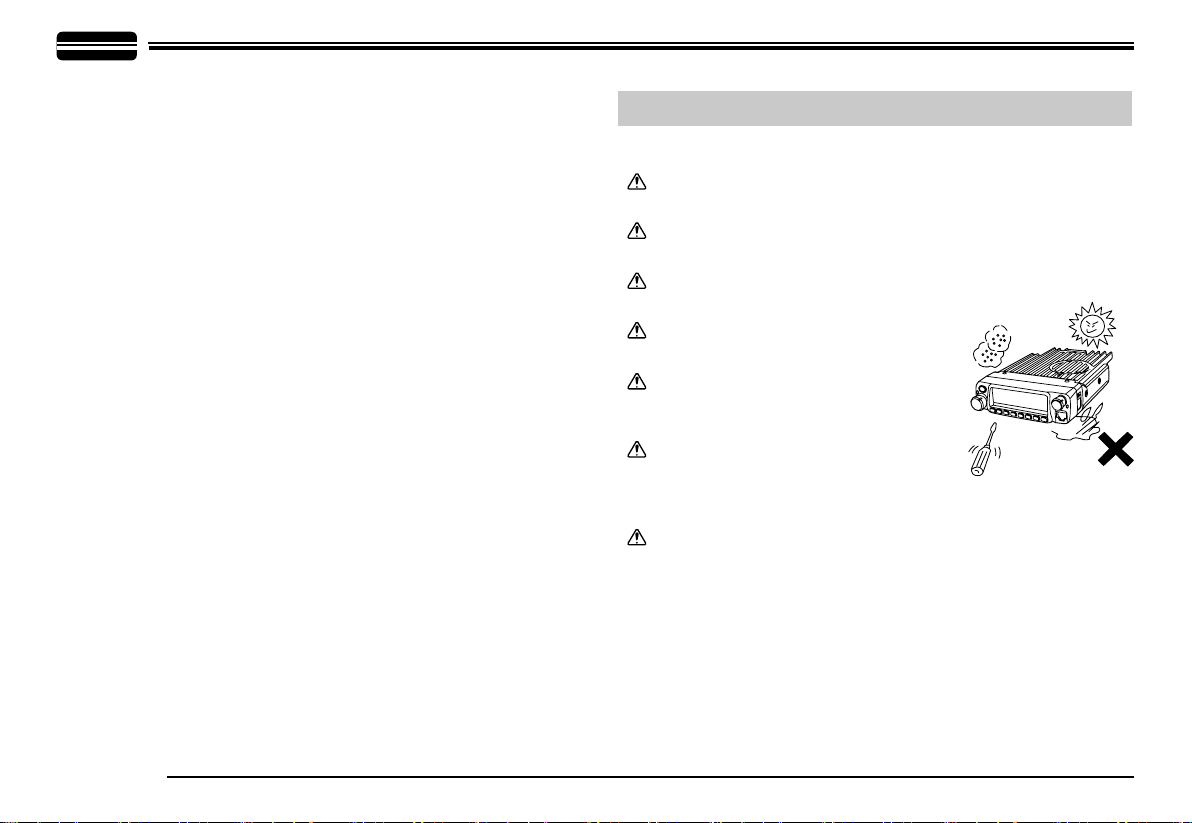

Precautions

Please observe the following precautions to prevent re, personal injury,

or transceiver damage:

Do not attempt to configure your transceiver while driving, it is dangerous.

This transceiver is designed for a 13.8V DC power supply. Don't use a 24V battery to power on the transceiver.

Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces.

Please keep it away from interfer en ti al devices (such as TV, generator etc.).

Do n ot expos e the tran sceiv er to long periods of direct sunlight nor place it close to heating appliances.

If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an Anytone service station or your dealer.

Do not transmit with high output power for extended periods; the transceiver may overheat.

P W

FUNC

V/M

VOL

H z

TX/DCS

H /

SCA

MINI

Page 3

CONTENTS

New and Innovative Features ..............................................1

Supplied Accessories/Optional Accessories ..................... 2

Supplied Accessories ....................................................................... 2

Optional Accessories .......................................................................2

Initial Installation ..................................................................3

Mobile Installation ............................................................................3

DC Power Cable Connection ...........................................................4

Power Supply Voltage Display .........................................................6

Antenna Connection ........................................................................6

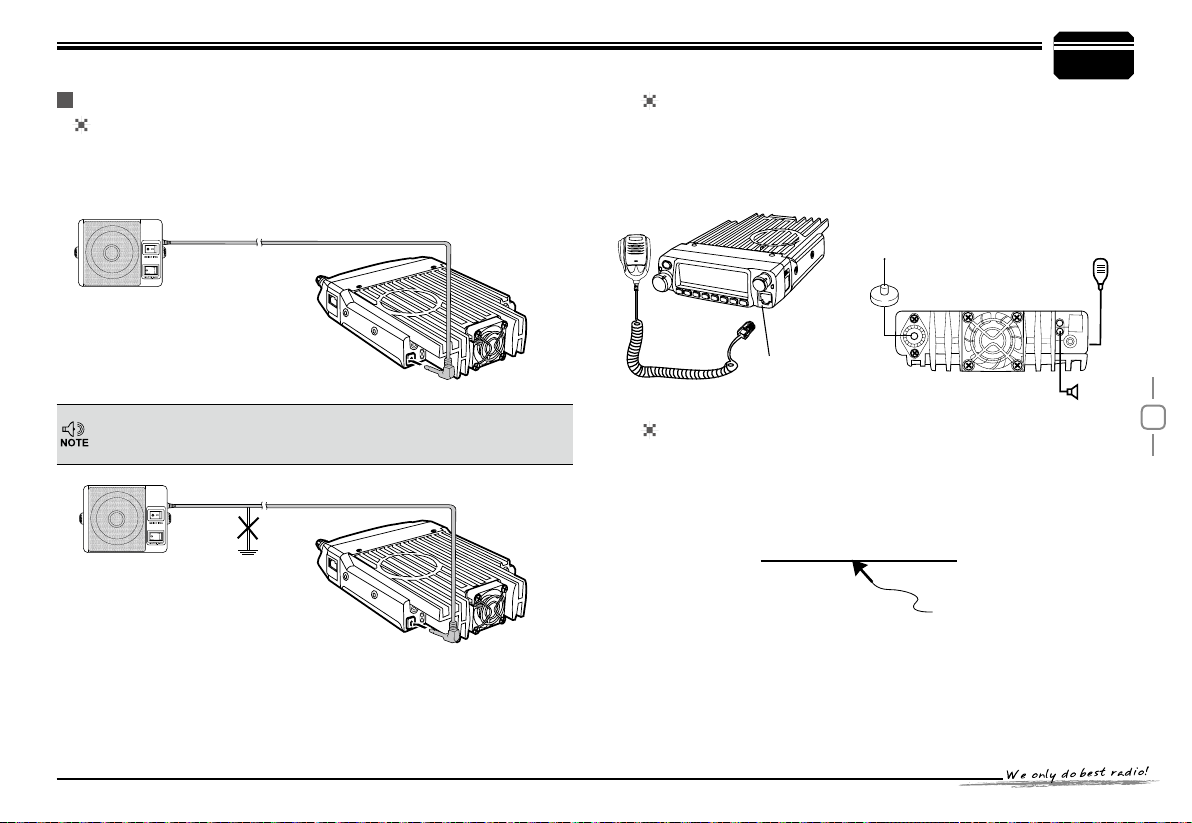

Accessories Connections

Getting Acquainted ..............................................................8

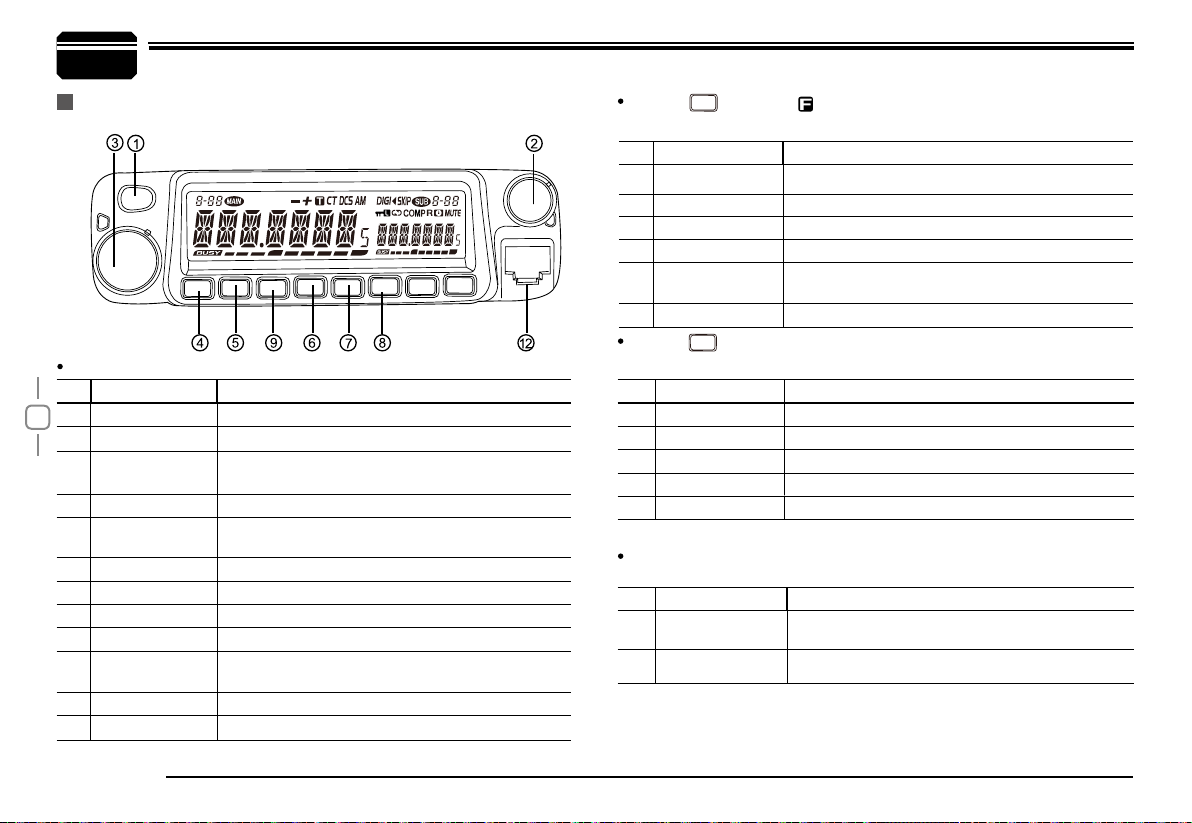

Front panel .......................................................................................8

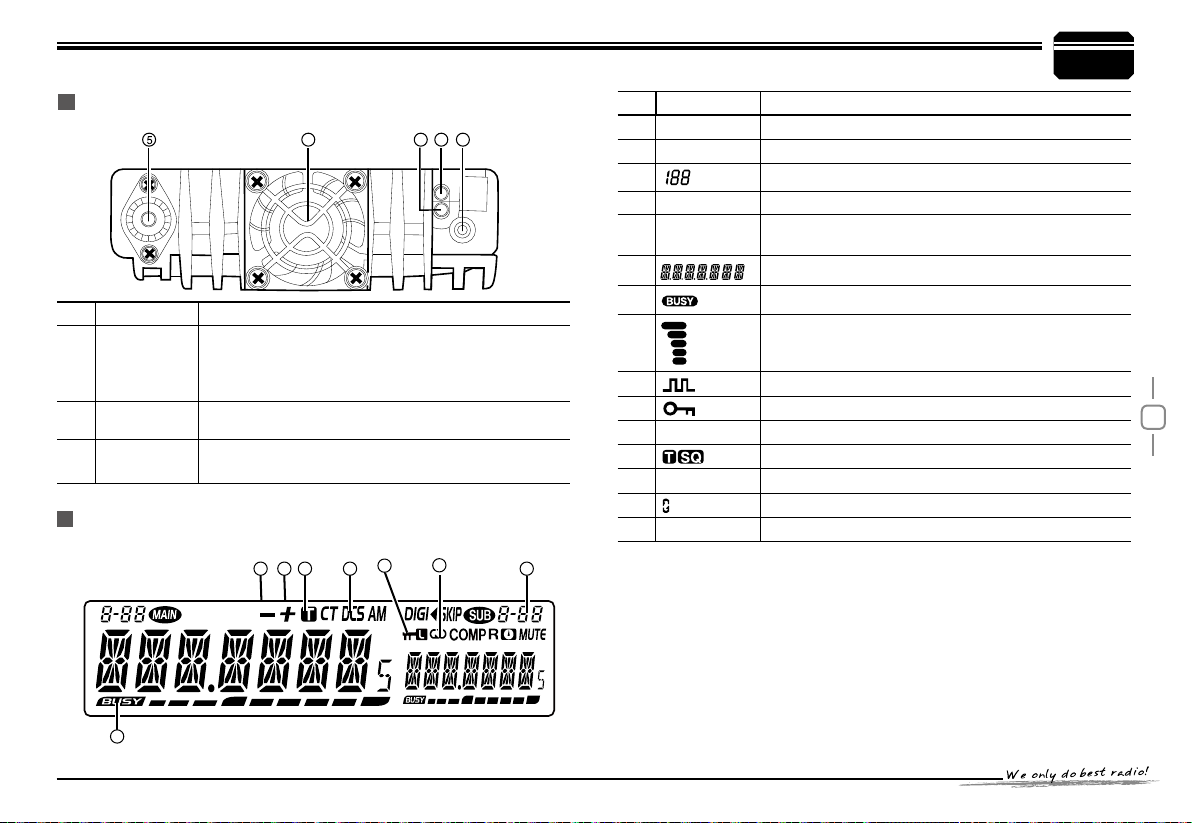

Rear panel .......................................................................................9

Display .............................................................................................9

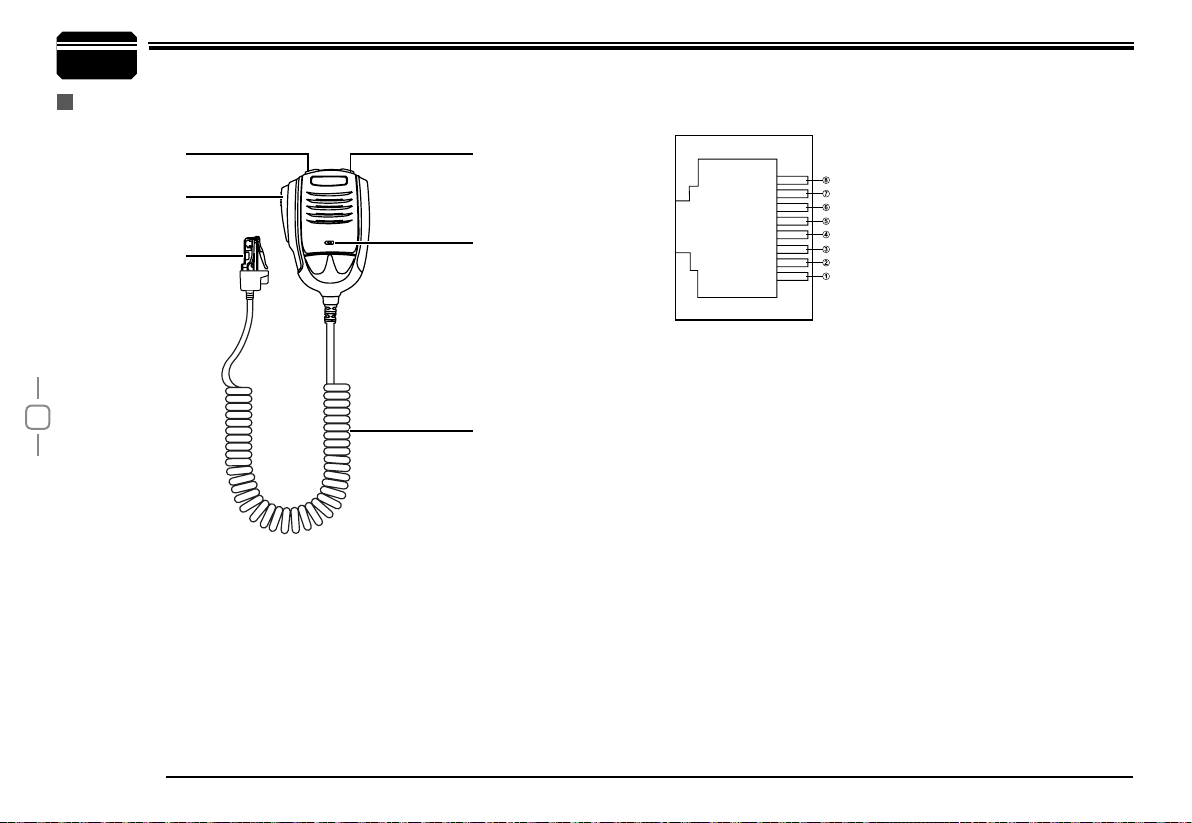

Microphone ......................................................................................10

Working Mode

Transceiver)

........................................................................11

Basic Operations .................................................................12

Switching the Power On/Off ............................................................12

Adjusting the Volume ...................................................................... 12

Switch between VFO and Channel mode ....................................... 12

Adjusting Frequency/Channel Through Selector Knob ....................12

Receiving .........................................................................................12

Transmitting .....................................................................................12

Transmitting Tone-Pulse ..................................................................13

................................................................. 7

(Amateur Transceiver or Professional

Transmitting Optional Signaling ...................................................... 13

Channel Edit ....................................................................................13

Channel Delete ................................................................................13

Shortcut Operations ............................................................. 14

Squelch Off/Squelch Off Momentary................................................14

Squelch Level Setup ........................................................................ 14

Frequency/Channel Scan ................................................................14

Channel Scan ..................................................................................14

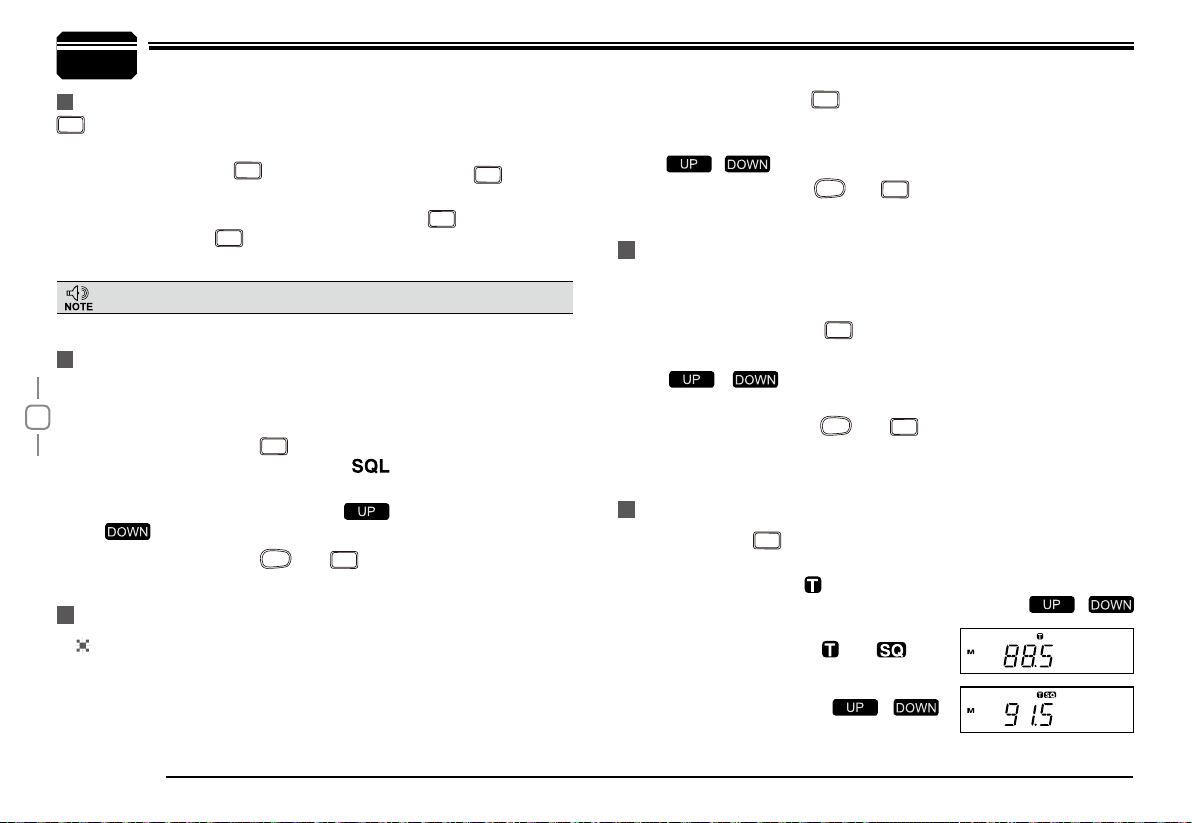

CTCSS/DCS Encode and Decode Setup

CTCSS Scan .................................................................................... 15

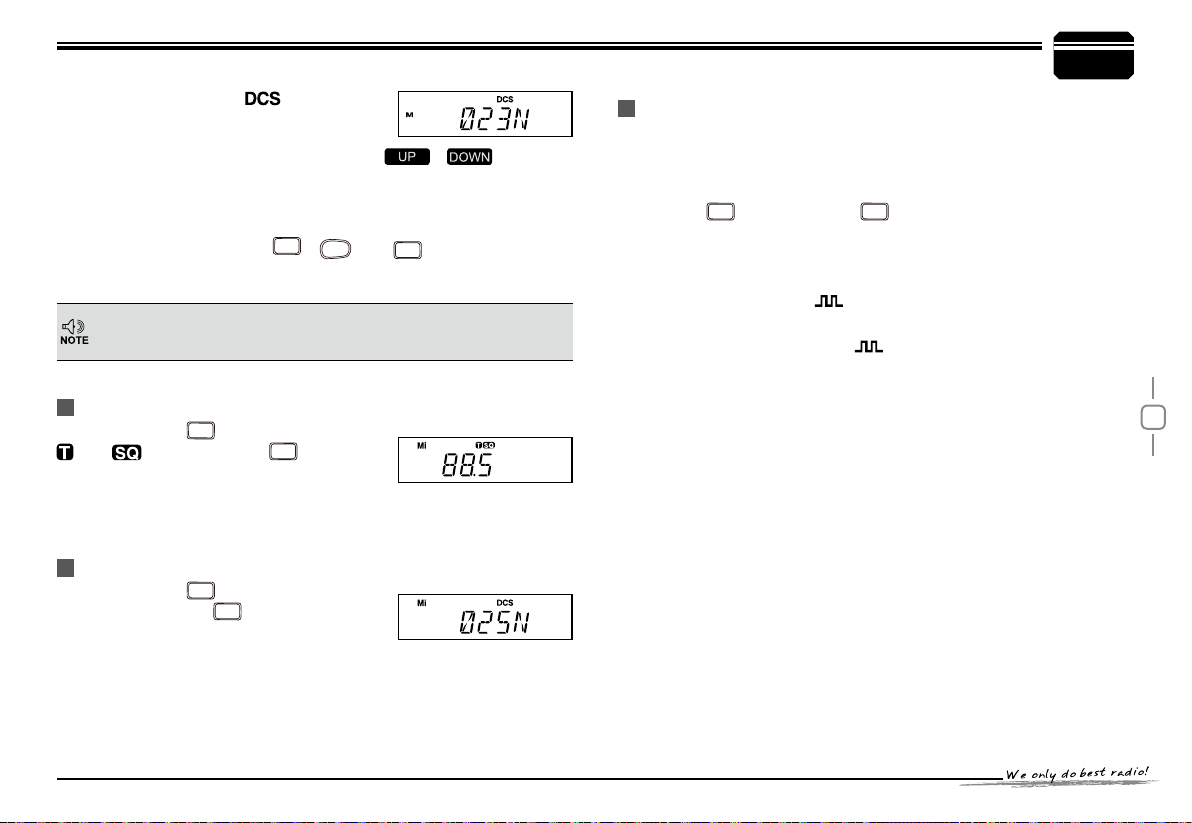

DCS Scan ........................................................................................15

Compander (Decrease the background noise and enhance audio

clarity ..................................................................................................15

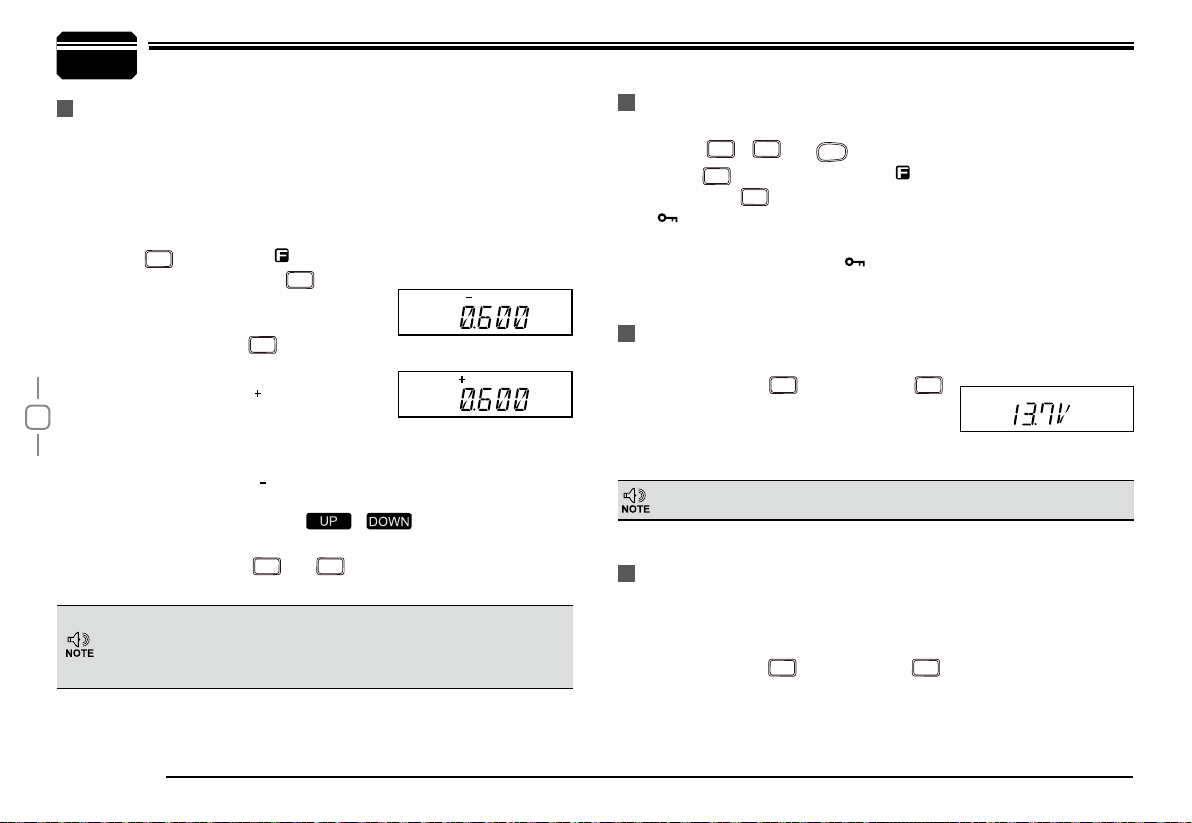

Offset Direction and Offset Frequency Setup ..................................16

Keypad Lockout ...............................................................................16

Current Voltage Enquiry ...................................................................16

Auto-Dialer Setup .............................................................................16

Transmitting Edited DTMF Tones in the Auto-dialer Memory ...........17

........................................14

General Setting .....................................................................18

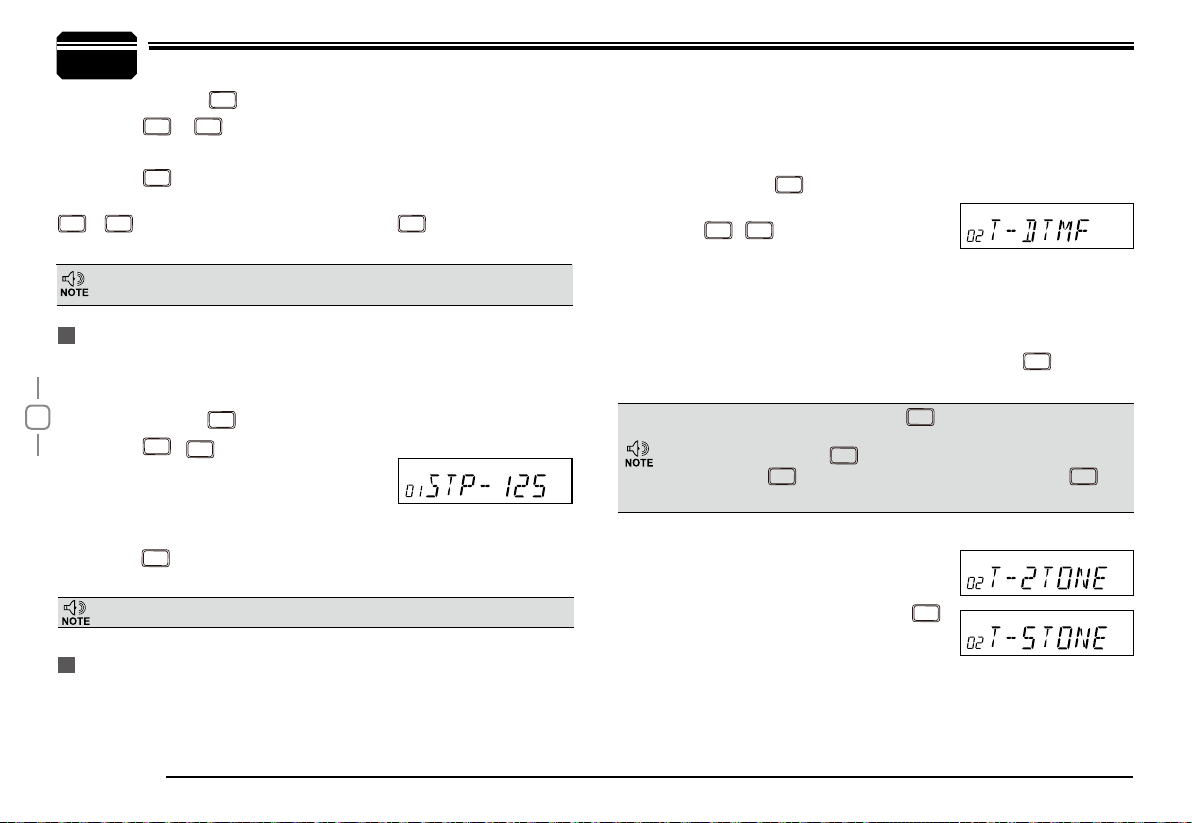

Frequency Channel Step Setup .......................................................18

DTMF, DTMF ANI, 2Tone or 5Tone Signaling ..................................18

Sending 2-Tone Call .........................................................................19

Sending 5-Tone Call .........................................................................19

Sending DTMF call ..........................................................................19

Signaling Combination Setup ...........................................................19

Page 4

CONTENTS

Band-width Selection .......................................................................20

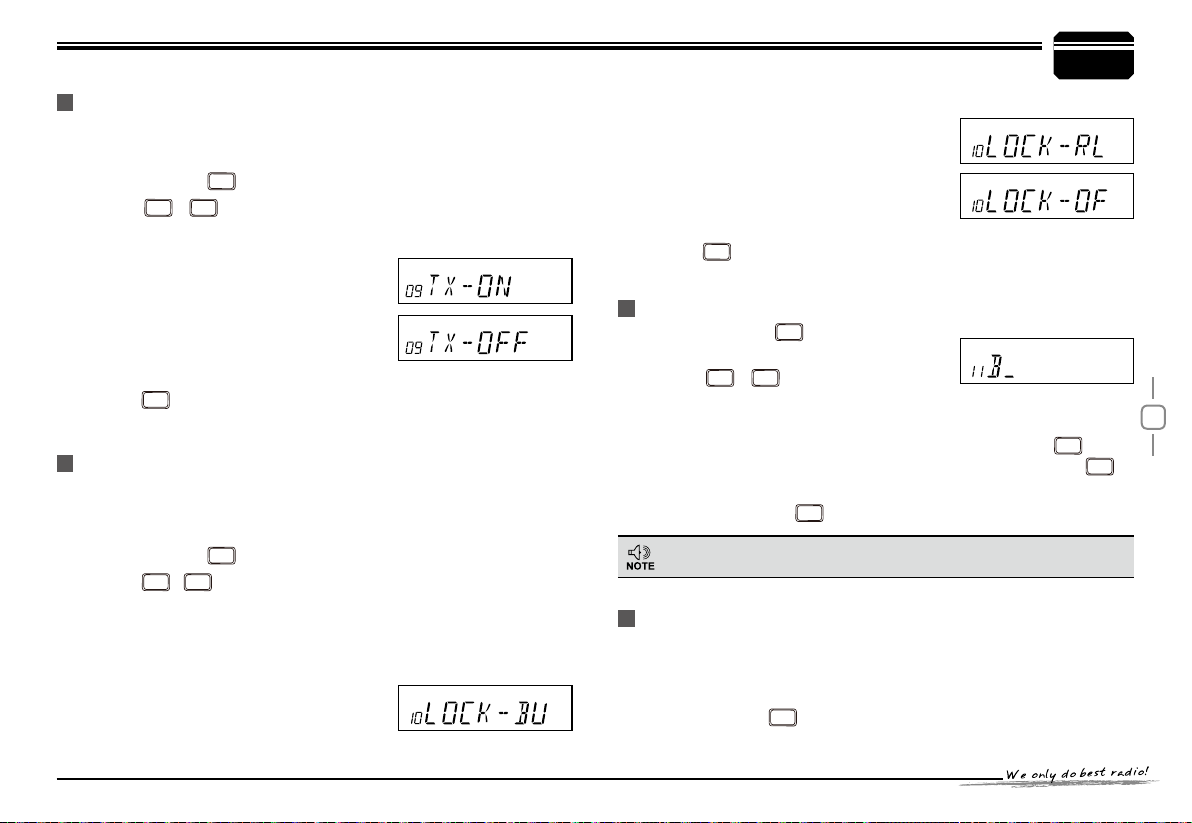

TX OFF Setup ..................................................................................21

Busy Channel Lockout .....................................................................21

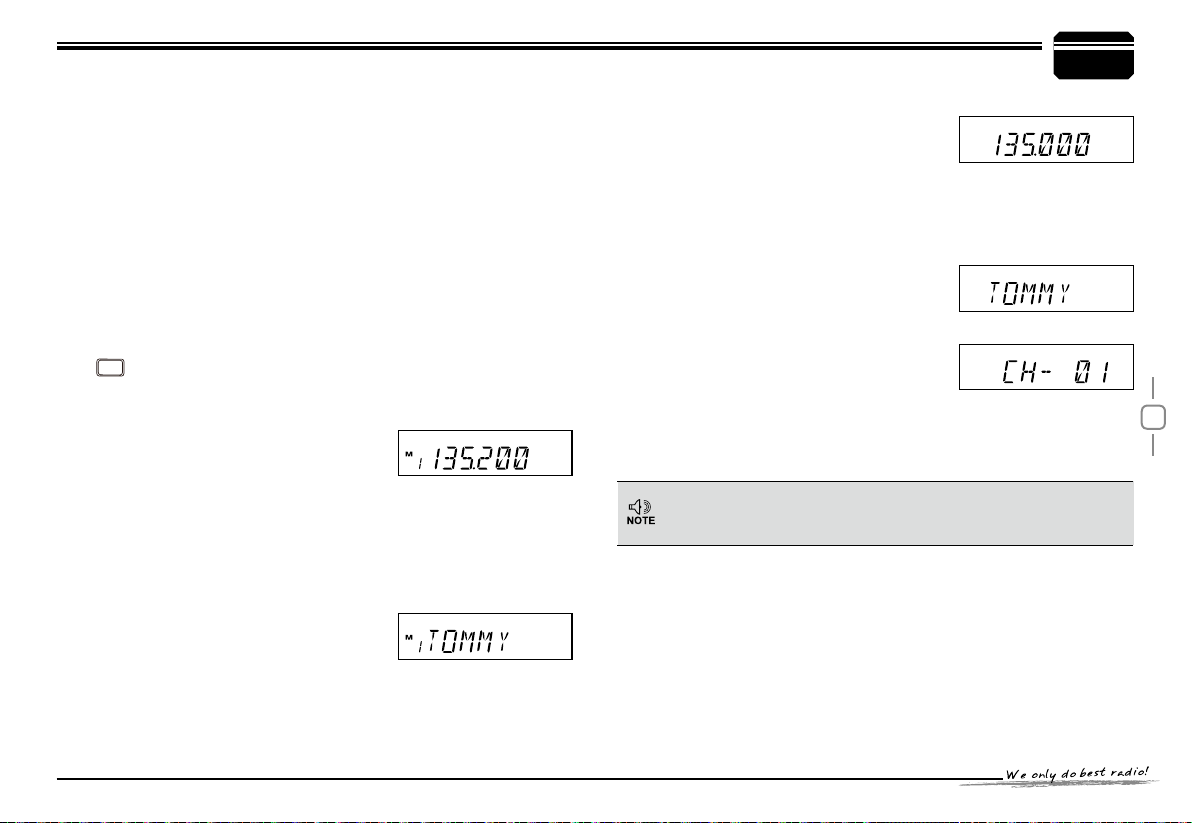

Editing Channel Name .....................................................................21

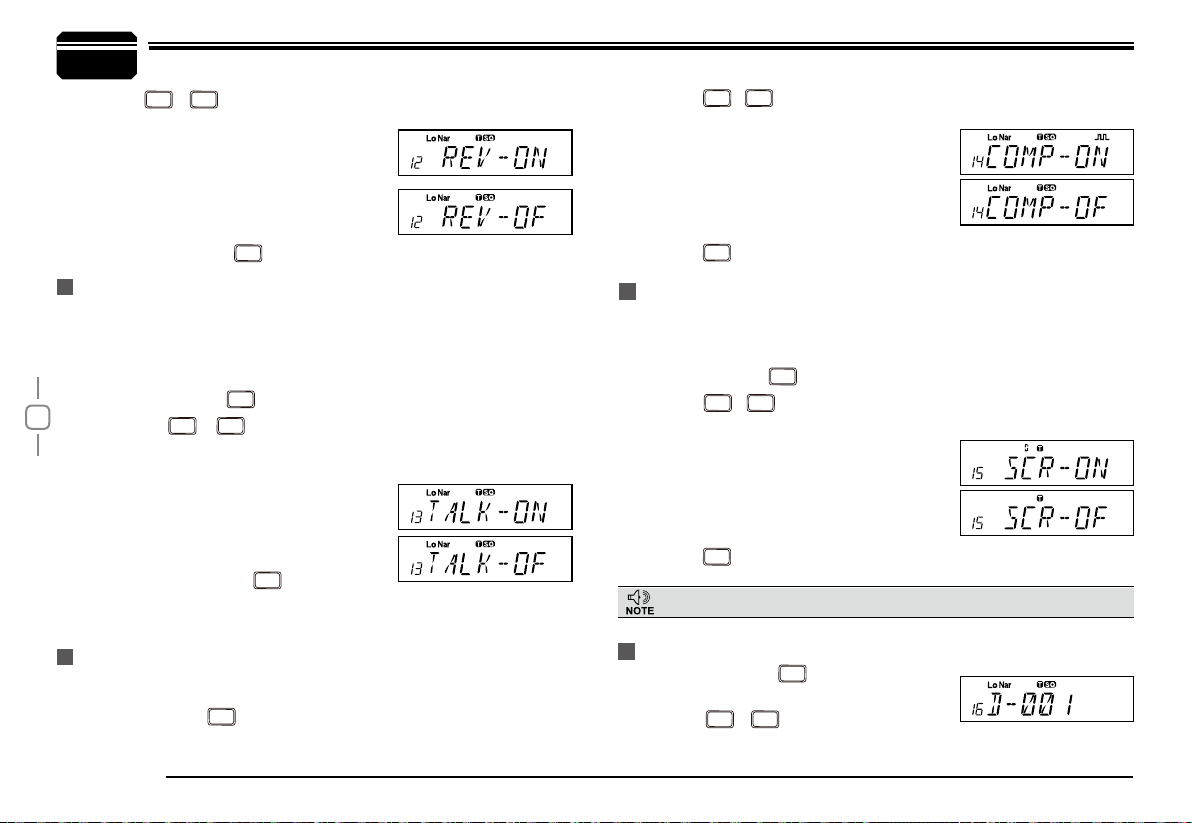

Reverse TX/RX ................................................................................21

Talk Around ......................................................................................22

Voice Compander ...........................................................................22

Scrambler Setup (Encryption) ..........................................................22

Radio's DTMF SELF ID ENQUIRY

Radio's 5TONE SELF ID ENQUIRY ...............................................23

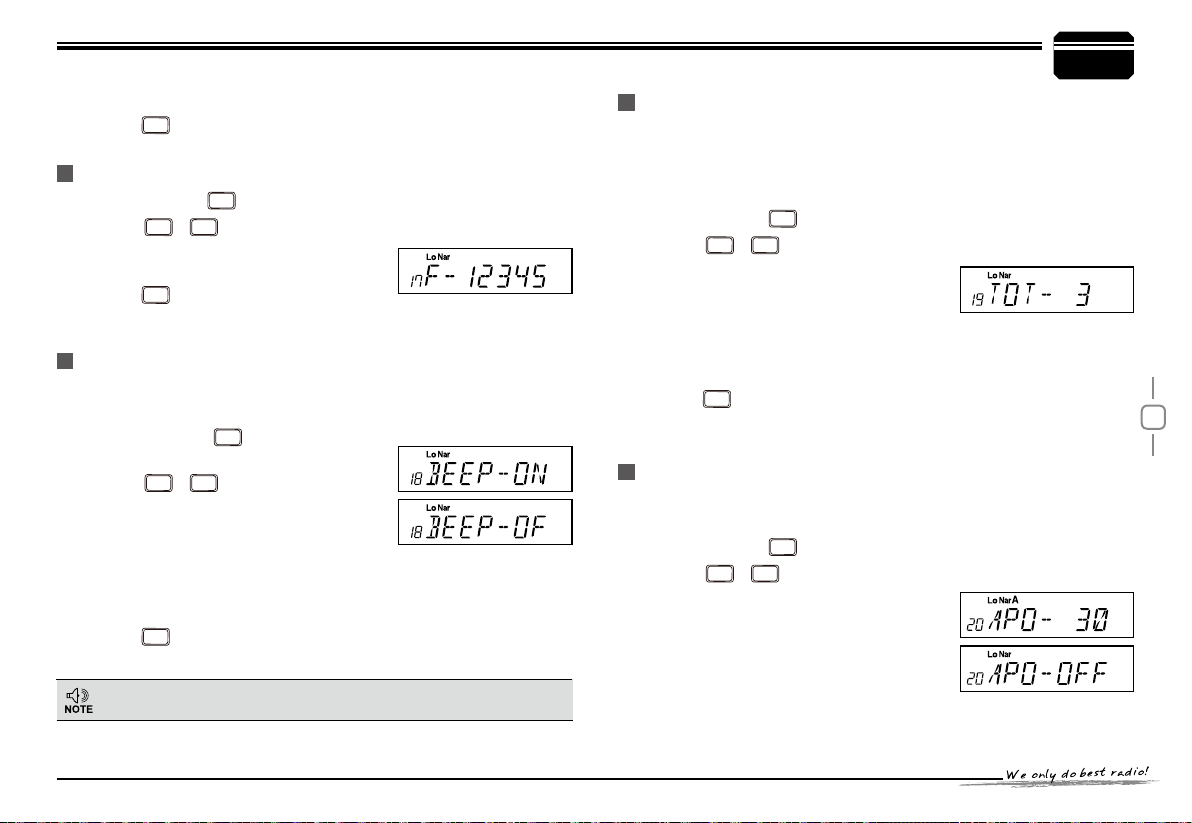

Voice Prompt ....................................................................................23

TOT (Time-out timer) .......................................................................23

APO (Auto power off) .......................................................................23

DTMF Transmitting Time ..................................................................24

Squelch Level Setup ........................................................................24

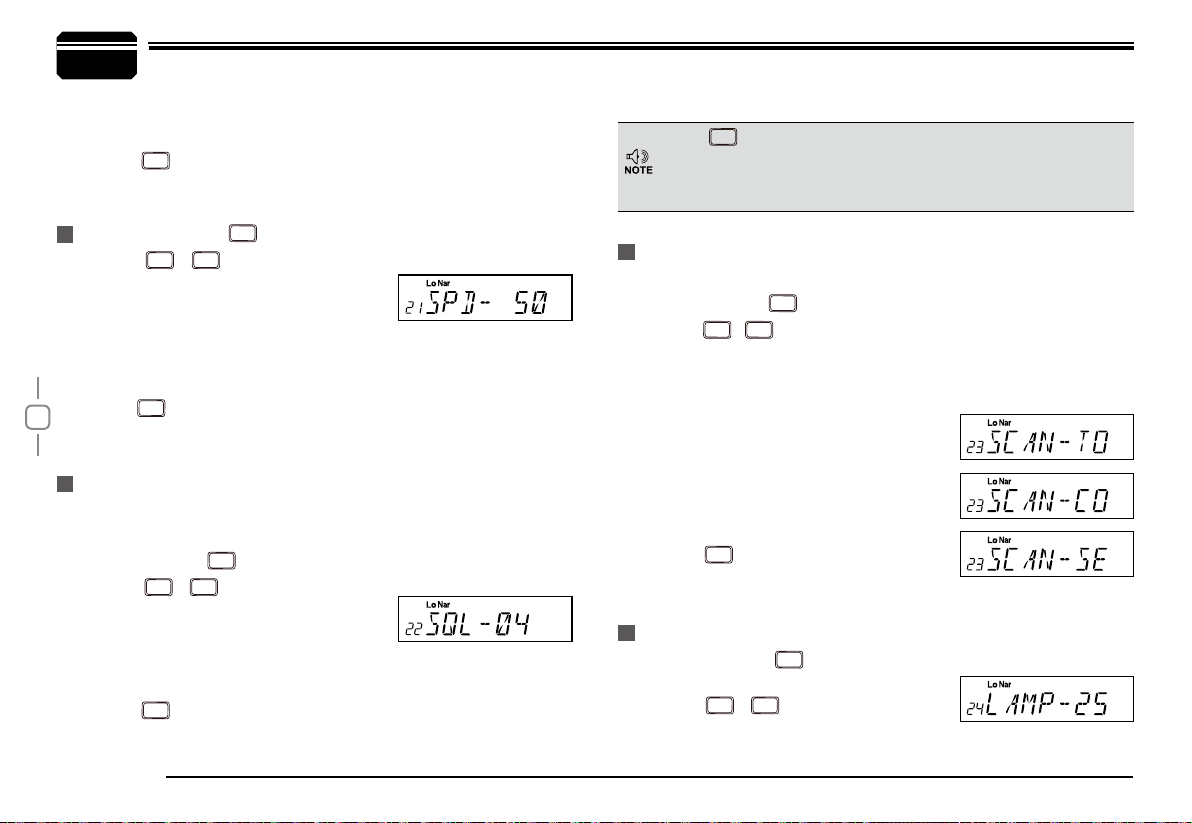

Scan Dwell Time Setup ....................................................................24

LCD Backlight ..................................................................................24

Pilot Frequency ................................................................................25

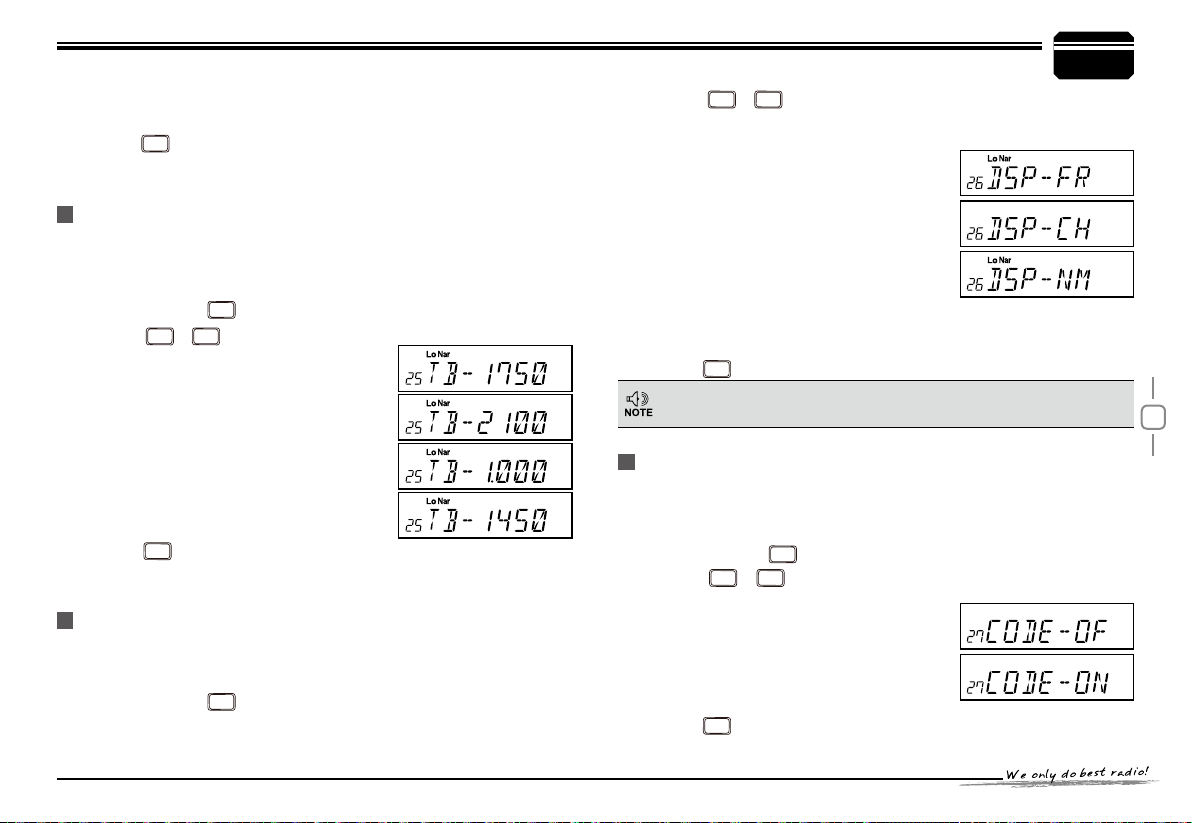

Display Mode Setup .........................................................................25

PIN Setup ........................................................................................25

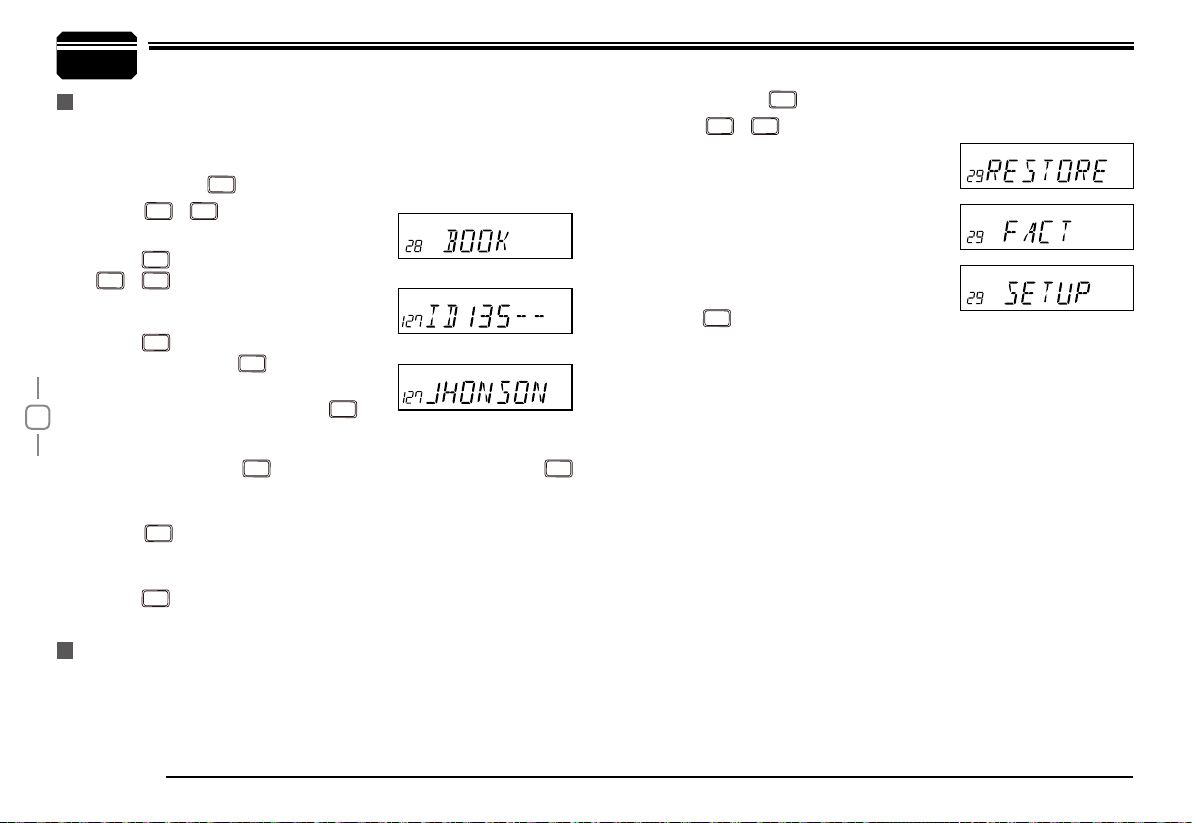

Address List ....................................................................................26

Factory Default .................................................................................26

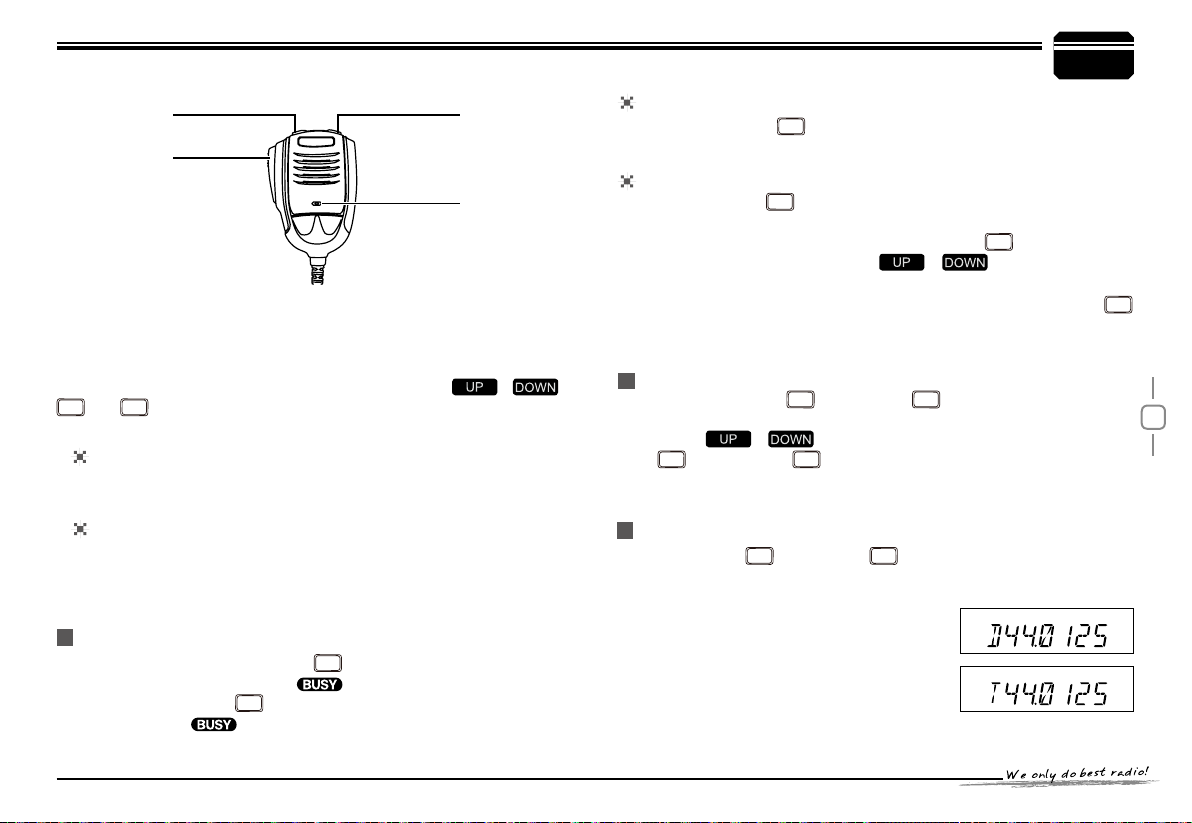

Microphone Operation .........................................................27

Function Setup By Microphone Keypad ...........................................27

.................................................22

Squelch Level ..................................................................................27

Optional Signaling ...........................................................................27

Scan Skip ........................................................................................28

Frequency/Channel Scan ...............................................................28

Busy Channel Lockout ..................................................................... 28

Reverse TX/RX ................................................................................ 28

TOT (Time-out timer) ........................................................................ 29

CTCSS/DCS Encode and Decode ................................................... 29

Talk Around

Voice Prompt

LCD Backlight .................................................................................30

.....................................................................................29

.................................................................................... 29

Long-distance Anti-theft Alarm ..........................................31

Cable Clone ..........................................................................32

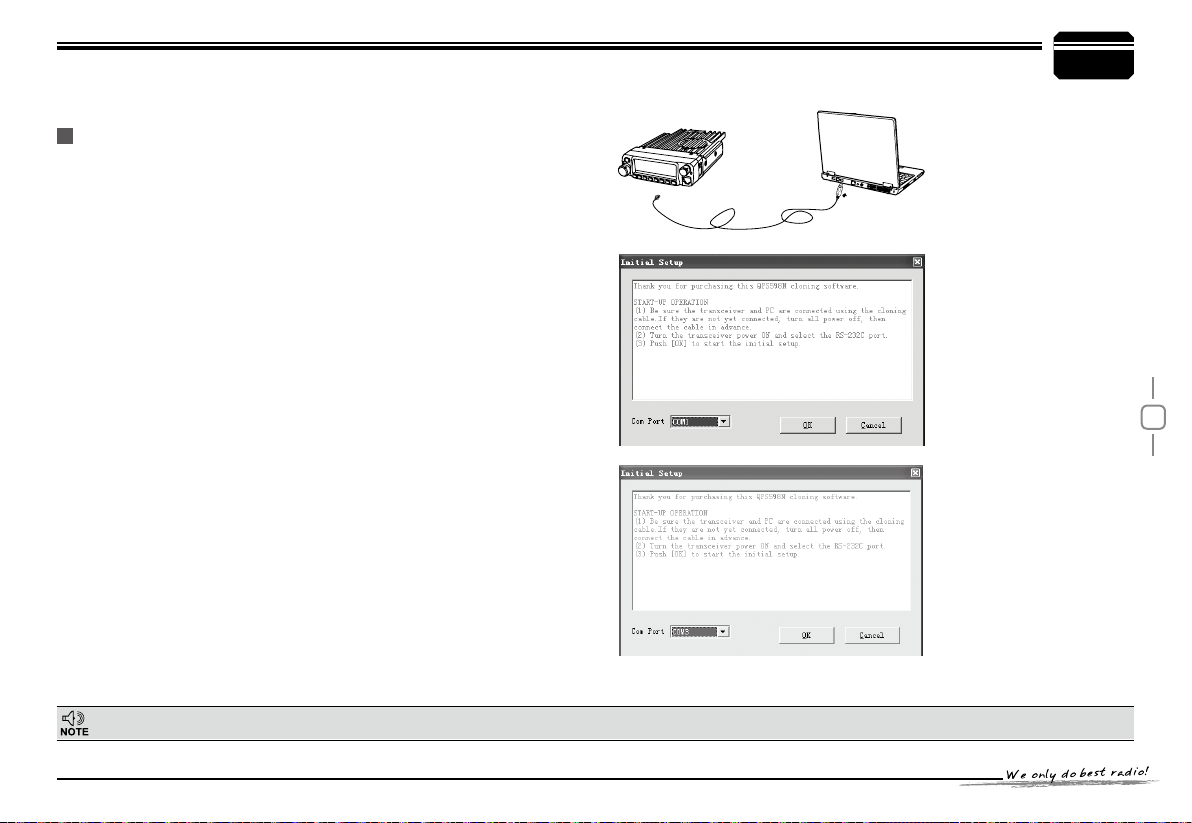

Programming Software Installing and Starting (in windows

XP system) ............................................................................33

Maintenance ..........................................................................34

Default Setting after Resetting(VHF) ...............................................34

Trouble Shooting ..............................................................................34

Specications .......................................................................35

Attached Chart

50 groups CTCSS Tone Frequency(Hz) ..........................................36

1024 groups DCS Code. ..................................................................36

......................................................................36

Page 5

New and Innovative Features

598 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:

Display on a large LCD with adjustable brightness, convenient for nighttime use.



operation mode for option.

Distribute buttons reasonably, convenient for operation. Adopt superior quality material, better technology and high quality radiator to ensure



stable and durable operation.

200 programmable memorized channels, identied by editing name.



Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.



Various scan functions including CTCSS/DCS Scan function.



Using

5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.



Automatic



Scramble function (Optional).



Compander function for decrease the background noise and



Theft alarm provides extra safety.



calling Identication function by DTMF--ANI or 5Tone--ANI .

enhance audio clarity, it can set compander ON/OFF per channel.

There are Amateur operation mode and Professional

Page 6

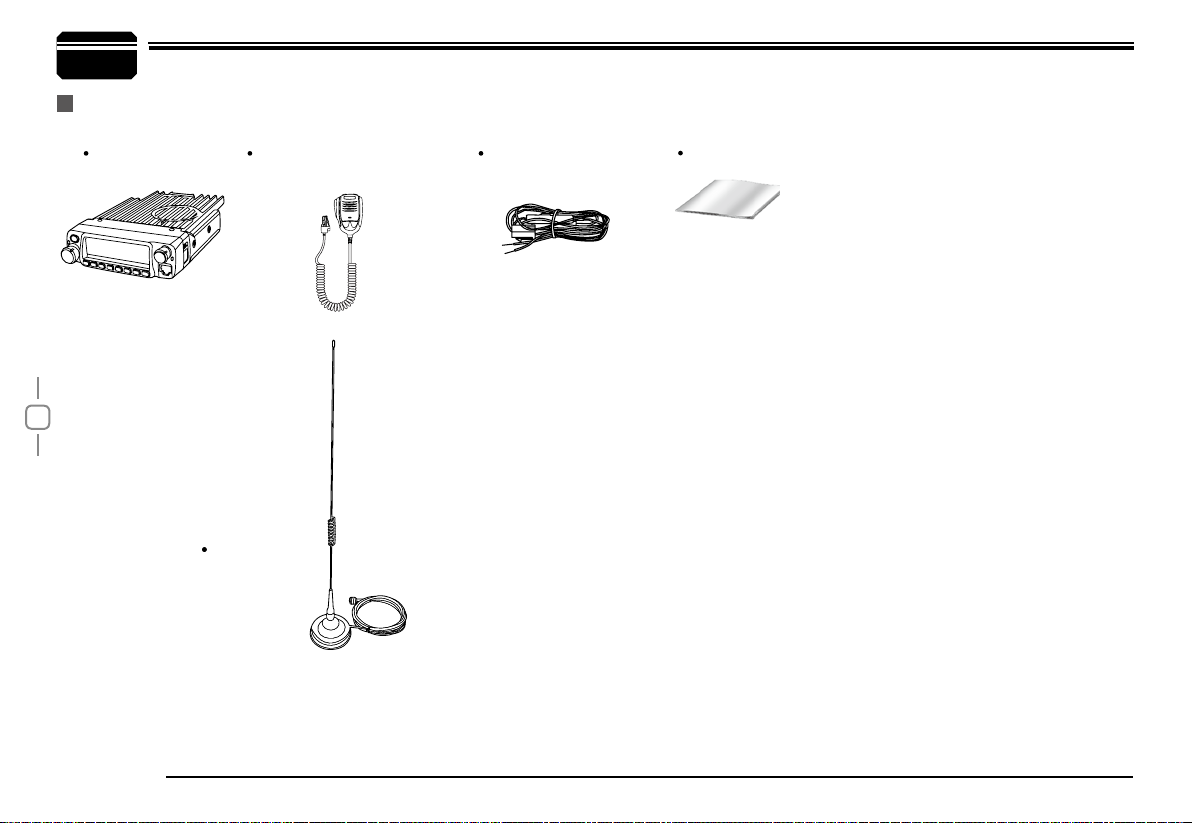

Supplied Accessories

After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.

Transceiver

F U

H z

TX/DCS

/ L

MINI

Mi c r opho n e (QHM - 0 3) (with DTMF keyboard)

Car Antenna

Car Antenna (QCA-01)

(QCA-01)

Antenna Gain:0dBi

DC Power Cable with Fuse Holder(QPL-01)

User Manual

Page 7

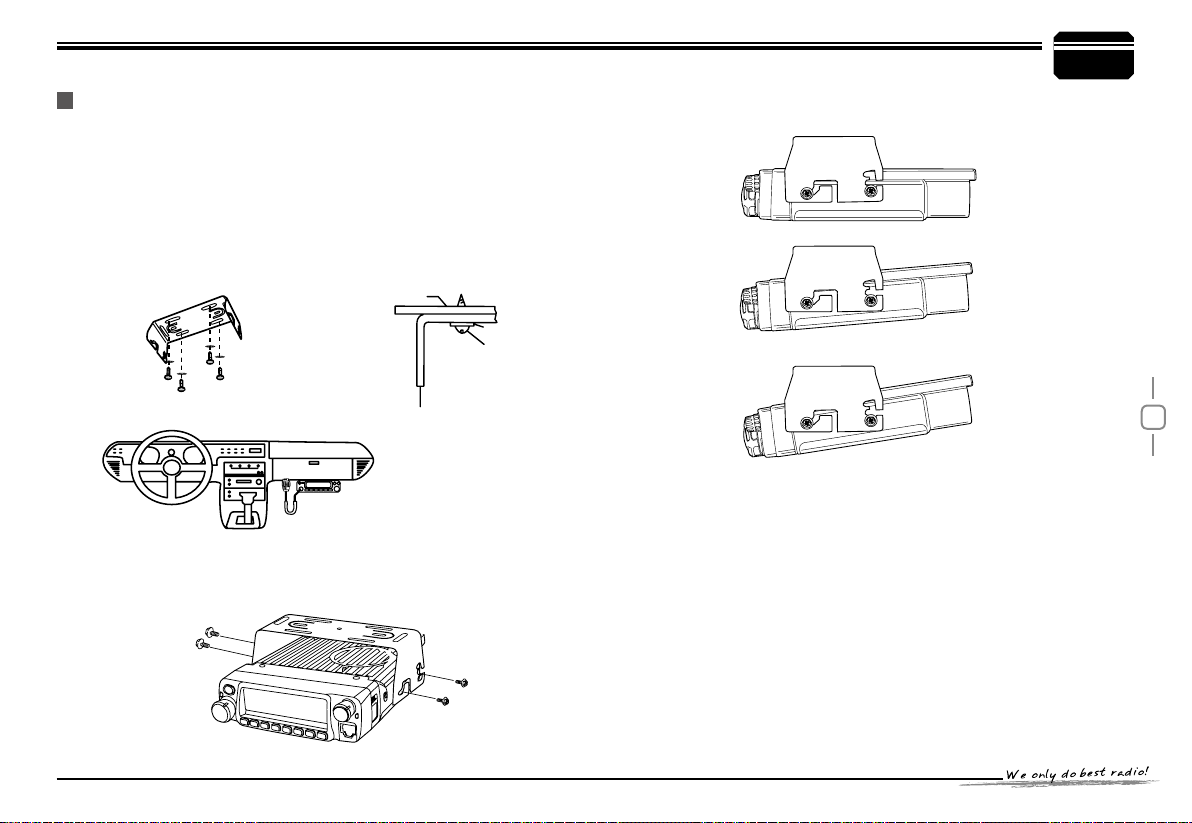

Mobile installation

To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs will not strike it during sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from direct sunlight.

Install the mounting bracket in the vehicle using the supplied self-

tapping screws (4pcs) and at washers (4pcs).

Car body

Washer (M5) Tapping screw (M5x20mm)

Initial Installation

Determine the appropriate angle of the transceiver, using the 3 screw



hole positions on the side of the mounting bracket.

Mounting bracket

Posit ion the tra nsceiver, then inse rt and tighte n the suppl ied

hexagon SEMS screws.

Double check that all screws are tightened to prevent vehicle



vibration from loosening the bracket or transceiver.

FUNC

V/M

TX/DCS

VOL

CAL

Page 8

Initial Installation

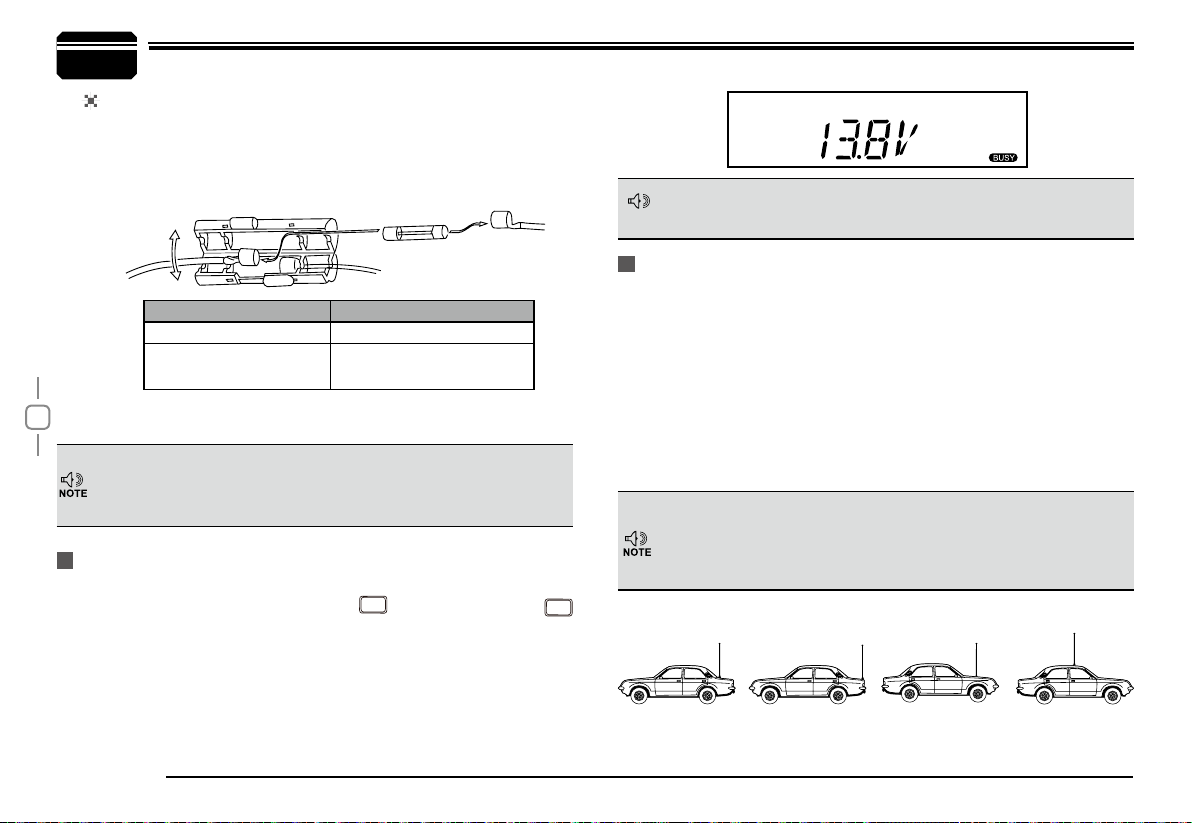

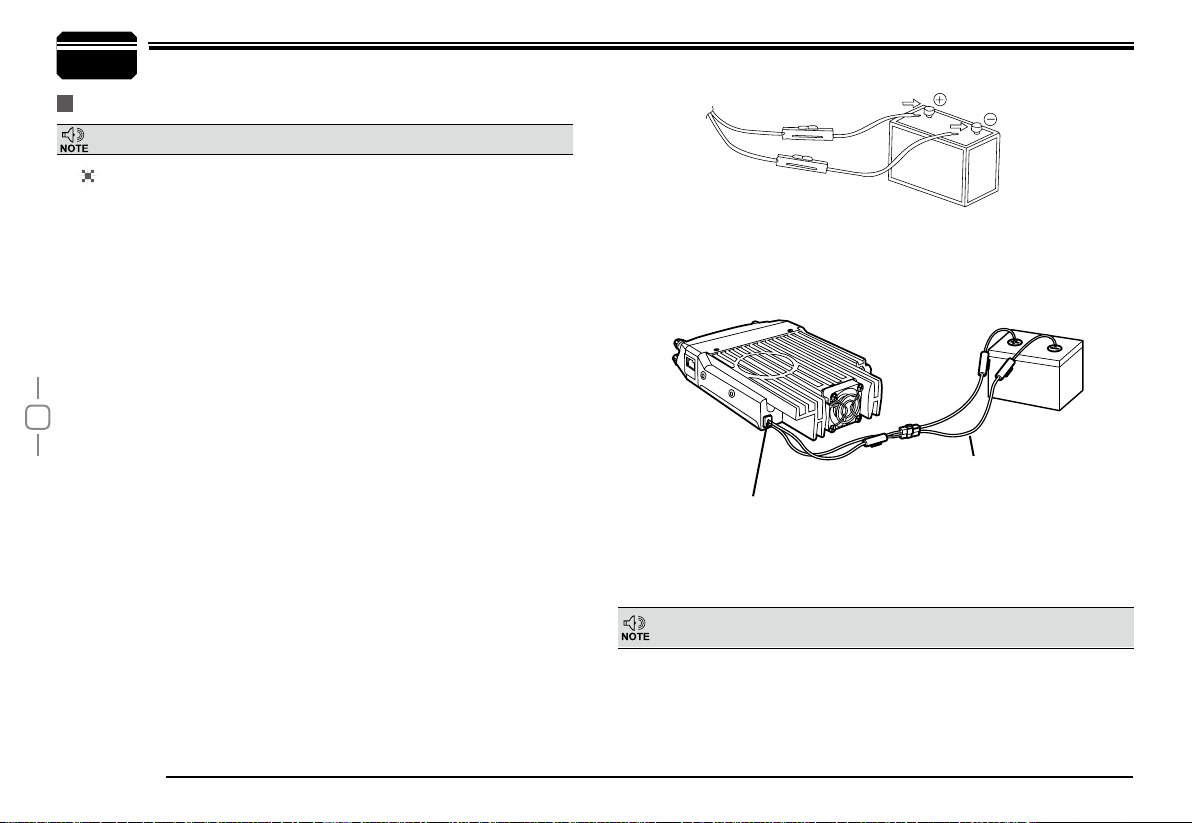

DC Power Cable Connection

Locate the power input connector as close to the transceiver as possible.

Mobile Operation

The veh ic le battery must have a nominal rating of 1 2V. Never connect the transceiver to a 24V battery. Be sure to use a 12V vehicle battery that has sufficient current capacity. If the current to the transceiver is insufficient, the display may darken during transmission, or transmitting output power may drop excessively.

Route the DC power cable supplied with the transceiver directly

to the vehicle's battery terminals using the shortest path from the transceiver.

We recommend you do not use the cigarette lighter socket as



cigarette lighter sockets introduce an unacceptable voltage drop.

The entire length of the cable must be dressed so it is isolated from



heat, moisture, and the engine secondary (high voltage) ignition system/ cables.

After installing cable, in order to avoid the risk of damp, please

use heat-resistant tap to tie together with fuse box. Don't forget to reinforce whole cable.

In or der to avo id the ri sk of shor t c irc uit , p leas e c ut dow n

connection with negative (-) of battery, then connect with radio.

Confirm the correct polarity of the connections, then attach the

power cable to the battery terminals; red connects to the positive (+) terminal and black connects to the negative (-) terminal.

Use the full length of the cable without cutting off excess even if



cable is longer than required. In particular, never remove the fuse holders from the cable.

Reconnect any wiring removed from the negative terminal.

some

the

Red

Black

Connect the DC power cable to the transceiver's power supply

connector.

Press



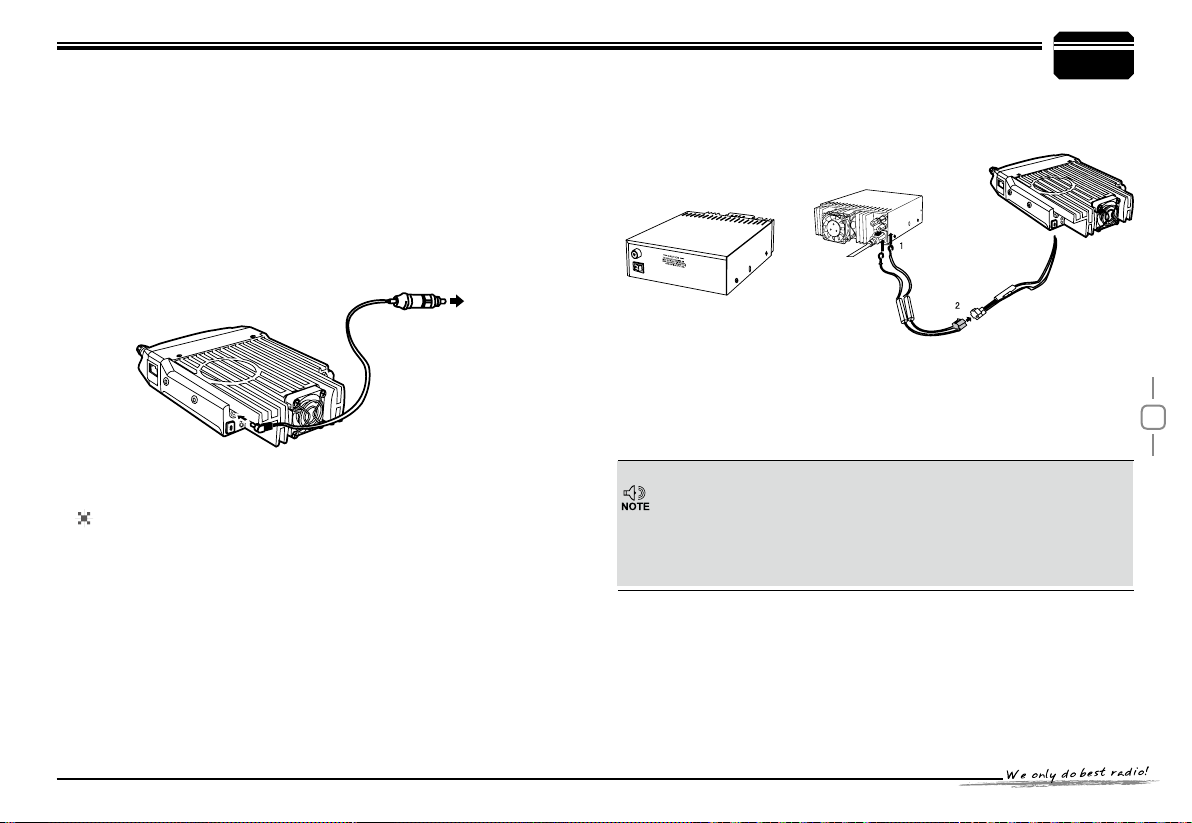

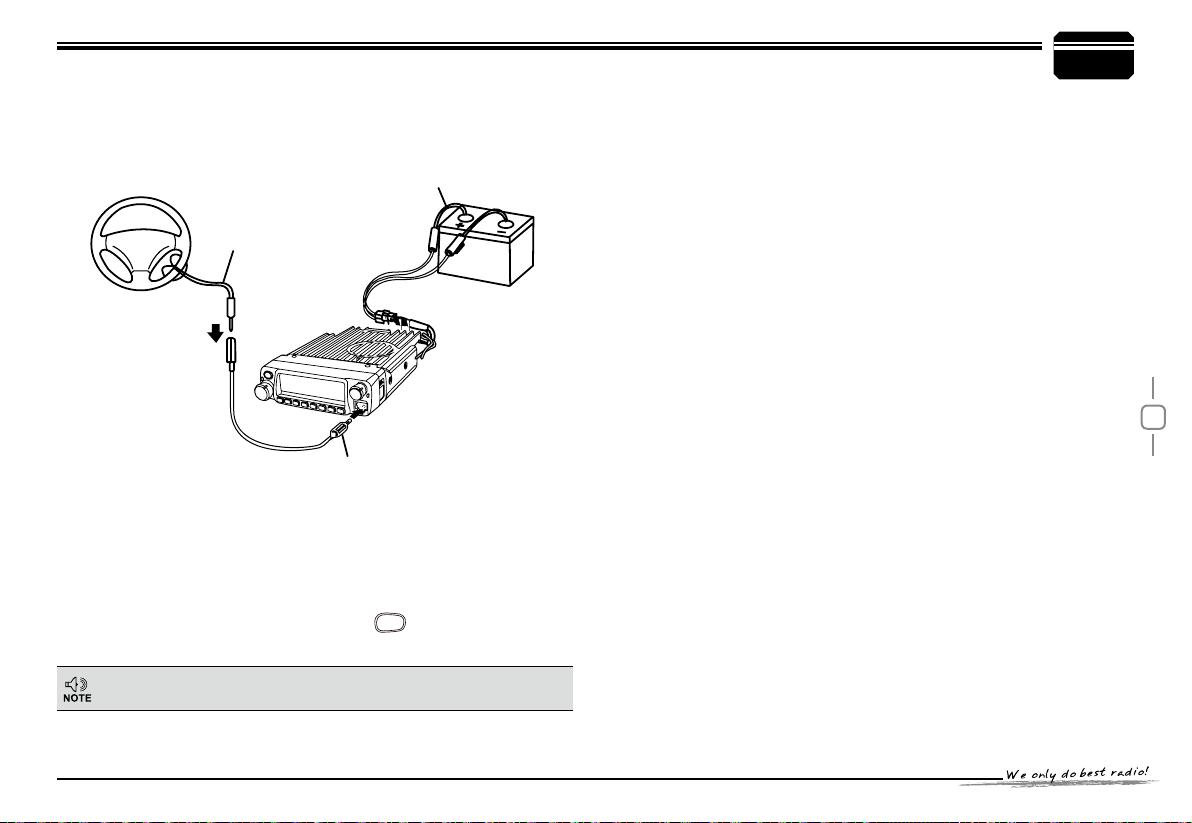

If the ignition-key on/off feature is desired(optional feature), use the

optional QCC-01(For Cigar-Plug connection) cable. Connect one of the cables between the ACC terminal or a Cigar-Plug that operates with the vehicle ignition or ACC switch on the vehicle and EXT

POWER jack on the rear side of the unit.

In many cars,the cigar-lighter plug is always powered. If this is the case, you cannot use it for the ignition key on/off function.

When the ignition key is turned to ACC or ON(Start) position with

the radio turned off, the power switch illuminates. The illumination will be turned off when the ignition key is turned to the off position.

the connectors rmly together until the locking tab clicks.

DC power cable

Ext. Power jack

Page 9

To turn on the unit, press the power switch manually while it is illuminated. (While ignition key is at ACC or ON position)

When the ignition key is turned to ACC or ON position with the

radio's power switch on, the unit turns on automatically and the power switch will be lit. Turn the ignition key to OFF position or manually turn the power switch off to shut down the radio.

Using extra cable, power consumption:5MAH.

Without this function, user can turn on/off radio by Power knob.

10.

ACC terminal

Cigar-Plug connection

Initial Installation

Use the supplied DC power cable to connect the transceiver to a



regulated power supply.

Do not substitute a cable with smaller gauge wires.



Regulated power supply (QRP-01)

Black

DC power cable with fuse holder (QPL-01)

Red

Ext. Power jack

Fixed Station Operation

In order to use this transceiver for fixed station operation, you will need a separate 13.8V DC power supply (not included), p ow er supply( QRP-01) as optional accessories. Please contact local dealer to require.

The recommended current capacity of your power supply is 12A.

Connect the DC power cable to the regulated DC power supply

and ensure that the polarities are correct. (Red: positive, Black: negative).

Do not directly connect the transceiver to an AC outlet.



Connect the transceiver's DC power connector to the connector

the DC power cable.

Press the connectors rmly together until the locking tab clicks



Before connecting the DC power to the transceiver, be sure to switch



the transceiver and the DC power supply OFF. Do not plug the DC power supply into an AC outlet until you make all



connections.



The EUT can be used on vehicle.

Page 10

Initial Installation

REPLACING FUSES

If the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your authorized dealer or an authorized servi-

mobile radio mobile radio

cecenter for assistance.

Fuse Location Fuse Current Rating

Transceiver 15A

Supplied Accessory DC

power cable

Only us e fuses of the specified type a nd rating, otherwise the

transceiver could be damaged.

If you use the transceiver for a long period when the vehicle battery is not fully charged, or when the engine is OFF, the battery may become

discharged, and will not have sufcient reserves to start the vehicle. Avoid

using the transceiver in these conditions.

20A

Power supply voltage Display

After connecting the transceiver to the power supply, the supply voltage can be displayed on LCD by pressing the key.

The display immediately changes as the voltage supply changes, It also displays voltage during transmission.

The transceiver will return to its normal operation when the power is switched ON or repeat above operation.

key together with the

SCAN

The range of displayed voltage is only from 7V to16V DC, because the displayed value is estimated, please use a voltmeter when a more precise

Important

reading is desired.

Antenna Connection

Before operating, install an efcient, well-tuned antenna. The success of

your installation will depend largely on the type of antenna and its correct installation. The transceiver can give excellent results if the antenna system and its installation are given careful attention.

Use a 50Ω imp edance antenna and low-loss coaxial feed-line that has a characteristic impedance of 50Ω, to match the transceiver input

impedance. Coupling the antenna to the transceiver via feed-lines having

an impedance other than 50Ω reduces the efficiency of the antenna

system and can cause i nterference to near by broadcast televi sion receivers, radio receivers, and other electronic equipment.

Transmitting without first connecting an antenna or other matched load may damage the transceiver. Always connect the antenna to the transceiver before transmitting.

All xed stations should be equipped with a lightning arrester to reduce the risk of re, electric shock, and transceiver damage.

The possible locations of antenna on a car are shown as following:

Page 11

Accessories Connections

External Speaker

If you plan to use an external speaker, choose a speaker with an

impedance of 8Ω. The external speaker jack accepts a 3.5mm (1/8")

mono (2-conductor) plug.

SP-01

Initial Installation

Microphone

For voice communications, connect a microphone equipped with an 8-pin modular plug into the modular socket on the front of the main

unit. Press rmly on the plug until the locking tab clicks. Attach the

supplied microphone hanger in an appropriate location using the screws included in the screw set.

Microphone

F U

L L

TX/DCS

H /

MIN

Antenna[QCA-02]

Mi cro pho ne connector

[QHM-04]

External speaker adopt double port BTL, please care about the connecting way. The speaker can not connect with the ground, otherwise the speaker

will be fault. The wrong connecting way as the following picture.

Error

SP-01

Ground

External speaker[SP-02]

PC Connecting

To utilize the optional QPS598 software, you must rst connect the

transceiver to your PC then using an optional programming cable PC50 (via Data socket ).

Please use QPS598 software for programming.

http://www.qxdz.cn

Page 12

Getting Acquainted

Front panel

Basic Functions

NO. KEY FUNCTION

Pow(Power) Power on/Off

VOL Adjust Volume Key

Main Dial

FUN/SET Function Key

V/M/MW

MHz/SHIFT Step Size Key ( step:1MHz)

TS/DCS/LOCK Sets CTCSS and DCS value

CAL

SQL/D Squelch off

Data Terminal

TX lights during Transmitting

Mic.connector Microphone connection port

V/M

Change frequency, memory channel and scan direction etc.

Switches between VFO mode and Channel mode

Call key

Data reading/writing, cloning and theft alarm functions

CALL

Press

key until icon appears then press the following

key.

NO. KEY FUNCTION

MIN

CAL

/DCS

FUN/SET Conrms the selective functions and exit

V/M/MW Stores data into channels

MHz/SHIFT Sets offset direction and offset frequency

TS/DCS/LOCK Sets Keypad lock function

CAL

SQL/D Compander mode on/off

Press

k ey and fo llo wing ke y together to act iva te

power

following function:

NO. KEY FUNCTION

Pow(Power)

V/M/MW Erase the memory TS/DCS/LOCK Auto dialer

CAL

SQL/D Enters power supply voltage indication mode

Reset to factory default settings

Enters clone data function mode

Functions that require continuous pressing following key to be activated

NO. KEY FUNCTION

FUN/SET

SQL/D Monitor mode

Press and hold for 2s to enter the Setting mode

Page 13

Rear panel

NO. KEY FUNCTION

Terminal for connecting optional cable QCC01 for

Ex t . Pow e r

Jack

use with ignition key On/Off function. The radio will auto power on when car is driving. The radio will auto power off when car stops.

Ext.Speaker

Terminal Antenna

Connector

Terminal for optional external speaker SP01

Connection for 50Ω coaxial cable and antenna.

DISPLAY

13 13

4 132

Getting Acquainted

NO. KEY FUNCTION

SQL

Decimal point

DCS

Squelch level.

In channel mode.

Indicates the channel number in channel mode.

Channel skip.

Indicates the decimal point of frequency and the scanning function.

Indicates the frequency or memory name.

Signal is being received or monitor.

Signal strength of receiving and transmitting.

Compander.

Keypad lock .

Set DCS function.

Set CTCSS function.

Offset frequency direction.

Scramble.

Auto power off.

Page 14

Getting Acquainted

microphone

Channel Down Channel UP

PTT

Connector

Mic

MIC Connector Diagram(in the front view of connector)

Key Pad Serial Data

+5V

DOWN

MIC GND

MIC

PTT

GND

Microphone

cable

Page 15

WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)

According to practical application, you can set the radio works as Amateur Transceiver mode or Professional Transceiver mode. There are also 2 levels operation menu to set functions as you need. It is easy and convenient (From No.1 to No.15 are channel function setup, From No.15 to No.29 are general setting setup).

Working Mode:

By programming software: A. In PC software's "General Setting" menu, choose "Display Mode" to select Amateur Transceiver mode or Professional Transceiver mode.

. : Please refer to "Display Mode" in Page 25.

By manual setupB

Amateur Transceiver Mode:

considered as Amateur transceiver mode. Under this mode, press

V/M

key to switch between Channel mode and VFO mode .

Frequency + Channel modeA. : When set display as "FR", it ent e r s in to Freq u e n c y + Channel m o d e , new se t t i ng of ch a n n el operation and shortcut operation can be temporarily used by user. Once the radi o is turned off or s witched to another channel, the temporary setting will be erased and back to initial settings.(As pic 1)

. : When set display as "NM", it enters

Channel+Name Tag ModeB

into Channel+Name Tag m ode. At this mode, it will display corresponding channel name when the current channel is edited with na m e . Othe r w i s e, it wi ll di s p l ay frequ ency+channe l. Its oper ations are the same as frequency + channel mode.(As pic 2)

Except setting as "CH" mode, others

(Pic 1)

(Pic 2)

VFO Mode(Frequency mode)C. : This mode shows only frequency on the display. Shortcut operation and Channel setting will be changed & stored as the latest value permanently. Once the radio is turned off or changed to new VFO frequency, the latest setting is remained until next change.(As pic 3)

Professional Transceiver Mode:

set displa y mode as "CH", i t enters into Professional Transceiver mode.At this mode, except scan, other shortcut operation can't operate. And from No.117 menu in funct ion se tting will be auto-hidden, they should be set by PC software.If there is corresponding name for current channel, the LCD will display curren t chann el name Otherw ise, it shows current channel number. (As pic 4) (As pic 5)

If transceiver programmed as professional transceiver mode and locked, you can't return to amateur transceiver mode by manual operation from general setting.

Under every mode, from No.18-29 menu in

changed and saved.

When

(Pic 3)

(Pic 4)

(Pic 5)

general setting can be

Page 16

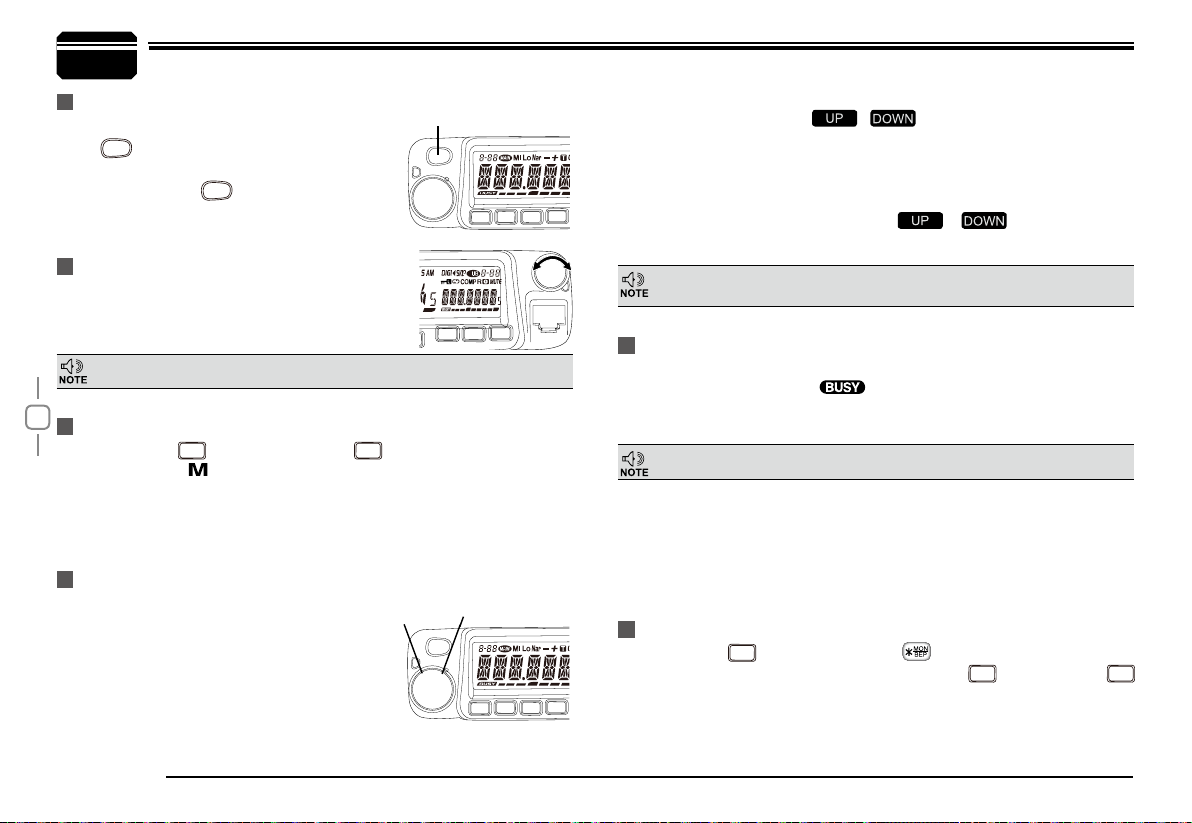

Basic Operations

Switching The Power On/Off

According to the option selected during installation

Press

the switch or turn the ignition key to

ACC (speed up) or ON (startup) position to power

on radio. Press the

key for 1s or turn the

ignition key to OFF position to turn off.

Adjusting The Volume

Turn the VOL knob clockwise to increase the audio level, counterclockwise to decrease.

During communication, volume can be adjusted more accurate.

Switch between VFO and Channel mode

In standby, press

V/M

key or Microphone's

MINI

key until appear , this indicate s current chan nel i n cha nnel mode. R epeat abov e operation to switch between Frequency mode (VFO) and Channel mode.

Adjusting Frequency/Channel THROUGH SELECTOR KNOB

Under frequency (VFO) mode, you can

change the current frequency to the desired one through selector knob; Turn clockwise to increase frequency; turn counterclockwise to decrease. E very ge ar will in cre ase or dec reas e o ne step. Press key, the decimal point of

Frequency

decrease

PWR KEY

CAL

DCS

Frequency

increase

Dial

SC AN

frequency in screen will be auto-hidden. In this status, turn selector knob or Microphone [ / ] key will increase or decrease frequency quickly by 1MHz step.

Under channel mode, you can change the current channel to the

desired one through selector knob, clockwise turn to the forward

Volume

MIN

CA LL

Min

Max

Volume

FUNC

channel, anticlockwise turn to the backward channel. In relative working mode, Microphone's [ / ] key has same

function for adjusting frequency and channel.

5k, 6.25k, 8.33K,10k, 12.5k, total available for this radio.

five step si ze

Receiving

Wh en t he chan nel you are ope rat ing is called, the screen shows and field intensity, in this way, you can hear the calling from transmitting party.

If the transceiver has set at higher squelch level, it may fail to hear the calling.

When the channel you are operating is called, the screen shows BUSY and field intensity, you can't hear the calling from transmitting party, it means current channel receives a matching carrier but unmatching signaling(Refer to CTCSS/DCS encode and decode or Optional Signaling setup).

Transmitting

Press and hold conrm the channel desired is not busy. Release

FUNC

MHz

V/M

CA LL

key to return standby status, then press and hold [PTT] key to speak into microphone.

key or press MIC's key to monitor for a while to

SCAN

or press Mic's

Page 17

Please hold the microphone approximately 2.5-5.0cm from your lips



and then speak into the microphone in your normal speaking voice to get best timbre.

Press and hold [PTT] key, LED lights RED and power intensity showed in screen indicates it is transmitting, release to receive.

Transmitting Tone-Pulse

Press and hold [PTT] key, then press Microphone [ ] key to transmit current selected tone-pulse signal.

Transmitting OPTIONAL SIGNALING

Press and hold [PTT] key, then press Microphone key or press

key in front panel or press Mic's

MINI

key to transmit pre-stored and

selected DTMF/2Tone/5Tone optional signaling.

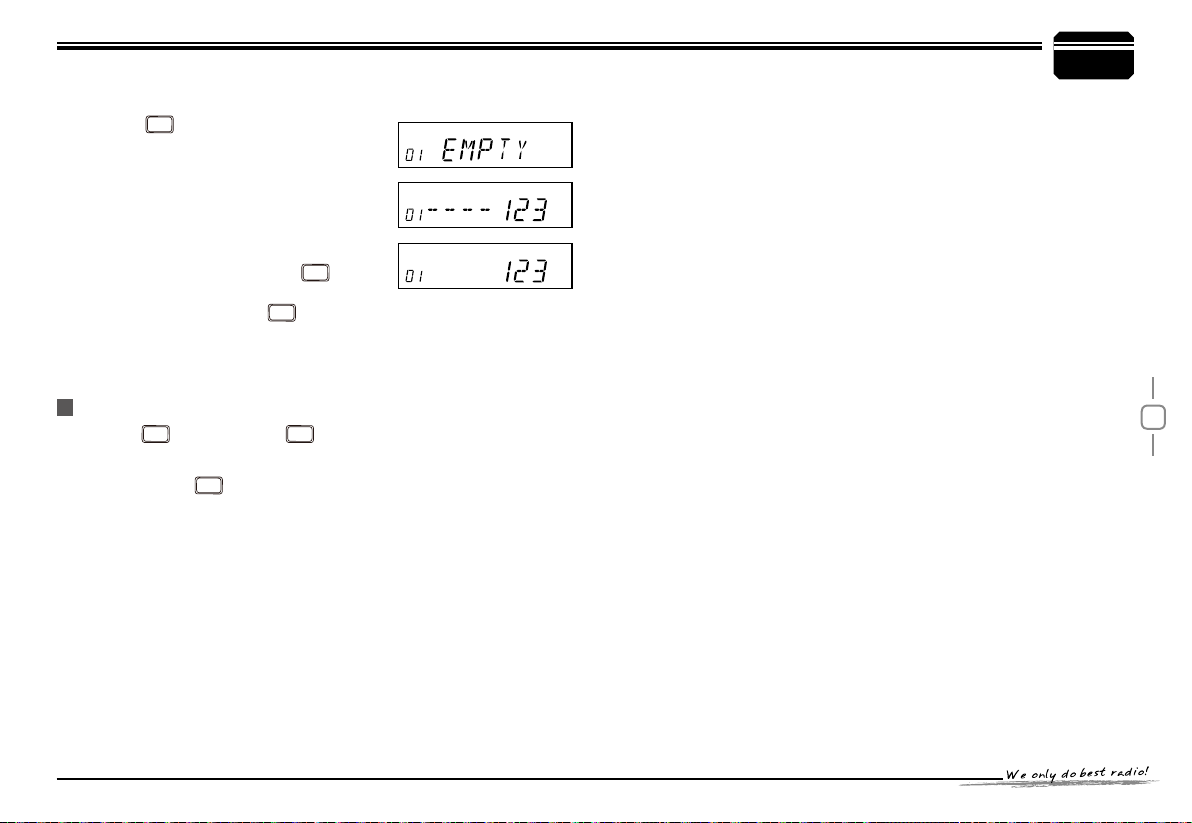

Channel Edit

Unde r fre quenc y mod e (VFO) , tur n

sele ctor knob to sele ct the des ired frequency or input frequency by MIC's numeric keys.

TX/

Press

signaling setup, turn selector knob to select the desired signaling.

Press

icon and current channel number,

icon ashing means current channel is

empty.

Turn selector knob to select the desired channel number to store.

Press

emit a prompt voice, thus the channel storage succeed.

key to enter CTCSS/DCS

key, LCD appears ,

V/M

key, , icon and channel number disappears and

Basic Operations

Channel Delete

Under channel mode, turn selector knob to select channel which

you want to delete.

Press

key and

V/M

key together, current c ha nnel will b e

deleted and emitted a prompt voice. icon ashing means current channel is deleted.

Page 18

Shortcut Operations

squelch off/squelch off momeNTARY

SCAN

key programmed as Squelch Off or Squelch Off Momentary to

monitor the weak signal.

Squelch Off: Press

key to disable squelch, press

key again

SCAN

to resume squelch.

Squelch Off Momentary: Press and hold

squelch, release

key to resume squelch.

key to disab le

The above functions should be set in programme software.

Squelch level Setup

Setting the radio to a tight squelch level, you can avoid unwanted signals or noise, but you may not receive a weak signal. Therefore, it will be

better for you to select the normal squelch level.

While standby, press

SCAN

key and turn selector knob until LCD appears and current squelch level.

Turn selector knob or press MIC [

/ ] key to set desired squelch level.

Press any key except

and

key

to exit.

Frequency/Channel Scan

Frequency Scan

In frequency (VFO) mode, this function is designed to monitor signal of every communicative frequency point of transceiver "step size" you have set.

In VFO mode, press

V/M

for 1s to enter

into frequency scan.

Turn selector knob or press Microphone

[ / ] key to change scan direction.

Press any key except

and

key to exit.

Channel Scan

In channel mode, this function is designed to monitor signal in every channel.

In channel mode, Press

Turn selector knob or press Microphone

V/M

key for 1s to enter into channel scan.

[ / ] key to change scan direction.

Press any key except

and

key

to exit.

CTCSS/DCS Encode and Decode setup

TX/DC

Repeatedly press and decode in current channel or not.

When LCD appears

encode, turn selector knob or press Microphone's [ ] key to select desired CTCSS encode.

When LCD appears

it means current channel with CTCSS encode and decode, turn selector knob or press Microphone's [ / ] to select desired CTCSS code.

key to check whether set CTCSS/DCS encode

icon, it means current channel with CTCSS

and

ic on,

Page 19

When LCD appears

icon, it means current channe can be s et with DCS encode and decode together, tu r n selector knob or press Microphone's [

/ ] to select

desired DCS encode and decode.

CTCSS:62.5-254.1, Total 51groups; DCS:000N-777I total 1024

groups. N is positive code, I is inverse code.

Press any key except

and

ke ys to retur n into

standby status.

Under channel mode, this operation can be temporarily used by user. Once the radio is turned off or switched to another channel, the temporary setting will be erased.

Shortcut Operations

Compander (Decrease the background noise and ENHANCE AUDIO CLARITY)

Compander function will decrease the background noise and enhance audio clarity, especially in long range communication.

Press

key, then press turn o n compander f unction, repeat abo v e op e r ation ag a i n to turn off compander function.

When LCD appears

compander in current channel.

When LCD doesn't display

channel.

SCAN

key to

icon, enable

icon, disable compander in current

CTCSS SCAN

TX/DC

Repeatedly press

and icons, then hold

key until LCD displays

TX/DC

key for 1S

to enter into CTCSS scanning. Once nding

a matching CTCSS signaling, it will stop for 15s then scan again.

DCS SCAN

TX/

Repeatedly press DCS icons, then hold

into DCS scanning. Once nding a matching

DCS signaling, it will stop for 15s then scan again.

key until LCD displays

TX/DCS

key for 1S to enter

Page 20

Shortcut Operations

Offset Direction and offset frequency setup

Repeater receives a signal(UP-LINK) on one frequency and re-transmits on another frequency(DOWN-LINK). The difference between these two frequencies is called the offset frequency. If the UP-LINK frequency higher than DOWN-LINK frequency, the direction is positive, If it is lower, the shift direction is negative.

key until the icon displays

MHz

key, LCD

k e y to selec t

/ ] key to change offset

and

key to exit into standby.

Under channel mode, this operation can be temporarily used by user. Once the radio is turned off or switched to another channel, the temporary setting will be erased.

Press

on the LCD, then press dis p l a y s offset d i r e c t i o n and off s e t frequency.

Repeatedly press

positive offset and negative offset.

When LCD displays " " icon, it indicates

positive offset, which means transmitting f r e q u e nc y h i gh er t ha n r e ce iv in g frequency.

When LCD displays " " icon, it indicates negative offset, which

means transmitting frequency lower than receiving frequency.

Turn selector knob or Mic's [

frequency, offset frequency changed as per stepping.

Press any key except

KEYPAD LOCKOUT

Avoiding unintentional operation, this function will lock main keys, all keys except

Press

then press

ico n, it i ndicate s keypa d loc ko ut

function is valid.

Repeat above operation,

lockout function is invalid.

SCAN

key until LCD displays icon,

and

key are invalid.

key until, LCD displays

icon disappears, it indicates keypad

Current Voltage ENQUIRY

This function will display Current Battery Voltage.

Press and hold

key, then press

SCAN

key, LCD displays current battery voltage.

Repeat above operation to return into

VFO or Channel mode.

In voltage display mode, all functions and channel or frequency selection are invalid.

Auto-Dialer Setup

This will automatically tran smit pre-p rogra mmed and stored DTMF tones. And they are often used to remote control electronic devices or AUTOPATCH phone systems available on some repeater.

Press and hold

key, then press enquiry mode, LCD displays current default data and current group displayed on left. If no data in current group, it shows "EMPTY".

Turn selector knob to choose group you desired. Total:16 group,

TX/DC

key to enter the auto-dialer

Page 21

01-16.

Press

key to enter into editing of

SCAN

curren t group , press M IC's nume ric keys to set your desired data.

The display scrolls when the 7th digit

is entered. The numbers 0-9, --, A-D, * and # can be stored up to a total of 23 digits.

After editing, press PTT or

key to sen d curre nt group and store edited DTMF signaling. Press

SCAN

to exit and

store.

Shortcut Operations

Transmitting Edited DTMF tones in the Auto-dialer memory

Press

Turn selector knob to select desired transmitting group

Press PTT or

key, then press

SCAN

key to transmit current selected DTMF tones.

TX/D

key to enter into auto-dialer enquiry

Page 22

General Setting

Press and hold

Press

Turn selector knob to select the desired setup.

TX/DCS

Press

key for over 2s to enter general setting menu.

SCAN

to select the desired function option.

to conrm and exit.

Meanwhile, if you want to edit channel name or start up menu, press

V/M

to move forward or backward, Press

MHz

to store and exit.

In Profession transceiver mode, the functions from No.1 to No.17 will be auto-hidden.

Frequency Channel Step Setup

Only in frequency (VFO) mode, this function is valid. Turn selector knob to select frequency or frequency scanning which is restricted by frequency step size.

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.01 menu, LCD displays "STP--

125".

Turn selector knob to select the desired

frequency channel step. Channel step: 5K, 6.25K, 8.33K, 10K,

12.5K

TX/

Press

key to conrm and exit.

This function is auto-hidden in channel mode.

DTMF, DTMF ANI, 2Tone or 5Tone Signaling

DTMF/5Tone/2Tone signalling function as similarily as CTCSS/DCS. Without receiving correspondent tone signalling, the speaker will remain mute. DTMF and 5Tone signalling can be applied for other advanced

features such as ANI, PTT ID, group call, remotely stun, remotely kill, waken,...etc.. The signalling edition must be done through programming software. Please refer to the HELP option in the programming software to know how to operate these features.

Press and hold

enter into general setting menu.

Press

key for over 2s to

to choose No.2 menu,

LCD displays "T-OFF".

Turn selector knob to

DTMF": The channel wil l be mute by a DTMF s ignal. The



select the desired setup.

speaker won’t be open until receiving a correspondent DTMF signal. Hold "PTT" then press [UP] or press

transmit the pre-stored DTMF signaling.

In DTMF signaling mode,press

for 2s until LCD displays

"AN---", turn selector knob to select desired digit (the other party

TX/

ID).In this mode, press to next, press

V/M

to conrm exist digit and move cursor

to forward cursor.After editing, press

to operate ANI call.

2TONE": The channel will be mute



by a 2-Tone signa l. The spe ake r won’t be op e n un t i l re ceiving a correspondent 2-Tone signal. Hold

"PTT" then press [UP] or press

directly to transmit the pre-store d 2-Tone signaling.

5Tone": The channel will be mute



by a 5-Tone signal. The Speaker won’t be open until receiving a correspondent 5-Tone signal. Hold "PTT" then press [UP] or

directly to

key

Page 23

Press

In 5Tone signaling mode, press

directly to transmit the pre-stored 5-Tone signaling.

for 2s until LCD displays

"AN---", turn selector knob to select desired digit(caller ID). In

TX/DC

this mode, press next, press

V/M

to confirm exist digit and move cursor to

to forward cursor.After editing, press

key to

operate ANI call.

Press

key to conrm and exit.

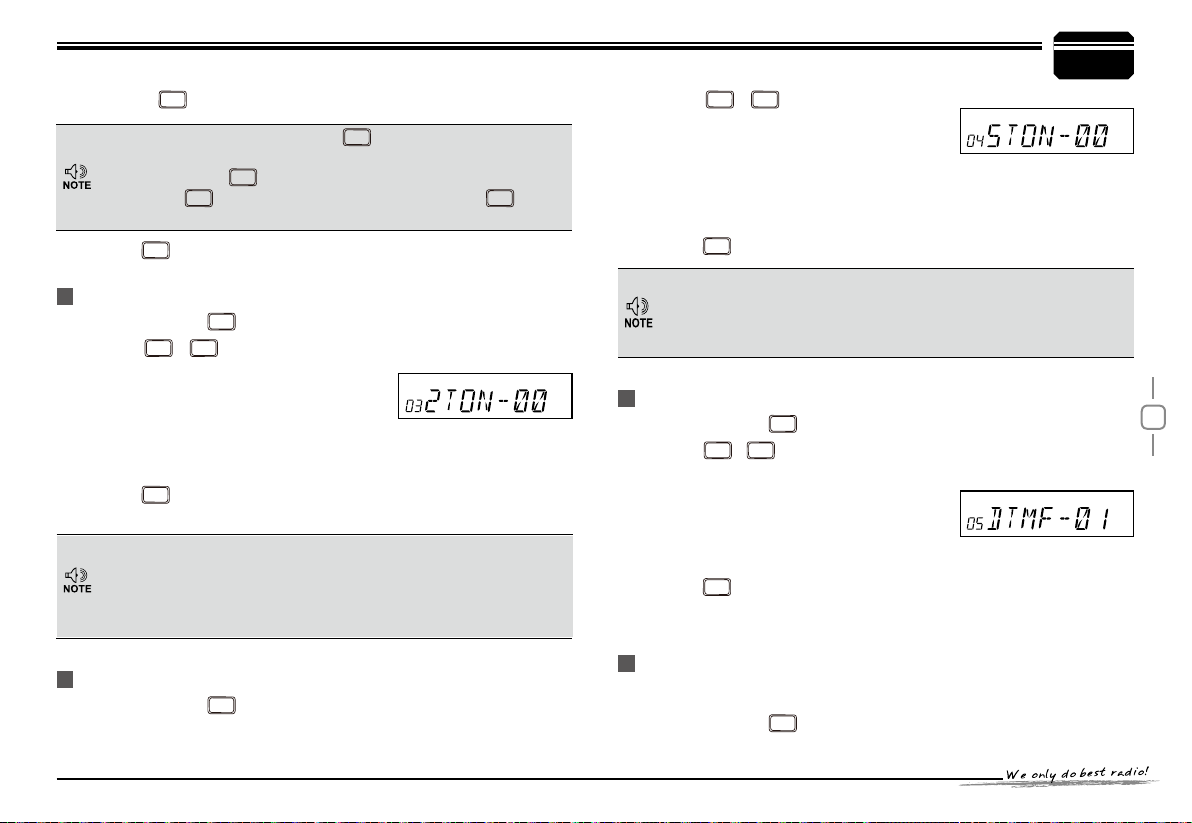

Sending 2-Tone Call

Press and hold

Press

menu, LCD displays "2TON XX", "XX" indicates the group in the list.

Turn selector knob to select the desired

sending 2TONE group, Press PTT to transmit selected group.

Total: 32groups, 00-31, Default: 00.

DCS

Press

Content and name of 2TON E will be ed ited by programming software. This ra d i o on l y query ed i t e d gr o u p or name. I f th e r e is corresponding name for 2TONE, this operation will display 2TONE corresponding name.

key for over 2s to enter general setting menu.

SCAN

key to choose No.03

key to conrm and exit.

General Setting

SCAN

Press

key to choose No.04

menu, LCD displays "5TON XX", "XX" indicates the group in the list.

Turn selector knob to select the desired sending 5TONE group,

Press PTT to transmit selected group.

Total:100groups, 00-99, Default:00.

TX/

Press

key to conrm and exit.

Content and name of 5TONE will be edited by programming software. This radio only query edited group or name. If there is corresponding name for 5TONE, this operation will display 5TONE corresponding name.

Sending DTMF call

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.05 menu, LCD displays "DTMF

XX", "XX" indicates the group in the list.

Turn selector knob to select the desired

sending DTMF group, Press PTT t o transmit selected group.

Total: 16groups, 00-16, Default: 00.

TX/DC

Press

key to conrm and exit.

Signaling Combination setup

Sending 5-Tone Call

Press and hold

key for over 2s to enter general setting menu

This function is to improve the level of protecting the radio against

receiving irrelative signal.

Press and hold

key for over 2s to enter general setting menu.

Page 24

General Setting

SCAN

Press

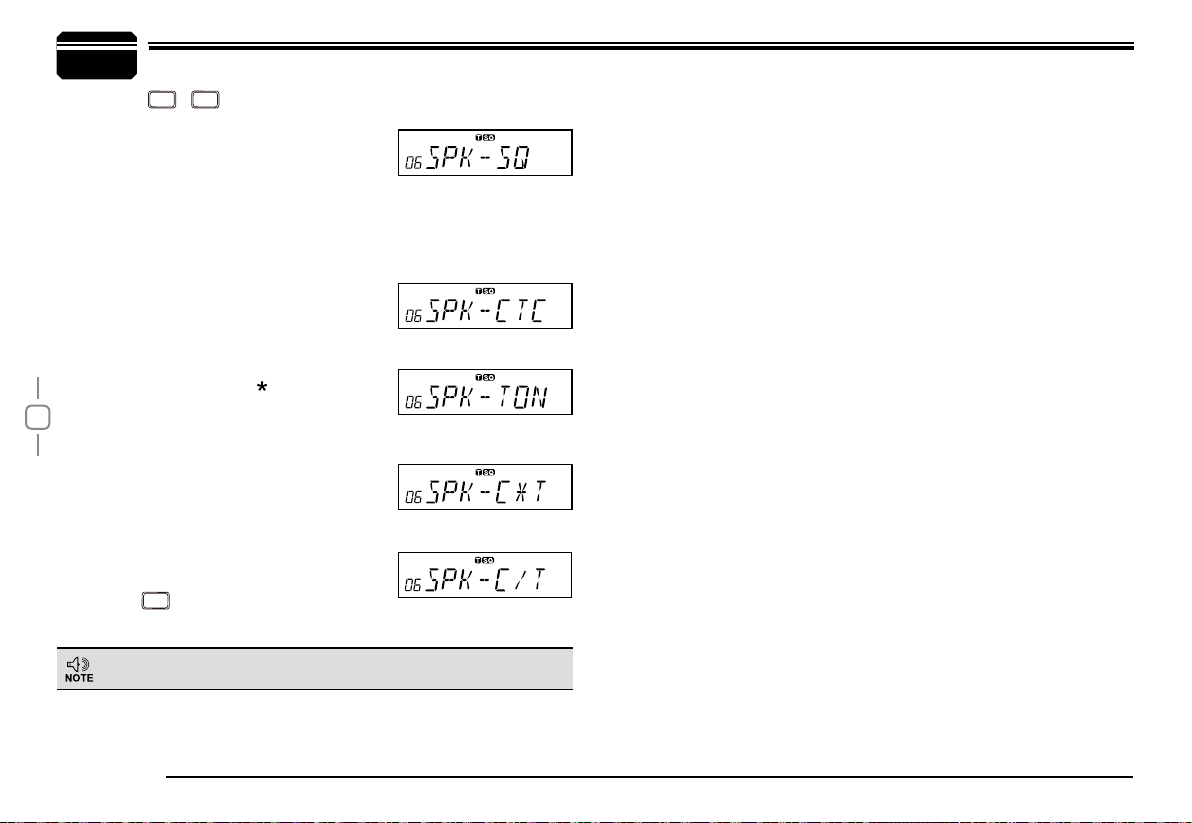

menu, LCD displays "SPK--SQ".

Turn selector knob to select the desired

combination.

If select "SQ", it indicates you can hear the calling from caller when receive a matching carrier.



Press

key to choose No.06

If LCD displays " from caller when receive a matching carrier and CTCSS/DCS signaling.

If LCD displays " you can hear the calling from caller when receive a matching carrier and DTMF/2TONE/5TONE signaling.

If LCD displays " y o u c a n he a r th e cal l i n g fr o m cal l e r wh e n receiv e a ma t ching c a rr ie r a nd C T CS S/ D CS a n d DTMF/2TONE/5TONE signaling.

If LCD displays " y o u c a n he a r th e cal l i n g fr o m cal l e r when rec e i v e a match i n g carrier and either CTCSS/DCS and DTMF/2TONE/5TONE signaling.

TX/

key to conrm and exit.

CTC", it indicates you can hear the calling

TON", it indicates

C T", it indicates

C/T", it indic at es

This setting will be set together with adding optional signaling and CTCSS/DCS.

Page 25

TX OFF SETUP

Disable this function, it is invalid to press PTT, current channel only works in RX mode.

Press and hold

Press

ON".

Turn selector knob to select the desired

setting.

ON: In current channel, Press PTT to transmit.

OFF: In current channel, Press PTT is invalid.

TX/DC

Press

Busy Channel Lockout

BCLO is to disable transmitting while RX signal is received. Once the channel is busy and you press PTT, the radio will beep as warning and get back to receiving.

Press and hold

Press

-OFF".

Turn selector knob to select the desired setting.



BU: Enable current channel receives a matching carrier; press [PTT] to emit error voice prompt and back to receiving status.

key for over 2s to enter general setting menu.

key to choose No.09 menu, LCD displays "TX-

key to conrm and exit. Default:ON.

key for over 2s to enter general setting menu.

SCAN

key to choose No.10 menu, LCD displays "LOCK-

BCLO, Carrier lockout, transmitting is inhibited when

RL: Enable



General Setting

BTLO, transmitting is inhibited when current channel

receives a matching carrier but dismatching CTCSS/DCS. Press [PTT] to emit error voice prompt and back to receiving status.

OFF:

Busy channel lockout is disabled.



It can transmit in any receiving status.

Press

key to conrm and exit.

Editing Channel NAME

Press and hold

key for over 2s to

enter general setting menu.

SCAN

Press

key to choose No.11

m e n u , LC D di s p l a y s cu r s o r an d

ashing.

Turn selector knob to select the desired letter, press

confirm selected letter and enter into next edition, Press

TX/DCS

key to

V/M

return forward edition.

TX/

After edition, press

key to exit.

In Frequency (VFO) mode, this function will be auto-hidden.

Reverse TX/RX

TX frequency turns to RX frequency & RX frequency changes to TX frequency. The signaling will also be reversed if CTCSS/DCS signaling exited in this channel.

Press and hold

key for over 2s to enter general setting menu

Page 26

General Setting

SCAN

Press

key to choose No.12

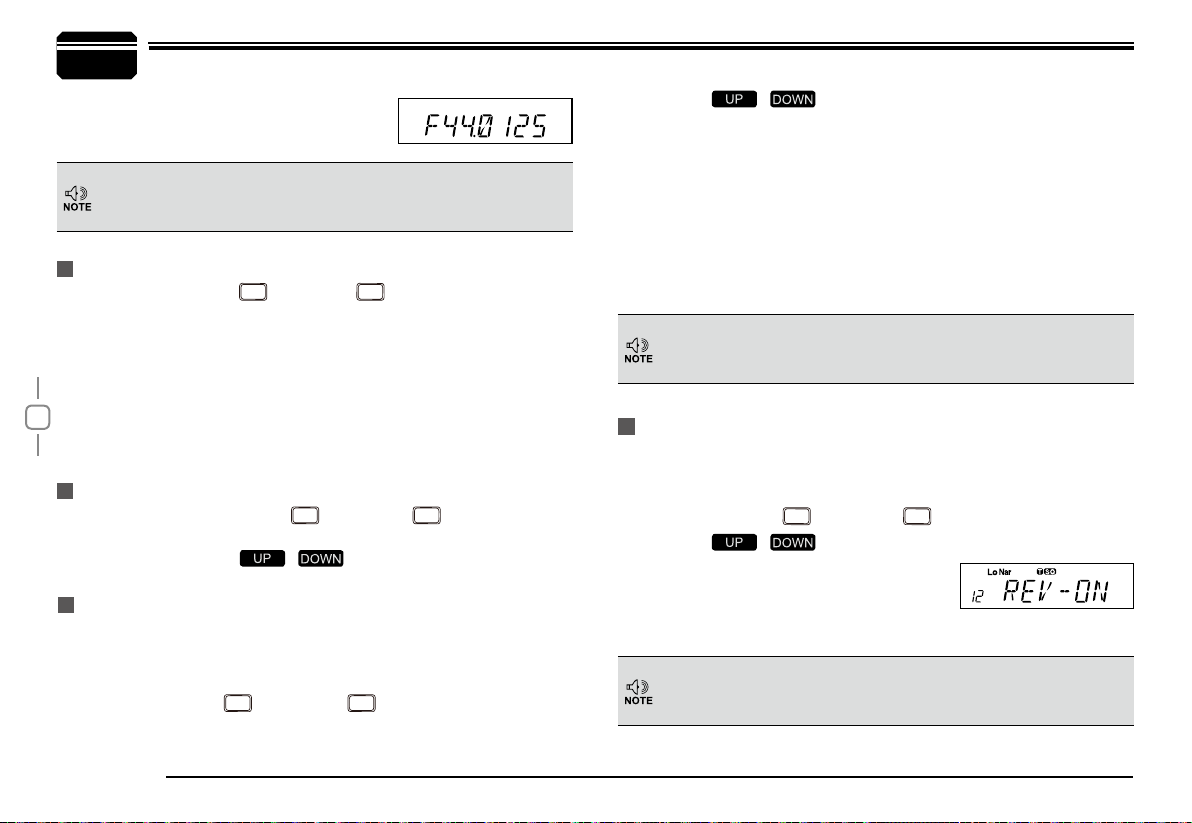

menu, LCD displays "REV—OF".

Turn selector knob to select the desired

setting.

ON: Enable Frequency Reverse

OFF: Disable Frequency Reverse.

After edition, press

key to exit.

SCAN

Press

key to choose No.14 menu, LCD displays "COMP-

-OF".

Turn selector knob to select the desired

setting.

ON: Enable compander

OFF: Disable compander

Press

key to conrm and exit. Default:OFF

Talk Around

By Talk Around function, you can directly communicate with other radios in your group in case the repeater is not activated or when you are out of the repeater range. The transceiver will transmit by RX frequency with its CTCSS/DCS signaling.

key for over 2s to enter general setting menu.

SCAN

k ey to cho ose No .13 menu, LCD di spl ays

Press and hold

Press

"TALK—OF".

Turn selector knob to select the

desired setting.

ON: Enable Talk Around

OFF: Disable Talk Around

After edition, press

/DCS

key to exit.

Voice Compander

Enable this function to reduce background noise and enhance audio

clarity, especially in long range communication.

Press and hold

key for over 2s to enter general setting menu

Scrambler setup (Encryption)

An analog voice inversion scrambler can be equipped as optionals. This special audio process can offer a more confidential communication. Other radios at same frequency will receive only disordered noises.

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.15 menu, LCD displays "SCR--

OF".

Turn selector knob to select the desired

setting.

ON:Enable Scrambler

OFF:Disable Scrambler

TX/DC

Press

key to conrm and exit.Default:OFF.

This function is optional.

Radio's DTMF SELF ID ENQUIRY

Press and hold

enter general setting menu.

Press

key for over 2s to

SCAN

key to choose No.16

Page 27

menu, LCD displays "D--XXX", "XXX" is radio's DTMF SELF ID.

Press

key to conrm and exit.

TX/DCS

Radio's 5TONE SELF ID ENQUIRY

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.17

menu , LC D di s p l ays "F--XX X X X " , "XXXXX" is radio's 5TONE SELF ID.

TX/

Press

key to conrm and exit.

Voice Prompt

The promptin g tone provides confirmation of en try, error st atus or malfunctions of the transceiver. You can enable or disable this function.

Press and hold

enter general setting menu.

Press

menu, LCD displays "BEEP--ON".

Turn selector knob to select the desired

setting.

ON: Enable voice prompt

OFF: Disable voice prompt

Press

Suggestion:Enable this function to check incorrect operation and malfunctions.

key for over 2s to

SCAN

key to choose No.18

key to conrm and exit. Default:ON.

General Setting

TOT (Time-out timer)

The time-out timer limits the amount of transmitting time. When you reach the time limit which has been programmed by your dealer, your transmission will be cut off. In order to transmit again, you must release PTT button to reset the timer.

Press and hold

Press

key for over 2s to enter general setting menu.

key to choose No.19

menu, LCD displays "TOT--3".

Turn selector knob to select the desired

setting.

Timer: 1-30min, each level 1min

OFF: Disable TOT

TX/DCS

Press

key to conrm and exit. Default:3.

APO (Auto power off)

Once APO is activated, the radio will be automatically switched off when the pre-set timer is running to end.

Press and hold

Press

menu, LCD displays "APO--OFF".

Turn selector knob to select the desired

setting.

30MIN: Auto power off after 30m

1HOUR: Auto power off after 1h

key for over 2s to enter general setting menu.

SCAN

key to choose No.20

Page 28

General Setting

2HOUR: Auto power off after 2h

OFF: Disable Auto power off

TX/DCS

Press

key to conrm and exit. Default:OFF

DTMF Transmitting Time

Press and hold

Press

key for over 2s to enter general setting.

key to choose No.21

menu, LCD displays "SPD--50".

Turn selector knob to select the desired

setting. 30/50/100/200/300/500, which indicates the time for sending each DTMF signal & the interval between each DTMF being sent.

TX/DC

Press

key to conrm and exit. Default:50MS.

Squelch level Setup

Setting the radio to a tight squelch level, you can avoid unwanted

signals or noise, but you may not receive a weak signal. Therefore, it will be better for you to select the normal squelch level

Press and hold

Press

menu, LCD displays "SQL--04".

Turn selector knob to select the desired

squelch level.

OF-20 total 21, OF is min setting value(ON)

TX/

DCS

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.22

key to conrm and exit. Default:04

SCAN

Press

, then turn selector knob also can select the desired squelch level. If the transceiver has set at higher squelch level, it may fail to hear the calling. If set at lower squelch level, the radio will be interfered.

Scan Dwell Time Setup

There are 3 kinds of Scan Dwell Time for option.

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.23 menu, LCD displays "SCAN-

-TO".

Turn selector knob to select the desired Scan Dwell Time.

TO:It pau ses 15s on ce scan nin g a matching signal, then resume scan.

CO:It pauses once scanning a matching signal, signal disappeared then resume scan.

SE:It stops once scanning a matching signal.

Press

key to conrm the selection

TX/DCS

and exit.Default:TO.

LCD Backlight

Press and hold

enter general setting menu.

Press

menu, LCD displays "LAMP--25".

key for over 2s to

SCAN

key to choose No.24

Page 29

Turn selector knob to select the desired LCD backlight brightness

1-32 total 32 level backlight brightness.

Press

key to conrm and exit. Default:25.

TX/DCS

Pilot Frequency

This function uses to start repeater. It needs a certain intensity Pilot Frequency to start dormant repeater. As usual, no need to send pilot frequency again once repeater started.

Press and hold

Press

key for over 2s to enter general setting.

SCAN

key to choose No.25

menu, LCD displays "TB--1750".

Turn selector knob to select the desired

pilot frequency.

1750HZ:Pilot frequency1750HZ

2100HZ:Pilot frequency 2100HZ

1000HZ:Pilot frequency 1000HZ

1450HZ:Pilot frequency 1450HZ

TX/

Press

key to conrm the selection

and exit. Default:1750HZ

Display Mode Setup

There are 3 different dispaly modes: Freque ncy+Channel mode, & Channel mode&Channel+Name Tag mode.

Press and hold

key for over 2s to enter general setting menu.

Press

General Setting

SCAN

key t o choose No.26 menu, LCD displays

"DSP—FR". Turn selector knob to select the desired

mode.

FR:Frequency+Channel mode(Amateur transceiver mode).

CH:C h a nn e l m o d e( P r o fe s s i o n a l transceiver mode).

NM:Channel+Name Tag mode(Amateur tra n s c e i v e r mode), if ch a n n e l not named, it displays Frequency+Channel mode.

Press

key to conrm and exit. Default:FR.

TX/DCS

This function will be auto-hidden if channel mode locked.(Refer to programme software)

PIN Setup

Enable this function, you have to insert a matching PIN to enter into normal status when radio is turned on.(Pi n setup by pr og ramme software).

Press and hold

Press

"CODE-OF".

Turn selector knob to enable/disable

Pin setup.

ON: Turn on Pin setup

OFF:Turn off Pin setup

TX/DCS

Press

key for over 2s to enter general setting menu.

SCAN

key to choo se No.27 menu, LCD displays

key to conrm and exit.Default:OFF

Page 30

General Setting

Address list

You store desired ID and corresponding ID name in address list. The LCD displays ID corresponding name if radio received ANI calling and

nd matching ID in address list.

Press and hold

Press

menu, LCD displays "BOOK".

MHz

Press

(00-127, total is 128 group ID).Turn selector knob to select desired number,

TX/

press next edition, press digits.

conrm and enter into edition of current

After finishing edition, press

group's ID corresponding name. Turn selector knob to select desired letter, press to clear out all letters. 00-127, total 128 group ID and corresponding ID name.

Press

Step 3 and Step 4 operations to edit multi-ID and corresponding ID name.

Press

key for over 2s to enter general setting menu.

key to choose No.28

to enter into ID setting, press

to select the desired group

conrm and move cursor to

to confirm and return into main menu. Repeat above

DCS

key to return into standby status.

V/M

to clear out all

MHz

TX/DCS

to move cursor to next edition, Press

MHz

Press and hold

Press

key for over 2s to enter general setting menu.

SCAN

key to choose No.29

menu, LCD displays "RESTORE".

Turn selector knob to select the desired

operation.

FA C T: R e s u m e factor y de f a u l t for channel, signaling and general setting.

SETUP:Return initial setup for No.18No.27 general setting menu.

Press

key to conrm.

MHz

You can operate the transceiver by keypad or input desired frequency

Factory Default

If your radio seems to be malfunctioning, resetting the microprocessor may solve the pro blem. When performing t he rese t, you may lose memory data and stored information. Back up or write down important data before performing the reset.

Page 31

Microphone Operation

Channel Down Channel UP

PTT

Mic

or channel through the QHM-03 microphone (Note:In professi onal transceiver mode, other keys are invalid except PTT, [ / ],

and

SCAN

Keypad Lock

Pull down the slide switch to lock position, the lamp is turned off and all of keypads is not work except PTT switch.

Transmitting DTMF By Microphone KeyPAD

Slide DTMF key to DTMF position, press and hold the [PTT] key, transmitting the desired DTMF signaling by the numeric key directly. (Note:Slide DTMF key to DTMF position, the keyboard is invalid in standby).

Function Setup By Microphone Keypad

Squelch off:In standby, press the squelch is disabled when icon ashed in LCD, Press squelch and the

MINI

again to enable

icon disappears.

key,

Switches between VFO and channel mode

In standby, press

key to switch between channel mode and

Frequency mode (VFO).

Short Calling

In standby, press in current channel. Transmitting DTMF Code:In standby, press DTMF data and group. Press [ desired transmitting DTMF group, then Press PTT to transmit.

If no DTMF data in current group, LCD displays "EMPTY", press key again and input desired DTMF code by keypad, press PTT to transmit and store DTMF data.

Squelch Level

In standby, press

current squelch level. Press

, then press

desired squelch level.

Press number key to conrm and exit.

Optional signaling

In standby, press above operation to set DTMF, 2TONE or 5TONE signaling.

When rst bit of Exa byte in frequency



displays "D", it indicates DTMF function enable.

When rst bit of Exa byte in frequency



displays "T", it indi c a t e s 2To n e function enable.

to transmit the selected DTMF/2TONE/5TONE

SCAN

, LCD displays

/ ] key to select the

, then press

MINI

, LCD displays "SQL" and

/ to adjust the desired squelch level. (press

MINI

, turn selector knob also can adjust the

, then press

to add optional signaling, repeat

Page 32

Microphone Operation

When rst bit of Exa byte in frequency



displays "F", it indicates 5Tone function enable.

This function can be temporarily used in channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.

Scan Skip

In Channel mode, press

then press

MINI

, decimal point displayed

between frequency's ten digit and unit digit, it means current channel is scan skip. Repeat above operation to set scan or scan skip in current channel.

decimal point displayed between frequency's ten digit and unit digit,

it means current channel is scanned skip.

decimal point is not displayed between frequency's ten digit and

unit digit, it means current channel is scanned.

Frequency/Channel scan

In corresponding mode, press

then press

key to enter into

scanning. In scanning mode, press / to change scan direction.

Busy Channel Lockout

BCLO is to disable transmitting while RX signal is received. Once the channel is busy and you press PTT, the radio will beep as warning and get back to receiving.

In standby, press

Lockout.

, then press

MINI

to enter into Busy Channel

Press [

/ ] to select the desired value.

BU: Enable BCLO, Carrier lockout, transmitting is inhibited when

current channel receives a matching carrier; press [PTT] to emit error voice prompt.

RL: Enable BTLO, transmitting is inhibited when current channel

receives a matching carrier but dis-matching CTCSS/DCS. Press [PTT] to emit error voice prompt It can transmit in any receiving status.

OFF: Busy channel lockout is disabled.

Press number keys to conrm and exit.

This function can be temporarily used in Channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.

Reverse TX/RX

TX frequency turns to RX frequency & RX frequency changes to TX frequency. The signaling will also be reversed if CTCSS/DCS signaling exited in this channel.

In standby, press

Press [

, then press

/ ] to select the desired value.

ON:Enable Frequency Reverse

OFF:Disable Frequency Reverse

Press number keys to conrm and exit.

This function can be temporarily used in Channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.

MINI

, LCD displays "REV—ON".

Page 33

TOT (Time-out timer)

In standby, press

Press [

Press number key to conrm and exit.

, then press

/ ] to select the desired value.

LCD displays "TOT-X".

CTCSS/DCS Encode and Decode

In standby, press

, then press

Encode and Decode.

Repeat above operation to set as below:

LCD displays



icon, it indicates CTCSS encode set in current

channel.

LCD displays



and icon, it indicates CTCSS encode and

decode set in current channel.

LCD displays



DCS icon, it indicates DCS encode and decode set

in current channel.

In corresponding icon, press [

CTCSS/DCS encode and decode.

TX/DCS

Press

SCAN

to conrm and exit.

This function can be temporarily used in Channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.

MINI

to enter into CTCSS/DCS

/ ] to select the desired

Microphone Operation

Talk Around

In standby, press

Press [

, then press

/ ] to select the desired setting.

key, LCD displays "TALK--OF".

ON:Enable Talk Around

OFF:Disable Talk Around

Press number key to conrm and exit.

This function can be temporarily used in Channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings.

Voice Prompt

The promptin g tone provides confirmation of en try, error st atus or malfunctions of the transceiver. You can enable or disable this function.

In standby, press

Press [

, then press

/ ] to turn on/off BEEP voice prompt.

BEEP—OF: turn off voice prompt

BEEP—ON: turn on voice prompt

Press number key to exit and store.

V/M

, LCD displays "BEEP--XX".

Page 34

LCD Backlight

Microphone Operation

In standby status, press "LAMP-XX".

Press [ levels).

Press number keys to conrm and exit.

/ ] to select desired backlight brightness(1-32

, then press

MINI

LCD displays

Page 35

Long-distance Anti-theft Alarm

This function is mainly use for simple anti-theft alarm device in vehicles. When the transceiver be removed in an improper manner, the transceiver will emit and transmit alarming and background voice to system and other transceiver of the same frequency.

DC power cable

Alarm cable [QL-01(A)]

When the alarm cable QL-01(A) or QL-01(B) is removed from the

DATA jack or cut by improper sequence, the alarm function enable

and will alarm as programmed. In alarming, the transceiver will stop alarm once receiving a matching signal. And alarm again when a matching signal disappeared.

Restart radio to cancel anti-theft alarming.Reconnect with alarm

cable and turn off radio, the system will return to alarm mode.

Steering-wheel etc.

V/M

VOL

TX/DCS

A N

MINI

Battery

Alarm cable [QL-01(B)]

Connect DC power cable with car battery.

Connect the optional alarm cable QL-01(A) to the data jack on

the front panel as shown. Secure the other end of the cable to an

object that stays xed in vehicle. (Note: if alarm cable QL-01 (A) is

not enough long, you can choose optional alarm cable QL-01 (B) to extend).

When transceiver power off by press

key, the long-distance

anti-theft alarm enable.

The long-distance anti-theft alarm only available when transceiver power off.

Page 36

Cable Clone

This feature will copy the programmed data and parameters in the master unit to slave units. It copies the parameters and memory program settings.

Use optional CP50 cloning cable, connect the cable between the data jacks on both master and slave.

Press and hold

key, then press key to enter into cloning mode, LCD displays "CLONE".

Master/Slave stereo plug,3.5mm plug

GND DATA TX/RX

CA LL

Press master unit's [PTT] key, LCD displays "

CAL

TX/DCS

SC AN

V/M

CA LL

CAL

SC A

TX/DCS

SD XXX", "XXX" indicates data volume in transmitting. Slave unit displays "LD XXX", "XXX"

MIN I

indicates received data volume. When the transmission is successfully nished, the master and slave unit both display "PASS". Turn off the power, disconnect the cable and repeat step 2 to step 3 operations to clone the next slave unit.

If the data is not successfully transmitted, turn off both units, make sure the cable connection is correct and repeat the entire operation from the beginning.

Page 37

Programming Software Installing and Starting (in windows XP system)

Double click "QPS598 setup.exe", then follow the installing instruction.

Install USB Cable Driver Programme

Click start menu in computer, under "ALL PROGRAMS" menu,

choose and click "USB To Com port" in QPS598 program, install "USB To Com port" driver by indication.

Connect the optional PC50 USB Programming cable to USB port in

PC with transceiver.(As pic 1)

Double click QPS598 shortcut or click QPS598 in procedure index

of start menu, choose serial com port as indicated then click OK to start programming software. (As pic 2)

According to instruction, select correct "COM Port"(As pic 3), then

click "OK" to start programming software.

Even in same computer, the selective COM Port is different when

Note:

USB cable connects with different USB port.

You shall install software before connecting the USB cable line. Switch on transceiver before writing frequency. You had better not switch on or off the power supply of transceiver when it is connected with computer, otherwise, it will make transceiver unable to read or write frequency. In this case, you have to turn off programming software, pull out USB cable. then reinsert USB cable and open software, then rechoose COM Port, it will turn into normal operation. Therefore, please connect transceiver with computer after switching on the transceiver. Don't restart transceiver power when it is connected with computer.

W R

VOL

FUNC

V/M

CA L

H z

TX/DCS

/ L

MIN

(As pic 1)

(As pic 2)

(As pic 3)

This software has product identify system, so when rstly installing the software, you have to connect the products, otherwise you can not start the software.

Page 38

Maintenance

Default Setting after Resetting(VHF) Trouble Shooting

AT598

VFO frequency 145.00MHz DCS code 023N

Memory channel 0-199

Offset direction

Offset frequency 600KHz TOT OFF

Channel step 12.5KHz APO OFF

CTCSS encode and decode

CTCSS frequency 88.5Hz

DCS encode and decode

Output power HI

Key-lock setting OFF

Squelch Level 4

Problem Possible Causes and Potential Solutions

(a) Power is on, nothing appears on Display.

(b) Fuse is blown.

(d) No sound comes from

speaker.

(e) Key and Dial do not function.

(i) Rotating Dial will not change memory channel.

(g) PTT key is pressed but transmission does not occur.

+ and - polarities of power connection are reversed. Connect red lead to plus terminal and black lead to minus terminal of DC power supply.

Check and solve problem resulting in blown fuse and replace fuse with new fuse.

Dimmer setting is "LAMP-L". Please make the dimmer setting "LAMP-H".

• Squelch is muted. Decrease squelch level.

• Tone or CTCSS/DCS squelch is active. Turn

CTCSS or DCS squelch off.

Key-lock function is activated. Cancel Key-lock function.

Transceiver is in CALL mode. Press the VFO or memory mode.

• Microphone connection is poor. Connect

microphone properly.

• Antenna connection is poor. Connect antenna

properly.

Page 39

General

Frequency Range

Number of Channels

Channel Spacing

Phase-locked Step

Operating Voltage 13.8V DC ±15%

Squelch

Frequency Stability ±2.5ppm

Operating Temperature

Dimensions(WxHxD) 145 (W) x 47 (H) x 190 (L)mm

Weight about 1.2Kg

Specications are subject to change without notice due to advancements in

technology.

VHF: 136-174MHz

200 channels

12.5K

5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz,

Carrier/CTCSS/DCS/5Tone/2Tone/DTMF

-20℃~+60

℃

Specifications

Receiver (ETSI EN 300 086 standard testing )

band

Sensitivity (12dB Sinad)

Adjacent Channel

Selectivity

Intermodulation ≥60dB

Spurious Rejection ≥70dB

Audio Response +1~-3dB(0.3~2.55KHz)

Hum & Noise ≥40dB

Audio distortion ≤5%

Audio power output

Transmitter (ETSI EN 300 086 standard testing )

Power Output 75W

Modulation 11KΦF3E

Adjacent Channel

Power

Hum & Noise ≥36dB

Spurious Emission ≥60dB

Audio Response +1~-3dB(0.3~2.55KHz)

Audio Distortion ≤5%

≤0.35μV

≥60dB

＞

2W@10%

band

≥60dB

Page 40

Attached Chart

50 groups CTCSS Tone Frequency(Hz) 1024 groups DCS Code.

67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1

69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6

71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8

74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3

77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1

000 001 002 003 004 005 006 007 010 011 012 013 014 015 016 017 020 021 022 023 024 025 026 027 030 031 032 033 034 035 036 037 040 041 042 043 044 045 046 047 050 051 052 053 054 055 056 057 060 061 062 063 064 065 066 067 070 071 072 073 074 075 076 077 100 101 102 103 104 105 106 107 110 111 112 113 114 115 116 117 120 121 122 123 124 125 126 127 130 131 132 133 134 135 136 137 140 141 142 143 144 145 146 147 150 151 152 153 154 155 156 157 160 161 162 163 164 165 166 167 170 171 172 173 174 175 176 177 200 201 202 203 204 205 206 207 210 211 212 213 214 215 216 217 220 221 222 223 224 225 226 227 230 231 232 233 234 235 236 237 240 241 242 243 244 245 246 247 250 251 252 253 254 255 256 257 260 261 262 263 264 265 266 267 270 271 272 273 274 275 276 277 300 301 302 303 304 305 306 307 310 311 312 313 314 315 316 317

Page 41

320 321 322 323 324 325 326 327 330 331 332 333 334 335 336 337 340 341 342 343 344 345 346 347 350 351 352 353 354 355 356 357 360 361 362 363 364 365 366 367 370 371 372 373 374 375 376 377 400 401 402 403 404 405 406 407 410 411 412 413 414 415 416 417 420 421 422 423 424 425 426 427 430 431 432 433 434 435 436 437 440 441 442 443 444 445 446 447 450 451 452 453 454 455 456 457 460 461 462 463 464 465 466 467 470 471 472 473 474 475 476 477 500 501 502 503 504 505 506 507

510 511 512 513 514 515 516 517 520 521 522 523 524 525 526 527 530 531 532 533 534 535 536 537 540 541 542 543 544 545 546 547 550 551 552 553 554 555 556 557 560 561 562 563 564 565 566 567 570 571 572 573 574 575 576 577 600 601 602 603 604 605 606 607 610 611 612 613 614 615 616 617 620 621 622 623 624 625 626 627 630 631 632 633 634 635 636 637 640 641 642 643 644 645 646 647 650 651 652 653 654 655 656 657 660 661 662 663 664 665 666 667 670 671 672 673 674 675 676 677

Attached Chart

700 701 702 703 704 705 706 707 710 711 712 713 714 715 716 717 720 721 722 723 724 725 726 727 730 731 732 733 734 735 736 737 740 741 742 743 744 745 746 747 750 751 752 753 754 755 756 757 760 761 762 763 764 765 766 767 770 771 772 773 774 775 776 777

N is positive code, I is negative code, total: 232groups.

Page 42

SAFETYTRAININGINFORMATION



Your    radiogeneratorsRFelectromagneticenergyduring

Qixiang Electron Science & Technology Co.,Ltd.

transmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUseOnly”,meaningitmustbeusedonlyduringthe

courseofemploymentbyindividualsawareofthehazards,andthewaysToMinimizeSuchhazards.ThisradioisNOTintended

forusebythe“GeneralPopulation”inanuncontrolledenvironment.ThisradiohasbeentestedandcomplieswiththeFCCRF

exposurelimitsfor“OccupationalUseOnly”.Inaddition,your

Qixiang Electron Science & Technology Co.,Ltd.

thefollowingStandardsandGuidelineswithregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuch

levelsforexposuretohumans:

to Radio Frequency Electromagnetic Fields. � American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. � American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. � The following accessories are authorized for use with this product. Use of accessories other than those (listed in the instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure.

�

FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure

  

radiocomplieswith

To ensure you’re your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always

adheretothefollowingguidelines

heinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRFexposure,

andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.

ElectromagneticInterference/Compatibility 

Duringtransmissions,    radiogeneratesRFenergythatcanpossiblycauseinterference

Qixiang Electron Science & Technology Co.,Ltd.

withotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareaswheresignsarepostedtodoso.DONOT

operatethetransmitterinareasthataresensitivetoelectromagneticradiationsuchashospitals,aircraft,andblastingsites.



Occupational/ControlledUse 

Theradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremploymentprovided

thosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.



InordertocomplywithRFexposurerequirements,aminimumdistanceof mustbemaintainedbetweentheantenna

00cm

andallpersons


