Anytone AT-3318UV User guide

orangetelecom.ca

A1.0-13/03

A1.0-12/07

DUAL BAND HANDHELD RADIO

orangetelecom.ca

INSTRUCTION MANUAL

orangetelecom.ca

THANK YOU!

orangetelecom.ca

transceiver will provide you with reliable, clear and efficient communication service. The

transceiver introduces innovative DSP digital signal processing technology, high degree integration, it is
including kinds of professional function, best stability and great reliability as well as exterior smooth lines,
novel, fashionable, sturdy and durable.

The transceiver is including plenty of TX, RX channels, as well as UU,VV and UV standby modes which
is able to realize cross band function (Version C), 51 groups of CTCSS encode/decode and 1 group of
user-defined CTCSS encode/decode, 1024 groups of DCS encode/decode, 5TONE/2TONE encode/
decode(optional), DTMF encode/decode, built-in FM radio functions, etc..

It is a meticulous build functional and Multi frequency band radio for radio amateur.

Versions

To meet different requirements of users, we provide A,B,C,D four versions with different frequency bands,
convenient for user optional.

Version A: Dual frequency, dual standby, dual display, dual band, single receive channel.
Version B: Dual frequency, dual standby, dual display, tri band, 350-390MHz is able to combine with UHF or
VHF be dual frequency to receive signal at same time.
Version C: Dual frequency, dual standby, dual display, dual band, dual receive channel, main band and sub
band can receive signal at same time.
Version D: Dual frequency, dual standby, dual display, multi band, dual receive channel, air band and
4 band FM.

MODELS APPLY TO THIS MANUAL

AT-3318UV FM transceiver
AT-3318UV(Version A,C,D) programming software: QPS3318UV
AT-3318UV(Version B) programming software: QPS3318UV_B

PROGRAM CAUTIONS

When programming the transceiver, read the factory initial data first, then rewrite the frequency and
signaling etc., other wise errors may occur because of different frequency band etc.

CAUTIONS

orangetelecom.ca

transceiver is excellent designed with advanced technology. The following tips will be helpful for you in

performing your obligation under warranty and understanding the safety of transceiver usage.

Keep the transceiver and accessories away from children.

1.

2.Please do not try to open or modify the transceiver without permission, non-professionals operation may also cause
damage.

3.Please use assorted battery and charger to avoid damage.

4.Please use assorted antenna to ensure the communication distance.

5.Please avoid exposing the radio under the sunshine for a long time or storing it in too hot places. High temperature will
shorten the life of electronic devices.

6.Please avoid storing the radio in the dusty, dirty and damp areas.

7.Please keep the radio dry. Do not wash radio with ardent chemicals and detergents.

8.Do not transmit without antenna.

9.When using this transceive r, we recommend transmitting for 1 minute then receiving for 4 minutes. contin uously
transmitting for long time or working in high power will heat the back of the transceiver. Do not place the transceiver's hot
back close to any plastics.

10.If any abnormal smell or smoke coming from the transceiver, please turn off the power instantly and take off the battery
and its case. Then contact local

NOTE：
All the above tips apply for your
normally, please contact with local
If you use any accessories made by other companies,
operability and safety of the transceiver.

dealers.

transceivers' accessories. If any device can not operate

dealers.

company does not guarantee the

TABLE OF CONTENTS

orangetelecom.ca

UNPACKING

Supplied Accessories

STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES

Standard Accessories
Additional Accessories

................................................................................................................................................................................................01

......................................................................................................................................................................... 01

...............................................................................02

.......................................................................................................................................................................... 02

........................................................................................................................................................................ 02

OPERATION MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)
WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)
BATTERY INFORMATION

Charging Operation
Battery Charger Type
Notice for Charging Battery
How to Charge
Charging Prompt

........................................................................................................................................................................................06

.................................................................................................................................................................................... 08

How to Store the Battery

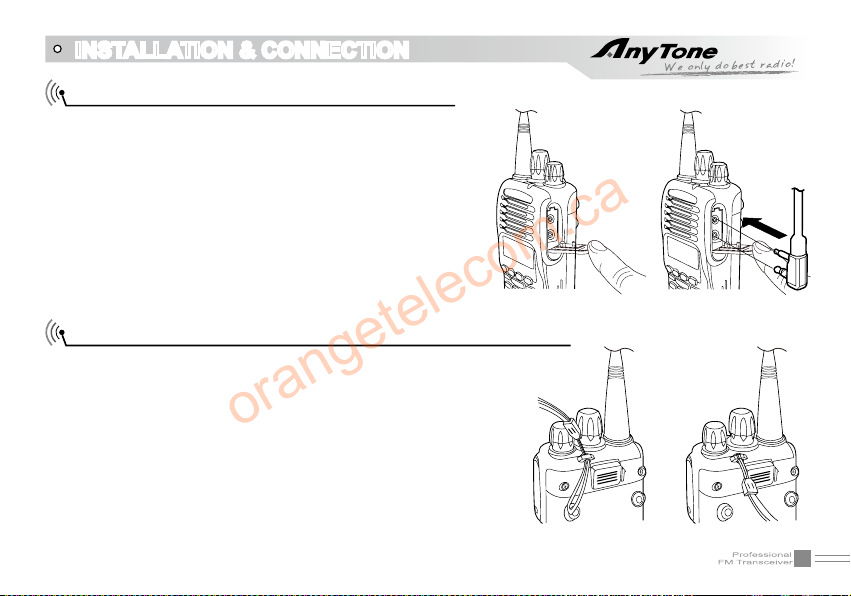

INSTALLATION & CONNECTION

Installing / Removing the Li-ion Battery
Installing / Removing the Antenna
Installing / Removing the Belt Clip
Installing Optional Speaker / Microphone

GETTING ACQUAINTED

LCD Display

.............................................................................................................................................................................................12

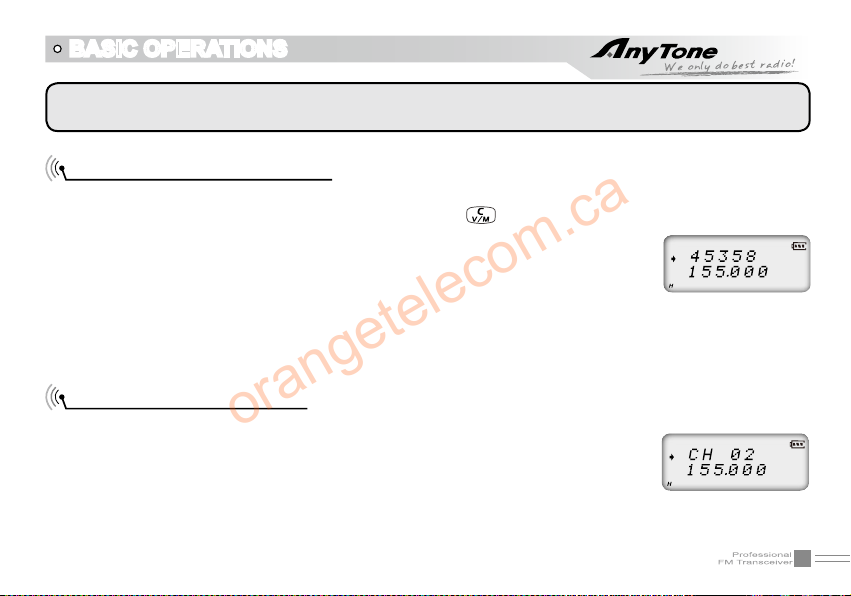

BASIC OPERATIONS

Turn the Radio On & OFF
Adjusting Volume

................................................................................................................................................................................... 15

.................................................................................................................................................................05

.............................................................................................................................................................................. 05

........................................................................................................................................................................... 05

.............................................................................................................................................................. 05

.................................................................................................................................................................... 08

...............................................................................................................................................09

...................................................................................................................................... 09

................................................................................................................................................. 10

................................................................................................................................................10

.................................................................................................................................. 11

...................................................................................................................................................................12

........................................................................................................................................................................... 15

.................................................................................................................................................................15

......... 03

.............. 04

I

TABLE OF CONTENTS

orangetelecom.ca

Switch between Main band and Sub band
Switch between Channel mode and VFO mode
Channel Adjusting
Frequency Adjusting
Frequency Input by Keypad
Channel Input by Keypad
FM Channel Searching

.................................................................................................................................................................................16

.............................................................................................................................................................................16

.............................................................................................................................................................17

.................................................................................................................................................................. 17

....................................................................................................................................................................... 18

Squelch Off Momentary / Squelch Off
Receiving
Transmitting
Emergency Alarm

................................................................................................................................................................................................... 18

.............................................................................................................................................................................................. 19

.................................................................................................................................................................................. 19

Side Key [PF1] function instruction
Side key [PF2] function instruction
Edit channel
Delete channel
Programming scan

SHORTCUT OPERATIONS

Turn On/ Off FM Radio

.............................................................................................................................................................................................. 20

........................................................................................................................................................................................ 21

................................................................................................................................................................................ 21

.............................................................................................................................................................. 22

........................................................................................................................................................................ 22

Add/Cancel Optional signal decode function
CTCSS/DCS Scan

................................................................................................................................................................................ 23

Offset Frequency Direction Setup
Frequency/Channel Scan
Channel Scan Skip
Frequency Reverse
TX Power selection

II

.................................................................................................................................................................. 24

............................................................................................................................................................................... 24

.............................................................................................................................................................................. 25

............................................................................................................................................................................... 25

...............................................................................................................................16

.................................................................................................................... 16

......................................................................................................................................... 18

............................................................................................................................................... 19

................................................................................................................................................ 20

........................................................................................................................... 22

.................................................................................................................................................23

TABLE OF CONTENTS

orangetelecom.ca

Stopwatch function
DTMF code Transmit and Enquiry
Keypad lock

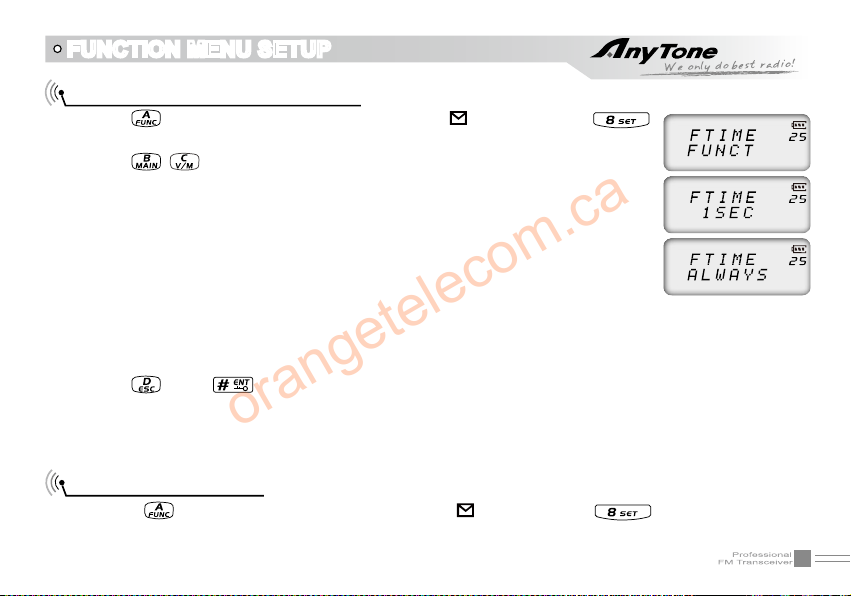

Function Menu Setup

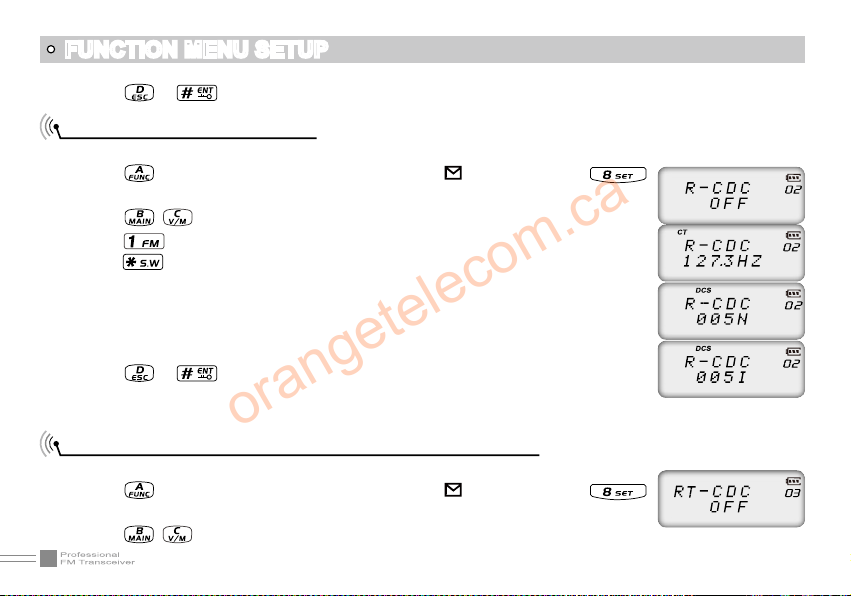

CTCSS/DCS Encode Setup
CTCSS/DCS Decode Setup
CTCSS/DCS Encode / Decode Synchronous Setup
5TONE/2TONE encode group selection
Optional signaling setup
Squelch mode setup
Frequency step size setup
Wide / Narrow Band Selection
Frequency Reverse
Talk Around ON/OFF
Offset Frequency setup
Editing Channel name
Busy Channel Lockout

....................................................................................................................................................................................................... 35

TX OFF
Band Limit
Sub band display setup
Keypad Voice prompt setup

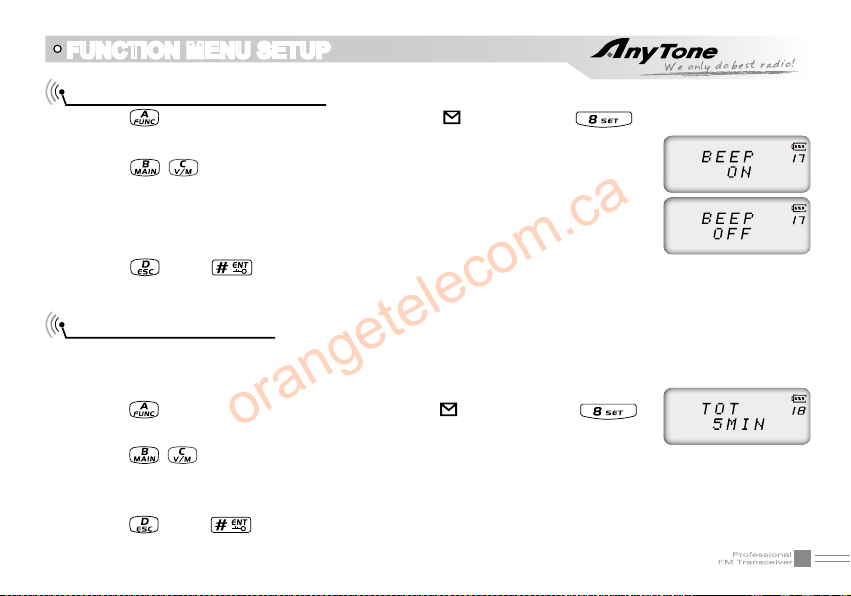

Time-Out-Timer (TOT)
Voice Operated Transmission (VOX) Setup
VOX Delay Setup
Automatic Power Off Time setup

................................................................................................................................................................................ 25

................................................................................................................................................26

.............................................................................................................................................................................................. 26

.......................................................................................................................................................................... 27

............................................................................................................................................................. 27

.............................................................................................................................................................28

........................................................................................................... 28

.................................................................................................................................... 29

..................................................................................................................................................................... 30

............................................................................................................................................................................30

................................................................................................................................................................ 31

....................................................................................................................................................... 32

.............................................................................................................................................................................. 32

............................................................................................................................................................................ 33

......................................................................................................................................................................33

......................................................................................................................................................................... 34

........................................................................................................................................................................ 34

.................................................................................................................................................................................................35

...................................................................................................................................................................... 36

.............................................................................................................................................................37

......................................................................................................................................................................... 37

............................................................................................................................. 38

..................................................................................................................................................................................38

...................................................................................................................................................39

III

TABLE OF CONTENTS

orangetelecom.ca

DTMF Transmitting Time Setup
Squelch level setup

..............................................................................................................................................................................40

Scan Dwell Time Setup
Function Icon Stay Time Setup
LCD Backlight Setup

............................................................................................................................................................................ 41

LCD Backlight Color Setup
Self ID inquiry

.......................................................................................................................................................................................... 42

Tone Pulse Frequency Selection
Battery Save Setup
FM radio

..................................................................................................................................................................................................... 44

............................................................................................................................................................................... 43

Senior Function Operations

Display Mode Setup
Resume Factory Default

............................................................................................................................................................................. 45

...................................................................................................................................................... 39

......................................................................................................................................................................40

....................................................................................................................................................... 41

............................................................................................................................................................... 42

...................................................................................................................................................43

.........................................................................................................................................................45

....................................................................................................................................................................45

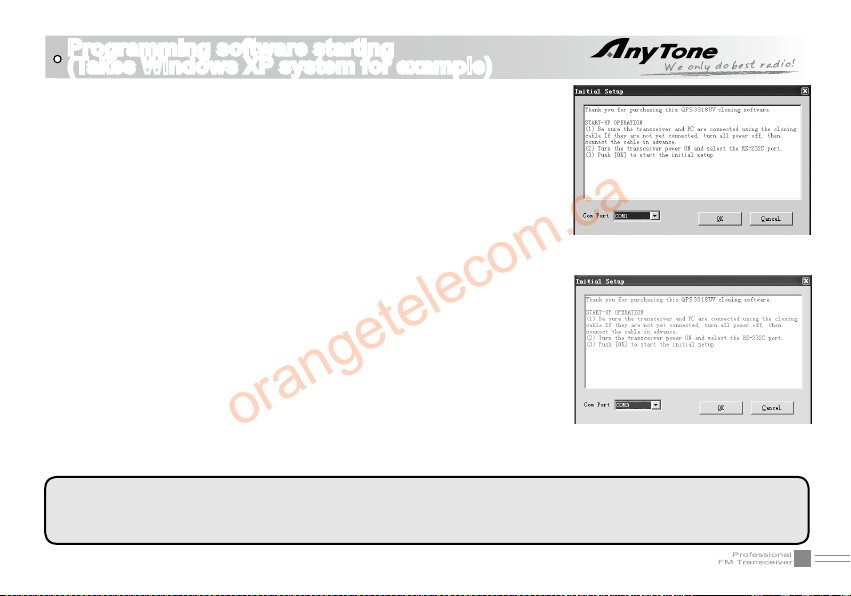

Programming software starting (Takes Windows XP system for example)
TECHNICAL SPECIFICATION
TROUBLE SHOOTING GUIDE
ATTACHED CHART

CTCSS Frequency Chart
1024 groups DCS frequency chart

IV

...............................................................................................................................................................................51

....................................................................................................................................................... 48

......................................................................................................................................................49

................................................................................................................................................................... 51

...............................................................................................................................................52

....................................... 47

UNPACKING

orangetelecom.ca

Please carefully unpack the transceiver. We recommend that you identify the items listed in the following
table before discarding the packing material.
If any items are missing or have been damaged during shipment, please contact with dealers
immediately.

Supplied Accessories

Item Number Quantity

Antenna QA09UV2
Li-ion Battery QB-26L 1
Battery Charger QBC-26L 1
AC Adaptor QPS-01
Belt Clip BC01
Hand Strap GS01
Instruction Manual

Certicate

1

1
1
1
1
1

01

STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES

orangetelecom.ca

Standard Accessories

QA09UV2

1

*

Instruction

Manual

Li-ion Battery

QB-26L(1500mAh)

Battery Charger

QBC-26L

*1.Note: For frequency band of antenna, please refer to label
indicated in the bottom of the antenna.

Antenna

145/435MHz

Additional Accessories

USB Programming

Spare Li-ion Battery

QB-26HL(1800mAh)

02

Cable

PC03

Handheld Microphone

QHM22

Programming

Software

QPS3318UV

AC Adaptor

(12V/500mA)

QPS-01

Earphone

Battery Pack

for Car Charger

CPS01

HS03

Belt Clip

BC01

Telescopic antenna

Hand Strap

GS01

Charger

CPL03

QA10UV

Car

OPERATION MODE (AMATEUR TRANSCEIVER OR

orangetelecom.ca

PROFESSIONAL TRANSCEIVER)

The transceiver is a high performance amateur transceiver with dual band, dual standby, dual display and other
kinds of functions. According to practical application,you can set the radio operates as Amateur Transceiver
or Professional Transceiver. There are also 3 levels operation menu to set functions as per you need. It is
easy and convenient.

Operation Mode:1.

By programming software:A. In PC software's "General Setting"menu to

choose "Display Mode" , channel mode works as Professional transceiver
,other two modes as Amateur transceiver.

By manual setup:B. Please refer to "Display Mode" in Page 45.

Amateur Transceiver Mode:2. Except setting as CH mode, others considered as Amateur

transceiver mode. Under this mode,press
and VFO.

Frequency + Channel mode: A. At this mode, When set display as"FREQ",it
enters into Frequency+Channel mode, new setting of channel operation and
shortcut operation can be temporarily used by user. Once the radio is turned
off or switched to another channel, the temporary setting will be erased and
back to initial settings.(As pic 1)

Channel+Name Tag Mode:B. When set display as "NAME",it enters into
Channel +Name Tag Mode. At this mode, it will display corresponding
channel name when the current channel is edited with name. Otherwise, it
will display frequency + channel. Its operations are the same as frequency +
channel mode. (As pic 2)

key to switch between Channel mode

(

Pic 1

(

Pic 2

(

Pic 3

(

Pic 4

)

)

)

)

03

WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)

orangetelecom.ca

VFO Mode(Frequency mode): C. This mode shows only frequency on the display. Shortcut operation
and Channel setting will be changed & stored as the latest value permanently. Once the radio is
turned off or changed to new VFO frequency, the value is remained until next change.(As pic 3)

Professional Transceiver Mode:3. When set display mode as "CH",it enters into Professional Transceiver mode.At this

mode,except scan,DTMF encode or editing, and keypad lock,other functions should be set by PC software (As pic 4).

NOTE:If transceiver programmed transceiver as professional mode and locked,you can't return to amateur
transceiver mode by manually from Background operations setting.

Under every mode, background operations can be changed and saved.4.

04

BATTERY INFORMATION

orangetelecom.ca

Charging Operation

The battery is not charged at the factory, please charge it before use. Charge the battery for the rst time

after purchase or extended storage (more than 2 months) may not bring the battery to its normal operating
capacity. After repeating fully charge/ discharge cycle for two or three times, the operating capacity will
reach the best performance. The battery life is over when its operating time decreases even though it is
fully and correctly charged. Replace the battery.

Battery Charger Type

Please use our company's designated charger, other models may cause explosion and injure people. After
installing the battery, if the radio red light twinkles and remind changing battery, please charge the battery.

Notice for Charging Battery

Do not shortcircuit our company designated charger. Never attempt to remove the casing from the ▲
battery, we show no responsibility on the faulty caused by modifying freely without permission of our
factory.
The ambient temperature should be between 5 ▲ ℃ and 40℃ in charging. Charging outside this range
may not fully charge the battery.
Always switch off the transceiver equipped with a battery before charging. Otherwise, it will interfere ▲
with correct charging.
To avoid interfering the charging procedure, please do not cut off the power or take out the battery ▲
during charging.

05

BATTERY INFORMATION

orangetelecom.ca

Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or ▲
damage the battery.
Do not charge the battery or transceiver if it is damp. Dry it before charging to avoid danger. ▲

WARNING:
When keys or ornamental chains and other electric metals contact with the battery terminals, the battery
may cause damage or hurt bodies. If the battery terminal short circuit, it will generate a lot of heat, please
be careful when you bring or use the battery, please put battery or radio into insulated container. Do not put

it into metal container.

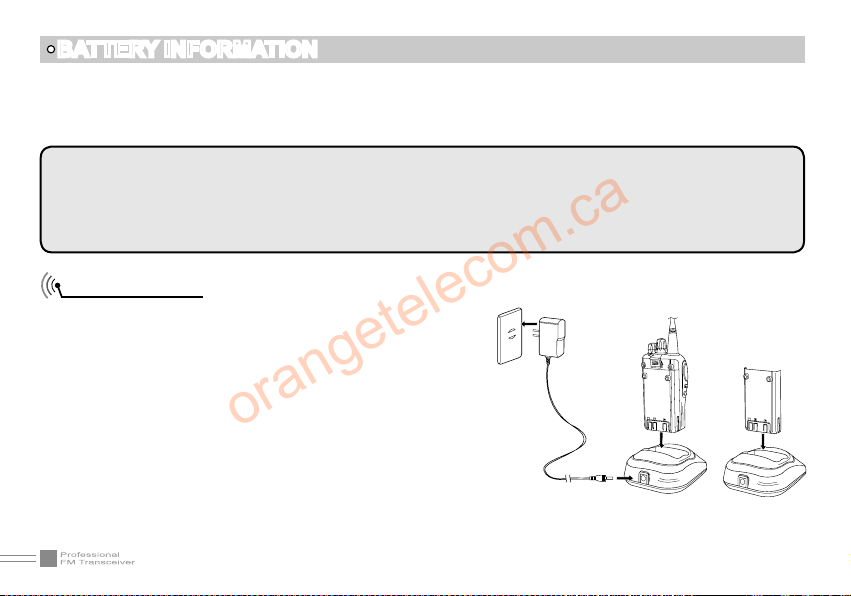

How to Charge

1.Plug the AC adaptor into the AC outlet, then plug the
cable of AC adaptor into the DC jack, the indicator
lights orange for 1s and turns into GREEN---waits to
charge.

2.Slide the battery or transceiver with battery into
the charger; make sure the battery terminals are in
contact with the charging terminals well. LED turns
into twinkling RED ---pre-charging begins.

3.Pre-charging for about 5 minutes, LED twinkles stop
then charging begins.

4.It takes about 4 hours to fully charge the battery, when
LED turns into GREEN— full charged

06

Ac Input

BATTERY INFORMATION

orangetelecom.ca

NOTE: When charging a power-on transceiver equipped with battery, the LED will not turn into green to
show the full charge status. Only when turn off the transceiver, the LED can indicate normally.
Because when the transceiver is power on, it would consumes energy, the charger cannot detect when battery
has been fully charged, the charger will charge battery in voltage consumption and fail to indicate correctly.

5.Charging Process:

Status LED

Standby (self-examine orange lights
1second when power on)
Pre-charging (pre-charging stage)
Charging (charge in constant currency)
Full charged (charge in constant voltage)

6.LED Indicator:

STATUS

LED

NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit.

self-examine

when power on

Orange

(for 1 second)

(No battery) Pre-charging

Green

Red light twinkles

for 5 minutes

Green light
Red light twinkles for about 5 minutes
RED light lightens for about 4 hours
Green light

Charge

normally

Red Green

Full

Charged

Trouble

Red twinkles

for a long time

07

BATTERY INFORMATION

orangetelecom.ca

Charging Prompt

1.Self- examination: When charging, ORANGE light twinkles for 1 second and goes out. That means the
charger has passed its self-examination and it can charge the battery normally. If the light remains
orange or the red light twinkles, which means the charger can not pass its self-examination or charge
the battery.

2.Trickle pre-charging: when the battery has been inserted into the charger and red light twinkles, which
means the remnant voltage is low, the charger trickle charge the battery (pre-charging status ), until the
battery reaches a certain electric quantity, the charger automatically turns into normal charging. And
if the red light stop twinkling, which means the remnant voltage meets a certain electric quantity, the
charger will charge the battery normally.

NOTE:The time for Trickle pre-charging is not exceed 30m.After 30m,the red indicator is still twinkling,it
means it is unable to charge battery. Please kindly check battery and charger.

How to Store the Battery

1.If the battery needs to be stored, the
battery should be kept in the status of
50% discharge.

2.It should be kept in low temperature,dry
environment.

3.To keep away from hot places and direct
sunlight.

08

WARNING

▲Do not short circuit battery terminals.
▲Never attempt to remove the casing from the battery

pack.
▲Never assemble the battery in dangerous surroundings,

spark may cause explosion.
▲Do not put the battery in hot environment or throw it

into fire, it may also cause explosion.

INSTALLATION & CONNECTION

orangetelecom.ca

Installing / Removing the Li-ion Battery

1.Match the three grooves of the battery pack with the
corresponding guides on the back of the transceiver and
push.

2.Press the battery pack and transceiver rmly together

until the release latch on the top of the transceiver locks.
After hearing a "click" sounds, the battery has been
locked.

3.To remove the battery pack, slide up the release latch
and remove the pack away from the transceiver.

09

INSTALLATION & CONNECTION

orangetelecom.ca

Installing / Removing the Antenna

■ Installing the Antenna:

Screw the antenna into the connector on the top of
the transceiver by holding the antenna base and
turning it clockwise until secure.

■ Removing the Antenna:

Turn the antenna anticlockwise to remove it.

Installing / Removing the Belt Clip

■ Installing the Belt Clip:

Place the belt clip to the corresponding grooves
on the back of the transceiver, and then Clockwise
screw it.

■ Removing the Belt Clip:

Anticlockwise turn screws to remove the belt clip.

10

INSTALLATION & CONNECTION

orangetelecom.ca

Installing Optional Speaker / Microphone

■ Installing the Antenna:

Screw the antenna into the connector on the top of
the transceiver by holding the antenna at its base
and turning it clockwise until secure.

■ Removing the Antenna:

Anticlockwise turn the antenna to remove it.

Installing / Removing the Belt ClipInstalling the Antenna

■ Installing the Belt Clip:

Place the belt clip to the corresponding grooves on the
back of the transceiver, and then clockwise screw it.

■ Removing the Belt Clip:

Anticlockwise turn screws to remove the belt clip.

11

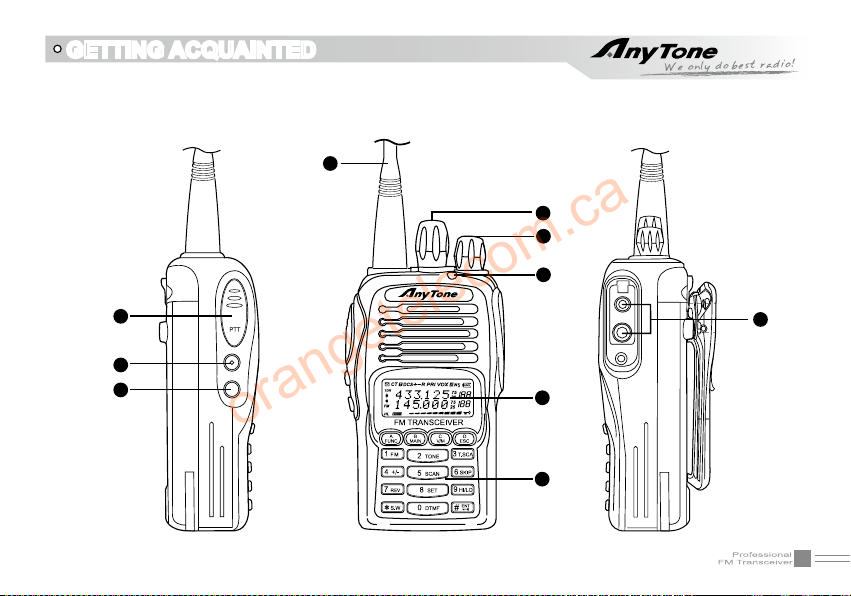

GETTING ACQUAINTED

orangetelecom.ca

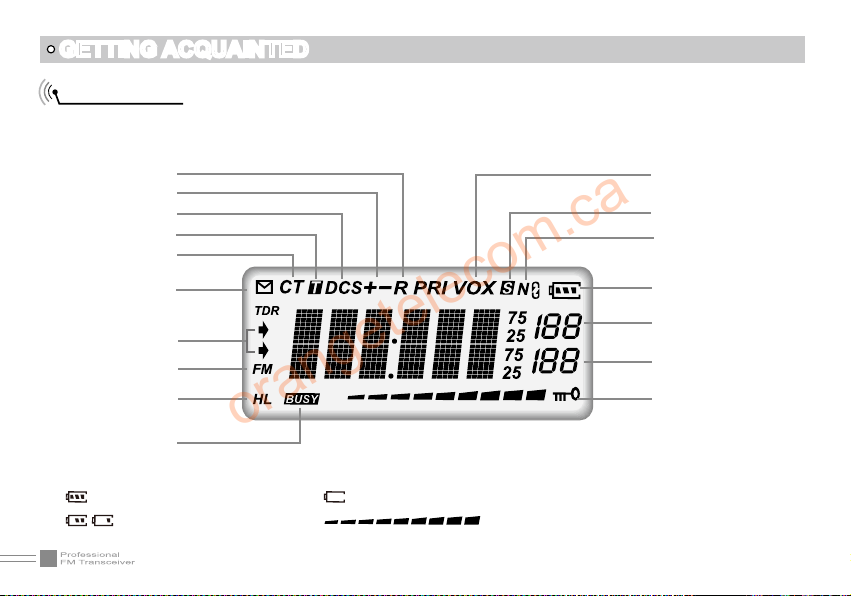

LCD Display

On LCD display screen, you will see various icons which stand for the selected functions and sometimes

you may forget the meaning of them. Here you will nd the following table extremely useful.

Frequency

Reverse

Offset Frequency

Optional Signaling

The arrow points to

NOTE:

12

DCS

CTCSS

FUNC Icon

main channel

FM radio

TX Power

Busy Channel

Battery capacity indicator(full) No power,replace battery pack or charge battery

Battery capacity remnant

Real time display receiving signal
strength/Power Indicator

VOX Function

Scan Skip

Narrow band

Battery Capacity

Function Menu
Number, Channel
Number

FM Channel Number
channel Number

Keypad Lock

GETTING ACQUAINTED

orangetelecom.ca

1

2
3

4

7

8

9

10

5

6

13

GETTING ACQUAINTED

orangetelecom.ca

Antenna

1

Selector Knob

2

Power / Volume switch

3

Rotate it clockwise to turn on transceiver, rotate it anticlockwise until heard "click" to turn off the

transceiver.

When transceiver is power on, rotate it clockwise to increase volume, anticlockwise to reduce volume.

4 TX/RX indicator, RX is GREEN, TX is RED

LCD display

5

Displays current frequency/channel and operations

Keypad

6

Enters desired frequency/channel or operations by keypad

PTT key

7

Press PTT key to talk, release this key to receive.

PF1 key

8

PF2 key

9

10

Speaker/Microphone jack, programming software jack

14

BASIC OPERATIONS

orangetelecom.ca

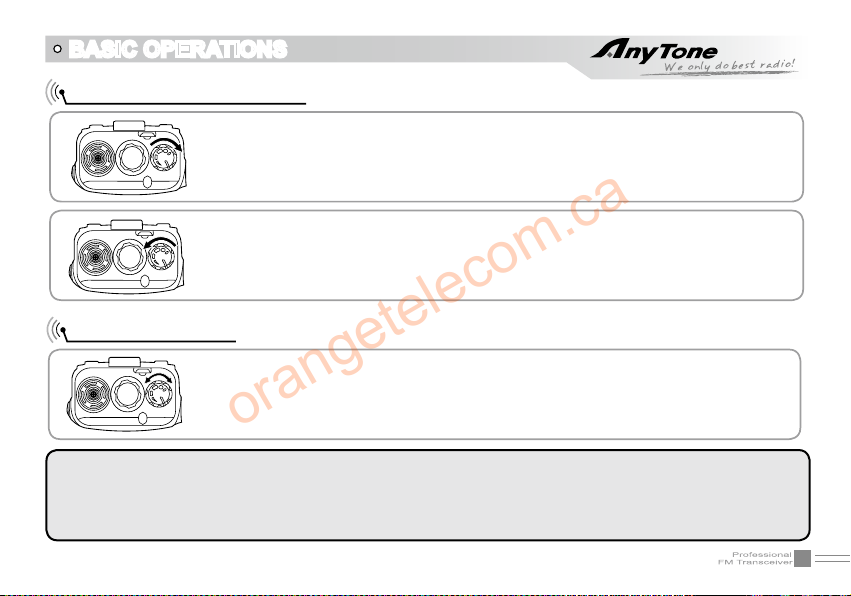

Turn the Radio On & OFF

Under power-off state, please turn [POWER]/ [VOLUME] clockwise to turn on the
transceiver.

Under power-on state, please turn [POWER]/ [VOLUME] anticlockwise to turn off
the transceiver.

Adjusting Volume

Under power-on state, turn [POWER] / [VOLUME] to adjust volume. Clockwise­up, anticlockwise -down.
When adjusting the volume, user can press the key programmed as Squelch Off

to monitor current volume rstly.

NOTE:
Press the side key programmed as Squelch Off Momentary to monitor the background noise. Turn [POWER]/
[VOLUME] to control the volume.The volume you need can be adjusted more correctly when communicating
with the other party.

15

BASIC OPERATIONS

orangetelecom.ca

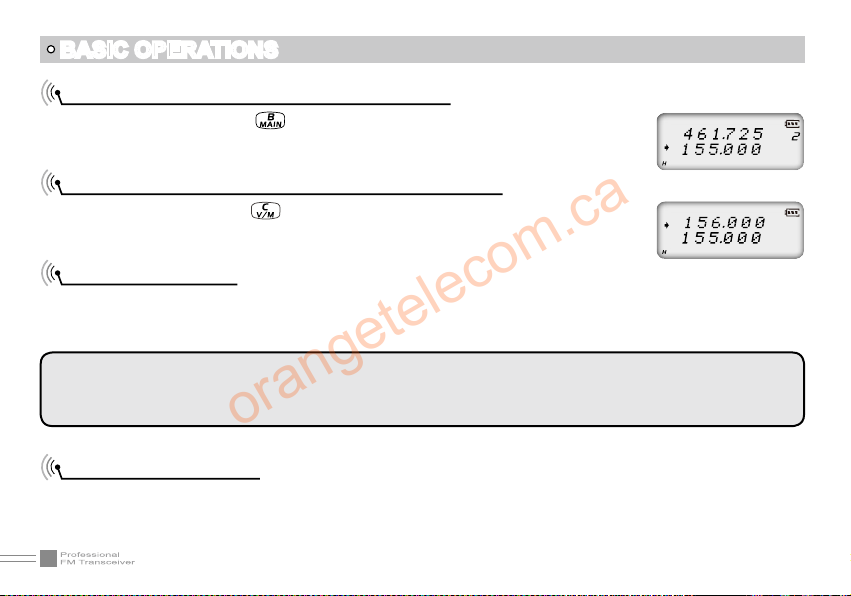

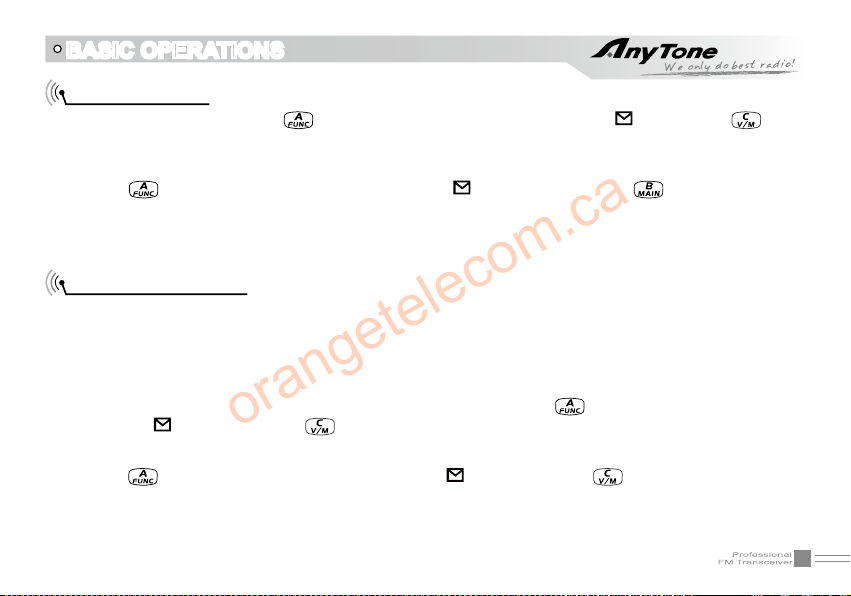

Switch between Main band and Sub band

Under standby state, press key to switch channel between Main band and Sub
band. Arrow directs the current operational channel.

Switch between Channel mode and VFO mode

Under standby state, press key to set main band as Channel mode or frequency
mode(VFO).

Channel Adjusting

When transceiver in Channel mode or FM radio channel mode, rotate channel switch to adjust channel.
Rotate channel switch clockwise to enter the downward channel, anticlockwise to enter the upward
channel.

NOTE: In transceiver mode, arrow directs the main band channel.
If there is a null channel between two channels, transceiver will skip null channel, enter into next channel

directly.

Frequency Adjusting

When transceiver in VFO mode or FM radio frequency mode, rotate channel switch to adjust frequency.
Rotate channel switch clockwise to increase frequency, anticlockwise to decrease frequency. Every rotate
can add or reduce one stepping value.

16

BASIC OPERATIONS

orangetelecom.ca

NOTE: Channel step:2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K and 50KHz in total 9 for optional. FM
radio step frequency is 50K.

Frequency Input by Keypad

Under frequency mode or FM radio frequency mode, you can directly enter frequency through keypad.

1. When your transceiver is under Channel mode, press key to switch into VFO.

NOTE: When the transceiver is under Channel mode, it shows current channel
number on the right of main frequency.

2.Enter the desired frequency by keypad.

NOTE: The frequency input of main channel or FM radio is relevant to the stepping
and transceiver frequency range. If frequency setup is beyond range or not matching with step size, the
input is unavailable. Under the FM radio mode, the frequency step size input by numeric keys is 100k.

Channel Input by Keypad

Under channel mode of transceiver or FM radio, you can switch to desired channel
by entering three numbers (001-199). If the entered channel is not in edited channel
range, the transceiver will emit beep to prompt wrong input and return to current
channel. For example, entering 001 is channel 1, 030 is channel 30, 125 is channel

125.

17

BASIC OPERATIONS

orangetelecom.ca

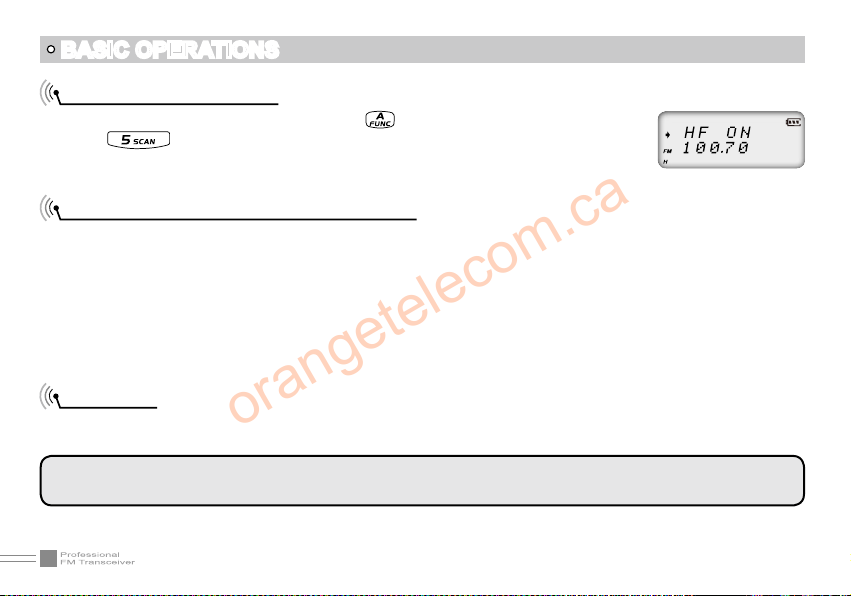

FM Channel Searching

When transceiver in FM radio mode, press key, LCD displays FUNC icon, then
press to start FM searching. When one station is sought, LCD displays
current station frequency, you can listen to current station.

Squelch Off Momentary / Squelch Off

Side key [PF2] can be setup for Squelch off Momentary or Squelch off function by programming software.

1.Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
key again, squelch circuit is mute.

2.Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can be
heard. Release [PF2] key, squelch circuit is mute.

NOTE: The above functions are only available after [PF2] key setup in programming software.

Receiving

When your transceiver is called by other party, the green LED light will be on and the arrow icon will ash,

you can hear the calling.

NOTE: You may not receive the calling when your transceiver is set at high squelch level. If current channel
is programmed with decode signal, only the same signaling call can be heard .

18

BASIC OPERATIONS

orangetelecom.ca

Transmitting

According to [PF2] key setup in programming software, hold [PF2] key to monitor the channel to ensure it
is not busy, press PTT key and talk to speaker.
Please keep the distance between mouse and speaker to be 2.5-5CM, speak in normal tone to get the

best acoustic delity.

NOTE: When press and hold PTT key, transceiver is transmitting if the red LED light is on, release PTT key
to receive calls.

Emergency Alarm

Under standby state, press and hold alarm key until LCD displays “ALARM”, Emergency alarm function is
started. This transceiver has 4 Alarm modes for optional, can be setup in programming software. Power
off transceiver to exit Alarm.

Side Key [PF1] function instruction

1. Battery capacity inquiry: Under standby, press [PF1] key, LCD displays current battery capacity, press
this key again to exit.

2. Transmit tone pulse frequency: Press and hold PTT key, then press [PF1] key to transmit selected tone
pulse frequency.

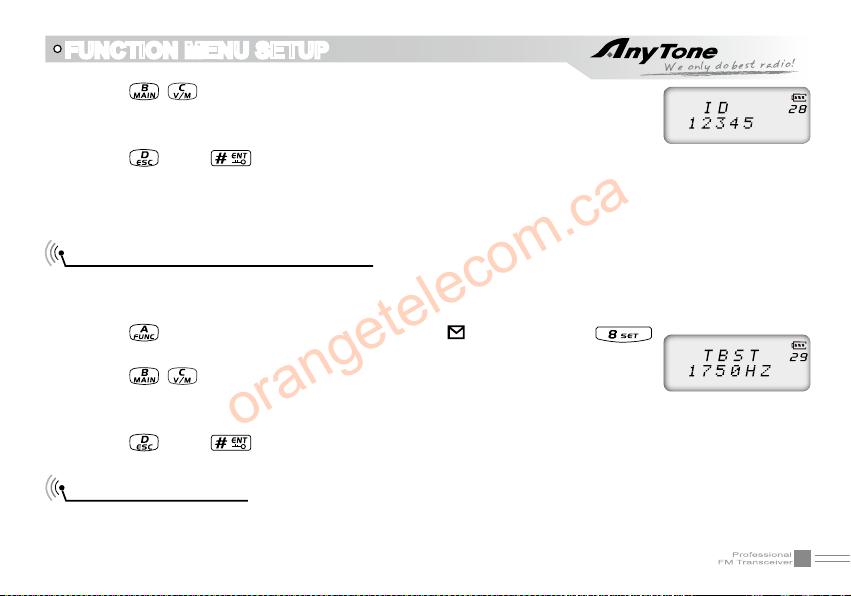

NOTE: The tone pulse frequency can be set to 1750Hz, 1450Hz, 1000Hz or 2100Hz in programming software.

19

BASIC OPERATIONS

orangetelecom.ca

Side key [PF2] function instruction

1. Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
key again, squelch circuit is mute.

2. Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can
be heard. Release [PF2] key, squelch circuit is mute.

3. Transmit DTMF/5TONE signaling: Press and hold [PTT] key, then press [PF2] key to transmit selected
DTMF/5TONE signaling.

NOTE: The optional signaling of current channel is DTMF or no optional signaling, the operation will transmit
DTMF signaling, otherwise will transmit 5TONE signaling.

4. Press and hold [PF2] key to turn on transceiver, until transceiver emits “DU” beep, transceiver enter into
general functions setup.

Edit channel

1. Under frequency mode (VFO), enter desired frequency and settings, press key, the top left corner
of LCD displays “ ” icon, press key to switch into channel mode, channel number ashes.

2. Rotate channel switch to select desired editing channel number.

3. Press
emits “DUDU” beep, channel is stored successfully.

20

key, the top left corner of LCD displays “ ” icon, press and hold key until transceiver

BASIC OPERATIONS

orangetelecom.ca

Delete channel

1. Under standby state, press key, the top left corner of LCD displays “ ” icon, press key to

switch into channel mode, channel number ashes.

2. Rotate channel switch to select desired deleting channel number.

3. Press
emits “DUDU” beep and clear up frequency information of current channel, deletion is successful.

NOTE: This process can be applied for deleting FM radio channels.

key, the top left corner of LCD displays “ ” icon, press and hold key until transceiver

Programming scan

Setup the frequency of L1 channel, U1 channel, L2 channel and U2 channel will realize VFO frequency
scanning border limited. L1 & L2 is starting frequency, U1 & U2 is end frequency. When VFO frequency
between L1~ U1 or L2 ~ U2, transceiver will scan frequencies between L1 ~ U1 or L2 ~ U2. When VFO
frequency is lower than L1 or L2, transceiver will scan frequencies higher than L1 or L2. When VFO
frequency is lower than U1 or U2, transceiver will scan frequencies higher than U1 or U2.

1. In VFO mode, enter desired frequency and relative setup, press
displays “ ” icon, then press key switch into channel mode, channel number ashes

2. Rotate channel switch to choose desired channel number.

3. Press
“DUDU” beep, channels are saved successfully.

NOTE: To make this setup, L1 and U1 must in same frequency band, L1 must lower than U1. L2 and U2
must in same frequency band, L2 must lower than U2.

key, the top left corner of LCD displays “ ” icon, then press key until transceiver emits

key, the top left corner of LCD

21

SHORTCUT OPERATIONS

orangetelecom.ca

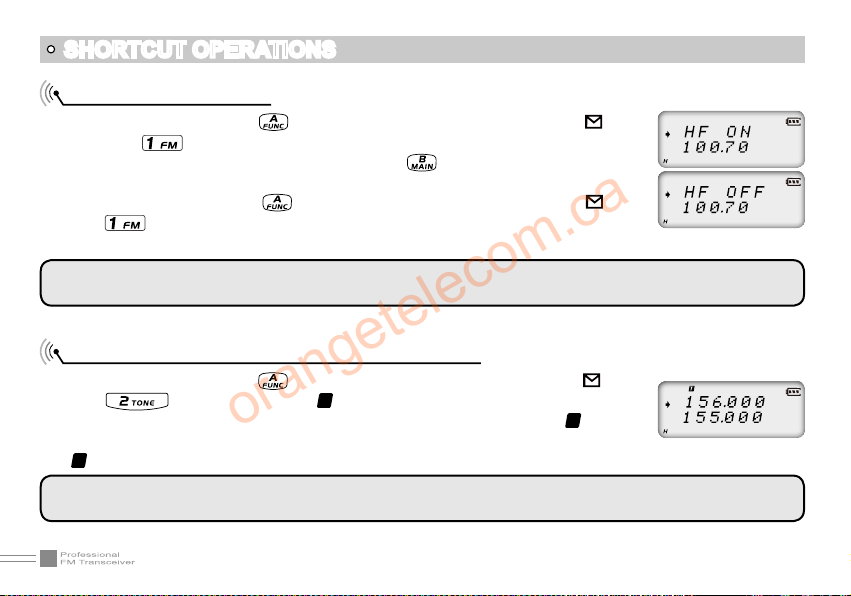

Turn On/ Off FM Radio

Under standby state, press key, the top left corner of LCD displays “ ” icon,
then press key, LCD displays “HF ON” and current FM radio frequency, FM
radio function is on. When FM radio is on, press key, LCD displays “HF OFF”,
FM radio is mute.
When FM radio is on, press key, the top left corner of LCD displays “ ” icon,
press key to turn off FM radio and return to transceiver state.

NOTE: Re-start transceiver also can exit FM radio function.

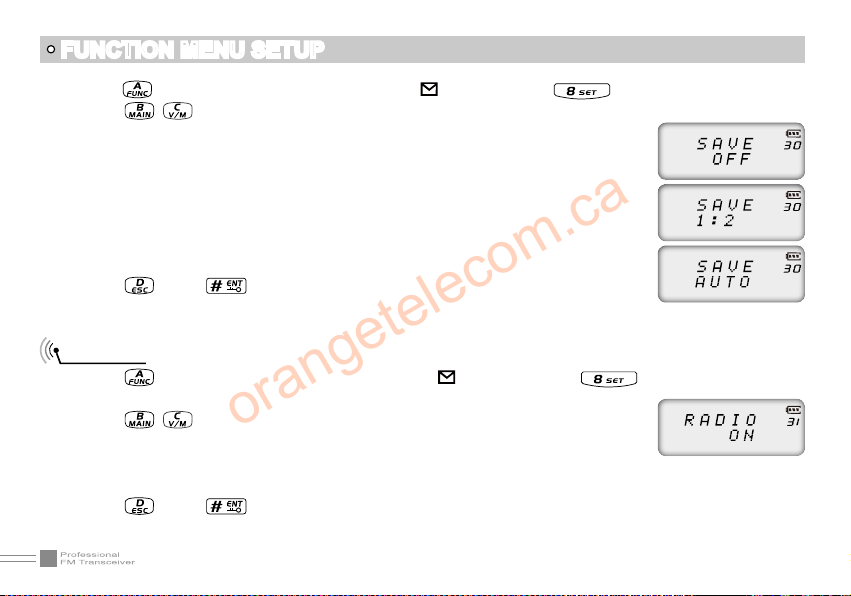

NOTE: To use FM radio function, user must set RADIO function on 31th menu to be ON, otherwise can not
use FM radio function normally.

Add/Cancel Optional signal decode function

Under standby state, press key, the top left corner of LCD displays “ ” icon,
press key, LCD displays “ T ” icon, it means current channel add DTMF
signal decode function. Repeat above operation, LCD still displays “ T “ icon, it
means current channel add 5TONE signal decode function. Repeat above operation,
“ T ” icon disappears, optional signal decode function is cancelled.

NOTE: When this function is on, user must setup 11th menu to be TONE option, then DTMF/5TONE can be
used.

22

SHORTCUT OPERATIONS

orangetelecom.ca

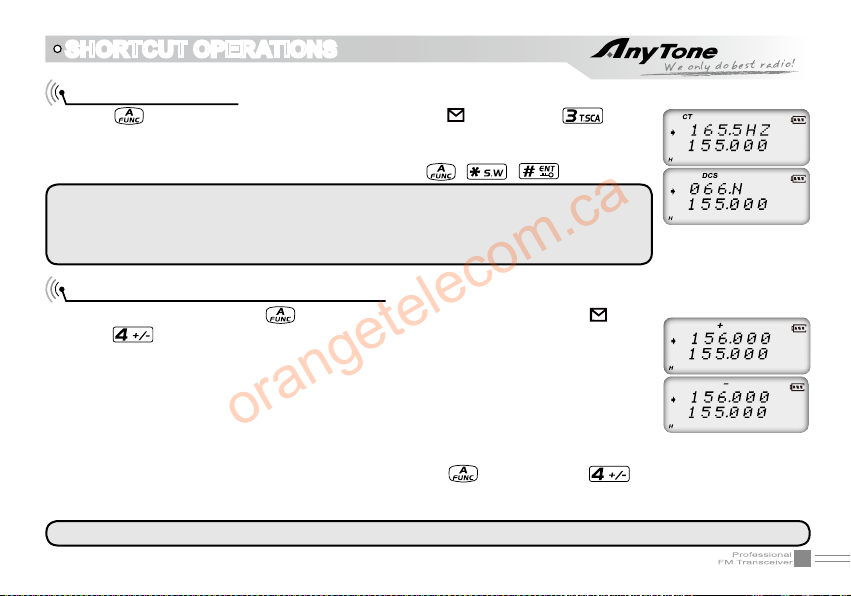

CTCSS/DCS Scan

Press key, the top left corner of LCD displays “ ” icon, press key to
enter into CTCSS/DCS scan. Under this state, rotate channel switch to change scan
direction. When scan the matching CTCSS/DCS signaling, it will stay 5seconds and

then go on scanning. Press any other keys except , , key to exit.

NOTE: This function is invalid when transceiver works in professional mode or the
arrow directed channel no setting CTCSS/DCS signaling.
In current channel, if signaling set as CTCSS, it will scan CTCSS, if sets as DCS, will

scan DCS.

Offset Frequency Direction Setup

Under standby state, press key, the top left corner of LCD displays “ ” icon,
press key to choose offset frequency direction. There are 3 options, Positive
offset, Minus offset, shut off offset.

1. (+) Positive offset: Indicates TX frequency is higher than RX frequency. When
enable reverse function, the RX frequency is higher than TX frequency.

2. (-) Minus offset: Indicates TX frequency is lower than RX frequency. When enable
reverse function, the RX frequency is lower than TX frequency.

3. None: Indicates shut offset off.

Under frequency mode (VFO) or channel mode, press
offset direction(+), minus offset direction (-) , shut offset off one by one (Please refer to offset frequency
setup).

NOTE: This function is unavailable in professional transceiver mode.

key then press key to choose positive

23

SHORTCUT OPERATIONS

orangetelecom.ca

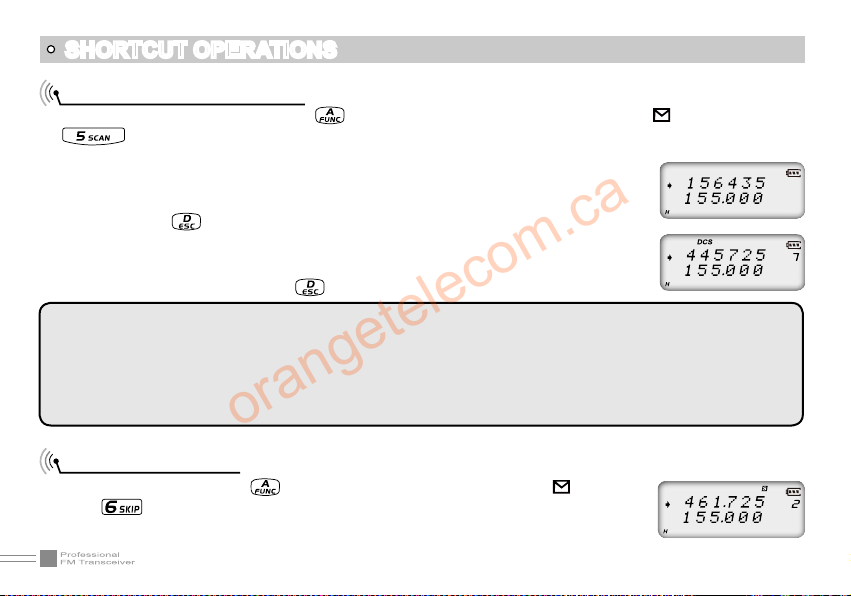

Frequency/Channel Scan

Under corresponding mode, press key, the top left corner of LCD displays “ ” icon, then press

key to start frequency scan or channel scan.

1. Frequency Scan

Under VFO mode, frequency scan is available. This function is used for monitoring
signal of various communication frequency by transceiver ‘step’ setup, press
numeric key or

2. Channel Scan

Under channel mode, this function is used for monitoring signal of each channel in
this mode. Press numeric key or

NOTE:
Frequency scan is of all bands scan, it scans upwards as your STEPPING setting.

▼

In channel scan, the skipped channel is not in the line of scanning. Scan upwards as per channel no.

▼

(please refer to channel scan skip).
Frequency/channel scan can change scan direction by rotating channel switch, when find a matching carrier

▼

wave and signaling, the transceiver will stay 5 seconds then go on scanning. (Please refer to scan setup)

key to exit.

key to exit.

Channel Scan Skip

Under channel mode, press key, the top left corner of LCD displays “ ” icon, then
press key to set current arrow directed channel as Channel scan skip. Repeat above
operation to cancel channel scan skip.

24

SHORTCUT OPERATIONS

orangetelecom.ca

1. LCD displayed “S” means the current channel will not be scanned.

S

” icon disappeared means the current channel will be scanned.

2. “

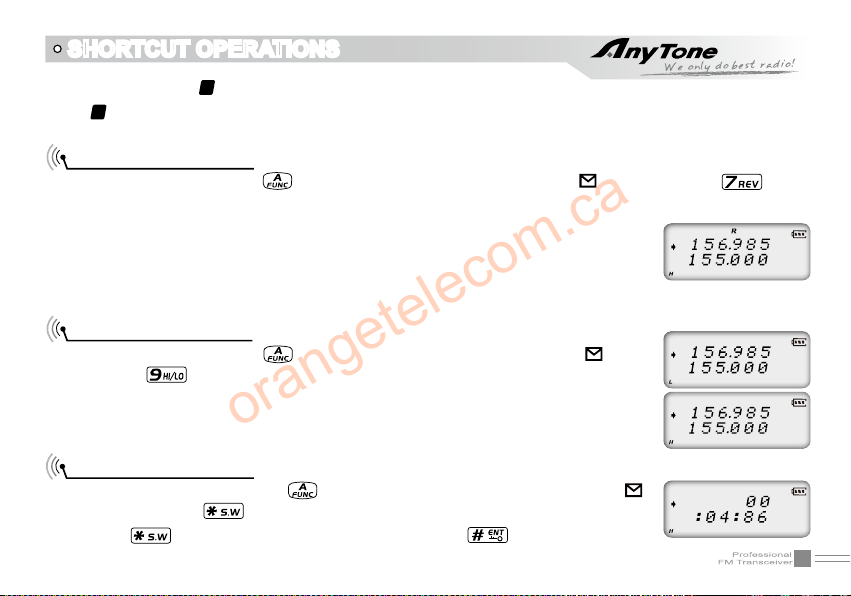

Frequency Reverse

Under standby state, press key, the top left corner of LCD displays “ ” icon, then press key to
set arrow directed channel as frequency reverse, repeat above operation to turn off frequency reverse.

1. When LCD displays “R” icon, it means current arrow directed channel open the
frequency reverse function, the TX frequency and RX frequency is interchanged,
if CTCSS/DCS signaling is set, it will also interchange.

2. When “R” icon disappears, it means reverse function is close.

TX Power selection

Under standby state, press key, the top left corner of LCD displays “ ” icon,
then press key to choose High/Low power for current arrow directed channel.

1. When LCD displays “L” icon, it means low power is chose.

2. When LCD displays “H” icon, it means high power is chose.

Stopwatch function

1. Under standby state, press key, the top left corner of LCD displays “ ”
icon, then press

2. Press

key to start timing. Under this state, press key to pause timing.

to enter into stopwatch function.

25

SHORTCUT OPERATIONS

orangetelecom.ca

When timing is pause, press key to continue timing.

3. Press [PF1], [PF2] or

NOTE: During timing, press

key to exit stop watch function.

key to stop timing and displays current data, press this key again to clear timer.

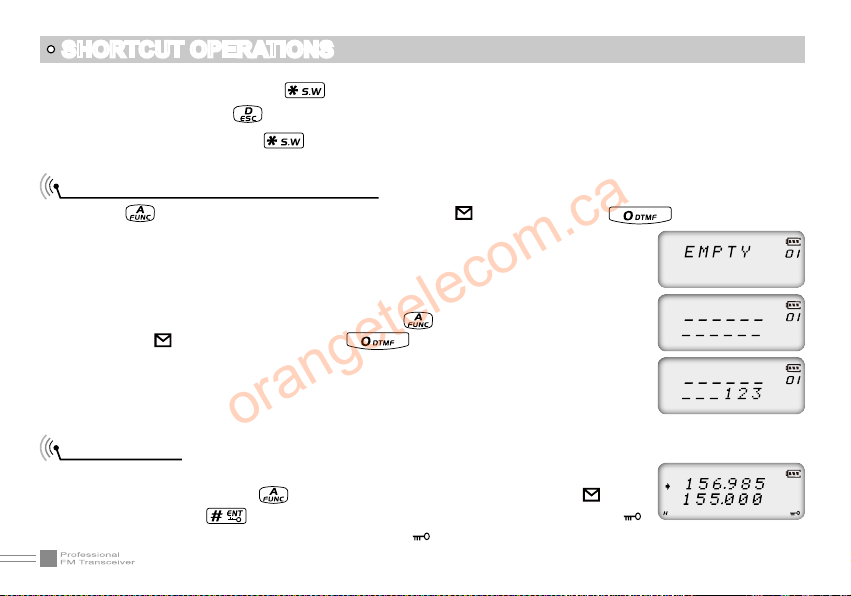

DTMF code Transmit and Enquiry

1. Press key, the top left corner of LCD displays “ ” icon, then press key, LCD displays
DTMF data and group number (total 16groups) of current group.

2. Rotate channel switch to choose desired group and DTMF data, press PTT key
to transmit selected DTMF signaling . If current group not edit DTMF data, LCD
displays “EMPTY”.

3. When current group displays “EMPTY”, press
displays “ ” icon, press and hold key until transceiver emits “DU”
beep, transceiver enters into DTMF edit state, LCD displays “___________”, now
you can enter desired DTMF data by keypad.

4. When nished editing, press side key [PF2] to save DTMF signaling.

key, the top left corner of LCD

Keypad lock

In order to prevent wrong operation, user can make use of keypad lock function.
Under standby state, press key, the top left corner of LCD displays “ ” icon,
then press and hold key until transceiver emits “DU” beep, LCD displays “ ”
icon, keypad is locked. Repeat above operation, “ ” icon disappears, key lock function is cancelled.

26

FUNCTION MENU SETUP

orangetelecom.ca

Menu 1-14 of this transceiver are channel operations.Channel operations temporarily changed the functions
of current channel. When power off or channel has been changed, the relevant setup will be erased. Only
under VFO mode, the channel operations will be saved until next change. Menu 15-31 is background
operation, it is valid for all channels, the relevant setup will be saved until next change.
The operating methods are as follows:

1. Press

2. Press

3. Rotate channel switch to choose desired setting.

4. Press

key, the top left corner of LCD displays “ ” icon, then press key to enter function menu.

/ key to choose desired function.

key or key to conrm and exit.

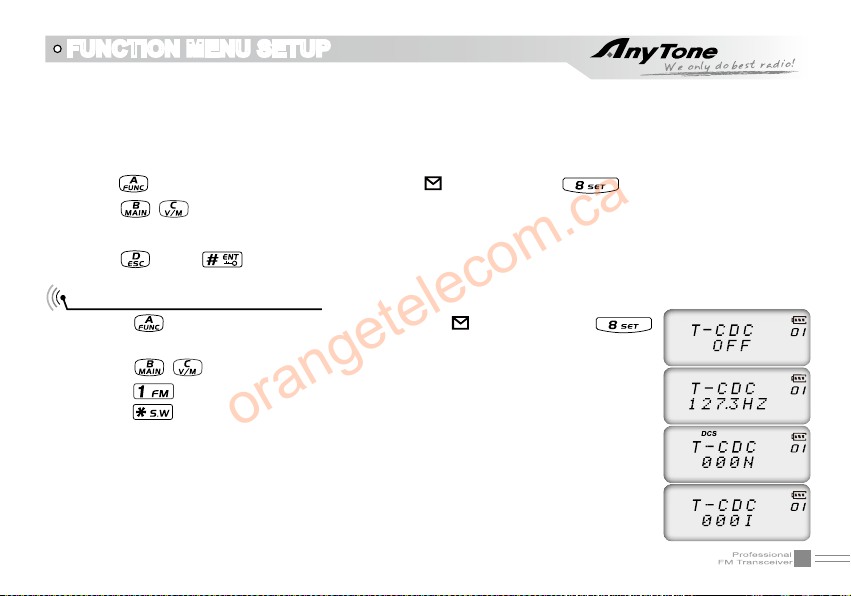

CTCSS/DCS Encode Setup

1. Press key, the top left corner of LCD displays “ ” icon, then press
key to enter into function menu.

2. Press

3. Press
press

4. Rotate channel switch to choose desired CTCSS/DCS code.

CTCSS: 62.5HZ-254.1HZ, 51groups in total, and 1 group user-dened code.

DCS: 000N-777I, 232 groups in total. “N” stands for positive code, “I” stands for

Note: User-defined CTCSS encode must be setup by programming software.

/ key to choose NO. 01 function item, it shows “T-CDC” on LCD.

key to choose CTCSS,DCS or OFF, when DCS signaling is selected,
key to choose DCS positive or inverse code.

inverse code.

27

FUNCTION MENU SETUP

orangetelecom.ca

5. Press or key to conrm and exit.

CTCSS/DCS Decode Setup

If this function is enabled, you can ignore (can not hear) other unrelated call at the same frequency.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key to enter into function menu.

2. Press

3. Press
press

4. Rotate channel switch to choose desired CTCSS/DCS code.

CTCSS:62.5HZ~254.1HZ,51 groups in total, and 1 group user-dened code.

5. Press

Note: User-defined CTCSS decode must be setup by programming software.

/ key to choose NO. 02 function item, it shows “R-CDC” on LCD.

key to choose CTCSS,DCS or OFF, when DCS signaling is selected,

key to choose DCS positive or inverse code.

DCS: 000N-777I, 232 groups in total. “N” stands for positive code, “I”
stands for inverse code.

or key to conrm and exit.

CTCSS/DCS Encode / Decode Synchronous Setup

This function is for adjusting CTCSS/DCS encode/decode synchronous.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key to enter into function menu.

2. Press

28

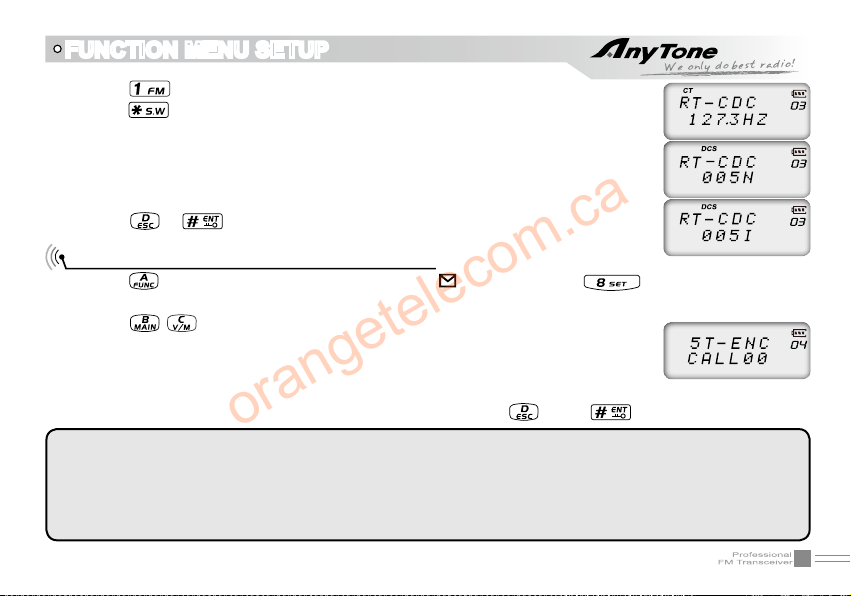

/ key to choose NO. 03 function item, it shows “RT-CDC” on LCD.

FUNCTION MENU SETUP

orangetelecom.ca

3. Press key to choose CTCSS,DCS or OFF, when DCS signaling is selected,
press

4. Rotate channel switch to choose desired CTCSS/DCSencode/decode.

CTCSS: 62.5HZ~254.1HZ, 51groups in total, and 1 group user-dened code.

5. Press

key to choose DCS positive or inverse code.

DCS: 000N-777I, 232 groups in total. “N” stands for positive code, “I”
stands for inverse code.

or key to conrm and exit.

5TONE/2TONE encode group selection

1. Press key, the top left corner of LCD displays “ ” icon, then press key to enter into function
menu.

2. Press
on LCD.

3. Rotate channel switch to choose desired 5TONE encode group.
CALL00~CALL99, 100 groups in total for optional.

4. Press [PTT] key to transmit selected 5TONE encode, press

5TONE encode must be programmed by software, only the groups with editing 5TONE can be
selected. When 5TONE encode is editing with name, transceiver will display name, otherwise
will display “ CALL XX ”.
Default configuration is 5TONE, 2TONE can be customized according to different market
requirements.

/ key to choose NO. 04 function item, it shows “5T-ENC”/”2T-ENC”

key or key to conrm and exit.

29

FUNCTION MENU SETUP

orangetelecom.ca

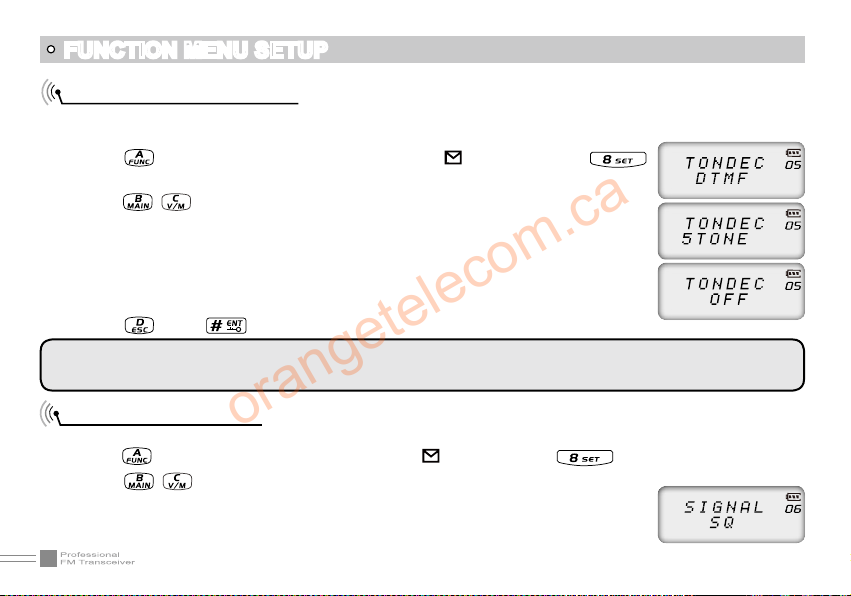

Optional signaling setup

DTMF and 5TONE functions are similar to CTCSS/DCS, it has special call functions, such as ANI, PTT ID, All call,
Alarm, remotely kill, remotely stun and remotely waken, etc..

1. Press key, the top left corner of LCD displays “ ” icon, then press
key to enter into function menu.

2. Press

3. Rotate channel switch to choose desired optional signaling.

DTMF: current optional signaling is DTMF

5TONE/2TONE: current optional signaling is 5TONE/2TONE

OFF: close optional signaling

4. Press

Default configuration is 5TONE , 2TONE can be customized according to different market
requirements.

/ key to choose NO. 05 function item, it shows “TONDEC” on LCD.

key or key to conrm and exit.

Squelch mode setup

This function is used for setting squelch mode to prevent receiving unrelated singals.

1. Press key, the top left corner of LCD displays “ ” icon, then press key enter into function menu.

2. Press

3. Rotate channel switch to choose desired squelch mode.

30

/ key to choose NO. 06 function item, it shows “SIGNAL” on LCD.

FUNCTION MENU SETUP

orangetelecom.ca

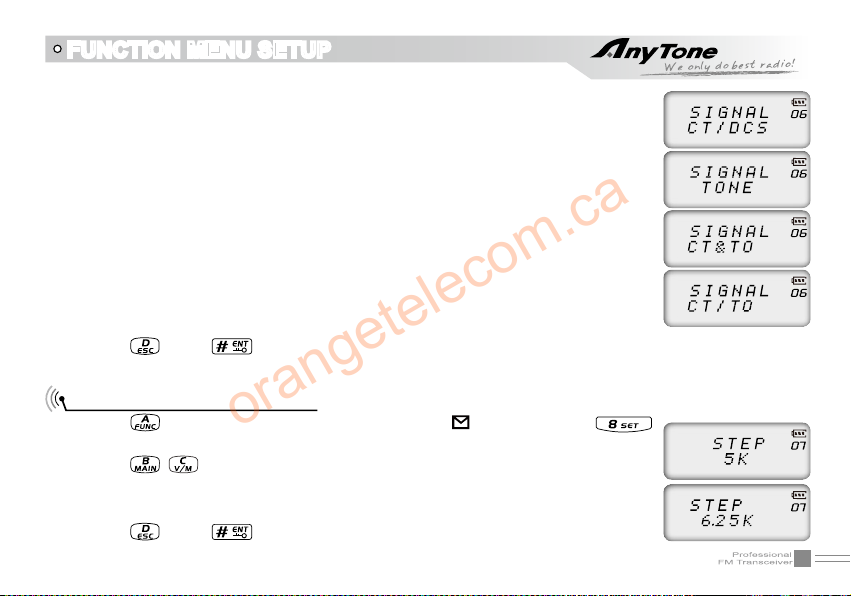

SQ: When current channel received matching RF signals, transceiver can hear

the talking from the other party.

CT/DCS: When current channel received matching RF signals and matching CTCSS/

TONE: When current channel received matching RF signals and matching

CT&TO: When current channel received matching RF signals + matching optional

CT/TO: When current channel received matching RF signals, or matching optional

4. Press

DCS signaling, transceiver can hear the talking from the other party.

optional signaling, transceiver can hear the talking from the other party.

signaling + matching CTCSS/DCS signaling, transceiver can hear the
talking from the other party.

signaling, or matching CTCSS/DCS signaling, transceiver can hear the
talking from the other party.

key or key to conrm and exit.

Frequency step size setup

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired step size.
Stepping: 2.5K,5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K, 50K, 9 options in total.

4. Press

/ key to choose NO. 07 function item, it shows “STEP” on LCD.

key or key to conrm and exit.

31

FUNCTION MENU SETUP

orangetelecom.ca

NOTE: This function item will hide automatically when main band and sub main band are under channel mode.

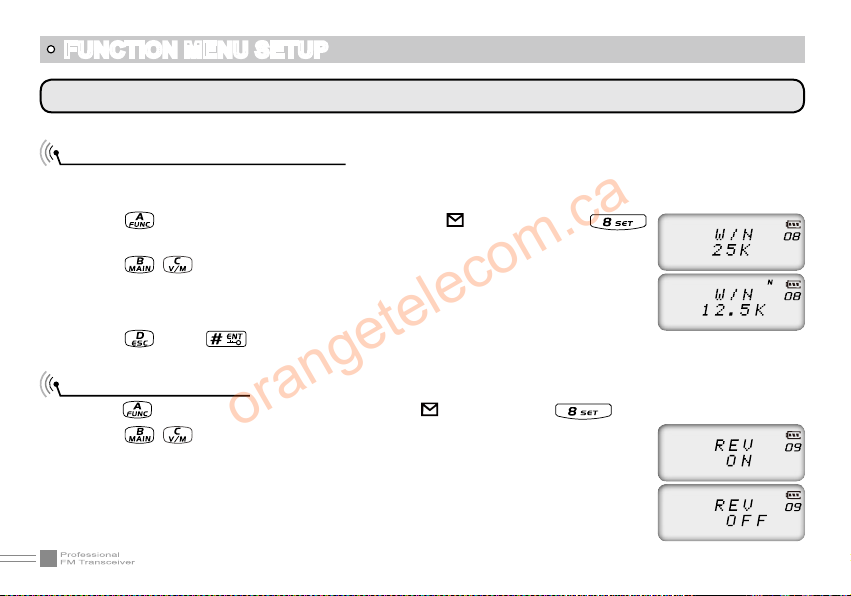

Wide / Narrow Band Selection

According to the national conditions of various countries, it can be set for communication by wide band or
narrow band.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

25K: Wide band, 12.5K: Narrow band

4. Press

/ key to choose NO. 08 function item, it shows “W/N” on LCD.

key or key to conrm and exit.

Frequency Reverse

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

ON: Turn on Frequency reverse function, TX and RX frequency of current

32

/ key to choose NO. 09 function item, it shows “REV” on LCD.

channel will be interchanged. If CTCSS/DCS signaling is set, it also will
be interchanged.

FUNCTION MENU SETUP

orangetelecom.ca

OFF: Close Frequency reverse function.

4. Press

key or key to conrm and exit.

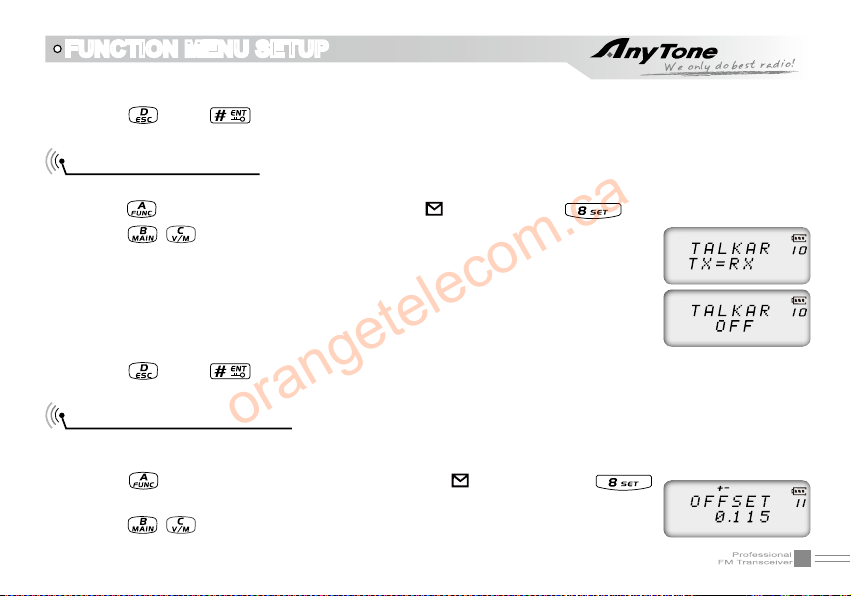

Talk Around ON/OFF

When this function is on, transceiver will cut communication with repeater.

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

TX-RX: Turn on Talk Around function, current channel will transmit at RX

OFF: Close Talk Around function.

4. Press

/ key to choose NO. 10 function item, it shows “TALKAR” on LCD.

frequency, if CTCSS/DCS signaling is set, it will interchange decoding
CTCSS/DCS as encoding.

key or key to conrm and exit.

Offset Frequency setup

This function works through repeater. When repeater receives signals at one frequency, it transmits at the
other frequency. The offset between these two frequencies is called offset frequency.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

/ key to choose NO. 11 function item, it shows “OFFSET” on LCD.

33

FUNCTION MENU SETUP

orangetelecom.ca

3. Rotate channel switch to choose desired offset frequency.

Frequency range is 00-70MHZ.

4. Press

key or key to conrm and exit.

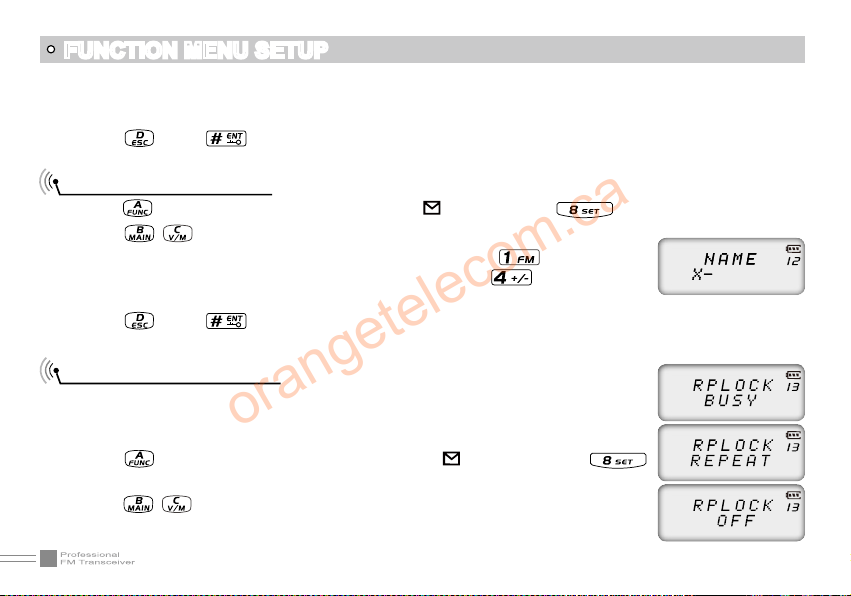

Editing Channel name

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function menu.

2. Press

3. Rotate channel switch to choose desired character, press
current character and move shift to next character. Press
previous character.

4. Press

/ key to choose NO. 12 function item, it shows “-” on LCD.

key to conrm

key back to the

key or key to conrm and exit.

Busy Channel Lockout

BCLO function is used for prohibit transmitting on busy channel, it can prevent
disturbing other transceivers operating in same frequency. If you press PTT, the
radio will beep as warning and get back to receiving state.

1. Press key, the top left corner of LCD displays “ ” icon, then press

key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

34

/ key to choose NO. 13 function item, it shows “RPLOCK” on LCD.

FUNCTION MENU SETUP

orangetelecom.ca

BUSY: Carrier wave lock, transmitting is prohibited when received matching carrier wave.
REPEAT: Signaling lock, transmitting is prohibited when received matching carrier but with unmatching

OFF: Close BCLO function.

4. Press

CTCSS/DCS.

key or key to conrm and exit.

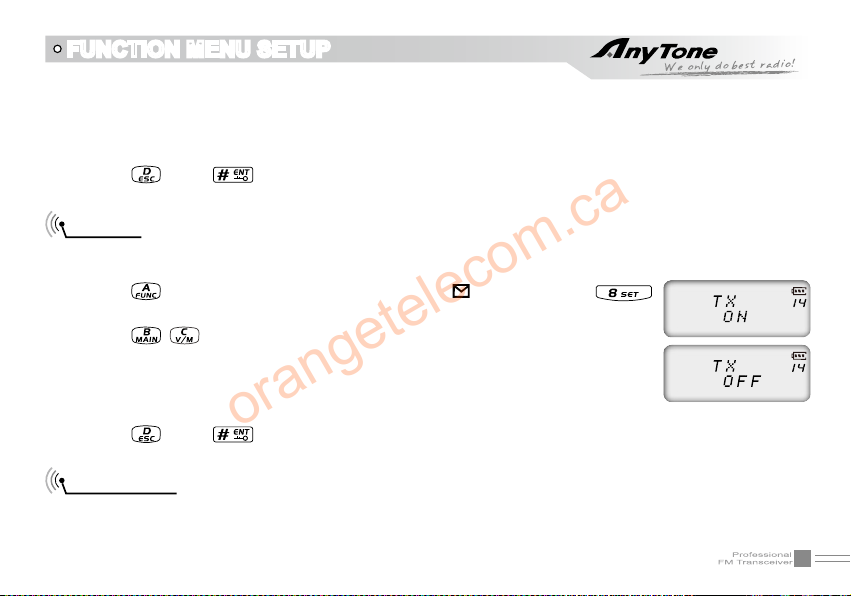

TX OFF

When this function is on, [PTT] key is unavailable. Current channel of transceiver only works under
receiving mode.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

ON: TX OFF is enabled.

OFF: TX OFF is disabled.

4. Press

/ key to choose NO. 14 function item, it shows “TX” on LCD.

key or key to conrm and exit.

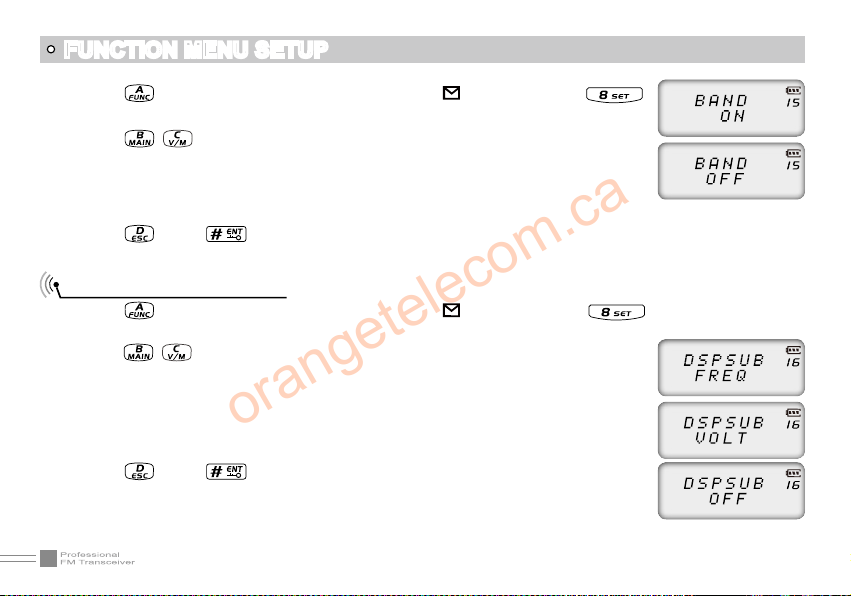

Band Limit

When this function is on, inputting frequency or Scanning frequency under VFO is limited in current VFO
frequency band.

35

FUNCTION MENU SETUP

orangetelecom.ca

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
ON: Band limit is enabled.

OFF: Band limit is disabled.

4. Press

/ key to choose NO. 15 function item, it shows “BAND” on LCD.

key or key to conrm and exit.

Sub Band Display Setup

1. Press key, the top left corner of LCD displays “ ” icon, then press key enter into function
menu.

2. Press

3. Rotate channel switch to choose desired setup.
FREQ: Display sub band frequency or channel.

VOLT: Display current battery voltage.

OFF: Sub band display is disabled.

4. Press

36

/ key to choose NO. 16 function item, it shows “DSPSUB” on LCD.

key or key to conrm and exit.

FUNCTION MENU SETUP

orangetelecom.ca

Keypad Voice Prompt Setup

1. Press key, the top left corner of LCD displays “ ” icon, then press key enter into function

menu.

2. Press

3. Rotate channel switch to choose desired setup.

ON: Keypad Voice Prompt is enabled.

OFF: Keypad Voice Prompt is disabled.

4. Press

/ key to choose NO. 17 function item, it shows “BEEP” on LCD.

key or key to conrm and exit.

Time-Out-Timer (TOT)

The purpose of Time-out-Timer is to restrict transceiver for continuous long-term transmission. When the
continuous transmission time is beyond the preset time, transceiver is forced to stop transmitting and make
a beep sound.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
1~27 minutes, total 27minutes of TOT for optional, each interval is 1minute.

4. Press

/ key to choose NO. 18 function item, it shows “TOT” on LCD.

key or key to conrm and exit.

37

FUNCTION MENU SETUP

orangetelecom.ca

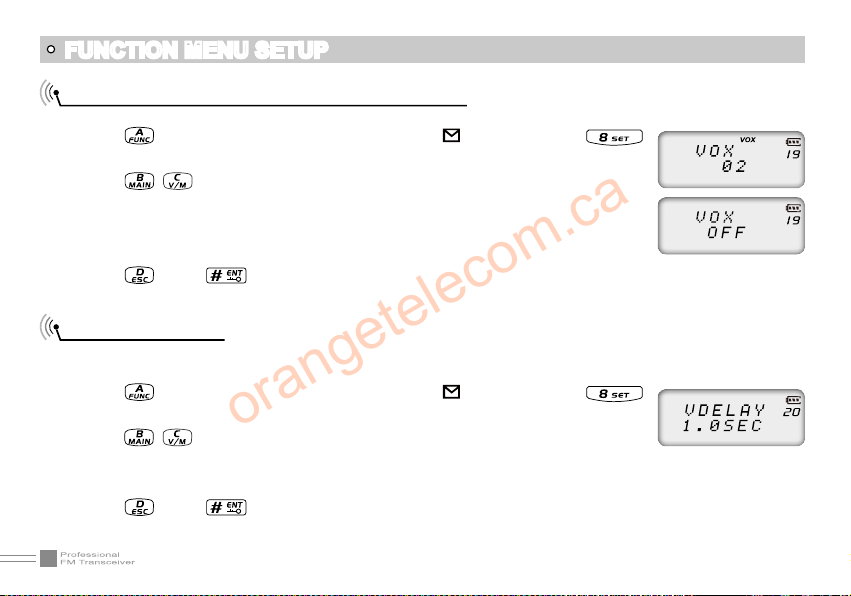

Voice Operated Transmission (VOX) Setup

When this function is on, the transmitting can be started by voice, no need to press [PTT] key.

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
1~10 : Total 10 VOX levels for optional.

OFF: VOX function is disabled.

4. Press

/ key to choose NO. 19 function item, it shows “VOX” on LCD.

key or key to conrm and exit.

VOX Delay Setup

If transceiver returns to receive mode instantly after VOX calling, it may cause calling voice missing. To
avoid this problem, user can set a suitable delay time.

1. Press key, the top left corner of LCD displays “ ” icon, then press

key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

0.5S-3S: Total 27 levels for optional, each interval is 0.1S

4. Press

38

/ key to choose NO. 20 function item, it shows “VDELAY” on LCD.

key or key to conrm and exit.

FUNCTION MENU SETUP

orangetelecom.ca

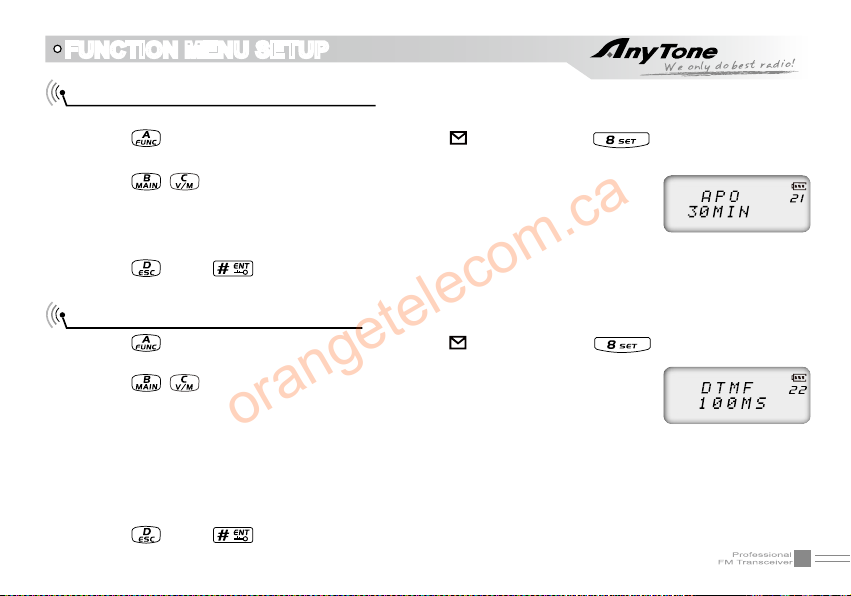

Automatic Power Off Time setup

When this function is on, transceiver will automatic power off when reach the preset time.

1. Press
menu.

2. Press

3. Rotate channel switch to choose desired setup.
30minutes ~ 2hours: Total 3 levels for optional.
OFF: Automatic Power Off Time is disabled.

4. Press

key, the top left corner of LCD displays “ ” icon, then press key enter into function

/ key to choose NO. 21 function item, it shows “APO” on LCD.

key or key to conrm and exit.

DTMF Transmitting Time Setup

1. Press key, the top left corner of LCD displays “ ” icon, then press key enter into function
menu.

2. Press

3. Rotate channel switch to choose desired setup.
50MS: Each DTMF signal transmits 50ms, interval 50ms
100MS: Each DTMF signal transmits 100ms, interval 100ms
200MS: Each DTMF signal transmits 200ms, interval 200ms
300MS: Each DTMF signal transmits 300ms, interval 300ms
500MS: Each DTMF signal transmits 500ms, interval 500ms

4. Press

/ key to choose NO. 22 function item, it shows “DTMF” on LCD.

key or key to conrm and exit.

39

FUNCTION MENU SETUP

orangetelecom.ca

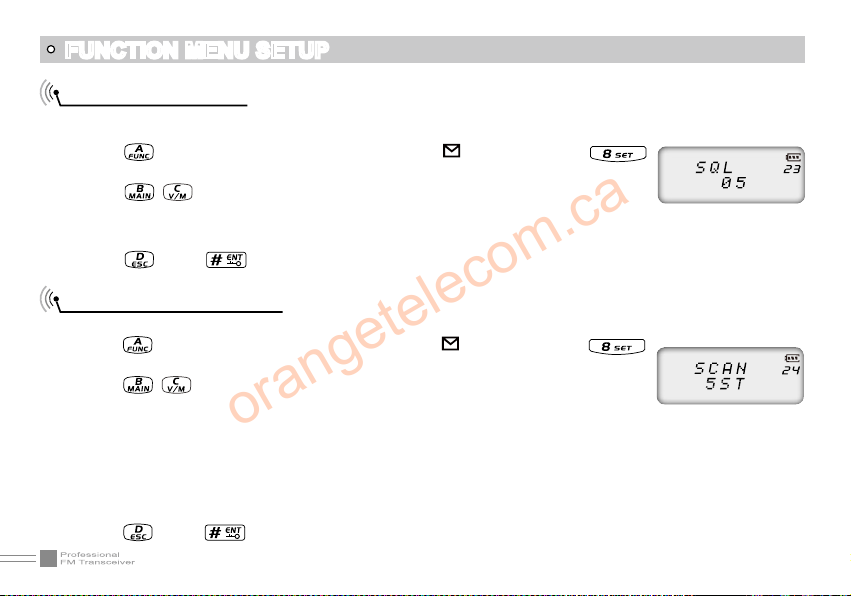

Squelch level setup

This function is used for setup intensity of receiving signals, transceiver will hear calls when receiving
signal intensity achieve preset data, otherwise, transceiver will keep mute.

1. Press key, the top left corner of LCD displays " " icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
00~09 : 10 levels of squelch in total for optional, “00” is minimum setup value (normally open)

4. Press

/ key to choose NO. 23 function item, it shows “SQL” on LCD.

key or key to conrm and exit.

Scan Dwell Time Setup

There are three kinds of scan dwell time for optional.

1. Press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
5ST: When scanning matched signal, transceiver will stop scaning for 5seconds then resume.
10ST: When scanning matched signal, transceiver will stop scaning for 10seconds then resume.
15ST: When scanning matched signal, transceiver will stop scaning for 15seconds then resume.
2SP: When scanning matched signal, transceiver will stop scaning, 2seconds after signal disappeared,

4. Press

40

key, the top left corner of LCD displays " " icon, then press

/ key to choose NO. 24 function item, it shows “SCAN” on LCD.

then resume.

key or key to conrm and exit.

FUNCTION MENU SETUP

orangetelecom.ca

Function Icon Stay Time Setup

1. Press key, the top left corner of LCD displays “ ” icon, then press
key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.

FUNCT: When nished function setting or enter into function menu, icon

1SEC: When nished function setting or enter into function menu, icon stay

2SEC: When nished function setting or enter into function menu, icon stay

3SEC: When nished function setting or enter into function menu, icon stay 3seconds then

ALWAYS: Function icon is always display, only when pressing function key again, the icon will disappear.

4. Press

NOTE: When function icon is staying, user can setup desired functions continuously, no need press function
key every time.

/ key to choose NO. 25 function item, it shows “FTIME” on LCD.

disappeared.

1second then disappeared

2seconds then disappeared

disappeared

key or key to conrm and exit.

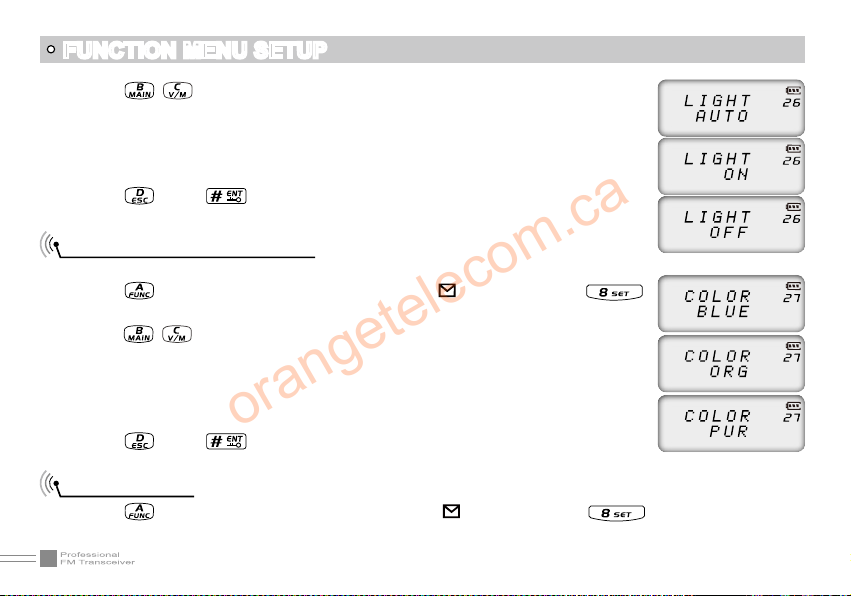

LCD Backlight Setup

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function
menu.

41

FUNCTION MENU SETUP

orangetelecom.ca

2. Press / key to choose NO. 26 function item, it shows “LIGHT” on LCD.

3. Rotate channel switch to choose desired setup.
AUTO: Backlight will automatic closed after a period.
OFF: Always off.
ON: Always on.

4. Press

key or key to conrm and exit.

LCD Backlight Color Setup

There are three kinds of backlight color for optional.

1. Press

key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
BLUE: Blue backlight
ORG: Orange backlight
PUR: Purple backlight

4. Press

key, the top left corner of LCD displays“ ” icon, then press

/ key to choose NO. 27 function item, it shows “COLOR” on LCD.

key or key to conrm and exit.

Self ID inquiry

1. Press key, the top left corner of LCD displays “ ” icon, then press key enter into function
menu.

42

FUNCTION MENU SETUP

orangetelecom.ca

2. Press / key to choose NO. 28 function item, it shows “ID” on LCD.

3. Rotate channel switch to choose desired setup.
The ID code displaying on LCD is transceiver self ID code.

4. Press

NOTE: When current channel add 5TONE to be optional signaling, LCD displays 5TONE self ID code,
otherwise displays DTMF self ID code.

key or key to conrm and exit.

Tone Pulse Frequency Selection

This function is used for waking up sleeping repeater, it needs a certain intensity of Tone Pulse to wake up
sleeping repeater. In general, as long as the repeater has been waked up, no need to transmit Tone Pulse
again in preset time.

1. Press key, the top left corner of LCD displays “ ” icon, then press

key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
1750HZ, 2100HZ, 1450HZ, 1000HZ, 4 kinds of Tone Pulse for optional

4. Press

/ key to choose NO. 29 function item, it shows “TBST” on LCD.

key or key to conrm and exit.

Battery Save Setup

User can setup battery save ratio according to requirements. The standby time can be extended when
enable battery save function, but if save ratio setting too high, it may cause voice missing.

43

FUNCTION MENU SETUP

orangetelecom.ca

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function menu.

2. Press

3. Rotate channel switch to choose desired setup.
OFF: Battery Save is disabled.
1:2 The standby time between normal working state and battery saving mode is 1:2
1:3 The standby time between normal working state and battery saving mode is 1:3
1:5 The standby time between normal working state and battery saving mode is 1:5
1:8 The standby time between normal working state and battery saving mode is 1:8
AUTO: Battery save ratio is adjusting automatically.

4. Press

Remind: When single band UHF or VHF in standby, proposed setup is 1:8,
when dual band VV,UU or UV in standby, proposed setup is 1:2.

/ key to choose NO. 30 function item, it shows “SAVE” on LCD.

key or key to conrm and exit.

FM radio

1. Press key, the top left corner of LCD displays“ ” icon, then press key enter into function

menu.

2. Press

3. Rotate channel switch to choose desired setup.
ON: FM radio function is enable.
OFF: FM radio function is disable.

4. Press

NOTE: Only when this function is setting ON, FM radio can be normally used.

44

/ key to choose NO. 31 function item, it shows “RADIO” on LCD.

key or key to conrm and exit.

SENIOR FUNCTION OPERATIONS

orangetelecom.ca

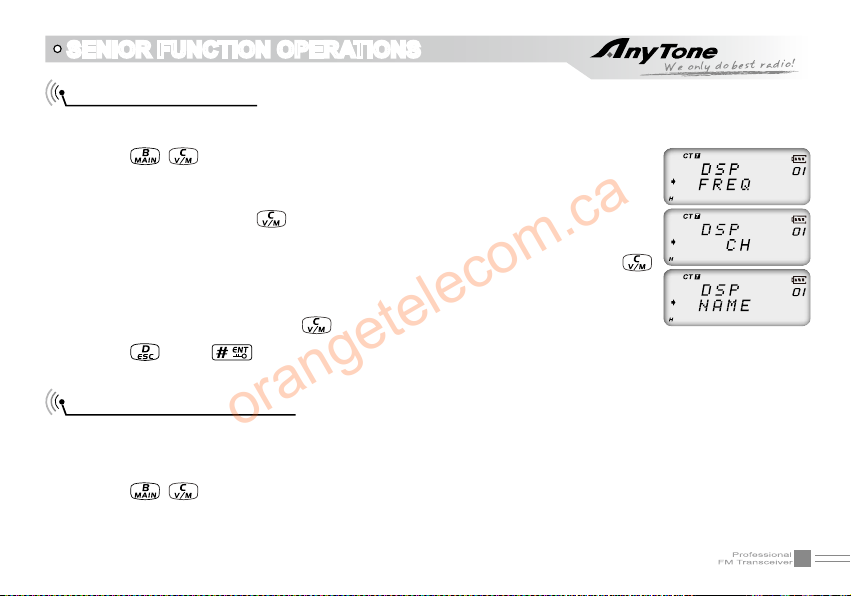

Display Mode Setup

There are three kinds of display modes for optional.

1. Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.

2. Press

3. Rotate channel switch to choose desired setup.
FREQ: Frequency + Channel mode, transceiver displays current channel name +

CH: Channel mode, 1~21 items of function menu will hide automatically, user can

NAME: Channel + Name Tag mode, transceiver displays current channel number

4. Press

/ key to choose No. 01 function item, it shows “DSP” on LCD.

frequency, press

only operate some functions. It is unable to switch into VFO by pressing
key. This model can be used for Amateur mode.

+ channel name, press

key or key to conrm and exit.

key to switch into VFO mode.

key to switch into VFO mode.

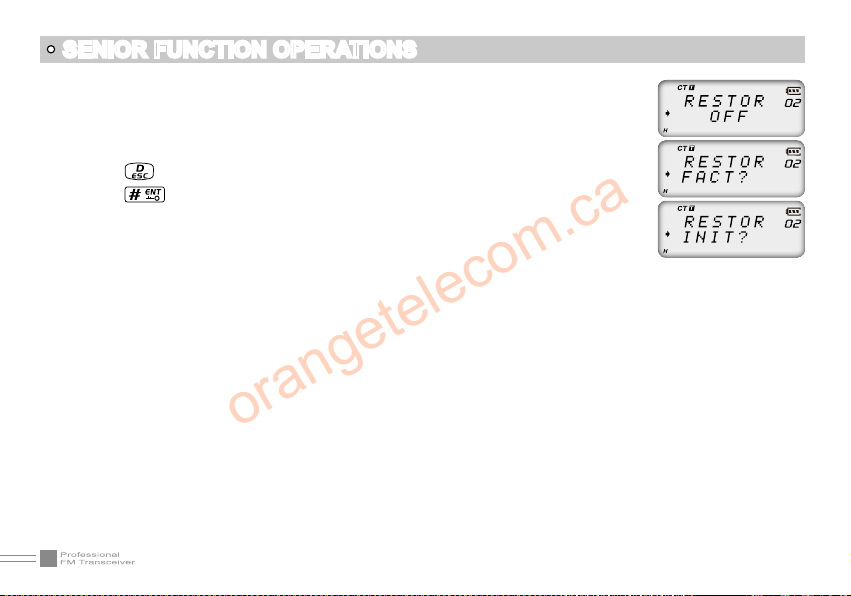

Resume Factory Default

You can make all the settings of transceiver return to the factory default settings when transceiver can not
work normally because of wrong operation or error setup.

1. Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.

2. Press

3. Rotate channel switch to choose desired setup.
OFF: No operations.

/ key to choose No. 02 function item, it shows “RESTOR” on LCD.

45

SENIOR FUNCTION OPERATIONS

orangetelecom.ca

FACT: Resume all items to factory default, including channel and background

settings.

INIT: Resume background settings to factory default, channel operations are

keeping.

4. Press

5. Press

46

key to exit current selection

key to conrm current selection.

Programming software starting

orangetelecom.ca

(Takes Windows XP system for example)

1.Double Click “QPS3318UV setup.exe”, then go on installing as
computer command.

2.Click “START” menu of computer, choose “USB To COM” in QPS3318UV
item and click it. Please install USB To Comport drive program as
computer command.

3.Please plug PC03 programming cable into USB port of PC device, then
connect to transceiver.

4.Double click “QPS3318UV” shortcut icon, or click QPS3318UV item in
“START” menu to open programming software interface.

5.Choose “COM Port” as computer command, then click “OK” to start
programming software.

NOTE: In same computer, if programming cable plugs into different USB
port, the COM Port number is different.

Before programming, transceiver should be turned on rstly.

Not turn on or turn off transceiver when it is connecting with computer,
otherwise it may cause transceiver not read or write data. If this
situation is happened, please shut down programming software, remove
programming cable from computer, then re-plug cable into computer and
re-start programming software, re-choose COM Port, the programming
will work normally.

NOTE:
The programming software is attached with product identifying system. In first time run, the transceiver

should be connected to computer, otherwise the software can not run.

(picture 1)

(picture 2)

47

TECHNICAL SPECIFICATION

orangetelecom.ca

General

VHF：136~174MHz

Frequency Range

Channel Capacity 200 channels

Channel Spacing

Phase-locked
Step

Operation Voltage 7.4V DC ±20%

Battery Life

Frequency
Stability

Operation
Temperature

Size 240×56×30mm (with battery,antenna)

Weight 210g (with battery,antenna)

48

(EX：108~180MHz）
UHF：400~480MHZ
（EX：400~520MHz）

25KHz (wide band)

12.5KHz (narrow band)

0.1KHz

More than 12 Hours(1500mAh),by 5-5­90 working cycle

±2.5ppm

-20℃~ +55℃

Sensitivity
(12dB SINAD)

Adjacent Channel
Selecitvity

Intermodulation ≥60dB ≥60dB

Spurious Rejection ≥70dB ≥70dB

Hum & Noise ≥45dB ≥40dB
Audio Distortion ≤5%

Audio Power Output 1000mW/10%

Power Output

Modulation 16KΦF3E 11KΦF3E

Adjacent Channel
Power

Hum & Noise ≥40dB ≥40dB

Spurious Emission ≤-36dB ≤-36dB

Audio Distortion ≤5%

Receiving Part

Wide band Narrow band

≤0.25μV ≤0.35μV

≥65dB ≥60dB

Transimitting Part

Wide band Narrow band
6W/1W（VHF）
5W/1W（UHF）

≥65dB ≥60dB

TROUBLE SHOOTING GUIDE

orangetelecom.ca

Problem Corrective Action

A.The battery may be exhausting. Recharge or replace the battery.

No power

Battery power dies shortly after
charging.

Transceiver cannot scan The channels are not in scan list. (Professionals set it.)

All band noisy after programmed

No sound after using earphone.
for a while

Communication distance
becomes short, and Low
sensitivity

Cannot talk or hear other
members in your group

B.The battery may not be installed correctly. Remove the battery
and install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery touch is broken; send it to local dealers to repair.

The battery life is finished. Replace the battery pack with a new one.

Turn on squelch when programmed. Non-professionals are advised
not rammed to adjust this function.

Earphone jack is broken. Please contact with local dealers to repair.

A.Check whether the antenna is in good conduction and the antenna
base do not come adrift.
B.Antenna connector is broken or not or with sundries.Whether it
has set in low power output. (Please contact with local dealers to
repair.)

A.Different frequency or channel, please change it.
B.Different CTCSS / DCS /DTMF, please reset it.
C.Out of communication range.

49

TROUBLE SHOOTING GUIDE

orangetelecom.ca

Can not power on or frequent
power off

The receiving sound gets low or
intermittent

Receiving intermittent with in big
noise

Loudspeaker become lower or
with“ka ka”sound after using a
certain time

Receive voice from the other
party but can not transmit

Receiving indicator with green
light but no sound

50

Check weather the battery touch is out of sharp or broken.

Check weather the MIC is stoppage. Otherwise, please contact with
local dealers to repair it.

A.Out of communication range or obstruct by tall buildings or in big
noise.
B.450 filter is broken, Please contact with local dealers to repair.

Check whether the loudspeaker is broken, Iron powder or sundries is
in the loudspeaker. Please contact with local dealers to repair.

Check [PTT] key.

A.Low volume, please clockwise to turn on.
B.Loudspeaker is broken, please contact with local dealers to repair.
C.Earphone jack is broken, please contact with local dealers to
repair.
D.Volume switch is broken.

ATTACHED CHART

orangetelecom.ca

CTCSS Frequency Chart

1 62.5 12 94.8 23 136.5 34 177.3 45 218.1
2 67.0 13 97.4 24 141.3 35 179.9 46 225.7
3 69.3 14 100.0 25 146.2 36 183.5 47 229.1
4 71.9 15 103.5 26 151.4 37 186.2 48 233.6
5 74.4 16 107.2 27 156.7 38 189.9 49 241.8
6 77.0 17 110.9 28 159.8 39 192.8 50 250.3
7 79.7 18 114.8 29 162.2 40 196.6 51 254.1
8 82.5 19 118.8 30 165.5 41 199.5 52

9 85.4 20 123.0 31 167.9 42 203.5
10 88.5 21 127.3 32 171.3 43 206.5
11 91.5 22 131.8 33 173.8 44 210.7

user-dened

51

ATTACHED CHART

orangetelecom.ca

1024 groups DCS frequency chart
