Anton Bauer QR-GOLD Users Guide

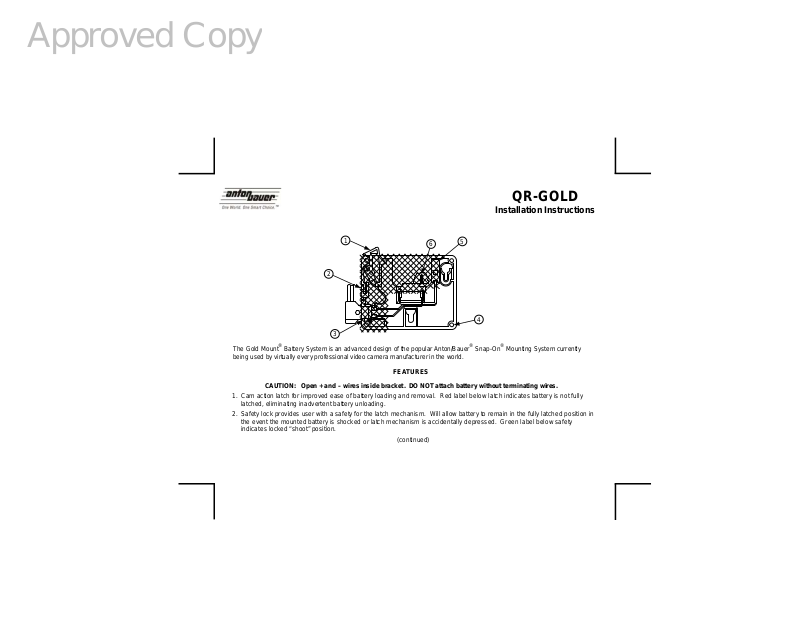

QR-GOLD

Approved Copy

Installation Instructions

1

2

3

The Gold Mount® Battery System is an advanced design of the popular Anton/Bauer® Snap-On® Mounting System currently
being used by virtual ly ev e ry pr of es si ona l vi de o ca mera manufacturer in the w or ld .

FEATURES

CAUTION: Open + and – wires inside bracket. DO NOT attach battery without terminating wires.

1. Cam action latch for improved ease of battery loading and removal. Red label below latch indicates battery is not fully
latched, eliminating inadvertent battery unloading.

2. Safety lock provides user with a safety for the latch mechanism. Will allow battery to remain in the fully latched position in
the event the mounted battery is shocked or latch mechanism is accidentally depressed. Green label below safety
indicates locked “shoot” position.

(continued)

6

5

4

Approved Copy

3. PowerTap

4. Mounting Pattern. The Snap-On Gold Mount bracket is fully compatible with all existing cameras and batteries using the

5. PowerTap Fuse Holder. The fuse holder for the PowerTap connector. The fuse holder located in the bracket is press fit.

6. Banana Pins. The Gold Mount Banana Pins are gold plated with eight contact points for ultra-low resistance and

®

accessories. NOTE: Requires
assemblies and cable assemblies for the older Ultralight SINGLE or DUAL.

Anton/Bauer mounting
support the shaded areas (see Fig. A) against a flat surface. A backplate is provided with each Gold Mount bracket for
this purpose.

To remove the fuse holder, grasp the main fuse holder body and pull up.
To replace the fuse:

A. Remove the fuse from the fuse holder by pushing the assembly through
B. Pull the press fit fuse caps from both ends of the spent fuse and replace with a new fuse. (Note: The replacement

C. Replace both fuse caps onto the new fuse and press the fuse assembly back into the main body.
D.

optimum dependability. Both pins are externally removable with a 4mm hex nut driver for ease of serviceability.
NOTE: When reinstalling pins, caution should be taken not to over tighten the pin assembly. Replacement Banana pins
are available only through the Anton/Bauer Service Department. The Anton/Bauer part number is 3320-0105.

Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and
may limit or void those warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any
liability or responsibility resulting from the use of any battery, charger or accessory made by Anton/Bauer manufacture
with any battery, charger or accessory not manufactured, produced or sold by Anton/Bauer. Anton/Bauer only authorizes
the use of original Anton/Bauer product with this product. Use only original Anton/Bauer equipment with this product.

Connector. A built-in fused 10 amp connector for powering Ultralight

fuse must be a 10 amp 250 volt 5 x 20mm fuse).
Manufacturer’s part numbers: Anton/Bauer (3713-1010)
Schurter (001.2514)
Little Fuse (218-010)

Press the fuse holder back into its original location within the bracket.

PowerTap connector. The PowerTap connector is included on all Ultralight 2 light

system. NOTE: When custom mounting the Gold Mount bracket system it is necessary to

®

portable camera light and

the square access opening in the main body.

Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • ([phone] • Fax [phone] • [e-mail]

Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • ([phone] • Fax [phone]

Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • [phone] • Fax [phone] • [e-mail]

www.antonbauer.com 7595-0079 Rev N
