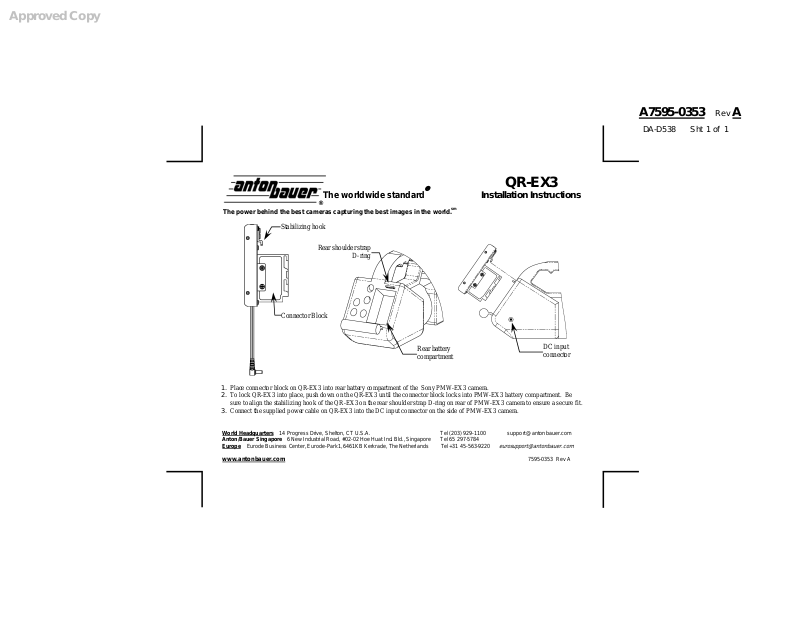

QR-EX3

The worldwide standard®

The power behind the best cameras capturing the best images in the world.sm

Stabilizing hook

®

Installation Instructions

Rear shoulder strap

Connector Bloc

1. Place connector block on QR-EX3 into rear battery compartment of the Sony PMW-EX3 camera.

2. To lock QR-EX3 into place, push down on the QR-EX3 until the connector block locks into PMW-EX3 battery compartment. Be

sure to align the stabilizing hook of the QR-EX3 on the rear shoulder strap D-ring on rear of PMW-EX3 camera to ensure a secure fit.

3. Connect the supplied power cable on QR-EX3 into the DC input connector on the side of PMW-EX3 camera.

World Headquarters 14 Progre s s D r i v e, Shelto n, CT U.S.A . Tel [phone] [e-mail]

nton/Bauer Singapore 6 New Industrial Road, #02-02 Hoe Huat Ind. Bld., Singapore Tel [phone]

Europe

Eurode Business Center, Eurode-Park1, 6461KB Kerkrade, The Netherlands Tel [phone]

www.antonbauer.com 7595-0353 Rev A

D-ring

Rear battery
compartment

DC input
connector

[e-mail]
