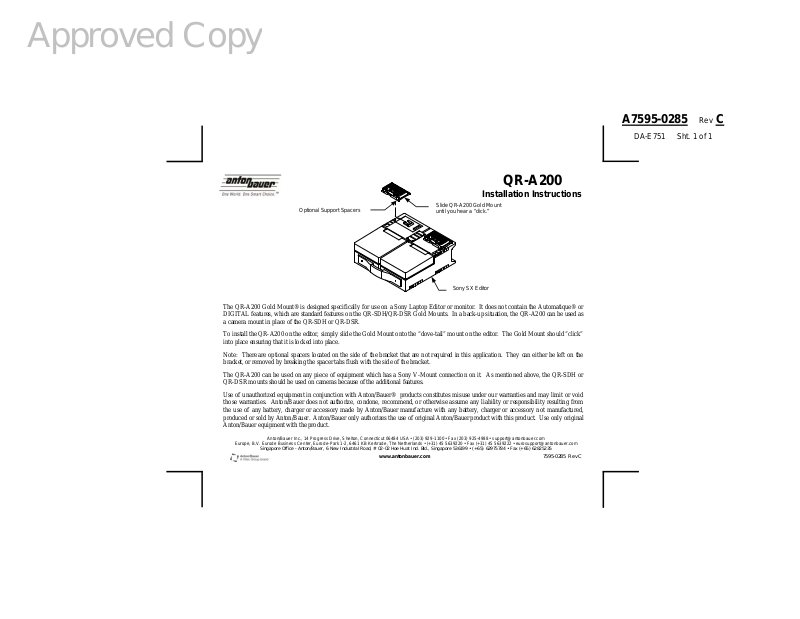

QR-A200

Optional Support Spacers

The QR-A200 Gold Mount® is designed specifically for use on a Sony Laptop Editor or monitor. It does not contain the Automatique® o
DIGITAL features, which are standard featu re s on the QR-SDH/QR-DSR Gold Mounts. In a back-up situ ati on , the QR- A2 00 ca n be used as
a camera mount in pl ac e o f th e QR -S DH o r QR -D SR .

To install the QR-A200 on the editor, simply slide the Gold Mount onto the “dove-tail” mount o n the edi to r. The Go ld Mo un t should “click”
into place ensuring that i t is lo cke d into plac e.

ote: There are optional spacers lo cated on the side of th e bracket that are not r equired in this app lication. They can ei ther be left on the

bracket, or removed by breaking the spacer tabs flush with the side of the bracket.
The QR-A200 can be used on any piece of equipment which has a Sony V-Mount connection on it. As mentioned above, the QR-SDH o

QR-DSR mounts should be used on cameras because of the additional features.
Use of unauthorized equipment in conjuncti on with Anton /Bauer® pr oducts const itutes misu se under our w arranties and may limit or voi

those warranties. Anton/Bauer does not autho rize, condone, recomme nd, or otherwise assume any liabilit y or responsibility resultin g fro
the use of any battery, charger or accessor y made by Anton/Bauer manufacture with any battery, charg er or accessory not manufactured,

roduced or sold by Anton/Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer product with this product. Use only origina

Anton/Bauer equipment with the product.

Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • ([phone] • Fax [phone] • [e-mail]

Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • [phone] • Fax [phone] • [e-mail]

Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • ([phone] • Fax [phone]

www.antonbauer.com 7595-0285 Rev C

Slide QR-A200 Gold Mount
until

ou hear a “click.”

Installation Instructions

Sony SX Editor
