User Guide
Performance Series
Battery Charger
Performance Series Battery Charger
Mobile Power. Perfected.
Part No. 7595 -0448
EN
www.antonbauer.com
Copyright © 2015
All rights reserved
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied
or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior
agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom Inc. reserves the
right to make the changes to the information or specifications without obligation to notify any person of such revisions or
changes. Changes will be incorporated in new versions of the publication.
We are making ever y effort to ensure that our manuals are updated on a regular basis to reflect changes to the product
specifications and features. Should this manual not contain information on the core functionality of your product, please let
us know. You may be able to access the latest revision of this manual from our website.
Vitec Videocom Inc. reserves the right to make changes to product design and functionality without notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of the respective companies.
Published by:
Vitec Videocom Inc.
Email: technical.publications@vitecgroup.com
Contents
Safety .................................................................................................. 2
Warning Symbols Used in these Instructions ................................. 2
Intended Use .................................................................................. 2
About this user guide ........................................................................ 4
Introduction ..................................................................................... 4
Important ........................................................................................ 4
Anton/Bauer Battery Compatibility ................................................. 4
Third Party V-Mount Compatibility .................................................. 5
Components and Connections ........................................................ 6
Wi-Fi Capability .............................................................................. 6
Mini USB Port ................................................................................. 6
DC XLR Output .............................................................................. 6
AC Mains Power ............................................................................. 6
Attaching a Battery to the Charger ................................................. 7
To Release the Battery ................................................................... 7
Operation ............................................................................................ 8
Self-Test ......................................................................................... 8
Three Stage Charging Methodology ............................................. 8
Removal of AC Mains Power .......................................................... 8
Video Battery Touchscreen ............................................................. 9
Video Battery Touchscreen ........................................................... 10

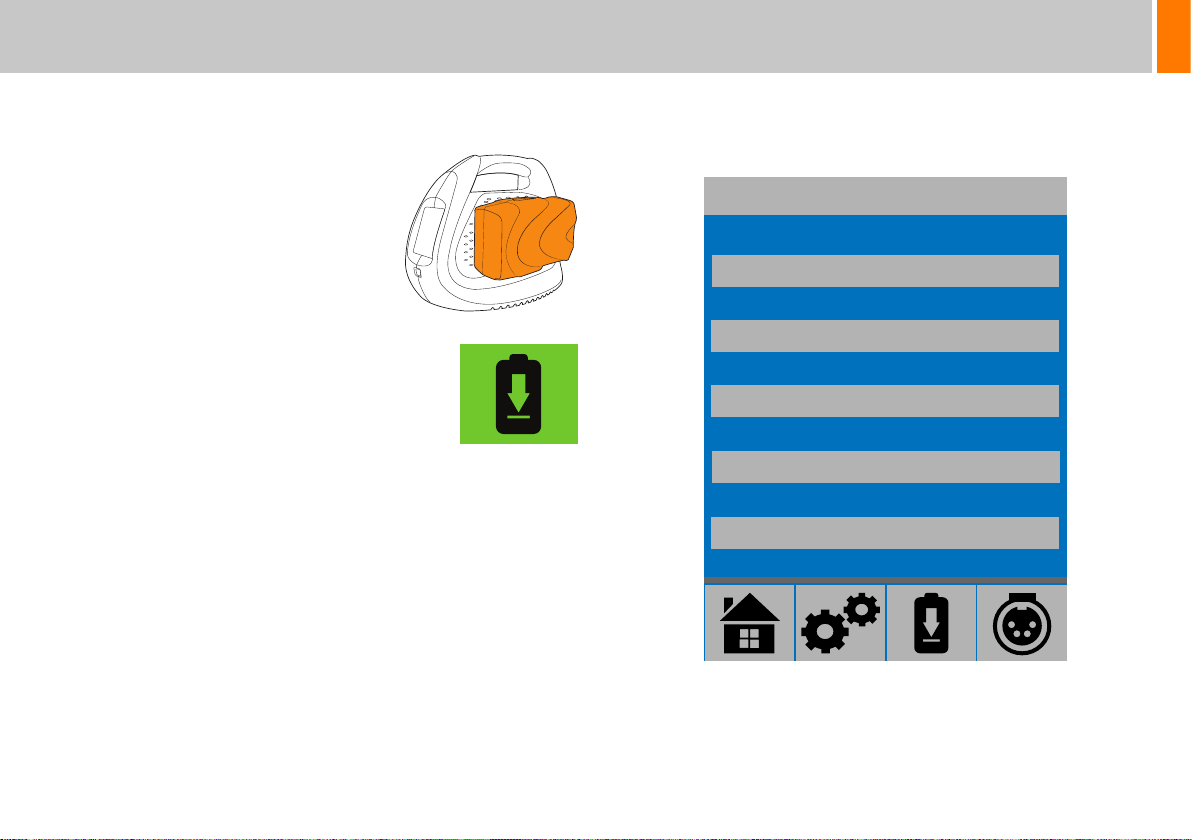

Battery Testing or Calibration ....................................................... 11

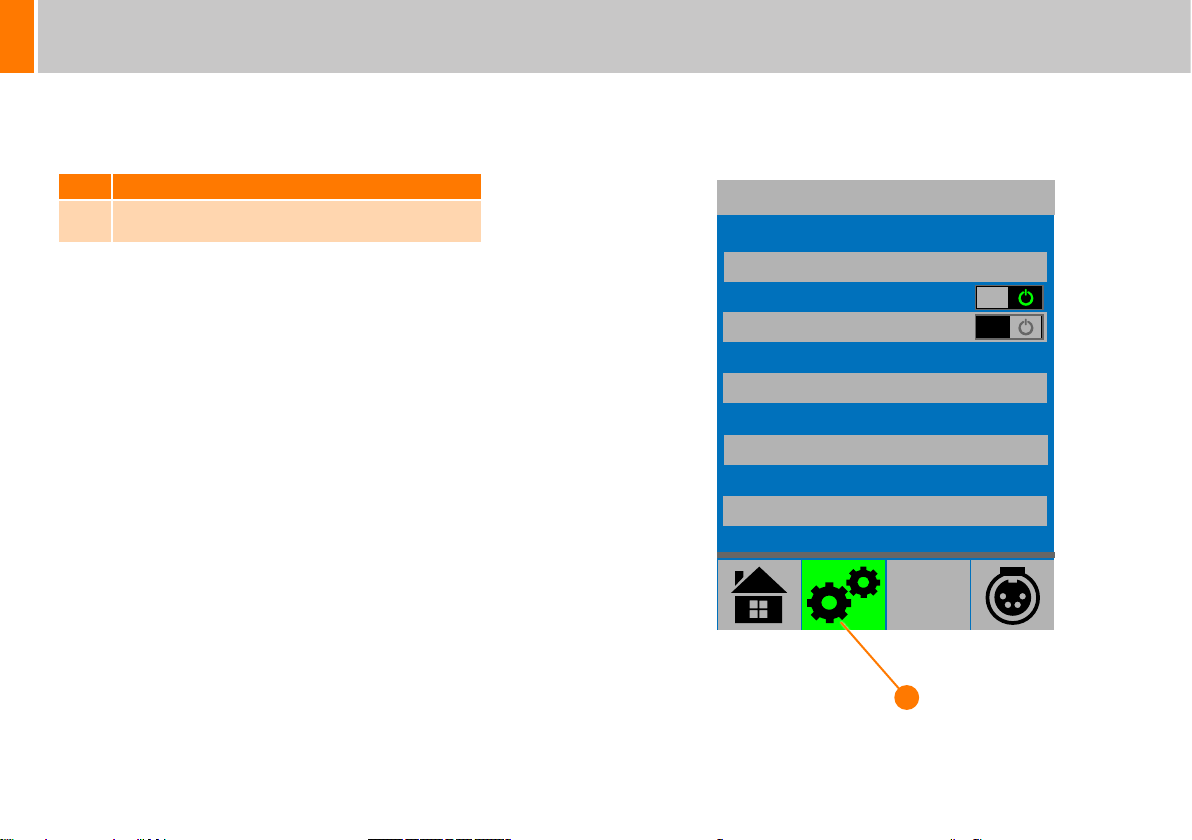

System Settings ........................................................................... 12
Auto-Dim and Auto-Shutoff ........................................................... 13

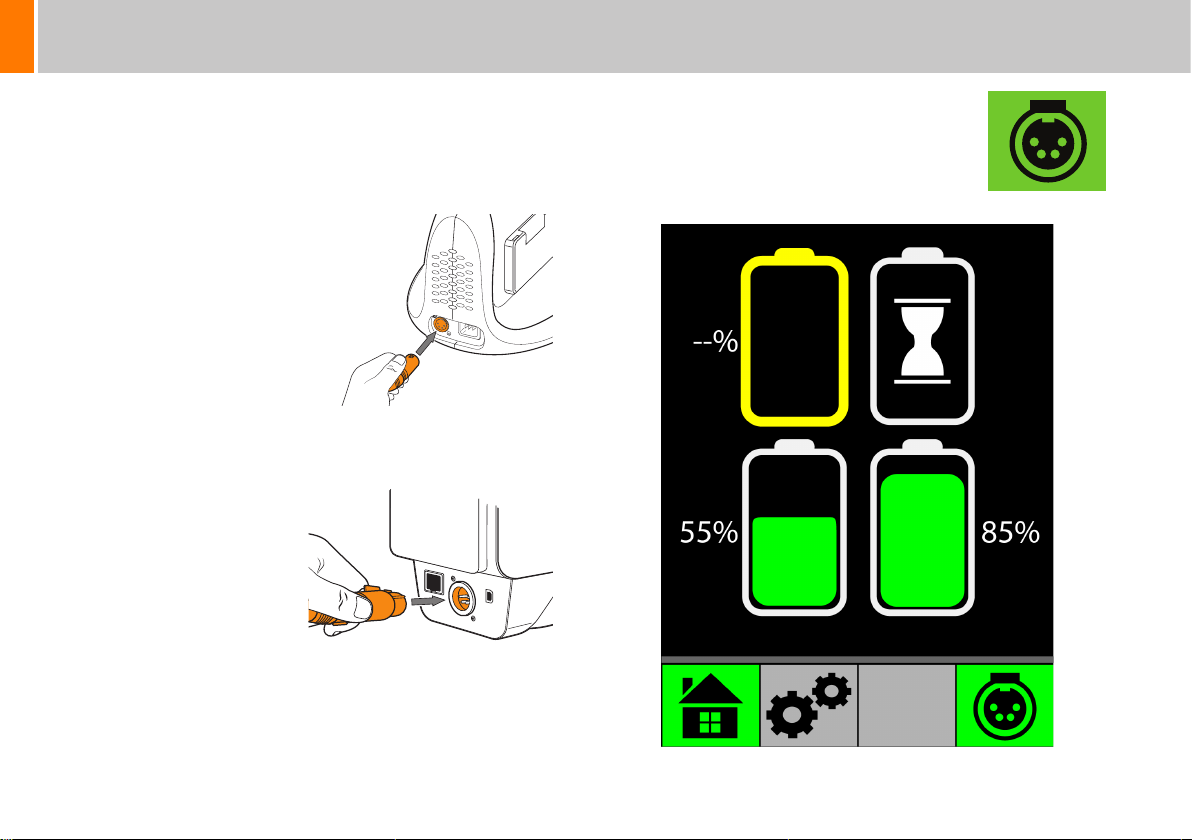

Powering DC Auxiliary Equipment ................................................ 14
Technical Specications .................................................................15
After Sales Support ......................................................................... 16
General Notices ............................................................................... 17
Important information on the safe installation and operation of this
product. Read this information before operating the product. For
your personal safety, read these instructions. Do not operate the
product if you do not understand how to use it safely. Save these
instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury
and avoid possible damage to the product.
WARNING! Where there is a risk of personal injury
or injury to others, comments appear supported by
the warning triangle symbol. Where there is a risk
of damage to the product, associated equipment,
process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK Where there is a risk of electric
shock, comments appear supported by the hazardous
voltage warning triangle.
Intended Use
The Anton/Bauer® Performance Series Chargers deliver all of the
proven reliability of previous Anton/Bauer chargers in a portable
power system addressing both Gold Mount® and V-mount
configurations. The technology advancements of this charger
deliver the features and performance of several essential power
products in one economic and portable package while reducing
power consumption.
Electrical Connection
WARNING! Risk of electric shock. Do not remove
cover, no user servicable parts inside the product.
WARNING! Risk of electric shock. Always check
cables for signs of damage. Damaged cables can
cause personal injury and/or damage the equipment.
WARNING! It is the responsibility of the local
organisation to ensure that the product is periodically
checked for electrical safety in accordance with local
regulations.
CAUTION! This product must be connected to a
power supply of the same voltage (V) and current (A)
as indicated on the product. Refer to the technical
specifications for the product.
CAUTION! AC Mains plug or appliance coupler is to
be used as a power disconnect device; make sure it is
readily accessible.
CAUTION! All data connections to other devices
must be made using shielded cables.
2
SafetySafety
CAUTION! Using alternative power sources will
invalidate the system EMC liability.
CAUTION! Do not exceed the current output limit of
the product when powering auxiliary devices.
CAUTION! When powering the charger using a
generator, the generator must produce a sine wave
or modified sine wave output, otherwise, the charger
may be damaged.
WARNING! RISK OF ELECTRICAL SHOCK: Refer
servicing to qualified service personnel.
Basic Electrical Insulation (Class 1 Equipment)
WARNING! This product is Class 1 equipment. For
safe operation this equipment must be connected to
a power supply that has a protective earth connection
(US: ground).
Operation
WARNING! Special precautions and handling
instructions are contained in this user guide and
should be strictly adhered to for safe and reliable
operation.
WARNING! Never use flammable or combustible
materials and solvents around batteries or chargers.
CAUTION! The product should not be used outside
the operating temperature limits. Refer to the product
technical specifications for the operating limits for the
product.
CAUTION! Slots and openings are intended for
ventilation purposes to ensure reliable operation of
the product andprotect it from overheating. Do not
block or cover any slots and openings.
WARNING! Protect the product from water, moisture
and dust. The presence of electricity near water can
be dangerous.
WARNING! Charger must not to be exposed to
dripping or splashing and not to be used near objects
filled with liquids.
WARNING! When cleaning the product, use a soft
damp cloth only. Do not wet the exposed metal parts
of the charging unit. Do not use solvents, detergents
or scouring agents.
Maintenance
WARNING! The fitting of non-approved parts or
accessories, or the carrying out of non-approved
alterations or servicing can be dangerous and could
affect the safety of the product. It may also invalidate
the terms and conditions of the product warranty.
RISK OF ELECTRICAL SHOCK: Refer servicing to
qualified service personnel.
3
Introduction
The Anton/Bauer® Performance Series Chargers deliver all of the proven reliability of previous Anton/Bauer chargers in a portable power system
addressing both Gold Mount® and V-mount configurations. The technology advancements of this charger deliver the features and performance of
several essential power products in one economic and portable package while reducing power consumption.
This user guide covers the safe and reliable operation of the Performance Series chargers.
Important
Special precautions and handling instructions are contained in this user guide and should be strictly adhered to for safe and reliable operation.
Contact Anton/Bauer Customer Support Group with any questions regarding this product.
Anton/Bauer Battery Compatibility
Anton/Bauer Performance Series Chargers are compatible with all Digital Series and most Logic Series® Anton/Bauer batteries. For questions on
product compatibility please contact the Anton/Bauer Customer Support Group.
Performance
Seri es
Charger
QUAD GM
84750119
DUAL GM
84750120
QUAD VM
84750121
DUAL VM
84750122
4
Digital
G90
Digital
G150
Digital
G190
Digital
V90
Digital
V150
Digital
V190
DIONIC HCDIONIC
HCX
DIONIC HDHyT RO N
100
HyT RO N
140
Third Party V-Mount Compatibility
We have tested specific competitor V-Mount batteries and verified
their compatibility (see table below).
However, there is no guarantee that the Performance Series
Charger can charge any third party battery to 100% full capacity.
The list below does not constitute all of the potential compatible
batteries, therefore it is the recommendation of Vitec Videocom to
utilize Anton/Bauer batteries solely with compatible Anton/Bauer
chargers to avoid any potential performance degradation.
About this user guideAbout this user guide
Battery MFR. Battery Model
SONY BP-L60S
SONY BP-L80S
PRO-X Intellicom 130S
RED Brick
PAG PL96e
Charges on
Anton/Bauer
Charger?
Communicates
with Anton/Bauer
Charger?
5
Components and Connections
Wi-Fi Capability
The Performance Series Chargers come standard with an integrated
Wi-Fi module to be utilized with a variety of features and functions
released in upcoming software revisions. The integrated Wi-Fi
module will also be used for future battery compatibility, so new
batteries may be used on the Performance Series Chargers as they
are released.
Mini USB Port
Located at the front, this port is used to upgrade the firmware of the
Performance Series Chargers. For information, please contact the
Anton/Bauer Customer Support Group.
DC XLR Output
The Performance Series Chargers come with a DC XLR ouput
connector to power cameras and accessories.
AC Mains Power
The AC Mains power connector is located on the rear of the charger.
6
Components and Connections

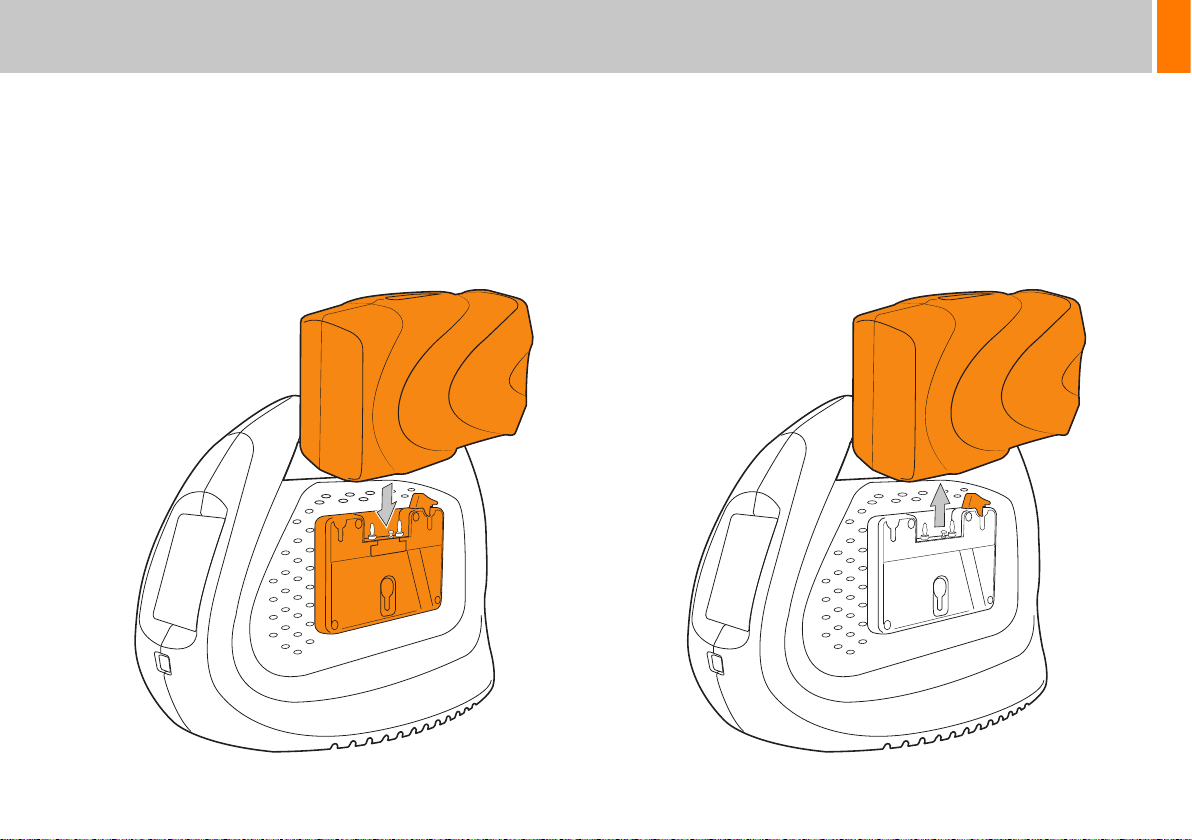

Attaching a Battery to the Charger
To attach a batter y to either the Gold Mount or V-Mount adaptor on
the charger:
1. Slide the battery onto the adaptor, ensuring the Gold Mount
T-stud or V-Mount are aligned in the corresponding slots.
2. The battery is fully engaged when the latch makes an audible
“click”.
To Release the Battery
1. Depress the latch and hold.
2. Slide the battery off the connector.
7
Operation
Self-Test
Upon applying AC mains power, the charger will initiate a brief
self-test mode. Self-test mode is complete when the charger screen
displays battery information on the position being used.
Charging
As with all Anton/Bauer chargers, charging with a Performance
Series Charger is fully automatic. Mount any applicable battery
to any open position on the charger and the Performance Series
Charger will automatically determine the appropriate charge routine
and execute it.
In some cases a battery may be discharged to a very low
voltage level causing the battery to be unrecognizable to the
charger when first attached.
1 2 3

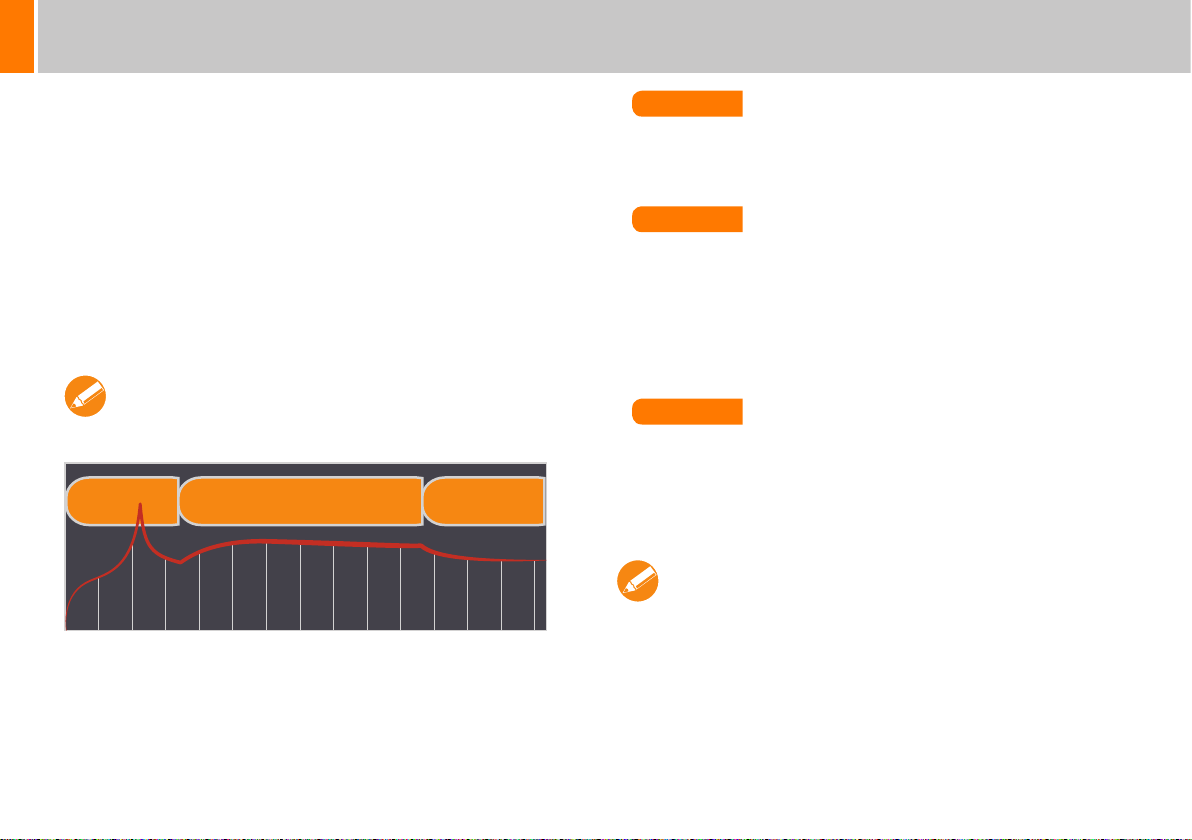

Three Stage Charging Methodology
In general, the Performance Series Chargers (Gold Mount and
V-Mount) will deliver a three stage charge routine to each battery.
Stage One
capabilities of the battery (typically a one or two hour rate,
depending on battery type). During this stage, six separate cutoff
methods are in operation, simultaneously, ensuring the fastest,
safest charge for that battery.
Stage Two
which calculates each battery pack type to offset any imbalance
of the battery’s cells, created by unequal self-discharge or any
capacity mismatch of the individual cells in the pack. This stage
can vary in duration from zero to as much as 16 hours, depending
on the condition of the battery. The Stage Two charge reduces
current automatically as the battery charges maintaining the cells
at a safe voltage level. A battery will typically leave Stage Two in
2-4 hours under average operating conditions.
Stage Three
maintenance mode. This patented pulse routine keeps batteries
fully charged, free from self-discharge - indefinitely - without
damaging heat associated with a so-called “trickle charge”. The
Stage Three programming monitors the self-discharge of the
battery, providing charge only when the battery self-discharges to
about 95% of its capacity.
Anton/Bauer recommends that batteries remain on the
charger and plugged into AC mains power for best results.
The Lifesaver mode will keep them 100% charged.
will deliver a high rate charge matched to the
charging is a BALANCING or “stabilizing” mode
charging is the Anton/Bauer exclusive Lifesaver®
Removal of AC Mains Power
If AC mains power is removed, it is highly recommended that the
batteries are removed from the charger, thus avoiding any additional
self-discharge of the battery.
8

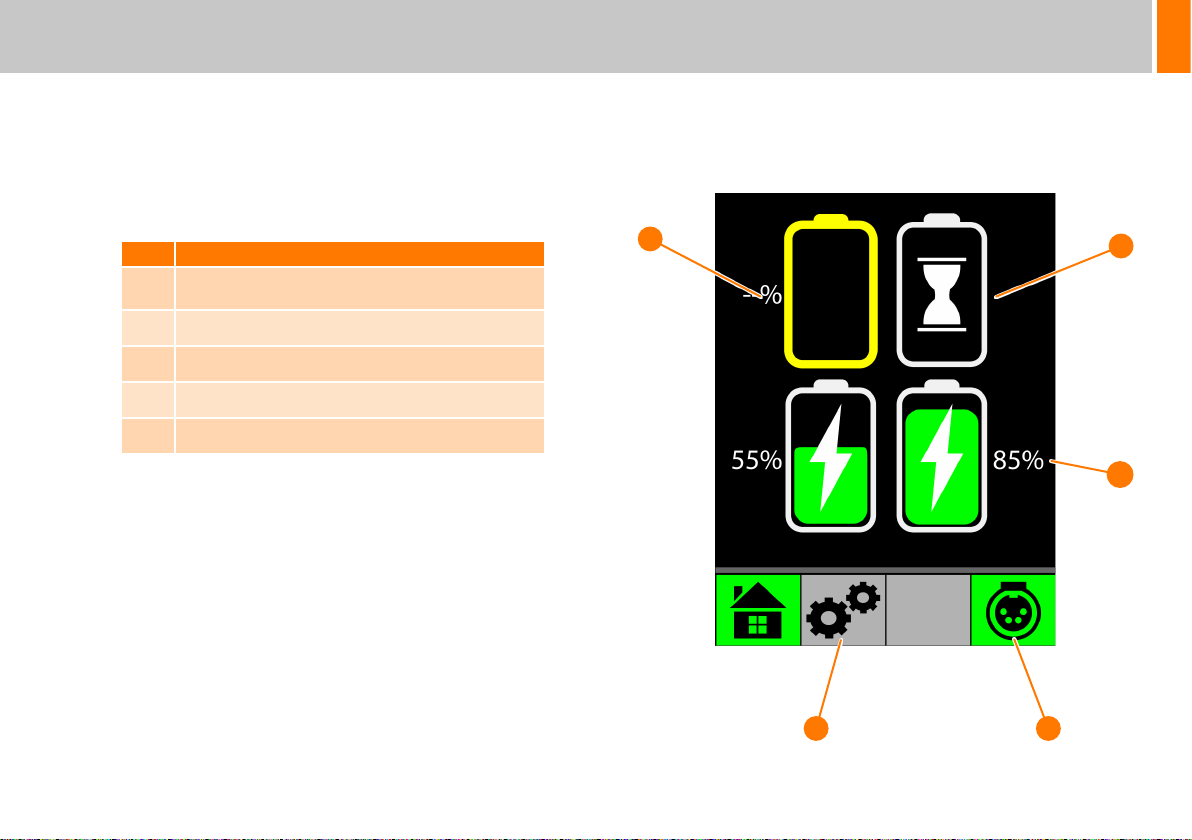

Video Battery Touchscreen
All Performance Series Chargers come standard with a touch
screen interface. The intuitive interface displays all critical battery
data and access to all charger functions.
When a battery has been attached to the charger the display will
show the current status of the battery.
No. Description
System Set tings: Used to engage Wi- Fi mode and for
1
software version information
2 Evaluation: Enters this mode when batter y is attached
3 Communication
4 Charging: Battery is currently charging
5 DC XLR Output: Turns the XLR camera output on/off
Operation
2
3
4
1
5
9
Operation
Video Battery Touchscreen

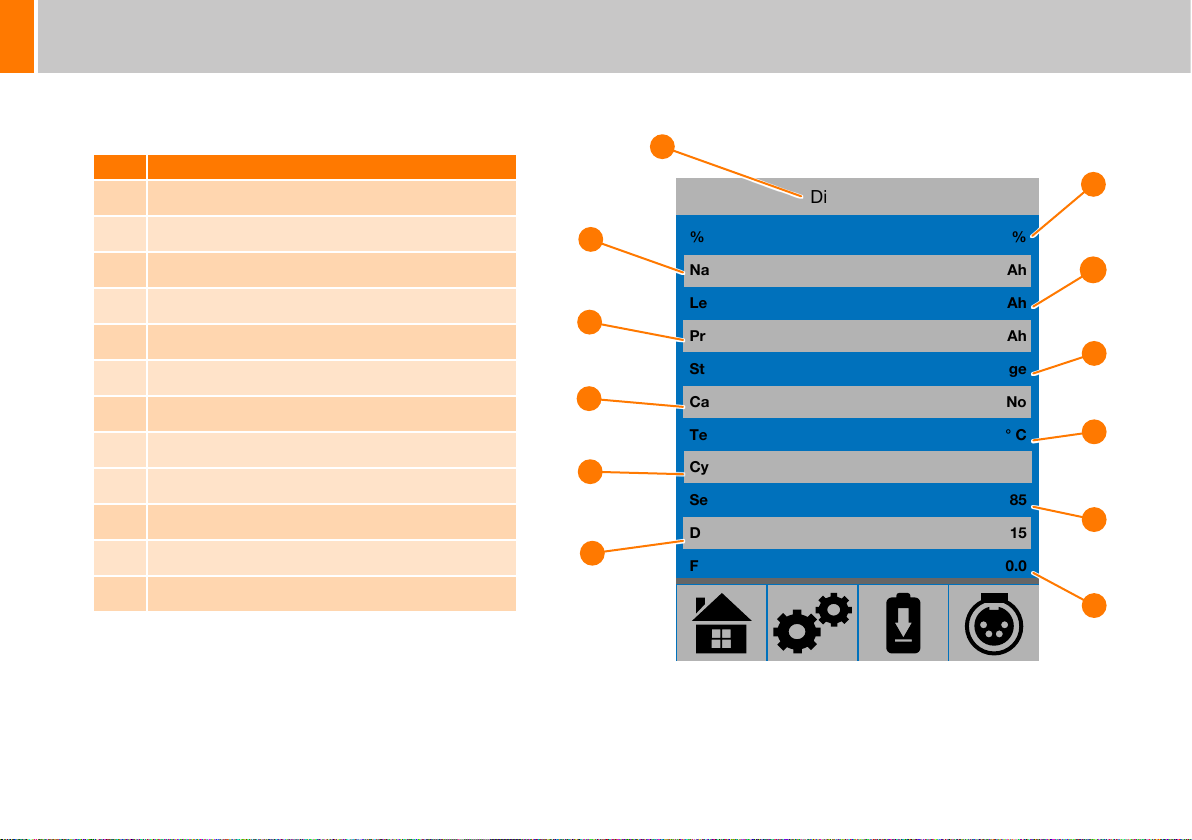

When a battery has been selected the following details are available.
No. Description
1 Selected battery name
1
Digital G90
2
2 Percentage of battery charge
3 Learned: Learned capacity of the battery
4 Status: Current battery charge status
5 Temperature: Current temperature of the battery
6 Serial N o: Serial number of the battery
7 FW REV: Firmware revision of the battery
8 DOM: Date of battery manufacture
9 Cycles: Number of times the batter y has been cycled
10 Calibrate: Does the battery require calibration?
11 Present: Current capacity of the batter y
12 Nameplate: Nominal capacity
10
12
11
10
% Charged 100%
Nameplate
Learned
Present
Status
Calibrate
Temperature
9
8
Cycles
Serial No
DOM
FW REV:
6.0 Ah
5.8 Ah
5.8 Ah
Discharge
No
23° C
10
11085
2-2015
10.0
3
4
5
6
7
Battery Testing or Calibration
To manually run a standard test:
1. Attach a battery to any open charge
position and touch the related battery
icon on the charger LCD.
2. Touch the battery test icon to begin the
standard test.
3. When testing is complete, discharge and test data will be
revealed in the screen.
Operation
Digital G90
% Charged 100%
Nameplate
Learned
Present
Status
Calibrate
Temperature
Cycles
Serial No
DOM
FW REV:
6.0 Ah
5.8 Ah
5.8 Ah
Discharge
No
23° C
10
11085
2-2015
10.0
11
Operation

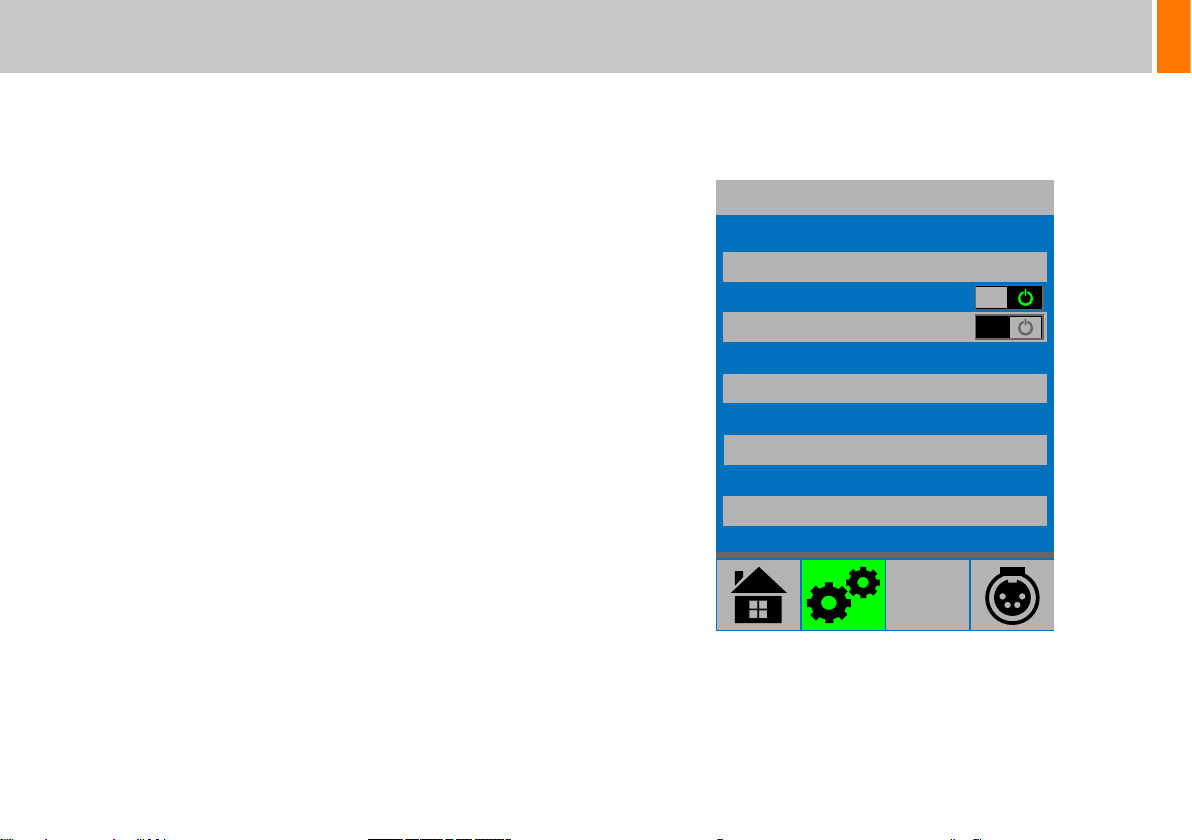

System Settings
System Settings access information such as the charger software
revision, Wi-Fi settings, Auto-Dim and Auto-Shutoff functions.
No. Description
System Set tings: Used to engage Wi- Fi mode, Auto -
1
Dim, Auto -Shutof f and for software version information
System Settings
OffWi-Fi
Auto-Dim
Auto-Shutoff
SW Rev 8801 -0004-1.00
Serial Number:
AB20404141511001
1
12
Auto-Dim and Auto-Shutoff
The user can choose to engage either the Auto -Dim or Auto-Shutof f
function of the charger LCD in the Settings menu. The user may also
opt to have both options turned on.
To select, go to the Settings screen and select on or off for each
option.
Auto-Dim: This feature turns off the back lit LCD screen after one
minute of non-use if the AC mains power is removed, a battery is
present and XLR camera output is not in use. The back light will turn
back on if the LCD is touched or AC mains power is restored.
To select, go to the Settings screen and select on or off for AutoDim.
Auto-Shutoff: This feature will turn off the charger circuitry entirely
after five minutes of non-use if the AC mains power is removed, a
battery is present and XLR camera output is not in use. Circuitry will
turn back on when AC mains power is restored.
To select, go to the Settings screen and select on or off for AutoShutoff.
Operation
System Settings
OffWi-Fi
Auto-Dim
Auto-Shutoff
SW Rev 8801 -0004-1.00
Serial Number:
AB20404141511001
13
Operation
Powering DC Auxiliary Equipment
Performance Series Chargers can operate cameras and
camcorders using the four pin DC XLR camera output connector
located at the back of the charger in two ways.
To power the camera from battery power:
1. Attach one end of the XLR4
accessory cable (available
separately) to the charger.
2. Attach the other end to the
“DC in” four pin XLR on the
camera/camcorder. A battery
can be attached when AC
mains power is not present to
provide DC power output after
five seconds.
To power the camera from AC mains:
1. Plug the charger into the wall using the supplied 3-pin power
cable.
2. Attach one end of the XLR4
accessory cable (available
separately) to the Charger.
3. Attach the other end to the
“DC in” four pin XLR on the
camera/camcorder (XLR Pin
1 is negative and Pin 4 is
positive).
Press the DC XLR Output icon, located on the
lower right hand of the Performance Charger LCD.
14
Technical Specications
Physical Data
Performance QUAD
Height
8.70 inches (22.10 cm)
Length
16.50 inches (41.91 cm)
Width
9.90 inches (25.15 cm)
Weight
8.0 lbs (3.6 kg)
Performance DUAL
Height
8.70 (22.10 cm)
Length
11.30 (28.70 cm)
Width
8.50 (21.59 cm)
Weight
7.0 lbs (3.2 kg)
Environmental Data
Operating temperature range
-0°C to +40°C (-32°F to +104°F)
Electrical Data
Supply Voltage
AC Input: 100-240 VAC, 50/60 Hz. Wide Range Input
Power Output
70 Watt, 16 VDC Power Supply Output
Nominal Battery Charge Times
Battery Charge Time
Digital G90/V90 2.5 Hrs.
Digital G150/V150 3.5 Hrs.
Digital G190/ V190 4.5 Hrs.
DIONIC HC 2.5 Hrs.
DIONIC HCX 3.0 Hrs.
DIONIC HD 4.5 Hrs.
HyT RON 10 0 3.5 Hrs.
HyT RON 14 0 4.0 Hrs.
In some cases a battery may be discharged to a very low
voltage level causing the battery to be unrecognizable to the
charger when first attached.
15
After Sales Support
At Vitec Videocom we take great pride in the quality of our
products and we also recognize that your experience with
our products will be even more positive and productive
with strong, effective support to back them up.
Vitec Videocom’s Service Centers are there to provide
technical support for customers and partners, via telephone
or email. For more information, including complete contact
details, please go to: vitecvideocom.com/aftersales
16
FCC Notice
C
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Par t 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful inter ference in which case the user will be
required to correct the interference at their own expense.
This equipment has been approved by one or more agencies. All
changes and/or modifications not expressly approved by Anton/
Bauer. could void the users’ warranty and authority to operate this
equipment. There are no serviceable parts in this equipment.
General Notices
17
Warranty
This warranty for the product specified in this document (“Product”)
is given by Vitec Videocom, Inc. (“Anton/Bauer”), 14 Progress
Drive, Shelton, Connecticut 06484. If you (the purchaser of the
Product from Anton/Bauer, or the person for whom the Product was
purchased, if it was a gift) have any questions regarding Product
applications, Product specification, or to obtain warranty ser vice
on this or any Anton/Bauer product, contact the company at the
address above.
THIS PRODUCT MUST BE REGISTERED WITH ANTON/BAUER
WITHIN 30 DAYS OF PURCHASE TO ASSURE WARRANTY
COVERAGE. REGISTER ONLINE AT:
www.antonbauer.com
Warranty registration, including the serial numbers of Anton/Bauer
chargers used with this battery, must be supplied to Anton/Bauer.
Anton/Bauer will warranty the Product only against defects in
material and workmanship for the period as follows from the date of
purchase, in accordance with the terms set forth below, and then,
only if the Product is used exclusively in conjunction with compatible
Anton/Bauer chargers. If this charger is returned to Anton/Bauer for
warranty service it will be required that you provide model names
and serial numbers of compatible Anton/Bauer chargers with which
this product was used.
MAXX II Warranty 24 months: Anton/Bauer will repair or replace the
Product at Anton/Bauer ’s option and cost.
This warranty shall be effective only if Anton/Bauer receives notice
of such defects in materials or workmanship during the period of the
warranty. The liability of Anton/Bauer hereunder is expressly limited
to a claim for repair or replacement of the Product or as otherwise
stated herein at Anton/Bauer’s sole discretion. Notice of any claim
under this warranty shall be delivered to Anton/Bauer during the
period of the warranty and the Product shall be returned with its
packaging promptly, at your expense, to an Anton/Bauer Customer
Support Center or to the address above. Upon receipt of the Product
and a record of your compliance with the conditions of this warranty,
Anton/Bauer will repair or replace the Product and return it to you, or
issue a credit, as applicable. You are responsible for all shipping and
handling charges to and from authorized facility.
THIS WARR ANTY DOES NOT APPLY TO AND IS VOID IN
THE CASE OF DEFECTS OR DAMAGE RESULTING FROM
ACCIDENTS, DISASTER, NEGLECT, MISUSE, IMPROPER
INSTALLATION, IMPROPER OR UNAUTHORIZED SERVICE OR
MAINTENANCE, UNAUTHORIZED REPLACEMENT PARTS OR
ATTACHMENTS; OR DYSFUNCTION OR MALFUNCTION OF, OR
CAUSED BY, ANY OTHER PRODUCT OR DEVICE.
Misuse includes any use of the Product in other than its intended
application, including the use of this Product with any charging
device or accessory not manufactured by and/or specified by Anton/
Bauer. This warranty does not cover, and Anton/Bauer assumes no
responsibility for, any equipment or devices used in conjunction with
the Product.
ANTON/BAUER DISCLAIMS ANY LIABILITY FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY
WRITTEN OR IMPLIED WARRANTY OF THE PRODUCT. UNDER
NO CIRCUMSTANCES WILL ANTON/BAUER BE RESPONSIBLE
FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
This Warranty is to be construed and enforced in accordance with
the law of the State of Connecticut, including the provisions of
the Uniform Commercial Code as adopted and from time to time
amended in the State of Connecticut, and not the Convention for
the International Sale of Goods. This choice of Connecticut law is
exclusive of any Connecticut law that would require reliance on any
law foreign to Connecticut.
18
Should any action of law or in equity be brought by any person under
this Warranty, such action shall be brought only in the United States
District Court for the District of Connecticut, or in any Superior
Court in Fairfield County, Connecticut, USA. Some states do not
allow limitations on how long a warranty lasts, so the time period
limitation herein may not apply to you. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other legal rights
which may vary from state to state. Use of unauthorized equipment
in conjunction with Anton/Bauer products constitutes misuse under
our warranties and may limit or void those warranties. Anton/Bauer
does not authorize, condone, recommend, or otherwise assume
any liability or responsibility resulting from the use of any battery,
charger, or accessory made by Anton/Bauer with any batter y,
charger or accessor y not manufactured, produced or sold by Anton/
Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer
products with this Product. Use only original Anton/Bauer equipment
with this Product.
Warranty
19
Mobile Power. Perfected.
Publication Part No. 7595- 0448 Rev. A
www.antonbauer.com
Loading...
