Antari F-4 Fazer Users Manual
F-4 Fazer
User Manual
English ． Français ． Deutsch
© 2016 Antari Lighting and Effects Ltd.
User Manual - English
Safety Information
Please read the following safety information carefully before operating the
machine. This information includes important safeguards about installation,
usage, and maintenance. Pay attention to all warning labels and instructions in
this manual and printed on the machine.
If you have questions about how to operate the machine safely, please contact your local
Antari dealer for help.
․ Keep this device dry.
․ Always connect to a grounded circuit to avoid risk of electrocution.
․ Before connecting machine to power, always check voltage indicate on machine
match to your local AC voltage. Do not use the machine if AC power voltage does
not match.
․ Disconnect the machine from AC power before servicing and when not in use.
․ This product is for indoor use only! Do not expose to rain or moisture. If fluid is
spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto
electronic parts, immediately unplug the machine and contact your local Antari
dealer for advice.
․ No user serviceable and modifiable parts inside. Never try to repair this product,
an unauthorized technician may cause damage or malfunction to the machine.
․ For adult use only. Never leave the machine running unattended.
․ Intall the machine in a well-ventilated area. Provide at least 50 cm space around
the machine.
․ Never add flammable liquid of any kind to the machine.
․ Make sure there are no flammable materials close to the machine while operating.
․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction.
3
․ If the machine fails to work, unplug the machine and stop operation immediately.
535mm
465mm
225mm
Contact your local Antari dealer for advise.
․ Before transporting the machine, make sure the fluid tank is completely drained.
․ Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it
securely. In case of eye contact or if fluid is swallowed, immediately look for
medical advice.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retrain
the packing material for inspection.
What is included: 1 x F-4 Fazer

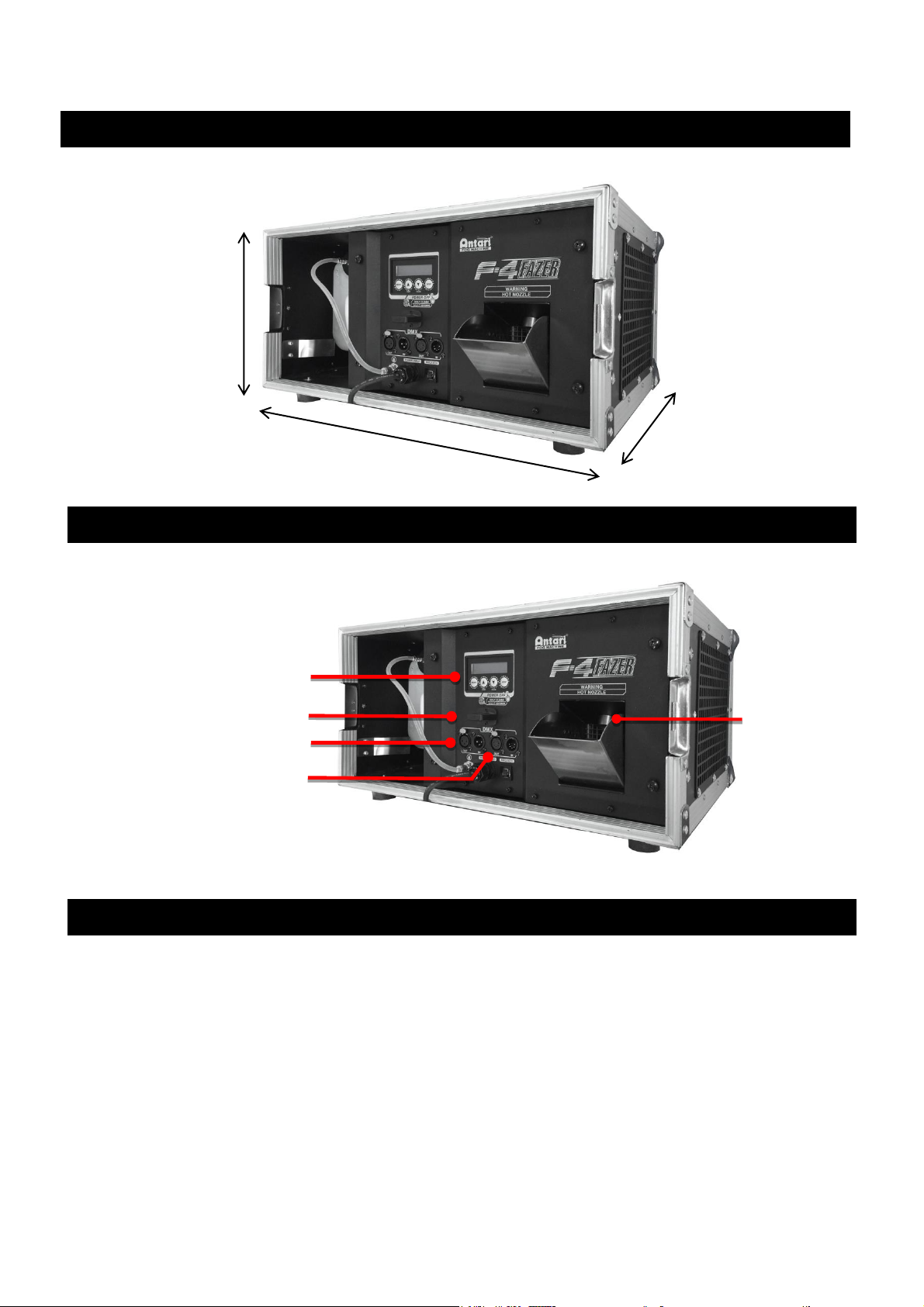

Product Dimensions
1 x Power Cord
1 x Fluid Tank
1 x User Manual
4

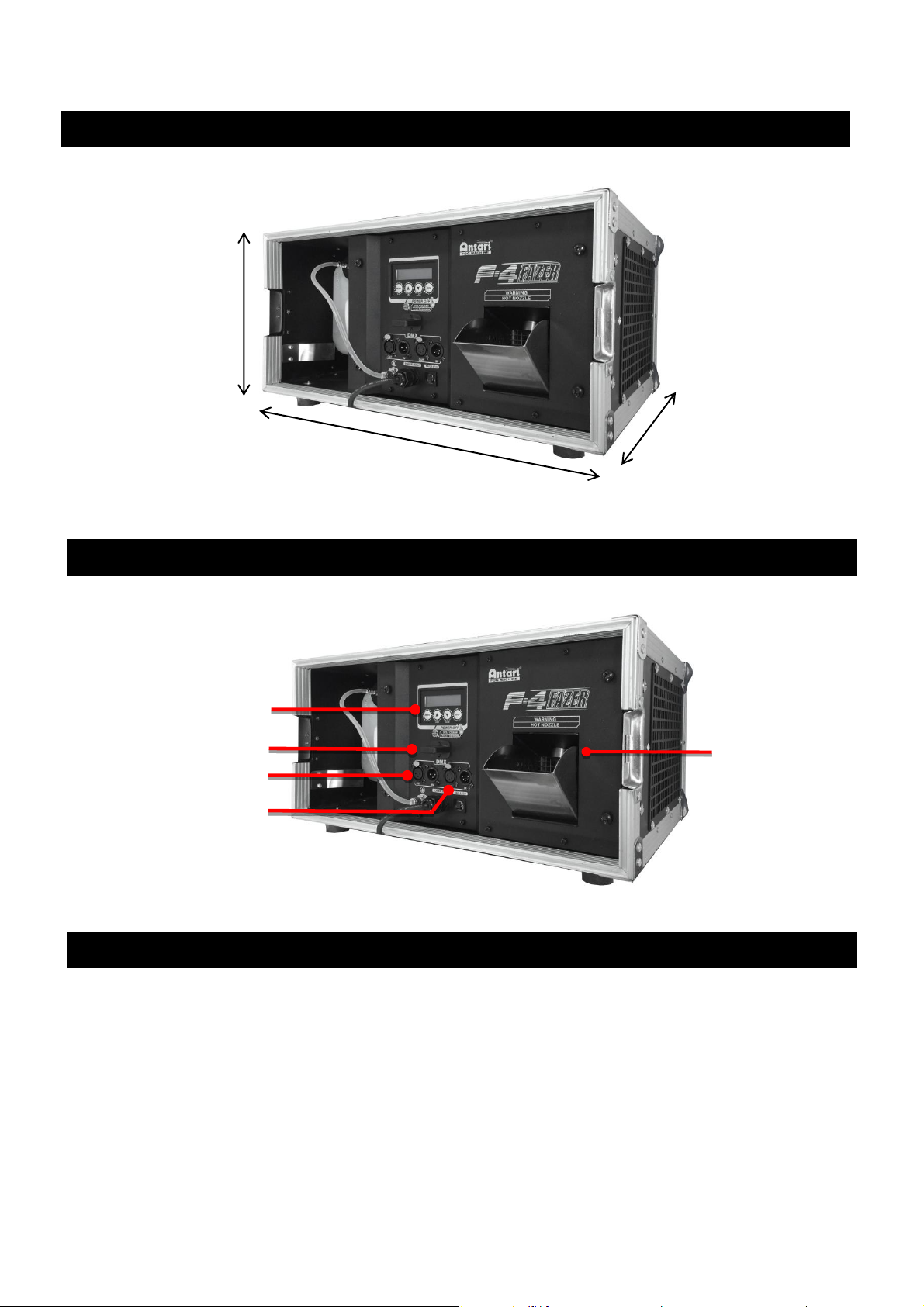

Product Overview
XLR 5-Pin DMX Connector
Blue LCD screen, Timer
mode, Volume mode
Fog Output Nozzle
XLR 3-Pin DMX Connector
WDMX Wireless Solution
Setting Up
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm
open space around the machine.
Step 2: Fill the fluid tank with Antari approved fluid.
Step 3: Connect the machine to suitable rated power supply.To determine the power
requirement for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly
grounded to avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatly 60 Sec.
Once the machine has reached operating temperature, the display will show Ready to
Faze. Now the machine is ready for operation.
Step 5: To start making haze, press the Volume button on the control panel.
Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will
automatically run a self-cleaning process and shut down after the process is done.
5
Button
Function
[MENU]
Scroll through setting menu
[UP]/[TIMER]
Up/Activate Timer fucntion
[DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function
Hold 3 seconds to start self-cleaning process
Timer
Interval XXX Sec
Antari F-4
Ready To Faze
Language Setting
To switch the language used for the control interface, press the [Menu] button BEFORE
turning on the machine and HOLD it until the LCD screen flashes twice. After the two
flashes, press [Menu] to choose the language: English and 中文 (Chinese).

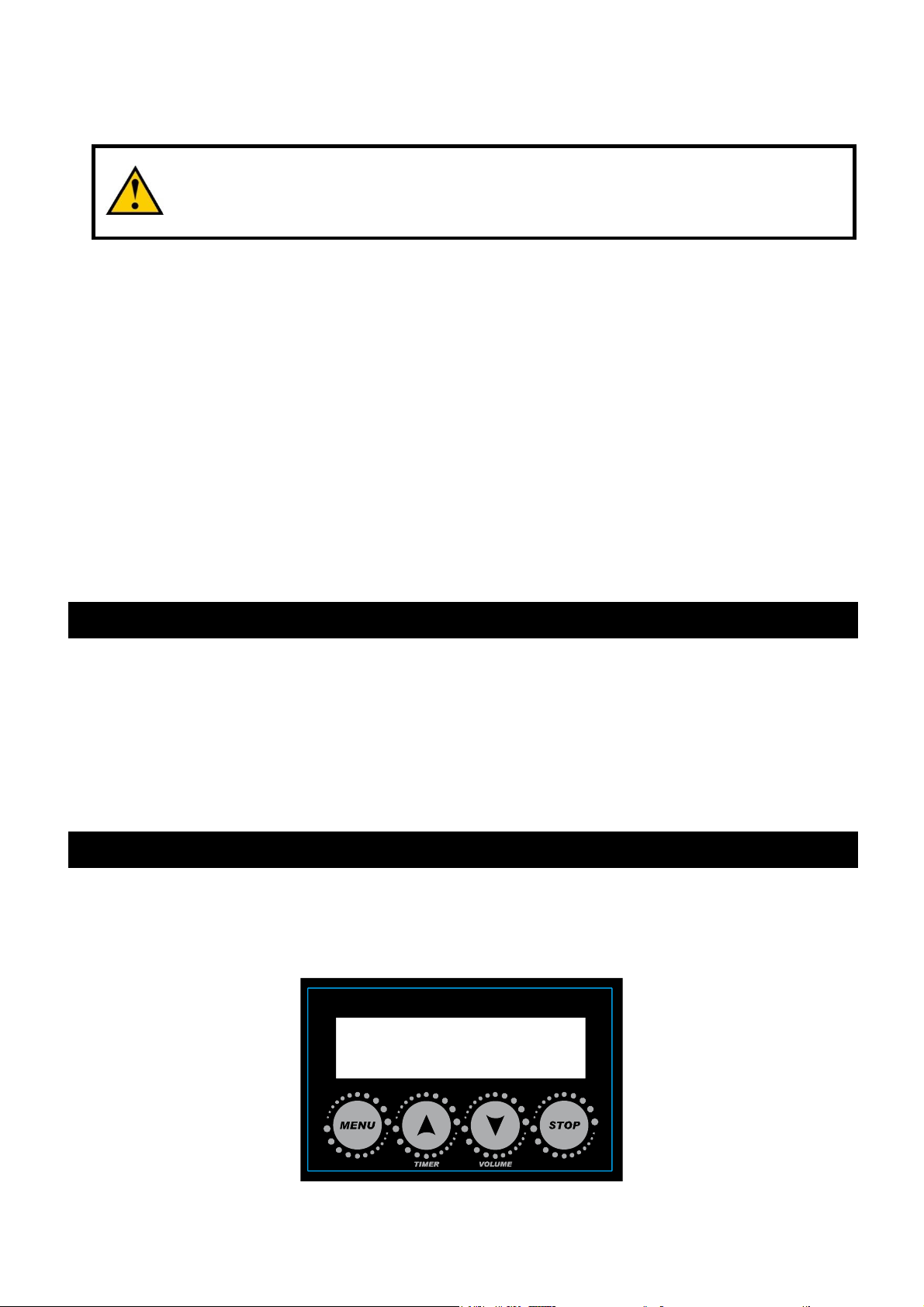

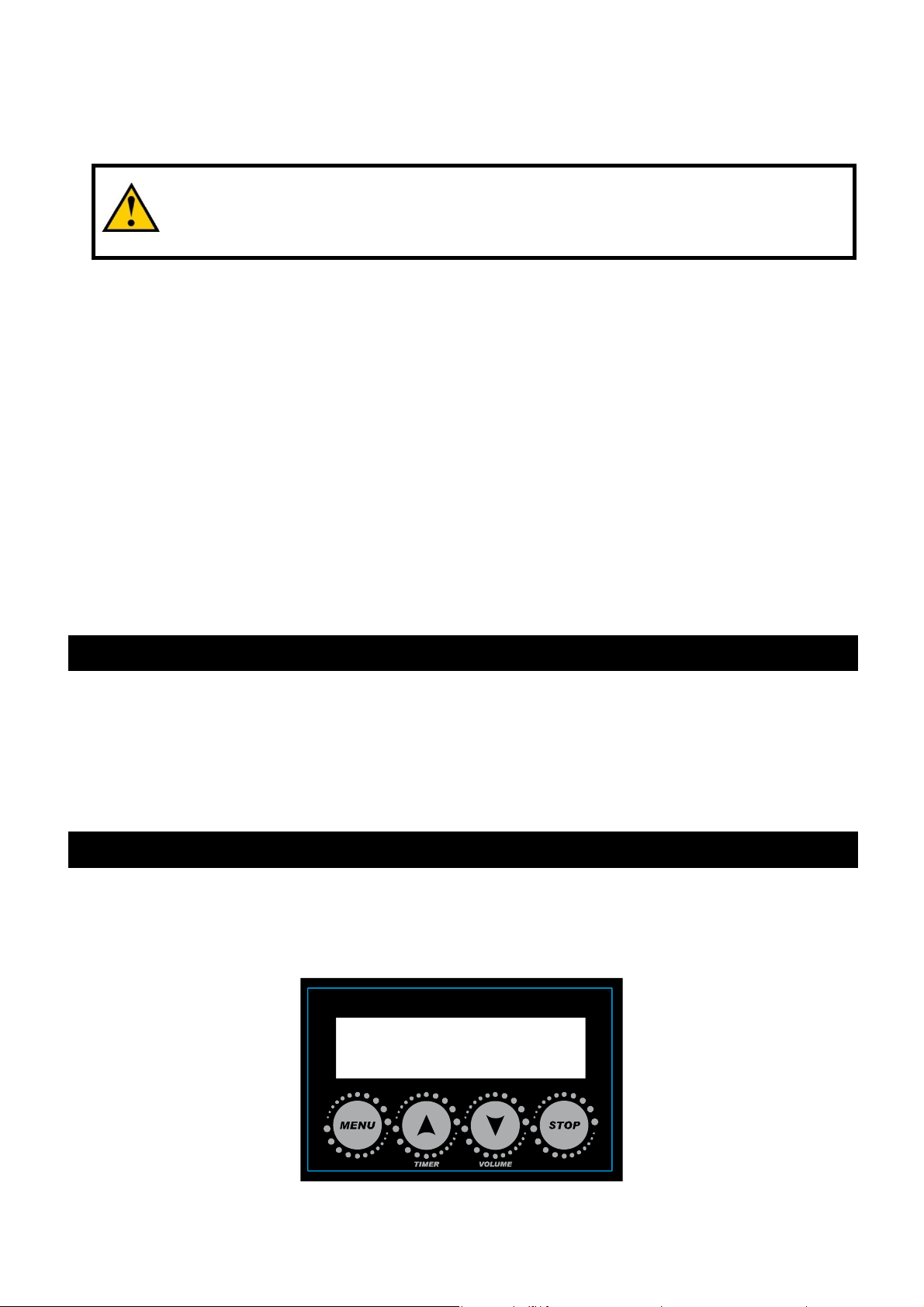

Operation
Control Panel Operation
The machine can be operated with the onboard digital control interface.
Control Menu
Set interval from 1 to 999 seconds
6
Timer
Duration XXX Sec
Timer
Output XXX %
Volume
Output XXX %
Fan Speed
XXX %
DMX-512
Address: XXX
DMX Mode
SYNC
Run Last Setting
XX
W-DMX Power
XX
W-DMX Reset
XX
W-DMX
Address: XXX
DMX Mode
CH1
DMX Mode
CH2
Set duration from 1 to 999 seconds
Set output volument from 1 to 100 %
Set output volume from 1 to 100 %
Set fan speed from 20 to 100%
Set DMX/W-DMX address from 1 to 511
Turn On/Off W-DMX
Unlink from a W-DMX transmitter
Turn On/Off run last setting function

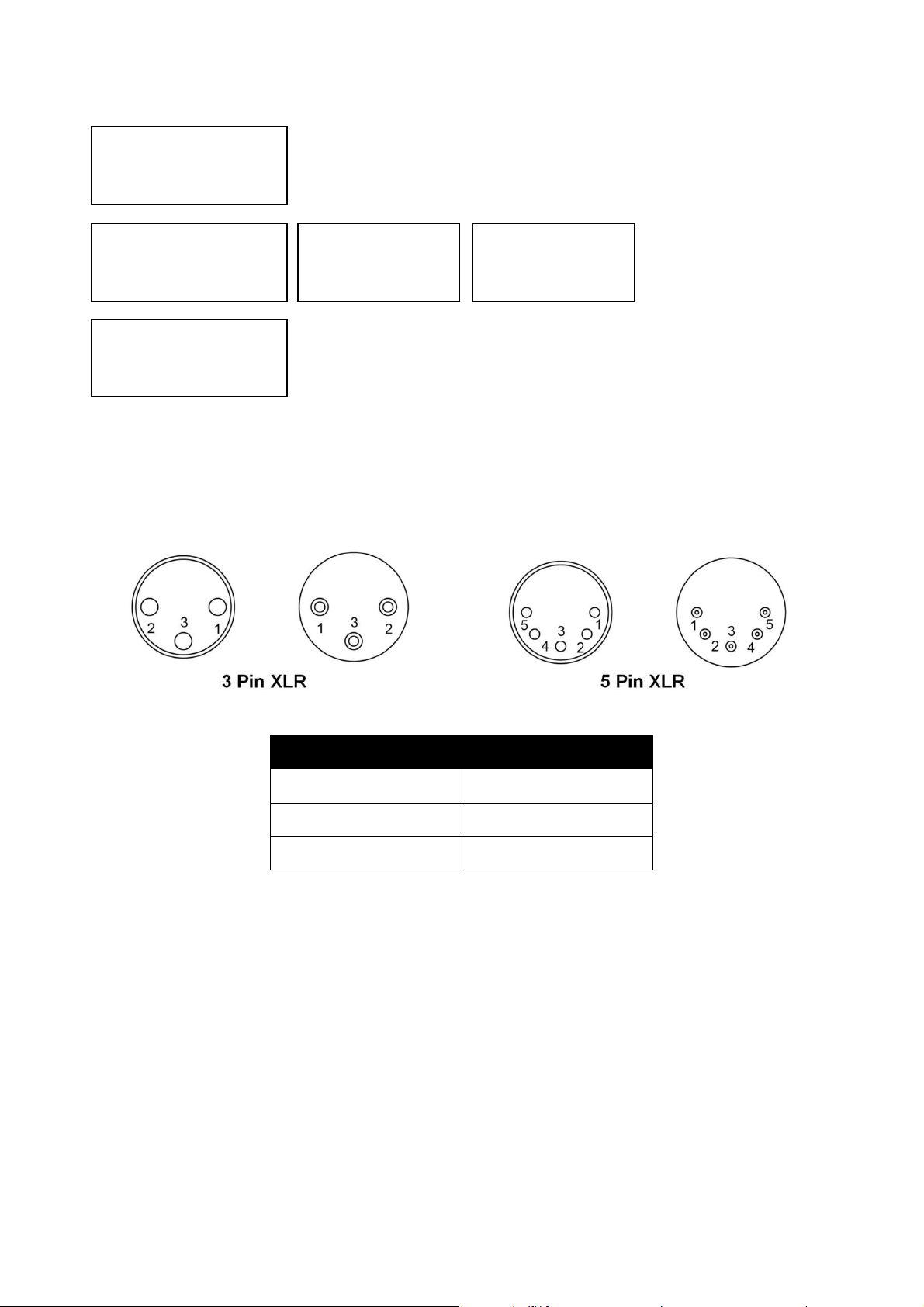

DMX Connector Pin Assignment
The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below
indicates pin assignment information.
7
Pin
Function
1
Ground
2
Data-
3
Data+
Channel 1
DMX Value Range
Function
Faze Output Level
0 – 5
Faze Off
6 – 255
Faze Output 1 – 100%
Channel 2
DMX Value Range
Function
Fan Output Level
0 – 5
Fan 20%
6 – 255
Fan 21 – 100%
DMX Operation
Making the DMX Connection – Connect the machine to a DMX controller or to one of the
machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX
connection, the connector is located on the front of the machine.
Address Setup – Use control menu to set DMX address. The machine occupies 2 control
channels. The starting address is defined as the first channel from which the machine will
respond to the controller. Always double check to make sure there are no overlapping
channles in order to control the machine correctly.
DMX Channel Function
8
Fluid
Only use Antari FLG water-based liquid for the F-4 Fazer. The machine is tested and
calibrated with this liquid to get the best output performance. Warranty will be void if any
other type of liquid is used, improper use of liquid may lead to machine failure and
malfunction.
Service and Maintenance
․ Do not allow the machine to become contaminated.
․ Remove dust from air vents with air compressor, vacuum or a soft brush.
․ Only use a damp cloth to clean the casing.
․ Before storing run distilled water through the system to help avoid condensing the
pump or heater.
․ It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
․ Excessive dust, liquid and dirt built up will degrade performance and cause
overheating.
Replacing the Fuse
Disconnect AC power before replacing fuse. Only replace fuse with same type
and rating.
Step 1: Disconnect power cord from supply.
Step 2: Use a flat-head screwdriver to release fuse holder.
Step 3: Replace fuse with exact same type and rating as indicated below.
Step 4: Reinsert fuse holder.
Fuse
110 – 120V = 15A 250V
220 – 240V = 7A 250V
9
Status Messages
Antari F-4
Ready To Faze
Warming Up
Warning!
Heater Overheat
Warning!
Temp Error
Machine heating up
Machine ready for operation
Machine has detected overheat on heater unit and will not
operate, please contact local distributor/dealer for service and
support.
Machine can not heat up and will not operate. Please contact
local distributor/dealer for service and support.
Technical Specifications
Input voltage 110-120V 60Hz
220-240V 50Hz
Fuse 110 – 120V = 15A 250V
220 – 240V = 7A 250V
Power Consumption AC 120V/230V, 1500W
Warm-up time 60 Sec. (approx.)
Max. operating time 10 hrs max. output
Fluid tank capacity 5 L
Fluid consumption 7 ml/min.
Compatible fluid Antari FLG water-based fluid
Control option DMX 512, Manual, Adjustable haze volume and fan speed
DMX channels 2 channels, haze volume and fan speed
Power connection Power Cord
DMX data connection 3-pin and 5-pin XLR
Dimensions L 554 x W 274 x H 464 m
Dry weight 20.3 kg
10
