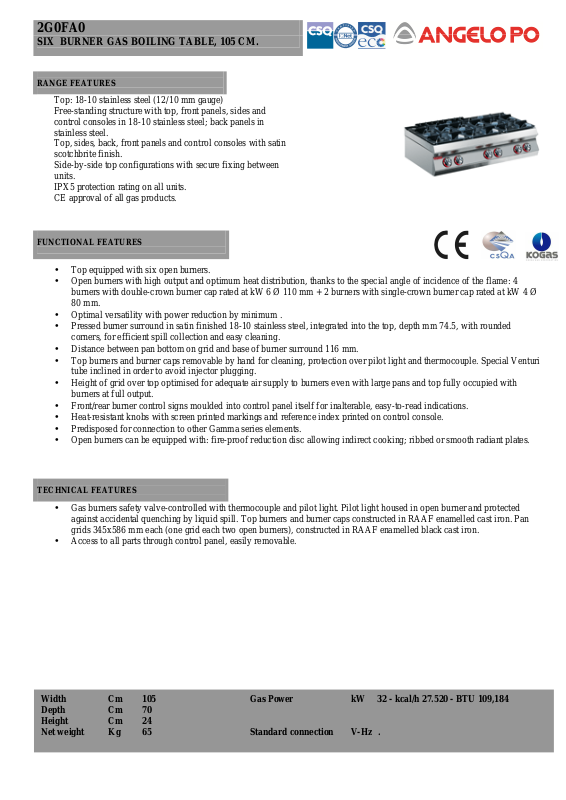

Angelo Po 2G0FA0 Technical Information

2G0FA0

SIX BURNER GAS BOILING TABLE, 105 CM.

RANGE FEATURES

Top: 18-10 stainless steel (12/10 mm gauge)
Free-standing structure with top, front panels, sides and
control consoles in 18-10 stainless steel; back panels in
stainless steel.
Top, sides, back, front panels and control consoles with satin
scotchbrite finish.
Side-by-side top configurations with secure fixing between
units.
IPX5 protection rating on all units.
CE approval of all gas products.

FUNCTIONAL FEATURES

• Top equipped with six open burners.

• Open burners with high output and optimum heat distribution, thanks to the special angle of incidence of the flame: 4

burners with double-crown burner cap rated at kW 6 Ø 110 mm + 2 burners with single-crown burner cap rated at kW 4 Ø
80 mm.

• Optimal versatility with power reduction by minimum .

• Pressed burner surround in satin finished 18-10 stainless steel, integrated into the top, depth mm 74.5, with rounded

corners, for efficient spill collection and easy cleaning.

• Distance between pan bottom on grid and base of burner surround 116 mm.

• Top burners and burner caps removable by hand for cleaning, protection over pilot light and thermocouple. Special Venturi

tube inclined in order to avoid injector plugging.

• Height of grid over top optimised for adequate air supply to burners even with large pans and top fully occupied with

burners at full output.

• Front/rear burner control signs moulded into control panel itself for inalterable, easy-to-read indications.

• Heat-resistant knobs with screen printed markings and reference index printed on control console.

• Predisposed for connection to other Gamma series elements.

• Open burners can be equipped with: fire-proof reduction disc allowing indirect cooking; ribbed or smooth radiant plates.

TECHNICAL FEATURES

• Gas burners safety valve-controlled with thermocouple and pilot light. Pilot light housed in open burner and protected

against accidental quenching by liquid spill. Top burners and burner caps constructed in RAAF enamelled cast iron. Pan
grids 345x586 mm each (one grid each two open burners), constructed in RAAF enamelled black cast iron.

• Access to all parts through control panel, easily removable.

Width Cm 105 Gas Power kW 32 - kcal/h 27.520 - BTU 109,184
Depth Cm 70
Height Cm 24
Net weight Kg 65 Standard connection V-Hz .
