Andrew 806BDA Users Manual

Wireless Innovations Group
OPERATIONS / MAINTENANCE MANUAL
For
400MHz Fiber Optic Fed & RF Fed
Bi-Directional Amplifier
AE04A-D1248-001 AE04A-D1246-001
800MHz Fiber Optic Fed & RF Fed
Bi-Directional Amplifier
AE04A-D1437-002 AE04A-D1436-002
MANUAL NO. AE04B-A1669
REVISION B
The information set forth in this document and all rights in and to inventions disclosed herein, and patents that might be granted thereon disclosing, employing or covering the materials, methods, techniques or apparatus described herein are the exclusive property of Andrew Corporation.
This document is an operation and maintenance manual. No disclosure or reproduction of the information or drawings shall be made of any other purpose without the prior written consent of Andrew Corporation. Use of the information contained herein to fabricate or assemble any item in whole or in part is expressly prohibited.
2601 Telecom Parkway
DWG NO: AE04B-A1669
Table of Contents
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
1 of 63
Wireless Innovations Group
INTRODUCTION ....................................................................................................................................... 5
Scope...........................................................................................................................................................................5
Purpose.......................................................................................................................................................................5
G
LOSSARY OF TERMS
1.0 SAFETY CONSIDERATIONS ....................................................................................................... 7
1.1 Electric Shock Hazard .................................................................................................................................7
To avoid electric shock, switch the BDA “OFF” prior to performing any repairs. All repairs beyond
modular replacement must be performed by Andrew Trained Technicians........................................................7
1.2 Hot Surface Hazard .....................................................................................................................................7
1.3 Optical Laser Hazard...................................................................................................................................7
1.4 Emergency Contact Numbers......................................................................................................................7
2.0 EQUIPMENT OVERVIEW / DESCRIPTION ............................................................................. 8
3.0 SPECIFICATION ............................................................................................................................ 8
3.1 Parts Lists......................................................................................................................................................9
3.1.1 400 MHz Bi-Directional Amplifier.......................................................................................................9
3.1.2 800 MHz Bi-Directional Amplifier.......................................................................................................9
1.Two units required for RF Fed BDA. ...................................................................................................................9
3.2 Electrical Specifications ...............................................................................................................................9
3.2.1 400 MHz Bi-Directional Amplifier Downlink Specification ..............................................................9
3.2.2 400 MHz Bi-Directional Amplifier Uplink Specification .................................................................10
3.2.3 800 MHz Bi-Directional Amplifier Downlink Specification ............................................................10
3.2.4 800 MHz Bi-directional Amplifier Uplink Specification..................................................................11
3.3 Mechanical Specifications..........................................................................................................................11
3.4 Environmental Specifications ....................................................................................................................11
4.0
EQUIPMENT PHOTOGRAPHS ................................................................................................... 12
4.1 400 MHz Fiber Optic Fed Bi-Directional Amplifier ....................................................................................12
4.2 800 MHz Fiber Optic Fed Bi-Directional Amplifier ....................................................................................13
5.0 MODULES...................................................................................................................................... 14
5.1 400 MHz EO Cell Amplifier Module (AE04A-D1264-001).....................................................................14
5.1.1 Description ......................................................................................................................................14
5.1.2 Specification ....................................................................................................................................15
5.1.3 Photographs ....................................................................................................................................15
5.1.4 400 MHz EO Cell Amplifier Module Schematics ........................................................................17
5.2 480 MHz High Isolation Duplexer (AE04A-D1442-001).........................................................................26
5.2.1 Description ......................................................................................................................................26
5.2.2 Specification ....................................................................................................................................26
5.2.3 Photograph......................................................................................................................................27
5.3 480 MHz Low Isolation Duplexer (AE04A-D1443-001)..........................................................................27
5.3.1 Description ......................................................................................................................................27
5.3.2 Specification ....................................................................................................................................27
5.3.3 Photograph......................................................................................................................................28
5.4 800 MHz EO Cell Amplifier Module (AE04A-D1265-001).....................................................................28
5.4.1 Description ......................................................................................................................................28
5.4.2 Specification ....................................................................................................................................29
5.4.3 Photographs ....................................................................................................................................29
5.5 800 MHz High Isolation Duplexer (AE04A-D1438-002).........................................................................36
5.5.1 Description ......................................................................................................................................36
5.5.2 Specification ....................................................................................................................................36
5.5.3 Photograph......................................................................................................................................37
5.6 Fiber Optic Transceiver Module (AE04A-D1100-009) ...........................................................................37
5.6.1 Description ......................................................................................................................................37
5.6.2 Specification ....................................................................................................................................38
5.6.3 Photographs ....................................................................................................................................39
5.6.4 Fiber Optic Transceiver Module Schematics ...............................................................................40
.................................................................................................................................. 6
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
2 of 63
Wireless Innovations Group
5.7 +48V Power Supply Module (AE04A-D0803-002) ..................................................................................49
5.7.1 Description ......................................................................................................................................49
5.7.2 Specification ....................................................................................................................................49
5.7.3 Photographs ....................................................................................................................................50
5.7.4 +48 V Power Supply Schematic.....................................................................................................51
5.8 Alarm Module (AE04A-D0805-007): Optional ........................................................................................52
5.8.1 Description ......................................................................................................................................52
5.8.2 Photographs ....................................................................................................................................52
5.8.3 Alarm Module Schematics .............................................................................................................54
6.
INSTALLATION............................................................................................................................ 58
6.1 BDA Installation & Gain Setup.................................................................................................................58
7.
BDA MAINTENANCE /
7.1 Maintenance................................................................................................................................................60
7.2 BDA Troubleshooting Procedure..............................................................................................................60
TROUBLESHOOTING & MODULE CARE
............................................... 60
FAULT ....................................................................................................................................................... 60
T
ROUBLESHOOTING PROCEDURE
7.3 Tools & Test Equipment ............................................................................................................................61
7.4 Module Care ...............................................................................................................................................61
7.4.1 Module Removal...................................................................................................................................... 61
7.4.2 Module Installation .................................................................................................................................61
7.4.3 Alarm Module Removal (Optional Equipment) .....................................................................................62
7.4.4 Alarm Module Installation (Optional Equipment) ................................................................................62
7.4.5 Module Transportation ...........................................................................................................................62
7.4.6 BDA Connections ....................................................................................................................................63
............................................................................................................. 60
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
3 of 63
Wireless Innovations Group
AMENDMENT RECORD SHEET
Rev
N.
A
Date ECN Reason Page
Amended
6/16/04 1st Issue J. Hsu/
B
6/18/08 800 MHz Re-band to New Operating
Frequency
2, 9, 10, 11, 29 and 36
Incorpor
ated By
E. Yearby
K. Black/
E. Yearby
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
4 of 63
Wireless Innovations Group
INTRODUCTION
Scope
This handbook is for use solely with the equipment identified by the Andrew Part Numbers shown on the front cover. It is not to be used with any other equipment unless specifically authorized by Andrew Corporation.
Purpose
The purpose of this handbook is to provide the operator/maintainer with sufficient information to operate, maintain and repair the equipment while in the filed. All repairs and adjustments that are not filed repairable will be performed by Andrew Corporation Richardson, Texas facility.
Limitation of Information Notice
This manual is written for the use of technically competent operators/service persons. No liability is accepted by Andrew Corporation for the misuse of the information contained within this manual.
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
5 of 63
Wireless Innovations Group
GLOSSARY OF TERMS
ALC Automatic Level Control AC Alternating Current BDA Bi-Directional Amplifier C/N Carrier-to-Noise Ratio DC Direct Current dB Decibel dBc Decibel Below Carrier dBm Decibel referenced to 1 mW ESD Electrostatic Discharge EMI Electromagnetic Interference FC/APC Fiber Connector /Angle Polish Connector GND Ground HPA High Power Amplifier Hz Hertz kHz Kilohertz kM Kilometer LED Light Emitting Diode LPA Low Power Amplifier MHz Megahertz mW Milliwatt nm nanometer NF Noise Figure OIP3 Output Third-Order Intercept Point
ΩΩΩΩ Ohm
RF Radio Frequency Rx Receiver Tx Transmitter V Volt VAC Volt Alternating Current VSWR Voltage Standing Wave Ratio
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
6 of 63
Wireless Innovations Group
1.0 SAFETY CONSIDERATIONS
1.1 Electric Shock Hazard
To avoid electric shock, switch the BDA “OFF” prior to performing any repairs. All repairs beyond modular replacement must be performed by Andrew Trained Technicians.
1.2 Hot Surface Hazard
RF power into the BDA will be limited by the use of high power attenuators. These attenuators will be located at the transmitter source. Caution should be taken when working near high power attenuators due to the risk of being burned by its hot surface.
Due to the amount of heat dissipated by the BDA heat fins, caution should be taken when working near heat fins due to the risk of being burned by its hot surface.
1.3 Optical Laser Hazard
To avoid injury to the eyes, do not look directly into fiber optic transceiver transmit port (Tx).
1.4 Emergency Contact Numbers
Andrew Engineering Department contact information:
Andrew Corporation Attn: Wireless Innovations Group 2601 Telecom Parkway Richardson, Texas U.S.A. 75082-3521
Telephone: 972-952-9700 Fax: 972-952-0018
400/800 MHz Fiber Optic & RF Fed Bi-Directional
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
Rev: B
Date: 06/18/2008
Page:
7 of 63
Wireless Innovations Group
2.0 EQUIPMENT OVERVIEW / DESCRIPTION
MBTA System Wide Radio Tunnel Antenna Distribution System provides extended radio coverage within MBTA rail transit tunnels. The new tunnel antenna system is a two-way communication system consisting of 400 MHz base transceiver stations, 800 MHz base transceiver stations, antennas, radiating cable, fiber optic cable and BDAs. Both the 400 MHz and 800 MHz systems operate independently. The 400 MHz system operate as a conventional analog voice communication system and the 800 MHz system operate as a digital trunked radio system for voice and data communications. Radio signals routed from the base transceiver stations to the BDAs are performed via fiber optic cable. Once the optical signal is received by the BDA, it is converted back into an electrical (RF) signal, amplified and transmitted throughout the tunnel antenna distribution system. For RF signals transmitted within the tunnel, they are received by the BDA, amplified, converted into a optical signal and sent via fiber cable to the base transceiver stations.
Each BDA is designed for a 19” rack mount cabinet and is equipped with interchangeable modules. These modules are field replaceable by removing them from the front chassis of the BDA. The modules consist of a downlink amplifier, uplink amplifier, high isolation duplexer, low isolation duplexer (400 MHz RF fed BDA only), fiber optic transceiver (fiber fed BDA only) and a AC to DC power supply. and alarm module (Optional Equipment). All BDA controls are performed via a RS232 connector located on the front panel of each amplifier module.
Each BDA has 30 dB of gain adjustment for both the uplink and downlink RF path. This adjustment is varied electronically thru the amplifier modules’ front panel RS232 connector. Additionally, each of the amplifier modules are equipped with an Automatic Level Control (ALC) circuit which can limit the maximum power level produced by the BDA.
OPTIONAL EQUIPMENT (Not Used By MBTA)
An alarm module is available as an option to serve as a central communication agent to monitor the status of each module and send a summary alarm to remote locations via the fiber optic transceiver module.
3.0 SPECIFICATION
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
8 of 63
Wireless Innovations Group
3.1 Parts Lists
3.1.1 400 MHz Bi-Directional Amplifier
Andrew Part Number
AE04A-D1264-001 400 MHz EO Cell Amplifier Module 2 5.1 AE04A-D1442-001 480 MHz High Isolation Duplexer 1 5.2 AE04A-D1443-001 480 MHz Low Isolation Duplexer AE04A-D1100-009 Fiber Optic Transceiver Module 1 5.6 AE04A-D0803-002 +48V Power Supply Module 1 5.7 AE04A-D0805-007 Alarm Module (Optional Equipment)
1.Used in RF Fed BDA.
3.1.2 800 MHz Bi-Directional Amplifier
Andrew Part Number
AE04A-D1265-001 800 MHz EO Cell Amplifier Module 2 5.4 AE04A-D1438-002 800 MHz High Isolation Duplexer1 1 5.5 AE04A-D1100-009 Fiber Optic Transceiver Module 1 5.6 AE04A-D0803-002 +48V Power Supply Module 1 5.7 AE04A-D0805-007 Alarm Module (Optional Equipment)
1.Two units required for RF Fed BDA.
3.2 Electrical Specifications
3.2.1 400 MHz Bi-Directional Amplifier Downlink Specification
Description Qty. Section
1
1 5.3
1 5.8
Description Qty. Section
1 5.8
Operating Frequency Range
Pass Bandwidth 75 kHz Gain Typical 48 dB Output Gain Adjustment1 30 dB Power Output @ 4 Carriers +19.0 dBm/C Composite Output Power +30 dBm max. Composite Input Power -18 dBm max. Impedance 50 Ohms VSWR 2:1 OIP3 Noise Power max. @ 48dB Gain -64 dBm/Hz (-110 dBm/Hz; RF Fed BDA) AC Power 120 VAC Single Phase
2601 Telecom Parkway
DWG NO: AE04B-A1669
PARAMETER DOWNLINK SPECIFICATION
483.1625 – 483.2375 MHz
2
+44 dBm
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Richardson, Texas 75082
Rev: B
Date: 06/18/2008
Page:
9 of 63
Wireless Innovations Group
Notes:
1.Via Front Panel RS232 Connector.
2. Two-Tone Intermodulation: Measured two-output carriers at +20.0 dBm/C (+19.0 dBm/C for RF Fed BDA) at 483.1625 MHz and 483.2375 MHz with a BDA gain setting of 48 dB.
3.2.2 400 MHz Bi-Directional Amplifier Uplink Specification
PARAMETER UPLINK SPECIFICATION
Operating Frequency Range
486.1625 – 486.2375 MHz Pass Bandwidth 75 kHz Gain Typical 48 dB Output Gain Adjustment1 30 dB Composite Output Power +5 dBm max. Composite Input Power
-14 dBm max. (With ALC Activated) Impedance 50 Ohms VSWR 2:1 OIP32 + 26 dBm (+44 dBm; RF Fed BDA) Noise Power max. @ 48 dB Gain -110 dBm/Hz AC Power 120 VAC Single Phase
Notes:
1.Via Front Panel RS232 Connector.
2. Two-Tone Intermodulation: Measured two-input carriers at – 48 dBm/C (-30 dBm/C for RF Fed BDA) at 486.1625 MHz and 486.2375 MHz with a BDA gain setting of 48 dB.
3.2.3 800 MHz Bi-Directional Amplifier Downlink Specification
Operating Frequency Range
Pass Bandwidth 5 MHz Gain Typical 48 dB Output Gain Adjustment1 30 dB Power Output @ 16 Carriers +11.1 dBm/C
Power Output @ 8 Carriers +16.8 dBm/C
Composite Output Power +30 dBm max. Composite Input Power -18 dBm max. Impedance 50 Ohms VSWR 2:1
2601 Telecom Parkway
DWG NO: AE04B-A1669
PARAMETER DOWNLINK SPECIFICATION
851 – 856 MHz
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Richardson, Texas 75082
Rev: B
Date: 06/18/2008
Page:
10 of 63
Wireless Innovations Group
2
OIP3
+44 dBm Noise Power max. @ 48dB Gain -64 dBm/Hz (-110 dBm/Hz; RF Fed BDA) AC Power 120 VAC Single Phase
Notes:
1.Via Front Panel RS232 Connector.
2. Two-Tone Intermodulation: Measured two-output carriers at +23.5 dBm/C (+16.8 dBm/C for RF Fed BDA) in the 851 – 856 MHz band, with a BDA gain setting of 48 dB.
3.2.4 800 MHz Bi-directional Amplifier Uplink Specification
PARAMETER UPLINK SPECIFICATION
Operating Frequency Range
806 – 811 MHz Pass Bandwidth 3 MHz Gain Typical 48 dB Output Gain Adjustment1 30 dB Composite Output Power +5 dBm max. Composite Input Power
-14 dBm max. (With ALC Activated) Impedance 50 Ohms VSWR 2:1 OIP32 + 26 dBm (+44 dBm; RF Fed BDA) Noise Power max. @ 48 dB Gain -110 dBm/Hz AC Power 120 VAC Single Phase
Notes:
1.Via Front Panel RS232 Connector.
2. Two-Tone Intermodulation: Measure at two-input carriers of -48 dBm/C (-30 dBm/C for RF Fed BDA) in the 806 – 811 MHz band, with a BDA gain setting of 48 dB.
3.3 Mechanical Specifications
PARAMETERS SPECIFICATION
RF Connectors Type-N Female RS232 Connector D-Sub, 9 pin Mounting Configuration 19.0 inch Rack Mount Dimensions Typical (HxWxD) 6.4 in. x 19.0 in. x 15.8 in. Cooling Convection, External Heatsink Chassis Stud Ground
3.4 Environmental Specifications
400/800 MHz Fiber Optic & RF Fed Bi-Directional
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
Rev: B
Date: 06/18/2008
Page:
11 of 63
Wireless Innovations Group
PARAMETERS SPECIFICATION
Operating Temperature
-20°C to +60°C Operating Relative Humidity 5% to 95% (Non-Condensing) Dry Storage Temperature
-25°C to +60°C ESD & EMI1 IEC 65 (Secretariat) 129 Draft Pub. 801-2 Shock, Vibration and Moisture Resistance2 MIL-STD810(E)
Notes:
1. Electromagnetic Compatibility (ESD) Part 2.
2. Shock-Method 516.4 Procedure I (20g’s), Vibration-Method 514.4 Category 1, Moisture Resistance-Method 506.3 Procedure II.
4.0 EQUIPMENT PHOTOGRAPHS
4.1 400 MHz Fiber Optic Fed Bi-Directional Amplifier
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
12 of 63
Wireless Innovations Group
4.2 800 MHz Fiber Optic Fed Bi-Directional Amplifier
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
13 of 63
Wireless Innovations Group
5.0 MODULES
5.1 400 MHz EO Cell Amplifier Module (AE04A-D1264-001)
5.1.1 Description
This 2Watt, 483 - 487 MHz, class A Power Amplifier Module provides a nominal 52 dB of gain. It has 30 dB of gain adjustment range, which can be varied electronically thru the front panel RS232 connector. Additionally, the module has an internal Automatic Level Control (ALC) circuit, which can be set to limit the maximum power level produced by the BDA. This module has an on board RISC processor that provides optional alarming/status monitoring and communications capabilities. The same module design is used for both the Downlink and Uplink amplifier.
The amplifier modules contain high reliable RF parts to provide a long trouble­free operating life. In the unlikely event of failure, the entire amplifier module should be replaced.
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
14 of 63
Wireless Innovations Group
5.1.2 Specification
PARAMETER SPECIFICATION
Operating Frequency Range
483.1625 – 486.2375 MHz Gain Typical 51.5 dB Output Gain Adjustment1 30 dB Composite Output Power
≥ +33.5 dBm Impedance 50 Ohms VSWR 2:1 OIP32
≥ + 47.5 dBm Noise Power max. @ 51.5 dB Gain -111.5 dBm/Hz DC Power + 48 VDC Operating Temperature
-20°C to +60°C
Note:
1.Via Front Panel RS232 Connector.
2.Two-Tone Intermodulation: Measured two-output carriers of +23.5 dBm/C at
483.1625 MHz and 483.2375 MHz with 51.5 dB gain setting.

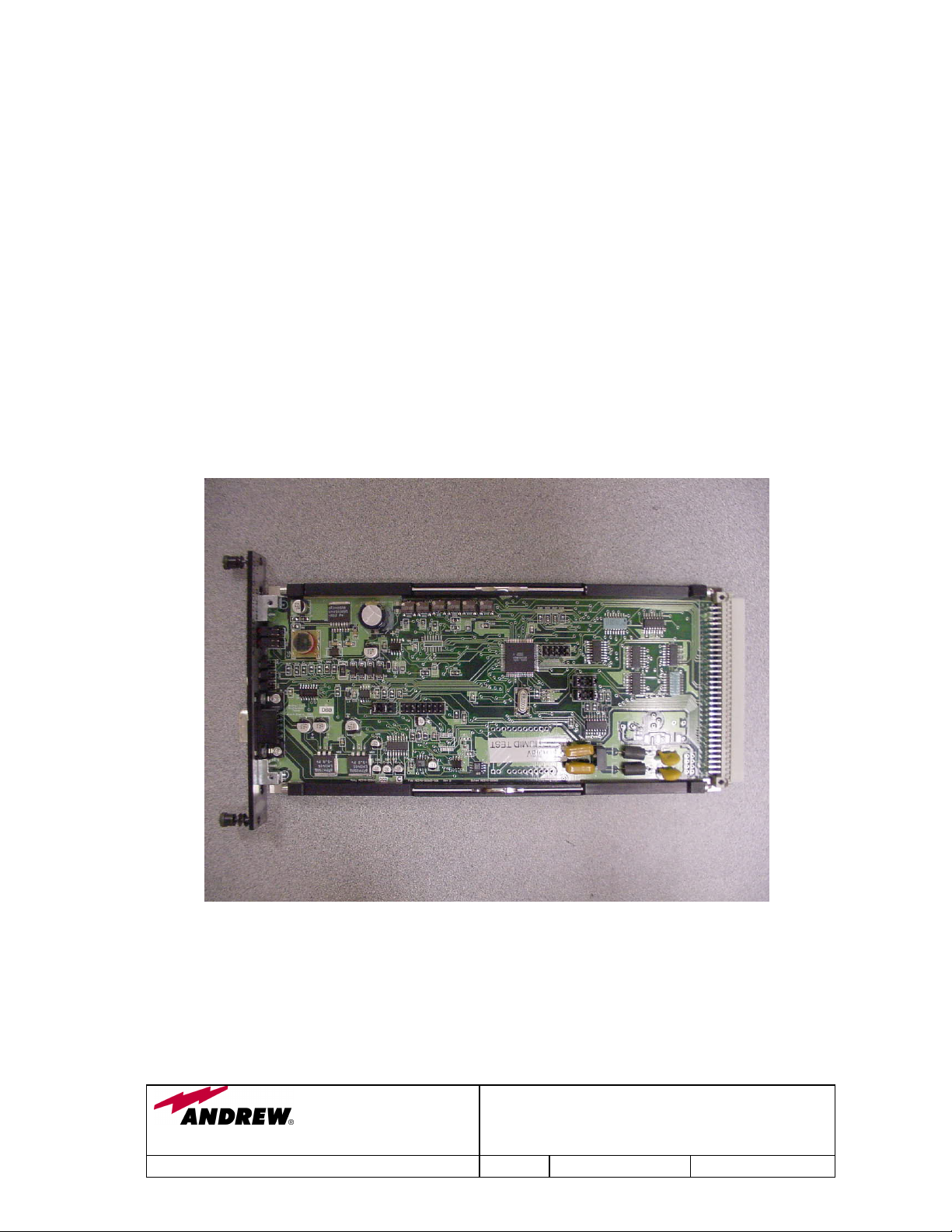

5.1.3 Photographs
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
15 of 63
Wireless Innovations Group
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
16 of 63
Wireless Innovations Group
5.1.4 400 MHz EO Cell Amplifier Module Schematics
INTENTIONALLY LEFT BLANK
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
17 of 63
Wireless Innovations Group
INTENTIONALLY LEFT BLANK
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
18 of 63
Wireless Innovations Group
INTENTIONALLY LEFT BLANK
2601 Telecom Parkway
DWG NO: AE04B-A1669
Richardson, Texas 75082
400/800 MHz Fiber Optic & RF Fed Bi-Directional
Rev: B
Date: 06/18/2008
Page:
19 of 63
Loading...
+ 44 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
