FUNCTIONAL BLOCK DIAGRAM

EXTERNAL

ADDRESS

BUS

DATA

MEMORY

PROGRAM

MEMORY

EXTERNAL

DATA

BUS

ADSP-2100 CORE

ARITHMETIC UNITS

SHIFTERMAC

ALU

MEMORY

SERIAL PORTS

SPORT 0 SPORT 1

DATA ADDRESS

GENERATORS DAG 1

DAG 2

PROGRAM

SEQUENCER

PROGRAM MEMORY ADDRESS

DATA MEMORY ADDRESS

PROGRAM MEMORY DATA

DATA MEMORY DATA

TIMER

REV. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Low Cost DSP Microcomputers

ADSP-2104/ADSP-2109

SUMMARY 16-Bit Fixed-Point DSP Microprocessors with

On-Chip Memory

Enhanced Harvard Architecture for Three-Bus

Performance: Instruction Bus & Dual Data Buses

Independent Computation Units: ALU, Multiplier/

Accumulator, and Shifter

Single-Cycle Instruction Execution & Multifunction

Instructions

On-Chip Program Memory RAM or ROM

& Data Memory RAM

Integrated I/O Peripherals: Serial Ports and Timer FEATURES

20 MIPS, 50 ns Maximum Instruction Rate Separate On-Chip Buses for Program and Data Memory Program Memory Stores Both Instructions and Data

(Three-Bus Performance)

Dual Data Address Generators with Modulo and

Bit-Reverse Addressing

Efficient Program Sequencing with Zero-Overhead

Looping: Single-Cycle Loop Setup

Automatic Booting of On-Chip Program Memory from

Byte-Wide External Memory (e.g., EPROM )

Double-Buffered Serial Ports with Companding Hardware,

Automatic Data Buffering, and Multichannel Operation Three Edge- or Level-Sensitive Interrupts Low Power IDLE Instruction PLCC Package

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 617/329-4700 Fax: 617/326-8703

GENERAL DESCRIPTION

The ADSP-2104 and ADSP-2109 processors are single-chip microcomputers optimized for digital signal processing(DSP) and other high speed numeric processing applications. The ADSP-2104/ADSP-2109 processors are built upon a common core. Each processor combines the core DSP architecture— computation units, data address generators, and program sequencer—with differentiating features such ason-chip program and data memory RAM (ADSP-2109 contains 4K words of program ROM), a programmable timer, and two serial ports.

Fabricated in a high speed, submicron, double-layer metal CMOS process, the ADSP-2104/ADSP-2109 operates at 20 MIPS with a 50 ns instruction cycle time. The ADSP-2104L and ADSP-2109L are 3.3 volt versions which operate at

13.824 MIPS with a 72.3 ns instruction cycle time. Every instruction can execute in a single cycle. Fabrication in CMOS results in low power dissipation.

The ADSP-2100 Family’s flexible architecture and comprehensive instruction set support a high degree of parallelism. In one cycle the ADSP-2104/ADSP-2109 can performall of the following operations:

•

Generate the next program address

•

Fetch the next instruction

•

Perform one or two data moves

•

Update one or two data address pointers

•

Perform a computation

•

Receive and transmit data via one or two serial ports

The ADSP-2104 contains 512 words of program RAM, 256 words of data RAM, an interval timer, and two serial ports. The ADSP-2104L is a 3.3 volt power supply version of the ADSP-2104; it is identical to the ADSP-2104 in all other characteristics.

The ADSP-2109 contains 4K words of program ROM and 256 words of data RAM, an interval timer, and two serial ports.

The ADSP-2109L is a 3.3 volt power supply version of the ADSP-2109; it is identical to the ADSP-2109 in all other characteristics.

ADSP-2104/ADSP-2109

–2–

REV. 0

The ADSP-2109 is a memory-variant version of the ADSP2104 and contains factory-programmed on-chip ROM program memory.

The ADSP-2109 eliminates the need for an external boot EPROM in your system, and can also eliminate the need for any external program memory by fitting the entire application program in on-chip ROM. This device provides an excellent option for volume applications where board space and system cost constraints are of critical concern.

Development Tools

The ADSP-2104/ADSP-2109 processors are supported by a complete set of tools for system development. The ADSP-2100 Family Development Software includes C and assembly language tools that allow programmers to write code for any ADSP-21xx processor. The ANSI C compiler generates ADSP21xx assembly source code, while the runtime C library provides ANSI-standard and custom DSP library routines. The ADSP21xx assembler produces object code modules which the linker combines into an executable file. The processor simulators provide an interactive instruction-level simulation with a reconfigurable,

windowed user interface. A PROM splitter utility generates PROM programmer compatible files.

EZ-ICE

in-circuit emulators allow debugging of ADSP-2104 systems by providing a full range of emulation functions such as modification of memory and register values and execution breakpoints. EZ-LAB

demonstration boards are complete DSP

systems that execute EPROM-based programs. The EZ-Kit Lite is a very low cost evaluation/development

platform that contains both the hardware and software needed to evaluate the ADSP-21xx architecture.

Additional details and ordering information is available in the ADSP-2100 Family Software & Hardware Development Tools data sheet (ADDS-21xx-TOOLS). This data sheet can be requested from any Analog Devices sales office or distributor.

Additional Information

This data sheet provides a general overview of ADSP-2104/ ADSP-2109 processor functionality. For detailed design information on the architecture and instruction set, refer to the ADSP-2100 Family User’s Manual, available from Analog Devices.

SPECIFICATIONS (ADSP-2104L/ADSP-2109L) . . . . . . 16

Recommended Operating Conditions . . . . . . . . . . . . . . . . 16

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Supply Current & Power . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Power Dissipation Example . . . . . . . . . . . . . . . . . . . . . . . . 18

Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . 18

Capacitive Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TIMING PARAMETERS (ADSP-2104/ADSP-2109) . . . . . 20

Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Interrupts & Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Bus Request–Bus Grant . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Memory Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Memory Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L) . . 27

Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Interrupts & Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Bus Request–Bus Grant . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Memory Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Memory Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

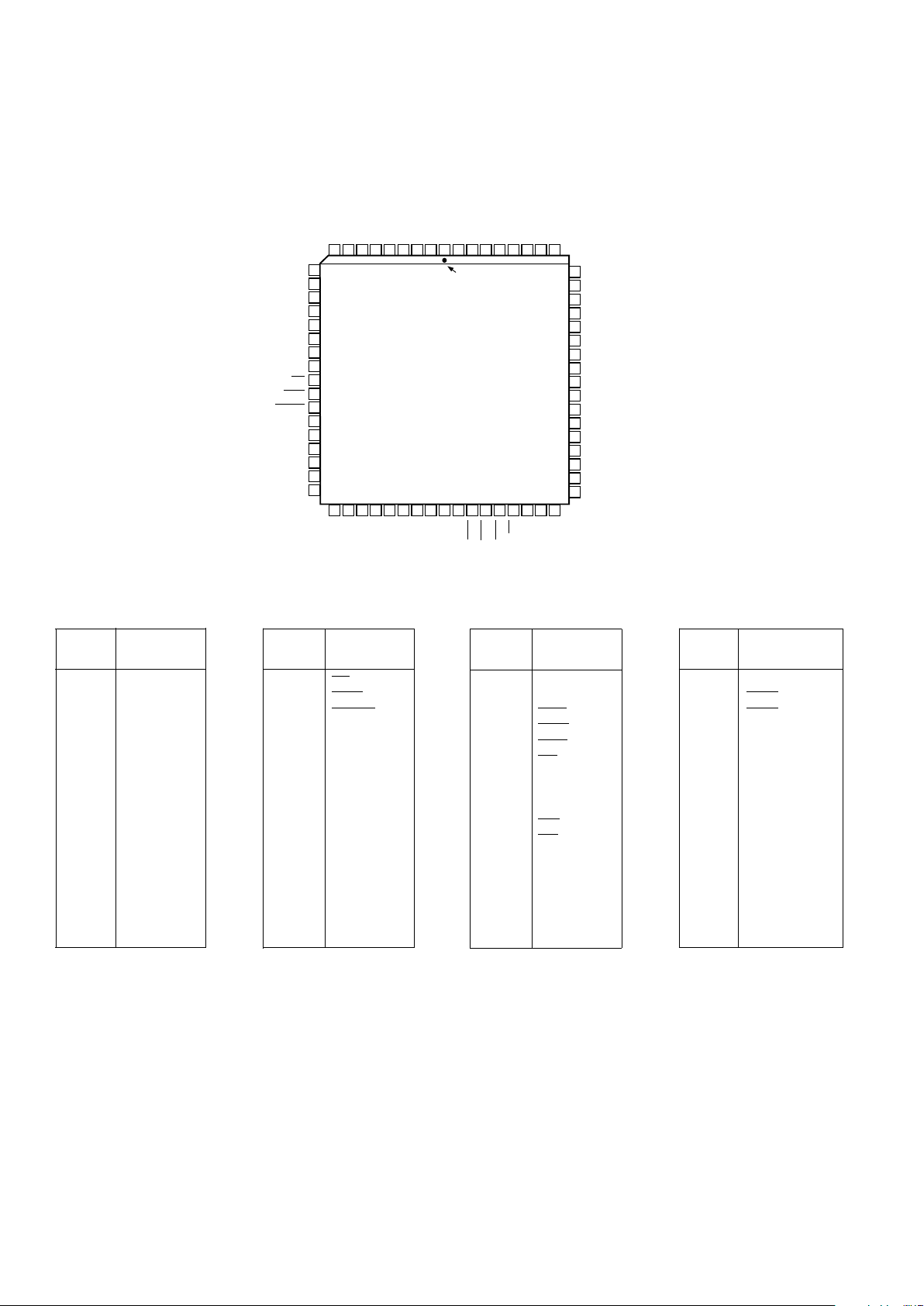

PIN CONFIGURATIONS

68-Lead PLCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

PACKAGE OUTLINE DIMENSIONS

68-Lead PLCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ORDERING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

EZ-ICE and EZ-LAB are registered trademarks of Analog Devices, Inc.

TABLE OF CONTENTS

GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . 1

Development Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

ARCHITECTURE OVERVIEW . . . . . . . . . . . . . . . . . . . . 3

Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Pin Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SYSTEM INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Program Memory Interface . . . . . . . . . . . . . . . . . . . . . . . . . 6

Program Memory Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Data Memory Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Data Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Boot Memory Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Low Power IDLE Instruction . . . . . . . . . . . . . . . . . . . . . . . 8

ADSP-2109 Prototyping . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Ordering Procedure for ADSP-2109 ROM Processors . . . . 9

Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SPECIFICATIONS (ADSP-2104/ADSP-2109) . . . . . . . . 12

Recommended Operating Conditions . . . . . . . . . . . . . . . . 12

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Supply Current & Power . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power Dissipation Example . . . . . . . . . . . . . . . . . . . . . . . . 14

Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . 14

Capacitive Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ADSP-2104/ADSP-2109

REV. 0

–3–

ARCHITECTURE OVERVIEW

Figure 1 shows a block diagram of the ADSP-2104/ADSP-2109 architecture. The processor contains three independent computational units: the ALU, the multiplier/accumulator (MAC), and the shifter. The computational units process 16-bit data directly and have provisions to support multiprecision computations. The ALU performs a standard set of arithmetic and logic operations; division primitives are also supported. The MAC performs single-cycle multiply, multiply/add, and multiply/ subtract operations. The shifter performs logical and arithmetic shifts, normalization, denormalization, and derive exponent operations. The shifter can be used to efficiently implement numeric format control including multiword floating-point representations.

The internal result (R) bus directly connects the computational units so that the output of any unit may be used as the input of any unit on the next cycle.

A powerful program sequencer and two dedicated data address generators ensure efficient use of these computational units. The sequencer supports conditional jumps, subroutine calls, and returns in a single cycle. With internal loop counters and loop stacks, the ADSP-2104/ADSP-2109 executes looped code with zero overhead—no explicit jump instructions are required to maintain the loop. Nested loops are also supported.

Two data address generators (DAGs) provide addresses for simultaneous dual operand fetches (from data memory and program memory). Each DAG maintains and updates four address pointers. Whenever the pointer is used to access data (indirect addressing), it is post-modified by the value of one of four modify registers. A length value may be associated with each pointer to implement automatic modulo addressing for

circular buffers. The circular buffering feature is also used by the serial ports for automatic data transfers to (and from) onchip memory.

Efficient data transfer is achieved with the use of five internal buses:

• Program Memory Address (PMA) Bus

• Program Memory Data (PMD) Bus

• Data Memory Address (DMA) Bus

• Data Memory Data (DMD) Bus

• Result (R) Bus The two address buses (PMA, DMA) share a single external

address bus, allowing memory to be expanded off-chip, and the two data buses (PMD, DMD) share a single external data bus. The

BMS, DMS, and PMS signals indicate which memory

space is using the external buses. Program memory can store both instructions and data, permit-

ting the ADSP-2104/ADSP-2109 to fetch two operands in a single cycle, one from program memory and one from data memory. The processor can fetch an operand from on-chip program memory and the next instruction in the same cycle.

The memory interface supports slow memories and memorymapped peripherals with programmable wait state generation. External devices can gain control of the processor’s buses with the use of the bus request/grant signals (

BR, BG).

One bus grant execution mode (GO Mode) allows the ADSP2104/ADSP-2109 to continue running from internal memory. A second execution mode requires the processor to halt while buses are granted.

Figure 1. ADSP-2104/ADSP-2109 Block Diagram

R Bus

DMD BUS

PMD BUS

DMA BUS

PMA BUS

EXTERNAL ADDRESS BUS

EXTERNAL DATA BUS

BOOT

ADDRESS

GENERATOR

TIMER

BUS

EXCHANGE

COMPANDING

CIRCUITRY

1624

DMA BUS

PMA BUS

DMD BUS

PMD BUS

PROGRAM

SEQUENCER

INSTRUCTION

PROGRAM

MEMORY

SRAM

or ROM

DATA

MEMORY

SRAM

DATA

ADDRESS

GENERATOR

DATA

ADDRESS

GENERATOR

INPUT REGS

OUTPUT REGS

SHIFTER

INPUT REGS

OUTPUT REGS

MAC

INPUT REGS

OUTPUT REGS

ALU

RECEIVE REG

TRANSMIT REG

SERIAL PORT 0

MUX

RECEIVE REG

TRANSMIT REG

SERIAL

PORT 1

ADSP-2104/ADSP-2109

–4–

REV. 0

The ADSP-2104/ADSP-2109 can respond to several different interrupts. There can be up to three external interrupts, configured as edge- or level-sensitive. Internal interrupts can be generated by the timer and serial ports. There is also a master RESET signal.

Booting circuitry provides for loading on-chip program memory automatically from byte-wide external memory. After reset, three wait states are automatically generated. This allows, for example, the ADSP-2104 to use a 150 ns EPROM as external boot memory. Multiple programs can be selected and loaded from the EPROM with no additional hardware.

The data receive and transmit pins on SPORT1 (Serial Port 1) can be alternatively configured as a general-purpose input flag and output flag. You can use these pins for event signalling to and from an external device.

A programmable interval timer can generate periodic interrupts. A 16-bit count register (TCOUNT) is decremented every n cycles, where n–1 is a scaling value stored in an 8-bit register (TSCALE). When the value of the count register reaches zero, an interrupt is generated and the count register is reloaded from a 16-bit period register (TPERIOD).

Serial Ports

The ADSP-2104/ADSP-2109 processor includes two synchronous serial ports (“SPORTs”) for serial communications and multiprocessor communication.

The serial ports provide a complete synchronous serial interface with optional companding in hardware. A wide variety of framed or frameless data transmit and receive modes of operation are available. Each SPORT can generate an internal programmable serial clock or accept an external serial clock.

Each serial port has a 5-pin interface consisting of the following signals:

Signal Name Function

SCLK Serial Clock (I/O) RFS Receive Frame Synchronization (I/O) TFS Transmit Frame Synchronization (I/O) DR Serial Data Receive DT Serial Data Transmit

The serial ports offer the following capabilities: Bidirectional—Each SPORT has a separate, double-buffered

transmit and receive function. Flexible Clocking—Each SPORT can use an external serial

clock or generate its own clock internally. Flexible Framing—The SPORTs have independent framing

for the transmit and receive functions; each function can run in a frameless mode or with frame synchronization signals internally generated or externally generated; frame sync signals may be active high or inverted, with either of two pulse widths and timings.

Different Word Lengths—Each SPORT supports serial data word lengths from 3 to 16 bits.

Companding in Hardware—Each SPORT provides optional A-law and µ-law companding according to CCITT recommen- dation G.711.

Flexible Interrupt Scheme—Receive and transmit functions can generate a unique interrupt upon completion of a data word transfer.

Autobuffering with Single-Cycle Overhead—Each SPORT can automatically receive or transmit the contents of an entire circular data buffer with only one overhead cycle per data word; an interrupt is generated after the transfer of the entire buffer is completed.

Multichannel Capability (SPORT0 Only)—SPORT0 provides a multichannel interface to selectively receive or transmit a 24-word or 32-word, time-division multiplexed serial bit stream; this feature is especially useful for T1 or CEPT interfaces, or as a network communication scheme for multiple processors.

Alternate Configuration—SPORT1 can be alternatively configured as two external interrupt inputs (

IRQ0, IRQ1) and

the Flag In and Flag Out signals (FI, FO).

Interrupts

The interrupt controller lets the processor respond to interrupts with a minimum of overhead. Up to three external interrupt input pins,

IRQ0, IRQ1, and IRQ2, are provided. IRQ2 is

always available as a dedicated pin;

IRQ1 and IRQ0 may be alternately configured as part of Serial Port 1. The ADSP-2104/ ADSP-2109 also supports internal interrupts from the timer, and serial ports. The interrupts are internally prioritized and individually maskable (except for

RESET which is nonmaskable).

The

IRQx input pins can be programmed for either level- or

edge-sensitivity. The interrupt priorities are shown in Table I.

Table I. Interrupt Vector Addresses & Priority

ADSP-2104/ADSP-2109 Interrupt Interrupt Source Vector Address

RESET Startup 0x0000 IRQ2 0x0004 (High Priority)

SPORT0 Transmit 0x0008 SPORT0 Receive 0x000C SPORT1 Transmit or

IRQ1 0x0010

SPORT1 Receive or

IRQ0 0x0014

Timer 0x0018 (Low Priority) The ADSP-2104/ADSP-2109 uses a vectored interrupt scheme:

when an interrupt is acknowledged, the processor shifts program control to the interrupt vector address corresponding to the interrupt received. Interrupts can be optionally nested so that a higher priority interrupt can preempt the currently executing interrupt service routine. Each interrupt vector location is four instructions in length so that simple service routines can be coded entirely in this space. Longer service routines require an additional JUMP or CALL instruction.

Individual interrupt requests are logically ANDed with the bits in the IMASK register; the highest-priority unmasked interrupt is then selected.

ADSP-2104/ADSP-2109

REV. 0

–5–

The interrupt control register, ICNTL, allows the external interrupts to be set as either edge- or level-sensitive. Depending on bit 4 in ICNTL, interrupt service routines can either be nested (with higher priority interrupts taking precedence) or be processed sequentially (with only one interrupt service active at a time).

The interrupt force and clear register, IFC, is a write-only register that contains a force bit and a clear bit for each interrupt.

When responding to an interrupt, the ASTAT, MSTAT, and IMASK status registers are pushed onto the status stack and the PC counter is loaded with the appropriate vector address. The status stack is seven levels deep to allow interrupt nesting. The stack is automatically popped when a return from the interrupt instruction is executed.

Pin Definitions

Table II shows pin definitions for the ADSP-2104/ADSP-2109 processors. Any inputs not used must be tied to V

SYSTEM INTERFACE

Figure 3 shows a typical system for the ADSP-2104/ADSP-2109, with two serial I/O devices, a boot EPROM, and optional external program and data memory. A total of 14.25K words of data memory and 14.5K words of program memory is addressable.

Programmable wait-state generation allows the processors to easily interface to slow external memories.

The ADSP-2104/ADSP-2109 also provides either: one external interrupt (

IRQ2) and two serial ports (SPORT0, SPORT1), or

three external interrupts (

IRQ2, IRQ1, IRQ0) and one serial

port (SPORT0).

Clock Signals

The ADSP-2104/ADSP-2109’s CLKIN input may be driven by a crystal or by a TTL-compatible external clock signal. The CLKIN input may not be halted or changed in frequency during operation, nor operated below the specified low frequency limit.

If an external clock is used, it should be a TTL-compatible signal running at the instruction rate. The signal should be connected to the processor’s CLKIN input; in this case, the XTAL input must be left unconnected.

Because the processor includes an on-chip oscillator circuit, an external crystal may also be used. The crystal should be connected across the CLKIN and XTAL pins, with two capacitors connected as shown in Figure 2. A parallel-resonant, fundamental frequency, microprocessor-grade crystal should be used.

Table II. ADSP-2104/ADSP-2109 Pin Definitions

Pin # of Input / Name(s) Pins Output Function

Address 14 O Address outputs for program, data and boot memory. Data

24 I/O Data I/O pins for program and data memories. Input only for

boot memory, with two MSBs used for boot memory addresses. Unused data lines may be left floating.

RESET 1 I Processor Reset Input IRQ2 1 I External Interrupt Request #2 BR

1 I External Bus Request Input

BG 1 O External Bus Grant Output PMS 1 O External Program Memory Select DMS 1 O External Data Memory Select BMS 1 O Boot Memory Select RD 1 O External Memory Read Enable WR 1 O External Memory Write Enable

MMAP 1 I Memory Map Select Input CLKIN, XTAL 2 I External Clock or Quartz Crystal Input CLKOUT 1 O Processor Clock Output V

Power Supply Pins GND Ground Pins SPORT0 5 I/O Serial Port 0 Pins (TFS0, RFS0, DT0, DR0, SCLK0) SPORT1 5 I/O Serial Port 1 Pins (TFS1, RFS1, DT1, DR1, SCLK1) or Interrupts & Flags:

IRQ0 (RFS1) 1 I External Interrupt Request #0 IRQ1 (TFS1) 1 I External Interrupt Request #1

FI (DR1) 1 I Flag Input Pin FO (DT1) 1 O Flag Output Pin

NOTES

Unused data bus lines may be left floating.

BR must be tied high (to VDD) if not used.

ADSP-2104/ADSP-2109

–6–

REV. 0

CLKIN CLKOUTXTAL

ADSP-2104/

ADSP-2109

Figure 2. External Crystal Connections

A clock output signal (CLKOUT) is generated by the processor, synchronized to the processor’s internal cycles.

Reset

The RESET signal initiates a complete reset of the processor. The

RESET signal must be asserted when the chip is powered

up to assure proper initialization. If the

RESET signal is applied during initial power-up, it must be held long enough to allow the processor’s internal clock to stabilize. If

RESET is activated at any time after power-up and the input clock frequency does not change, the processor’s internal clock continues and does not require this stabilization time.

The power-up sequence is defined as the total time required for the crystal oscillator circuit to stabilize after a valid V

is applied to the processor and for the internal phase-locked loop (PLL) to lock onto the specific crystal frequency. A minimum of 2000 t

cycles will ensure that the PLL has locked (this does not, however, include the crystal oscillator start-up time). During this power-up sequence the

RESET signal should be

held low. On any subsequent resets, the

RESET signal must

meet the minimum pulse width specification, t

RSP

To generate the

RESET signal, use either an RC circuit with an external Schmidt trigger or a commercially available reset IC. (Do not use only an RC circuit.)

The

RESET input resets all internal stack pointers to the empty stack condition, masks all interrupts, and clears the MSTAT register. When

RESET is released, the boot loading sequence is performed (provided there is no pending bus request and the chip is configured for booting, with MMAP = 0). The first instruction is then fetched from internal program memory location 0x0000.

Program Memory Interface

The on-chip program memory address bus (PMA) and on-chip program memory data bus (PMD) are multiplexed with the onchip data memory buses (DMA, DMD), creating a single external data bus and a single external address bus. The external data bus is bidirectional and is 24 bits wide to allow instruction fetches from external program memory. Program memory may contain code and data.

The external address bus is 14 bits wide. The data lines are bidirectional. The program memory select

(

PMS) signal indicates accesses to program memory and can be

used as a chip select signal. The write (

WR) signal indicates a

write operation and is used as a write strobe. The read (

RD) signal indicates a read operation and is used as a read strobe or output enable signal.

The processor writes data from the 16-bit registers to 24-bit program memory using the PX register to provide the lower eight bits. When the processor reads 16-bit data from 24-bit program memory to a 16-bit data register, the lower eight bits are placed in the PX register.

The program memory interface can generate 0 to 7 wait states for external memory devices; default is to 7 wait states after RESET.

Figure 3. ADSP-2104/ADSP-2109 System

BR BG

CLKIN

RESET IRQ2 BMS

ADSP-2104

ADSP-2109

CLKOUT

ADDR

DATA

(OPTIONAL)

1x CLOCK

CRYSTAL

PMS

DMS

ADDR

13-0

DATA

23-0

ADDR

DATA

(OPTIONAL)

ADDR

DATA

BOOT

MEMORY

e.g. EPROM

2764 27128 27256 27512

PROGRAM

MEMORY

DATA

MEMORY

PERIPHERALS

23-22

13-0

15-8

23-0

23-8

13-0

XTAL

MMAP

SERIAL DEVICE

(OPTIONAL)

SCLK1 RFS1

IRQ0

TFS1

IRQ1

DT1

DR1

SCLK0 RFS0 TFS0 DT0 DR0

SPORT 1

SPORT 0

SERIAL

DEVICE

(OPTIONAL)

OE WE CS

OE CS

THE TWO MSBs OF THE DATA BUS (D

23-22

) ARE USED TO SUPPLY THE TWO MSBs OF THE

BOOT MEMORY EPROM ADDRESS. THIS IS ONLY REQUIRED FOR THE 27256 AND 27512.

ADSP-2104/ADSP-2109

REV. 0

–7–

Program Memory Maps

Program memory can be mapped in two ways, depending on the state of the MMAP pin. Figure 4 shows the ADSP-2104 program memory maps. Figure 5 shows the program memory maps for the ADSP-2109.

INTERNAL RAM

LOADED FROM

EXTERNAL

BOOT MEMORY

EXTERNAL

0x01FF 0x0200

0x3FFF

0x0000

EXTERNAL

0x39FF 0x3A00

0x3FFF

0x0000

MMAP=0 MMAP=1

No Booting

0x37FF 0x3800

0x07FF 0x0800

512 WORDS

14K

INTERNAL RAM

512 WORDS

1.5K

RESERVED

1.5K

RESERVED

Figure 4. ADSP-2104 Program Memory Maps

INTERNAL

ROM

12K

EXTERNAL

0x3FFF

0x0000

EXTERNAL

0x3FFF

0x0000

MMAP=0 MMAP=1

0x37FF 0x3800

INTERNAL

ROM

INTERNAL

ROM

10K

EXTERNAL

0x07FF 0x0800

0x0FF0

0x0FFF 0x1000

0x0FF0

0x0FFF 0x1000

RESERVED

Figure 5. ADSP-2109 Program Memory Maps

ADSP-2104

When MMAP = 0, on-chip program memory RAM occupies 512 words beginning at address 0x0000. Off-chip program memory uses the remaining 14K words beginning at address 0x0800. In this configuration–when MMAP = 0–the boot loading sequence (described below in “Boot Memory Interface”) is automatically initiated when

RESET is released.

When MMAP = 1, 14K words of off-chip program memory begin at address 0x0000 and on-chip program memory RAM is located in the 512 words between addresses 0x3800–0x39FF. In this configuration, program memory is not booted although it can be written to and read under program control.

Data Memory Interface

The data memory address bus (DMA) is 14 bits wide. The bidirectional external data bus is 24 bits wide, with the upper 16 bits used for data memory data (DMD) transfers.

The data memory select (

DMS) signal indicates access to data

memory and can be used as a chip select signal. The write (

WR) signal indicates a write operation and can be used as a write strobe. The read (

RD) signal indicates a read operation and can

be used as a read strobe or output enable signal. The ADSP-2104/ADSP-2109 processors support memory-

mapped I/O, with the peripherals memory-mapped into the data memory address space and accessed by the processor in the same manner as data memory.

Data Memory Map ADSP-2104

On-chip data memory RAM resides in the 256 words beginning at address 0x3800, also shown in Figure 6. Data memory locations from 0x3900 to the end of data memory at 0x3FFF are reserved. Control and status registers for the system, timer, wait-state configuration, and serial port operations are located in this region of memory.

0x3900

0x0400

0x0000

1K EXTERNAL

DWAIT0

1K EXTERNAL

DWAIT1

10K EXTERNAL

DWAIT2

1K EXTERNAL

DWAIT3

0x0800

0x3000

256 WORDS

0x3C00

0x3FFF

1K EXTERNAL

DWAIT4

0x3400

0x3800

MEMORY-MAPPED

CONTROL REGISTERS

& RESERVED

EXTERNAL

RAM

INTERNAL

RAM

Figure 6. Data Memory Map

The remaining 14K of data memory is located off-chip. This external data memory is divided into five zones, each associated with its own wait-state generator. This allows slower peripherals to be memory-mapped into data memory for which wait states are specified. By mapping peripherals into different zones, you can accommodate peripherals with different wait-state requirements. All zones default to seven wait states after

RESET.

ADSP-2104/ADSP-2109

–8–

REV. 0

Boot Memory Interface

Boot memory is an external 16K by 8 space, divided into eight separate 2K by 8 pages. The 8-bit bytes are automatically packed into 24-bit instruction words by the processor, for loading into on-chip program memory.

Three bits in the processors’ System Control Register select which page is loaded by the boot memory interface. Another bit in the System Control Register allows the forcing of a boot loading sequence under software control. Boot loading from Page 0 after

RESET is initiated automatically if MMAP = 0.

The boot memory interface can generate zero to seven wait states; it defaults to three wait states after

RESET. This allows the ADSP-2104 to boot from a single low cost EPROM such as a 27C256. Program memory is booted one byte at a time and converted to 24-bit program memory words.

The

BMS and RD signals are used to select and to strobe the boot memory interface. Only 8-bit data is read over the data bus, on pins D8-D15. To accommodate up to eight pages of boot memory, the two MSBs of the data bus are used in the boot memory interface as the two MSBs of the boot memory address: D23, D22, and A13 supply the boot page number.

The ADSP-2100 Family Assembler and Linker allow the creation of programs and data structures requiring multiple boot pages during execution.

The

BR signal is recognized during the booting sequence. The bus is granted after loading the current byte is completed.

during booting may be used to implement booting under control of a host processor.

Bus Interface

The ADSP-2104/ADSP-2109 can relinquish control of their data and address buses to an external device. When the external device requires control of the buses, it asserts the bus request signal (

BR). If the processor is not performing an external

memory access, it responds to the active

BR input in the next

cycle by:

•

Three-stating the data and address buses and the PMS,

DMS, BMS, RD, WR output drivers,

•

Asserting the bus grant (BG) signal,

•

and halting program execution.

If the Go mode is set, however, the ADSP-2104/ADSP-2109 will not halt program execution until it encounters an instruction that requires an external memory access.

If the processor is performing an external memory access when the external device asserts the

BR signal, it will not three-state

the memory interfaces or assert the

BG signal until the cycle

after the access completes (up to eight cycles later depending on

the number of wait states). The instruction does not need to be completed when the bus is granted; the processor will grant the bus in between two memory accesses if an instruction requires more than one external memory access.

When the

BR signal is released, the processor releases the BG signal, re-enables the output drivers and continues program execution from the point where it stopped.

The bus request feature operates at all times, including when the processor is booting and when

RESET is active. If this

feature is not used, the

BR input should be tied high (to VDD).

Low Power IDLE Instruction

The IDLE instruction places the processor in low power state in which it waits for an interrupt. When an interrupt occurs, it is serviced and execution continues with instruction following IDLE. Typically this next instruction will be a JUMP back to the IDLE instruction. This implements a low-power standby loop.

The IDLE n instruction is a special version of IDLE that slows the processor’s internal clock signal to further reduce power consumption. The reduced clock frequency, a programmable fraction of the normal clock rate, is specified by a selectable divisor, n, given in the IDLE instruction. The syntax of the instruction is:

IDLE n; where n = 16, 32, 64, or 128. The instruction leaves the chip in an idle state, operating at the

slower rate. While it is in this state, the processor’s other internal clock signals, such as SCLK, CLKOUT, and the timer clock, are reduced by the same ratio. Upon receipt of an enabled interrupt, the processor will stay in the IDLE state for up to a maximum of n CLKIN cycles, where n is the divisor specified in the instruction, before resuming normal operation.

When the IDLE n instruction is used, it slows the processor’s internal clock and thus its response time to incoming interrupts– the 1-cycle response time of the standard IDLE state is increased by n, the clock divisor. When an enabled interrupt is received, the ADSP-21xx will remain in the IDLE state for up to a maximum of n CLKIN cycles (where n = 16, 32, 64, or

128) before resuming normal operation. When the IDLE n instruction is used in systems that have an

externally generated serial clock (SCLK), the serial clock rate may be faster than the processor’s reduced internal clock rate. Under these conditions, interrupts must not be generated at a faster rate than can be serviced, due to the additional time the processor takes to come out of the IDLE state (a maximum of n CLKIN cycles).

ADSP-2104/ADSP-2109

REV. 0

–9–

ADSP-2109 Prototyping

You can prototype your ADSP-2109 system with the ADSP2104 RAM-based processor. When code is fully developed and debugged, it can be submitted to Analog Devices for conversion into a ADSP-2109 ROM product.

The ADSP-2101 EZ-ICE emulator can be used for development of ADSP-2109 systems. For the 3.3 V ADSP-2109, a voltage converter interface board provides 3.3 V emulation.

Additional overlay memory is used for emulation of ADSP-2109 systems. It should be noted that due to the use of off-chip overlay memory to emulate the ADSP-2109, a performance loss may be experienced when both executing instructions and fetching program memory data from the off-chip overlay memory in the same cycle. This can be overcome by locating program memory data in on-chip memory.

Ordering Procedure for ADSP-2109 ROM Processor

To place an order for a custom ROM-coded ADSP-2109, you must:

1. Complete the following forms contained in the ADSP ROM Ordering Package, available from your Analog Devices sales representative:

ADSP-2109 ROM Specification Form ROM Release Agreement

ROM NRE Agreement & Minimum Quantity Order (MQO) Acceptance Agreement for Pre-Production ROM Products

2. Return the forms to Analog Devices along with two copies of the Memory Image File (.EXE file) of your ROM code. The files must be supplied on two 3.5" or 5.25" floppy disks for the IBM PC (DOS 2.01 or higher).

3. Place a purchase order with Analog Devices for nonrecurring engineering changes (NRE) associated with ROM product development.

After this information is received, it is entered into Analog Devices’ ROM Manager System which assigns a custom ROM model number to the product. This model number will be branded on all prototype and production units manufactured to these specifications.

To minimize the risk of code being altered during this process, Analog Devices verifies that the .EXE files on both floppy disks are identical, and recalculates the checksums for the .EXE file entered into the ROM Manager System. The checksum data, in the form of a ROM Memory Map, a hard copy of the .EXE file, and a ROM Data Verification form are returned to you for inspection.

A signed ROM Verification Form and a purchase order for production units are required prior to any product being manufactured. Prototype units may be applied toward the minimum order quantity.

Upon completion of prototype manufacture, Analog Devices will ship prototype units and a delivery schedule update for production units. An invoice against your purchase order for the NRE charges is issued at this time.

There is a charge for each ROM mask generated and a minimum order quantity. Consult your sales representative for details. A separate order must be placed for parts of a specific package type, temperature range, and speed grade.

ADSP-2104/ADSP-2109

–10–

REV. 0

Instruction Set

The ADSP-2104/ADSP-2109 assembly language uses an algebraic syntax for ease of coding and readability. The sources and destinations of computations and data movements are written explicitly in each assembly statement, eliminating cryptic assembler mnemonics.

Every instruction assembles into a single 24-bit word and executes in a single cycle. The instructions encompass a wide variety of instruction types along with a high degree of

operational parallelism. There are five basic categories of instructions: data move instructions, computational instructions, multifunction instructions, program flow control instructions and miscellaneous instructions. Multifunction instructions perform one or two data moves and a computation.

The instruction set is summarized below. The ADSP-2100 Family Users Manual contains a complete reference to the instruction set.

ALU Instructions

[IF cond] AR|AF = xop + yop [+ C] ; Add/Add with Carry

= xop – yop [+ C– 1] ; Subtract X – Y/Subtract X – Y with Borrow = yop – xop [+ C– 1] ; Subtract Y – X/Subtract Y – X with Borrow = xop AND yop ; AND = xop OR yop ; OR = xop XOR yop ; XOR = PASS xop ; Pass, Clear = – xop ; Negate = NOT xop ; NOT = ABS xop ; Absolute Value = yop + 1 ; Increment = yop – 1 ; Decrement = DIVS yop, xop ; Divide = DIVQ xop ;

MAC Instructions

[IF cond] MR|MF = xop * yop ; Multiply

= MR + xop * yop ; Multiply/Accumulate = MR – xop * yop ; Multiply/Subtract = MR ; Transfer MR =0 ; Clear

IF MV SAT MR ; Conditional MR Saturation

Shifter Instructions

[IF cond] SR = [SR OR] ASHIFT xop ; Arithmetic Shift [IF cond] SR = [SR OR] LSHIFT xop ; Logical Shift

SR = [SR OR] ASHIFT xop BY <exp>; Arithmetic Shift Immediate

SR = [SR OR] LSHIFT xop BY <exp>; Logical Shift Immediate [IF cond] SE = EXP xop ; Derive Exponent [IF cond] SB = EXPADJ xop ; Block Exponent Adjust [IF cond] SR = [SR OR] NORM xop ; Normalize

Data Move Instructions

reg = reg ; Register-to-Register Move reg = <data> ; Load Register Immediate reg = DM (<addr>) ; Data Memory Read (Direct Address) dreg = DM (Ix , My) ; Data Memory Read (Indirect Address) dreg = PM (Ix , My) ; Program Memory Read (Indirect Address) DM (<addr>) = reg ; Data Memory Write (Direct Address) DM (Ix , My) = dreg ; Data Memory Write (Indirect Address) PM (Ix , My) = dreg ; Program Memory Write (Indirect Address)

Multifunction Instructions

<ALU>|<MAC>|<SHIFT> , dreg = dreg ; Computation with Register-to-Register Move <ALU>|<MAC>|<SHIFT> , dreg = DM (Ix , My) ; Computation with Memory Read <ALU>|<MAC>|<SHIFT> , dreg = PM (Ix , My) ; Computation with Memory Read DM (Ix , My) = dreg , <ALU>|<MAC>|<SHIFT> ; Computation with Memory Write PM (Ix , My) = dreg , <ALU>|<MAC>|<SHIFT> ; Computation with Memory Write dreg = DM (Ix , My) , dreg = PM (Ix , My) ; Data & Program Memory Read <ALU>|<MAC> , dreg = DM (Ix , My) , dreg = PM (Ix , My) ; ALU/MAC with Data & Program Memory Read

ADSP-2104/ADSP-2109

REV. 0

–11–

Program Flow Instructions

DO <addr> [UNTIL term] ; Do Until Loop [IF cond] JUMP (Ix) ; Jump [IF cond] JUMP <addr>; [IF cond] CALL (Ix) ; Call Subroutine [IF cond] CALL <addr>; IF [NOT ] FLAG_IN JUMP <addr>; Jump/Call on Flag In Pin IF [NOT ] FLAG_IN CALL <addr>; [IF cond] SET|RESET|TOGGLE FLAG_OUT [, ...] ; Modify Flag Out Pin [IF cond] RTS ; Return from Subroutine [IF cond] RTI ; Return from Interrupt Service Routine IDLE [(n)] ; Idle

Miscellaneous Instructions

NOP ; No Operation MODIFY (Ix , My); Modify Address Register [PUSH STS] [, POP CNTR] [, POP PC] [, POP LOOP] ; Stack Control ENA|DIS SEC_REG [, ...] ; Mode Control

BIT_REV AV_LATCH AR_SAT M_MODE TIMER G_MODE

Notation Conventions

Ix Index registers for indirect addressing My Modify registers for indirect addressing <data> Immediate data value <addr> Immediate address value <exp> Exponent (shift value) in shift immediate instructions (8-bit signed number) <ALU> Any ALU instruction (except divide) <MAC> Any multiply-accumulate instruction <SHIFT> Any shift instruction (except shift immediate) cond Condition code for conditional instruction term Termination code for DO UNTIL loop dreg Data register (of ALU, MAC, or Shifter) reg Any register (including dregs) ; A semicolon terminates the instruction , Commas separate multiple operations of a single instruction [ ] Optional part of instruction [, ...] Optional, multiple operations of an instruction option1 | option2 List of options; choose one.

Assembly Code Example

The following example is a code fragment that performs the filter tap update for an adaptive filter based on a least-mean-squared algorithm. Notice that the computations in the instructions are written like algebraic equations.

MF=MX0*M Y1(RND), MX0=DM(I2,M1); {M F=error*beta} MR=MX0*M F (RND), AY0=PM(I6,M5);

DO adapt UNTIL CE;

AR=MR1+AY0, MX0=DM(I2,M1), AY0=PM(I6,M7);

adapt: PM(I6,M6)= AR, MR=MX0*M F (RND);

MODIFY(I2,M3); {Point to oldest data} MODIFY(I6,M7); {Point to start of data}

RECOMMENDED OPERATING CONDITIONS

K Grade

Parameter Min Max Unit

Supply Voltage 4.50 5.50 V

AMB

Ambient Operating Temperature 0 +70 °C

See “Environmental Conditions” for information on thermal specifications.

ELECTRICAL CHARACTERISTICS

Parameter Test Conditions Min Max Unit

Hi-Level Input Voltage

3, 5

@ V

= max 2.0 V

Hi-Level CLKIN Voltage @ V

= max 2.2 V

Lo-Level Input Voltage

1, 3

@ VDD = min 0.8 V

Hi-Level Output Voltage

2, 3, 7

@ VDD = min, IOH = –0.5 mA 2.4 V @ V

= min, IOH = –100 µA

VDD – 0.3 V

Lo-Level Output Voltage

2, 3, 7

@ VDD = min, IOL = 2 mA 0.4 V

Hi-Level Input Current

@ VDD = max, VIN = VDD max 10 µA

Lo-Level Input Current

@ VDD = max, VIN = 0 V 10 µA

OZH

Three-State Leakage Current4@ VDD = max, VIN = VDD max

10 µA

OZL

Three-State Leakage Current4@ VDD = max, VIN = 0 V

10 µA

Input Pin Capacitance

1, 8, 9

@ VIN = 2.5 V, fIN = 1.0 MHz, T

AMB

= 25°C8pF

Output Pin Capacitance

4, 8, 9, 10

@ VIN = 2.5 V, fIN = 1.0 MHz, T

AMB

= 25°C8pF

NOTES

Input-only pins: CLKIN, RESET, IRQ2, BR, MMAP, DR1, DR0.

Output pins: BG, PMS, DMS, BMS, RD, WR, A0–A13, CLKOUT, DT1, DT0.

Bidirectional pins: D0–D23, SCLK1, RFS1, TFS1, SCLK0, RFS0, TFS0.

Three-state pins: A0–A13, D0–D23, PMS, DMS, BMS, RD, WR, DT1, SCLK1, RSF1, TFS1, DT0, SCLK0, RFS0, TFS0.

Input-only pins: RESET, IRQ2, BR, MMAP, DR1, DR0.

0 V on BR, CLKIN Active (to force three-state condition).

Although specified for TTL outputs, all ADSP-2104/ADSP-2109 outputs are CMOS-compatible and will drive to VDD and GND, assuming no dc loads.

Guaranteed but not tested.

Applies to PGA, PLCC, PQFP package types.

Output pin capacitance is the capacitive load for any three-stated output pin.

Specifications subject to change without notice.

ADSP-2104/ADSP-2109–SPECIFICATIONS

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the ADSP-2104/ADSP-2109 processor features proprietary ESD protection circuitry to dissipate high energy electrostatic discharges (Human Body Model), permanent damage may occur to devices subjected to such discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Unused devices must be stored in conductive foam or shunts, and the foam should be discharged to the destination socket before the devices are removed. Per method 3015 of MIL-STD-883, the ADSP-2104/ADSP-2109 processor has been classified as Class 1 device.

ABSOLUTE MAXIMUM RATINGS

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V

Input Voltage . . . . . . . . . . . . . . . . . . . . . –0.3 V to V

+ 0.3 V

Output Voltage Swing . . . . . . . . . . . . . . –0.3 V to V

+ 0.3 V Operating Temperature Range (Ambient) . . .–55ºC to +125°C

Storage Temperature Range . . . . . . . . . . . . .–65°C to +125°C

Lead Temperature (10 sec) PGA . . . . . . . . . . . . . . . . . +300°C

Lead Temperature (5 sec) PLCC, PQFP, TQFP . . . . +280°C

*Stresses greater than those listed above may cause permanent damage to the

device. These are stress ratings only, and functional operation of the device at these or any other conditions greater than those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

WARNING!

ESD SENSITIVE DEVICE

–12–

REV. 0

ADSP-2104/ADSP-2109

REV. 0

–13–

SPECIFICATIONS (ADSP-2104/ADSP-2109)

SUPPLY CURRENT & POWER

Parameter Test Conditions Min Max Unit

Supply Current (Dynamic)

@ VDD = max, t

= 50 ns

31 mA

@ V

= max, tCK = 72.3 ns

24 mA

Supply Current (Idle)

1, 3

@ VDD = max, tCK = 50 ns 11 mA @ VDD = max, tCK = 72.3 ns 10 mA

NOTES

Current reflects device operating with no output loads.

VIN = 0.4 V and 2.4 V.

Idle refers to ADSP-2104/ADSP-2109 state of operation during execution of IDLE instruction. Deasserted pins are driven to either V

or GND.

For typical supply current (internal power dissipation) figures, see Figure 7.

Figure 7. ADSP-2104/ADSP-2109 Power (Typical) vs. Frequency

POWER REFLECTS DEVICE OPERATING WITH NO OUTPUT LOADS.

IDLE REFERS TO ADSP-2104/ADSP-2109 OPERATION DURING EXECUTION OF IDLE INSTRUCTION.

DEASSERTED PINS ARE DRIVEN TO EITHER V

OR GND.

MAXIMUM POWER DISSIPATION AT V

= 5.5V DURING EXECUTION OF

IDLE n

INSTRUCTION.

POWER – mW

30.0020.0013.8310.00 25.00

IDLE 128

IDD IDLE

IDLE 16

55mW

41mW 40mW

60mW

42mW 41mW

FREQUENCY

– MHz

IDD IDLE n MODES

POWER – mW

30.0020.0013.8310.00 25.00

80 60

140

100

120

160

200 180

220

129mW

100mW

74mW

170mW

128mW

95mW

FREQUENCY

– MHz

IDD DYNAMIC

= 5.5V

= 5.0V

= 4.5V

POWER – mW

30.0020.0013.8310.00 25.00

55mW

38mW

28mW

60mW

42mW

31mW

FREQUENCY

– MHz

IDD IDLE

1, 2

= 5.5V

= 5.0V

= 4.5V

ADSP-2104/ADSP-2109

–14–

REV. 0

POWER DISSIPATION EXAMPLE

To determine total power dissipation in a specific application, the following equation should be applied for each output:

C × V

× f

C = load capacitance, f = output switching frequency.

Example:

In an ADSP-2104 application where external data memory is used and no other outputs are active, power dissipation is calculated as follows:

Assumptions:

•

External data memory is accessed every cycle with 50% of the address pins switching.

•

External data memory writes occur every other cycle with 50% of the data pins switching.

•

Each address and data pin has a 10 pF total load at the pin.

•

The application operates at V

= 5.0 V and t

= 50 ns.

Total Power Dissipation = P

INT

+ (C × V

× f )

INT

= internal power dissipation (from Figure 7).

(C × V

× f ) is calculated for each output:

# of

Output Pins 3 C 3 V

× f

Address, DMS 8 × 10 pF × 52 V × 20 MHz = 40.0 mW Data,

WR 9 × 10 pF × 52 V × 10 MHz = 22.5 mW

RD 1 × 10 pF × 52 V × 10 MHz = 2.5 mW

CLKOUT 1 × 10 pF × 52 V × 20 MHz = 5.0 mW

70.0 mW

Total power dissipation for this example = P

INT

+ 70.0 mW.

ENVIRONMENTAL CONDITIONS

Ambient Temperature Rating:

AMB

= T

CASE

– (PD × θCA)

CASE

= Case Temperature in °C

PD = Power Dissipation in W

= Thermal Resistance (Case-to-Ambient)

= Thermal Resistance (Junction-to-Ambient)

= Thermal Resistance (Junction-to-Case)

Package u

PLCC 27°C/W 16°C/W 11°C/W

SPECIFICATIONS (ADSP-2104/ADSP-2109)

CAPACITIVE LOADING

Figures 8 and 9 show capacitive loading characteristics.

Figure 8. Typical Output Rise Time vs. Load Capacitance, C

(at Maximum Ambient Operating Temperature)

Figure 9. Typical Output Valid Delay or Hold vs. Load Capacitance, C

(at Maximum Ambient Operating Temperature)

CL – pF

25 1501251007550

RISE TIME (0.8V - 2.0V) – ns

VDD = 4.5V

1750

CL – pF

25 100 12550 75 150

VALID OUTPUT DELAY OR HOLD – ns

VDD = 4.5V

1750

–1

–2

–3

ADSP-2104/ADSP-2109

REV. 0

–15–

TEST CONDITIONS

Figure 10 shows voltage reference levels for ac measurements.

3.0V

1.5V

0.0V

2.0V

1.5V

0.8V

INPUT

OUTPUT

Figure 10. Voltage Reference Levels for AC Measurements (Except Output Enable/Disable)

Output Disable Time

Output pins are considered to be disabled when they have stopped driving and started a transition from the measured output high or low voltage to a high impedance state. The output disable time (t

DIS

) is the difference of t

MEASURED

and

DECAY

, as shown in Figure 11. The time t

MEASURED

is the interval from when a reference signal reaches a high or low voltage level to when the output voltages have changed by 0.5 V from the measured output high or low voltage.

The decay time, t

DECAY

, is dependent on the capacitative load,

, and the current load, iL, on the output pin. It can be

approximated by the following equation:

DECAY

×0.5V

from which

DIS

= t

MEASURED

– t

DECAY

is calculated. If multiple pins (such as the data bus) are disabled, the measurement value is that of the last pin to stop driving.

Output Enable Time

Output pins are considered to be enabled when they have made a transition from a high-impedance state to when they start driving. The output enable time (t

ENA

) is the interval from when a reference signal reaches a high or low voltage level to when the output has reached a specified high or low trip point, as shown in Figure 11. If multiple pins (such as the data bus) are enabled, the measurement value is that of the first pin to start driving.

SPECIFICATIONS (ADSP-2104/ADSP-2109)

Figure 12. Equivalent Device Loading for AC Measurements (Except Output Enable/Disable)

2.0V

1.0V

ENA

REFERENCE

SIGNAL

OUTPUT

DECAY

VOH (MEASURED)

OUTPUT STOPS

DRIVING

OUTPUT STARTS

DRIVING

DIS

MEASURED

VOL (MEASURED)

(MEASURED) – 0.5V

(MEASURED) +0.5V

HIGH-IMPEDANCE STATE. TEST CONDITIONS CAUSE THIS VOLTAGE LEVEL TO BE APPROXIMATELY 1.5V.

VOH (MEASURED)

VOL (MEASURED)

Figure 11. Output Enable/Disable

OUTPUT

50pF

+1.5V

RECOMMENDED OPERATING CONDITIONS

K Grade

Parameter Min Max Unit

Supply Voltage 3.00 3.60 V

AMB

Ambient Operating Temperature 0 +70 °C

See “Environmental Conditions” for information on thermal specifications.

ELECTRICAL CHARACTERISTICS

Parameter Test Conditions Min Max Unit

Hi-Level Input Voltage

1, 3

@ VDD = max 2.0 V

Lo-Level Input Voltage

1, 3

@ VDD = min 0.4 V

Hi-Level Output Voltage

2, 3, 6

@ VDD = min, IOH = –0.5 mA

2.4 V

Lo-Level Output Voltage

2, 3, 6

@ VDD = min, IOL = 2 mA

0.4 V

Hi-Level Input Current

@ VDD = max, VIN = VDD max 10 µA

Lo-Level Input Current

@ VDD = max, VIN = 0 V 10 µA

OZH

Three-State Leakage Current4@ VDD = max, VIN = VDD max

10 µA

OZL

Three-State Leakage Current4@ VDD = max, VIN = 0 V

10 µA

Input Pin Capacitance

1, 7, 8

@ VIN = 2.5 V, fIN = 1.0 MHz, T

AMB

= 25°C8pF

Output Pin Capacitance

4, 7, 8, 9

@ VIN = 2.5 V, fIN = 1.0 MHz, T

AMB

= 25°C8pF

NOTES

Input-only pins: CLKIN, RESET, IRQ2, BR, MMAP, DR1, DR0.

Output pins: BG, PMS, DMS, BMS, RD, WR, A0–A13, CLKOUT, DT1, DT0.

Bidirectional pins: D0–D23, SCLK1, RFS1, TFS1, SCLK0, RFS0, TFS0.

Three-stateable pins: A0–A13, D0–D23, PMS, DMS, BMS, RD, WR, DT1, SCLK1, RSF1, TFS1, DT0, SCLK0, RFS0, TFS0.

0 V on BR, CLKIN Active (to force three-state condition).

All outputs are CMOS and will drive to VDD and GND with no dc loads.

Guaranteed but not tested.

Applies to PLCC package type.

Output pin capacitance is the capacitive load for any three-stated output pin.

Specifications subject to change without notice.

ADSP-2104L/ADSP-2109L–SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS*

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +4.5 V

Input Voltage . . . . . . . . . . . . . . . . . . . . . –0.3 V to V

+ 0.3 V

Output Voltage Swing . . . . . . . . . . . . . . –0.3 V to V

+ 0.3 V

Operating Temperature Range (Ambient) . . . .–40°C to +85°C

Storage Temperature Range . . . . . . . . . . . . .–65°C to +150°C

Lead Temperature (5 sec) PLCC . . . . . . . . . . . . . . . . +280°C

*Stresses greater than those listed above may cause permanent damage to the

–16–

REV. 0

ADSP-2104/ADSP-2109

REV. 0

–17–

SPECIFICATIONS (ADSP-2104L/ADSP-2109L)

SUPPLY CURRENT & POWER (ADSP-2104L/ADSP-2109L)

Parameter Test Conditions Min Max Unit

Supply Current (Dynamic)

@ VDD = max, tCK = 72.3 ns

14 mA

Supply Current (Idle)

1, 3

@ VDD = max, tCK = 72.3 ns 4 mA

NOTES

Current reflects device operating with no output loads.

VIN = 0.4 V and 2.4 V.

Idle refers to ADSP-2104L/ADSP-2109L state of operation during execution of IDLE instruction. Deasserted pins are driven to either V

or GND.

For typical supply current (internal power dissipation) figures, see Figure 13.

Figure 13. ADSP-2104L/ADSP-2109L Power (Typical) vs. Frequency

POWER REFLECTS DEVICE OPERATING WITH NO OUTPUT LOADS.

IDLE REFERS TO ADSP-2104L/ADSP-2109L OPERATION DURING EXECUTION OF IDLE INSTRUCTION.

DEASSERTED PINS ARE DRIVEN TO EITHER V

OR GND.

MAXIMUM POWER DISSIPATION AT V

= 3.6V DURING EXECUTION OF

IDLE n

INSTRUCTION.

15.0013.8310.007.005.00

POWER – mW

IDD IDLE

FREQUENCY – MHz

9mW

6mW 5mW

13mW

10mW

8mW

= 3.6V

= 3.30V

= 3.0V

POWER – mW

IDLE DYNAMIC

1,2

FREQUENCY – MHz

48mW

37mW

29mW

15mW

15.0013.8310.007.005.00

45 40

24mW 19mW

= 3.6V

= 3.30V

= 3.0V

15.0013.8310.007.005.00

POWER – mW

FREQUENCY – MHz

IDLE 128

IDLE 16

IDD IDLE

9mW

5mW

4mW

13mW

7mW

6mW

IDD IDLE n MODES

ADSP-2104/ADSP-2109

–18–

REV. 0

SPECIFICATIONS (ADSP-2104L/ADSP-2109L)

CAPACITIVE LOADING

Figures 14 and 15 show capacitive loading characteristics.

POWER DISSIPATION EXAMPLE

To determine total power dissipation in a specific application, the following equation should be applied for each output:

C × V

× f

C = load capacitance, f = output switching frequency.

Example:

In an ADSP-2104L application where external data memory is used and no other outputs are active, power dissipation is calculated as follows:

Assumptions:

•

External data memory is accessed every cycle with 50% of the address pins switching.

•

External data memory writes occur every other cycle with 50% of the data pins switching.

•

Each address and data pin has a 10 pF total load at the pin.

•

The application operates at V

= 3.3 V and t

= 100 ns.

Total Power Dissipation = P

INT

+ (C × V

× f)

INT

= internal power dissipation (from Figure 13).

(C × V

× f ) is calculated for each output:

# of

Output Pins × C 3 V

3 f

Address,

DMS 8 × 10 pF × 3.32 V × 10 MHz = 8.71 mW

Data,

WR 9 × 10 pF × 3.32 V × 5 MHz = 4.90 mW

RD 1 × 10 pF × 3.32 V × 5 MHz = 0.55 mW

CLKOUT 1 × 10 pF × 3.32 V × 10 MHz = 1.09 mW

15.25 mW

Total power dissipation for this example = P

INT

+ 15.25 mW.

ENVIRONMENTAL CONDITIONS

Ambient Temperature Rating:

AMB

= T

CASE

– (PD × θCA)

CASE

= Case Temperature in °C

PD = Power Dissipation in W

= Thermal Resistance (Case-to-Ambient)

= Thermal Resistance (Junction-to-Ambient)

= Thermal Resistance (Junction-to-Case)

Package u

PLCC 27°C/W 16°C/W 11°C/W

Figure 14. Typical Output Rise Time vs. Load Capacitance, C

(at Maximum Ambient Operating Temperature)

Figure 15. Typical Output Valid Delay or Hold vs. Load Capacitance, CL (at Maximum Ambient Operating Temperature)

25 15012510075

– pF

RISE TIME (0.8V-2.0V) – ns

VDD = 3.0V

VALID OUTPUT DELAY OR HOLD – ns

–2

NOMINAL

25 1501251007550

VDD = 3.0V

– pF

ADSP-2104/ADSP-2109

REV. 0

–19–

TEST CONDITIONS

Figure 16 shows voltage reference levels for ac measurements.

INPUT

OUTPUT

Figure 16. Voltage Reference Levels for AC Measurements (Except Output Enable/Disable)

Output Disable Time

Output pins are considered to be disabled when they have stopped driving and started a transition from the measured output high or low voltage to a high impedance state. The output disable time (t

DIS

) is the difference of t

MEASURED

and

DECAY

, as shown in Figure 17. The time t

MEASURED

is the interval from when a reference signal reaches a high or low voltage level to when the output voltages have changed by 0.5 V from the measured output high or low voltage.

SPECIFICATIONS (ADSP-2104L/ADSP-2109L)

The decay time, t

DECAY

, is dependent on the capacitative load,

, and the current load, iL, on the output pin. It can be

approximated by the following equation:

DECAY

×0.5V

from which

DIS

= t

MEASURED

– t

DECAY

is calculated. If multiple pins (such as the data bus) are disabled, the measurement value is that of the last pin to stop driving.

Output Enable Time

Output pins are considered to be enabled when they have made a transition from a high-impedance state to when they start driving. The output enable time (t

ENA

) is the interval from when a reference signal reaches a high or low voltage level to when the output has reached a specified high or low trip point, as shown in Figure 17. If multiple pins (such as the data bus) are enabled, the measurement value is that of the first pin to start driving.

Figure 17. Output Enable/Disable

2.0V

1.0V

ENA

REFERENCE

SIGNAL

OUTPUT

DECAY

VOH (MEASURED)

OUTPUT STOPS

DRIVING

OUTPUT STARTS

DRIVING

DIS

MEASURED

VOL (MEASURED)

(MEASURED) – 0.5V

(MEASURED) +0.5V

HIGH-IMPEDANCE STATE. TEST CONDITIONS CAUSE THIS VOLTAGE LEVEL TO BE APPROXIMATELY 1.5V.

VOH (MEASURED)

VOL (MEASURED)

Figure 18. Equivalent Device Loading for AC Measurements (Except Output Enable/Disable)

OUTPUT

50pF

ADSP-2104/ADSP-2109

–20–

REV. 0

GENERAL NOTES

Use the exact timing information given. Do not attempt to derive parameters from the addition or subtraction of others. While addition or subtraction would yield meaningful results for an individual device, the values given in this data sheet reflect statistical variations and worst cases. Consequently, you cannot meaningfully add parameters to derive longer times.

TIMING NOTES

Switching characteristics specify how the processor changes its signals. You have no control over this timing—circuitry external to the processor must be designed for compatibility with these signal characteristics. Switching characteristics tell you what the processor will do in a given circumstance. You can also use

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

switching characteristics to ensure that any timing requirement of a device connected to the processor (such as memory) is satisfied.

Timing requirements apply to signals that are controlled by circuitry external to the processor, such as the data input for a read operation. Timing requirements guarantee that the processor operates correctly with other devices.

MEMORY REQUIREMENTS

The table below shows common memory device specifications and the corresponding ADSP-2104/ADSP-2109 timing parameters, for your convenience.

Memory ADSP-2104/ADSP-2109 Timing Device Timing Parameter Specification Parameter Definition

Address Setup to Write Start t

ASW

A0–A13, DMS, PMS Setup before WR Low

Address Setup to Write End t

A0–A13, DMS, PMS Setup before WR Deasserted

Address Hold Time t

WRA

A0–A13, DMS, PMS Hold after WR Deasserted

Data Setup Time t

Data Setup before WR High

Data Hold Time t

Data Hold after WR High

OE to Data Valid t

RDD

RD Low to Data Valid

Address Access Time t

A0–A13, DMS, PMS, BMS to Data Valid

ADSP-2104/ADSP-2109

REV. 0

–21–

Frequency

20 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

CLKIN Period 50 150 ns

CKL

CLKIN Width Low 20 20 ns

CKH

CLKIN Width High 20 20 ns

RSP

RESET Width Low 250 5t

Switching Characteristic:

CPL

CLKOUT Width Low 15 0.5tCK – 10 ns

CPH

CLKOUT Width High 15 0.5tCK – 10 ns

CKOH

CLKIN High to CLKOUT High 0 20 ns

NOTE

Applies after powerup sequence is complete. Internal phase lock loop requires no more than 2000 CLKIN cycles, assuming stable CLKIN (not including crystal oscillator startup time).

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

CLOCK SIGNALS & RESET

Figure 19. Clock Signals

CLKIN

CLKOUT

CKOH

CKH

CKL

CPH

CPL

ADSP-2104/ADSP-2109

–22–

REV. 0

Frequency

20 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

IFS

IRQx1 or FI Setup before 27.5 0.25tCK + 15 ns

CLKOUT Low

2, 3

IFH

IRQx1 or FI Hold after CLKOUT 12.5 0.25t

High

2, 3

Switching Characteristic:

FOH

FO Hold after CLKOUT High 00ns

FOD

FO Delay from CLKOUT High 15 ns

NOTES

IRQx=IRQ0, IRQ1, and IRQ2.

If IRQx and FI inputs meet t

IFS

and t

IFH

setup/hold requirements, they will be recognized during the current clock cycle; otherwise they will be recognized

during the following cycle. (Refer to the “Interrupt Controller” section in Chapter 3, Program Control, of the ADSP-2100 Family User’s Manual for further information on interrupt servicing.)

Edge-sensitive interrupts require pulse widths greater than 10 ns. Level-sensitive interrupts must be held low until serviced.

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

INTERRUPTS & FLAGS

CLKOUT

FLAG

OUTPUT(S)

FOD

IRQx

FOH

IFH

IFS

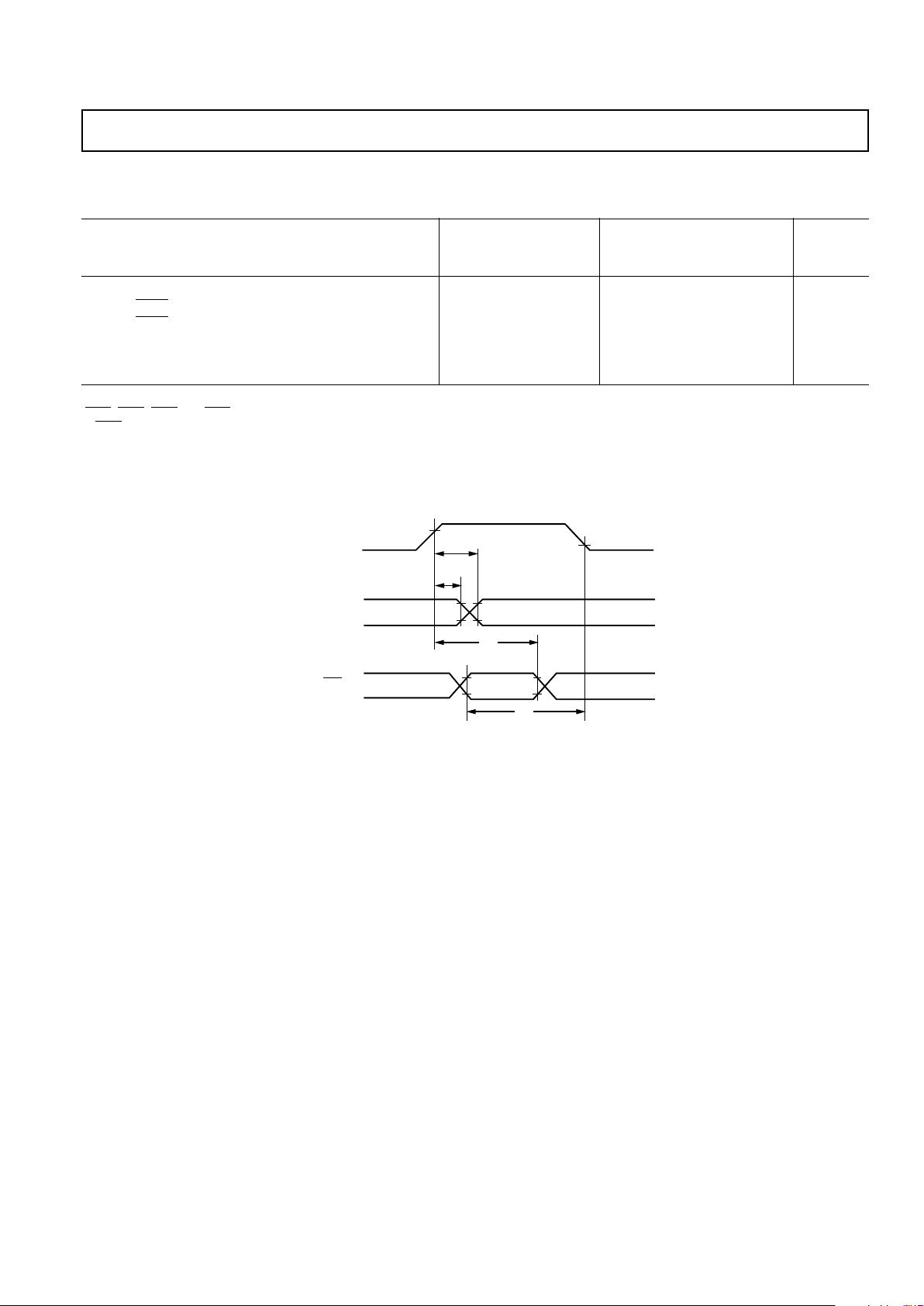

Figure 20. Interrupts & Flags

ADSP-2104/ADSP-2109

REV. 0

–23–

Frequency

20 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

BR Hold after CLKOUT High

17.5 0.25tCK + 5 ns

BR Setup before CLKOUT Low

32.5 0.25tCK + 20 ns

Switching Characteristic:

CLKOUT High to DMS, 32.5 0.25tCK + 20 ns PMS, BMS, RD, WR Disable

SDB

DMS, PMS, BMS, RD, WR 0 0 ns Disable to

BG Low

BG High to DMS, PMS, 0 0 ns BMS, RD, WR Enable

SEC

DMS, PMS, BMS, RD, WR 2.5 0.25tCK – 10 ns Enable to CLKOUT High

NOTES

If BR meets the tBS and tBH setup/hold requirements, it will be recognized in the current processor cycle; otherwise it is recognized in the following cycle. BR requires a pulse width greater than 10 ns.

Note: BG is asserted in the cycle after BR is recognized. No external synchronization circuit is needed when BR is generated as an asynchronous signal.

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

BUS REQUEST/GRANT

CLKOUT

PMS

, DMS

BMS, RD

CLKOUT

SDB

SEC

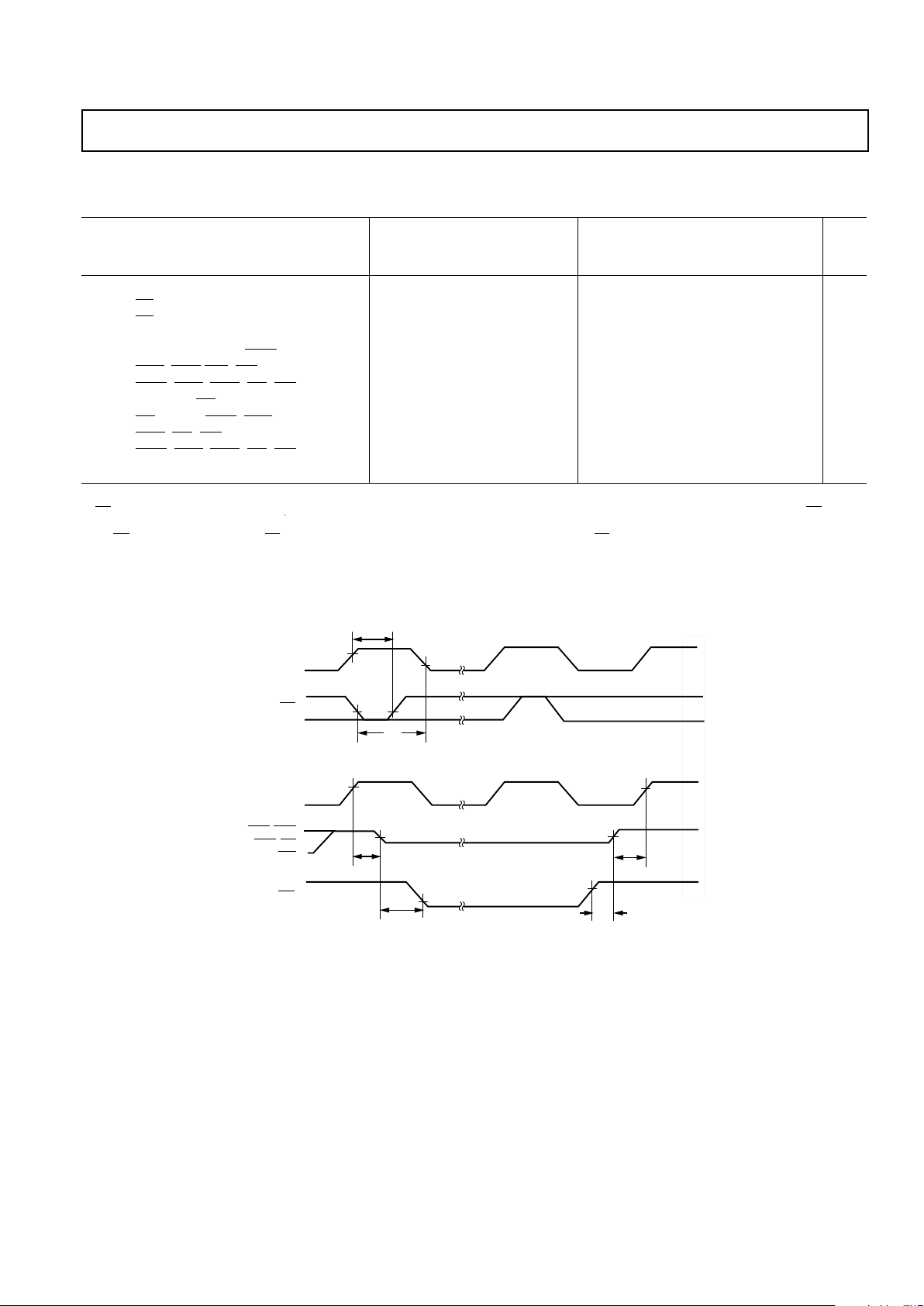

Figure 21. Bus Request/Grant

ADSP-2104/ADSP-2109

–24–

REV. 0

20 MHz

Parameter Min Max Unit

Timing Requirement:

RDD

RD Low to Data Valid 12 ns

A0–A13, PMS, DMS, BMS to Data Valid 19.5 ns

RDH

Data Hold from RD High 0

Switching Characteristic:

RD Pulse Width 17 ns

CRD

CLKOUT High to RD Low 7.5 22.5 ns

ASR

A0–A13, PMS, DMS, BMS Setup before 2.5 ns RD Low

RDA

A0–A13, PMS, DMS, BMS Hold after RD 3.5 ns Deasserted

RWR

RD High to RD or WR Low 20 ns

Frequency Dependency

(CLKIN ≤ 20 MHz)

Parameter Min Max Unit

Timing Requirement:

RDD

RD Low to Data Valid 0.5tCK – 13 + w ns

A0–A13, PMS, DMS, BMS to Data Valid 0.75tCK – 18 + w ns

RDH

Data Hold from RD High 0

Switching Characteristic:

RD Pulse Width 0.5tCK – 8 + w ns

CRD

CLKOUT High to RD Low 0.25tCK – 5 0.25tCK + 10 ns

ASR

A0–A13, PMS, DMS, BMS Setup before RD Low 0.25tCK – 10 ns

RDA

A0–A13, PMS, DMS, BMS Hold after RD Deasserted 0.25t

– 9 ns

RWR

RD High to RD or WR Low 0.5tCK – 5 ns

NOTE w = wait states × t

CK.

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

MEMORY READ

Figure 22. Memory Read

CLKOUT

A0 – A13

DMS, PMS

BMS

RDH

RWR

ASR

CRD

RDD

RDA

ADSP-2104/ADSP-2109

REV. 0

–25–

Frequency Dependency

(CLKIN ≤ 20 MHz)

Parameter Min Max Unit

Switching Characteristic:

Data Setup before WR High 0.5t

– 13 + w ns

Data Hold after WR High 0.25t

– 10 ns

WR Pulse Width 0.5tCK – 8 + w ns

WDE

WR Low to Data Enabled 0

ASW

A0–A13, DMS, PMS Setup before WR Low 0.25t

– 10 ns

DDR

Data Disable before WR or RD Low 0.25tCK – 10 ns

CWR

CLKOUT High to WR Low 0.25t

– 5 0.25tCK + 10 ns

A0–A13, DMS, PMS, Setup before WR Deasserted 0.75t

– 22 + w ns

WRA

A0–A13, DMS, PMS Hold after WR Deasserted 0.25t

– 9 ns

WWR

WR High to RD or WR Low 0.5tCK – 5 ns

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

MEMORY WRITE

20 MHz

Parameter Min Max Unit

Switching Characteristic:

Data Setup before WR High 12 ns

Data Hold after WR High 2.5 ns

WR Pulse Width 17 ns

WDE

WR Low to Data Enabled 0 ns

ASW

A0–A13, DMS, PMS Setup before 2.5 ns WR Low

DDR

Data Disable before WR or RD Low 2.5 ns

CWR

CLKOUT High to WR Low 7.5 22.5 ns

A0–A13, DMS, PMS, Setup before WR 15.5 ns Deasserted

WRA

A0–A13, DMS, PMS Hold after WR 3.5 ns Deasserted

WWR

WR High to RD or WR Low 20 ns

Figure 23. Memory Write

CLKOUT

A0 – A13

DMS, PMS

WDE

DDR

WWR

WRA

CWR

ASW

ADSP-2104/ADSP-2109

–26–

REV. 0

Frequency

13.824 MHz* Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

SCK

SCLK Period 72.3 ns

SCS

DR/TFS/RFS Setup before SCLK Low 8 ns

SCH

DR/TFS/RFS Hold after SCLK Low 10 ns

SCP

SCLK

Width 28 ns

Switching Characteristic:

CLKOUT High to SCLK

OUT

18.1 33.1 0.25t

0.25t

+ 15 ns

SCDE

SCLK High to DT Enable 0 ns

SCDV

SCLK High to DT Valid 20 ns

TFS/RFS

OUT

Hold after SCLK High ns

TFS/RFS

OUT

Delay from SCLK High 20 ns

SCDH

DT Hold after SCLK High ns

TDE

TFS (Alt) to DT Enable ns

TDV

TFS (Alt) to DT Valid 18 ns

SCDD

SCLK High to DT Disable 25 ns

RDV

RFS (Multichannel, Frame Delay Zero) 20 ns to DT Valid

*Maximum serial port operating frequency is 13.824 MHz.

TIMING PARAMETERS (ADSP-2104/ADSP-2109)

SERIAL PORTS

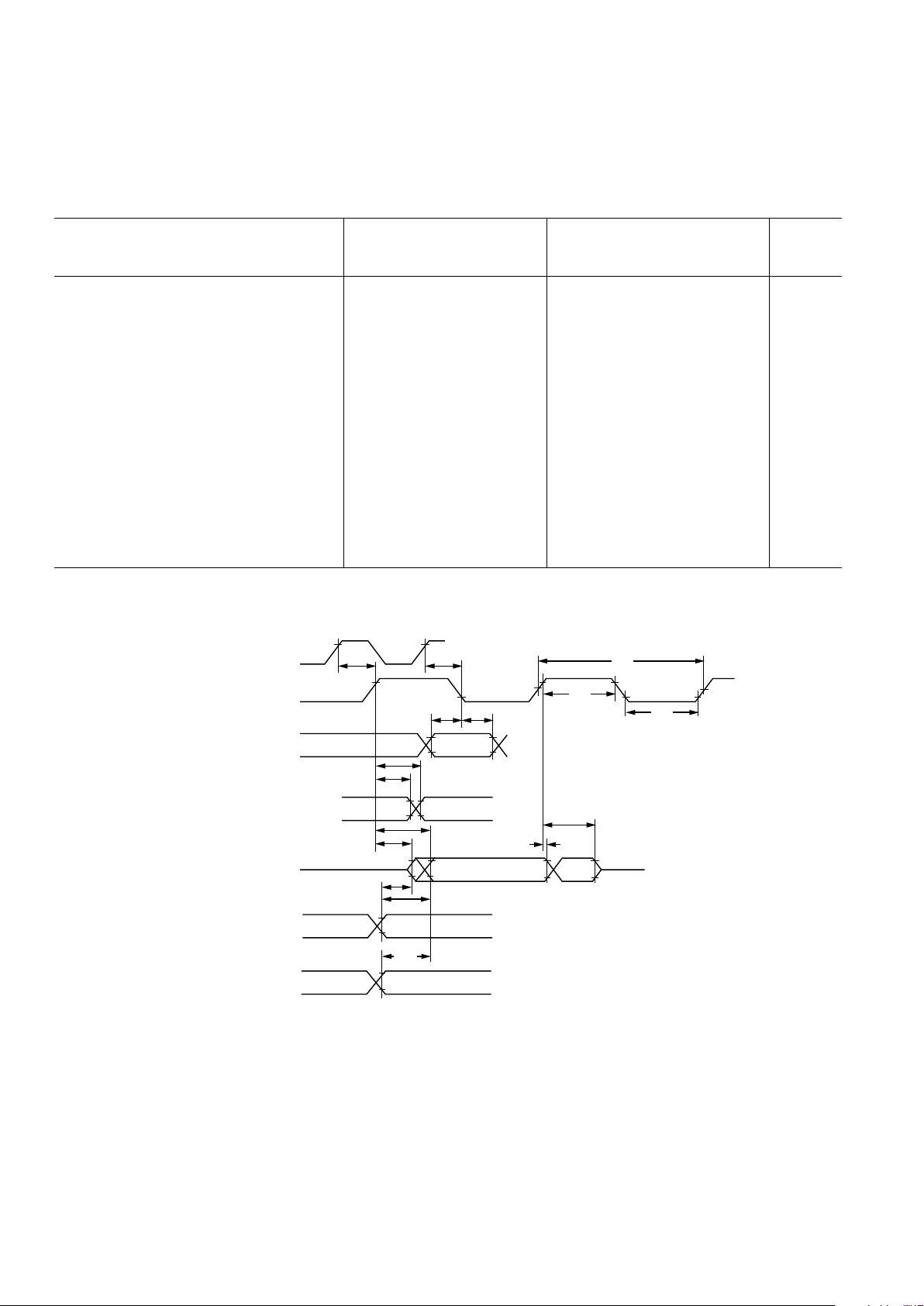

Figure 24. Serial Ports

CLKOUT

SCLK

TFS

RFS

TFS

( ALTERNATE

FRAME MODE )

SCStSCH

RFS

OUT

TFS

OUT

SCDV

SCDE

SCDH

SCDD

TDE

TDV

( MULTICHANNEL MODE,

FRAME DELAY 0 {MFD = 0} )

RDV

SCK

SCP

ADSP-2104/ADSP-2109

REV. 0

–27–

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

MEMORY REQUIREMENTS

The table below shows common memory device specifications and the corresponding ADSP-2104L/ADSP-2109L timing parameters, for your convenience.

GENERAL NOTES

TIMING NOTES

ADSP-2104L/ADSP-2109L

Memory Specification Timing Parameter Timing Parameter Definition

Address Setup to Write Start t

ASW

A0–A13, DMS, PMS Setup before WR Low

Address Setup to Write End t

A0–A13, DMS, PMS Setup before WR Deasserted

Address Hold Time t

WRA

A0–A13, DMS, PMS Hold after WR Deasserted

Data Setup Time t

Data Setup before WR High

Data Hold Time t

Data Hold after WR High

OE to Data Valid t

RDD

RD Low to Data Valid

Address Access Time t

A0–A13, DMS, PMS, BMS to Data Valid

ADSP-2104/ADSP-2109

–28–

REV. 0

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

CLKIN Period 72.3 150 ns

CKL

CLKIN Width Low 20 20 ns

CKH

CLKIN Width High 20 20 ns

RSP

RESET Width Low 361.5 5t

Switching Characteristic:

CPL

CLKOUT Width Low 26.2 0.5tCK – 10 ns

CPH

CLKOUT Width High 26.2 0.5tCK – 10 ns

CKOH

CLKIN High to CLKOUT High 0 20 ns

NOTE

Applies after powerup sequence is complete. Internal phase lock loop requires no more than 2000 CLKIN cycles assuming stable CLKIN (not including crystal

oscillator startup time).

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

CLOCK SIGNALS & RESET

Figure 25. Clock Signals

CLKIN

CLKOUT

CKOH

CKH

CKL

CPH

CPL

ADSP-2104/ADSP-2109

REV. 0

–29–

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

INTERRUPTS & FLAGS

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

IFS

IRQx1 or FI Setup before CLKOUT Low

2, 3

33.1 0.25tCK + 15 ns

IFH

IRQx1 or FI Hold after CLKOUT High

2, 3

18.1 0.25t

Switching Characteristic:

FOH

FO Hold after CLKOUT High 0 ns

FOD

FO Delay from CLKOUT High 15 ns

NOTES

IRQx=IRQ0, IRQ1, and IRQ2.

If IRQx and FI inputs meet t

IFS

and t

IFH

setup/hold requirements, they will be recognized during the current clock cycle; otherwise they will be recognized during the

following cycle. (Refer to the “Interrupt Controller” section in Chapter 3, Program Control, of the ADSP-2100 Family User’s Manual for further information on

interrupt servicing.)

Edge-sensitive interrupts require pulse widths greater than 10 ns. Level-sensitive interrupts must be held low until serviced.

Figure 26. Interrupts & Flags

CLKOUT

FLAG

OUTPUT(S)

FOD

IRQx

FOH

IFH

IFS

ADSP-2104/ADSP-2109

–30–

REV. 0

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

BUS REQUEST/GRANT

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

BR Hold after CLKOUT High

23.1 0.25tCK + 5 ns

BR Setup before CLKOUT Low

38.1 0.25tCK + 20 ns

Switching Characteristic:

CLKOUT High to DMS, PMS, BMS, RD, WR Disable 38.1 0.25tCK + 20 ns

SDB

DMS, PMS, BMS, RD, WR Disable to BG Low 0 0 ns

BG High to DMS, PMS, BMS, RD, WR Enable 0 0 ns

SEC

DMS, PMS, BMS, RD, WR Enable to CLKOUT High 8.1 0.25tCK – 10 ns

NOTES

If BR meets the tBS and tBH setup/hold requirements, it will be recognized in the current processor cycle; otherwise it is recognized in the following cycle. BR

requires a pulse width greater than 10 ns.

Note: BG is asserted in the cycle after BR is recognized. No external synchronization circuit is needed when BR is generated as an asynchronous signal.

Figure 27. Bus Request/Grant

CLKOUT

PMS

, DMS

BMS, RD

CLKOUT

SDB

SEC

ADSP-2104/ADSP-2109

REV. 0

–31–

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

MEMORY READ

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

RDD

RD Low to Data Valid 23.2 0.5tCK – 13 + w ns

A0–A13, PMS, DMS, BMS to Data Valid 36.2 0.75tCK – 18 + w ns

RDH

Data Hold from RD High 0 0 ns

Switching Characteristic:

RD Pulse Width 28.2 0.5tCK – 8 + w ns

CRD

CLKOUT High to RD Low 13.1 28.1 0.25tCK – 5 0.25tCK + 10 ns

ASR

A0–A13, PMS, DMS, BMS Setup before RD Low 8.1 0.25tCK – 10 ns

RDA

A0–A13, PMS, DMS, BMS Hold after RD Deasserted 9.1 0.25tCK – 9 ns

RWR

RD High to RD or WR Low 31.2 0.5tCK – 5 ns

w = wait states × t

CK.

Figure 28. Memory Read

CLKOUT

A0 – A13

DMS, PMS

BMS

RDH

RWR

ASR

CRD

RDD

RDA

ADSP-2104/ADSP-2109

–32–

REV. 0

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Switching Characteristic:

Data Setup before WR High 23.2 0.5t

– 13 + w ns

Data Hold after WR High 8.1 0.25t

– 10 ns

WR Pulse Width 28.2 0.5tCK – 8 + w ns

WDE

WR Low to Data Enabled 0

ASW

A0–A13, DMS, PMS Setup before WR Low 8.1 0.25t

– 10 ns

DDR

Data Disable before WR or RD Low 8.1 0.25tCK – 10 ns

CWR

CLKOUT High to WR Low 13.1 28.1 0.25t

– 5 0.25tCK + 10 ns

A0–A13, DMS, PMS, Setup before WR Deasserted 32.2 0.75t

– 22 + w ns

WRA

A0–A13, DMS, PMS Hold After WR Deasserted 9.1 0.25t

– 9 ns

WWR

WR High to RD or WR Low 31.2 0.5tCK – 5 ns

w = wait states × t

CK.

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

MEMORY WRITE

CLKOUT

A0 – A13

DMS, PMS

WDE

DDR

WWR

WRA

CWR

ASW

Figure 29. Memory Write

ADSP-2104/ADSP-2109

REV. 0

–33–

TIMING PARAMETERS (ADSP-2104L/ADSP-2109L)

SERIAL PORTS

Frequency

13.824 MHz Dependency

Parameter Min Max Min Max Unit

Timing Requirement:

SCK

SCLK Period 72.3 ns

SCS

DR/TFS/RFS Setup before SCLK Low 8 ns

SCH

DR/TFS/RFS Hold after SCLK Low 10 ns

SCP

SCLK

Width 28 ns

Switching Characteristic:

CLKOUT High to SCLK

out

18.1 33.1 0.25t

0.25t

+ 15 ns

SCDE

SCLK High to DT Enable 0 ns

SCDV

SCLK High to DT Valid 20 ns

TFS/RFS

out

Hold after SCLK High 0 ns

TFS/RFS

out

Delay from SCLK High 20 ns

SCDH

DT Hold after SCLK High 0 ns

TDE

TFS (alt) to DT Enable 0 ns

TDV

TFS (alt) to DT Valid 18 ns

SCDD

SCLK High to DT Disable 25 ns

RDV

RFS (Multichannel, Frame Delay Zero) 20 ns to DT Valid

CLKOUT

SCLK

TFS

RFS

TFS

( ALTERNATE

FRAME MODE )

SCStSCH

RFS

OUT

TFS

OUT

SCDV

SCDE

SCDH

SCDD

TDE

TDV

( MULTICHANNEL MODE,

FRAME DELAY 0 {MFD = 0} )

RDV

SCK

SCP

Figure 30. Serial Ports

ADSP-2104/ADSP-2109

–34–

REV. 0

PIN CONFIGURATIONS

68-Lead PLCC

PLCC Pin Number Name

35 A12 36 A13

PMS 38 DMS 39

BMS 40 BG

41 XTAL 42 CLKIN 43 CLKOUT

WR 45

46 DT0 47 TFS0 48 RFS0 49 GND 50 DR0 51 SCLK0

PLCC Pin Number Name

IRQ2

20 RESET

21 A0 22 A1 23 A2 24 A3 25 A4 26 V

27 A5 28 A6 29 GND 30 A7 31 A8 32 A9 33 A10 34 A11

PLCC Pin Number Name

1 D11 2 GND 3 D12 4 D13 5 D14 6 D15 7 D16 8 D17 9 D18 10 GND 11 D19 12 D20 13 D21 14 D22 15 D23 16 V

17 MMAP

PLCC Pin Number Name

52 FO (DT1) 53

IRQ1 (TFS1)

54 IRQ0 (RFS1) 55 FI (DR1) 56 SCLK1 57 V

58 D0 59 D1 60 D2 61 D3 62 D4 63 D5 64 D6 65 D7 66 D8 67 D9 68 D10

10 11 12 13 14 15 16 17 18 19 20

22 23 24 25 26

22 3823 24 25 26 27 28 29 30 31 32 33 34 35 36 37

GND

D18

D15

D14

D12

D17

D10

D11

9618765 686766656463624321

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44

PIN 1 IDENTIFIER

TOP VIEW

(PINS DOWN)

D2 D1 D0 V

SCLK1 FI

(DR1)

IRQ0

(RFS1)

GND

D19 D20 D21 D22 D23 V

MMAP

IRQ2

RESET

IRQ1

(TFS1)

(DT1)

SCLK0 DR0

ADSP-2104 ADSP-2104L ADSP-2109 ADSP-2109L

A0 A1 A2 A3 A4

GND RFS0 TFS0 DT0 RD WR

GND

A10

A11

A12

A13

PMS

D13

D16

DMS

XTAL

CLKIN

CLKOUT

BMS

ADSP-2104/ADSP-2109

REV. 0

–35–

OUTLINE DIMENSIONS

ADSP-2104/ADSP-2109

68-Lead Plastic Leaded Chip Carrier (PLCC)

PIN 1 IDENTIFIER

TOP VIEW

(PINS DOWN)

BOTTOM VIEW

(PINS UP)

INCHES MILLIMETERS

SYMBOL MIN TYP MAX MIN TYP MAX A 0.169 0.172 0.175 4.29 14.37 4.45

0.104 12.64 b 0.017 0.018 0.019 0.43 10.46 0.48 b

0.027 0.028 0.029 0.69 10.71 0.74 D 0.985 0.990 0.995 25.02 25.15 25.27 D

0.950 0.952 0.954 24.13 24.18 24.23 D

0.895 0.910 0.925 22.73 23.11 23.50 e 0.050 11.27

0.004 10.10

ADSP-2104/ADSP-2109

–36–

REV. 0

ORDERING GUIDE

Ambient Temperature Instruction Package Package

Part Number* Range Rate Description Option

ADSP-2104KP-80 0°C to +70°C 20.0 MHz 68-Lead PLCC P-68A ADSP-2109KP-80 0°C to +70°C 20.0 MHz 68-Lead PLCC P-68A

ADSP-2104LKP-55 0°C to +70°C 13.824 MHz 68-Lead PLCC P-68A ADSP-2109LKP-55 0°C to +70°C 13.824 MHz 68-Lead PLCC P-68A

*K = Commercial Temperature Range (0°C to +70°C).

*P = PLCC (Plastic Leaded Chip Carrier).

C2145–16–7/96

PRINTED IN U.S.A.

Analog Devices ADSP-2104L, ADSP-2104 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
