Analog Devices AD7783 b Datasheet

Read-Only, Pin Configured 24-Bit ⌺-⌬ ADC

with Excitation Current Sources

AD7783

FEATURES
Single-Channel, 24-Bit ⌺-⌬ ADC
Pin Configurable (No Programmable Registers)

ISOURCE Select

™

Pin Programmable Input Ranges (±2.56 V or ± 160 mV)

Fixed 19.79 Hz Update Rate
Simultaneous 50 Hz and 60 Hz Rejection
24-Bit No Missing Codes

18.5-Bit p-p Resolution (±2.56 V Range)

16.5-Bit p-p Resolution (±160 mV Range)

INTERFACE
Master or Slave Mode of Operation
Slave Mode

3-Wire Serial

®

, QSPI™, MICROWIRE™, and DSP-Compatible

SPI
Schmitt Trigger on SCLK

POWER
Specified for Single 3 V and 5 V Operation
Normal: 1.3 mA @ 3 V
Power-Down: 9 ␮A

ON-CHIP FUNCTIONS
Rail-to-Rail Input Buffer and PGA

APPLICATIONS
Sensor Measurement
Industrial Process Control
Temperature Measurement
Pressure Measurement
Weigh Scales
Portable Instrumentation

IOUT1

IOUT2

IPIN

AIN(+)

AIN(–)

FUNCTIONAL BLOCK DIAGRAM

V

DD

IEXC1

200␮A

MUX

AD7783

BUF

GND

V

DD

IEXC2
200␮A

PGA

RANGE

REFIN(+)

24-BIT ⌺-⌬

REFIN(–)

ADC

BASIC CONNECTION DIAGRAM

POWER SUPPLY

V

DD

AD7783

ANALOG

INPUT

CURRENT
SOURCES

REFERENCE

INPUT

AIN(+)
AIN(–)

IOUT1
IOUT2

REFIN(+)
REFIN(–)

CS

DOUT/RDY

SCLK

XTAL1

XTAL2

GND

XTAL1

XTAL2

OSCILLATOR

AND

PLL

SERIAL

INTERFACE

AND

CONTROL

LOGIC

DIGITAL
INTERFACE

32.768kHz
CRYSTAL

DOUT/RDY

SCLK

MODE

CS

GENERAL DESCRIPTION

The AD7783 is a complete analog front end for low frequency
measurement applications. The 24-bit sigma-delta ADC con­tains one fully differential input channel that can be configured
with a gain of 1 or 16 allowing full-scale input signal ranges of
± 2.56 V or ± 160 mV from a +2.5 V differential reference input.
It also contains two 200 mA integrated current sources.

The AD7783 has an extremely simple, read-only digital inter­face that can be operated in master mode or slave mode.
There are no on-chip registers to be programmed. The input
signal range and current source selection are configured using
two external pins.

REV. B

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.

The device operates from a 32.768 kHz crystal with an on-chip
PLL generating the required internal operating frequency. The
output data rate from the part is fixed via the master clock at

19.79 Hz and provides simultaneous 50 Hz and 60 Hz rejection
at this update rate. At this update rate, 18-bit p-p resolution can
be obtained.

The part operates from a single 3 V or 5 V supply. When oper­ating from 3 V supplies, the power dissipation for the part is

3.9 mW. The AD7783 is available in a 16-lead TSSOP.

Another part in the AD778x family is the AD7782. It is similar
to the AD7783 except it has no integrated current sources and
two differential input channels.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] © 2004 Analog Devices, Inc. All rights reserved.

1

AD7783–SPECIFICATIONS

GND = 0 V; XTAL1/XTAL2 = 32.768 kHz Crystal; all specifications T

Parameter AD7783B Unit Test Conditions

ADC CHANNEL SPECIFICATION

Output Update Rate 19.79 Hz nom

ADC CHANNEL

No Missing Codes
Resolution 16 Bits p-p ± 160 mV Range, RANGE = 0

Output Noise See Table I
Integral Nonlinearity ± 10 ppm of FSR max Typically 2 ppm,
Offset Error ± 3 mV typ AIN(+) = AIN(–) = 2.5 V
Offset Error Drift versus Temperature ± 10 nV/∞C typ
Full-Scale Error ± 10 mV typ V
Gain Drift versus Temperature ± 0.5 ppm/∞C typ
Power Supply Rejection (PSR) 100 dB typ Input Range = ± 160 mV, V

ANALOG INPUTS

Differential Input Voltage Ranges ± 160 mV nom Range = 0

ADC Range Matching ± 2 mV typ Input Voltage = 159 mV on Both Ranges
Absolute AIN Voltage Limits GND + 100 mV V min

Analog Input Current

DC Input Current ± 1nA max
DC Input Current Drift ± 5pA/∞C typ

Normal-Mode Rejection

@ 50 Hz 60 dB min 50 Hz ± 1 Hz
@ 60 Hz 94 dB min 60 Hz ± 1 Hz

Common-Mode Rejection Input Range = ± 160 mV, V

@ DC 105 dB min 125 dB typ,

@ 50 Hz
@ 60 Hz

REFERENCE INPUT

REFIN Voltage 2.5 V nom REFIN = REFIN(+) – REFIN(–)
REFIN Voltage Range

Absolute REFIN Voltage Limits

Average Reference Input Current 0.5 mA/V typ
Average Reference Input Current Drift ± 0.01 nA/V/∞C typ
Normal-Mode Rejection

@ 50 Hz 60 dB min 50 Hz ± 1 Hz
@ 60 Hz 94 dB min 60 Hz ± 1 Hz

Common-Mode Rejection Input Range = ± 160 mV, V

@ DC 100 dB typ
@ 50 Hz 110 dB typ 50 Hz ± 1 Hz
@ 60 Hz 110 dB typ 60 Hz ± 1 Hz

EXCITATION CURRENT SOURCES
(IEXC1, IEXC2)

Output Current 200 mA
Initial Tolerance at 25∞C ± 10 % typ
Drift 200 ppm/∞C typ
Initial Current Matching at 25∞C ± 2.5 % max No Load
Drift Matching 20 ppm/∞C typ
Line Regulation 2.5 mA/V max V
Load Regulation 300 nA/V typ
Output Compliance V

2

24 Bits min

18 Bits p-p ± 2.56 V Range, RANGE = 1

85 dB typ Input Range = ± 2.56 V, VIN = 1 V

± 2.56 V nom Range = 1

V

2

2, 3

2

2

2

2

2, 3

DD

100 dB min 50 Hz ± 1 Hz
100 dB min 60 Hz ± 1 Hz

1V min
V

DD

GND – 30 mV V min
V

DD

DD

GND – 30 mV V min

(VDD = 2.7 V to 3.6 V or 4.75 V to 5.25 V, REFIN(+) = 2.5 V; REFIN(–) = GND;

to T

MIN

, unless otherwise noted.)

MAX

DD

= 3 V

FSR

=

– 100 mV V max

110 dB typ when Input Range = ± 2.56 V

V max

+ 30 mV V max

= 5 V ± 5%. Typically 1.25 mA/V.

DD

– 0.6 V max

¥21024.

Gain

= 1/16 V

IN

= 1/16 V

IN

= 1/16 V

IN

REFIN

REV. B–2–

Parameter AD7783B Unit Test Conditions

LOGIC INPUTS

All Inputs Except SCLK and XTAL1

V

, Input Low Voltage 0.8 V max VDD = 5 V

INL

, Input High Voltage 2.0 V min VDD = 3 V or 5 V

V

INH

SCLK Only (Schmitt-Triggered Input)

V

T(+)

V

T(–)

– V

V

T(+)

V
V
V

XTAL1 Only

V
V
V
V

T(–)

T(+)

T(–)

– V

T(+)

T(–)

2

, Input Low Voltage 0.8 V max VDD = 5 V

INL

, Input High Voltage 3.5 V min VDD = 5 V

INH

, Input Low Voltage 0.4 V max VDD = 3 V

INL

, Input High Voltage 2.5 V min VDD = 3 V

INH

Input Currents ± 1 mA max V

2

0.4 V max V

2

1.4/2 V min/V max VDD = 5 V

0.8/1.4 V min/V max VDD = 5 V

0.3/0.85 V min/V max VDD = 5 V

0.95/2 V min/V max VDD = 3 V

0.4/1.1 V min/V max VDD = 3 V

0.3/0.85 V min/V max VDD = 3 V

DD

IN

= V

= 3 V

DD

–70 mA max VIN = GND, Typically –40 mA at 5 V and

–20 mA at 3 V

Input Capacitance 10 pF typ All Digital Inputs

LOGIC OUTPUTS (Excluding XTAL2)

, Output High Voltage

V

OH

V

, Output Low Voltage

OL

, Output High Voltage

V

OH

, Output Low Voltage

V

OL

2

2

2

2

VDD – 0.6 V min VDD = 3 V, I

0.4 V max VDD = 3 V, I
4V minV

= 5 V, I

DD

0.4 V max VDD = 5 V, I

SOURCE

= 100 mA

SINK

SOURCE

= 1.6 mA

SINK

= 100 mA

= 200 mA

Floating-State Leakage Current ± 10 mA max
Floating-State Output Capacitance ± 10 pF typ
Data Output Coding Offset Binary

START-UP TIME

From Power-On 300 ms typ

POWER REQUIREMENTS

Power Supply Voltage

– GND 2.7/3.6 V min/V max VDD = 3 V nom

V

DD

Power Supply Currents

Current (Normal Mode)

I

DD

(Power-Down Mode, CS = 1) 9 mA max VDD = 3 V, 6 mA typ

I

DD

4

4.75/5.25 V min/V max V

= 5 V nom

DD

1.5 mA max VDD = 3 V, 1.3 mA typ

1.7 mA max V

= 5 V, 1.5 mA typ

DD

24 mA max VDD = 5 V, 20 mA typ

NOTES

1

Temperature range –40∞C to +85∞C.

2

Guaranteed by design and/or characterization data on production release.

3

When a 28.8 kHz crystal is used, normal-mode rejection is improved so that the rejection equals 75 dB at 50 Hz ± 1 Hz and equals 66 dB at 60 Hz ± 1 Hz.

4

Normal mode refers to the case where the ADC is running.

Specifications subject to change without notice.

AD7783

REV. B

–3–

AD7783

TIMING CHARACTERISTICS

1, 2

(VDD = 2.7 V to 3.6 V or VDD = 4.75 V to 5.25 V; GND = 0 V; XTAL = 32.768 kHz;

Input Logic 0 = 0 V, Logic 1 = VDD, unless otherwise noted.)

Limit at T

MIN

, T

MAX

Parameter (B Version) Unit Conditions/Comments

t

1

t

ADC

t

2

t

3

t

4

3

30.5176 ms typ Crystal Oscillator Period

50.54 ms typ 19.79 Hz Update Rate
0 ns min CS Falling Edge to DOUT Active
60 ns max V
80 ns max V
2 ¥ t

ADC

ns typ Channel Settling Time

0 ns min SCLK Active Edge to Data Valid Delay

= 4.75 V to 5.25 V

DD

= 2.7 V to 3.6 V

DD

4

60 ns max VDD = 4.75 V to 5.25 V

5

t

7

80 ns max V
10 ns min Bus Relinquish Time after CS Inactive Edge

= 2.7 V to 3.6 V

DD

80 ns max

t

8

t

9

0 ns min CS Rising Edge to SCLK Inactive Edge Hold Time
10 ns min SCLK Inactive to DOUT High
80 ns max

Slave Mode Timing

t

5

t

6

100 ns min SCLK High Pulse Width
100 ns min SCLK Low Pulse Width

Master Mode Timing

t

5

t

6

t

10

t1/2 ms typ SCLK High Pulse Width
t1/2 ms typ SCLK Low Pulse Width
t1/2 ms min DOUT Low to First SCLK Active Edge

4

3t1/2 ms max

NOTES

1

Sample tested during initial release to ensure compliance. All input signals are specified with tR = tF = 5 ns (10% to 90% of VDD) and timed from a voltage level of 1.6 V.

2

See Figure 2.

3

These numbers are measured with the load circuit of Figure 1 and defined as the time required for the output to cross the VOL or VOH limits.

4

SCLK active edge is falling edge of SCLK.

5

These numbers are derived from the measured time taken by the data output to change 0.5 V when loaded with the circuit of Figure 1. The measured number is then
extrapolated back to remove effects of charging or discharging the 50 pF capacitor. This means the times quoted in the timing characteristics are the true bus relin­quish times of the part and as such are independent of external bus loading capacitances.

I

(1.6mA WITH VDD = 5V

TO OUTPUT

PIN

50pF

SINK

100␮A WITH V

I

( 200␮A WITH VDD = 5V

SOURCE

100␮A WITH V

1.6V

DD

= 3V)

DD

= 3V)

Figure 1. Load Circuit for Timing Characterization

REV. B–4–

CS (I)

t

2

t

3

DOUT/RDY (O)

SLAVE MODE

SCLK (I)

t

10

MASTER MODE

SCLK (O)

I = INPUT TO AD7783, AND O = OUTPUT FROM AD7783.
SLAVE MODE IS SELECTED BY TYING THE MODE PIN LOW, WHILE MASTER MODE IS SELECTED BY TYING THE MODE PIN HIGH.

MSB

t

4

t

6

t

5

t

4

t

6

t

5

LSB LSB

t

9

Figure 2. Slave/Master Mode Timing Diagram

ABSOLUTE MAXIMUM RATINGS*

(TA = 25∞C, unless otherwise noted.)

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V

Analog Input Voltage to GND . . . . . . . –0.3 V to V

Reference Input Voltage to GND . . . . –0.3 V to V

+ 0.3 V

DD

+ 0.3 V

DD

Total AIN/REFIN Current (Indefinite) . . . . . . . . . . . . . 30 mA

Digital Input Voltage to GND . . . . . . . –0.3 V to V

Digital Output Voltage to GND . . . . . –0.3 V to V

+ 0.3 V

DD

+ 0.3 V

DD

Operating Temperature Range . . . . . . . . . . . –40∞C to +85∞C

Storage Temperature Range . . . . . . . . . . . . –65∞C to +150∞C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150∞C

TSSOP Package

Thermal Impedance . . . . . . . . . . . . . . . . . . . . 97.9∞C/W

␪

JA

␪

Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . 14∞C/W

JC

Lead Temperature, Soldering

Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . 215∞C

Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220∞C

*Stresses above those listed under Absolute Maximum Ratings may cause per-

manent damage to the device. This is a stress rating only; functional operation of
the device at these or any other conditions above those listed in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.

MSB

AD7783

t

8

t

7

ORDERING GUIDE

Model Temperature Range Package Description Package Option

AD7783BRU –40∞C to +85∞C TSSOP RU-16
AD7783BRU-REEL
AD7783BRU-REEL7

–40∞C to +85∞C TSSOP RU-16
–40∞C to +85∞C TSSOP RU-16

EVAL-AD7783EB Evaluation Board

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although the
AD7783 features proprietary ESD protection circuitry, permanent damage may occur on devices
subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended
to avoid performance degradation or loss of functionality.

REV. B

–5–

AD7783

PIN CONFIGURATION

XTAL1

REFIN(+)

REFIN(–)

AIN(+)

AIN(–)

IOUT1

IOUT2

IPIN

1

2

3

4

AD7783

TOP VIEW

5

(Not to Scale)

6

7

8

16

XTAL2

V

15

DD

14

GND

13

MODE

DOUT/RDY

12

11

CS

10

SCLK

RANGE

9

PIN FUNCTION DESCRIPTIONS

Pin No. Mnemonic Function

1 XTAL1 Input to the 32.768 kHz Crystal Oscillator Inverter.

2 REFIN(+) Positive Reference Input. REFIN(+) can lie anywhere between V

ence voltage (REFIN(+) – REFIN(–)) is 2.5 V, but the part functions with a reference from 1 V to V

3REFIN(–)Negative Reference Input. This reference input can lie anywhere between GND and V

and GND + 1 V. The nominal refer-

DD

– 1 V.

DD

DD

.

4 AIN(+) Analog Input. AIN(+) is the positive terminal of the fully differential analog input pair AIN(+)/AIN(–).

5 AIN(–)Analog Input. AIN(–) is the negative terminal of the fully differential analog input pair AIN(+)/AIN(–).
6 IOUT1 Output from Internal 200 mA Excitation Current Source. Either current source IEXC1 or IEXC2 can be

switched to this output using hardware control pin IPIN.

7 IOUT2 Output from Internal 200 mA Excitation Current Source. Either current source IEXC1 or IEXC2 can be

switched to this output using hardware control pin IPIN.

8 IPIN Logic Input that Selects the Routing of the On-Chip Current Sources. When IPIN is tied to GND, IEXC1

is routed to IOUT1 and IEXC2 is routed to IOUT2. When IPIN is tied to V

, IEXC1 is routed to

DD

IOUT2 and IEXC2 is routed to IOUT1.

9 RANGE Logic Input that Configures the Input Range on the Internal PGA. With RANGE = 0, the full-scale input

range is ± 160 mV; the full-scale input range equals ± 2.56 V when RANGE = 1 for a 2.5 V reference.

10 SCLK Serial Clock Input/Output for Data Transfers from the ADC. When the device is operated in master mode,

SCLK is an output with one SCLK period equal to one XTAL period. In slave mode, SCLK is generated
by an external source. In slave mode, all the data can be transmitted on a continuous train of pulses. Alter­natively, it can be a noncontinuous clock with the information being transmitted from the AD7783 in
smaller batches of data. SCLK is Schmitt triggered (slave mode), making the interface suitable for opto­isolated applications.

11 CS Chip Select Input. CS is an active low logic input used to select the AD7783. When CS is low, the PLL

establishes lock and allows the AD7783 to initiate a conversion. When CS is high, the conversion is aborted,
DOUT and SCLK are three-stated, the AD7783 enters standby mode, and any conversion result in the
output shift register is lost.

12 DOUT/RDY Serial Data Output/Data Ready Output. DOUT/RDY serves a dual purpose in this interface. When a conver-

sion is initiated, DOUT/RDY goes high and remains high until the conversion is complete. DOUT/RDY will
then return low to indicate that valid data is available to be read from the device. In slave mode, this acts as
an interrupt to the processor, indicating that valid data is available. If data is not read after a conversion,
DOUT/RDY will go high before the next update occurs. In master mode, DOUT/RDY goes low for at
least half an SCLK cycle before the device produces SCLKs. When SCLK becomes active, data is output
on the DOUT/RDY pin. Data is output on the falling SCLK edge and is valid on the rising edge.

13 MODE The MODE pin selects master or slave mode of operation. When MODE = 0, the AD7783 operates in

master mode; the AD7783 is configured for slave mode when MODE = 1.

14 GND Ground Reference Point for the AD7783.

15 V

DD

Supply Voltage, 3 V or 5 V Nominal.

16 XTAL2 Output from the 32.768 kHz Crystal Oscillator Inverter.

REV. B–6–

Typical Performance Characteristics–AD7783

FREQUENCY (Hz)

0

010 40 6080100

ATTENUATION (dB)

–40

–80

–120

–140

–160

–20

–60

–100

20 30 50 70 90

OUTPUT DATA RATE = 19.8Hz
INPUT BANDWIDTH = 4.74Hz
50Hz REJECTION = –66dB, 50Hz ⴞ1Hz REJECTION = –60dB
60Hz REJECTION = –117dB, 60Hz ⴞ1Hz REJECTION = –94dB

9

8

7

6

5

4

3

2

1

0

8388721

8388499

8388547

8388615

8388579

8388687

8388657

8388779

8388754

8388841

8388805

8388906

8388874

8388985

8388941

8389033

8389110

8388382

8388039

8388449

TPC 1. Noise Distribution Histogram

ADC CIRCUIT INFORMATION
Overview

The AD7783 incorporates a S-D ADC channel, on-chip pro­grammable gain amplifier, and on-chip digital filtering intended
for the measurement of wide dynamic range, low frequency
signals such as those in weigh-scale, strain gage, pressure trans­ducer, or temperature measurement applications.

This ADC input is buffered and can be programmed to have an
input voltage range of ± 160 mV or ± 2.56 V. The input channel
is configured as a fully differential input. Buffering the input
channel means that the part can accommodate significant source
impedances on the analog input and that R, C filtering (for
noise rejection or RFI reduction) can be placed on the analog
input if required. The device requires an external reference of

2.5 V nominal. Figure 3 shows the basic connections required
to operate the part.

3.0

= 2.5V

= 25ⴗC

ⴞ2.56V RANGE

V

REF

ⴞ160mV RANGE

(V)

2.5

2.0

VDD = 5V
V

REF

1.5

T

A

RMS NOISE (␮V)

1.0

0.5

0

1.0 3.02.52.01.5 3.5 5.04.54.0

TPC 2. RMS Noise vs. Reference Input

The output rate of the AD7783 (f

f

=¥ ¥¥

32 768 10 69 8 3

ADC

./

equals

ADC)

3

()

while the settling time equals

Ê

ˆ

t

SETTLE

2

=

Á

f

Ë

ADC

=¥

˜
¯

t

2

ADC

Normal-mode rejection is the major function of the digital filter
on the AD7783. Simultaneous 50 Hz and 60 Hz rejection of
better than 60 dB is achieved as notches are placed at both 50 Hz
and 60 Hz. Figure 4 shows the filter rejection.

POWER

SUPPLY

10␮F

IN+

OUT–

REV. B

IN–

Figure 3. Basic Connection Diagram

OUT+

10k⍀

6k⍀

0.1␮F

AIN(+)
AIN(–)

IOUT1
IOUT2

REFIN(+)
REFIN(–)

V

DD

AD7783

DOUT/RDY

GND

CS

SCLK

XTAL1

XTAL2

␮CONTROLLER

32.768kHz
CRYSTAL

Figure 4. Filter Profile (Filter Notches at Both
50 Hz and 60 Hz)

–7–

AD7783

NOISE PERFORMANCE

Table I shows the output rms noise and output peak-to-peak
resolution in bits (rounded to the nearest 0.5 LSB) for the two
input voltage ranges. The numbers are typical and are generated
at a differential input voltage of 0 V. The peak-to-peak reso­lution figures represent the resolution for which there will be
no code flicker within a six-sigma limit. The output noise comes
from two sources. The first is the electrical noise in the semi­conductor devices (device noise) used in the implementation of
the modulator. Secondly, when the analog input is converted
into the digital domain, quantization noise is added. The device
noise is at a low level and is independent of frequency. The
quantization noise starts at an even lower level but rises rapidly
with increasing frequency to become the dominant noise source.

Table I. Typical Output RMS Noise and

Peak-to-Peak Resolution vs. Input Range

Input Range

± 160 mV ± 2.56 V

Noise (mV) 0.65 2.30
Peak-to-Peak Resolution (Bits) 16.5 18.5

DIGITAL INTERFACE

The AD7783’s serial interface consists of four signals: CS,
SCLK, DOUT/RDY, and MODE. The MODE pin is used to
select the master/slave mode of operation. When the part is
configured as a master, SCLK is an output; SCLK is an input
when slave mode is selected. Data transfers take place with
respect to this SCLK signal. The DOUT/RDY line is used
for accessing data from the data register. This pin also functions
as a RDY line. When a conversion is complete, DOUT/RDY
goes low to indicate that data is ready to be read from the
AD7783’s data register. It is reset high when a read operation
from the data register is complete. It also goes high prior to
the updating of the output register to indicate when not to
read from the device to ensure that a data read is not attempted
while the register is being updated. The digital conversion is
also output on this pin.

CS is used to select the device and to place the device in standby
mode. When CS is taken low, the AD7783 is powered up, the
PLL locks, and the device initiates a conversion. The device will
continue to convert until CS is taken high. When CS is taken
high, the AD7783 is placed in standby mode, minimizing the
current consumption. The conversion is aborted, DOUT and
SCLK are three-stated, and the result in the data register is lost.

Figure 2 shows the timing diagram for interfacing to the AD7783
with CS used to decode the part.

MASTER MODE (MODE = 0)

In this mode, SCLK is provided by the AD7783. With CS low,
SCLK becomes active when a conversion is complete and gener­ates 24 falling and rising edges. The DOUT/RDY pin, which is
normally high, goes low to indicate that a conversion is complete.
Data is output on the DOUT/RDY pin following the SCLK
falling edge and is valid on the SCLK rising edge. When the
24-bit word has been output, SCLK idles high until the next
conversion is complete. DOUT/RDY returns high and will remain
high until another conversion is available. It then operates as a
RDY signal again. The part will continue to convert until CS is
taken high. SCLK and DOUT/RDY are three-stated when CS is
taken high.

SLAVE MODE (MODE = 1)

In slave mode, the SCLK is generated externally. SCLK must
idle high between data transfers. With CS low, DOUT/RDY
goes low when a conversion is complete. Twenty-four SCLK
pulses are needed to transfer the digital word from the AD7783.
Twenty-four consecutive pulses can be generated or, alterna­tively, the data transfer can be split into batches. This is useful
when interfacing to a microcontroller that uses 8-bit transfers.
Data is output following the SCLK falling edge and is valid on
the SCLK rising edge.

CIRCUIT DESCRIPTION
Analog Input Channel

The ADC has one fully differential input channel. It feeds into a
high impedance input stage of the buffer amplifier. As a result,
the ADC input can handle significant source impedances and is
tailored for direct connection to external resistive-type sensors,
such as strain gages or resistance temperature detectors (RTDs).

The absolute input voltage range on the ADC input is restricted
to a range between GND + 100 mV and V
must be taken in setting up the common-mode voltage and input
voltage range so that these limits are not exceeded; otherwise,
there will be a degradation in linearity and noise performance.

Programmable Gain Amplifier

The output from the buffer on the ADC is applied to the input of
the on-chip programmable gain amplifier (PGA). The PGA gain
range is programmed via the RANGE pin. With an external 2.5 V
reference applied, the PGA can be programmed to have a bipolar
range of ± 160 mV (RANGE = 0) or ± 2.56 V (RANGE = 1).
These are the ranges that should appear at the input to the
on-chip PGA.

Bipolar Configuration/Output Coding

The analog input on the AD7783 accepts bipolar input voltage
ranges. Signals on the AIN(+) input of the ADC are referenced

– 100 mV. Care

DD

REV. B–8–

AD7783

to the voltage on the AIN(–) input. For example, if AIN(–) is

2.5 V and the AD7783 is configured for an analog input range
of ± 160 mV, the analog input range on the AIN(+) input is

2.34 V to 2.66 V (i.e., 2.5 V ± 0.16 V).

The coding is offset binary with a negative full-scale voltage
resulting in a code of 000 . . . 000, a zero differential voltage
resulting in a code of 100 . . . 000, and a positive full-scale
voltage resulting in a code of 111 . . . 111. The output code for
any analog input voltage can be represented as follows:

N

-

Code AIN GAIN V

1

=¥ ¥ ¥

21024 1

()

[]

/.

()

REF

+

where AIN is the analog input voltage, GAIN is the PGA gain,
i.e., 1 on the ± 2.56 V range and 16 on the ± 160 mV range,
and N = 24.

Excitation Currents

The AD7783 also contains two matched 200 mA constant cur-
rent sources. Both source current from V

that is directed to

DD

either the IOUT1 or IOUT2 pins of the device depending on
the polarity of the IPIN pin. These current sources can be used
to excite external resistive bridge or RTD sensors.

Crystal Oscillator

The AD7783 is intended for use with a 32.768 kHz watch crys­tal. A PLL internally locks onto a multiple of this frequency to
provide a stable 4.194304 MHz clock for the ADC. The modu­lator sample rate is the same as the crystal oscillator frequency.
The start-up time associated with 32.768 kHz crystals is typically
300 ms. In some cases, it will be necessary to connect capacitors
on the crystal to ensure that it does not oscillate at overtones of
its fundamental operating frequency. The values of capacitors will
vary depending on the manufacturer’s specifications.

Reference Input

The AD7783 has a fully differential reference input capability
for the channel. The common-mode range for differential inputs
is from GND to V

. The reference input is unbuffered, and

DD

therefore excessive R-C source impedances will introduce gain
errors. The reference voltage REFIN (REFIN(+) – REFIN(–))
is 2.5 V nominal for specified operation, but the AD7783 is
functional with reference voltages from 1 V to V

. In applica-

DD

tions where the excitation (voltage or current) for the transducer
on the analog input also drives the reference voltage for the part,
the effect of the low frequency noise in the excitation source will
be removed as the application is ratiometric. If the AD7783 is
used in a nonratiometric application, a low noise reference should
be used. Recommended reference voltage sources for the AD7783
include the AD780, REF43, and REF192. It should also be noted
that the reference inputs provide a high impedance, dynamic load.
Because the input impedance of each reference input is dynamic,
resistor/capacitor combinations on these inputs can cause dc gain
errors, depending on the output impedance of the source that is
driving the reference inputs. Recommended reference voltage
sources (e.g., AD780) will typically have low output impedances
and are, therefore, tolerant to having decoupling capacitors
on the REFIN(+) without introducing gain errors in the system.

Deriving the reference input voltage across an external resistor
will mean that the reference input sees a significant external
source impedance. External decoupling on the REFIN pins
would not be recommended in this type of circuit configuration.

Grounding and Layout

Since the analog inputs and reference inputs on the ADC are
differential, most of the voltages in the analog modulator are
common-mode voltages. The excellent common-mode rejection
of the part will remove common-mode noise on these inputs.
The digital filter will provide rejection of broadband noise on
the power supply, except at integer multiples of the modulator
sampling frequency. The digital filter also removes noise from
the analog and reference inputs, provided these noise sources do
not saturate the analog modulator. As a result, the AD7783 is
more immune to noise interference than a conventional high
resolution converter. However, because the resolution of the
AD7783 is so high, and the noise levels from the AD7783 are so
low, care must be taken with regard to grounding and layout.
The printed circuit board that houses the AD7783 should be
designed such that the analog and digital sections are separated
and confined to certain areas of the board. A minimum etch
technique is generally best for ground planes as it gives the best
shielding.

It is recommended that the AD7783’s GND pin be tied to the
AGND plane of the system. In any layout, it is important that
the user keep in mind the flow of currents in the system, ensur­ing that the return paths for all currents are as close as possible
to the paths the currents took to reach their destinations. Avoid
forcing digital currents to flow through the AGND sections of
the layout.

The AD7783’s ground plane should be allowed to run under
the AD7783 to prevent noise coupling. The power supply lines
to the AD7783 should use as wide a trace as possible to provide
low impedance paths and reduce the effects of glitches on the
power supply line. Fast switching signals like clocks should be
shielded with digital ground to avoid radiating noise to other
sections of the board, and clock signals should never be run
near the analog inputs. Avoid crossover of digital and analog
signals. Traces on opposite sides of the board should run at
right angles to each other. This will reduce the effects of
feedthrough through the board. A microstrip technique is by far
the best but is not always possible with a double-sided board. In
this technique, the component side of the board is dedicated to
ground planes while signals are placed on the solder side.

Good decoupling is important when using high resolution ADCs.

should be decoupled with 10 mF tantalum in parallel with

V

DD

0.1 mF capacitors to GND. To achieve the best from these
decoupling components, they have to be placed as close as pos­sible to the device, ideally right up against the device. All
logic chips should be decoupled with 0.1 mF ceramic capaci-
tors to DGND.

REV. B

–9–

AD7783

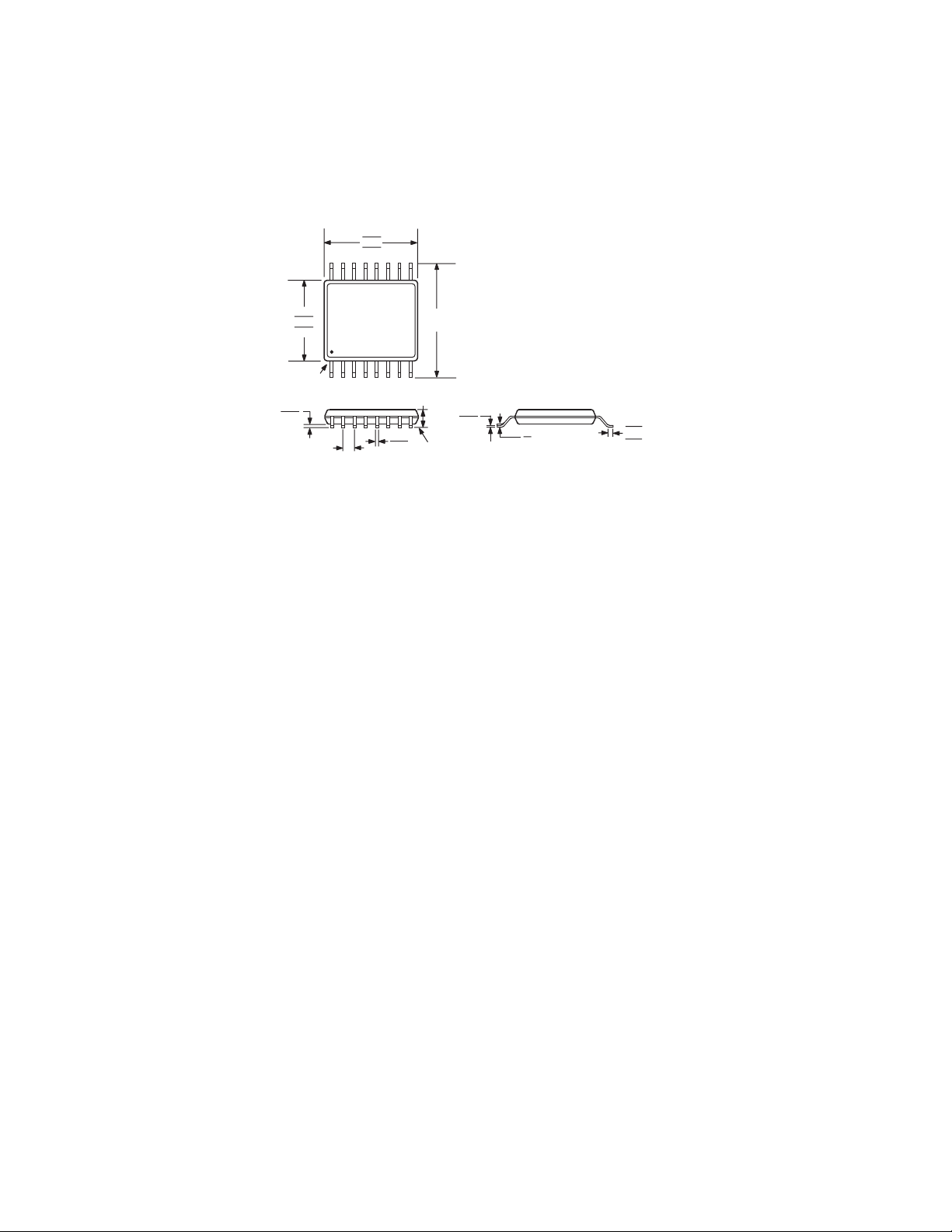

OUTLINE DIMENSIONS

16-Lead Thin Shrink Small Outline Package [TSSOP]

(RU-16)

Dimensions shown in millimeters

5.10

5.00

4.90

0.15

0.05

4.50

4.40

4.30

PIN 1

16

0.65
BSC

COPLANARITY

COMPLIANT TO JEDEC STANDARDS MS-153AB

0.10

0.30

0.19

9

81

1.20
MAX

6.40
BSC

SEATING

PLANE

0.20

0.09

0.75

8ⴗ
0ⴗ

0.60

0.45

REV. B–10–

AD7783

Revision History

Location Page

8/04—Data Sheet Changed from REV. A to REV. B.

Change to FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Changes to ORDERING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4/03—Data Sheet Changed from REV. 0 to REV. A.

Change to SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Updated OUTLINE DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

REV. B

–11–

C02702–0–8/04(B)

–12–
