Low Cost Parallel-Port 16-Bit
a
FEATURES
Low Cost, Pin- and Register-Compatible Alternative to
AD1848
Single-Chip Integrated ∑∆ Digital Audio Stereo Codec
Supports the Microsoft Windows Sound System*
Multiple Channels of Stereo Input and Output
Analog and Digital Signal Mixing
Programmable Gain and Attenuation
On-Chip Signal Filters
Digital Interpolation and Decimation
Analog Output Low-Pass
Sample Rates from 5.5 kHz to 48 kHz
68-Lead PLCC Package
Operation from +5 V Supply
Byte-Wide Parallel Interface to ISA and EISA Buses
Supports One or Two DMA Channels and
Programmed I/O
PRODUCT OVERVIEW
The Parallel-Port AD1846 SoundPort® Stereo Codec integrates
key audio data conversion and control functions into a single integrated circuit. The AD1846 is intended to provide a complete,
single-chip audio solution for business audio and multimedia
applications requiring operation from a single +5 V supply.
*Windows Sound System is a trademark of Microsoft Corp.
SoundPort is a registered trademark of Analog Devices, Inc.
FUNCTIONAL BLOCK DIAGRAM
SoundPort Stereo Codec
AD1846
It provides a direct, byte-wide interface to both ISA (“AT”) and
EISA computer buses for simplified implementation on a computer motherboard or add-in card. The AD1846 generates enable and direction controls for IC buffers such as the 74_245.
The AD1846 SoundPort Stereo Codec supports a DMA request/grant architecture for transferring data with the host computer bus. One or two DMA channels can be supported.
Programmed I/O (PIO) mode is also supported for control register accesses and for applications lacking DMA control. Two
input control lines support mixed direct and indirect addressing
of twenty-one internal control registers over this asynchronous
interface.
External circuit requirements are limited to a minimal number
of low cost support components. Anti-imaging DAC output
filters are incorporated on-chip. DAC dynamic range exceeds
80 dB over the 20 kHz audio band. Sample rates from 5.5 kHz
to 48 kHz are supported from external crystals.
The Codec includes a stereo pair of ∑∆ analog-to-digital converters and a stereo pair of ∑∆ digital-to-analog converters. Inputs to the ADC can be selected from four stereo pairs of analog
signals: line, microphone (“mic”), auxiliary (“aux”) line #1, and
post-mixed DAC output. A software-controlled programmable
gain stage allows independent gain for each channel going into
the ADC. The ADCs’ output can be digitally mixed with the
DACs’ input.
(Continued on page 9)
ANALOG
ANALOG
L_LINE
R_LINE
L_MIC
R_MIC
L_AUX1
R_AUX1
L_OUT
R_OUT
L_AUX2
R_AUX2
SUPPLY
GAIN/ATTEN/
MUTE
L
∑
R
∑
GAIN/ATTEN/
MUTE
ATTEN/
MUTE
ATTEN/
MUTE
MUX
L
R
ANALOG
FILTER
ANALOG
FILTER
GAIN
GAIN
CONVERTER
CONVERTER
AD1846
∑∆ D/A
CONVERTER
∑∆ D/A
CONVERTER
REFERENCE
V
REF
∑∆ A/D
∑∆ A/D
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
DIGITAL
SUPPLY
16
16
INTERPOL
INTERPOL
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700 Fax: 617/326-8703
CRYSTALS
OSCILLATORS
ATTENUATE
ATTENUATE
DIGITAL
MIX
∑
∑
CONTROL
POWER DOWN
µ/
A
L
A
W
µ/
A
L
A
W
REGS
DIGITAL
PLAYBACK REQ
P
A
R
A
L
L
E
L
P
O
R
T
PLAYBACK ACK
CAPTURE REQ
CAPTURE ACK
ADR1:0
DATA7:0
CS
WR
RD
BUS DRIVER
CONTROL
HOST DMA
INTERRUPT
EXTERNAL
CONTROL
AD1846–SPECIFICA TIONS
STANDARD TEST CONDITIONS UNLESS OTHERWISE NOTED
DAC Output Conditions
Post-Autocalibrated
Temperature 25 °C 0 dB Attenuation
Digital Supply (V
Analog Supply (V
Word Rate (F
Input Signal 1007 Hz Mute Off
Analog Output Passband 20 Hz to 20 kHz ADC Input Conditions
FFT Size 4096 Post-Autocalibrated
V
IH
V
IL
V
OH
V
OL
ANALOG INPUT
Full Scale Input Voltage (RMS Values Assume Sine Wave Input)
Line 1 V rms
Mic 1 V rms
MGE = 0 2.5 2.8 3.1 V p-p
MGE = 1 0.29 0.36 0.43 V p-p
Input Impedance 100 kΩ
Input Capacitance 15 pF
) 5.0 V Full Scale (0 dB)
DD
) 5.0 V 16-Bit Linear Mode
CC
) 48 kHz No Output Load
S
2.4 V 0 dB Gain
0.8 V –1.0 dB Relative to Full Scale
2.4 V Line Input
0.4 V 16-Bit Linear Mode
Inputs Driven with Low Impedance (≈ 50 Ω) Source
Min Typ Max Units
2.5 2.8 3.1 V p-p
PROGRAMMABLE GAIN AMPLIFIER—ADC
Min Typ Max Units
Step Size (0 dB to 22.5 dB) 1.0 1.5 2.0 dB
(All Steps Tested)
PGA Gain Range Span 21.0 22.5 24.0 dB
AUXILIARY INPUT ANALOG AMPLIFIERS/ATTENUATORS
Min Typ Max Units
Step Size (+12 dB to –28.5 dB, Referenced to DAC Full Scale) 1.3 1.5 1.7 dB
(–30 dB to –34.5 dB, Referenced to DAC Full Scale) 1.0 1.5 2.0 dB
Auxiliary Gain/Attenuation Range Span 45.5 46.5 47.5 dB
Auxiliary Input Impedance* 10 kΩ
–2–
REV. A
DIGITAL DECIMATION AND INTERPOLATION FILTERS*
Min Max Units
AD1846
Passband 0 0.4 3 F
S
Hz
Passband Ripple ±0.1 dB
Transition Band 0.4 3 F
Stopband 0.6 3 F
S
S
0.6 3 F
S
Hz
∞ Hz
Stopband Rejection 74 dB
Group Delay 30/F
S
Group Delay Variation Over Passband 0.0 µs
ANALOG-TO-DIGITAL CONVERTERS
Min Typ Max Units
Resolution 16 Bits
Dynamic Range (–60 dB Input, 70 75 dB
THD+N Referenced to Full Scale, A-Weighted)
THD+N (Referenced to Full Scale) 0.02 %
–72 –70 dB
Signal-to-Intermodulation Distortion 83 dB
ADC Crosstalk*
Line Inputs (Input L, Ground R, Read R; –80 dB
Input R, Ground L, Read L)
Line to MIC (Input LINE, Ground and –80 dB
Select MIC, Read Both Channels)
Line to AUX1 –80 dB
Line to AUX2 –80 dB
Gain Error (Full-Scale Span Relative to Nominal Input Voltage) ±10 %
Interchannel Gain Mismatch ±0.5 dB
(Difference of Gain Errors)
ADC Offset Error 12 mV
DIGITAL-TO-ANALOG CONVERTERS
Min Typ Max Units
Resolution 16 Bits
Dynamic Range (–60 dB Input, 80 83 dB
THD+N Referenced to Full Scale, A-Weighted)
THD+N (Referenced to Full Scale) 0.02 %
–73 –70 dB
Signal-to-Intermodulation Distortion 86 dB
Gain Error (Full-Scale Span Relative to Nominal Output Voltage) ±10 %
Interchannel Gain Mismatch ±0.5 dB
(Difference of L and R Gain Errors)
DAC Crosstalk* (Input L, Zero R, Measure –80 dB
R_OUT; Input R, Zero L, Measure L_OUT)
Total Out-of-Band Energy* –50 dB
(Measured from 0.6 3 F
to 96 kHz)
S
Audible Out-of-Band Energy* –70 dB
(Measured from 0.6 3 FS to 20 kHz, Tested at 5.5 kHz)
*Guaranteed Not Tested.
Specifications subject to change without notice.
REV. A
–3–
AD1846
DAC ATTENUATOR
Min Typ Max Units
Step Size (0 dB to –60 dB) 1.3 1.5 1.7 dB
(Tested at Steps 0 dB, –19.5 dB and –60 dB)
Step Size (–60 dB to –94.5 dB)* 1.0 1.5 2.0 dB
Output Attenuation Range Span* 93.5 94.5 95.5 dB
ANALOG OUTPUT
Min Typ Max Units
Full-Scale Output Voltage 0.707 V rms
1.8 2.0 2.2 V p-p
Output Impedance* 600 Ω
External Load Impedance 10 kΩ
Output Capacitance* 15 pF
External Load Capacitance 100 pF
V
REF
V
Current Drive 100 µA
REF
V
Output Impedance 4 kΩ
REF
Mute Attenuation of 0 dB –80 dB
Fundamental* (OUT)
Mute Click 5mV
(|Muted Output Minus Unmuted
Midscale DAC Output|)
2.00 2.25 2.50 V
SYSTEM SPECIFICATIONS
Min Typ Max Units
Peak-to-Peak Frequency Response Ripple* 1.0 dB
(Line In to Line Out)
Differential Nonlinearity* ± 1 Bit
Phase Linearity Deviation* 5 Degrees
STATIC DIGITAL SPECIFICATIONS
Min Max Units
High Level Input Voltage (V
Digital Inputs 2.4 (V
XTAL1/2I 2.4 (V
Low Level Input Voltage (V
High Level Output Voltage (V
Low Level Output Voltage (V
)
IH
) –0.3 0.8 V
IL
) at IOH = –2 mA 2.4 V
OH
) at IOL = 2 mA 0.4 V
OL
) + 0.3 V
DD
) + 0.3 V
DD
Input Leakage Current –10 10 µA
(GO/NOGO Tested)
Output Leakage Current –10 10 µA
(GO/NOGO Tested)
DIGITAL MIX ATTENUATOR
Min Typ Max Units
Step Size (0 dB to –94 dB)
(Tested at Steps 0 dB, –19.5 dB) 1.0 1.5 2.0 dB
Output Attenuation Range Span* –93.5 95.5 dB
*Guaranteed, not tested.
–4–
REV. A

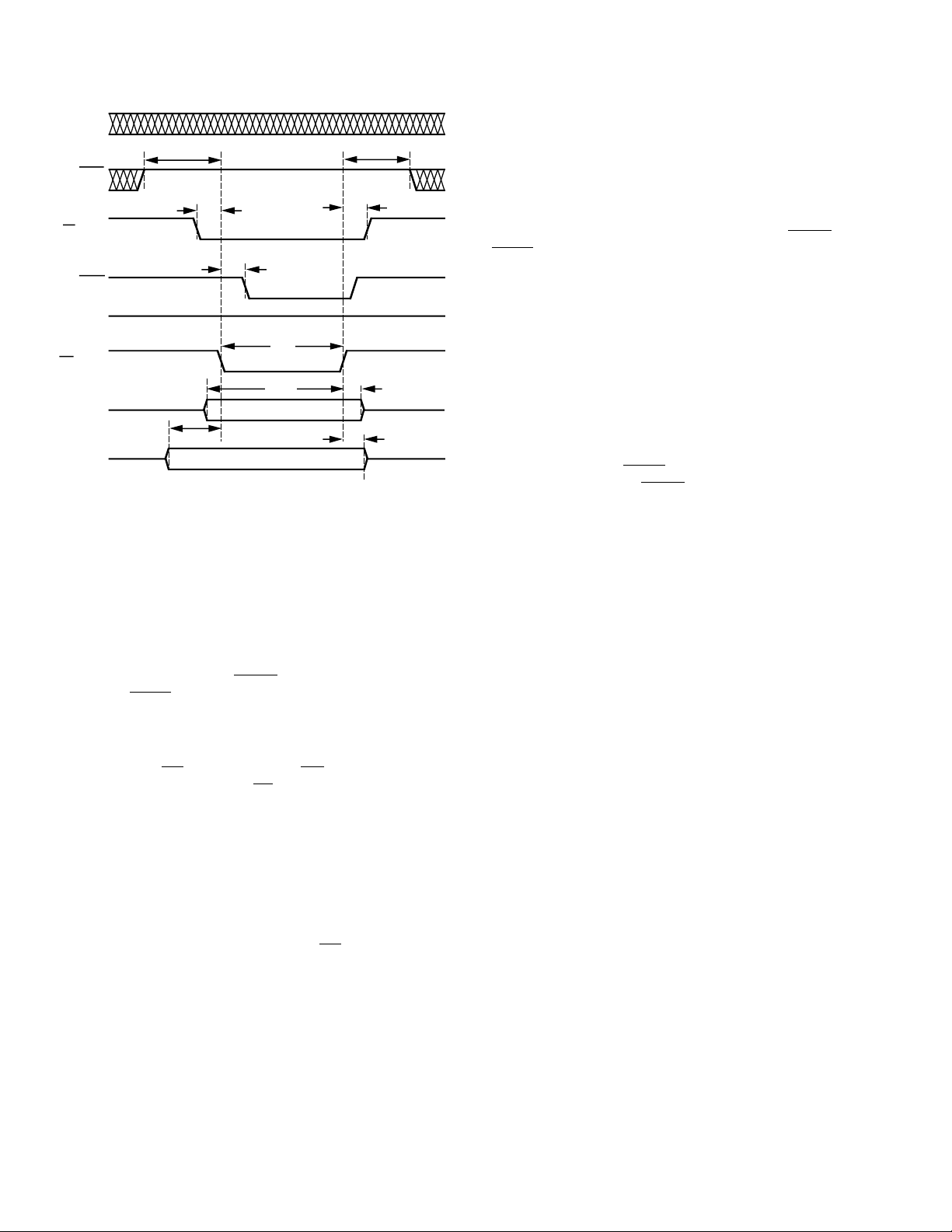

TIMING PARAMETERS (GUARANTEED OVER OPERATING TEMPERATURE RANGE)
Min Max Units
AD1846
WR/RD Strobe Width (t
WR/RD Rising to WR/RD Falling (t
Write Data Setup to
RD Falling to Valid Read Data (t
CS Setup to WR/RD Falling (t
CS Hold from WR/RD Rising (t
Adr Setup to
Adr Hold from
WR/RD Falling (t
WR/RD Rising (t
DAK Rising to WR/RD Falling (t
DAK Falling to WR/RD Rising (t
DAK Setup to WR/RD Falling (t
Data Hold from
Data Hold from
DRQ Hold from
RD Rising (t
WR Rising (t
WR/RD Falling (t
DAK Hold from WR Rising (t
DAK Hold from RD Rising (t
DBEN/DBDIR Delay from WR/RD Falling (t
POWER SUPPLY
) 130 ns
STW
WR Rising (t
RDDV
CSSU
CSHD
ADSU
ADHD
SUDK1
SUDK2
DKSU
DHD1
DHD2
DKHDa
DKHDb
) 140 ns
BWND
)10 ns
WDSU
)2040ns
)10 ns
)0 ns
)10 ns
)10 ns
)60 ns
)0 ns
)25 ns
)020ns
)15 ns
)030ns
DRHD
)10 ns
)10 ns
)0 20 ns
DBDL
Min Max Units
Power Supply Range – Analog 4.75 5.25 V
Power Supply Range – 5 V Digital 4.75 5.25 V
Power Supply Current – 5 V Operating 120 mA
(5 V Supplies)
Analog Supply Current – 5 V Operating 65 mA
Digital Supply Current – 5 V Operating 55 mA
Digital Power Supply Current – Power Down 0.5 mA
Analog Power Supply Current – Power Down 0.5 mA
Power Dissipation – 5 V Operating 600 mW
(Current
Nominal Supplies)
•
Power Dissipation – Power Down
(Current
Nominal Supplies) 5 mW
•
Power Supply Rejection (100 mV p-p Signal @ 1 kHz)* 40 dB
(At Both Analog and Digital Supply Pins, Both ADCs
and DACs)
CLOCK SPECIFICATIONS*
Min Max Units
Input Clock Frequency 27 MHz
Recommended Clock Duty Cycle Tolerance ±10 %
Initialization Time
16.9344 MHz Crystal Selected 70 ms
24.576 MHz Crystal Selected 90 ms
*Guaranteed, not tested.
Specifications subject to change without notice.
REV. A
–5–
AD1846
WARNING!
ESD SENSITIVE DEVICE
ABSOLUTE MAXIMUM RATINGS*
ORDERING GUIDE
Min Max Units
Power Supplies
Digital (V
Analog (V
DD
CC
Input Current
) –0.3 6.0 V
) –0.3 6.0 V
Model Range Description
AD1846JP 0°C to +70°C 68-Lead PLCC
Temperature Package
(Except Supply Pins) ± 10.0 mA
Analog Input Voltage (Signal Pins) –0.3 (V
Digital Input Voltage (Signal Pins) –0.3 (V
) + 0.3 V
CC
) + 0.3 V
DD
Ambient Temperature (Operating) 0 +70 °C
Storage Temperature –65 +150 °C
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those indicated in the
operational section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD1846 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
68-Lead Plastic Leaded Chip Carrier Pinout
ADR0
CDAK
CDRQ
PDAK
PDRQ
V
GNDD
XTAL1I
XTAL1O
V
GNDD
XTAL2I
XTAL2O
PWRDWN
V
GNDD
R_FILT
DD
DATA0
DATA2
V
L_MIC
31 3230292827
L_LINE
DATA1
L_FILT
(2.25V)
REF
V
NC = NO CONNECT
GNDD
ADR1
10
11
12
13
14
15
DD
16
17
18
19
DD
20
21
22
23
24
DD
25
26
R_MIC
R_LINE
DD
GNDD
DATA3
V
AD1846
TOP VIEW
CC
V
GNDA
_F (BYPASS)
REF
V
36
DATA4
67 66 6568123 63 62 6164546789
37 38 39353433
CC
V
DATA5
GNDA
DATA6
L_AUX2
DATA7
40
L_AUX1
GNDD
41 42
L_OUT
DBEN
R_OUT
DBDIR
43
R_AUX1
WR
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
R_AUX2
RD
CS
XCTL1
INT
XCTL0
NC
V
DD
GNDD
NC
NC
NC
NC
NC
NC
NC
V
DD
GNDD
–6–
REV. A
AD1846
PIN DESCRIPTION
Parallel Interface
Pin Name PLCC I/O Description
CDRQ 12 O Capture Data Request. The assertion of this signal indicates that the Codec has a captured
audio sample from the ADC ready for transfer. This signal will remain asserted until all the
bytes from the capture buffer have been transferred.
CDAK 11 I Capture Data Acknowledge. The assertion of this active LO signal indicates that the RD
cycle occurring is a DMA read from the capture buffer.
PDRQ 14 O Playback Data Request. The assertion of this signal indicates that the Codec is ready for
more DAC playback data. The signal will remain asserted until all the bytes needed for a
playback sample have been transferred.
PDAK 13 I Playback Data Acknowledge. The assertion of this active LO signal indicates that the WR
cycle occurring is a DMA write to the playback buffer.
ADR1:0 9 & 10 I Codec Addresses. These address pins are asserted by the Codec interface logic during a con-
trol register/PIO access. The state of these address lines determine which register is accessed.
RD 60 I Read Command Strobe. This active LO signal defines a read cycle from the Codec. The
cycle may be a read from the control/PIO registers, or the cycles could be a read from the
Codec’s DMA sample registers.
WR 61 I Write Command Strobe. This active LO signal indicates a write cycle to the Codec. The
cycle may be a write to the control/PIO registers, or the cycle could be a write to the Codec’s
DMA sample registers.
CS 59 I AD1846 Chip Select. The Codec will not respond to any control/PIO cycle accesses unless
this active LO signal is LO. This signal is ignored during DMA transfers.
DATA7:0 3–6 & I/O Data Bus. These pins transfer data and control information between the Codec and the host.
65–68
DBEN 63 O Data Bus Enable. This pin enables the external bus drivers. This signal is normally HI.
For control register/PIO cycles,
DBEN = (WR OR RD) AND CS
For DMA cycles,
DBEN = (WR OR RD) AND (PDAK OR CDAK)
DBDIR 62 O Data Bus Direction. This pin controls the direction of the data bus transceiver. HI enables
writes from the host to the AD1846; LO enables reads from the AD1846 to the host bus.
This signal is normally HI.
For control register/PIO cycles,
DBDIR =
For DMA cycles,
DBDIR = RD AND (PDAK OR CDAK)
RD AND CS
REV. A
–7–
AD1846
Analog Signals
Pin Name PLCC I/O Description
L_LINE 30 I Left Line Input. Line level input for the left channel.
R_LINE 27 I Right Line Input. Line level input for the right channel.
L_MIC 29 I Left Microphone Input. Microphone input for the left channel. This signal can be ei-
ther line level or –20 dB from line level.
R_MIC 28 I Right Microphone Input. Microphone input for the right channel. This signal can be
either line level or –20 dB from line level.
L_AUX1 39 I Left Auxiliary #1 Line Input
R_AUX1 42 I Right Auxiliary #1 Line Input
L_AUX2 38 I Left Auxiliary #2 Line Input
R_AUX2 43 I Right Auxiliary #2 Line Input
L_OUT 40 O Left Line Level Output
R_OUT 41 O Right Line Level Output
Miscellaneous
Pin Name PLCC I/O Description
XTAL1I 17 I 24.576 MHz Crystal #1 Input
XTAL1O 18 O 24.576 MHz Crystal #1 Output
XTAL2I 21 I 16.9344 MHz Crystal #2 Input
XTAL2O 22 O 16.9344 MHz Crystal #2 Output
PWRDWN 23 I Power-Down Signal. Active LO control places AD1846 in its lowest power consump-
tion mode. All sections of the AD1846, including the digital interface, are shut down
and consume minimal power.
INT 57 O Host Interrupt Pin. This signal is used to notify the host that the DMA Current Count
Register has underflowed.
XCTL1:O 56 & 58 O External Control. These signals reflect the current status of register bits inside the
AD1846. They can be used for signaling or to control external logic. XLTL1 and
XLTL0 are open-drain outputs.
V
REF
_F 33 I Voltage Reference Filter. Voltage reference filter point for external bypassing only.
V
REF
L_FILT 31 I Left Channel Filter Input. This pin requires a 1.0 µF capacitor to analog ground for
R_FILT 26 I Right Channel Filter Input. This pin requires a 1.0 µF capacitor to analog ground for
NC 46–52, 55 No Connect. Do not connect.
32 O Voltage Reference. Nominal 2.25 volt reference available externally for dc-coupling and
level-shifting. V
should not be used where it will sink or source current.
REF
proper operation.
proper operation.
Power Supplies
Pin Name PLCC I/O Description
V
CC
35 & 36 I Analog Supply Voltage (+5 V)
GNDA 34 & 37 I Analog Ground
V
DD
1, 7, 15, 19, I Digital Supply Voltage (+5 V)
24, 45, 54
GNDD 2, 8, 16, 20, I Digital Ground
25, 44, 53, 64
–8–
REV. A
AD1846
(Continued from page 1)
AD1846
DATA7:0
WR
DBDIR
DBEN
PDRQ
CDRQ
PDAK
CDAK
INT
CS
RD
ADDRESS
DECODE
A1
A0
DIR
G
7
4
2
4
5
8
B
AEN
18
SA19:2
SA1
SA0
IOWC
IORC
8
DATA7:0
ISA BUS
A
DRQ<X>
DRQ<Y>
DAK<X>
DAK<Y>
IRQ<Z>
Figure 1. Interface to ISA Bus
The pair of 16-bit outputs from the ADCs is available over a
byte-wide bidirectional interface that also supports 16-bit digital
input to the DACs and control information. The AD1846 can
accept and generate 16-bit twos-complement PCM linear digital
data, 8-bit unsigned magnitude PCM linear data, and 8-bit
µ-law or A-law companded digital data.
The ∑∆ DACs are preceded by a digital interpolation filter. An
attenuator provides independent user volume control over each
DAC channel. Nyquist images and shaped quantization noise
are removed from the DACs’ analog stereo output by on-chip
switched-capacitor and continuous-time filters. Two stereo pairs
of auxiliary line-level inputs can also be mixed in the analog domain with the DAC output.
AUDIO FUNCTIONAL DESCRIPTION
This section overviews the functionality of the AD1846 and is
intended as a general introduction to the capabilities of the device. As much as possible, detailed reference information has
been placed in “Control Registers” and other sections. The user
is not expected to refer repeatedly to this section.
Analog Inputs
The AD1846 SoundPort Stereo Codec accepts stereo line-level
and mic-level inputs. LINE, MIC, and AUX1 inputs and postmixed DAC output analog stereo signals are multiplexed to the
internal programmable gain amplifier (PGA) stage.
The PGA following the input multiplexer allows independent
selectable gains for each channel from 0 to 22.5 dB in +1.5 dB
steps. The Codec can operate either in a global stereo mode or
in a global mono mode with left channel inputs appearing at
both channel outputs.
Analog Mixing
AUX1 and AUX2 analog stereo signals can be mixed in the analog domain with the DAC output. Each channel of each auxiliary analog input can be independently gained/attenuated from
+12 dB to –34.5 dB in –1.5 dB steps or completely muted. The
post mixed DAC output is available on OUT externally and as
an input to the ADCs.
Even if the AD1846 is not playing back data from its DACs, the
analog mix function can still be active.
Analog-to-Digital Datapath
The AD1846 ∑∆ ADCs incorporate a fourth order modulator.
A single pole of passive filtering is all that is required for antialiasing the analog input because of the ADC’s high 64 times
oversampling ratio. The ADCs include linear phase digital decimation filters that low-pass filter the input to 0.4 3 F
. (“FS’’ is
S
the word rate or “sampling frequency”). ADC input overrange
conditions will cause bits to be set that can be read.
Each channel of the mic inputs can be amplified digitally by
+18 dB to compensate for the voltage swing differences between
line levels and typical condenser microphone levels. This +18
dB digital gain is enabled with the same control bits (LMGE
and RMGE) as the +20 dB analog gain in the AD1848.
Digital-to-Analog Datapath
The ∑∆ DACs contain a programmable attenuator and a lowpass digital interpolation filter. The anti-imaging interpolation
filter oversamples by 64 and digitally filters the higher frequency
images. The attenuator allows independent control of each
DAC channel from 0 dB to –94.5 dB in 1.5 dB steps plus full
mute. The DACs’ ∑∆ noise shapers also oversample by 64 and
convert the signal to a single bit stream. The DAC outputs are
then filtered in the analog domain by a combination of switchedcapacitor and continuous-time filters. They remove the very
high frequency components of the DAC bitstream output. No
external components are required. Phase linearity at the analog
output is achieved by internally compensating for the group
delay variation of the analog output filters.
Changes in DAC output attenuation take effect only on zero
crossings, thereby eliminating “zipper” noise. Each channel has
its own independent zero-crossing detector and attenuator
change control circuitry. A timer guarantees that requested volume changes will occur even in the absence of an input signal
that changes sign. The time-out period is 8 milliseconds at a
48 kHz sampling rate and 48 milliseconds at an 8 kHz sampling
rate. (Time out [ms] ≈ 384/F
[kHz].)
S
Digital Mixing
Stereo digital output from the ADCs can be mixed digitally with
the input to the DACs. Digital output from the ADCs going out
of the data port is unaffected by the digital mix. Along the digital mix datapath, the 16-bit linear output from the ADCs is
attenuated by an amount specified with control bits. Both channels of the monitor data are attenuated by the same amount.
(Note that internally the AD1846 always works with 16-bit
PCM linear data, digital mixing included; format conversions
take place at the input and output.)
REV. A
–9–
AD1846
Sixty-four steps of –1.5 dB attenuation are supported to
–94.5 dB. The digital mix datapath can also be completely
muted, preventing any mixing of the analog input with the digital input. Note that the level of the mixed signal is also a function of the input PGA settings, since they affect the ADCs’
output.
The attenuated digital mix data is digitally summed with the
DAC input data prior to the DACs’ datapath attenuators. The
digital sum of digital mix data and DAC input data is clipped at
plus or minus full scale and does not wrap around. Because
both stereo signals are mixed before the output attenuators, mix
data is attenuated a second time by the DACs’ datapath
attenuators.
In case the AD1846 is capturing data but ADC output data is
not removed in time (“ADC overrun”), then the last sample
captured before overrun will be used for the digital mix. In case
the AD1846 is playing back data hut input digital DAC data
fails to arrive in time (“DAC underrun”), then a midscale zero
will be added to the digital mix data.
Analog Outputs
A stereo line level output is available at external pins. Each
channel of this output can be independently muted. When
muted, the outputs will settle to a dc value near V
REF
, the
midscale reference voltage.
Digital Data Types
The AD1846 supports four data types: 16-bit twos-complement
linear PCM, eight-bit unsigned linear PCM, companded µ-law,
and 8-bit companded A-law, as specified by control register bits.
Data in all four formats is always transferred MSB first. Stereo
data is always transferred in the left-right order. All data formats
that are less than 16 bits are properly aligned to insure the utilization of full system resolution.
The 16-bit PCM data format is capable of representing 96 dB of
dynamic range. Eight-bit PCM can represent 48 dB of dynamic
range. Companded µ-law and A-law data formats use nonlinear
coding with less precision for large amplitude signals. The loss
of precision is compensated for by an increase in dynamic range
to 64 dB and 72 dB, respectively.
On input, 8-bit companded data is expanded to an internal linear representation, according to whether µ-law or A-law was
specified in the Codec’s internal registers. Note that when µ-law
compressed data is expanded to a linear format, it requires 14
bits. A-law data expanded requires 13 bits.
COMPRESSED
INPUT DATA
EXPANSION
DAC INPUT
15 0
MSB
15 0
MSB
15 0
MSB
LSB
8 7
3/2 2/1
LSB
3/2 2/1
LSB
0 0 0 / 0 0
Figure 2. A-Law or µ-Law Expansion
When 8-bit companding is specified, the ADCs’ linear output is
compressed to the format specified.
15 0
ADC OUTPUT
TRUNCATION
COMPRESSION
MSB
15 0
MSB
15 0
MSB
8 7
LSB
3/2 2/1
LSB
0 0 0 0 0 0 0 0
LSB
Figure 3. A-Law or µ-Law Compression
Note that all format conversions take place at input or output.
Internally, the AD1846 always uses 16-bit linear PCM representations to maintain maximum precision.
Power Supplies and Voltage Reference
The AD1846 operates from +5 V power supplies. Independent
analog and digital supplies are recommended for optimal performance though excellent results can be obtained in single supply
systems. A voltage reference is included on the Codec and its
2.25 V buffered output is available on an external pin (V
REF
).
The reference output can be used for biasing op amps used in
dc coupling. The internal reference must be externally bypassed
to analog ground at the V
REF
_F pin.
Clocks and Sample Rates
The AD1846 operates from external crystals. Two crystal inputs
are provided to generate a wide range of sample rates. The oscillators for these crystals are on the AD1846, as is a multiplexer
for selecting between them. They can be overdriven with external clocks by the user, if so desired. The recommended crystal
frequencies are 16.9344 MHz and 24.576 MHz. From them the
following sample rates are divided down: 5.5125, 6.615, 8, 9.6,
11.025, 16, 18.9, 22.05, 27.42857, 32, 33.075, 37.8, 44.1,
48 kHz.
–10–
REV. A
AD1846
CONTROL REGISTERS
Control Register Architecture
The AD1846 SoundPort Stereo Codec accepts both data and
control information through its byte-wide parallel port. Indirect
addressing minimizes the number of external pins required to
access all 21 of its byte-wide internal registers. Only two external address pins, ADR1:0, are required to accomplish all data
and control transfers. These pins select one of five direct registers. (ADR1:0 = 3 addresses two registers, depending on
whether the transfer is a playback or a capture.)
ADR1:0 Register Name
0 Index Address Register
1 Indexed Data Register
2 Status Register
3 PIO Data Registers
Figure 4. Direct Register Map
A write to or a read from the Indexed Data Register will access
the indirect register which is indexed by the value most recently
written to the Index Address Register. The Status Register and
the PIO Data Register are always accessible directly, without indexing. The 16 indirect registers are indexed in Figure 5.
Direct Registers:
ADR1:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
0 INIT MCE TRD res IXA3 IXA2 IXA1 IXA0
1 IXD7 IXD6 IXD5 IXD4 IXD3 IXD2 IXD1 IXD0
2 CU/L CL/R CRDY SOUR PU/L PL/R PRDY INT
3 CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0
3 PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0
Index Register Name
0 Left Input Control
1 Right Input Control
2 Left Aux #1 Input Control
3 Right Aux #1 Input Control
4 Left Aux #2 Input Control
5 Right Aux #2 Input Control
6 Left Output Control
7 Right Output Control
8 Clock and Data Format
9 Interface Configuration
10 Pin Control
11 Test and Initialization
12 Miscellaneous Information
13 Digital Mix
14 Upper Base Count
15 Lower Base Count
Figure 5. Indirect Register Map
A detailed map of all direct and indirect register contents is
summarized for reference as follows:
Indirect Registers:
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
0 LSS1 LSS0 LMGE res LIG3 LIG2 LIG1 LIG0
1 RSS1 RSS0 RMGE r es RI G3 RIG2 RI G1 RIG 0
2 LMX1 res res LX1A4 LX1A3 LX1A2 LX1A1 LX1A0
3 RMX1 res res RX1A4 RX1A3 RX1A2 RX1A1 RX1A0
4 LMX2 res res LX2A4 LX2A3 LX2A2 LX2A1 LX2A0
5 RMX2 res res RX2A4 RX2A3 RX2A2 RX2A1 RX2A0
6 LDM res LDA5 LDA4 LDA3 LDA2 LDA1 LDA0
7 RDM res RDA5 RDA4 RDA3 RDA2 RDA1 RDA0
8 res FMT C/L S/M CFS2 CFS1 CFS0 CSS
9 CPIO PPIO res res ACAL S DC C EN PE N
10 XCTL1 XCTL0 res res res res IEN res
1 1 COR PU R A CI DR S ORR1 ORR0 ORL1 ORL0
12 res res res res ID 3 ID2 ID1 ID0
1 3 DMA5 DMA4 DMA3 DMA2 DMA1 DMA0 res DME
14 UB7 UB6 UB5 UB4 UB3 UB2 UB1 UB0
15 LB7 LB6 LB5 LB4 LB3 LB2 LB1 LB0
Figure 6. Register Summary
Note that the only sticky bit in any of the AD1846 control registers is the interrupt (INT) bit. All other bits change with every
sample period.
REV. A
–11–
AD1846
Direct Control Register Definitions
Index Register (ADR1:0 = 0)
ADR1:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
0 INIT MCE TRD res IXA3 IXA2 IXA1 IXA0
IXA3:0 Index Address. These bits define the address of the AD1846 register accessed by the Indexed Data Register. These bits
are read/write.
res Reserved for future expansion. Always write a zero to this bit.
TRD Transfer Request Disable. This bit, when set, causes all data transfers to cease when the Interrupt Status (INT) bit of the
Status Register is set.
0 Transfers Enabled During Interrupt. PDRQ and CDRQ pin outputs are generated uninhibited by interrupts.
DMA Current Counter Register decrements with every sample period when either PEN or CEN are enabled.
1 Transfers Disabled By Interrupt. PDRQ and CDRQ pin outputs are generated only if INT bit is 0 (when either
PEN or CEN, respectively, are enabled). Any pending playback or capture requests are allowed to complete at the
time when TRD is set. After pending requests complete, midscale inputs will be internally generated for the
DACs, and the ADC output buffer will contain the last valid output. Clearing the sticky INT bit (or the TRD bit)
will cause the resumption of playback and/or capture requests (presuming PEN and/or CEN are enabled). The
DMA Current Counter Register will not decrement while both the TRD bit is set and the INT bit is a one.
MCE Mode Change Enable. This bit must be set whenever the current functional mode of the AD1846 is changed. Specifically,
the Clock and Data Format and Interface Configuration registers cannot be changed unless this bit is set. The exceptions
are CEN and PEN in the Interface Configuration which can be changed “on-the-fly.” MCE should be cleared at the com-
pletion of the desired register changes. The DAC outputs are automatically muted when the MCE bit is set. After MCE is
cleared, the DAC outputs will be restored to the state specified by the LDM and RDM mute bits.
Both ADCs and DACs are automatically muted for approximately 128 sample cycles after exiting the MCE state to allow
the reference and all filters to settle. The ADCs will produce midscale values; the DACs’ analog output will be muted. All
converters are internally operating during these ≈128 sample cycles, and the AD1846 will expect playback data and will
generate (midscale) capture data. Note that the autocalibrate-in-process (ACI) bit will be set on exit from the MCE state
regardless of whether or not ACAL was set. ACI will remain HI for these ≈128 sample cycles; system software should poll
this bit rather than count cycles.
Special sequences must be followed if autocalibrate (ACAL) is set or sample rates are changed (CFS2:0 and or CSS)
during mode change enable. See the “Autocalibration” and “Changing Sample Rates” sections below.
INIT AD1846 Initialization. This bit is set when the AD1846 is in a state which cannot respond to parallel bus cycles. This bit
is read only.
Immediately after reset and once the AD1846 has left the INIT state, the initial value of this register will be “0100 0000 (40h).”
During AD1846 initialization, this register cannot be written to and will always read “100x 0000 (80h).”
Indexed Data Register (ADR1:0 = 1)
ADR1:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
1 IXD7 IXD6 IXD5 IXD4 IXD3 IXD2 IXD1 IXD0
IXD7:0 Indexed Register Data. These bits contain the contents of the AD1846 register referenced by the Indexed Data Register.
During AD1846 initialization, this register cannot be written to and will always read as “1000 0000 (80h).”
–12–
REV. A
AD1846
Status Register (ADR1:0 = 2)
ADR1:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
2 CU/L CL/R CRDY SOUR PU/L PL/R PRDY I NT
INT Interrupt Status. This sticky bit (the only one) indicates the status of the interrupt logic of the AD1846. This bit is cleared
by any host write of any value to this register. The IEN bit of the Pin Control Register determines whether the state of this
bit is reflected on the INT pin of the AD1846. The only interrupt condition supported by the AD1846 is generated by the
underflow of the DMA Current Count Register.
0 Interrupt pin inactive
1 Interrupt pin active
PRDY Playback Data Register Ready. The PIO Playback Data Register is ready for more data. This bit should only be used when
direct programmed I/O data transfers are desired. This bit is read only.
0 DAC data is still valid. Do not overwrite.
1 DAC data is stale. Ready for next host data write value.
PL/R Playback Left/Right Sample. This bit indicates whether the PIO playback data needed is for the right channel DAC or left
channel DAC. This bit is read only.
0 Right channel needed
1 Left channel or mono
PU/L Playback Upper/Lower Byte. This bit indicates whether the PIO playback data needed is for the upper or lower byte of the
channel. This bit is read only.
0 Lower byte needed
1 Upper byte needed or any 8-bit mode
SOUR Sample Over/Underrun. This bit indicates that the most recent sample was not serviced in time and therefore either a cap-
ture overrun (COR) or playback underrun (PUR) has occurred. The bit indicates an overrun for ADC capture and an
underrun for DAC playback. If both capture and playback are enabled, the source which set this bit can be determined by
reading COR and PUR. This bit changes on a sample-by-sample basis. This bit is read only.
CRDY Capture Data Ready. The PIO Capture Data Register contains data ready for reading by the host. This bit should only be
used when direct programmed I/O data transfers are desired. This bit is read only.
0 ADC data is stale. Do not reread the information.
1 ADC data is fresh. Ready for next host data read.
CL/R Capture Left/Right Sample. This bit indicates whether the PIO capture data waiting is for the right channel ADC or left
channel ADC. This bit is read only.
0 Right channel
1 Left channel or mono
CU/L Capture Upper/Lower Byte. This bit indicates whether the PIO capture data ready is for the upper or lower byte of the
channel. This bit is read only.
0 Lower byte ready
1 Upper byte ready or any 8-bit mode
The PRDY, CRDY, and INT bits of this status register can change asynchronously to host accesses. The host may access this register while the bits are transitioning. The host read may return a zero value just as these bits are changing, for example. A “1” value
would not be read until the next host access.
This registers’s initial state after reset is “1100 1100.”
REV. A
–13–
AD1846
PIO Data Registers (ADR1:0 = 3)
ADR1:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
3 CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0
3 PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0
The PIO Data Registers are two registers mapped to the same address. Writes send data to the PIO Playback Data Register (PD7:0).
Reads will receive data from the PIO Capture Data Register (CD7:0).
During AD1846 initialization, the PIO Playback Data Register cannot be written and the Capture Data Register is always read
“1000 0000 (80h).”
CD7:0 PIO Capture Data Register. This is the control register where capture data is read during programmed I/O data transfers.
The reading of this register will increment the state machine so that the following read will be from the next appropriate
byte in the sample. The exact byte which is next to be read can be determined by reading the Status Register. Once all rel-
evant bytes have been read, the state machine will stay pointed to the last byte of the sample until a new sample is received
from the ADCs. Once this has occurred, the state machine and status register will point to the first byte of the sample.
Until a new sample is received, reads from this register will return the most significant byte of the sample.
PD7:0 PIO Playback Data Register. This is the control register where playback data is written during programmed I/O data
transfers.
Writing data to this register will increment the playback byte tracking state machine so that the following write will be to
the correct byte of the sample. Once all bytes of a sample have been written, subsequent byte writes to this port are ig-
nored. The state machine is reset when the current sample is sent to the DACs.
Indirect Control Register Definitions
The following control registers are accessed by writing index values to IXA3:0 in the Index Address Register (ADR1:0 = 0) followed
by a read/write to the Indexed Data Register (ADR1:0 = 1).
Left Input Control (IXA3:0 = 0)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
0 LSS1 LSS0 LMGE res LIG3 LIG2 LIG1 LIG0
LIG3:0 Left input gain select. The least significant bit of this gain select represents +1.5 dB. Maximum gain is +22.5 dB.
res Reserved for future expansion. Always write a zero to this bit.
LMGE Left Input Microphone Gain Enable. Setting this bit will enable the +18 dB digital gain of the left mic input signal.
LSS1:0 Left Input Source Select. These bits select the input source for the left gain stage preceding the left ADC.
0 Left Line Source Selected
1 Left Auxiliary 1 Source Selected
2 Left Microphone Source Selected
3 Left Line Post-Mixed DAC Output Source Selected
This register’s initial state after reset is “000x 0000.”
–14–
REV. A
AD1846
Right Input Control (IXA3:0 = 1)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
1 RSS1 RSS0 RMGE res RI G3 RI G2 RIG 1 RIG 0
RIG3:0 Right Input Gain Select. The least significant bit of this gain select represents +1.5 dB. Maximum gain is +22.5 dB.
res Reserved for future expansion. Always write a zero to this bit.
RMGE Right Input Microphone Gain Enable. Setting this bit will enable the +18 dB digital gain of the right mic input signal.
RSS1:0 Right Input Source Select. These bits select the input source for the right channel gain stage preceding the right ADC.
0 Right Line Source Selected
1 Right Auxiliary 1 Source Selected
2 Right Microphone Source Selected
3 Right Post-Mixed DAC Output Source Selected
This register’s initial state after reset is “000x 0000.”
Left Auxiliary #1 Input Control (IXA3:0 = 2)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
2 LMX1 res res LX1A4 LX1A3 LX1A2 LX1A1 LX1A0
LX1A4:0 Left Auxiliary Input #1 Attenuate Select. The least significant bit of this gain/attenuate select represents –1.5 dB.
LX1A4:0 = 0 produces a +12 dB gain. LX1A4:0 = “01000” (8 decimal) produces 0 dB gain. Maximum attenuation is
–34.5 dB.
res Reserved for future expansion. Always write zeros to these bits.
LMX1 Left Auxiliary #1 Mute. This bit, when set, will mute the left channel of the Auxiliary #1 input source. This bit is set to
“1” after reset.
This register’s initial state after reset is “1xx0 0000.”
Right Auxiliary #1 Input Control (IXA3:0 = 3)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
3 RMX1 res res RX1A4 RX1A3 RX1A2 RX1A1 RX1A0
RX1A4:0 Right Auxiliary Input #1 Attenuate Select. The least significant bit of this gain/attenuate select represents –1.5 dB.
RX1A4:0 = 0 produces a +12 dB gain. RX1A4:0 = “01000” (8 decimal) produces 0 dB gain. Maximum attenuation is
–34.5 dB.
res Reserved for future expansion. Always write zeros to these bits.
RMX1 Right Auxiliary #1 Mute. This bit, when set, will mute the right channel of the Auxiliary #1 input source. This bit is set to
“1” after reset.
This register’s initial state after reset is “1xx0 0000.”
REV. A
–15–
AD1846
Left Auxiliary #2 Input Control (IXA3:0 = 4)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
4 LMX2 res res LX2A4 LX2A3 LX2A2 LX2A1 LX2A0
LX2A4:0 Left Auxiliary Input #2 Attenuate Select. The least significant bit of this gain/attenuate select represents –1.5 dB.
LX2A4:0 = 0 produces a +12 dB gain. LX2A4:0 = “01000” (8 decimal) produces 0 dB gain. Maximum attenuation is
–34.5 dB.
res Reserved for future expansion. Always write zeros to these bits.
LMX2 Left Auxiliary #2 Mute. This bit, when set to 1, will mute the left channel of the Auxiliary #2 input source. This bit is set
to “1” after reset.
This register’s initial state after reset is “1xx0 0000.”
Right Auxiliary #2 Input Control (IXA3:0 = 5)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
5 RMX2 r es re s RX2A4 RX2A3 RX2A2 RX2A1 RX2A0
RX2A4:0 Right Auxiliary Input #2 Attenuate Select. The least significant bit of this gain/attenuate select represents –1.5 dB.
RX2A4:0 = 0 produces a +12 dB gain. RX2A4:0 = “01000” (8 decimal) produces 0 dB gain. Maximum attenuation is
–34.5 dB.
res Reserved for future expansion. Always write zeros to these bits.
RMX2 Right Auxiliary #2 Mute. This bit, when set, will mute the right channel of the Auxiliary #2 input source. This bit is set to
“1” after reset.
This register’s initial state after reset is “1xx0 0000.”
Left DAC Control (IXA3:0 = 6)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
6 LDM res LDA5 LDA4 LDA3 LDA2 LDA1 LDA0
LDA5:0 Left DAC Attenuate Select. The least significant bit of this attenuate select represents –1.5 dB. LDA5:0 = 0 produces a
0 dB attenuation. Maximum attenuation is –94.5 dB.
res Reserved for future expansion. Always write a zero to this bit.
LDM Left DAC Mute. This bit, when set to 1, will mute the left DAC output. Auxiliary inputs are muted independently with
the Left Auxiliary Input Control Registers. This bit is set to “1” after reset.
This register’s initial state after reset is “1x00 0000.”
Right DAC Control (IXA3:0 = 7)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
7 RDM res RDA5 RDA4 RDA3 RDA2 RDA1 RDA0
RDA5:0 Right DAC Attenuate Select. The least significant bit of this attenuate select represents –1.5 dB. RDA5:0 = 0 produces
0 dB attenuation. Maximum attenuation is –94.5 dB.
res Reserved for future expansion. Always write a zero to this bit.
RDM Right DAC Mute. This bit, when set to 1, will mute the right DAC output. Auxiliary inputs are muted independently with
the Right Auxiliary Input Control Registers. This bit is set to “1” after reset.
This register’s initial state after reset is “1x00 0000.”
–16–
REV. A
AD1846
Clock and Data Format Register (IXA3:0 = 8)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
8 res FMT C/L S/M CFS2 CFS1 CFS0 CSS
The contents of the Clock and Data Format Register cannot be changed except when the AD1846 is in Mode Change Enable (MCE) state.
Write attempts to this register when the AD1846 is not in the MCE state will not be successful.
CSS Clock Source Select. These bits select the crystal clock source which will be used for the audio sample rates.
0 XTAL1 (24.576 MHz)
1 XTAL2 (16.9344 MHz)
CFS2:0 Clock Frequency Divide Select. These bits select the audio sample rate frequency. The actual audio sample rate depends
on which crystal clock source is selected and the frequency of that source.
Divide XTAL1 XTAL2
CFS Factor 24.576 MHz 16.9344 MHz
0 3072 8.0 kHz 5.5125 kHz
1 1536 16.0 kHz 11.025 kHz
2 896 27.42857 kHz 18.9 kHz
3 768 32.0 kHz 22.05 kHz
4 448 Not Supported 37.8 kHz
5 384 Not Supported 44.1 kHz
6 512 48.0 kHz 33.075 kHz
7 2560 9.6 kHz 6.615 kHz
Note that the AD1846’s internal oscillators can be driven by external clock sources at the crystal input pins. If an external
clock source is applied, it will be divided down by the selected Divide Factor. It need not be at the recommended crystal
frequencies.
S/M Stereo/Mono Select. This bit determines how the audio data streams are formatted. Selecting stereo will result with alter-
nating samples representing left and right audio channels. Mono playback plays the same audio sample on both channels.
Mono capture only captures data from the left audio channel.
0 Mono
1 Stereo
C/L Companded/Linear Select. This bit selects between a linear digital representation of the audio signal or a nonlinear, com-
panded format for all input and output data. The type of linear PCM or the type of companded format is defined by the
FMT bits.
0 Linear PCM
1 Companded
FMT Format Select. This bit defines the format for all digital audio input and outputs based on the state of the C/L bit.
Linear PCM (C/L = 0) Companded (C/L = 1)
0 8-bit Unsigned PCM 8-bit µ-law Companded
1 16-bit Twos-Complement PCM 8-bit A-law Companded
res Reserved for future expansion. Always write a zero to this bit.
This register’s initial state after reset is “x000 0000.”
REV. A
–17–
AD1846
Interface Configuration Register (IXA3:0 = 9)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
9 CPIO PP IO res res ACAL S DC CEN PE N
The contents of the Interface Configuration Register cannot be changed except when the AD1846 is in Mode Change Enable (MCE) state.
Write attempts to this register when the AD1846 is not in the MCE state will not be successful. PEN and CEN are exceptions; these bits may always be written.
PEN Playback Enable. This bit will enable the playback of data in the format selected. The AD1846 will generate PDRQ and
respond to
playback mode. PEN may be set and reset without setting the MCE bit.
0 Playback disabled (PDRQ and PIO Playback Data Register inactive)
1 Playback enabled
CEN Capture Enable. This bit will enable the capture of data in the format selected. The AD1846 will generate CDRQ and re-
spond to
may be set and reset without setting the MCE bit.
0 Capture disabled (CDRQ and PIO Capture Data Register inactive)
1 Capture enabled
SDC Single DMA Channel. This bit will force both capture and playback DMA requests to occur on the Playback DMA chan-
nel. The Capture DMA CDRQ pin will be LO. This bit will allow the AD1846 to be used with only one DMA channel.
Simultaneous capture and playback cannot occur in this mode. Should both capture and playback be enabled
(CEN = PEN = 1) in the mode, only playback will occur. See “Data and Control Transfers” for further explanation.
0 Dual DMA channel mode
1 Single DMA channel mode
ACAL Autocalibrate Enable. This bit determines whether the AD1846 performs an autocalibrate whenever the
deasserted or from the Mode Change Enable (MCE) bit being reset. ACAL is normally set. See “Autocalibration” below
for a description of a complete autocalibration sequence.
0 No autocalibration
1 Autocalibration after power down/reset or mode change
res Reserved for future expansion. Always write zeros to these bits.
PPIO Playback PIO Enable. This bit determines whether the playback data is transferred via DMA or PIO.
0 DMA transfers only
1 PIO transfers only
CPIO Capture PIO Enable. This bit determines whether the capture data is transferred via DMA or PIO.
0 DMA transfers only
1 PIO transfers only
PDAK signals when this bit is enabled and PPIO = 0. If PPIO = 1, this bit enables Programmed I/O (PIO)
CDAK signals when this bit is enabled and CPIO = 0. If CPIO = 1, this bit enables PIO capture mode. CEN
PWRDWN pin is
This register’s initial state after reset is “00xx 1000.”
Pin Control Register (IXA3:0 = 10)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
10 XCTL1 XCTL0 res res res res I EN res
res Reserved for future expansion. Always write zeros to these bits.
IEN Interrupt Enable. This bit enables the interrupt pin. The Interrupt Pin will go active HI when the number of samples pro-
grammed in the Base Count Register is reached.
0 Interrupt disabled
1 Interrupt enabled
XCTL1:0 External Control. The state of these independent bits is reflected on the respective XCTL1:0 pins of the AD1846.
0 TTL Logic LO on XCTL1:0 pins
1 TTL Logic HI on XCTL1:0 pins
This register’s initial state after reset is “00xx xx0x.”
–18–
REV. A
AD1846
Test and Initialization Register (IXA3:0 = 11)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
1 1 COR PU R ACI D RS ORR1 ORR0 ORL1 ORL0
ORL1:0 Overrange Left Detect. These bits indicate the overrange on the left input channel. This bit changes on a sample-by-
sample basis. This bit is read only.
0 Less than –1 dB underrange
1 Between –1 dB and 0 dB underrange
2 Between 0 dB and +1 dB overrange
3 Greater than +1 dB overrange
ORR1:0 Overrange Right Detect. These bits indicate the overrange on the right input channel. This bit changes on a sample-by-
sample basis. This bit is read only.
0 Less than –1 dB underrange
1 Between –1 dB and 0 dB underrange
2 Between 0 dB and +1 dB overrange
3 Greater than +1 dB overrange
DRS Data Request Status. This bit indicates the current status of the PDRQ and CDRQ pins of the AD1846.
0 CDRQ and PDRQ are presently inactive (LO)
1 CDRQ or PDRQ are presently active (HI)
ACI Autocalibrate-In-Progress. This bit indicates the state of autocalibration or a recent exit from Mode Change Enable
(MCE). This bit is read only.
0 Autocalibration is not in progress
1 Autocalibration is in progress or MCE was exited within approximately the last 128 sample periods
PUR Playback Underrun. This bit is set when playback data has not arrived from the host in time to be played. As a result, a
midscale value will be sent to the DACs. This bit changes on a sample by sample basis.
COR Capture Overrun. This bit is set when the capture data has not been read by the host before the next sample arrives. The
sample being read will not be overwritten by the new sample. The new sample will be ignored. This bit changes on a
sample by sample basis.
The occurrence of a PUR and/or COR is designated in the Status Register’s Sample Overrun/Underrun (SOUR) bit. The SOUR bit
is the logical OR of the COR and PUR bits. This enables a polling host CPU to detect an overrun/underrun condition while checking
other status bits.
This register’s initial state after reset is “0000 0000.”
Miscellaneous Control Register (IXA3:0 = 12)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
12 res res res res ID 3 ID 2 ID 1 I D0
res Reserved for future expansion. The bits are read only. Do not write to these bits.
ID3:0 AD1846 Revision ID. These four bits define the revision level of the AD1846. The AD1846 is designated
ID = “1010.” Revisions increment by one LSB. These bits are read only.
This register’s initial state after reset is “xxxx RRRR” where RRRR = Revision ID of the silicon in use.
REV. A
–19–
AD1846
Digital Mix Control Register (IXA3:0 = 13)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
13 DMA5 DMA4 DMA3 DMA2 DMA1 DMA0 res DME
DME Digital Mix Enable. This bit will enable the digital mix of the ADCs’ output with the DACs’ input. When enabled, the
data from the ADCs are digitally mixed with other data being delivered to the DACs (regardless of whether or not play-
back [PEN] is enabled, i.e., set). If capture is enabled (CEN set) and there is a capture overrun (COR), then the last
sample captured before overrun will be used for the digital mix. If playback is enabled (PEN set) and there is a playback
underrun (PUR), then a midscale zero will be added to the digital mix data.
0 Digital mix disabled (muted)
1 Digital mix enabled
res Reserved for future expansion. Always write a zero to this bit.
DMA5:0 Digital Mix Attenuation. These bits determine the attenuation of the ADC data in mixing with the DAC input. Each at-
tenuate step is –1.5 dB ranging to –94.5 dB.
This register’s initial state after reset is “0000 00x0.”
DMA BASE COUNT REGISTERS (IXA3:0 = 14 & 15)
The DMA Base Count Registers in the AD1846 simplify integration of the AD1846 in ISA systems. The ISA DMA controller requires an external count mechanism to notify the host CPU via interrupt of a full DMA buffer. The programmable DMA Base
Count Registers will allow such interrupts to occur.
The Base Count Registers contain the number of sample periods which will occur before an interrupt is generated on the interrupt
(INT) pin. To load, first write a value to the Lower Base Count Register. Writing a value to the Upper Base Register will cause both
Base Count Registers to load into the Current Count Register. Once AD1846 transfers are enabled, each sample period the Current
Count Register will decrement until zero count is reached. The next sample period after zero will generate the interrupt and reload
the Current Count Register with the values in the Base Count Registers. The interrupt is cleared by a write to the Status Register.
The Host Interrupt Pin (INT) will go HI during the sample period in which the Current Count Register underflows when Interrupt
Enable (IEN) is set. The Host Interrupt Pin (INT) will go LO when the Interrupt Status Bit (INT) is cleared. [Note that both the
Host Interrupt Pin and the Interrupt Status Bit have the same name (INT)].
The Current Count Register is decremented every sample period when either the PEN or CEN bit is enabled and also either the
Transfer Request Disable (TRD) bit or the Interrupt Status (INT) bit are zero. Note that the internal INT bit will become one on
counter underflow even if the external interrupt pin is not enabled, i.e., IEN is zero. The Current Count Register is decremented in
both PIO and DMA data transfer modes.
Upper Base Count Register (IXA3:0 = 14)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
14 UB7 UB6 UB5 UB4 UB3 UB2 UB1 UB0
UB7:0 Upper Base Count. This byte is the upper byte of the base count register containing the eight most significant bits of the
16-bit base register. Reads from this register return the same value which was written. The current count contained in the
counters can not be read.
This register’s initial state after reset is “0000 0000.”
Lower Upper Base Count Register (IXA3:0 = 15)
IXA3:0 Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0
15 LB7 LB6 LB5 LB4 LB3 LB2 LB1 LB0
LB7:0 Lower Base Count. This byte is the lower byte of the base count register containing the eight least significant bits of the
16-bit base register. Reads from this register return the same value which was written. The current count contained in the
counters cannot be read.
This register’s initial state after reset is “0000 0000.”
–20–
REV. A
AD1846
CDRQ /
PDRQ
OUTPUTS
CS INPUT
CDAK
INPUT
DATA7:0
OUTPUTS
RD INPUT
DBEN &
DBDIR
OUTPUTS
ADR1:0
INPUTS
t
DBDL
t
RDDV
t
ADSU
t
CSHD
t
CSSU
t
DHD1
t
ADHD
t
STW
t
SUDK2
t
SUDK1

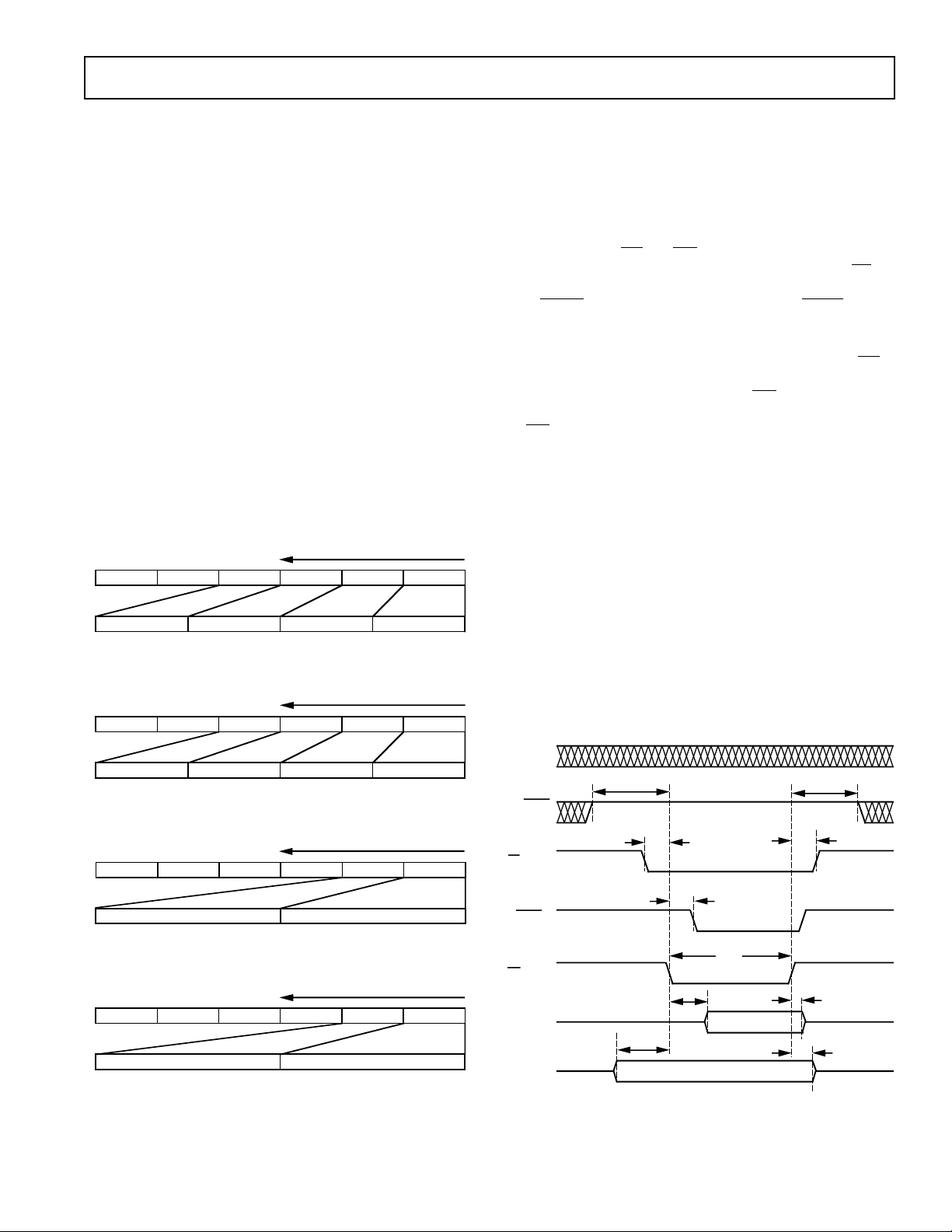

DATA AND CONTROL TRANSFERS
The AD1846 SoundPort Stereo Codec supports a DMA request/grant architecture for transferring data with the host computer bus. One or two DMA channels can be supported.
Programmed I/O (PIO) mode is also supported for control register accesses and for applications lacking DMA control. PIO
transfers can be made on one channel while the other is performing DMA. Transfers to and from the AD1846 SoundPort
Codec are asynchronous relative to the internal data conversion
clock. Transfers are buffered, but the AD1846 supports no internal FIFOs. The host is responsible for providing playback
data before the next digital-to-analog conversion and removing
capture data before the next analog-to-digital conversion.
Data Ordering
The number of byte-wide transfers required depends on the
data format selected. The AD1846 is designed for “little
endian” formats in which the least significant byte (i.e., occupying the lowest memory address) gets transferred first. So 16-bit
data transfers require first transferring the least significant bits
7:0 and then transferring the most significant bits 15:8, where
bit 15 is the most significant bit in the word.
In addition, left channel data is always transferred before right
channel data with the AD1846. The following figures should
make these requirements clear.
TIME
SAMPLE 6
SAMPLE 5 SAMPLE 4 SAMPLE 3 SAMPLE 2 SAMPLE 1
MONO MONO MONO MONO
BYTE 1BYTE 2BYTE 3BYTE 4
Figure 7. 8-Bit Mono Data Stream Sequencing
TIME
SAMPLE 3
SAMPLE 3 SAMPLE 2 SAMPLE 2 SAMPLE 1 SAMPLE 1
Control and Programmed I/O (PIO) Transfers
This simpler mode of transfers is used both for control register
accesses and programmed I/O. The 21 control and PIO data
registers cannot he accessed via DMA transfers. Playback PIO is
activated when both Playback Enable (PEN) is set and Playback
PIO (PPIO) is set. Capture PIO is activated when both Capture
Enable (CEN) is set and Capture PIO (CPIO) is set. See Figures 11 and 12 for the detailed timing of the control register/
PIO transfers. The
actual read and write cycles, respectively. The host holds
RD and WR signals are used to define the
CS
LO during these transfers. The DMA Capture Data Acknowledge (
CDAK) and Playback Data Acknowledge (PDAK) must
be held inactive, i.e., HI.
For read/capture cycles, the AD1846 will place data on the
DATA7:0 lines while the host is asserting the read strobe,
RD,
by holding it LO. For write/playback, the host must place data
on the DATA7:0 pins while strobing the
WR signal LO. The
AD1846 latches the write/playback data on the rising edge of
the
WR strobe.
When using PIO data transfers, the Status Register must be
polled to determine when data should be transferred. Note that
the ADC capture data will be ready (CRDY HI) from the previous sample period shortly before the DAC playback data is
ready (PRDY HI) for the next sample period. The user should
not wait for both ADCs and DACs to become ready before initiating data transfers. Instead, as soon as capture data is ready, it
should be read; as soon as the DACs are ready, playback data
should he written.
Values written to the XCTL1:0 bits in the Pin Control Register
(IA3:0 = 10) will be reflected in the state of the XCTL1:0 external output pins. This feature allows a simple method for signaling or software control of external logic. Changes in state of the
external XCTL pins will occur within one sample period. Because their change is referenced to the internal sample clock, no
useful timing diagram can be constructed.
RIGHT LEFT RIGHT LEFT
Figure 8. 8-Bit Stereo Data Stream Sequencing
SAMPLE 6 SAMPLE 5 SAMPLE 4 SAMPLE 3 SAMPLE 2 SAMPLE 1
Figure 9. 16-Bit Mono Data Stream Sequencing
SAMPLE 3 SAMPLE 3 SAMPLE 2 SAMPLE 2 SAMPLE 1 SAMPLE 1
MONO
RIGHT
MONO
BYTES 1 & 2BYTES 3 & 4
LEFT
BYTES 1 & 2BYTES 3 & 4
Figure 10. 16-Bit Stereo Data Stream Sequencing
REV. A
BYTE 1BYTE 2BYTE 3BYTE 4
TIME
TIME
Figure 11. Control Register/PIO Read Cycle
–21–
AD1846
CDRQ/
PDRQ
OUTPUTS
PDAK
INPUT
CS INPUT
DBEN
OUTPUT
DBDIR
OUTPUT
WR INPUT
DATA7:0
INPUTS
ADR1:0
INPUTS
t
SUDK1
t
t
t
DBDL
t
STW
WDSU
CSHD
t
CSSU
HI
t
ADSU
t
SUDK2
t
t
DHD2
ADHD
Figure 12. Control Register/PIO Write Cycle
Direct Memory Access (DMA) Transfers
The second type of bus cycle supported by the AD1846 are
DMA transfers. Both dual channel and single channel DMA operations are supported. To enable Playback DMA transfers,
playback enable (PEN) must be set and PPIO cleared. To enable Capture DMA transfers, capture enable (CEN) must be set
and CPIO cleared. During DMA transfers, the AD1846 asserts
HI the Capture Data Request (CDRQ) or the Playback Data
Request (PDRQ) followed by the host’s asserting LO the DMA
Capture Data Acknowledge (
knowledge (
PDAK), respectively. The host’s asserted Acknowl-
CDAK) or Playback Data Ac-
edge signals cause the AD1846 to perform DMA transfers. The
input address lines, ADR1:0, are ignored. Data is transferred
between the proper internal sample registers.
The read strobe (
for DMA transfers. Chip select (
RD) and write strobe (WR) delimit valid data
CS) is a “don’t care”; its state
is ignored by the AD1846.
The AD1846 asserts the Data Request signals, CDRQ and
PDRQ, at the rate of once per sample period. PDRQ is asserted
near the beginning of an internal sample period and CDRQ is
asserted late in the same period to maximize the available processing time. Once asserted, these signals will remain active HI
until the corresponding DMA cycle occurs with the host’s Data
Acknowledge signals. The Data Request signals will be
deasserted after the falling edge of the final
RD or WD strobe in
the transfer of a sample, which typically consists of multiple
bytes. See “Data Ordering” above for a definition of “sample.”
DMA transfers may he independently aborted by resetting the
Capture Enable (CEN) and/or Playback Enable (PEN) bits in
the Interface Configuration Register. The current capture
sample transfer will be completed if a capture DMA is terminated. The current playback sample transfer must be completed
if a playback DMA is terminated. If CDRQ and/or PDRQ are
asserted HI while the host is resetting CEN and/or PEN, the request must be acknowledged. The host must assert
or
PDAK LO and complete a final sample transfer.
CDAK and/
Single-Channel DMA
Single-Channel DMA mode allows the AD1846 to be used in
systems with only a single DMA channel. It is enabled by setting
the SDC bit in the Interface Configuration Register. All captures and playbacks take place on the playback channel. Obviously, the AD1846 cannot perform a simultaneous capture and
playback in Single-Channel DMA mode.
Playback will occur in single-channel DMA mode exactly as it
does in Two-Channel mode. Capture, however, is diverted to
the playback channel which means that the capture data request
occurs on the PDRQ pin and the capture data acknowledge
must be received on the
inactive LO. Any inputs to
PDAK pin. The CDRQ pin will remain
CDAK will be ignored.
Playback and capture are distinguished in Single-Channel DMA
mode by the state of the playback enable (PEN) or capture
enable (CEN) control bits. If both PEN and CEN are set in
Single-Channel DMA mode, playback will be presumed.
To avoid confusion of the origin of a request when switching between playback and capture in Single-Channel DMA mode,
both CEN and PEN should be disabled and all pending requests serviced before enabling the alternative enable bit.
Switching between playback and capture in Single-Channel
DMA mode does not require changing the PPIO and CPIO bits
or passing through the Mode Change Enable state except for
initial setup. For setup, assign zeros to both PPIO and CPIO.
This configures both playback and capture for DMA. Then,
switching between playback and capture can be effected entirely
by setting and clearing the PEN and CEN control bits, a technique which avoids having to enter the Mode Change Enable
state.
–22–
REV. A
DMA Timing
PDRQ
OUTPUT
PDAK
INPUT
DATA7:0
INPUTS
WR INPUT
DBEN
OUTPUTS
t
DBDL
t
DKSU
t
DHD2
ISA BUS
BCLK
t
DKHDA
DBDIR
OUTPUT
HI
t
STW
t
DRHD
t
WDSU
CDRQ/
PDRQ
OUTPUTS
CDAK/
PDAK
INPUTS
DATA7:0
RD OR WR
INPUTS
ISA BUS
BCLK
LEFT/LOW
BYTE
RIGHT/HIGH
BYTE
t
BWDN
Below, timing parameters are shown for 8-Bit Mono Sample
Read/Capture and Write/Playback DMA transfers in Figures 13
and 14. Note that in single-channel DMA mode, the Read/
Capture cycle timing shown in Figure 13 applies to the PDRQ
and
PDAK signals, rather than the CDRQ and CDAK signals
as shown. The same timing parameters apply to multibyte transfers. The relationship between timing signals is shown in Figures 15 and 16.
The Host Interrupt Pin (INT) will go HI during the sample period in which the Current Count Register underflows. This
event is referenced to the internal sample period clock which is
not available externally.
ISA BUS
BCLK
CDRQ OUTPUT
t
DRHD
t
CDAK INPUT
DBEN & DBDIR
OUTPUTS
DKSU
t
DBDL
t
DKHDB
AD1846
Figure 14. 8-Bit Mono DMA Write/Playback Cycle
REV. A
t
RDDV
STW
t
DHD1
RD INPUT
DATA7:0
OUTPUTS
t
Figure 13. 8-Bit Mono DMA Read/Capture Cycle
ISA BUS
BCLK
CDRQ/ PDRQ
OUTPUTS
CDAK/ PDAK
INPUTS
RD OR WR
INPUTS
DATA7:0
LOW
BYTE
LEFT SAMPLE RIGHT SAMPLE
Figure 16. 16-Bit Stereo DMA Cycle
t
BWDN
HIGH
BYTE
–23–
Figure 15. 8-Bit Stereo or 16-Bit Mono DMA Cycle
LOW
BYTE
HIGH
BYTE
AD1846
DMA Interrupt
Writing to the internal 16-bit Base Count Register sets up the
count value for the number of samples to he transferred. Note
that the number of bytes transferred for a given count will be a
function of the selected global data format. The internal Current Count Register is updated with the current contents of the
Upper and Lower Base Count Registers when a write occurs to
the Upper Base Count Register.
The Current Count Register cannot be read by the host. Reading the Base Count Registers will only read back the initialization values written to them.
The Current Count Register is decremented every sample period when either the PEN or CEN bit is enabled and also either
the Transfer Request Disable (TRD) bit or the Interrupt Status
(INT) bit is zero. An interrupt event is generated after the Current Count Register is zero and an additional playback sample is
transferred. The INT bit in the Status Register always reflects
the current internal interrupt state defined above. The external
INT pin will only go active HI if the Interrupt Enable (IEN) bit
in the Interface Configuration Register is set. If the IEN bit is
zero, the external INT pin will always stay LO, even though the
Status Register’s INT bit may be set.
POWER UP AND RESET
The PWRDWN pin should be held in its active LO state when
power is first applied to the AD1846. Analog Devices recommends waiting one full second after deasserting
fore commencing audio activity with the AD1846. This will
allow the analog outputs to fully settle to the V
prior to system autocalibration. At any point when powered, the
AD1846 can be put into a state for minimum power consumption by asserting
are shut down. The AD1846’s parallel interface does not function; all bidirectional signal lines are in high impedance state.
Deasserting
initialization. While initializing, the AD1846 ignores all writes
and all reads will yield “1000 0000 (80h).” At the conclusion of
reset initialization, all registers will be set to their default values
as listed in “Control Registers” above. The conclusion of the
initialization period can be detected by polling the index register
for some value other than “1000 0000 (80h).”
It is imperative to autocalibrate on power up for proper operation. See next section.
AUTOCALIBRATION
The AD1846 can calibrate its ADCs and DACs to minimize dc
offsets. Autocalibration occurs whenever the AD1846 returns
from the Mode Change Enable state and the ACAL bit in the
Interface Configuration register has been set. If the ACAL bit is
not set, the RAM normally containing ADC and DAC offset
compensations will he saved, retaining the offsets of the most recent autocalibration. Therefore, it is imperative to autocalibrate
on power up for proper operation.
PWRDWN LO. All analog and digital sections
PWRDWN by bringing it HI begins the AD1846’s
PWRDWN be-
voltage level
REF
The completion of autocalibration can be determined by polling
the Autocalibrate-In-Progress (ACI) bit in the Test and Initialization Register, which will be set during autocalibration. Transfers enabled during autocalibration do not begin until the
completion of autocalibration.
The following summarizes the procedure for autocalibration:
• Mute left and right AUX1 and AUX2 inputs, and digital mix.
(It is unnecessary to mute the DAC outputs, as this will happen automatically.)
• Set the Mode Change Enable (MCE) bit.
• Set the Autocalibration (ACAL) bit.
• Clear the Mode Change Enable (MCE) bit.
• The Autocalibrate-In-Progress (ACI) bit will transition from
LO to HI within five sample periods. It will remain HI for
approximately 384 sample periods. Poll the ACI bit until it
transitions from HI to LO.
• Set to desired gain/attenuation values, and unmute DAC
outputs (if muted), AUX inputs, and digital mix.
During the autocalibration sequence, data output from the
ADCs is meaningless. Inputs to the DACs are ignored. Even if
the user specified the muting of all analog outputs, near the end
of the autocalibration sequence, analog outputs very close to
V
will be produced at the line output.
REF
CHANGING SAMPLE RATES
To change the selection of the current sample rate requires a
Mode Change Enable sequence since the bits which control that
selection are in the Clock and Data Format Register. The fact
that the clocks change requires a special sequence which is summarized as follows:
• If autocalibration will take place at the end of this sequence,
then mute AUX1 and AUX2 inputs and the digital mix.
• Set the Mode Change Enable (MCE) bit.
• In a single write cycle, change the Clock Frequency Divide
Select (CFS2:0) and/or the Clock Source Select (CSS).
• The AD1846 now needs to resynchronize its internal states to
the new clock. Writes to the AD1846 will be ignored. Reads
will produce “1000 0000 (80h)” until the resynchronization is
complete. Poll the Index Register until something other than
this value is returned.
• Clear the Mode Change Enable (MCE) bit.
• If ACAL is set, follow the procedure described in
“Autocalibration” above.
• Poll the ACI bit until it transitions LO (approximately 128
sample cycles).
• Set to desired gain/attenuation values, and unmute DAC out-
puts (if muted).
–24–
REV. A
AD1846
5.1k
1µF
1/2 SSM-2135
OR AD820
L_MIC
V
REF
LEFT ELECTRET
CONDENSER
MICROPHONE
INPUT
5.1k
C
1µF
R_MIC
RIGHT ELECTRET
CONDENSER
MICROPHONE
INPUT
1/2 SSM-2135
OR AD820
1/2 SSM-2135
OR AD820
R
1
C
V
REF
R
1
R
2
R
2
0.33µF
0.33µF
1µF
47k
L_OUT
1µF
47k
R_OUT
HEADPHONE
LEFT
HEADPHONE
RIGHT
L_OUT
R_OUT
470µF
20k
SSM-2135
V
REF
18k
18k
470µF
20k

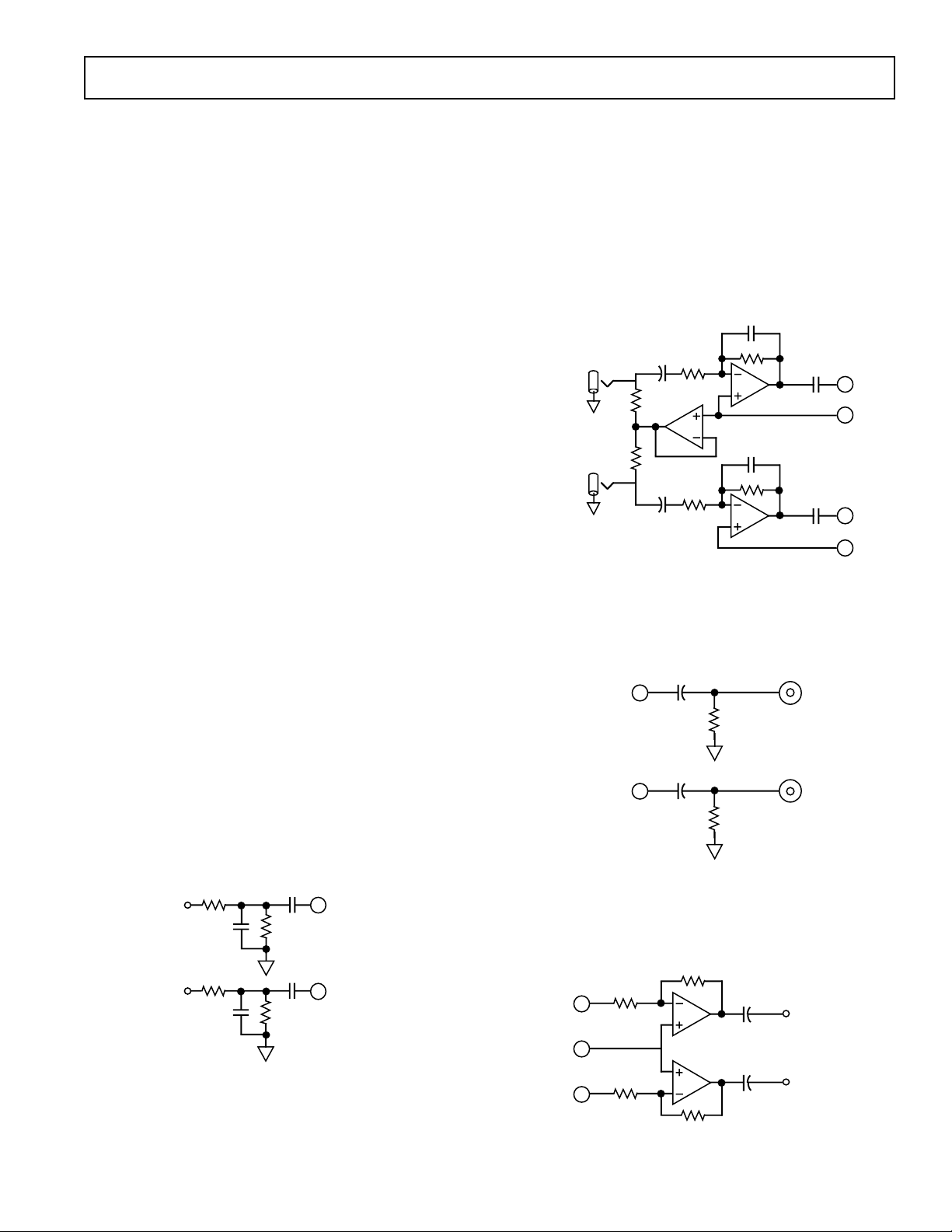

APPLICATIONS CIRCUITS
The AD1846 Stereo Codec has been designed to require a minimum of external circuitry. The recommended circuits are shown
in Figures 17 through 25. Analog Devices estimates that the total cost of all the components shown in these figures, including
crystals but not including connectors, to be less than $10 in the
U.S.A. in 10,000 quantities.
See Figure 1 for an illustration of the connection between the
AD1846 SoundPort Codec and the Industry Standard Architecture (ISA) computer bus, also known as the “PC-AT bus.”
Note that the 74_245 transceiver receives its enable and direction signals directly from the Codec. Analog Devices recommends using the “slowest” 74_245 adequately fast to meet all
AD1846 and computer bus timing and drive requirements. So
doing will minimize switching transients of the 74_245. This in
turn will minimize the digital feedthrough effects of the transceiver when driving the AD1846, which can cause the audio
noise floor to rise.
Industry-standard compact disc “line-levels” are 2 V rms centered around analog ground. (For other audio equipment, “line
level” is much more loosely defined.) The AD1846 SoundPort
is a +5 V only powered device. Line level voltage swings for the
AD1846 are defined to be 1 V rms for a sine wave ADC input
and 0.707 V rms for a sine wave DAC output. Thus, 2 V rms
input analog signals must be attenuated and either centered
around the reference voltage intermediate between 0 V and
+5 V or ac-coupled. The V
pin will be at this intermediate
REF
voltage, nominally 2.25 V. It has limited drive but can be used
as a voltage offset to an op amp input. Note, however, that
dc-coupled inputs are not recommended, as they provide no
performance benefits with the AD1846 architecture. Furthermore, dc offset differences between multiple dc-coupled inputs
create the potential for “clicks” when changing the input mux
selection.
A circuit for 2 V rms line-level inputs and auxiliaries is shown in
Figure 17. Note that this is a divide-by-two resistive divider.
The input resistor and 560 pF capacitor provides the single-pole
of anti-alias filtering required for the ADCs. If line-level inputs
are already at the 1 V rms levels expected by the AD1846, the
resistors in parallel with the 560 pF capacitors can be omitted.
The circuit shown in Figure 17 will produce gain/attenuation
step sizes for the auxiliary inputs which are a function of the
programmed gain/attenuation.
0.33µF
5.1k
0.33µF
5.1k
L_LINE
L_AUX1
L_AUX2
R_LINE
R_AUX1
R_AUX2
REV. A
5.1k
560pF
NPO
5.1k
560pF
NPO
Figure 17. 2 V rms Line-Level Input Circuits
Figure 18 illustrates one example of how an electret condenser
mike requiring phantom power could be connected to the
AD1846. V
is shown buffered by an op amp; a transistor like
REF
a 2N4124 will also work fine for this purpose.
Particular system requirements will depend upon the character-
istics of the intended microphone.
Note that if a battery-powered microphone is used, the buffer
and R
s are not needed. The values of R1, R2s, and C should be
2
chosen in light of the mic characteristics and intended gain.
Typical values for these might be R
= 20 kΩ, R2 = 2 kΩ, and
1
C = 220 pF.
Figure 18. “Phantom-Powered” Microphone Input Circuit
Figure 19 shows ac-coupled line outputs. The resistors are used
to center the output signals around analog ground. If
dc-coupling is desired, V
could be used with op amps as
REF
mentioned previously.
Figure 19. Line Output Connections
A circuit for headphone drive is illustrated in Figure 20. Drive is
supplied by +5 V operational amplifiers. The circuit shown ac
couples the line output to the headphones.
Figure 20. Headphone Drive Connections
–25–
AD1846
+5V SUPPLY
1.6Ω
1µF 0.1µF
V
DD
0.1µF
FERRITE/INDUCTOR
V
CC
V
DD
0.1µF
V
DD
0.1µF
V
DD
0.1µF
V
DD
0.1µF
V
DD
0.1µF
V
DD
0.1µF
0.1µF
0.1µF
1µF
V
CC
1µF
FERRITE/INDUCTOR
Figure 21 illustrates reference bypassing. V
_F should only be
REF
connected to its bypass capacitors.
_
F
V
REF
10µF
0.1µF
V
REF
10µF
Figure 21. Voltage Reference Bypassing
Figure 22 illustrates signal-path filtering capacitors, L_FILT
and R_FILT. The 1.0 µF capacitors required by the AD1846
can be of any type. Note that AD1846s will perform satisfactorily with 0.1 µF capacitors; however, low frequency performance
will be degraded.
L_FILT
1.0µF
R_FILT
1.0µF
Figure 22. External Filter Capacitor Connections
The crystals shown in the crystal connection circuitry of Figure
23 should be fundamental-mode and parallel-tuned. Note that
using the exact data sheet frequencies is not required and that
external clock sources can be used to drive the crystal inputs.
(See the description of the CFS2:0 control bits above.) If using
an external clock source, apply it to the crystal input pins while
leaving the crystal output pins unconnected. Attention should
be paid to providing low jitter external input clocks.
XTAL1OXTAL1I
XTAL2OXTAL2I
Good, standard engineering practices should be applied for
power supply decoupling. Decoupling capacitors should be
place as close as possible to package pins. If a separate analog
power supply is not available, we recommend the circuit shown
in Figure 24 for using a single +5 V supply. This circuitry
should be as close to the supply pins as is practical.
Figure 24. Recommended Power Supply Bypassing
Analog Devices recommends a split ground plane as shown in
Figure 25. The analog plane and the digital plane are connected
directly under the AD1846. Splitting the ground plane directly
under the SoundPort Codec is optimal because analog pins will
be located above the analog ground plane and digital pins will
be located directly above the digital ground plane for the best
isolation. The digital ground and analog grounds should be tied
together in the vicinity of the AD1846. Other schemes may also
yield satisfactory results. If the split ground plane recommended
here is not possible, the AD1846 should be entirely over the
analog ground plane with the 74_245 transceiver over the digital
plane.
20–64pF
24.576MHz
20–64pF
20–64pF
16.9344MHz
20–64pF
Figure 23. Crystal Connections
Low cost ceramic resonators may be substituted for the crystals
to supply the time base to the AD1846.
Analog Devices recommends a pull-down resistor for
PWRDWN.
–26–
DIGITAL GROUND PLANE ANALOG GROUND PLANE
GNDD R_AUX2
AD1846
GNDD R_FILT
Figure 25. Recommended Ground Plane
REV. A
OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
P-68A
68-Lead Plastic Leaded Chip Carrier
AD1846
61
43
60
44
0.175 (4.45)
0.169 (4.29)
0.104 (2.64) TYP
0.050
(1.27)
TYP
0.925 (23.50)
0.895 (22.73)
0.019 (0.48)
0.017 (0.43)
0.029 (0.74)
0.027 (0.69)
0.995 (25.27)
0.885 (22.48)
9
10
26
27
0.954 (24.23)
0.950 (24.13)
PIN 1
IDENTIFIER
TOP VIEW
SQ
SQ
INDEX PAGE
PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . .1
ELECTRICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . .2
ORDERING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PINOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PIN DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
AUDIO FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . .9
Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Analog Mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Analog-to-Digital Datapath . . . . . . . . . . . . . . . . . . . . . . . .9
Digital-to-Analog Datapath . . . . . . . . . . . . . . . . . . . . . . . .9
Digital Mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Analog Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Digital Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power Supplies and Voltage Reference . . . . . . . . . . . . . . . 10
Clocks and Sample Rates . . . . . . . . . . . . . . . . . . . . . . . . .10
CONTROL REGISTERS . . . . . . . . . . . . . . . . . . . . . . . . . .11
Control Register Architecture . . . . . . . . . . . . . . . . . . . . . . 11
Direct Control Register Definitions . . . . . . . . . . . . . . . . .12
Indirect Control Register Definitions . . . . . . . . . . . . . . . .14
DATA AND CONTROL TRANSFERS . . . . . . . . . . . . . . .21
Data Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control and Programmed I/O (PIO) Transfers . . . . . . . .21
Direct Memory Access (DMA) Transfers . . . . . . . . . . . . . 22
Single-Channel DMA . . . . . . . . . . . . . . . . . . . . . . . . . . .22
DMA Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
DMA Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
POWER UP AND RESET . . . . . . . . . . . . . . . . . . . . . . . . . 24
AUTOCALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
CHANGING SAMPLE RATES . . . . . . . . . . . . . . . . . . . . .24
APPLICATIONS CIRCUITS . . . . . . . . . . . . . . . . . . . . . . .25
PACKAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
REV. A
–27–
AD1846
C1966–5–10/94
–28–
PRINTED IN U.S.A.
REV. A
Loading...
