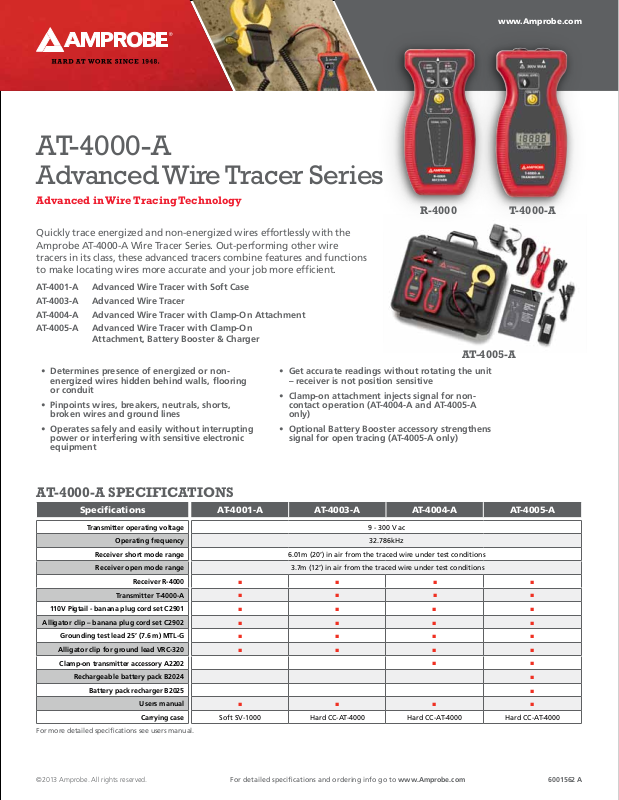

Amprobe AT-4000-A Specifications
AT-4000-A
Advanced Wire Tracer Series
Advanced in Wire Tracing Technology
Quickly trace energized and non-energized wires effortlessly with the
Amprobe AT-4000-A Wire Tracer Series. Out-performing other wire
tracers in its class, these advanced tracers combine features and functions
to make locating wires more accurate and your job more efficient.
AT-4001-A Advanced Wire Tracer with Soft Case
AT-4003-A Advanced Wire Tracer
AT-4004-A Advanced Wire Tracer with Clamp-On Attachment
AT-4005-A Advanced Wire Tracer with Clamp-On
Attachment, Battery Booster & Charger
• Determines presence of energized or nonenergized wires hidden behind walls, flooring
or conduit
• Pinpoints wires, breakers, neutrals, shorts,
broken wires and ground lines
• Operates safely and easily without interrupting
power or interfering with sensitive electronic
equipment
• Get accurate readings without rotating the unit
– receiver is not position sensitive
• Clamp-on attachment injects signal for noncontact operation (AT-4004-A and AT-4005-A
only)
• Optional Battery Booster accessory strengthens
signal for open tracing (AT-4005-A only)
www.Amprobe.com
R-4000 T-4000-A
AT-4005-A
AT-4000-A SPECIFICATIONS
Specifications AT-4001-A AT-4003-A AT-4004-A AT-4005-A
Transmitter operating voltage 9 - 300 V ac
Operating frequency 32.786kHz
Receiver short mode range 6.01m (20’) in air from the traced wire under test conditions
Receiver open mode range 3.7m (12’) in air from the traced wire under test conditions
Receiver R-4000
Transmitter T-4000-A
110V Pigtail - banana plug cord set C2901
Alligator clip – banana plug cord set C2902
Grounding test lead 25’ (7.6 m) MTL-G
Alligator clip for ground lead VRC-320
Clamp-on transmitter accessory A2202
Rechargeable battery pack B2024
Battery pack recharger B2025
Users manual
Carrying case Soft SV-1000 Hard CC-AT-4000 Hard CC-AT-4000 Hard CC-AT-4000
For more detailed specifications see users manual.
©2013 Amprobe. All rights reserved.
■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■
■ ■
■
■
■ ■ ■ ■
For detailed specifications and ordering info go to www.Amprobe.com 6001562 A
AT-4000-A DETAILED SPECIFICATIONS
Specifications Range
Transmitter operating voltage 9 - 300 V ac
Operating frequency 32.786 kHz
Receiver range short mode (in air) 6.01m (20’) in air from the traced wire under test conditions
Receiver range open mode (in air) 3.7m (12’) in air from the traced wire under test conditions
Operating temperature -18°C to 49°C (0 to 120°F)
Storage temperature -40° to 66°C (-40° to 150°F)
Case material ABS
Case size 14 x 6.7mm (0.55” x 0.26”)
Weight (AT-4005-A) 3.72 kg (8.2lbs)
R-4000 Receiver
Detectors Electromagnetic Coil Array pick up for short mode. Electrostatic plate pick up for open mode.
Sensitivity Low, mid, and high gain with precise sensitivity adjustment
Short mode performance Over 6.01m (20’) in air from the traced wire under test conditions.
Open mode performance Over 3.7m (12’) from the traced wire in air under test conditions.
50HZ, 60HZ, and 400HZ rejection 120db
Power source 9V alkaline battery
Display 10 LEDs
Case Flame retardant ABS
Weight 143.5 g (0.32 lbs)
www.Amprobe.com
T-4000-A Transmitter
Operating voltage 9 - 300 V
Operating frequency 32.768 KHZ
Duty cycle Transmit 2 pulses with a duration of 0.0625 seconds each, every 0.5 seconds
Case Flame retardant ABS
Display LCD
Weight 143.5 g (0.32 lbs)
Current output of the signal
Signal output (9v supply) High setting: 0.74 V ac; Medium setting: 0.61 V ac; Low setting: 0.53 V ac
Battery 9V alkaline- 24 V jack will accept battery pack accessory (B2024 or B2025)
Low mode: 11 mA average, 30 mA peak
Medium mode: 12 mA average, 36 mA peak
High mode: 13 mA average, 63 mA peak
Fuse Fast acting 250 mA @ 1000V (6X46mm) P/N: FA6X46MM
A2202 Clamp-on Transmitter Accessory
Operating frequency 32.768KHZ as supplied by T-4000
Case breakdown voltage 3000 V
Maximum wire size 2000 MCM or 5.08cm (2") diameter
T-4000-A B2024 Battery Pack
Type Nickel-cadmium rechargeable (20 AA cells)
Capacity 24 V, 600 mah
Rechargeable time 14 hours
Fuse Internal, self-resetting
B2025 Recharger / Converter
Input 115 V ac
Output 24 V dc @ 350 mah
For complete specifications please download the product datasheet and the users manual on www.Amprobe.com.
