Amprobe AMP-25 Specifications

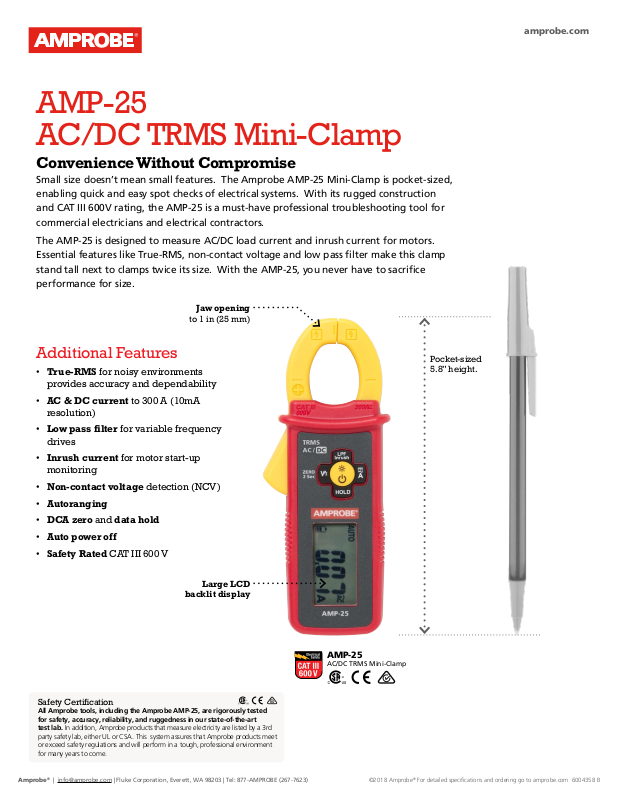

AMP-25 AC/DC TRMS Mini-Clamp

Convenience Without Compromise

Small size doesn’t mean small features. The Amprobe AMP-25 Mini-Clamp is pocket-sized, enabling quick and easy spot checks of electrical systems. With its rugged construction and CAT III 600V rating, the AMP-25 is a must-have professional troubleshooting tool for commercial electricians and electrical contractors.

The AMP-25 is designed to measure AC/DC load current and inrush current for motors.

Essential features like True-RMS, non-contact voltage and low pass lter make this clamp stand tall next to clamps twice its size. With the AMP-25, you never have to sacrice

performance for size.

Jaw opening

to 1 in (25 mm)

amprobe.com

Additional Features

• True-RMS for noisy environments provides accuracy and dependability

• AC & DC current to 300 A (10mA resolution)

• Low pass filter for variable frequency drives

• Inrush current for motor start-up monitoring

• Non-contact voltage detection (NCV)

• Autoranging

• DCA zero and data hold

• Auto power off

• Safety Rated CAT III 600 V

Large LCD

backlit display

Pocket-sized

5.8” height.

Safety Certication

All Amprobe tools, including the Amprobe AMP-25, are rigorously tested for safety, accuracy, reliability, and ruggedness in our state-of-the-art test lab. In addition, Amprobe products that measure electricity are listed by a 3rd

party safety lab, either UL or CSA. This system assures that Amprobe products meet or exceed safety regulations and will perform in a tough, professional environment for many years to come.

AMP-25

AC/DC TRMS Mini-Clamp

AMP-25 Applications

Troubleshoot electrical systems and measure AC/DC

load current on exposed wires

Utilize the inrush current function for motor start-up monitoring.

The non-contact voltage (NCV) function checks for voltage presence.

in a breaker panel.

AMP-25 Detailed Specifications

Feature AMP-25 Best Accuracy

+/-(1.5% + 5 LSD)

AC Current

DC Current

(1)

(2)

Low Pass Filter

True-RMS

Inrush Current

Non-Contact Voltage

Data Hold

(1)

Note

: Crest Factor (C.F.) may be up to 3.0 as 4000 counts.

For non-sinusoidal waveforms: Add 3.0% for C.F. 1.0 to 2.0 Add 5.0% for C.F. 2.0 to 2.5 Add 7.0% for C.F. 2.5 to 3.0 Position error of clamp: +/- 1.5 % of LCD reading

(2)

Add 10 LSD in auto AC/DC sense mode

60.00 / 300.0 A

300.0 A

•

Accessories Included: Carrying case, two 1.5 V LR44 batteries and user manual.

@ 50 to 100 Hz ≥ 3 A

+/-(2.5% + 5 LSD)

@ 100 to 400 Hz ≥ 3 A

+/-(1.5% + 5 LSD)

@ 300 A range

+/-(3.5% + 5 LSD)

@ 50 to 60 Hz ≥ 3 A

General Specications AMP-25

Display

Range

Overrange Indication

Operating Temperature

Operating Altitude

Storage Temperature

Pollution Degree

Temperature Coefcient

Vibration Requirement

Drop Proof

Battery

Battery Life

Low Battery Indication

Auto Power Off

Overvoltage Category

Safety Compliance

EMC Compliance

Agency Approval

Dimensions (H x W x L)

Weight

Jaw Opening & Conductor Diameter

Pocket-sized for quick and easy spot checks of electrical systems.

Digital: 6000 counts, updates 2/sec

Autoranging

OL or -OL

32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH

86 °F to 104°F (30°C to 40 °C), ≤ 75% RH

104 °F to 122°F (40°C to 50 °C), ≤ 45% RH

≤ 2000 m

-4 °F to 140 °F (-20°C to +60°C)

0.2 x (specied accuracy)/

°F(<64.4°F, >82.4°F)/ °C (<18 °C, >28 °C)

MIL-PRF-28800F for A Class 2

4 feet (120 cm)

Two 1.5 V LR44 size button batteries

20 hours typical

Idle for 20 minutes

CAT III 600 V

IEC/EN 61010-1, IEC/EN 61010-2-030,

IEC/EN 61010-2-032

IEC/EN 61326-1

5.8 x 2.4x 1.3 in (147 x 60 x 32 mm)

Approximately 0.31 lb (140 g)

with batteries installed

1.0 in (25 mm) max.
