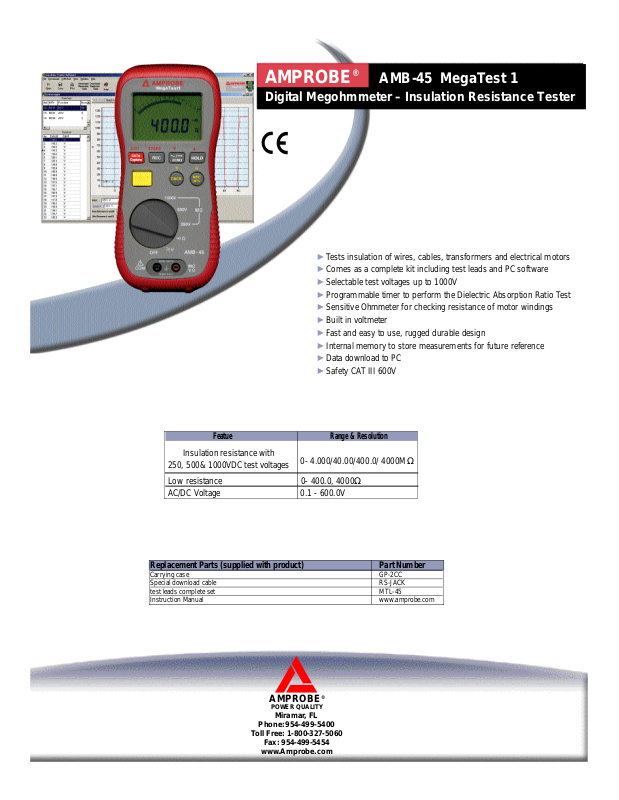

AMB-45 MegaTest 1
Digital Megohmmeter – Insulation Resistance Tester
z
R Tests insulation of wires, cables, transformers and electrical motors
R Comes as a complete kit including test leads and PC software
R Selectable test voltages up to 1000V
R Programmable timer to perform the Dielectric Absorption Ratio Test
R Sensitive Ohmmeter for checking resistance of motor windings
R Built in voltmeter
R Fast and easy to use, rugged durable design
R Internal memory to store measurements for future reference
R Data download to PC
R Safety CAT III 600V
Featue Range & Resolution
Insulation resistance with
250, 500& 1000VDC test voltages
Low resistance 0- 400.0, 4000Ω
AC/DC Voltage 0.1 - 600.0V
Replacement Parts (supplied with product) Part Number
C a r rying case G P - 2 C C
Special download cable R S - J A C K
test leads complete set M T L - 4 5
Instruction Manual w w w.amprobe.com
0- 4.000/40.00/400.0/ 4000MΩ
|
AMPROBE
POWER QUALITY
Miramar, FL
Phone:954-499-5400
Toll Free: 1-800-327-5060
Fax: 954-499-5454
www.Amprobe.com
®
A M P R O B E
®
AMB-45 MegaTest 1
Digital Megohmmeter – Insulation Resistance Tester
GENERAL SPECIFICATION:
• Display:
70 x 46mm LCD with 60 segment analog bar Indicator.
• Over range Indication:
"OL" will be shown on the LCD Panel when an out of range measurement is made.
• Low Battery Indication:
The symbol is displayed indicating a low battery condition.
• Sampling Rate:
2.5 times/sec Digital Display; 10 times/sec Bar Graph
• Power Source:
1.5V AA size Battery X 8
• Operating Temperature and Humidity:
00C to 400C ( 320F to 1040F ), below 80% RH
• Storage Temperature:
-100C to 600C ( 140Fto 1400F )
• Dimension:
230 x 116 x 62 mm ; 9 x 4.6 x 2.4 inch
• Weight:
Approx. 750g(with battery)
• Accessories:
Test Lead, Large Jaw Alligator Clips, Batteries, Instruction Manual, Carrying Case, software, RS-232 cable.
III. ELECTRICAL SPECIFICATION:
AC Voltage
Range Resolution Accuracy
600V 0.1V 1.5%rdg+5dgts
DC Voltage
Range Resolution Accuracy
600V 0.1V 1%rdg+3dgts
Ohms (Autoranging)
Range Resolution Accuracy
400Ω 0.1Ω
4000Ω 1Ω 1%rdg+5dgts
r Continuity beeper
Range Resolution Protection
r 40Ω 250Vms
MΩ (Autoranging)
Range Resolution Accuracy
4/40/400/400M_(250V)
4/40/400/4000M_(500V)
1KΩ
4/40/400/400M_(1000V)
Recording Length: 4000 records
Safety: N-61010-1 600V CAT III 1000V CATII VDE 0413
3%rdg+5dgts < 2GΩ
5%rdg+5dgts < 4GΩ
