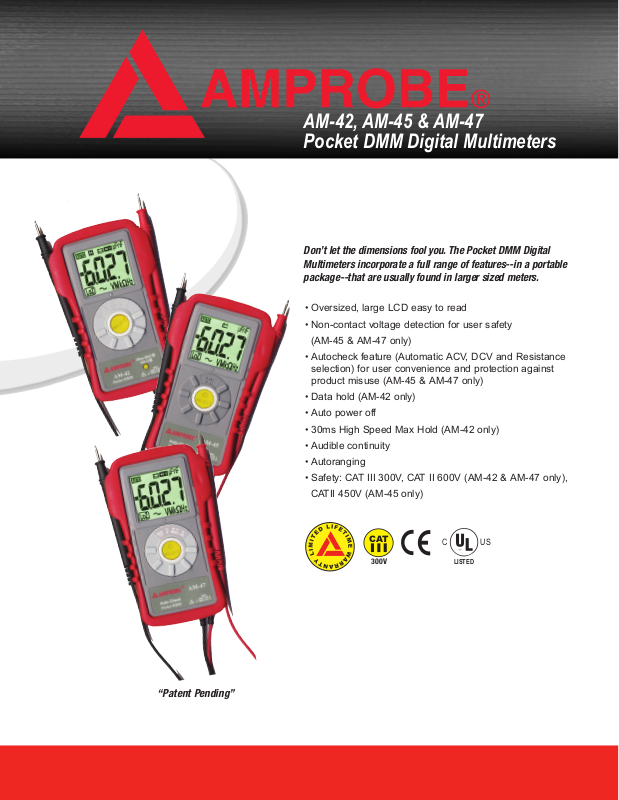

AM-42, AM-45 & AM-47
Pocket DMM Digital Multimeters
Don’t let the dimensions fool you. The Pocket DMM Digital
Multimeters incorporate a full range of features--in a portable
package--that are usually found in larger sized meters.
• Oversized, large LCD easy to read
• Non-contact voltage detection for user safety
(AM-45 & AM-47 only)
• Autocheck feature (Automatic ACV, DCV and Resistance
selection) for user convenience and protection against
product misuse (AM-45 & AM-47 only)
• Data hold (AM-42 only)
• Auto power off
• 30ms High Speed Max Hold (AM-42 only)
• Audible continuity
• Autoranging
• Safety: CAT III 300V, CAT II 600V (AM-42 & AM-47 only),
CATII 450V (AM-45 only)
“Patent Pending”
CAT
300V
z
CUS
{
LISTED
AM-42, AM-45 & AM-47
Pocket DMM Digital Multimeters
CAT
300V
“Patent Pending”
FEATURES AM-42 AM-45 AM-47 ACCURACY
DC Voltage
AC Voltage
Resistance
AC/DC uA Current
Frequency
Capacitance
Non-Contact
Voltage Detection
Diode test
4.000 / 40.00 / 400.0 / 600 V
4.000 / 40.00 / 400.0 / 600 V 6.000 / 60.00 / 450.0V 6.000 / 60.00 /
4.000 / 40.00 / 400.0 kOhms
5.000 /50.00 / 500.0 / 3000uF
0.25mA 0.48mA
400.0 mV
400.0 Ohms
4.000 / 40.00 MOhms
5.000 Hz – 1.000MHz 10.00 Hz – 30.00 kHz +/-(0.5% Rdg + 5 LSD)
500.0 nF
6.000 / 60.00 / 450.0V 6.000 / 60.00 /
600.0V
600.0V
600.0 Ohms
6.000 / 60.00 / 600.0 kOhms
6.000 MOhms
0 - 400uA / 2000uA ± (2.0% Rdg + 3 LSD)
100.0 / 1000 nF
10.00 / 100.0 uF
Bar Graph Indication
15V to 55V 30V to 85V - 55V to 145V - - 85V to 190V - - - Above 120V - - - - -
100.0 / 1000 nF
10.00 /100.0/2000 uF
AM-42: +/-(1% Rdg + 3 LSD)
AM-45 & AM-47: +/-(1.5% Rdg + 5 LSD)
AM-42: +/-(3.5% Rdg + 5 LSD)
AM-45 & AM-47: +/-(1.5% Rdg + 5 LSD)
AM-42: +/-(2.5% Rdg + 4 LSD)
AM-45 & AM-47: +/-(2.0% Rdg + 6 LSD)
+/-(3.5% Rdg + 6 LSD)
z
CUS
{
LISTED
OPTIONAL ACCESSORIES PART NUMBER
Alligator Clips (For test leads) VRC-320
Carrying Case CC-AMHO
