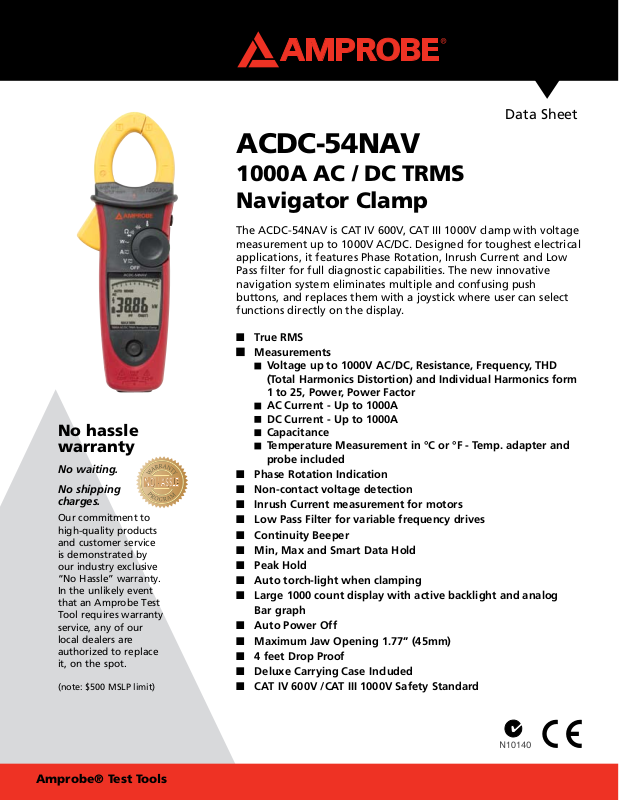

Amprobe ACDC-54NAV Data Sheet

No hassle
warranty

No waiting.

No shipping
charges.

Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.

(note: $500 MSLP limit)

Data Sheet

ACDC-54NAV

1000A AC / DC TRMS
Navigator Clamp

The ACDC-54NAV is CAT IV 600V, CAT III 1000V clamp with voltage
measurement up to 1000V AC/DC. Designed for toughest electrical
applications, it features Phase Rotation, Inrush Current and Low
Pass filter for full diagnostic capabilities. The new innovative
navigation system eliminates multiple and confusing push
buttons, and replaces them with a joystick where user can select
functions directly on the display.

n True RMS

Measurements
 Voltage up to 1000V AC/DC, Resistance, Frequency, THD
(Total Harmonics Distortion) and Individual Harmonics form
1 to 25, Power, Power Factor

 AC Current - Up to 1000A
 DC Current - Up to 1000A

Capacitance
Temperature Measurement in °C or °F - Temp. adapter and
probe included

n Phase Rotation Indication
n Non-contact voltage detection
n Inrush Current measurement for motors
n Low Pass Filter for variable frequency drives
n Continuity Beeper
n Min, Max and Smart Data Hold
n Peak Hold
n Auto torch-light when clamping
n Large 1000 count display with active backlight and analog

Bar graph

n Auto Power Off
n Maximum Jaw Opening 1.77” (45mm)
n 4 feet Drop Proof
n Deluxe Carrying Case Included
n CAT IV 600V /CAT III 1000V Safety Standard

Amprobe® Test Tools

ACDC-54NAV 1000A AC/DC TRMS Navigator Clamp

Data Sheet

General Specifications

AC Current 100.00, 1000.0A ±(1.5% Rdg + 5 LSD)
DC Current 100.00, 1000.0A ±(1.5% Rdg + 5 LSD)
AC Voltage 100.00V, 1000V ±(1.0% Rdg + 5 LSD)
DC Voltage 100.00V, 1000V ±(0.7% Rdg + 2 LSD)
Resistance 1.0000KΩ, 10.00KΩ, 100.00KΩ ±(1.0% Rdg + 3 LSD)
Frequency 20.0Hz to 10KHz ±(0.5% Rdg +3 LSD)
Capacitance 400.0μF, 4.000mF ±(1.9% Rdg + 8 LSD)
Temperature -50°F to 1832°F / -50°C to 1000°C ±(1% Rdg + 0.8°C)
THD (Total Harmonics Distortion) 0.1% to 100.0% ±(3.0% Rdg + 10 LSD)
Individual Harmonics 1 to 25
Power 10kW ~ 1000kW ±(2.5% Rdg + 5 LSD)
Power Factor -1.00 to 1.00 ±3 degrees
Battery Type one 9V alkaline battery
Dimension L260 x W87.3 x H51mm (10.2 x 3.4 x 2in)
Weight 420 g (0.93 lb)
Included Accessories Test Leads (1 pair), Test Probe (1 set), Temp. adapter (1 set), Users Manual, Carrying case.
