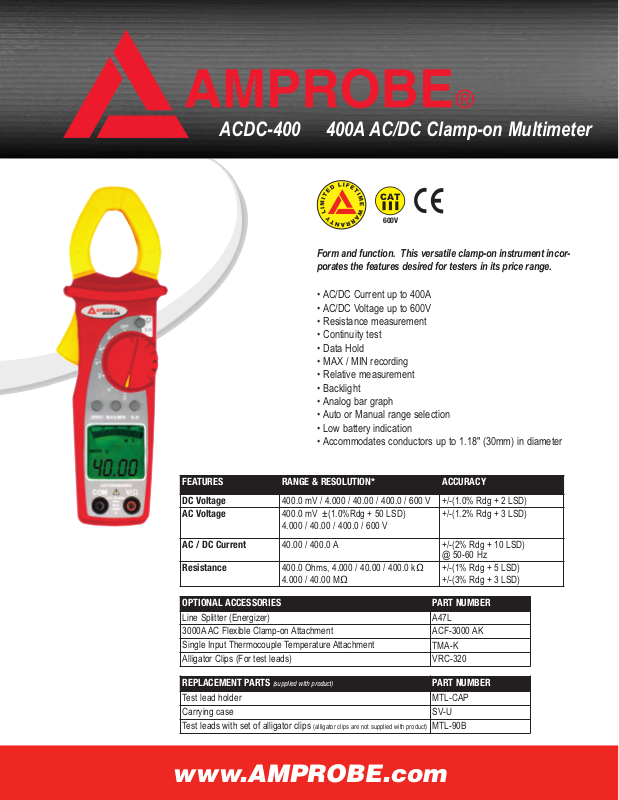

AMPROBE ACDC-400, ACDC-400A Service Manual

ACDC-400 400A AC/DC Clamp-on Multimeter

CAT

z

600V

Form and function. This versatile clamp-on instrument incor­porates the features desired for testers in its price range.

• AC/DC Current up to 400A

• AC/DC Voltage up to 600V

• Resistance measurement

• Continuity test

• Data Hold

• MAX / MIN recording

• Relative measurement

• Backlight

• Analog bar graph

• Auto or Manual range selection

• Low battery indication

• Accommodates conductors up to 1.18" (30mm) in diameter

FEATURES RANGE & RESOLUTION* ACCURACY

DC Voltage
AC Voltage

AC / DC Current

Resistance

OPTIONAL ACCESSORIES PART NUMBER

Line Splitter (Energizer) A47L
3000A AC Flexible Clamp-on Attachment ACF-3000 AK
Single Input Thermocouple Temperature Attachment
Alligator Clips (For test leads) VRC-320

REPLACEMENT PARTS (supplied with product) PART NUMBER

Test lead holder MTL-CAP
Carrying case SV-U
Test leads with set of alligator clips (alligator clips are not supplied with product) MTL-90B

400.0 mV / 4.000 / 40.00 / 400.0 / 600 V +/-(1.0% Rdg + 2 LSD)

400.0 mV ±(1.0%Rdg + 50 LSD)

4.000 / 40.00 / 400.0 / 600 V

40.00 / 400.0 A +/-(2% Rdg + 10 LSD)

400.0 Ohms, 4.000 / 40.00 / 400.0 kΩ

4.000 / 40.00 MΩ

+/-(1.2% Rdg + 3 LSD)

@ 50-60 Hz
+/-(1% Rdg + 5 LSD)

+/-(3% Rdg + 3 LSD)

TMA-K

www.AMPROBE.com

ACDC-400 400A AC/DC Clamp-on Multimeter

SPECIFICATIONS

Safety

Comply with: EN 61010
Insulation: Class 2, double reinforced insulation
Pollution: Level 2
For inside use, max height: 2000m
Over voltage: CAT III 600V

General Data

Mechanical Characteristics:

Size: 205(L) x 64 (W) x 39(H)mm
Weight (including battery): about 280g
Jaws opening: 30mm
Max conductor size: 30mm

Supply:

Batteries type: 2 batteries 1.5V LR03 AAA.
Low battery indication: Symbol " " is displayed when battery

Battery life: About 25 hours.
Display Characteristics: 3 _ LCD w/ maximum reading 3999 units

Sample rate: 2 times/sec.

Conversion mode: mean value

(between ground & input terminal)

level is too low.

plus decimal point signs plus backlight

20 times/sec. for analogical bargraph

ENVIRONMENTAL CONDITIONS

Climatic Conditions:

Reference temperature: 23° ± 5°C
Operating temperature: 5 ÷ 40 °C
Operating humidity: <80% RH
Storage temperature: -10 ÷ 60 °C
Storage humidity: <80% RH

EMC

This apparatus was designed in accordance with EMC standards in force
and its compatibility has been tested in accordance EN61326 (1997) + A1
(1998) + A2 (2001).

ACCESSORIES

CAT

z

600V

Standard Accessories:

The accessories contained inside the packaging are the following:

• Instrument

• Test leads (MTL-90B)

• Rubber test lead holster (MTL-CAP)

• User’s manual (www.Amprobe.com)

• Carrying case (SV-U)

• Batteries

Miramar, FL 33025 • Toll Free: 800-327-5060 • Phone: [phone] • Fax: [phone] • www.Amprobe.com
