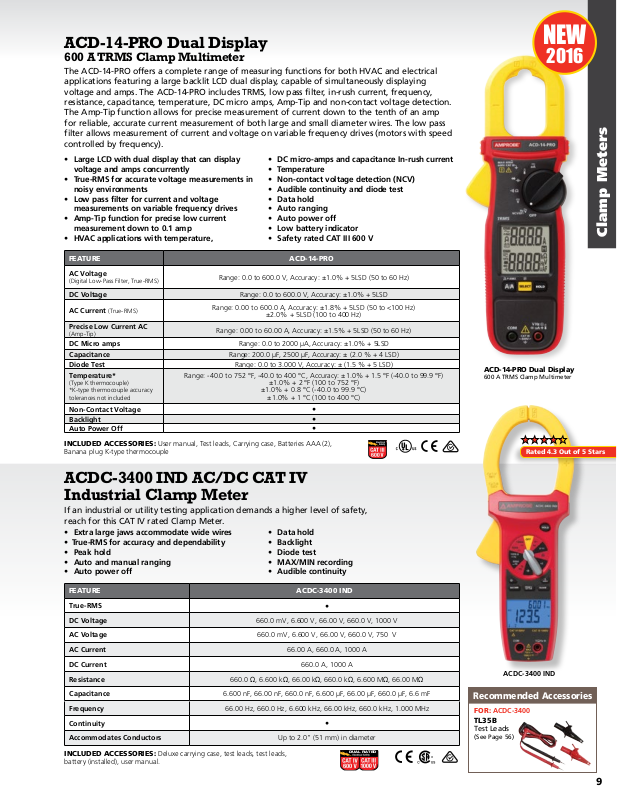

Amprobe ACD-14-PRO, ACDC-3400 IND Catalog Page

ACD-14-PRO Dual Display

DUAL RATED

600 A TRMS Clamp Multimeter

The ACD-14-PRO offers a complete range of measuring functions for both HVAC and electrical applications featuring a large backlit LCD dual display, capable of simultaneously displaying voltage and amps. The ACD-14-PRO includes TRMS, low pass filter, in-rush current, frequency, resistance, capacitance, temperature, DC micro amps, Amp-Tip and non-contact voltage detection. The Amp-Tip function allows for precise measurement of current down to the tenth of an amp for reliable, accurate current measurement of both large and small diameter wires. The low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).

• Large LCD with dual display that can display voltage and amps concurrently

• True-RMS for accurate voltage measurements in noisy environments

• Low pass filter for current and voltage measurements on variable frequency drives

• Amp-Tip function for precise low current measurement down to 0.1 amp

• HVAC applications with temperature,

FEATURE ACD-14-PRO

AC Volt age

(Digital Low-Pass Filter, True-RMS)

DC Voltage Range: 0.0 to 600.0 V, Accuracy: ±1.0% + 5LSD

AC Current

Precise Low Current AC

(Amp -Tip)

DC Micro amps Range: 0.0 to 2000 µA, Accuracy: ±1.0% + 5LSD Capacitance Range: 200.0 µF, 2500 µF, Accuracy: ± (2.0 % + 4 LSD)

Diode Test Range: 0.0 to 3.000 V, Accuracy: ± (1.5 % + 5 LSD)

Temperature*

(Type K thermocouple) *K-type thermocouple accuracy tolerances not included

Non-Contact Voltage Backlight Auto Power Off

INCLUDED ACCESSORIES: User manual, Test leads, Carrying case, Batteries AAA (2), Banana plug K-type thermocouple

(Tr ue -RMS)

Range: -40.0 to 752 °F, -40.0 to 400 °C, Accuracy: ±1.0% + 1.5 °F (-40.0 to 99.9 °F)

Range: 0.0 to 600.0 V, Accuracy: ±1.0% + 5LSD (50 to 60 Hz)

Range: 0.00 to 600.0 A, Accuracy: ±1.8% + 5LSD (50 to <100 Hz)

Range: 0.00 to 60.00 A, Accuracy: ±1.5% + 5LSD (50 to 60 Hz)

• DC micro-amps and capacitance In-rush current

• Temperature

• Non-contact voltage detection (NCV)

• Audible continuity and diode test

• Data hold

• Auto ranging

• Auto power off

• Low battery indicator

• Safety rated CAT III 600 V

±2.0% + 5LSD (100 to 400 Hz)

±1.0% + 2 °F (100 to 752 °F)

±1.0% + 0.8 °C (-40.0 to 99.9 °C)

±1.0% + 1 °C (100 to 400 °C)

•

NEW

2016

ACD-14-PRO Dual Display

600 A TRMS Clamp Multimeter

Rated 4.3 Out of 5 Stars

Clamp Meters

ACDC-3400 IND AC/DC CAT IV Industrial Clamp Meter

If an industrial or utility testing application demands a higher level of safety, reach for this CAT IV rated Clamp Meter.

• Extra large jaws accommodate wide wires

• True-RMS for accuracy and dependability

• Peak hold

• Auto and manual ranging

• Auto power off

FEATURE ACDC-3400 IND

True-RMS

DC Voltage 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V

AC Volt age 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V

AC Current 66.00 A, 660.0 A, 1000 A

DC Current 660.0 A, 1000 A

Resistance

Capacitance 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF

Frequency 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz

Continuity

Accommodates Conductors Up to 2.0” (51 mm) in diameter

INCLUDED ACCESSORIES: Deluxe carrying case, test leads, test leads, battery (installed), user manual.

660.0

• Data hold

• Backlight

• Diode test

• MAX/MIN recording

• Audible continuity

•

, 6.600 kΩ, 66.00 kΩ, 660.0 kΩ, 6.600 MΩ, 66.00 M

•

ACDC-3400 IND

Recommended Accessories

FOR: ACDC-3400

TL35B

Test Leads

(See Page 56)
