An Introduction to the Ampeg SVTMP:
The harmonically rich sound and legendary performance of AMPEG products are redefined in the SVTMP. This rock-solid chunk of equipment is worth its weight in gold on the stage, in the studio, or anywhere a quality microphone preamp is needed. Some of the highlights of the SVTMP include:
•All tube design – one 12AX7, one 12AU7
•Transformer balanced Mic and Line inputs with up to 55dB of gain
•Hi-Z Instrument Input and Thru jacks
•Pad switches for each input – for the best signal to noise ratio and headroom
•Transformer balanced Output
The SVTMP will find its way into your life in a number of ways - as a mic preamp, as a line preamp/driver, or as an instrument preamp/DI to fatten up the sound of your electric or acoustic/electric guitar, bass, keyboard, digital instrument, or your PodTM, J-StationTM, or other processor .
Whether you use it to simply fatten up your instrument or drive a hundred feet of cable, the SVTMP will deliver Ampeg tone and performance unlike any other - it’s not just another brick in the wall - and, it will do it with that unmistakable touch of AMPEG that will leave you floored.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
PRECAUCION
RIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
IMPORTANT SAFETY INSTRUCTIONS
•READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS.
•DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3” (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET.
•DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
•CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
•ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
•PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
•UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
•ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERATION AND TO AVOID INJURY.
•WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
•SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
•OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
•WARNING: THIS UNIT REQUIRES A SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRIC CODES HAVING THE LINE SUPPLY VOLTAGE, POWER, AND FREQUENCY IDENTIFIED ON THE REAR OF THE UNIT. THE OUTLET MUST REMAIN ACCESSIBLE TO DISCONNECT THE UNIT IF A FAULT SHOULD ARISE WHILE IN USE. THIS UNIT SHOULD BE UNPLUGGED WHEN NOT IN USE.
EXPLANATION OF GRAPHICAL SYMBOLS: |
"DANGEROUS VOLTAGE" |
EXPLICACION DE SIMBOLOS GRAFICOS: |
= “VOLTAJE PELIGROSO” |
EXPLICATION DES SYMBÔLES GRAPHIQUES: |
"DANGER HAUTE TENSION" |
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
=“ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.” "REFERREZ-VOUS AU MANUAL D'UTILISATION"
PodTM & J-StationTM are registered trademarks of Line 6 & Johnson Amplification, respectively
Features:
•COMBINATION XLR/1/4” INPUT JACK: Transformer balanced microphone input on XLR connector, transformer balanced Line input on 1/4” T/R/S connector.
•INSTRUMENT INPUT JACKS: Allows connection of an instrument by means of a standard 1/4” plug
•THRU JACK: Allows simultaneous connection to your stage amplifier
•PAD SWITCHES: Attenuate the input signal at the Mic/Line or Instrument Input jacks to accommodate a wide variety of sources - output pad attenuation allows for optimum compatibility with mixers, tape machines, DAW’s, and computer sound cards
•PHASE REVERSE SWITCH: Allows you to invert the phase of the input signal when needed
•GAIN CONTROL: Allows you to add up to 55dB of tube gain to the signal
•TRANSFORMER BALANCED OUTPUT: The high quality XLR connector uses a custom designed transformer to provide the ultimate balanced output signal
•AMPEG QUALITY AND COSMETICS: Lets the world know you mean business

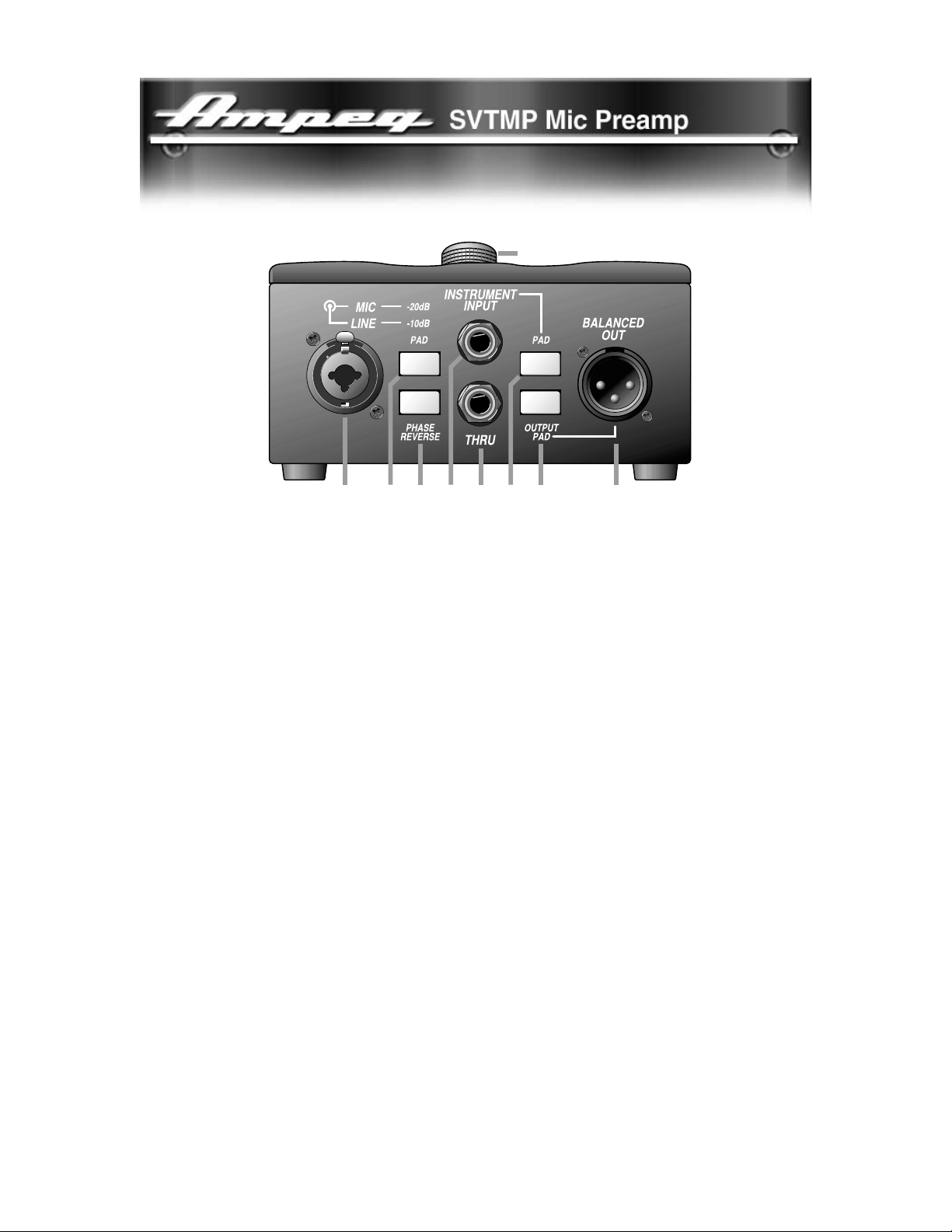

The Front Panel . . . . . . . . . . . . . . . . . . . |
. . . . . . 4-5 |
|

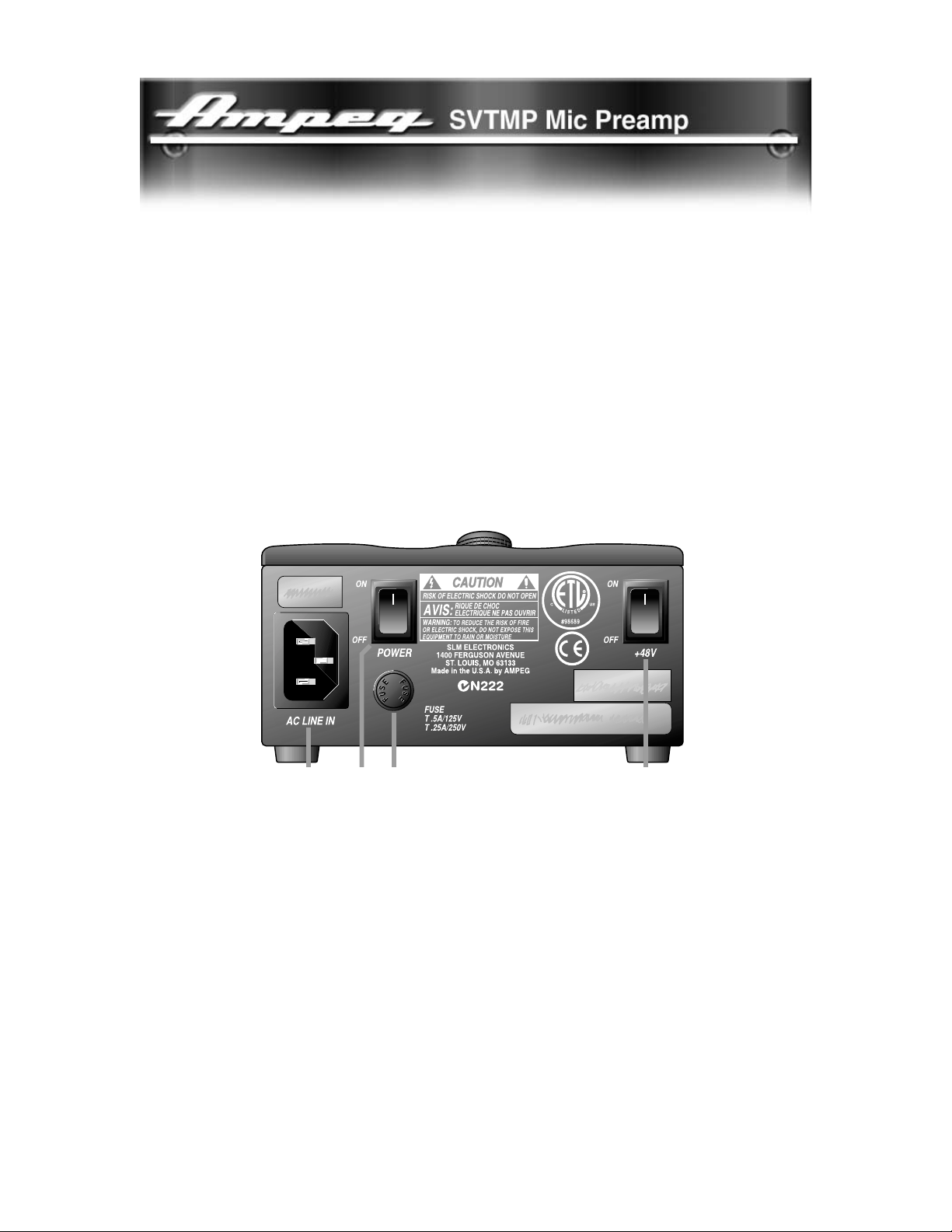

The Rear Panel . . . . . . . . . . . . . . . . . . . . |
. . . . . . . 5 |
|
Important Information About Tubes |
|
|
And Tube Products . . . . . . . . . . . . . . . . . |
. . . . . . 6-7 |
|

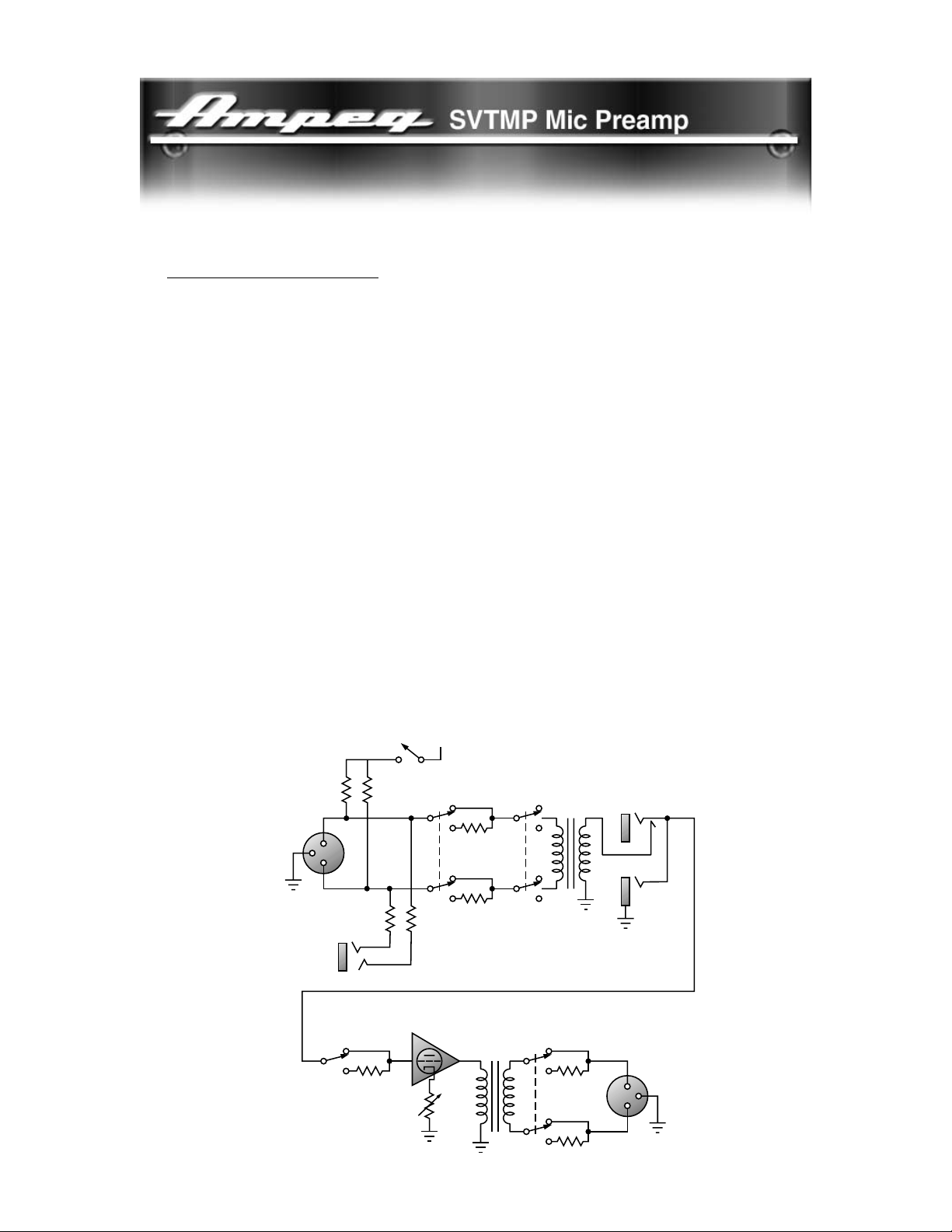

System Block Diagram . . . . . . . . . . . . . . . |
. . . . . . . 7 |
|
Technical Specifications . . . . . . . . . . . . . . |
back cover |
|
|
Declaration of Conformity |
|
Manufacturer’s Name: |
SLM Electronics |
|
Corporate Headquarters: |
1901 Congressional Drive, St. Louis, Missouri 63146 |
|
Primary Production Facility: |
700 Hwy 202 W, Yellville, Arkansas, 72687 |
|
Product Type: |
Audio Amplifier |
|
Products meet the regulations for compliance marking under:
ETL standards UL6500, UL60065, or UL813 CSA standards E60065 or C22.2 No.1-M90 CE safety standard EN60065
CE EMC standards EN55103 or EN55013 and EN61000 FCC standards 47CFR 15.107 and 15.109 Class A
C-tick designation Level 2, ABN #56748810738, ARBN# N222 KETI standard K60065 (limited model approval)
Compliance Support Contact: SLM Electronics, Attn: R&D Compliance Engineer
1901 Congressional Drive, St Louis, Missouri, 63146 • Tel.: 314-569-0141, Fax: 314-569-0175
