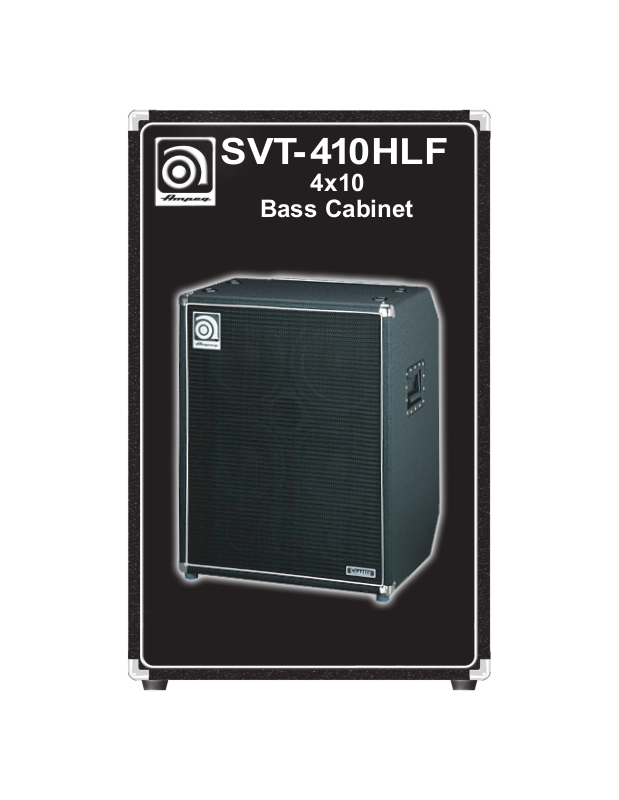

SVT-410HLF 4x10 Bass Cabinet
Your Ampeg SVT-410HLF 4x10 Bass enclosure is a high-
quality
two-way speaker cabinet suitable for all sizes of ven-
ues.
The
cabinet features heavy duty recessed handles, an
industrial
strength grip bar, and heavy duty rear wheels. Skid
rails
are placed on the back of the enclosure to protect it
while
loading in and out of venues.
The
Speakon
®
and 1/4” jacks are wired in parallel, allow-
ing
easy daisy chaining from one speaker to another. Each of
the
jacks may be used as an input or a through connection.
Speakon
®
connectors are recognized as the standard for
professional
installations, assuring a secure, permanent con-
nection
that won’t corrode, vibrate loose or be easily tam-
pered
with. The 1/4” jacks are convenient. However, the
Speakon
®
jacks are recommended when using power ampli-
fiers
over 150 watts, for permanent installations, or for the
“first”
speaker among a number of daisy chained speakers.
Speakon®to 1/4” Wiring Diagram:
1-
1+
1+1-
SVT-410HLF 4x10 Bass Cabinet
1: 1/4” Input/ Output Jacks
2: Speakon®Input/ Output Jacks
3: High Frequency Horn Level Control
The SVT-410HLF Jackplate:
1
2
3
Suggested Hookup Diagram:
(TO 1/4" JACK)
(FROM 1/4" JACK
TO 1/4" JACK)
TO SPEAKON
FROM SPEAKON
TO SPEAKON
Ampeg continually develops new products, as well as improves existing ones. For this reason,
the specifications and information in this manual are subject to change without notice.
47-068-61 • 01/01
AMPEG SVT-410HLF
4x10 Bass Cabinet
TECHNICAL SPECIFICATIONS:
TYPE 4x10 Bass Enclosure
FREQ RESPONSE (+/-3dB) 48Hz-18kHz
USABLE LOW FREQ (-10dB) 28Hz
RMS POWER HANDLING 500 watts
PEAK POWER HANDLING 1000 watts
IMPEDANCE 4 ohms
SENSITIVITY 98dB SPL 1w/1m
MAXIMUM SPL 125dB
COMPONENTS 4 Custom Designed 100 watt 10” speakers
1 high frequency horn
DIMENSIONS (H x W x D) 24” x 30” x 19”
WEIGHT 110 lbs.
Speakon ® is a registered TM of Neutrik AG
CAUTION: THIS SPEAKER IS CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER
