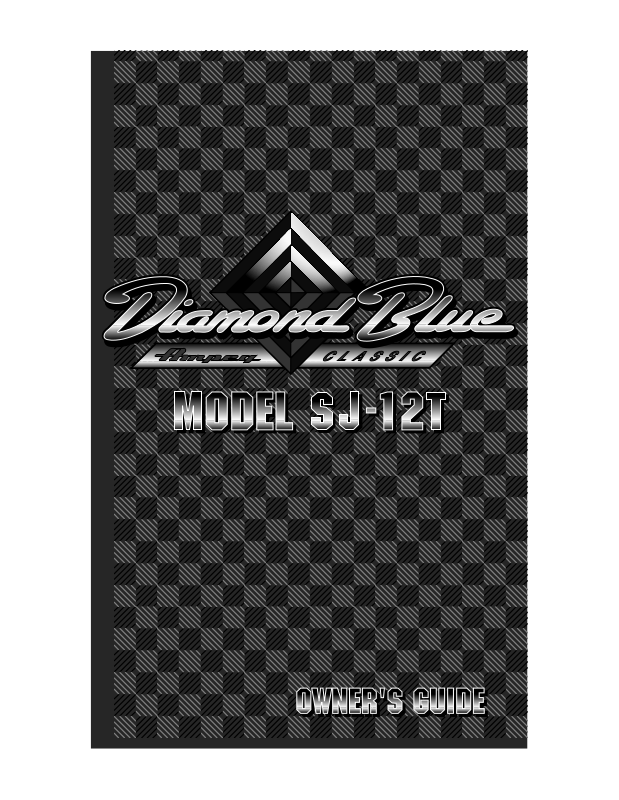

Ampeg SJ-12T User Manual
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;;;;;;;;;
;
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
;;;;;;;;;
yyyyyyyyy
T
able of Contents:
The Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4,5
The Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Important Information About Tubes and Tube Products
A Brief History Of The Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Tube Types And Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7,8
The Nature Of Tubes: Why (And When) To Replace Them . . . . .8,9
The Importance Of Proper Biasing . . . . . . . . . . . . . . . . . . . . . . . .9
Survival Tips For Tube Amplifiers . . . . . . . . . . . . . . . . . . . . . . . .10
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Thank you for selecting the Ampeg Classic SuperJet guitar amplifier. Revived
from the sixties and ready for the nineties, this easy-to-use amplifier represents Ampeg’s quest to provide you the finest instrument amplification systems available. In order to get the most out of your new amplifier, please read
these instructions before its use.
3
IMPORTANT SAFETY INSTRUCTIONS
• READ, FOLLOW, HEED, AND KEEPALL INSTRUCTIONS AND WARNINGS.
• DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR
PROPER OPERATION, THIS UNITREQUIRES 3” (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR
FLOW PROVISIONS IN THE CABINET.
• DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS.
• CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS.
• ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND
COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS.
• PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED.
• UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.
• ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BYTHE MANUFACTURER FOR
SAFE OPERATION AND TO AVOID INJURY.
• WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
• SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
• OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND
PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
"IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL"
“ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES.”
"REFERREZ-VOUS AU MANUAL D'UTILISATION"
EXPLANATION OF GRAPHICAL SYMBOLS:
EXPLICACION DE SIMBOLOS GRAFICOS:
EXPLICATION DES SYMBÔLES GRAPHIQUES:
"DANGEROUS VOLTAGE"
“VOLTAJE PELIGROSO”
"DANGER HAUTE TENSION"
=
=
PRECAUCION
RIESGO DE CORRIENTAZO
NO ABRA
PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS
ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA
LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO.
NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO
REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS.
ATTENTION
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ
AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR
REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE
PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE
REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
Declaration Of Conformity
#35, Effective 01-01-2001
Manufacturer’s Name: SLM Electronics
Production Facility: 11880 Borman Drive, St. Louis, MO 63146, USA
Production Facility: 700 Hwy 202 W, Yellville, AR 72687, USA
Shipping Facility: 1400 Ferguson Ave., St. Louis, MO 63133, USA
Office Facility: 1400 Ferguson Ave., St. Louis, MO 63133, USA
Product Type: Audio Amplifier
Complies with the following Standards:
Safety: EN60065, E60065, C22.2, UL6500 and/or UL813
EMC: Directive 89/336/EEC, EN55103, EN55013, EN61000,
and/or FCC 47CFR 15B clA
Supplementary information provided by:
SLM Electronics - R & D Engineering
1901 Congressional Drive, St Louis, MO 63146, USA
Tel.: 314-569-0141, Fax: 314-569-0175
4
1. Guitar Input accepts the output from
your instrument by means of a shielded
signal cable. This input signal to this jack
is not attenuated and accommodates
instruments with standard output signals.
If your instrument has a strong output
signal, use the Accordion Input (#2).
2. Accordion Input accepts the output
from your instrument by means of a
shielded signal cable. The signal to this
jack is attenuated 6dB to accommodate
instruments with stronger output signals.
3. Volume controls the overall output
level of the amplifier. At lower volume
settings the sound will be clean. As you
push the volume higher and crank your
guitar the sound becomes distorted.
4. Tone controls the overall tonal character of the amplifier. Rotating the knob
toward the “T” (“Treble”) increases the
higher frequencies, giving a brighter,
more “crisp” sound. Rotating the control
towards the “B” (“Bass”) reduces the
high frequencies, giving a darker, more
“muffled” sound. The Tone control offers
a cut or boost of 30dB at 4kHz.
5. Tremolo-Speed sets the rate at which
the tremolo effect “vibrates.” The
Tremolo-Intensity control (#6) must be
turned up to hear the effects of this
knob’s setting.

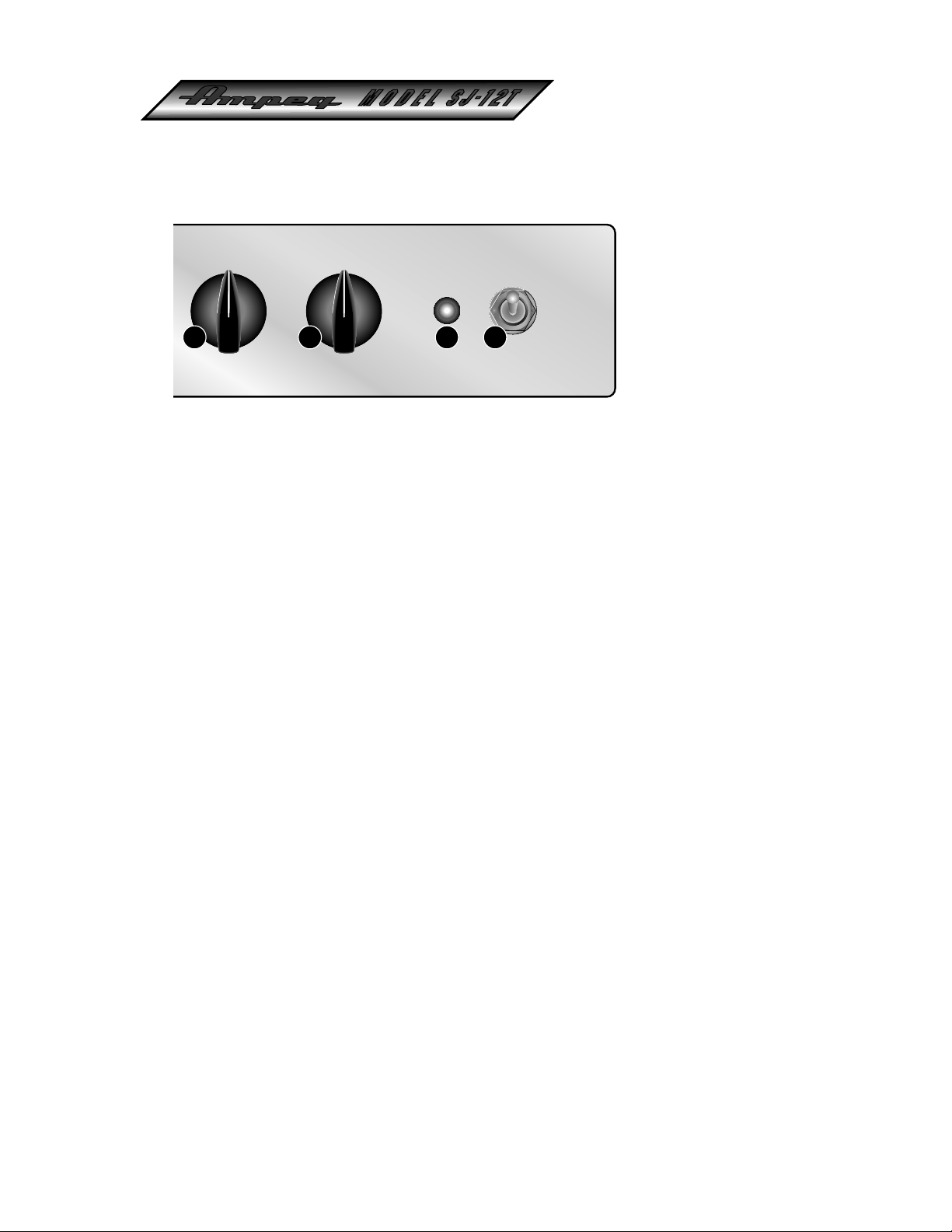

The Front Panel:
MODEL SJ-12T
GUITAR ACCORDION
VOLUME
0
1
2
3
4
5
6
7
8
9
10
TONE
B
0
1
2
3
4
5
6
7
8
9
10
SPEED
0
1
2
3
4
5
6
7
8
9
10
TRE
SUPERJET
T
54321
