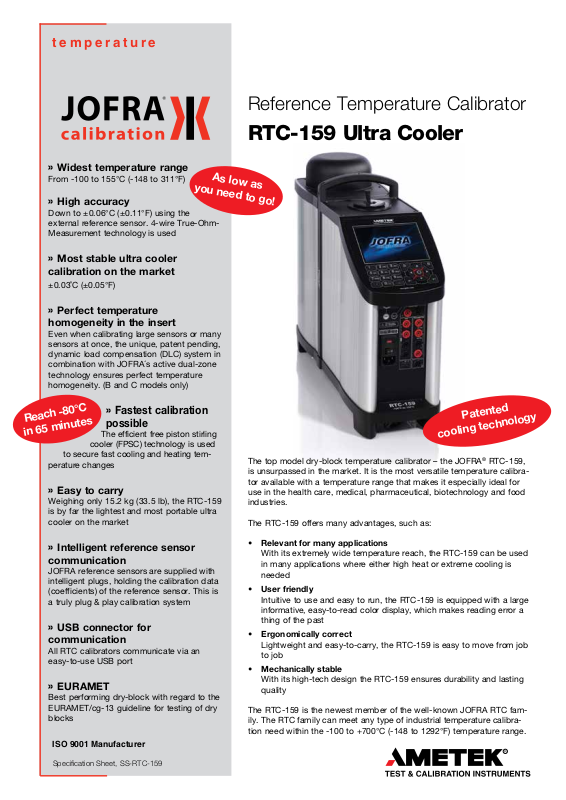

temperature
»
Widest temperature range
From -100 to 155°C (-148 to 311°F)
»
High accuracy
Down to ±0.06°C (±0.11°F) using the
external reference sensor. 4-wire True-OhmMeasurement technology is used
»
Most stable ultra cooler
calibration on the market
±0.03˚C (±0.05°F)
»
Perfect temperature
homogeneity in the insert
Even when calibrating large sensors or many
sensors at once, the unique, patent pending,
dynamic load compensation (DLC) system in
combination with JOFRA´s active dual-zone
technology ensures perfect temperature
homogeneity. (B and C models only)
As low as
you need to go!
Reference Temperature Calibrator
RTC-159 Ultra Cooler
Reach -80°C
in 65 minutes
to secure fast cooling and heating tem-
perature changes
»
Easy to carry
Weighing only 15.2 kg (33.5 lb), the RTC-159
is by far the lightest and most portable ultra
cooler on the market
»
Intelligent reference sensor
communication
JOFRA reference sensors are supplied with
intelligent plugs, holding the calibration data
(coefficients) of the reference sensor. This is
a truly plug & play calibration system
»
USB connector for
communication
All RTC calibrators communicate via an
easy-to-use USB port
»
EURAMET
Best performing dry-block with regard to the
EURAMET/cg-13 guideline for testing of dry
blocks
ISO 9001 Manufacturer
possible
The efficient free piston stirling
cooler (FPSC) technology is used
» Fastest calibration
Patented
cooling technology
The top model dry-block temperature calibrator – the JOFRA
is unsurpassed in the market. It is the most versatile temperature calibrator available with a temperature range that makes it especially ideal for
use in the health care, medical, pharmaceutical, biotechnology and food
industries.
The RTC-159 offers many advantages, such as:
• Relevant for many applications
With its extremely wide temperature reach, the RTC-159 can be used
in many applications where either high heat or extreme cooling is
needed
• User friendly
Intuitive to use and easy to run, the RTC-159 is equipped with a large
informative, easy-to-read color display, which makes reading error a
thing of the past
• Ergonomically correct
Lightweight and easy-to-carry, the RTC-159 is easy to move from job
to job
• Mechanically stable
With its high-tech design the RTC-159 ensures durability and lasting
quality
The RTC-159 is the newest member of the well-known JOFRA RTC family. The RTC family can meet any type of industrial temperature calibration need within the -100 to +700°C (-148 to 1292°F) temperature range.
®
RTC-159,
Specification Sheet, SS-RTC-159
Page 2
Standard features
Best-in-class temperature homogeneity
The RTC series of calibrators provides precision temperature calibration of sensors, whatever the type or format.
USB connector for communication
Another RTC feature is the USB connection that facilitates
easy communication with the calibration management software JOFRACAL. The USB connection also supports easy
download of future firmware upgrades.
The JOFRA RTC-series features our well-known active dualzone heating technology. Each heating zone is independently controlled for precision temperature calibration. The
homogeneity in the lower part is close to that of a laboratory
liquid bath. The lower zone ensures optimum heat dissipation throughout the entire calibration zone. The upper zone
compensates for heat loss from the sensor-under-test and
from the open top. This design also eliminates the need for
extra insulation of sensors-under-test and makes it possible
to calibrate any type of mechanical sensors.
Widest temperature range
The RTC-159 can perform calibration over a very wide
temperature range starting from -100°C and up to 155°C
(-148 to 311°F). The patented technology makes it possible
to perform calibration of sensors in applications ranging from
ultra-coolers to autoclaves.
Fastest temperature calibration
Time is money! This is why all the new RTC calibrators
heat and cool faster than all other calibrators on the market.
This saves you both in production downtime and general
calibration costs.
NEW!
Plug & play
The USB connection provides fast and easy access to all
laptops without the need for RS-232 to USB converters.
Future-proof through e.g. a flash capability for easy firmware upgrades as well as already integrated LAN communication, SD-card slot and USB host connectors.
Efficient cooling technology
The RTC-159 with both heating and cooling capabilities
features the FPSC (Free piston stirling cooler) as the cooling
source.
It is much more efficient than thermo-electric (Peltier) coolers.
Intelligent reference sensor communication
The JOFRA STS-200 intelligent reference sensor as well
as the unique DLC sensor contain all individual calibration
data regarding the sensor.
This means that the time-consuming coefficient
downloading sequence with risk of errors is no longer necessary. As well, the user can change the reference sensor and
be up and running immediately.
With these intelligent reference sensors, AMETEK has eliminated a source of error and the system is now a fail-safe plug
& play calibration system.
Intelligent recalibration information, IRI
In order to comply with ISO, SOP’s and FDA, it is imperative that the calibration equipment never exceeds the
expiry date of the calibration certificate. The RTC calibrator is, when switched on, constantly checking calibration
dates on the calibrator as well as for the connected STS
sensors. If the calibration period has expired, a warning
will appear in the display. This feature prevents costly
consequence evaluation.
Easy to read & user friendly
The new 5.7” full color VGA display is large, bright and very
easy to read – even from a distance. The main temperatures, like SET, READ, TRUE and SUT (sensor-under-test),
are always displayed at all stages of the programming or
calibration procedure.
The navigation is menu-driven and very logical to use and
the display shows important information needed for the
current function in use. The communication window pops
up and is followed by discrete sound messages.
The display contains detailed information at a glance, such
as:
• Stability status
• Load compensation status
• Real time clock
• Serial number of reference sensor
• Sensor-under-test status
Easy to carry
A calibrator is carried from one job to another and therefore it needs to weigh as little as possible. AMETEK has
designed the RTC calibrators to be lightweight and easy
to carry, without compromising quality, durability or functionality.
The RTC-159 weighs only 15.2 kg (33.5 lb), making it one of
the lightest ultra coolers on the market.
2 www.ametekcalibration.com Reference Temperature Calibrator • RTC-159
Page 3
SET-Follows-TRUE (Models B & C only)
The “SET-Follows-TRUE” mode makes the instrument tune
in to the temperature reading of the external reference
“TRUE” meets the desired “SET” temperature. This feature
is important when it is critical that the temperature of the
calibration zone matches the desired temperature when
measured with accurate external reference sensors.
Reading of sensor-under-test (Model B only)
Model B is equipped with a built-in accurate measuring circuit for sensor-under-test (input), which enables measurement of virtually any type of temperature sensors including: Resistance thermometers (RTD), thermocouples (TC),
transmitters, milliamps (mA), voltage (V) and thermostats.
RTC calibrators can be user-programmed from the
keyboard for fully-automatic sensor calibrations. Once the
unit is programmed, the instrument is self-operating and
performs the configured calibration routine. All calibration
data and results are stored and can be read on the display.
Switch test (Model B only)
Users may perform a thermoswitch test and find “Open”,
“Closed” and the hysteresis (deadband) automatically. The
instrument retains the last 20 test results.
Auto stepping
Up to 20 different temperature steps may be programmed
including the hold time for each step. Upon completion of
an auto step routine, the user can read the results for the
sensor-under-test on the RTC display. Results from twenty
auto-step calibrations can be held.
The “Set temperature” feature allows the user to set the
exact desired temperature with a resolution of 0.001°C (0.002°F).
Instrument setups
The RTC series allows the user to store up to 10 complete
instrument setups. You may store all types of information
including temperature units, stability criteria, use of external
reference sensors, resolutions, sensors-under-test (SUT),
conversions to temperature, display contrasts, etc. The
setup may be recalled at any time.
Enhanced stability
A stability indicator shows when the RTC calibrator has
reached the desired temperature and is stable. The user
may change the stability criteria for the external reference
and the sensor-under-test quickly and simply. The stability
criterion is the user’s security of a correct calibration.
A count-down timer is displayed next to the temperature
read-out.
Specially-designed carrying case
AMETEK has designed an all-in-one carrying case that
makes it possible to store both the STS reference sensors and DLC sensors in the carrying case with optimum
physical protection. There is room for inserts and insulation
plugs to cover all sensor-under-test dimensions and compartments for the wires, manuals, certificates, plugs, insert
tools, etc.
All compartments are specially designed to hold the
above-mentioned items
(5 inserts). This makes it
easy to keep track of all
your accessories.
For optimum protection
of the calibrator and the
accessories, the compartments are designed
to hold the accessories
firmly in place during
transportation.
JOFRACAL calibration software
JOFRACAL is a highly versatile
calibration software that is supplied
together with the RTC calibrator.
The software ensures easy calibration of all kind of temperature
sensors, such as RTD´s, thermocouples, transmitters and thermoswitches. Furthermore, it
can be used for pressure calibration i.e. pressure gauges
and pressure switches.
In conjunction with JOFRACAL, RTC calibrators can:
Maximum and minimum temperatures
From the setup menu, the user can select the maximum
and minimum temperature limit for the calibrator. This function prevents damage to the sensor-under-test caused by
excessive temperatures and it helps reduce sensor drift
from exposure to too high temperatures. This feature can
be locked with an access code.
As Found/As Left (Model B only)
When running a calibration initiated from a work order, the
user can select the calibration as an “As Found” or an “As
Left” calibration.
Calibration of indication devices
When calibrating an indicating device in work order
mode, users may key in the results during or after the test.
Using the “Calibration Info” function, the user may view the
complete calibration task, including the “Scenario” before
the calibration takes place.
• Operate as a stand-alone instrument, using advanced
calibration routines without the assistance of a personal computer on site. This is the work order functionality
• Prevent unauthorized changes to a calibration routine.
Personnel who are not authorized to alter a calibration
routine cannot do so
Once all calibrations are completed, the data may be uploaded to JOFRACAL for printing of certificates. The data
collected may be stored on the personal computer for
later recall or analysis.
JOFRACAL offers extended output formats of the captured calibration data such as PDF file format and ASCII/
semicolon separated text format for further processing
and calculation of data in spreadsheets and word processors.
Free download at www.jofra.com
www.ametekcalibration.com 3RTC-159 • Reference Temperature Calibrator
Page 4
Optional features

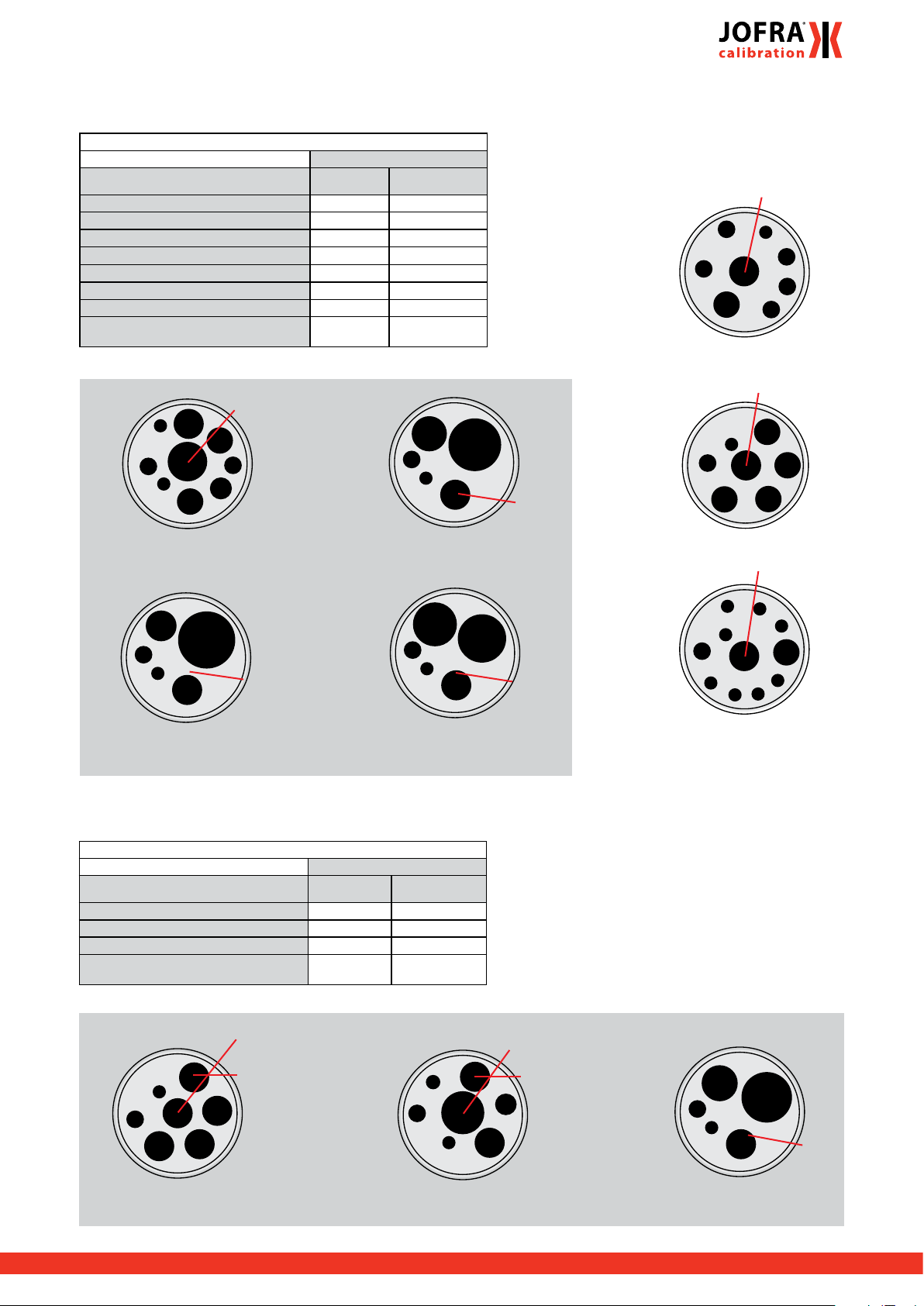

Dynamic Load Compensation (DLC)
All RTC calibrators feature active dual-zone temperature
control, which improves the homogeneity in the well by
adjusting the temperature at the top of the well to the
same temperature as at the bottom. The dual-zone keeps
the temperature differences to a minimum.
To bring the well-documented active dual-zone technology
to an even higher level, AMETEK has developed a patentpending, new dynamic load compensation (DLC) system.
This system makes it possible to achieve exceptional calibration specifications without being affected by the actual
load (e.g. many sensors or very large sensors).
A Dynamic Load Compensation Sensor has been developed specifically for the RTC. This has been done to
improve homogeneity by controlling the temperature not
only within the well, but also inside the insert, where the
sensors-under-test are placed during calibration.
The DLC Sensor is placed in the insert and connected to
the calibrator. When the DLC function is enabled, the calibrator will automatically equalize the temperature homogeneity inside the insert. This will together with the standard
temperature control and stabilization, provide feedback
to the active dual-zone system, which compensates the
temperature difference to a minimum. In this way, the DLC
function makes temperature homogeneity less dependent
on the load of the insert.
DLC – user advantages
Calibrating with DLC sensor gives the following advantages:
1. Calibration of several sensors simultaneously
2. Calibration of thick sensors
3. Gives thermo sensitive length (TLS) independency. It is
no longer necessary to know the TLS of the sensor
4. Compensates for sensor production tolerances like the
PT100 element being mounted in various positions in
the sensor
5. Trouble free calibration of sensors with PT100 elements
up to 40 mm length
6. The DLC indicator proves that the dual-zone is active
and functioning well
7. Proves that the calibrator is working perfect. The DLC
value should be very close to 0.00 when the calibrator
is loaded with DLC sensor and an external reference
sensor
8. Together with the stability indication, the DLC indicates
when the calibration values can be read
When the DLC functionality is enabled, the RTC is the best
performing dry-block calibrator on the market, when being
calibrated and tested according to the globally accepted
EURAMET/cg-13 guideline for calibration and testing of
dry blocks.
Unique reference sensors
The new STS-200 reference sensors and DLC sensors are
designed with a 90˚ angled rod to fit the calibrator so they
are only slightly higher than the top of the RTC calibrator.
The unique design makes it possible to calibrate threaded
sensors and sensors with connection heads without any
problems.
STS-200 reference sensors also alert you when your calibration has expired.
Increased capacity with JOFRA ASM
Using the RTC series together with the ASM, Advanced
Signal Multi-scanner, offers a great time-saving automatic
solution to calibrate multiple temperature sensors at the
same time. The ASM series is an eight channel scanner
controlled by JOFRACAL software on a PC. Up to 3 ASM
units can be stacked to calibrate up to 24 sensors at a
time. It can handle signals from 2-, 3- and 4 wire RTD’s,
thermocouples, transmitters, temperature switches and
voltage.
More information can be found on www.jofra.com
Sensor support rod
The support rod is lightweight and easy to mount on the
RTC. Two fixing holes are integrated in the calibrator where
the support rods can be mounted.
Multi-hole insert kits
Two special multi-hole insert kits have been developed
to comply with calibration of almost any sensor diameter
without having to buy numerous inserts.
The first kit is a metric insert kit consisting of four inserts
covering all diameters from 3 to 13 mm. The other is an
imperial insert kit consisting of three inserts covering six
different sizes from 1/8” to 7/16”.
All inserts have holes for both STS reference sensors and
DLC sensors.
With this new insert kit in the carrying case, the calibration
technician is now able to calibrate all commonly-used sensor sizes with just one insert.
4 www.ametekcalibration.com Reference Temperature Calibrator • RTC-159
Page 5

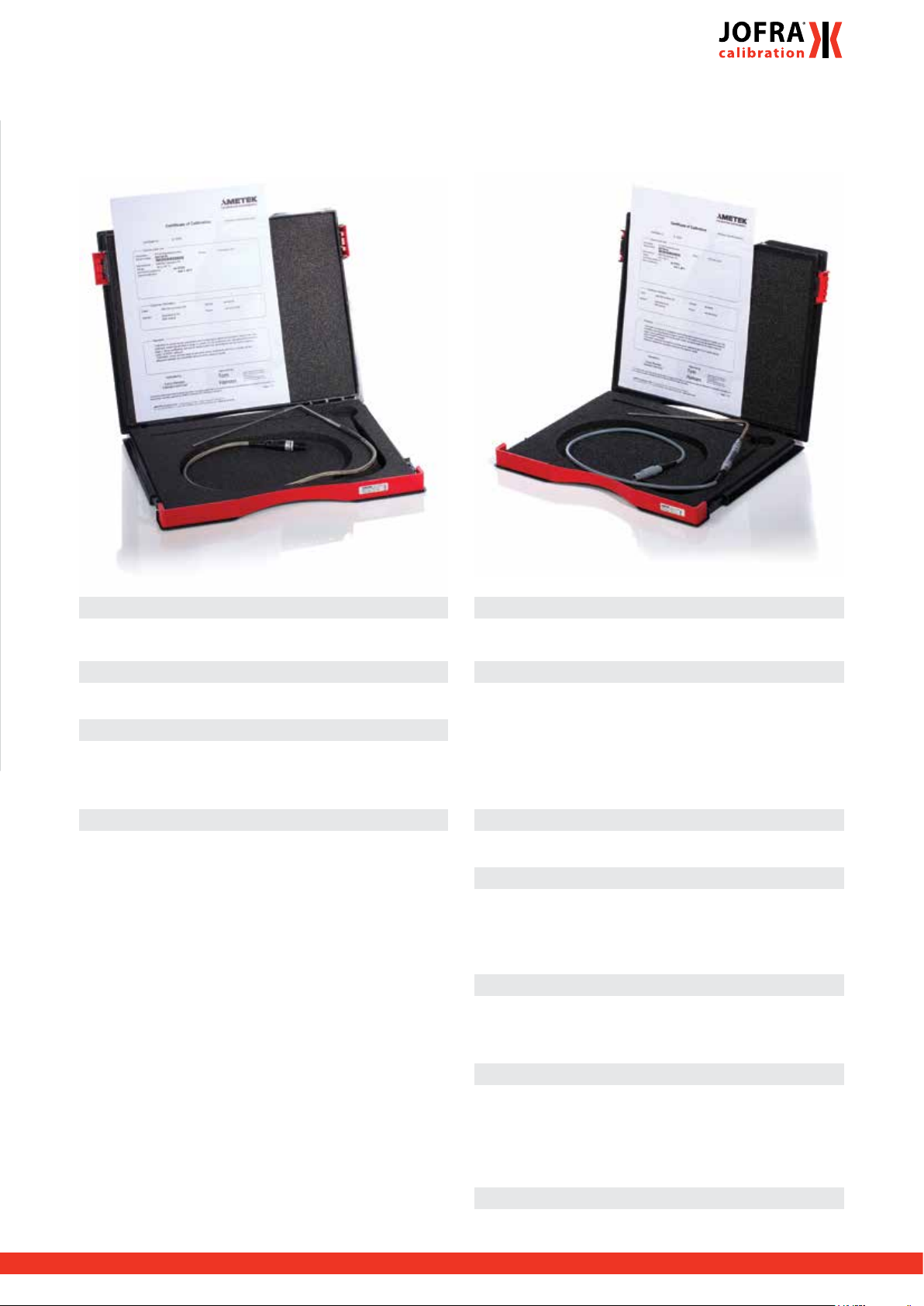

Optional: DLC sensor and Reference sensor
Dynamic Load Compensation Sensor
JOFRA DLC-159
SPECIFICATIONS DLC-159
Superiour Temperature Reference Sensor
JOFRA STS-200
SPECIFICATIONS STS-200 A/B 917
Temperature range
DLC-159 ................................. -100 to 155°C/-148 to 311°F
Sensing element
Type ...............................................................Differencial TC
Dimensions
Diameter ........................................................3 mm / 0.12 in
Length .......................................................196 mm / 7.72 in
Max height on calibrator top .........................8 mm / 0.31 in
Standard delivery
DLC-159
Plastic protection case
Accredited certificate
Manual
Temperature range
All sensors .............................. -100 to 155°C/-148 to 311°F
Accuracy
Hysteresis
Long term stability
Repeatability
1)
When used in the range -100 to 155°C / -148 to 311°F
2)
When exposed to 155°C / 311°F for 100 hours. Stability will
depend on actual use of the sensor.
1)
@ 0°C / 32°F ............................ 0.01°C / 0.02°F
2)
@ 0°C / 32°F .... typ. 0.014°C / 0.025°F
1)
.......................................... 0.002°C / 0.004°F
Sensing element
Type ............................................................................ PT100
Response time
STS-200 A (4 mm / 0.16 in): τ
STS-200 A (4 mm / 0.16 in): τ
STS-200 B (6.35 mm / 0.25 in): τ
STS-200 B (6.35 mm / 0.25 in): τ
(50%) .......................9 sec.
0.5
(90%) .....................26 sec.
0.9
(50%) ................18 sec.
0.5
(90%) ................44 sec.
0.9
Dimensions
Diameter .......................... 4 mm / 0.16 in or 1/4” / 6.35 mm
Length .......................................................192 mm / 7.56 in
Max height on calibrator top .......................22 mm / 0.87 in
Standard delivery
STS-200 A/B sensor
Plastic protection case
Accredited certificate
Cable
Manual
Compatible JOFRA instruments
DTI-050
www.ametekcalibration.com 5RTC-159 • Reference Temperature Calibrator
Page 6
FUNCTIONAL SPECIFICATIONS
Temperature range
RTC-159
@ ambient temp. 0°C/32°F ....-100 to 155°C/-148 to 311°F
@ ambient temp. 23°C/73°F ..-100 to 155°C/-148 to 311°F
@ ambient temp. 40°C/104°F ..-83 to 155°C/-117 to 311°F
Patented heating technology; Patent No.: EP2074374/US8342742
Accuracy (model B & C) with external STS ref. sensor
RTC-159 B & C ......................................... ±0.06°C/±0.11°F
12-month period. Relative to reference standard. Specifications
by use of the external JOFRA STS-200 reference sensor
Accuracy with internal reference sensor
RTC-159 A, B & C ..................................... ±0.30°C/±0.54°F
Stability
RTC-159 .................................................±0.03°C/±0.054°F
Measured after the stability indicator has been on for 15 minutes.
Measuring time is 30 minutes.
Radial homogeneity (difference between holes)
RTC-159 .........................................................0.01°C/0.02°F
Resolution
All temperatures ......................1° or 0.1° or 0.01° or 0.001˚
Heating time
RTC-159 -100 to 23°C/-148 to 73°F ........... 12 minutes
23 to 155°C/73 to 311°F .............. 14 minutes
Cooling time
RTC-159 155 to 23°C/311 to 73°F .............. 40 minutes
23 to -80°C/73 to -112°F ............. 65 minutes
-80 to -90°C/-176 to -130°F ........ 20 minutes
-90 to -100°C/-194 to -148°F ...... 50 minutes
23 to -100°C/73 to -148°F ......... 135 minutes
155 to -100°C/311 to -148°F ..... 175 minutes
Time to stability (approx.)
RTC-159 ............................................................. 10 minutes
Immersion depth
RTC-159 ...................................................... . 190 mm/6.3 in
(user-selectable)
INPUT SPECIFICATIONS
All input specifications apply to the dry-block of the calibrator
running at the respective temperature (stable plus an additional
20 minute period).
All input specifications are valid for RTC-159.
RTD reference input (B & C models only)
Type .................. 4-wire RTD with true ohm measurements
F.S. (Full Scale) ...................................................... 400 ohm
Accuracy (12 months) ......
RTD Type Temperature 12 months
°C °F °C °F
Pt100
reference
Note 1: True ohm measurement is an effective method to
1)
eliminate errors from induced thermoelectrical voltage
DLC sensor input (B & C models only)
Type Temperature 12 months
°C °F °C °F
DLC-159
Patent pending.
RTD sensor-under-test input (B model only)
F.S. (range) ............................................................. 400 ohm
Accuracy (12 months).................. ±(0.002% Rdg.+0.002% F.S.)
F.S. (range) ........................................................... 4000 ohm
Accuracy (12 months) ........ ±(0.005% Rdg. + 0.005% F.S.)
2-wire ............................................................ add 50 mOhm
RTD Type Temperature 12 months
°C °F °C °F
Pt1000
Pt500
Pt100
±(0.0012% rdg. + 0.0005% F.S.)
-100 -148 ±0.007 ±0.013
0 32 ±0.008 ±0.015
155 311 ±0.011 ±0.020
-100 -148 ±0.014 ±0.025
0 32 ±0.010 ±0.018
155 311 ±0.010 ±0.018
-100 -148 ±0.057 ±0.103
0 32 ±0.064 ±0.115
155 311 ±0.075 ±0.136
-100 -148 ±0.107 ±0.193
0 32 ±0.116 ±0.209
155 311 ±0.119 ±0.214
-100 -148 ±0.023 ±0.042
0 32 ±0.026 ±0.047
155 311 ±0.030 ±0.054
1)
6 www.ametekcalibration.com Reference Temperature Calibrator • RTC-159
Page 7
Thermocouple input
Thermocouple types .................. E, J, L, K, N, R, S, T, U, B
Range ..................................................................... ±78 mV
F.S. (Full Scale) ......................................................... 78 mV
Accuracy (12 months) ........ ±(0.005% Rdg. + 0.005% F.S.)
TC Type Temperature 12 months*
°C °F °C °F
E
J
.
K
T
R
S
N
XK
(only in Russian
versions)
U
* Excl. CJC accuracy ±0.3˚C / ±0.54˚F
-100 -148 ±0.10 ±0.18
0 32 ±0.06 ±0.11
155 311 ±0.06 ±0.11
-100 -148 ±0.10 ±0.18
0 32 ±0.08 ±0.14
155 311 ±0.09 ±0.16
-100 -148 ±0.14 ±0.25
0 32 ±0.10 ±0.18
155 311 ±0.11 ±0.20
-100 -148 ±0.15 ±0.27
0 32 ±0.10 ±0.18
155 311 ±0.08 ±0.14
-50 -58 ±1.30 ±2.34
0 32 ±0.78 ±1.40
155 311 ±0.47 ±0.85
-50 -58 ±0.98 ±1.76
0 32 ±0.78 ±1.40
155 311 ±0.49 ±0.88
-100 -148 ±0.20 ±0.36
0 32 ±0.15 ±0.27
155 311 ±0.13 ±0.23
-100 -148 ±0.09 ±0.16
0 32 ±0.06 ±0.11
155 311 ±0.06 ±0.11
-100 -148 ±0.13 ±0.23
0 32 ±0.10 ±0.18
155 311 ±0.08 ±0.14
Communication interface
Serial data interface .............................USB 2.0 device port
Serial data interface ...................USB 2.0 host double port*
LAN ...................................... Ethernet MAC 10/100 Base-T*
SD ............................................................................ SD slot*
* for future expansion
Miscellaneous
Operating temperature ......................0 to 40°C/32 to 104°F
Storage temperature ....................... -20 to 50˚C/-4 to 122˚F
Humidity ......................................................... 0 to 90% RH
Protection class ..........................................................IP-10
PHYSICAL SPECIFICATIONS
Weight and instrument size (L x W x H)
RTC-159 ....................................................... 15.2 kg/33.5 lb
RTC-159 ............531 x 169 x 432 mm/20.9 x 6.65 x 17.0 in
Shipping (including carrying case)
RTC-159 .......................................................... 38 kg/83.8 lb
RTC-159 ............800 x 500 x 800 mm/31.5 x 19.7 x 31.5 in
Note: Shipped on ½ pallet, binded

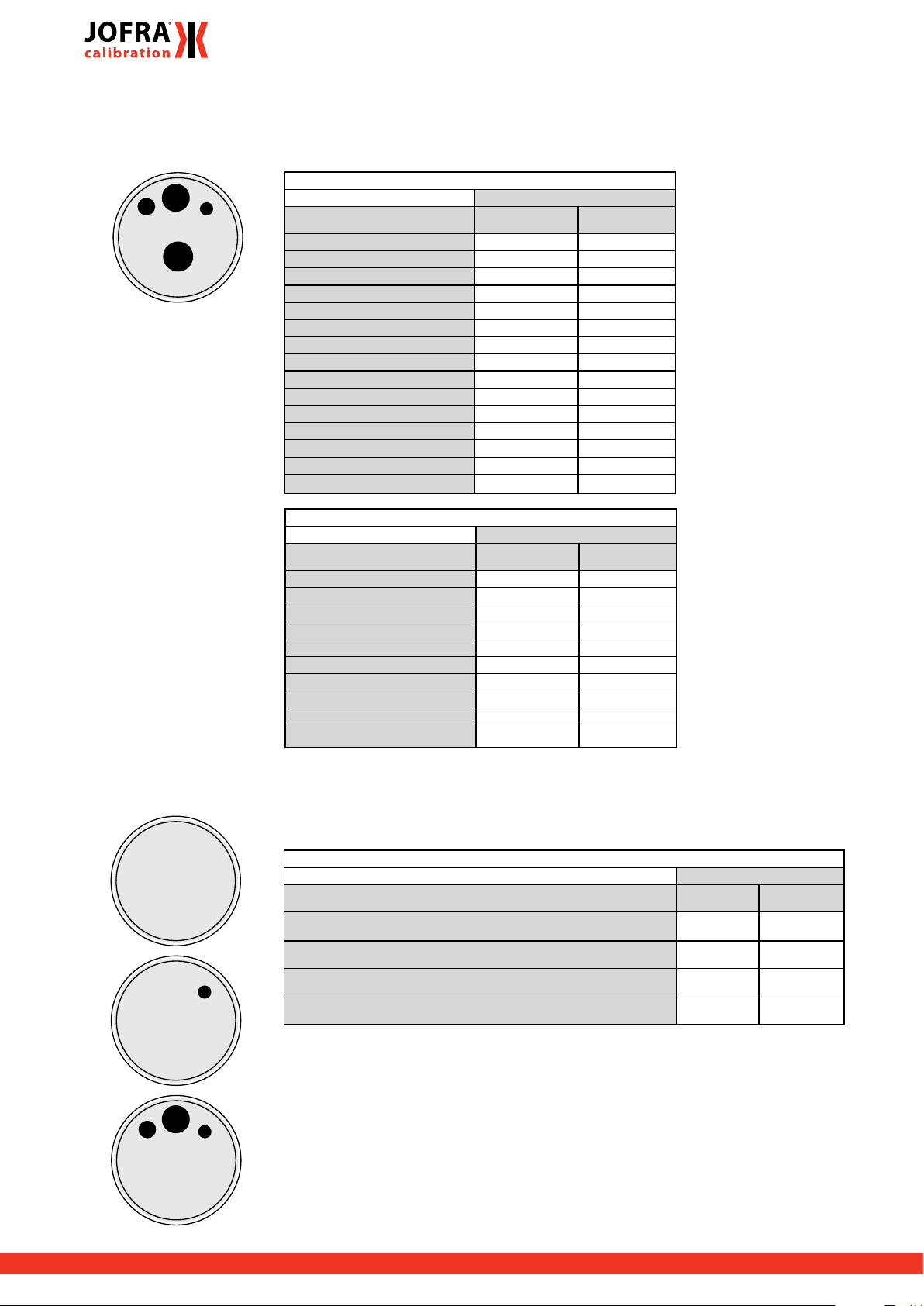

INSERTS
Insert dimensions
RTC-159 outer diameter ............................29.7 mm/1.17 in
RTC-159 inner diameter ............................ 25.6 mm/1.01 in
RTC-159 length ........................................... 150 mm/5.91 in
Transmitter supply
Output voltage ................................................ 24VDC ±10%
Output current .......................................... Maximum 28 mA
Transmitter input mA
(B model only)
Range ................................................................. 0 to 24 mA
Accuracy (12 months) ..........±(0.005% Rdg. +0.010% F.S.)
Voltage input VDC
(B model only)
Range: .............................................................. 0 to 12 VDC
Accuracy (12 months) ..........±(0.005% Rdg. +0.010% F.S.)
Switch input
(B model only)
Switch dry contacts
Test voltage ............................................... Maximum 5 VDC
Test current ..............................................Maximum 2.5 mA
Mains specifications
Voltage ...............................115V (90-127) / 230V (180-254)
Frequency, non US deliveries ...............50 Hz ±5, 60 Hz ±5
Frequency, US deliveries .......................................60 Hz ±5
Power consumption (max.) .......................................450 VA
Weight of non-drilled insert
(approx.)
RTC-159 ......................................................... 290 g/10.2 oz
Use of other inserts may reduce the performance of the
calibrator. To get the best results, the insert dimensions,
tolerance and material is critical. We advise using JOFRA
inserts, as they guarantee trouble-free operation.
www.ametekcalibration.com 7RTC-159 • Reference Temperature Calibrator
Page 8
PREDRILLED INSERTS FOR RTC-159
All predrilled inserts have holes for:
4 mm reference sensor • ¼” reference sensor • 3 mm hole for DLC sensor
All inserts are supplied with an insulation plug drilled with the necessary holes.
Spare part no. for predrilled inserts with reference and DLC holes
Metric
Sensor diameter Insert code
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
16 mm
Package of the above inserts
Spare part no. for predrilled inserts with reference and DLC holes
Imperial
Sensor diameter Insert code
1/8 in
3/16 in
1/4 in
5/16 in
3/8 in
7/16 in
1/2 in
9/16 in
5/8 in
Package of the above inserts
Note 1: Use the insert code, when ordering a JOFRA standard insert together with the RTC calibrator.
Instrument
1
RTC-159 A/B/C
003 128477
004
005
006
007
008
009
010
011
012
013
014
015
016
SMM 128492
Instrument
1
125
187
250
312
375
437
500
562
625
SIM 128491
128478
128479
128480
128481
128482
128483
128484
128485
128486
128487
128488
128489
128490
RTC-159 A/B/C
128468
128469
128470
128471
128472
128473
128474
128475
128476
UNDRILLED INSERTS FOR RTC SERIES
Inserts, undrilled incl. insulation plugs
Instrument
UN1
UN2
UN3
1
RTC-159 A/B/C
128453
128454
128455
126040
Inserts Insert code
5-pack, undrilled inserts with no holes
5-pack, undrilled inserts with hole for DLC sensor
5-pack, undrilled inserts with two holes for STS reference sensors
(4mm & ¼”) and 1 hole for DLC sensor
Undrilled insulation plug
Note 1: Use the insert code, when ordering a JOFRA standard undrilled insert together with the RTC calibrator.
8 www.ametekcalibration.com Reference Temperature Calibrator • RTC-159
Page 9
MULTI-HOLE INSERTS FOR RTC-159 - METRIC (MM)
All inserts are supplied with an insulation plug drilled with the necessary holes.
Spare part no. for multi-hole inserts - metric (mm)
Instrument
M01
M02
M03
M04
M07
M08
M09
SMX
1
RTC-159 A/B/C
128456
128457
128458
128459
128462
128463
128464
128466
Insert type Insert code
Multi-hole type 1
Multi-hole type 2
Multi-hole type 3
Multi-hole type 4
Multi-hole type 7
Multi-hole type 8
Multi-hole type 9
Set of four Metric Multi Inserts, 3mm to
13mm (M04, M07, M08 & M09)
Note 1: Use the insert code, when ordering a JOFRA standard multi-hole insert together with the RTC calibrator.
4 mm
6 mm
4 mm
Multi-hole M01
1/4”
3 mm
4 mm
4 mm
4 mm
3 mm
4 mm
3 mm
7 mm
4 mm
3 mm
1/4”
6 mm
Multi-hole M04
Multi-hole M07
9 mm
6 mm
4 mm
5 mm
13 mm
1/4”
Set of four Metric Multi Inserts
8 mm
4 mm
3 mm
10 mm
4 mm
3 mm
12 mm
1/4”
Multi-hole M08
11 mm
1/4”
Multi-hole M09
MULTI-HOLE INSERTS FOR RTC-159 - IMPERIAL (INCH)
All inserts are supplied with an insulation plug drilled with the necessary holes.
4 mm
6 mm
3 mm
4 mm
3 mm
3 mm
Multi-hole M02
3 mm
3 mm
Multi-hole M03
1/4”
6 mm
6 mm
6 mm
1/4”
3 mm
3 mm
6 mm
3 mm
3 mm
Spare part no. for multi-hole inserts - imperial (inch)
Instrument
M05
M06
M10
SIX
1
RTC-159 A/B/C
128460
128461
128465
128467
1/8”
4 mm
3 mm
Multi-hole M06
Set of three Imperial Multi Inserts
3/8”
1/4”
3/16”
1/4”
Insert code
Multi-hole type 5
Multi-hole type 6
Multi-hole type 10
Set of three Imperial Multi Inserts, 1/8 to
7/16” (M05, M06 & M10)
Note 1: Use the insert code, when ordering a JOFRA standard multi-hole insert together with the RTC calibrator.
1/4”
3 mm
4 mm
1/4”
1/4”
1/4”
1/4”
Insert code
Multi-hole M05
4 mm
3 mm
www.ametekcalibration.com 9RTC-159 • Reference Temperature Calibrator
5/16”
7/16”
1/4”
Multi-hole M10
Page 10
FUNCTIONAL COMPARISON

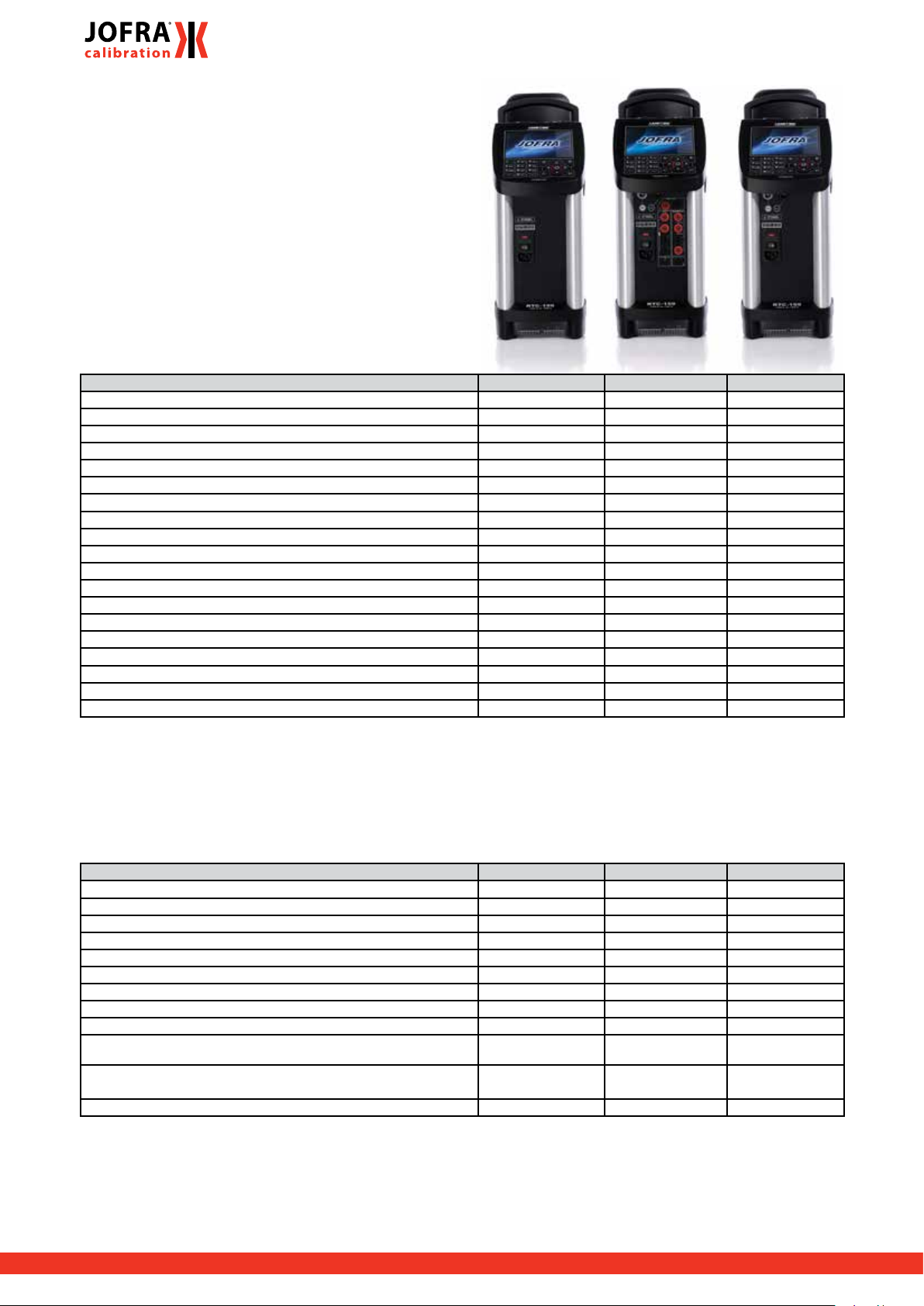

Model A Model B Model C
Input None ref, DLC and SUT ref and DLC
Dual-zone heating/cooling block • • •
MVI - Mains Variance Immunity (or similar) • • •
Stability indicator • • •
Automatic step function • • •
USB communication • • •
Display resolution 0.001˚C/°F/K • • •
Programmable max. temperature • • •
SYNC output (for external recording device) • • •
External precision reference sensor input • •
External precision DLC reference sensor input • •
“SET” follows “TRUE” • •
Load compensation functionality • •
Input for RTD, TC, V, mA •
4-20 mA transmitter input incl. 24 VDC supply •
All inputs scalable to temperature •
Automatic switch test (open, close and hysteresis) •
Download of calibration work orders from PC •
Upload of calibration results (As Found & As Left) •
Ref = Reference sensor, STS-200
DLC = Dynamic Load Compensation
SUT = sensor-under-test
STANDARD DELIVERY
Model A Model B Model C
RTC dry-block calibrator (user spcified) • • •
Mains power cable (user specified) • • •
Tool for insertion tubes • • •
JOFRACAL • • •
USB cable • • •
Set of rubber cones for insulation plugs • • •
Carrying case • • •
Manual • • •
Traceable certificate - temperature performance • • •
Traceable certificate
- input performance for reference sensor and DLC sensor
Traceable certificate
- input performance for sensor-under-test inputs
Test cables (2 x red, 2 x black) •
10 www.ametekcalibration.com Reference Temperature Calibrator • RTC-159
• •
•
Page 11
ORDERING INFORMATION
Order number Description
Base model number
RTC159 RTC-159 series, -100˚C to 155˚C (-148˚F to 311˚F)
Model version
A Basic model, without input
B Full model, incl. DLC sensor input, Reference sensor input, Sensor-under-test input
C Middle model, incl. DLC sensor input, Reference sensor input,
Power supply (US deliveries 60 Hz only)
115 115V AC
230 230VAC
Mains power cable
A European, 230V
B USA/Canada, 115V
C UK, 240V
D South Africa, 220V
E Italy, 220V
F Australia, 240V
G Denmark, 230V
H Switzerland, 220V
I Israel, 230V
Insert type and size
NON No insert selected (standard)
UNX 1 x Undrilled Insert (Please see Insert selection for code)
XXX 1 x Single hole insert (Please see Insert selection for code)
MXX 1 x Multi hole insert (Please see Insert selection for code)
SIX Set of 3 Imperial multi hole inserts. Covering holes from 1/8” to 7/16”
SMX Set of 4 Metric multi hole inserts. Covering holes from 3mm to 13mm
SIM Set of 9 Imperial inserts. Covering holes from 1/8” to 5/8”
SMM Set of 14 Metric inserts. Covering holes from 3mm to 16mm
Dynamic L oad Compensat ion (B & C models only, optional)
DLC DLC sensor (DLC159)
STS Reference sensor (B & C models only, optional )
R14 STS-200 Ref. sensor. Dia. 4mm. Length 192mm (STS200A917EH)
R15 STS-200 Ref. sensor. Dia. 1/4”. Length 192mm (STS200B917EH)
Calibration Certificate
F Traceable Callibration Certificate. (standard)
H Accredited Calibration Certificate - ISO17025
EA Full EURAMET Calibration Certificate - ISO17025
FS Traceable System Calibration Certificate (B & C model only)
HS Accredited System Calibration Certificate (B & C model only) - ISO17025
EAS Full EURAMET System Calibration Certificate (B & C model only) - ISO17025
EASD Full EURAMET System Calibration Certificate with DLC (B & C model only) - ISO17025
Accessories
CT Solid Protective Carrying case with trolley (Carrying case included in standard delivery)
TR Solid Protective Carrying case with trolley & Support rod set
Sample order number
RTC159 B 230 A SM DLC R2 EA CT
JOFRA RTC-159 B with 230VAC, EU power cord, set of metric inserts, DLC, STS-200 ref. sensor, full E A temp.
calibration certificate, and carrying case with trolley.
www.ametekcalibration.com 11RTC-159 • Reference Temperature Calibrator

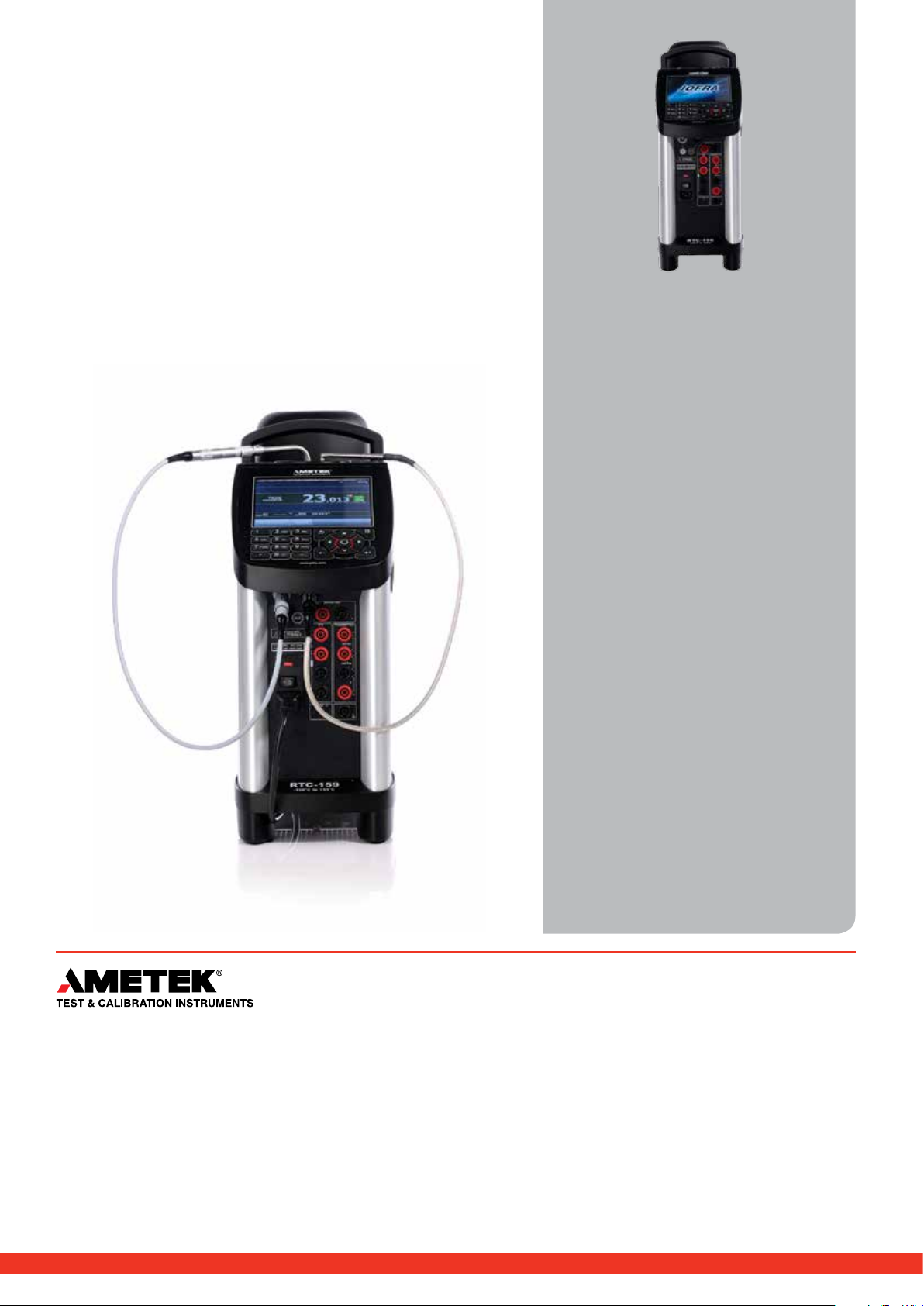

Page 12
ACCESSORIES
125066 Extra fixture for sensor grip
125067 Extra sensor grip
122771 Mini-Jack connector for stable relay output
120516 Thermocouple Male Plug - Type J - Black
120517 Thermocouple Male Plug - Type K - Yellow
120514 Thermocouple Male Plug - Type N - Orange
120515 Thermocouple Male Plug - Type T - Blue
120518 Thermocouple Male Plug - Type R / S - Green
120519 Thermocouple Male Plug - Type Cu-Cu - White
A business unit of AMETEK Measurement & Calibration
leading brands for test and calibration instrumentation.
Portable dry-block calibrators, precision thermometers
and liquid baths. Temperature sensors for industrial and
Convenient electronic systems ranging from -25 mbar to
1000 bar - fully temperature -compensated for problem-
Process signal measurement and simulation for easy
Pneumatic floating-ball or hydraulic piston dead weight
testers with accuracies to 0.015% of reading. Pressure
accurate, easy-to-use and reliable. Designed for use in
the harshest environments; most products carry an IS,
covering Texture Analysers to perform rapid, general
food testing and detailed texture analysis on a diverse
Allows measurement and characterization of moisture-
have earned their reputation for quality, reliability and
accuracy and they represent the de facto standard for
AMETEK Test & Calibration Instruments
Technologies Division offering the following industry
JOFRA Calibration Instruments
Temperature Calibrators
marine use.
Pressure Calibrators
free and accurate field use.
Signal Instruments
control loop calibration and measurement tasks.
M&G Dead Weight Testers & Pumps
generators delivering up to 1,000 bar.
Crystal Pressure
Digital pressure gauges and calibrators that are
IP67 and DNV rating.
Lloyd Materials Testing
Materials testing machines and software that
guarantees expert materials testing solutions. Also
range of foods and cosmetics.
Davenport Polymer Test Equipment
sensitive PET polymers and polymer density.
Chatillon Force Measurement
The hand held force gauges and motorized testers
force measurement.
Newage Hardness Testing
Hardness testers, durometers, optical systems and
software for data acquisition and analysis.
United Kingdom
Tel +44 (0)1243 833 302
jofra@ametek.co.uk
France
Tel +33 (0)1 30 68 89 40
general.lloyd-instruments@ametek.fr
Germany
Tel +49 (0)2159 9136 510
info.mct-de@ametek.de
Denmark
Tel +45 4816 8000
jofra@ametek.com
Information in this document is subject to change without notice. ©2013 by AMETEK, Inc., www.ametek.com. All rights reserved.
USA
Florida
Tel +1 (800) 527 9999
cal.info@ametek.com
California
Tel +1 (800) 444 1850
sales@crystalengineering.net
India
Tel +91 22 2836 4750
jofra@ametek.com
12 www.ametekcalibration.com
www.ametekcalibration.com
Singapore
Tel +65 6484 2388
jofra@ametek.com
China
Shanghai
Tel +86 21 5868 5111
Beijing
Tel +86 10 8526 2111
Guangzhou
Tel +86 20 8363 4768
jofra.sales@ametek.com.cn
Pub code SS-RTC-159 Issue 1308
Loading...
