t e m p e r a t u r e
Specification Sheet
SS-CP-2285-US
Model ATC-156/157/320 and 650
Advanced Temperature
Calibrator
Wide temperature range
ATC-156 -24 to 155°C (-11 to 311°F)
ATC-157 -45 to 155°C (-49 to 311°F)
ATC-320 33 to 320°C (91 to 608°F)
ATC-650 33 to 650°C (91 to 1202°F)
Improved temperature homogeneity
Unique dual-zone block ensures good
temperature homogeneity in the critical
calibration zone
High accuracy
Using the internal reference or the external reference sensor. 4-wire True-OhmMeasurement technology is used
Enhanced stability
MVI circuitry ensures temperature stability
despite mains supply variations
Cost effective calibration system
Stand-alone operation eliminates the need
for secondary equipment and PC.
Universal inputs handle multiple type temperature sensors
Timesaving features
Up- and download complete calibration
tasks. Auto-stepping, switch testing and
many more features make the daily use
smooth and fast
Documentation made easy
RS232 communication and JOFRACAL
calibration software are included in the
standard delivery
Complete marine program
Part of a complete program of marine
approved temperature, pressure and signal
calibrators; including temperature sensors
PRODUCT DESCRIPTION
The JOFRA ATC series
(Advanced Temperature
Calibrators) combines
the accuracy of laboratory temperature sources with the speed and
portability of field dryblock calibrators.
The unique dual-zone
design sets new standards for optimum temperature performancein dry-block calibrators.
Features
The JOFRA ATC-156/157/320 and 650 all features the unique dual-zone
heating block - designed for optimum performance and superior temperature homogeneity throughout the block. This new design has a performance equivalent to a liquid temperature bath. The ATC-157 features the
widest temperature range for a cooling dry-block on the market today.
Each ATC dry-block calibrator may be used to perform fully automatic
calibration routines without using an external computer. Use the computer for full upload and download capabilities. Units may also be supplied
with inputs for external reference sensors and for sensors-under-test. All
ATC calibrators feature RS232 serial communication and standard delivery also includes the JOFRACAL calibration PC software.
The ATC-156/157/320 and 650 dry-block calibrators are part of a serie of
calibrators, that also includes the ATC-140 (-20 to 140°C) and the ATC250 (28 to 250°C) available as liquid bath or large diameter dry-block
calibrators.
See more about the ATC-140 and ATC-250 calibrators at page 5 or in
specification sheet SS-CP-2284 at www.jofra.com
ISO 9001 Manufacturer
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
Unique temperature performance
The ATC series of calibrators provide precision temperature calibration of sensors; whatever the type or format.
This is accomplished through an innovative dual-zone
heating technology.
The JOFRA ATC-156/157/320 and 650 all feature a dualzone heating technology. Each heating zone is independently controlled for precision temperature calibration. The
homogeneity in the lower part is close to that of a laboratory liquid bath. The lower zone ensures optimum heat
dissipation throughout the entire calibration zone. The
upper zone compensates for heat loss from the sensorunder-test and from the open top. This design also eliminates the need for insulation of the sensors-under-test
and makes it possible to calibrate liquid-filled and other
mechanical sensors.
MVI - Improved temperature stability
MVI stands for ’’Mains power Variance Immunity’’.
Unstable mains power supplies are a major contributor to
on-site calibration inaccuracies. Traditional temperature
calibrators often become unstable in production environments where large electrical motors, heating elements,
and other devices are periodically cycled on or off. The
cycling of supply power can cause the temperature regulator to perform inconsistently leading to both inaccurate
readings and unstable temperatures.
The JOFRA ATC-320 and ATC-650 calibrators employ
the MVI, thus avoiding such stability problems. The MVI
circuitry continuously monitors the supply voltage and
ensures a constant energy flow to the heating elements.
The JOFRA ATC-156 and ATC-157 models run on stabilized DC voltage and thus do not need the MVI circuitry.
ATC heating and cooling models
The models with both heating and cooling capabilities
(ATC-156 and ATC-157) feature the Peltier element multistage-technology. This both improves efficiency and
extends the life of the »electronic heat pump«. The JOFRA
ATC-157 offers a typical differential temperature of 68C
(122 F) below the ambient temperature.
Peltier effect (ATC-156 and -157)
In 1834, Jean Peltier, a French physicist found that an
’’opposite thermocouple effect’’ could be observed when
an electric current was connected to a thermocouple. Heat
would be absorbed at one of the junctions and discharged
at the other junction. This effect is called the ’’PELTIER
EFFECT’’.
The practical Peltier element (electronic heating pump)
consists of many elements of semiconductor material connected electrically in series and thermally in parallel. These
thermoelectric elements and their electrical interconnections are mounted between two ceramic plates. The plates
serve to mechanically hold the overall structure together
and to electrically insulate the individual elements from
one another.
Highest accuracy (model B only)
ATC series calibrators may be supplied with a built-in reference thermometer for use with an external sensor. This
feature allows one instrument to provide the freedom and
flexibility to perform calibrations at the process site while
maintaining a high accuracy.
A special 90° angled external reference sensor has been
designed to accommodate sensors with a transmitter
head, top connector or similar arrangement.
The user can decide whether to read the built-in reference sensor or the more accurate angled reference sensor
from the calibrator’s large, easy-to-read LCD display. The
external sensor and the internal sensor are independent of
one another. Downloading of reference sensor linearization
is done via a personal computer.
Please find more information about JOFRA STS reference
sensors in specification sheet: SS-CP-2290 at www.jofra.
com.
2 www.jofra.com
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
SET-Follows-TRUE (model B only)
Available on B models only, the “SET-Follows TRUE”
makes the instrument tune in until the temperature of
the external reference “TRUE” meets the desired “SET”
temperature. This is used when it is critical that the temperature of the calibration zone matches the desired temperature when measured with accurate external reference
sensors.
This feature is ideal when calibrating gas correctors or
other custody transfer applications. It is also extremely
useful to calculation procedures.
Reading of sensor-under-test (model B only)
The ATC series model B is equipped with built-in converters (inputs) that enables measurement of virtually any type
of temperature sensor including:
thermostats
•
resistance thermometers (RTD)
•
thermocouples (TC)
•
transmitters
•
milliamps (mA)
•
voltage (V)
•
The ATC calibrators can be user-programmed for completely automated temperature calibrations. Once the unit
is programmed, the instrument operates itself by performing the configured calibration routine. All calibration data
is stored and available for uploading and generating exact
calibration certificates or reports.
Switch test (model B only)
Users may perform a thermoswitch test and find “Open”,
“Closed” and the hysteresis (deadband) automatically. The
instrument retains the last five tests.
Auto-stepping
Up to 20 different temperature steps may be programmed
including the hold time for each step. Upon completion of
an auto step routine, the user can easily read the results
for the sensor-under-test. Up to five (5) auto step results
are stored.
Easy-to-use, intuitive operation
All instrument settings can be performed from the front
panel. The heat source is positioned away from the panel
which helps protect the operator.
The ATC keyboard is equipped with five, positive feedback
function keys. They correspond to the text in the display
and change functionality based on instrument operations.
There are also dedicated function keys with permanent
functions.
The easy-to-read, backlit display
is large with a high contrast that
is readible even in high ambient
light conditions. The display is
easily read from all angles and
from a distance without parallax
problems. The display also features icons which help identifying
instrument conditions and operational steps, making it more intuitive to work with.
Set temperature
The “Set temperature” feature allows the user to set the
exact desired temperature with a resolution of 0.01°.
Enhanced stability
A stability indicator shows when the ATC calibrator has
reached the desired temperature and is stable. The user
may change the stability criteria, external reference and
the sensor-under-test quickly and simply. The stability
criteria is the user’s security for a correct calibration. A
count-down timer is displayed next to the temperature
read-out.
Instrument setups
The ATC series allows the user to store up to nine (9)
complete instrument setups. You may store all sorts of
information including temperature units, stability criteria,
use of external reference sensor, resolution, sensor-undertest (SUT), conversion to temperature, display contrast,
etc. The setup may be recalled at any time.
Maximum temperature
From the setup menu, the user can select the maximum
temperature limit for the calibrator. This function prevents
damage to the sensor-under-test caused by the application of excessive temperatures. The feature also aids in reducing drift resulting from extended periods of exposures
to high temperatures. This feature can be locked with an
access code.
www.jofra.com 3
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
JOFRACAL CALIBRATION SOFTWARE
JOFRACAL calibration software ensures easy calibration
of RTD´s, thermocouples, transmitters, thermoswithes,
pressure gauges and pressure switches. JOFRACAL can
be used with JOFRA DPC-500, APC, CPC and IPI pressure calibrators, all JOFRA temperature calibrators, as well
as JOFRA AMC900, ASC300 multi signal calibrator and
ASM-800 signal multi scanner.
JOFRACAL calibration software may also be used for
manual calibrations, as it can be set up to accept manual
entry of calibration data together with other liquid baths,
ice points or dry-block heat sources.
The calibration data collected may be stored on a PC for
later recall or analysis. The ATC calibrator stores the calibration procedure and may be taken out to the process
site without using a personal computer.
This allows the ATC calibrator to:
•
Operate as a stand-alone instrument, using advanced
calibration routines without the assistance of a
personal computer on site;
•
Prevent unauthorized changes to a calibration routine.
Personnel who are not authorized to alter a calibration
routine cannot do so.
As found/as left (model B only)
The JOFRA ATC series calibrator automatically handles
“As Found/As Left” calibrations. The calibrator stores both
results. The first performed calibration is “As found” and
the last performed calibration is the “As left”, regardless
of the number of calibrations/adjustments that may have
been made in between.
SYNC output
An output is located directly on the front of the ATC calibrator. This output signals when the instrument is stable
and may be used with ancillary devices such as video
recorders, digital cameras or as an input to a data logging
device. The SYNC output may be useful for automating
and documenting your calibrations when calibrating external reading devices.
Calibration (model B only)
Users may perform or read the results of the calibration
tasks directly on the instrument. When calibrating an indicating device, users may key in the results during or after the
test. Using the “Calibration info” function, the user may view
the complete calibration task, including the “Scenario” before the calibration takes place.
Calibration of up to 24 sensors with JOFRA ASM
Using the JOFRA ATC series together with the ASM
Advanced Signal Multi-scanner offers a great time-saving
automatic solution to calibrate multiple temperature sensors at the same time. The ASM series is an eight channel
scanner controlled by the JOFRACAL software on a PC.
Up to 3 ASM units can be stacked to calibrate up to 24
sensors at the same time. It can handle signals from 2-,
3- and 4 wire RTD’s, TC’s, transmitters, thermisters, temperature switches and voltage.
Please also see more in specification sheet SS-CP-2360,
which can be found at www.jofra.com
Once all calibrations are completed, the data may be
uploaded to the JOFRACAL calibration software for postprocessing and printing of certificates. The calibration data
collected may be stored on the personal computer for
later recall or analysis.
The JOFRACAL temperature
calibration software may be
donwloaded free of charge from
our web-page www.jofra.com.
Please also see more about
JOFRACAL calibration software
in specification sheet SS-CP2510, which can be found at
www.jofra.com
4 www.jofra.com
JOFRACAL software
Minimum hardware requirements for JOFRACAL calibration software.
INTELTM 486 processor
•
(PENTIUMTM 800 MHz recommended)
•
32 MB RAM (64 MB recommended)
•
80 MB free disk space on hard disk prior to installation
•
Standard VGA (800 x 600, 16 colors) compatible screen
•
(1024 x 786, 256 colors recommended)
•
CD-ROM drive for installation of the program
•
1 free RS232 serial port
•
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US

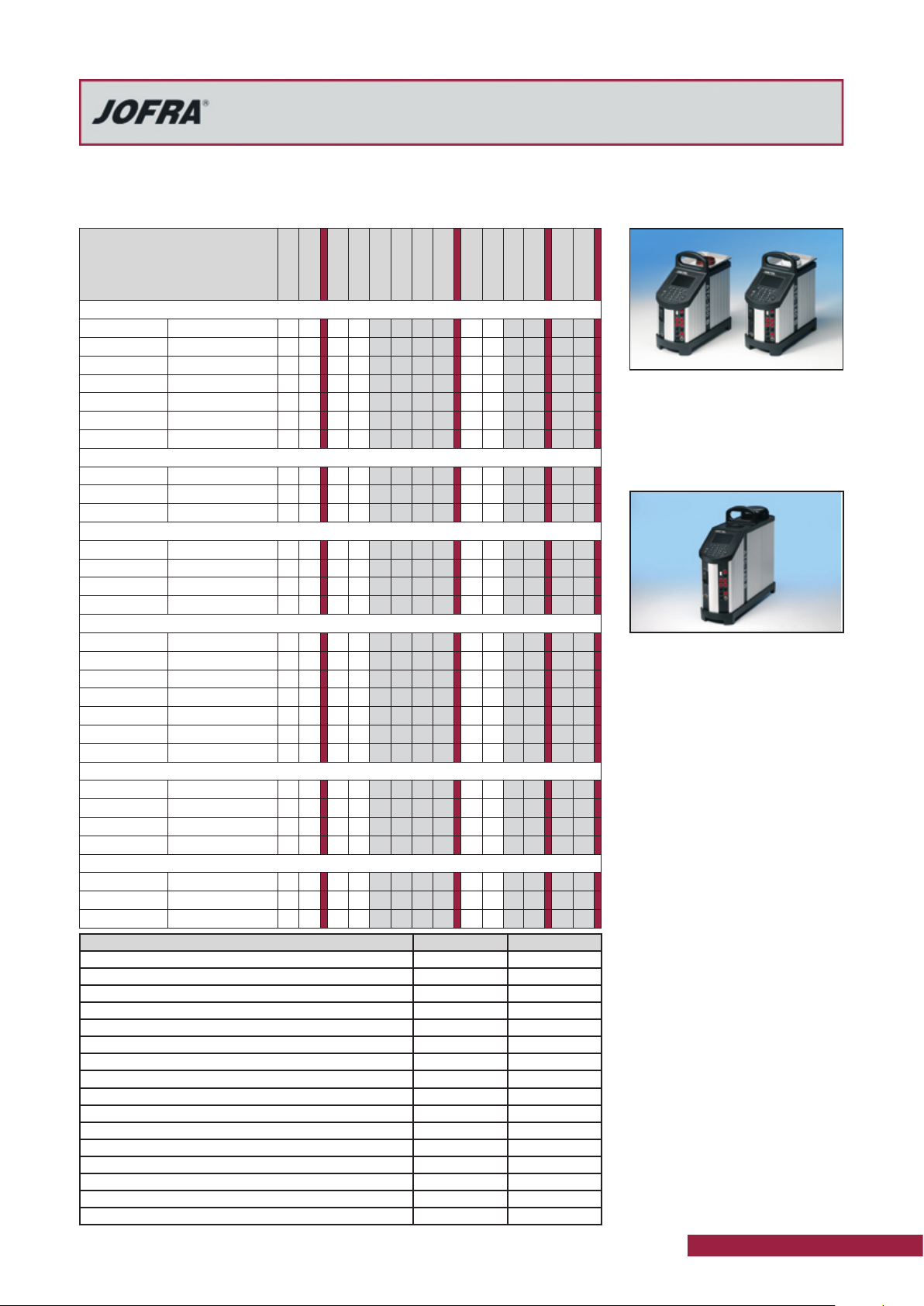

FUNCTIONAL COMPARISON
ATC series
ATC-125 A
Temperature range @ ambient 23°C / 73°F
-90 to 125°C -130 to 257°F X X
-20 to 140°C -4 to 284°F X X
-24 to 155°C -11 to 311°F X X
-45 to 155°C -49 to 311°F X X
28 to 250°C 82 to 482°F X X
33 to 320°C 91 to 608°F X X
33 to 650°C 91 to 1202°F X X
Temperature stability
±0.01°C ±0.018°F S S S S S S
±0.02°C ±0.036°F X X X X S S
±0.03°C ±0.054°F X X
Accuracy incl. external STS reference sensor
±0.04°C ±0.07°F X
±0.06°C ±0.11°F X X
±0.07°C ±0.13°F X 1X
±0.11°C ±0.2°F X
Accuracy with internal reference sensor
±0.10°C ±0.18°F S S
±0.13°C ±0.23°F S S
±0.18°C ±0.32°F S S
±0.20°C ±0.36°F S S
±0.28°C ±0.50°F S S
±0.30°C ±0.54°F X X
±0.35°C ±0.63°F S S
Immersion depth
185 mm 7.3 in X X
180 mm 7.1 in X 2X
160 mm 6.3 in X X X X
150 mm 5.9 in X 3X
Insertion tube diameter
63.5 mm 2.5 in X X X X
30 mm 1.2 in X X X X X X X X
20 mm 0.8 in X X
Dual-zone heating/cooling block • •
MVI - Mains Variance Immunity (or similar) • •
Stability indicator • •
Automatic step function • •
JOFRACAL Calibration software included as standard • •
SYNC output (for external recording device) • •
Display resolution 0.01° • •
Programmable max. temperature • •
Input for RTD, TC, V, mA •
4-20 mA transmitter input incl. 24 VDC supply •
All inputs scalable to temperature •
Automatic switch test (open, close and hysteresis) •
External precision reference sensor input •
Download of calibration work orders from PC •
Upload of calibration results (as found & as left) •
“SET” follows “TRUE” •
ATC-140 A
ATC-125 B
ATC-156 A
ATC-140 B
1
X
2
3
ATC-157 A
ATC-156 B
1
ATC-250 A
ATC-157 B
1
X
Model A Model B
ATC-250 B
X 4X X X X X
ATC-320 A
ATC-320 B
1
ATC-650 A
ATC-650 B
1
JOFRA ATC-140/250
For a wider product description of
the ATC-140 and ATC-250 please
see spec. sheet SS-CP-2284 at
www.jofra.com
JOFRA ATC-125
For a wider product description
of the ATC-125 please see spec.
sheet SS-CP-2282, at www.jofra.
com
X = Delivered as standard
S = Improved specifications
(from October 01, 2006)
1
Using an external STS reference sensor
connected to the reference sensor input
2
Immersion depth for ATC-140 as dry-block
3
Immersion depth for ATC-140 as liquid bath
4
Immersion depth for ATC-250 as dry-block and
as liquid bath
www.jofra.com 5
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
FUNCTIONAL SPECIFICATIONS
Mains specifications
ATC-156/157/320 .................115V(90-127) / 230V(180-254)
ATC-650 ............................. 115V(100-127) / 230V(200-254)
Frequency, non US deliveries ............... 50 Hz ±5, 60 Hz ±5
Frequency, US deliveries .......................................60 Hz ±5
Power consumption (max.) ATC-156/157 .................300 VA
Power consumption (max.) ATC-320/650 ...............1150 VA
Temperature range
ATC-156 Maximum ....................................... 155°C / 311°F
Minimum @ ambient temp. 0°C / 32°F ......
Minimum @ ambient temp. 23°C / 73°F ......
Minimum @ ambient temp. 40°C / 104°F .....
ATC-157 Maximum ....................................... 155°C / 311°F
Minimum @ ambient temp. 0°C / 32°F .....
Minimum @ ambient temp. 23°C / 73°F ......
Minimum @ ambient temp. 40°C / 104°F ....
ATC-320 ......................................33 to 320°C / 91 to 608°F
ATC-650 ....................................33 to 650°C / 91 to 1202°F
Stability
ATC-156/157 .................................+0.01°C / +0.018°F 1) 2)
ATC-320 ............................................ +0.01°C / +0.018°F 1)
ATC-650 (@100°C / 212°F) ...............+0.01°C / +0.018°F 1)
ATC-650 (@320°C / 608°F) .............+0.015°C / +0.027°F 1)
ATC-650 (@650°C / 1202°F) .............+0.02°C / +0.036°F 1)
Measured after the stability indicator has been on for 10 minutes
(ATC-156/157/320 and 650). Measuring time is 30 minutes.
1) Improved specifications (from October 1, 2006)
2) ± 0.015°C @ set temp. ambient ±3°C
Time to stability (approximate)
ATC-156 ............................................................... 7 minutes
ATC-157 ............................................................... 6 minutes
ATC-320/650 ..................................................... 10 minutes
Accuracy (model B) with external STS reference sensor
ATC-156/157 B .......................................+0.04°C / +0.07°F
ATC-320 B ............................................... +0.07°C / +0.13°F
ATC-650 B ............................................... +0.11°C / +0.20°F
12 month period. Relative to reference standard. Specifications
by use of the external JOFRA STS-100 reference sensor
Accuracy (model A+B) with internal reference sensor
ATC-156 A+B ...................................... +0.10°C / +0.18°F 1)
ATC-157 A+B ...................................... +0.13°C / +0.23°F 1)
ATC-320 A+B ...................................... +0.20°C / +0.36°F 1)
ATC-650 A+B (@320°C / 608°F) .........+0.30°C / +0.54°F 1)
ATC-650 A+B (@650°C / 1202°F) .......+0.35°C / +0.63°F 1)
1) Improved specifications (from October 1, 2006)
Resolution (user-selectable)
All temperatures ..................................... 1° or 0.1° or 0.01°
Radial homogeneity (difference between holes)
ATC-156/157 ............................................... 0.01°C / 0.02°F
ATC-320 ...................................................... 0.01°C / 0.02°F
ATC-650 ...................................................... 0.05°C / 0.09°F
-40°C / -40°F
-24°C / -11°F
-12°C / 10°F
-57°C / -71°F
-45°C / -49°F
-31°C / -24°F
Immersion depth
ATC-156/157 .............................................. 160 mm / 6.3 in
ATC-320/650 ...............................................150 mm / 5.9 in
Well diameter
ATC-156/320/650 ....................................... 30 mm / 1.18 in
ATC-157 ......................................................20 mm / 0.79 in
Heating time
ATC-156 -24 to 23°C / -11 to 73°F ............... 4 minutes
23 to 100°C / 73 to 212°F .............
100 to 155°C / 212 to 311°F .......
ATC-157 -45 to 23°C / -49 to 73°F ...............
23 to 100°C / 73 to 212°F .............
100 to 155°C / 212 to 311°F .........
ATC-320 50 to 320°C / 122 to 608°F ...........
ATC-650 50 to 320°C / 122 to 608°F .........
50 to 650°C / 122 to 1202°F .......
9 minutes
10 minutes
6 minutes
8 minutes
9 minutes
7 minutes
10 minutes
27 minutes
Cooling time
ATC-156 155 to 100°C / 311 to 212°F ......... 4 minutes
100 to 23°C ( 212 to 73°F ..............
23 to 0°C / 73 to 32°F ...................
0 to -20°C / 32 to -4°F .................
ATC-157 155 to 100°C / 311 to 212°F .........
100 to 23°C / 212 to 73°F .............
23 to 0°C / 73 to 32°F ...................
0 to -30°C / 32 to -22°F .................
-30 to -45°C / -22 to -45°F ..........
ATC-320 320 to 100°C / 608 to 212°F .......
100 to 50°C / 212 to 122°F .........
ATC-650 650 to 100°C / 1202 to 212°F .....
100 to 50°C / 212 to 122°F .........
9 minutes
6 minutes
13 minutes
3 minutes
6 minutes
3 minutes
9 minutes
15 minutes
22 minutes
20 minutes
43 minutes
25 minutes
SYNC output (dry contact)
Switching voltage ................................... Maximum 30 VDC
Switching current ...................................Maximum 100 mA
INPUT SPEC’S (B MODELS ONLY)
All input specifications apply to the calibrator’s dry-block running
at the respective temperature (stable plus an additional 20
minutes period). Where the input measuring range is out of the
calibrator’s range, the SET temperature is either MIN. or MAX.
Transmitter supply
Output voltage ................................................ 24VDC +10%
Output current .......................................... Maximum 25 mA
Transmitter input mA
Range ................................................................. 0 to 24 mA
Accuracy (12 months) ............. +0.01% Rdg. +0.015% F.S.
Voltage input VDC
Range: .............................................................. 0 to 12 VDC
Accuracy (12 months) ........... +0.005% Rdg. +0.015% F.S.
Switch input
Switch dry contacts
Test voltage ............................................... Maximum 5 VDC
Test current .............................................. Maximum 2.5 mA
6 www.jofra.com
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
RTD reference input (B models only)
Type .................4-wire RTD with true ohm measurements1)
F.S. (Full Scale) ...................................................... 350 ohm
Accuracy (12 months) ............±0.001% rdg. + 0.002% F.S.
RTD Type Temperature 12 months
°C °F °C °F
Pt100
reference
-50 -58 ±0.020 ±0.036
0 32 ±0.021 ±0.038
155 311 ±0.023 ±0.041
320 608 ±0.026 ±0.047
650 1202 ±0.032 ±0.058
700 1292 ±0.034 ±0.061
Note 1: True ohm measurements are an effective method to
eliminate errors from induced thermoelectrical voltages
RTD input
Type of RTD ............................................................... 2-wire
F.S. (range) ....................................... 350 ohm or 2900 ohm
Accuracy (12 months) ±0.005% rdg. + 0.005% F.S. + 50 m
Type of RTD ...................................................... 3- or 4-wire
F.S. (range) ....................................... 350 ohm or 2900 ohm
Accuracy (12 months) ............±0.005% rdg. + 0.005% F.S.
RTD Type Temperature 12 months
°C °F °C °F
Pt1000
Pt500
Pt100
Pt50
(only in
Russian
versions)
Pt10
Cu100
Cu50
If automatic cold junction compensation is used, the specification
for CJ is ±0.40°C (±0.72°F).
-50 -58 ±0.046 ±0.083
0 32 ±0.050 ±0.090
155 311 ±0.061 ±0.110
320 608 ±0.071 ±0.127
500 932 ±0.087 ±0.156
-50 -58 ±0.083 ±0.149
0 32 ±0.087 ±0.157
155 311 ±0.100 ±0.180
320 608 ±0.111 ±0.200
500 932 ±0.130 ±0.235
-50 -58 ±0.054 ±0.097
0 32 ±0.058 ±0.104
155 311 ±0.069 ±0.124
320 608 ±0.079 ±0.142
650 1202 ±0.106 ±0.191
700 1292 ±0.112 ±0.202
-50 -58 ±0.098 ±0.176
0 32 ±0.103 ±0.185
155 311 ±0.116 ±0.209
320 608 ±0.128 ±0.230
650 1202 ±0.161 ±0.290
700 1292 ±0.169 ±0.303
-50 -58 ±0.453 ±0.815
0 32 ±0.462 ±0.831
155 311 ±0.495 ±0.891
320 608 ±0.524 ±0.943
650 1202 ±0.610 ±1.098
700 1292 ±0.620 ±1.116
-50 -58 ±0.050 ±0.090
0 32 ±0.052 ±0.094
150 302 ±0.060 ±0.108
-50 -58 ±0.090 ±0.162
0 32 ±0.093 ±0.167
150 302 ±0.100 ±0.180
Thermocouple input
Range ....................................................................... 78 mV
F.S. (Full Scale) ......................................................... 78 mV
Accuracy (12 months) ................0.01% rdg. + 0.005% F.S.
TC Type Temperature 12 months
°C °F °C °F
E
J
K
T
R
S
B
N
XK
(only in
Russian
versions)
U
-50 -58 ±0.08 ±0.14
0 32 ±0.07 ±0.12
155 311 ±0.07 ±0.12
320 608 ±0.08 ±0.14
650 1202 ±0.11 ±0.20
1000 1832 ±0.15 ±0.28
-50 -58 ±0.10 ±0.17
0 32 ±0.08 ±0.14
155 311 ±0.08 ±0.15
320 608 ±0.10 ±0.18
650 1202 ±0.12 ±0.22
1200 2192 ±0.19 ±0.34
-50 -58 ±0.11 ±0.20
0 32 ±0.10 ±0.18
155 311 ±0.11 ±0.20
320 608 ±0.12 ±0.22
650 1202 ±0.16 ±0.28
1372 2502 ±0.28 ±0.50
-50 -58 ±0.12 ±0.22
0 32 ±0.10 ±0.18
155 311 ±0.09 ±0.16
320 608 ±0.09 ±0.17
400 752 ±0.10 ±0.17
-50 -58 ±1.31 ±2.35
0 32 ±0.78 ±1.40
155 311 ±0.50 ±0.90
320 608 ±0.42 ±0.75
650 1202 ±0.41 ±0.74
1760 3200 ±0.50 ±0.90
-50 -58 ±0.98 ±1.77
0 32 ±0.78 ±1.40
155 311 ±0.50 ±0.90
320 608 ±0.46 ±0.83
650 1202 ±0.45 ±0.81
1768 3214 ±0.52 ±0.94
250 482 ±1.57 ±2.83
320 608 ±0.99 ±1.78
650 1202 ±0.69 ±1.23
1820 3308 ±0.48 ±0.86
-50 -58 ±0.16 ±0.29
0 32 ±0.15 ±0.27
155 311 ±0.14 ±0.24
320 608 ±0.14 ±0.25
650 1202 ±0.16 ±0.28
800 1472 ±0.17 ±0.31
-50 -58 ±0.07 ±0.13
0 32 ±0.06 ±0.11
155 311 ±0.06 ±0.12
320 608 ±0.07 ±0.13
650 1202 ±0.11 ±0.19
800 1472 ±0.12 ±0.22
-50 -58 ±0.12 ±0.21
0 32 ±0.10 ±0.18
155 311 ±0.09 ±0.17
320 608 ±0.09 ±0.17
600 1112 ±0.10 ±0.19
www.jofra.com 7
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
PHYSICAL SPECIFICATIONS
Instrument dimensions (L x W x H)
All models .......... 352 x 156 x 360 mm / 3.9 x 6.1 x 14.2 in
Instrument weight
ATC-156 ..................................................... 12.2 kg / 26.9 lb
ATC-157 ..................................................... 13.1 kg / 28.9 lb
ATC-320 ..................................................... 10.2 kg / 22.5 lb
ATC-650 ..................................................... 12.1 kg / 26.7 lb
Insert dimensions
ATC-156 outer diameter ..........................29,7 mm / 1.17 in
ATC-156 inner diameter (multi hole) ........25,9 mm / 1.02 in
ATC-156 inner diameter (single hole) .......22,0 mm / 0.87 in
ATC-156 length ......................................... 150 mm / 5.91 in
ATC-157 outer diameter ..........................19,9 mm / 0.78 in
ATC-157 inner diameter ...........................16,9 mm / 0.67 in
ATC-157 length ......................................... 150 mm / 5.91 in
ATC-320/650 outer diameter ...................29,7 mm / 1.17 in
ATC-320/650 inner diameter (multi hole) .25,9 mm / 1.02 in
ATC-320/650 inner diameter (single hole) 22,0 mm / 0.87 in
ATC-320/650 length ..................................160 mm / 6.30 in
Weight of non-drilled insert (approximate)
ATC-156 ....................................................... 290 g / 10.2 oz
ATC-157 ......................................................... 130 g / 4.6 oz
ATC-320/650 ................................................940 g / 33.2 oz
Shipping (including optional carrying case)
ATC-156 ..................................................... 22.2 kg / 48.9 lb
ATC-157 ..................................................... 23.1 kg / 50.9 lb
ATC-320 ..................................................... 20.7 kg / 45.6 lb
ATC-650 ..................................................... 22.6 kg / 49.8 lb
Size: L x W x H .. 659 x 309 x 514 mm / 26 x 12.2 x 20.2 in
Shipping (without carrying case)
ATC-156 ..................................................... 16.5 kg / 36.4 lb
ATC-157 ..................................................... 17.4 kg / 38.4 lb
ATC-320 ..................................................... 15.0 kg / 33.1 lb
ATC-650 ..................................................... 16.9 kg / 37.2 lb
Size: L x W x H . 570 x 235 x 440 mm / 22.4 x 9.3 x 17.3 in
Shipping (carrying case only)
Weight: ........................................................6.0 kg / 13.2 lb
Size: L x W x H .. 659 x 309 x 514 mm / 26 x 12.2 x 20.2 in
Miscellaneous
Serial data interface ............................. RS232 (9-pin male)
Operating temperature ....................0 to 40°C / 32 to 104°F
Storage temperature .................. -20 to 50oC / -4 to 122oF
Humidity ......................................................... 0 to 90% RH
Protection class ..........................................................IP-10
DNV Marine Approval, Certificate no ......................A-10384
STANDARD DELIVERY
ATC dry-block calibrator (user specified)
•
Mains power cable (user specified)
•
Traceable certificate - temperature performance
•
Insert (user specified)
•
Set of matching insulation plugs (4 mm OR 1/4 in hole
•
for reference sensor)
Tool for insertion tubes
•
RS232 cable
•
JOFRACAL calibration software
•
AMETRIM-ATC software to adjust the ATC series
•
User and reference manual
•
Model B instruments contain the following extra items:
Test cables (2 x red, 2 x black)
•
Traceable certificate - input performance
•

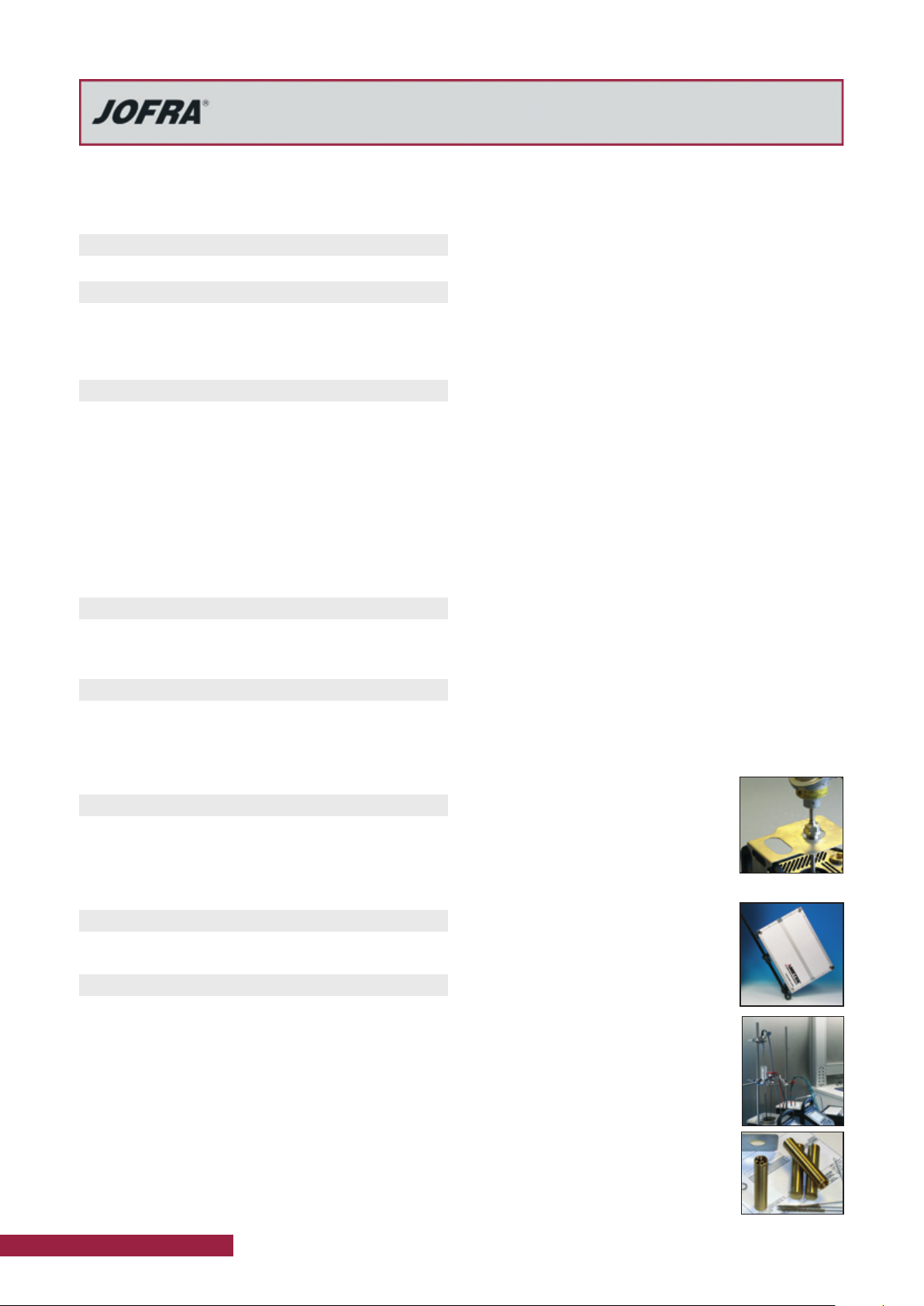

ACCESSORIES
125066 Extra fixture for sensor grib
125067 Extra sensor grib
122771 Mini-Jack Connector for stable relay output
120516 Thermocouple Male Plug - Type J - Black
120517 Thermocouple Male Plug - Type K - Yellow
120514 Thermocouple Male Plug - Type N - Orange
120515 Thermocouple Male Plug - Type T - Blue
120518 Thermocouple Male Plug - Type R / S - Green
120519 Thermocouple Male Plug - Type Cu-Cu - White
122801 Cable 0.5 m with LEMO / LEMO connectors
122823 2 m. Cable Female Banana to LEMO connection
125002 Edge port Converter with 4 pcs of RS232 ports
123374 Set of 3 pcs of insulation plugs
125510 Set of 3 pcs of insulation plugs / 1/4in ref. Hole
Heat shield (Optional) - 105496
External heat shield to be placed on top
of the calibrator to reduce the hot air
stream around the sensor-under-test.
Especially important when testing thermocouples having head-mounted transmitters with cold-junction compensation.
Trolley (Optional) - 124315
A removable trolley for ATC carrying case
105805 ensures easy and safe transportation of the instrument. The protective
carrying case ensures safe storage of the
instrument and all associated equipment.
Support rod set (Optional) - 125068
Support rod for sensors to be mounted
on all JOFRA dry-block calibrators. Holds
the sensor under test in their position,
while calibrating. Includes 2 sensors
grips and 2 fixtures for sensor gribs.
8 www.jofra.com
Calibration kit (Optional)
Includes a heat protection shield, cleaning brushes, 3 undrilled inserts with 4mm
reference hole and a self-drilling guide.
ATC-156: 122833, ATC-157: 123685,
ATC-320/650: 122834
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
PREDRILLED INSERTS FOR ATC-156/157/320 AND 650 - 4 MM REFERENCE HOLE
JOFRA dry-block insert compatibility and materials:
ATC-320 = ATC-650 = ITC-320 = ITC-650 (made of brass)
ATC-155 = ATC-156 (made of aluminum)
ATC-157 = ITC-155 (made of aluminum)
All specifications on hole sizes are referring to the outer diameter (OD) of the sensor-under-test.
The correct clearance size is applied in all predrilled inserts.
Spare part no. for predrilled inserts with 4 mm reference hole
Instruments
Sensor diameter Insert code 1ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
16 mm
Package of the
above inserts
Set of insulation
plugs for 4 mm
reference hole
003 105623 123270 105622
004
005
006
007
008
009
010
011
012
013
014
015
016
105625 123271 105624
105627 123272 105626
105629 123273 105628
105631 123274 105630
105633 123275 105632
105635 123276 105634
105637 123277 105636
105639 123278 105638
105641 123299
105643 123300
105645 N/A 105644
105647 N/A 105646
105649 N/A 105648
124697 124699 124701
105810 123374 N/A
2
2
105640
105642
4 mm
Reference sensor
(ATC-157 A)
4 mm
Reference sensor
Spare part no. for predrilled inserts with 4 mm reference hole
Instruments
125
187
250
312
375
437
500
562
625
1
ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
105677 123279 105676
105679 123280 105678
105681 123281 105680
105683 123282 105682
105685 123283 105684
105687 123301
105689 123302
105691 N/A 105690
105693 N/A 105692
124698 124700 124702
105810 123374 N/A
2
2
105686
105688
Note: All inserts (metric and inches) are
supplied with a hole for the 4 mm OD
reference sensor.
Note 1: Use the insert code, when ordered
as the standard insert together with a
new calibrator.
Note 2: ATC-157: 12 mm, 13 mm, 7/16 in and
1/2 in inserts are delivered without the
4 mm reference hole, but supplied with
a matching insulation plug.
Sensor diameter
1/8 in
3/16 in
1/4 in
5/16 in
3/8 in
7/16 in
1/2 in
9/16 in
5/8 in
Package of the
above inserts
Set of insulation
plugs for 4 mm
reference hole
Insert code
APPLICATION KIT FOR CALIBRATION OF SANITARY SENSORS
At picture 1 you see a custom made insert and our STS102 A cable reference sensor placed in a JOFRA ATC-156
B dry-block calibrator. At picture 2, the sanitary sensor has
been fitted into the insert and is ready for calibration. Note
that the design makes room for the reference sensor cable.
To learn more about calibration of sanitary temperature sensors please see accessory sheet AS-CP-2201 available at
www.jofra.com
Picture 1 Picture 2 Application kit
(ATC-156/320/650 A/B )
www.jofra.com 9
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US

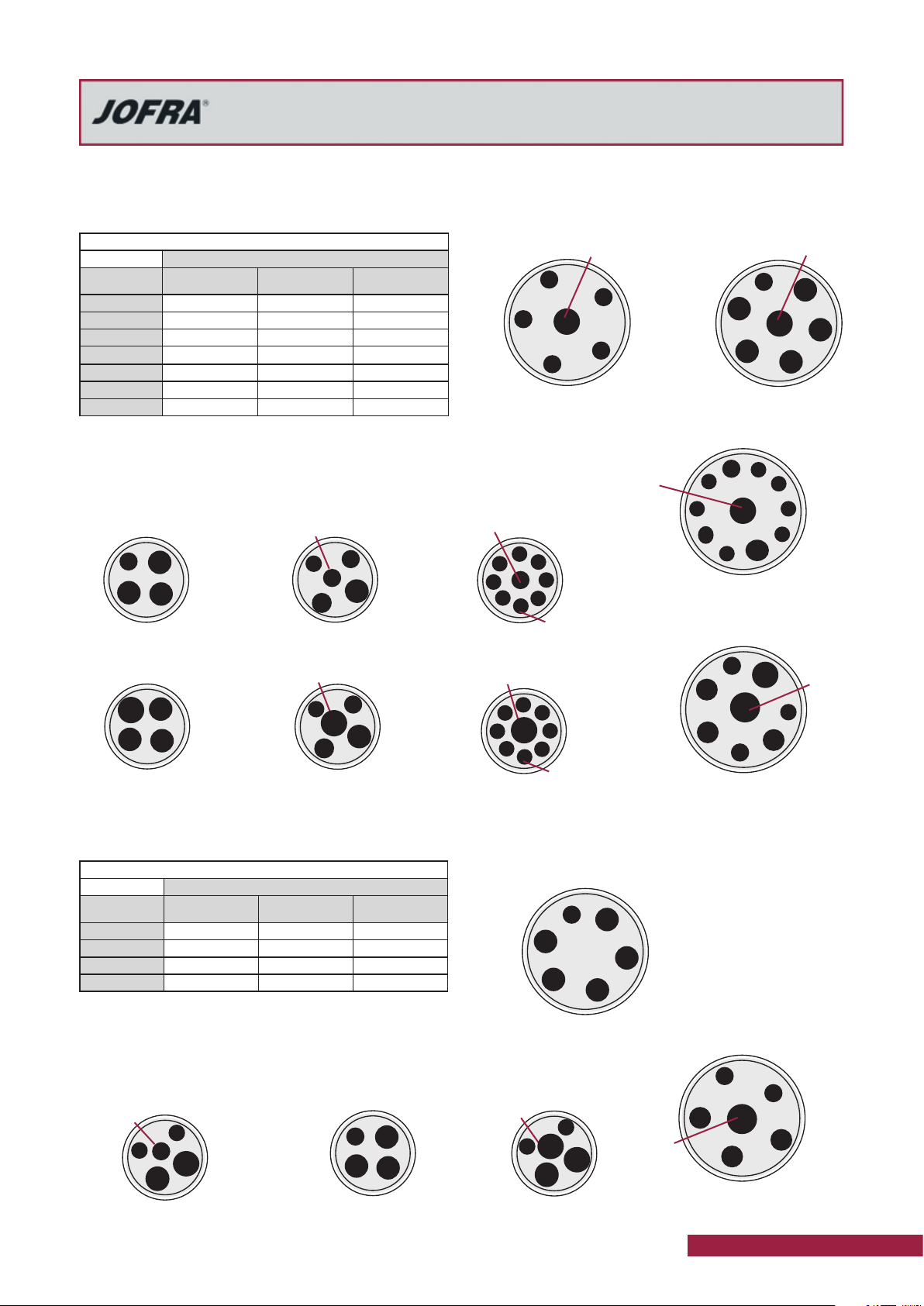

PREDRILLED INSERTS FOR ATC-156/157/320 AND 650 - 1/4 IN REFERENCE HOLE
Spare part no. for predrilled inserts with 1/4 in (6.35 mm) reference hole
Instruments
Sensor diameter Insert code 1ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
3 mm
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
11 mm
12 mm
13 mm
14 mm
15 mm
Package of the
above inserts
Set of insulation
plugs for 1/4 in
(6.35 mm) ref. hole
803 125260 125290 125259
804 125262 125291 125261
805 125264 125292 125263
806 125266 125293 125265
807 125268 125294 125267
808 125270 125295 125269
809 125272 N/A 125271
810 125274 N/A 125273
811 125278 N/A 125277
812 125280 123299
813 125282 123300
814 125284 N/A 125283
815 125286 N/A 125285
125389 125387 125388
125511 125510 N/A
2
2
125279
125281
1/4 in
Reference sensor
(ATC-157 A/B)
1/4 in
Reference sensor
1:1
Spare part no. for predrilled inserts with 1/4 in (6.35 mm) reference hole
Instruments
Sensor diameter Insert code 1ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
1/8 in
3/16 in
1/4 in
5/16 in
3/8 in
7/16 in
1/2 in
9/16 in
Package of the
above inserts
Set of insulation
plugs for 1/4 in
(6.35 mm) ref. hole
901 125297 125314 125296
902 125299 125315 125298
903 125301 125316 125300
904 125304 125317 125303
905 125306 N/A 125305
906 125308 123301
907 125310 123302
908 125312 N/A 125311
125392 125390 125391
125511 125510 N/A
2
2
125307
125309
Note: All inserts (metric and inches) are supplied with a hole for the 1/4 in OD
reference sensor.
Note 1: Use the insert code, when ordered as the standard insert together with a new
calibrator.
Note 2: ATC-157: 12 mm, 13 mm, 7/16 in and 1/2 in inserts are delivered without the
1/4 in reference hole, but supplied with a matching insulation plug.
UNDRILLED INSERTS FOR ATC SERIES
Inserts, undrilled
Instruments
Inserts ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
5-pack, undrilled inserts
5-pack, undrilled inserts with a
4 mm hole for the reference sensor
5-pack, undrilled inserts with a 1/4
in hole for the reference sensor
Undrilled insulation plug
122720 123286 122719
122722 123285 122721
125288 125313 125287
122781 123304 N/A
(ATC-156/320/650 A/B)
1:1
4 mm Reference sensor
1/4 in Reference sensor
10 www.jofra.com
Model ATC-156/157/320/650
Advanced Temperature Calibrator
Specification Sheet
SS-CP-2285-US
MULTI-HOLE INSERTS FOR ATC-156/157/320 AND 650 - METRIC (MM)
Spare part no. for multi-hole inserts - metric (mm)
Insert code 1ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
M01
M02
M03
M04
M06
M07
M08
Note: All multi-hole inserts (metric and inches) for ATC-156/157
are supplied with a matching insulation plug.
Note: Remember to use matching insulation plugs.
Note 1: Use the insert code, when ordered as the standard insert
together with a new calibrator.
4 mm Reference
sensor
6 mm
Multi-hole M01
(ATC-157 A/B)
1/4 in Reference
sensor
6 mm
Multi-hole M06
(ATC-157 A/B)
Instruments
122751 123294 122750
122753 123295 122752
122755 123296 122754
122757 N/A 122756
N/A 125377 N/A
N/A 125378 N/A
N/A 125379 N/A
6 mm
6 mm
4 mm Reference
sensor
3 mm
5 mm
4 mm
6 mm
Multi-hole M02
(ATC-157 A/B)
1/4 in Reference
6 mm
6 mm
sensor
3 mm
5 mm
4 mm
6 mm
Multi-hole M07
(ATC-157 A/B)
4 mm Reference
sensor
4 mm
4 mm
4 mm Reference
sensor
3 mm
3 mm
3 mm
Multi-hole M03
(ATC-157 A/B)
1/4 in Reference
sensor
3 mm
3 mm
3 mm
Multi-hole M08
(ATC-157 A/B)
1/4 in Reference
sensor
4 mm
4 mm
Multi-hole M01
(ATC-156/320/650 A/B)
4 mm Reference
1/4 in Reference
sensor
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
3 mm
4 mm Reference
4 mm Reference
6 mm
6 mm
sensor
3 mm
3 mm
3 mm
Multi-hole M03
(ATC-156/320/650 A/B)
sensor
6 mm
5 mm
4 mm
Multi-hole M04
(ATC-156/320/650 A/B)
1:1
sensor
1/4 in Reference
sensor
Multi-hole M02
(ATC-156/320/650 A/B)
3 mm
3 mm
3 mm
3 mm
6 mm
1/4 in Reference
sensor
9 mm
3 mm
6 mm
6 mm
6 mm
6 mm
MULTI-HOLE INSERTS FOR ATC-156/157/320 AND 650 - IMPERIAL (INCH)
Spare part no. for multi-hole inserts - imperial (inch)
Instruments
Insert code 1ATC-155/156 A/B ATC-157 A/B ATC-320/650 A/B
M04
M05
M06
M09
Note: All multi-hole inserts (metric and inches) for ATC-156/157
are supplied with a matching insulation plug.
Note: Remember to use matching insulation plugs.
Note 1: Use the insert code, when ordered as the standard insert
together with a new calibrator.
4 mm Reference
sensor
1/8 in
3/16 in
Multi-hole M04
(ATC-157 A/B)
N/A 123297 N/A
122759 123298 122758
122761 N/A 122760
N/A 125380 N/A
1/8 in
1/4 in
4 mm Reference
sensor
1/4 in
Multi-hole M05
(ATC-157 A/B)
1/4 in
1/4 in
4 mm Reference
sensor
1/4 in
1/4 in
1/4 in Reference
sensor
1/8 in
3/16 in
Multi-hole M09
(ATC-157 A/B)
1/4 in
1/4 in
1/4 in
Multi-hole M05
(ATC-156/320/650 A/B)
1/8 in
1/4 in
1/4 in
3/8 in
4 mm Reference
3/16 in
Multi-hole M06
(ATC-156/320/650 A/B)
1:1
sensor
1/8 in
1/4 in
www.jofra.com 11
ORDERING INFORMATION
Order number Description
Base model number
ATC156 ATC-156 series, -23 to 155°C (-9 to 311°F)
ATC157 ATC-157 series, -45 to 155°C (-49 to 311°F)
ATC320 ATC-320 series, 33 to 320°C (91 to 608°F)
ATC650 ATC-650 series, 33 to 650°C (91 to 1202°F)
Model version
A Basic model no sensor-under-test or reference
sensor input
B Including sensor-under-test and reference
sensor input
Power supply (US deliveries 60 Hz only)
115 115VAC
230 230VAC
Mains power cable type
A European, 230V,
B USA/CANADA, 115V
C UK, 240V
D South Africa, 220V
E Italy, 220V
F Australia, 240V
G Denmark, 230V
H Switzerland, 220V
I Israel, 230V
Insert type and size
XXX 1 x Insert for dry-block configuration (see the
previous insert pages for the right insert codes)
Calibration certificate
F NPL Traceable temperature certificate
(standard for Europe, Asia, Australia and Africa)
G NIST traceable temperature certificate
(standard for Americas)
H Accredited certificate
Options
A Basic calibration kit
C Carrying case
R 90° angled reference sensor with accredited
certificate (STS100A901AH)
X No option used
ATC156B230AM01FX Sample order number
JOFRA ATC-156 B with standard accessories,
230VAC, European power cord, dry-block
configuration with multihole insert type M01,
and NPL traceable temperature certificate.
is one of the world’s leading manufacturers and
a commercial and a technological point of view.
Portable precision thermometers. Dry-block and
liquid bath calibrators : 4 series, with more than
-90° to 1205°C / -130° to 2200°F. All featuring speed,
portabilit y, accuracy and advanced documenting
functions with JOFRACAL calibration software.
multiple choices of pressure ranges, pumps and
Process signal measurement and simulation for
easy control loop calibration and measurement
laboratory reference level bench top instruments.
Pneumatic floating-ball or hydraulic piston dead
weight testers with accuracies to 0.015% of reading.
AMETEK Calibration Instruments
developers of calibration instruments for
temperature, pressure and process signals
as well as for temperature sensors both from
JOFRA Temperature Instruments
25 models and temperature ranges from
JOFRA Pressure Instruments
Convenient electronic systems ranging from
-1 to 1000 bar (25 inHg to 14,500 psi) -
accuracies, fully temperature- compensated
for problem-free and accurate field use.
JOFRA Signal Instruments
tasks - from handheld field instruments to
JOFRA / JF Marine Instruments
A complete range of calibration equipment
for temperature, pressure and signal,
approved for marine use.
FP Temperature Sensors
A complete range of temperature sensors
for industrial and marine use.
M&G Pressure Testers
M&G Pumps
Pressure generators from small pneumatic
“bicycle” style pumps to hydraulic pumps
generating up to 1,000 bar (15,000 psi).
.. .beca use calib ratio n is
a ma tter of c onfid ence
Headquarters:
AMETEK Denmark A/S
Gydevang 32-34 • 3450 Allerød • Denmark
Tel: +45 4816 8000 • ametek@ametek.dk
Sales & Service:
Europe, Asia, Africa, Middle East and South America
Information in this document is subject to change without notice.
©2007, by AMETEK, Inc., www.ametek.com. All rights reserved.
Pub code SS-C P-228 5-US Is sue 0712
12 www.jofra.com
www.ametekcalibration.com
www.jofra.com
Sales & Service Offices:
AMETEK Mansfield & Green (North America)
Tel: +1 800 527 9999 • cal.info@ametek.com
AMETEK Singapore Pte. Ltd. (Singapore)
Tel: +65 6 484 2388 • aspl@ametek.com.sg
AMETEK Inc. Beijing Rep. Office (China)
Tel: +86 10 8526 2111 • jofra@ametek.com.cn
AMETEK GmbH (Germany)
Tel: +49 2159 91360 • info@ametek.de
AMETEK Lloyd Instruments (UK)
Tel: +44 (0) 1489 486 404 • jofra@ametek.co.uk
Loading...
