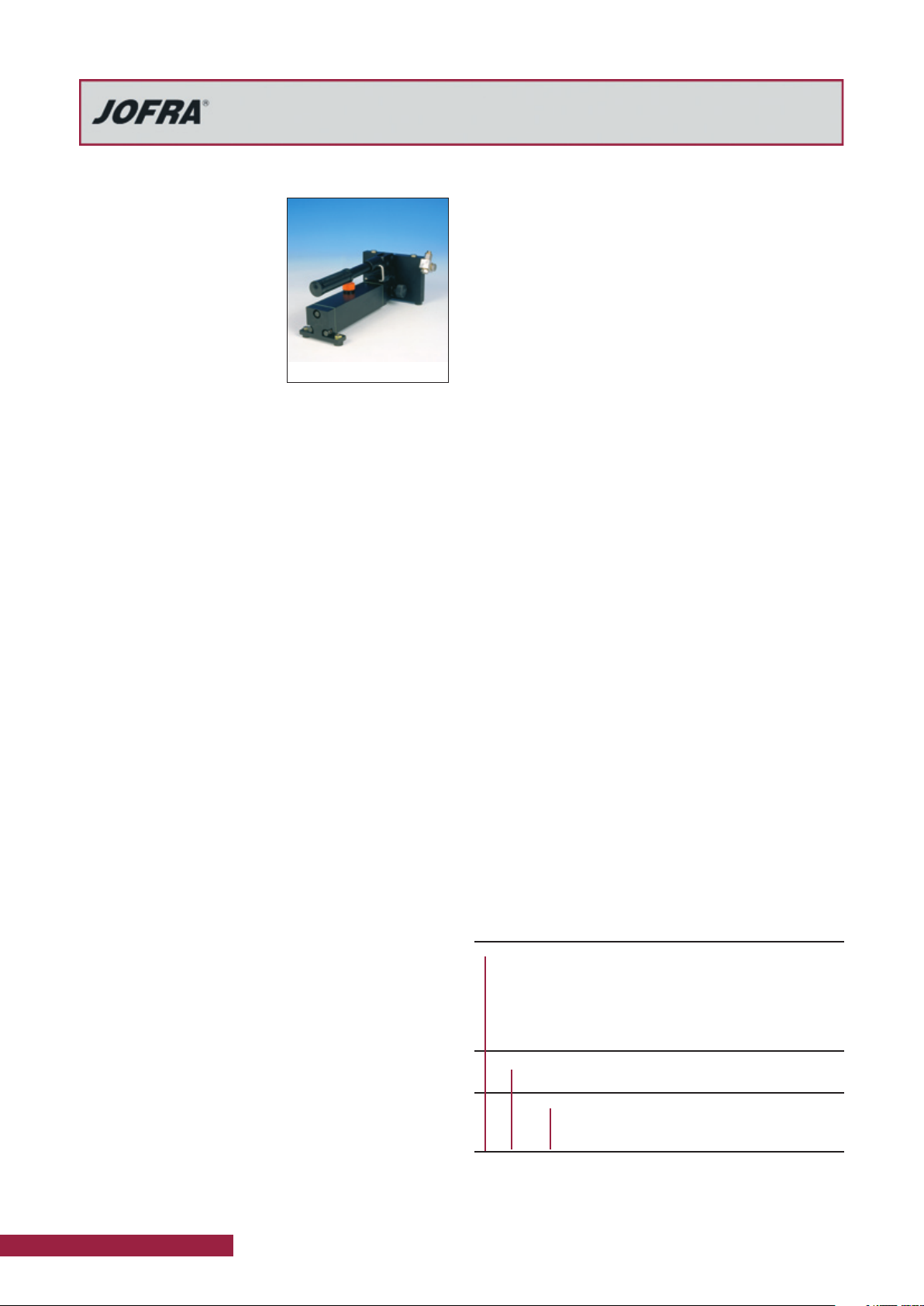

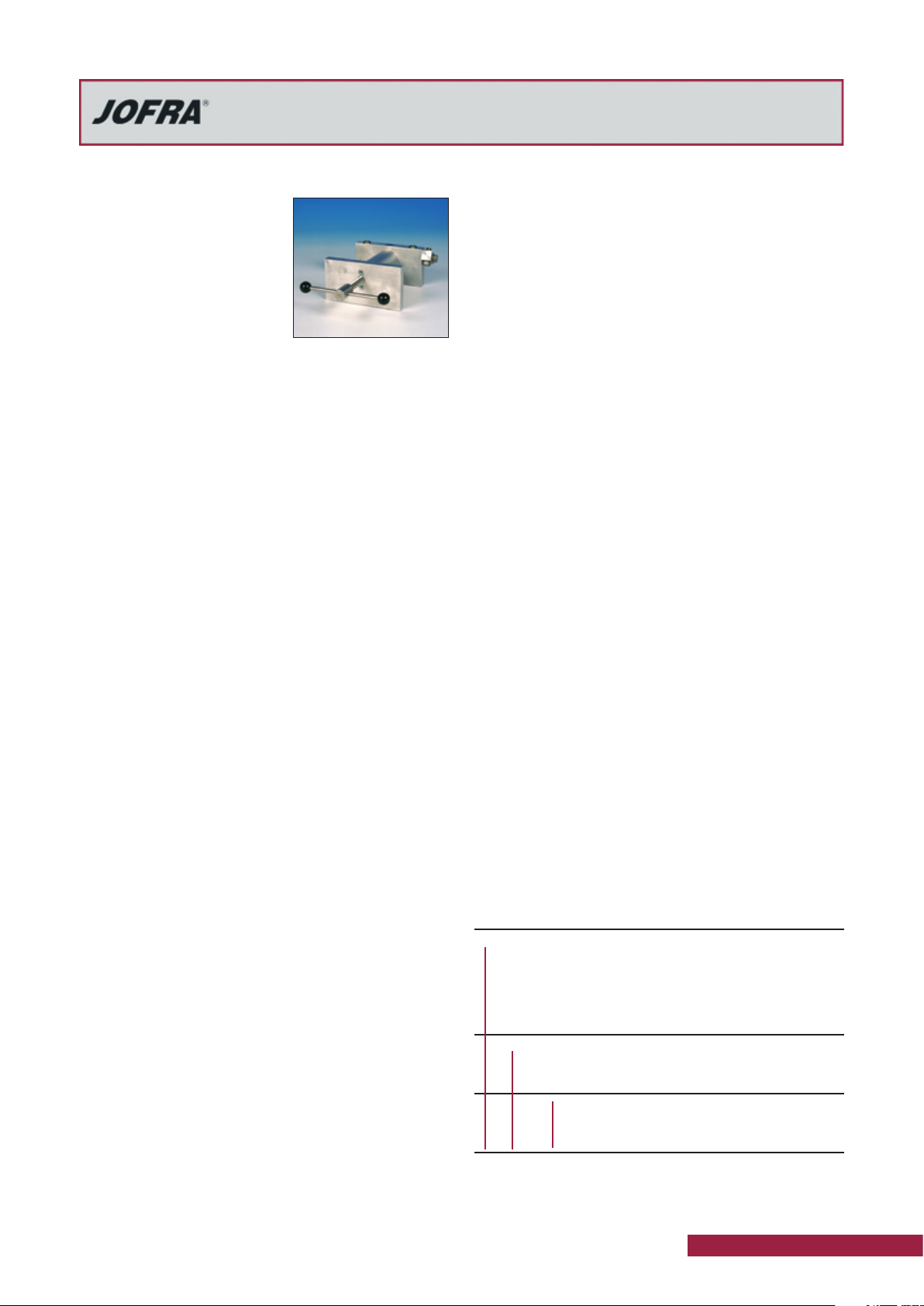

NEW SYSTEM A + B PUMPS
Model APC
Advanced Pressure Calibrator
Pressure range
APC010C Vacuum to 0.7 bar / 10 psi
APC030C Vacuum to 2 bar / 30 psi
APC200C Vacuum to 15 bar / 200 psi
APC500C Vacuum to 35 bar / 500 psi
APC01KG 0 to 70 bar / 1,000 psi
APC03KG 0 to 200 bar / 3,000 psi
APC05KG 0 to 350 bar / 5,000 psi
APC10KG 0 to 700 bar / 10,000 psi
High accuracy
±0.04% of reading ±0.01% F.S. with no low
range degradation in accuracy
True field calibrator
Fully temperature compensated - same high
accuracy in the lab and in the field
Transmitter scaling
Calculation of % error of the device-undertest with user-defined scaling
Easy pressure switch test
Automatically records opening and
closing point values on the display
Record min and max readings
Capture the min and max pressure readings
for safety valve applications
External Pressure Modules
More than 60 different pressure modules,
accuracy up to 0.01% F.S.
Documentation made easy
RS232 communication and JOFRACAL
calibration software are included in the
standard delivery
Complete marine program
Part of a complete program of marine
approved temperature, pressure and signal
calibrators; including temperature sensors
PRODUCT DESCRIPTION
This remarkable calibrator features deadweight tester accuracy
in a modern digital package. The
APC is available as an calibrator
or in one of 6 test-ready systems
that are complete and equipped
to meet your pressure calibration
needs.
The APC may be used in applliations from safety valve verification
to pressure transmitter.
Features
The JOFRA APC calibrators are the latest in the new generation of
AMETEK handheld pressure calibrators. This series was designed to
meet high accuracy pressure calibration applications and to make your
tasks easier. The APC offers features such as dual information display,
17 different pressure units, transmitter supply, scalable mA input for %
error calculation, serial communications, and external pressure module
capability. The accuracy of the APC calibrators is deadweight caliber
throughout the range and is temperature compensated for operation in
controlled or in process applications. This is a truly superior pressure
calibrator.
The JOFRA APM series of pressure modules extends the application
base for the APC calibrators by allowing for calibrations in ranges other
than those of the calibrator; and at a lower cost than purchasing another
APC. The APM modules are also compatible with several other JOFRA
calibrators.
Calibration of the instrument may be performed locally without returning
the APC unit to the manufacturer. Everything needed is an accurate pressure reference. If a factory calibration is require, the pump and calibrator
are independent and only the calibrator needs to be returned.
ISO 9001 Manufacturer
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
Clear dual line display
Large digits display the pressure,
icons show current status and mode,
and the smaller digits show deviceunder-test conditions.
ON / OFF
Auto shut-off to extend battery life
(user programmable).
mA / %
Save time and effort in calculating
the error between the APC and the
device- under-test by entering the
pressure range corresponding to 420mA. This gives immediate read-out
of the error in %.
You can also read mA or % of 4-20mA
in the display.
Switch test
Per form semi-automati c pressure
switch tests. The APC records the
“close” and “open” pressure values
and calculates the
hysteresis (deadband). You change
the pressure and the APC does the
rest.
Electrical connections
The APC calibrator have inputs for
mA readings for pressure switches
and transmitters, including 24 VDC
supply, and for external JOFRA
APM pressure modules.
MAX / MIN
Reads the highest and lowest pressure
value since you last reset the APC.
Monitor a safety valve or look for
pressure spikes in the process.
Pressure connections
1/8 in NPT female 15 bar
(200 psi) and below.
1/8 in NPT male for 35 bar
(500 psi) and above.
2 www.jofra.com
Units
Easy ac cess to 17
d i f fe r e n t p re s s u re
engineering units.
Serial interface
Ser i a l in t e r f a c e to
communicate with a
PC (termin a l ) . Also
used if adjustment of
the unit is necessary.
Zero
Keep the high accuracy:
ZERO the instrument
before every test.
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRACAL CALIBRATION SOFTWARE
JOFRACAL calibration software ensures easy calibration
of RTD´s, thermocouples, transmitters, thermoswithes,
pressure gauges and pressure switches. JOFRACAL can
be used with JOFRA DPC-500, APC, CPC and IPI pressure calibrators, all JOFRA temperature calibrators, as well
as JOFRA AMC910, ASC300 multi signal calibrator and
ASM-800 signal multi scanner. When used with JOFRA
ASM-800 signal multi scanner, JOFRACAL can perform a
simultaneous semi automatic calibration on up to 24 pressure and/or temperature devices under test in any combination.
JOFRACAL software controls the complete calibration
procedure, stores the results and provides a calibration
audit trail through hard-copy certificates. All calibration
data are stored for each sensor to monitor drift and optimise recalibration intervals. A scheduler feature allows
planning of future calibrations.
Please find more information about JOFRACAL calibration
software in specification sheet SS-CP-2510, which may be
found at www.jofra.com
JOFRA APM pressure module
The JOFRA APM external pressure modules extend the
range of the JOFRA APC. There are more than 60 models
available with gauge, absolute, differential, and vacuum
pressure references and in metric and imperial engineering
units.
The modules are engineered for in-plant, field, or laboratory use. They are ready-to-use with the JOFRA APC and
the protocol allows for immediate recognition and use of
the module once plugged into the calibrator.
Please find more information about the APM series in
specification sheet SS-CP-2190 at www.jofra.com
REQUIREMENTS JOFRACAL
Minimum hardware requirements:
Intel® Pentium® lI 1.4 GHz processor.
•
64MB RAM (128MB recommended)
•
80MB free disk space on hard disk (120MB
•
recommended) prior to installation
Standard VGA (800x600, 256 colours). 1024x768
•
recommended.
CD-ROM drive for installation of program
•
1 or 2 free RS-232 serial ports, depending on
•
configuration
Minimum software equirements:
Microsoft Windows® 98,Microsoft Windows® NT 4.0,
•
Microsoft Windows® 2000, Microsoft Windows® ME,
Microsoft Windows® XP, Vista.
System fonts: MS Sans Serif and Arial
•
www.jofra.com 3
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
FUNCTIONAL SPECIFICATIONS
Pressure range
psi ............................................. vacuum to 10, 30, 200, 500
bar ..................................................vacuum to 0.7, 2, 15, 35
psi ...................................... 0 to 1,000, 3,000, 5,000, 10,000
bar .....................................................0 to 70, 200, 350, 700
Engineering units (built-in)
User selectable ........................................................17 units
(psi, inH2O@4°C, inH2 O@20°C, inH2 O@60°F, inHg@0°C, ftH2 O@4°C,
ftH2O@20°C, ftH2O@60°F, bar, mbar, kPa, kg /cm
cmH2O@20°C, mH2O@4°C, mH2 O@20°C, mmHg@0°C )
2
, cmH
O@4°C,
2
Pressure accuracy
Pressure APC030C to APC10KG ±0.04% rdg + 0.01% F.S.
Pressure APC010C .............................................0.05% F.S.
Full temperature compensation: .... 0 to 50°C / 32 to 122°F
Vacuum (10 psi / 0.7 bar calibrator) .................... ±0.1% F.S.
Vacuum (30, 200 psi / 2, 15 bar calibrator) ...... ±0.05% F.S.
Full temperature compensation .....10 to 45°C / 50 to 113°F
F.S. (full scale) is the numerical value of the postive pressure range.
Display
LCD .......................................................Dual line plus icons
Display resolution ............ 5 digits (see table on back page)
Display update ..........................................twice per second
Input / output
mA range ............................................................. 0 to 24 mA
mA accuracy ......................................... ±0.015% rdg +2 µA
Transmitter supply ....................................................24 VDC
Peak hold capture ....................................... 50 milliseconds
Switch test input .................................... supply max. 9 VDC
ACCESSORIES
Complete aluminum carrying case
The APC is available as an calibrator or in one of 6 test-ready
systems that are complete and
equipped to meet your pressure
calibration needs.
The complete ready-to-use system is delivered in a practical
aluminum carrying case.
RS232 communication interface
Connector ........................................................... Stereo jack
Serial ...........0-5 VDC, 9600 baud, 8 data, no parity, 1 stop
Protocol ........................................ ASCll command languag
Media compatibility
........................................Non corrosive gasses and liquids.
Environmetal
Operating temperature .......... -10°C to 50°C / 14°F to 122°F
(Temp. comp. 0 to 50°C)
Storage temperature ............. -20°C to 60°C / -4°F to 140°F
Pressure connection
Calibrators 200 psi / 15 bar and below.......1/8” NPT female
Calibrators 500 psi / 35 bar and above .........1/8” NPT male
Adapters to 1/4” NPT and BSP female are included as standard
Pressure overload
Overload .............................................................. +50% F.S.
Overload alarm ........................ “OL” in display at +20% F.S.
Power supply
Battery ................................................... 1 x 9 VDC Alkaline
Battery life ............................................. Minimum 20 hours
Battery life with APM module connected Minimum 10 hours
Low battery calibrator .............................................at 7 VDC
Instrument dimensions (L x W x H)
Calibrator .................... 200 x 82 x 54 mm / 7.9 x 3.2 x 2.1 in
Calibrator weight (including battery) ................ 470 g / 17 oz
Calibrator, shipping .333 x 888 x 444 mm / 45 x 567 x 45 in
..............................................................................................
Calibrator weight, shipping ............................. 1.1 kg / 2.4 lb
Miscellaneous
CE Conformity ............................................. EN61326: 1998
The JOFRA APC is type approved by Det Norske Veritas.
Find the certificate at our web-page www.jofra.com
Approval, Certificate no. ..........................................A-10549
Useful soft case
The APC calibrator is supplied
in a handy softcase designed for
easy vertical operation during the
calibration. The soft case have
a pocket for the test leads and
an opening in the top andbottom provide easy access to the
termination block and the pressure module connector. A
shoulder strap ensures convenient transportation when
climbing ladders, etc. and the handy strap at the back
makes it possible to hang the instrument on a pipe, ladder
etc, while performing the calibration, test, or service task.
4 www.jofra.com
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC PRESSURE RANGES
This table shows the resolutions that can be obtained by the APC calibrators throughout all engineering units.
Resolution
Imperial ranges
psi -10.0000 10.0000 -12.000 30.000 -12.00 200.00 -12.00 500.00
inH2O@4°C -276.81 276.81 -332.17 830.42 -332.2 5536.1 -332,2 13840,4
inH2O@20°C -277.30 277.30 -332.76 831.89 -332.8 5545.9 -332,8 13864,9
inH2O@60°F -277.08 277.08 -332.50 831.24 -332.5 5541.6 -332,5 13854,0
ftH2O@4°C -23.067 23.067 -27.681 69.202 -27.68 461.35 -27.68 1153.36
ftH2O@20°C -23.108 23.108 -27.730 69.324 -27.73 462.16 -27.73 1155.40
ftH2O@60°C -23.090 23.090 -27.708 69.270 -27.71 461.80 -27.71 1154.50
inHg@0°C -20.360 20.360 -24.432 61.081 -24.43 407.21 -24.43 1018.01
Metric ranges
bar -0.7000 0.7000 -0.8300 2.0000 -0.8300 15.0000 -0.830 35.000
mbar -700.00 700.00 -830.0 2000.0 -830,0 15000,0 -830 35000
kPa -70.000 70.000 -83.00 200.00 -83.00 1500.00 -83.0 3500.0
kg/cm2 -0.7138 0.7138 -0.8464 2.0394 -0.8464 15.2957 -0.846 35.690
cmH2O@4°C -713.82 713.82 -846.4 2039.5 -846,4 15296,2 -846 35691
cmH2O@20°C -715.08 715.08 -847.9 2043.1 -847,9 15323,2 -848 35754
mH2O@4°C -7.1382 7.1382 -8.464 20.395 -8.464 152.962 -8.46 356.91
mH2O@20°C -7.1508 7.1508 -8.479 20.431 -8.479 153.232 -8.48 357.54
mmHg@0°C -525.04 525.04 -622.6 1500.1 -622,6 11251,0 -623 26252
Resolution
Imperial ranges
psi 1000.00 3000.0 5000.0 10000.0
inH2O@4°C 27681 83042 138404 276807
inH2O@20°C 27730 83189 138649 277297
inH2O@60°F 27708 83124 138540 277080
ftH2O@4°C 2306.7 6920.2 11533,6 23067
ftH2O@20°C 2310.8 6932.4 11554,0 23108
ftH2O@60°C 2309.0 6927.0 11545,0 23090
inHg@0°C 2036.0 6108.1 10180,1 20360
Metric ranges
bar 70.000 200.00 350.00 700.00
mbar 70000 200000 350000 700000
kPa 7000.0 20000 35000 70000
kg/cm2 71.380 203.94 356.90 713.80
cmH2O@4°C 71382 203949 356910 713821
cmH2O@20°C 71508 204309 357541 715081
mH2O@4°C 713.82 2039.5 3569.1 7138.2
mH2O@20°C 715.08 2043.1 3575.4 7150.8
mmHg@0°C 52504 150013 262522 525045
APC010C
Vacuum to 10 psi
Vacuum to 0.7 bar
APC01KG
0 to 1,000 psi
0 to 70 bar
APC30C
Vacuum to 30 psi
Vacuum to 2 bar
APC03KG
0 to 3,000 psi
0 to 200 bar
APC200C
Vacuum to 200 psi
Vacuum to 15 bar
APC05KG
0 to 5,000 psi
0 to 350 bar
APC500C
Vacuum to 500 psi
Vacuum to 35 bar
APC10KG
0 to 10,000 psi
0 to 700 bar
www.jofra.com 5
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System A
•
0 to 2 bar (0 to 30 psi)
•
0 to 21 bar (0 to 300 psi)
•
Vacuum to 0 bar (0 psi)
This system includes the JOFRA
APC calibrator together with
one of the following pneumatic
hand pumps: T-960 and T-970,
depending on the chosen pressure range. System A is an easyto-use single hand operated calibration system. No need for a flat surface to operate the
system - just hold it in your hand.
The System A comes in an aluminium carrying case with
cutouts for fittings, hose, and the complete assembled
calibration unit - no time is required to assemble the unit
every time you need it. The calibrator can at any time be
used separately for other pressure test tasks.
A special quick connector between the pump and the
calibrator makes it possible to seperate the system in seconds and to swivel the calibrator for easy viewing.
The JOFRA APC calibrators used in System A are delivered calibrated in both pressure and vacuum.
Included with System A delivery
Standard delivery (see page 12)
•
Hand pump T-960 or T-970
•
3/8” BSP female adapter with 1/4” BSP and NPT
•
female terminations
0.6 m / 24 in hose with 1/4” BSP and NPT female
•
terminations
Quick connector between pump and calibrator
•
1 roll of Teflon tape
•
Protective carrying case
•
Accessories
Part No. Description
75P014 Service kit for T-960 pump
75P016 Service kit for T-970 pump
T-733-2 Pressure hose for T-960/970, 0.6 meter std.
T-733-3 Pressure hose for T-960/970, 0.5 meter
T-733-4 Pressure hose for T-960/970, 1.0 meter
T-733-5 Pressure hose for T-960/970, 2.0 meter
T-733-6 Pressure hose for T-960/970, 5.0 meter
65R191 Set of BSP female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x3/8”, 1x1/2”
65R192 Set of NPT female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x1/4”, 1x3/8” 1x1/2”
60R191 1 set of packing and seals for 65R191 and 65R192
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
SPK-HPC-001 Quick connector set for APC system A / B
(0.7-2 bar / 10-30 psi)
SPK-HPC-003 Quick connector set for APC system A / B
(15 bar / 200 psi)
T-960 and T-970 pumps for system A
Model T-960 pneumatic pressure pump features an
extended range vernier adjustment for precisely controlling
pump pressure and comfortable pistol grip handle.
Model T-970 pneumatic pressure pump is similar to the T960, but generate pressure up to 40 bar (580 psi).
Pressure range, T-960 ..................... 0 to 2 bar / 0 to 30 psi
Pressure range, T-970 ................... 0 to 40 bar / 0 to 580 psi
Type ..................................................................... Pheumatic
Test medium ..................................................................... Air
Operation ................................................................. Scissor
“O”-rings ................................................................... Buna-N
Wetted parts ............................ Aluminium, brass, stainless,
...................................................... steel, nylon, Nylatron GS
Connection to test object ........................Hose 0.6 m / 24 in
........................ with 1/4” BSP and NPT female terminations
Size...........................21.6 x 12.1 x 6.2 cm / 8.5 x 4.8 x2.4 in
Weight .............................................................1.4 kg / 3.0 lb
Ordering
Part No. Description
T-960 Pump: 0 to 2 bar (30 psi)
T-970 Pump: 0 to 40 bar (580 psi)
6 www.jofra.com
Connections for APM H/S pressure modules
11-90067 Fitting 1/8” NPT male to 1/4” NPT male
for APM-H pressure module
11-90057 Fitting 1/4” NPT male to 1/4” NPT male
for APM-S pressure module
Ordering information System A
Order No. Description
Pressure calibrator
APC APC pressure calibrator
Calibrator pressure range
010C Vacuum to 0.7 bar (10 psi)
030C Vacuum to 2 bar (30 psi)
200C Vacuum to 15 bar (200 psi)
NONE Pump system only (no calibrator)
Base model number
AXX APC System A (pump T-960)
AHX APC System A (pump T-970)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC030CAXXG Sample order number
JOFRA APC 2 bar (30 psi) calibrator in pressure System A
with pneumatic pressure handpump and NIST traceable
calibration certificate.
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System B
•
Vacuum to 0.7 bar (10 psi)
•
Vacuum to 2 bar (30 psi)
•
Vacuum to 15 bar (200 psi)
•
Vacuum to 35 bar (500 psi)
This system includes the dual
function pneumatic hand pump.
With this pump you can calibrate
both vacuum and pressure applications. It takes just a few seconds to switch between vacuum and pressure, just push
one button (valve) on the T-975 handpump.
The System B comes in an aluminium carrying case with cutouts for fittings, hose and the complete assembled calibration unit - no time required to assemble the unit every time.
The calibrator and the pump are fitted with a special quick
connector that makes it possible to separate the system
in seconds without any tool. This quick connector also
makes it possible to use the assembled system with the
calibrator twisted to any angle.
T-975 hand pump for system B
Model T-975 pneumatic pressure pump features both
vacuum and pressure generation. A button (valve) makes
it easy to switch from vacuum to pressure measurements.
Built-in release valve, vernier valve for fine adjustment and
dual pressure output enable safe and simple operation.
The unit offers both metric and imperial threads on the reference connection and the hose.
Pressure range ............ -0.91 to 40 bar / -27 inHg to 580 psi
Type ..................................................................... Pheumatic
Test medium ..................................................................... Air
Operation ................................................................. Scissor
“O”-rings ................................................................... Buna-N
Wetted parts ....... Anodized aluminium, nickel-plated brass,
............................................................ stainless steel, Nylon
Connection to test object ........................Hose 0.6 m / 24 in
........................ with 1/4” BSP and NPT female terminations
Size...........................21.6 x 12.1 x 6.2 cm / 8.5 x 4.8 x2.4 in
Weight .............................................................1.4 kg / 3.0 lb
Ordering
Part No. Description
T-975 Pump: -0.91 to 40 bar (-27 inHg to 580 psi)
Included with System B delivery
Standard delivery (see page 12)
•
Hand pump T-975 for all ranges
•
3/8” BSP female adapter with 1/4” BSP and NPT
•
female terminations
0.6 m / 24 in hose with 1/4” BSP and NPT female
•
terminations
Quick connector between pump and calibrator
•
1 roll of Teflon tape
•
Protective carrying case
•
Accessories
Part No. Description
75P017 Service kit for T-975 pump
T-733-2 Pressure hose for T-975, 0.6 meter std.
T-733-3 Pressure hose for T-975, 0.5 meter
T-733-4 Pressure hose for T-975, 1.0 meter
T-733-5 Pressure hose for T-975, 2.0 meter
T-733-6 Pressure hose for T-975, 5.0 meter
65R191 Set of BSP female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x3/8”, 1x1/2”65R192
65R192 Set of NPT female fittings, teflon tape, packings
* Fitting size : 1x1/8”, 1x1/4”, 1x3/8” 1x1/2”
60R191 1 set of packing and seals for 65R191 and 65R192
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
SPK-HPC-001 Quick connector set for APC system A / B
SPK-HPC-003 Quick connector set for APC system B
(35 bar / 500 psi)
Connections for APM H/S pressure modules
11-90067 Fitting 1/8” NPT male to 1/4” NPT male
for APM-H pressure module
11-90057 fitting 1/4” NPT male to 1/4” NPT male
for APM-S pressure module
Ordering information APC System B
Order No. Description
Pressure calibrator
APC APC pressure calibrator
Calibrator pressure range
010C Vacuum to 0.7 bar (10 psi)
030C Vacuum to 2 bar (30 psi)
200C Vacuum to 5 bar (200 psi)
500C Vacuum to 35 bar (500 psi)
NONE Pump system only (no calibrator)
System
BXX APC System B (pump T-975)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC200CBXXG Sample order number
JOFRA APC 15 bar (200 psi) pressure System B with
pneumatic combination handpump and NIST traceable
calibration certificate.
www.jofra.com 7
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System C
0 to 35 bar (500 psi)
•
0 to 70 bar (1,000 psi)
•
0 to 200 bar (3,000 psi)
•
0 to 350 bar (5,000 psi)
•
This system consists of an APC
calibrator together with a hydraulic, high pressure hand pump T620 or T-620H, which features an
oil reservoir to prime the system.
System C is an easy-to-use single hand-operated calibration system. No need for a flat surface (table) to operate
the system. The system includes release valve and vernier
valve for fine adjustment to enable safe and simple operation of the pump.
The System C comes in an aluminium carrying case with
cutouts for fittings, hose, and the complete assembled
calibration unit - no time adder to assemble the unit every
time. Easy and fast connection between pump and calibrator makes it easy to use the pressure calibrator separately for other pressure test tasks.
Included with System C delivery
Standard delivery (see page 12)
•
Hand pump T-620 or T-620H
•
0.6 m (24 in) hose with 1/4” NPT female and 1/4” BSP
•
terminations
•
1 roll of Teflon tape
Protective carrying case
•
Accessories
Part No. Description
T-656 Service kit for T-620 and T-620H pumps
T-649 Pressure hose for T-620/T-620H pumps
65P175 1 m hose with 1/4” BSP female termination
Max. pressure 350 bar (5,000 psi)
65P180 2 m hose with 1/4” BSP female termination
Max. pressure 350 bar (5,000 psi)
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
MGAAA/QT Oil for T-620 & T-1 pump AAA OIL in
1-QUART CAN
MGAAA/GL Oil for T-620 & T-1 pump AAA OIL in
1-GALLON CAN
AMETEK hydraulic handpump
This easy-to-use hand pump is specially designed for high
pressure applications. The pump has a built-in reservoir,
vent valve, and vernier valve for fine adjustment. The
pump has a dual pressure output - one for the test object
and one for the APC calibrator.
Pressure range, T-620 .................... 0 to 200 bar / 3,000 psi
Pressure range, T-620H .................. 0 to 350 bar / 5,000 psi
Type ....................................................................... Hydraulic
Test medium ..................................................................... Oil
Reservoir capacity .......................................200 cl / 0.5 pint
Operation .............................................................Pistol-grip
“O”-rings ................................................................... Buna-N
Wetted parts ......... Aluminum, brass, stainless steel, Lexan
Connection to test object ........................Hose 0.6 m / 24 in
........................ with 1/4” BSP and NPT female terminations
Size..........................21.6 x 12.1 x 6.2 cm / 8.5 x 4.8 x 2.4 in
Weight .............................................................1.4 kg / 3.0 lb
Ordering
Part No. Description
T-620 Pump: 0 to 200 bar (3,000 psi)
T-620H Pump: 0 to 350 bar (5,000 psi)
Connections for APM H/S pressure modules
11-90067 Fitting 1/8” NPT male to 1/4” NPT male
for APM-H pressure module with system C
12-90135 Fitting 1/8” NPT male to 1/8” NPT male
for APM-H pressure module with system C
11-90067 Fitting 1/8” NPT male to 1/4” NPT male
for APM-H pressure module
11-90057 fitting 1/4” NPT male to 1/4” NPT male
for APM-S pressure module
Ordering information System C
Order No. Description
Pressure calibrator
APC APC pressure calibrator
Calibrator pressure range
500C Vacuum to 35 bar (500 psi)
01KG 0 to 70 bar (1,000 psi)
03KG 0 to 200 bar (3,000 psi)
05KG 0 to 350 bar (5,000 psi)
NONE Pump system only (no calibrator)
Base model number
CXX APC System C (pump T-620 / T-620 H)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC03KGCXXG Sample order number
JOFRA APC 200 bar (3,000 psi) ccalibrator in pressure
System C with hydraulic pressure handpump and NIST
traceable calibration certificate.
8 www.jofra.com
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System D
0 to 35 bar (500 psi)
•
0 to 70 bar (1,000 psi)
•
0 to 200 bar (3,000 psi)
•
0 to 350 bar (5,000 psi)
•
This system consists of an APC calibrator with a hydraulic,
high pressure screw pump. System D is an easy-to-use calibration system. Place the pump on a flat surface and turn the
handle to generate pressure. The calibrator may be adjusted
to give the best viewing angle. The system includes a manifold
for connection of the test device, a fine adjustment vernier
valve (optional), and a reservoir for extra oil or water (optional).
The System D comes in an aluminium carrying case with cutouts for fittings and the complete assembled calibration unit
- no time adder to assemble the unit every time. Easy and fast
connection between pump and calibrator makes it easy to use
the pressure calibrator separately for other pressure test tasks.
AMETEK screwpump
The 65-P016 and 65-P017 screwpumps are designed
for very easy generation of high pressure. The screwpumps has a 4 connection manifold. Fine adjustment,
vernier valve, liquid reservoir, and fittings are optional. The
AMETEK screwpump may be delivered for 2 different test
media: hydraulic oil or water.
Pressure range ................................ 350 bar / 0 to 5,000 psi
Type ....................................................................... Hydraulic
Test media ..............................................Hydraulic oil, water
Operation ......................................................... Screw pump
“O”-rings ................................................................... Buna-N
Wetted parts ..................... Aluminum, brass, stainless steel
Connections to test objects .................. 4 x 1/4” BSP female
Size.......................36.6 x 19.5 x 10.5 cm / 14.4 x 7.7 x 4.1 in
Weight .............................................................3.7 kg / 8.2 lb
Ordering
Part No. Description
65-P016 Screw pump oil: 0 to 350 bar (5000 psi) 1)
65-P017 Screw pump water: 0 to 350 bar (5000 psi) 1)
1) 25 ml (0.85 oz) reservoir
Included with System D delivery
Standard delivery (see page 12)
•
Screwpump 65-P016 for hydraulic oil or 65-P017 for
•
water
•
10 x 1/4” bonded seals
Allen key 6 mm
•
•
2 x 1/4” NPT female adapters
•
1 roll of Teflon tape
Protective carrying case
•
Accessories
Part No. Description
60P013 Vernier valve fine adjustment for 65-P016/017
60P016 Packing set for screw pump oil part no. 65-P016
60P017 Packing set for screw pump water part no. 65-P017
65-R975 Reservoir set with seals, valve and bonded seal
60R135 Valve for oil reservoir
65P175 1 m. Pressure hose, (Max. 350 bar / 5,000 psi) *
65P180 2 m. Pressure hose, (Max. 350 bar / 5,000 psi) *
60I156 1.5 m. Pressure hose, (Max. 700 bar/10,000 psi)*
60I157 5 m., Pressure hose, (Max. 700 bar / 10,000 psi) *
65N000 Extension tube, 120 mm (Max. 350 bar / 5.000 psi) *
* 1/4” BSP female to 1/4” BSP male
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
50-REP 615 Quick connector set, female 1/4”BSP
to 1/4” BSP
Connections for APM H/S pressure modules
60R115 Fitting 1/4” BSP male x 1/4” BSP male for
APM-S pressure module with system D
11-90109 Fitting 1/4” BSP male to 1/4” NPT female for
APM-H pressure module with system D
11-90067 Fitting 1/8” NPT male to 1/4” NPT male for
APM-H pressure module with system D
T-786 Fitting 1/4” NPT male to 1/4” BSP female
for APM-S pressure module with screw
pump alone
T-870 Fitting 1/8” NPT male to 1/4” BSP female
for APM-H pressure module with screw
pump alone
1) Please note that both 11-90109 and 11-90067 are needed to work with
APM-H pressure module
1)
1)
Ordering information System D
Order No. Description
Pressure calibrator
APC APC pressure calibrator
Calibrator pressure range
500C
01KG 0 to 70 bar (1,000 psi)
03KG 0 to 200 bar (3,000 psi)
05KG 0 to 350 bar (5,000 psi)
NONE Pump system only (no calibrator)
Base model number
DOX APC System D (pump 65-P016)
DWX APC System D (pump 65-P017)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC03KGDOXG Sample order number
JOFRA APC 200 bar (3,000 psi) calibrator in pressure
System D with hydraulic oil screwpump and NIST traceable calibration certificate.
Vacuum to 35 bar (500 psi)
www.jofra.com 9
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System E
0 to 70 bar (1,000 psi)
•
0 to 200 bar (3,000 psi)
•
0 to 350 bar (5,000 psi)
•
0 to 700 bar (10,000 psi)
•
This system consists of an APC
calibrator together with a rugged, hydraulic, high pressure
pump.
System E is an easy-to-use calibration system. The hydraulic pump makes it very easy to prime the system. You can
adjust the calibrator to fit the best viewing angle. The system includes a manifold for connection of two test devices
and the fine adjustment vernier valve is standard.
The System E comes in an aluminum carrying case with
cutouts for fittings and the complete assembled calibration
unit - no time adder to assemble the unit every time. Easy
and fast connection between pump and calibrator makes
it easy to use the pressure calibrator separately for other
pressure test tasks.
AMETEK high pressure hydraulic oil pump
The 65-P014 hydraulic pump is designed for high pressure applications. The pump has a 4 connection output
manifold. Fine adjustment vernier valve and fittings are
optional.
Pressure range .............................. 0 to 700 bar / 10,000 psi
Type ....................................................................... Hydraulic
Test media ........................................................................ Oil
Operation ............................................................Jack pump
“O”-rings ................................................................... Buna-N
Wetted parts ..................... Aluminum, brass, stainless steel
Connections to test objects .................. 4 x 1/4” BSP female
Size......................36.5 x 20.0 x 14.2 cm / 14.4 x 7.9 x 5,6 in
Weight ......................................................... 5.3 kg / 11.6 lbs
Ordering
Part No. Description
65-P014 Hydraulic pump for oil: 0 to 700 bar (10,000 psi)
1) 450 ml (15.22 oz) reservoir
1)
Included with System E delivery
Standard delivery (see page 12)
•
Hydraulic pump
•
10 x 1/4” bonded seals
•
Allen key 6 mm
•
2 x 1/4” NPT female adapters
•
1 roll of Teflon tape
•
Vernier valve for fine adjustment
•
Protective carrying case
•
Accessories
Part No. Description
60P013 Vernier valve for fine adjustment
60P014 Packing set for Jack pump part no. 65-P014
60I156 1.5 m. Pressure hose, (Max. 700 bar/10,000 psi)*
60I157 5 m., Pressure hose, (Max. 700 bar / 10,000 psi) *
* 1/4” BSP female to 1/4” BSP male
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for rechargeable batteries - 115/230 VAC
50-REP 615 Quick connector set, female 1/4”BSP
to 1/4” BSP
Connections for APM H/S pressure modules
60R115 Fitting 1/4” BSP male x 1/4” BSP male for
APM-S pressure module with system E
11-90109 Fitting 1/4” BSP male to 1/4” NPT female for
APM-H pressure module with system E
11-90067 Fitting 1/8” NPT male to 1/4” NPT male for
APM-H pressure module with system E
T-786 Fitting 1/4” NPT male to 1/4” BSP female
for APM-S pressure module with
Jackpump 65-P014 alone
T-870 Fitting 1/8” NPT male to 1/4” BSP female
for APM-H pressure module with
Jackpump 65-P014 alone
1) Please note that both 11-90109 and 11-90067 are needed to work with
APM-H pressure module
1)
1)
Ordering information System E
Order No . Description
Pressure calibrator
APC APC pressure calibrator
Calibrator pressure range
01KG 0 to 70 bar (1,000 psi)
03KG 0 to 200 bar (3,000 psi)
05KG 0 to 350 bar (5,000 psi)
10KG 0 to 700 bar (10,000 psi)
NONE Pump system only (no calibrator)
Base model number
EXX APC System E (pump 65-P014)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC03KGEXXG Sample order number
JOFRA APC 200 bar (3,000 psi) calibrator in pressure
System E with high pressure pump for hydraulic oil and
NIST traceable calibration certificate.
10 www.jofra.com
Model APC
Advanced Pressure Calibrator
Specification Sheet
SS-CP-2181-US
JOFRA APC System F
0 to 35 bar (500 psi)
•
0 to 70 bar (1,000 psi)
•
0 to 200 bar 3,000 psi)
•
0 to 350 bar (5,000 psi)
•
0 to to 700 bar (10,000 psi)
•
System F is an easy-to-use calibration system. The
hydraulic pump makes it very easy to prime the system.
The pump contains 75 in3 / 1.23 l of liquid.
The system includes a manifold for connection of two test
devices and the fine adjustment vernier valve is standard.
The System F comes in a protective carrying case with
cutouts for fittings. Easy and fast connection between
pump and calibrator makes it easy to use the pressure
calibrator separately for other pressure test tasks.
AMETEK Type T hydraulic oil or water pump
The type T pump is designed for high pressure applications up to 15,000 psi (1,000 bar). The pump and system
may be ordered with either oil or a water/alcohol mixture
as the pressure medium. The pump is constructed of 300
series stainless steel and Monel allowing for the use of
other hydraulic media. There are three available seal packages for the system: Buna-N, Viton®, and EPT. 1)
The Type T pump features a dual pressure output manifold, fine adjustment vernier valve, relief valve, and dual
volume control for rapid pressure increase at lower pressures and easier pumping at higher pressures.
Pressure range ........................... 0 to 1,000 bar / 15,000 psi
Type ....................................................................... Hydraulic
Test media ..............................................Hydraulic oil, water
Reservoir capacity .......................................... 1.23 l / 75 in
Operation ............................................................Jack pump
“O”-rings ......... Buna-N (standard) or EPT / Viton (optional)
Wetted part ........................................Stainless steel, Monel
Connections to test objects ..................... 1/4” and 1/2” BSP
............. terminations; 1/4” and 1/2” PT female terminations
Size................................. 79.4x22.9x50.8 cm / 31.3x9x20 in
Weight ............................................................9.1 kg / 20 lbs
Ordering
Part No. Description Seals
T-1 0 to 1,000 bar (15,000 psi) water - Buna N
T-1/VITON 0 to 1,000 bar (15,000 psi) water - Viton
T-1/EPT 0 to 1,000 bar (15,000 psi) water - EPT
T-1/OIL 0 to 1,000 bar (15,000 psi) oil - Buna N
T-1/OIL/VITON 0 to 1,000 bar (15,000 psi) oil - Viton
T-1/OIL/EPT 0 to 1,000 bar (15,000 psi) oil - EPT
1) Customer must verif y compatibility of seals and pump materials with
pressure medium. Viton is a registered trademark.
2) Buna N are the standard ”O” ring material for the hydraulic testers. They
are used with water/alcohol or non corrosive oils.
3) Viton ”O” ring material is used for all corrosive oils other than Skydrol.
4) EPT ”O” ring material is specifically for Sk ydrol Oil used for hydraulic
systems in airplanes, it is ver y corrosive.
2)
3)
4)
2)
3)
4)
Included with System F delivery
Standard delivery (see page 12)
•
Hydraulic pump
•
2 x 1/4” bonded seals
•
Allen key 6 mm
•
1 roll of Teflon tape
•
Protective carrying case
•
Accessories
Part No. Description
T-250 Service kit for T pump with Buna N O-rings
T-559 Service kit for T pump with VITON N O-rings
T-326 Service kit for T pump with EPT N O-rings
60I156 1.5 m. Pressure hose, (Max. 700 bar/10,000 psi)*
60I157 5 m., Pressure hose, (Max. 700 bar / 10,000 psi) *
* 1/4” BSP female to 1/4” BSP male
123958 RS232 cable with stereo Jack connector, 2m/6ft
124717 1x 9 Volt rechargeable battery
124718 Charger for 124716 batteries - 115/230 VAC
MGAAA/GL Oil for T-620 & T-1 pump AAA OIL in
1-GALLON CAN
MGAAA/QT Oil for T-620 & T-1 pump AAA OIL in 1-
QUART CAN
Connections for APM H/S pressure modules
T-134 Union Body-1/4” NPT Female for manifold pump T
11-90067 Fitting 1/8” NPT male to 1/4” NPT male
for APM-H pressure module 1)
11-90057 Fitting 1/4” NPT male to 1/4” NPT male
for APM-S pressure module 1)
1) Please note that both AM-T-134 and AM-11-90067 are needed to work
with APM-H and both AM-T-134 and AM-11-90057 are needed to work with
APM-S
Ordering information System F
Order No. Description
Pressure calibrator
APC APC pressure calibrator
3
Calibrator pressure range
500C Vacuum to 35 bar (500 psi)
01KG 0 to 70 bar (1,000 psi)
03KG 0 to 200 bar (3,000 psi)
05KG 0 to 350 bar 5,000 psi)
10KG 0 to 700 bar (10,000 psi)
NONE Pump system only (no calibrator)
Base model number
FWB APC System F (pump T-1)
FWV APC System F (pump T-1/VITON)
FWE APC System F (pump T-1/EPT)
FOB APC System F (pump T-1/OIL)
FOV APC System F (pump T-1/OIL/VITON)
FOE APC System F (pump T-1/OIL/EPT)
Certificate
G NIST traceable certificate (standard)
H Accredited certificate
APC10KGFOEG Sample order number
JOFRA APC 700 bar (10,000 psi) calibrator in pressure
System F with Type T pump for oil and NIST traceable calibration certificate.
www.jofra.com 11
ORDERING INFORMATION - APC CALIBRATOR
Order No. Description
Pressure calibrator
APC APC Pressure Calibrator
Calibrator pressure range
010C Vacuum to 0.7 bar (10 psi)
030C Vacuum to 2 bar (30 psi)
200C Vacuum to 15 bar (200 psi)
500C Vacuum to (35 bar (500 pi)
01KG 0 to 70 bar (1,000 psi)
03KG 0 to 200 bar (3,000 psi)
05KG 0 to 350 bar (5,000 psi)
10KG 0 to 700 bar (10,000 psi)
Base model number
IND APC calibrator only with standard accessories for
configuration
Certificate
G NIST traceable certificate (standard)
H Accredited certificate (optional – on quotation basis)
APC030CINDG Sample order number
JOFRA APC 2 bar (30 psi) calibrator with standard
accessories and NIST traceable calibration certificate.
STANDARD DELIVERY
APC calibrator
•
Traceable calibration certificate (NIST)
•
with pressure and vacuum performance
•
9V battery
Adapter to 1/4” NPT female from 1/8” NPT
•
Adapter to 1/4” BSP female from 1/8” NPT
•
Test leads: red and black
•
Connection cable for RS232
•
•
JOFRACAL calibration software
Soft case and shoulder strap
•
•
User manual
is one of the world’s leading manufacturers and
AMETEK Calibration Instruments
developers of calibration instruments for
temperature, pressure and process signals
as well as for temperature sensors both from
a commercial and a technological point of view.
JOFRA Temperature Instruments
Portable precision thermometers. Dry-block and
liquid bath calibrators : 4 series, with more than
25 models and temperature ranges from
-90° to 1205°C / -130° to 2200°F. All featuring speed,
portabilit y, accuracy and advanced documenting
functions with JOFRACAL calibration software.
JOFRA Pressure Instruments
Convenient electronic systems ranging from
-1 to 1000 bar (25 inHg to 14,500 psi) -
multiple choices of pressure ranges, pumps and
accuracies, fully temperature- compensated
for problem-free and accurate field use.
JOFRA Signal Instruments
Process signal measurement and simulation for
easy control loop calibration and measurement
tasks - from handheld field instruments to
laboratory reference level bench top instruments.
JOFRA / JF Marine Instruments
A complete range of calibration equipment
for temperature, pressure and signal,
approved for marine use.
FP Temperature Sensors
A complete range of temperature sensors
for industrial and marine use.
M&G Pressure Testers
Pneumatic floating-ball or hydraulic piston dead
weight testers with accuracies to 0.015% of reading.
M&G Pumps
Pressure generators from small pneumatic
“bicycle” style pumps to hydraulic pumps
generating up to 1,000 bar (15,000 psi).
Headquarters:
AMETEK Denmark A/S
Gydevang 32-34 • 3450 Allerød • Denmark
Tel: +45 4816 8000 • ametek@ametek.dk
Sales & Service:
Europe, Asia, Africa, Middle East and South America
Information in this document is subject to change without notice.
©2008, by AMETEK, Inc., www.ametek.com. All rights reserved.
Pub code SS-C P-218 1-US Is sue 0808
12 www.jofra.com
.. .beca use calib ratio n is
a ma tter of c onfid ence
www.ametekcalibration.com
www.jofra.com
Sales & Service Offices:
AMETEK Mansfield & Green (North America)
Tel: +1 800 527 9999 • cal.info@ametek.com
AMETEK Singapore Pte. Ltd. (Singapore)
Tel: +65 6 484 2388 • aspl@ametek.com.sg
AMETEK Inc. Beijing Rep. Office (China)
Tel: +86 10 8526 2111 • jofra@ametek.com.cn
AMETEK GmbH (Germany)
Tel: +49 2159 91360 • info@ametek.de
AMETEK Lloyd Instruments (UK)
Tel: +44 (0) 1489 486 404 • jofra@ametek.co.uk
Loading...
