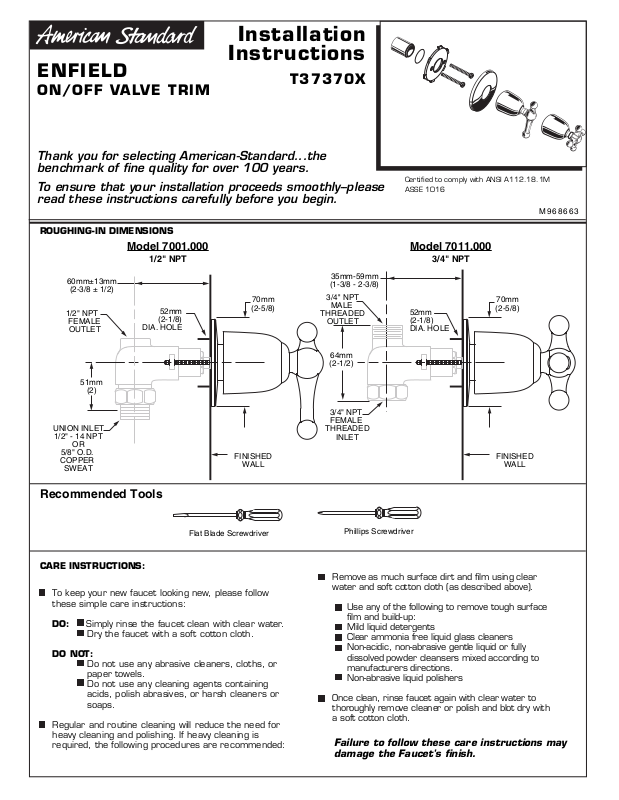

American Standard M968663, T37370X User Manual

ON/OFF VA LVE TRIM

Installation

Instructions

M 9 6 8 6 6 3

T37370X

ENFIELD

Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

Certified to comply with ANSI A112.18.1M
ASSE 1016

ROUGHING-IN DIMENSIONS

Recommended Tools

Flat Blade Screwdriver

Phillips Screwdriver

Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).

Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers

Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.

To keep your new faucet looking new, please follow
these simple care instructions:

DO: Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.

DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.

Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:

CARE INSTRUCTIONS:

Failure to follow these care instructions may
damage the Faucet's finish.

FINISHED

WALL

60mm±13mm

(2-3/8 ± 1/2)

35mm-59mm

(1-3/8 - 2-3/8)

51mm

(2)

UNION INLET

1/2" - 14 NPT

OR
5/8" O.D.
COPPER

SWEAT

52mm

(2-1/8)

DIA. HOLE

52mm
(2-1/8)
DIA. HOLE

1/2" NPT

FEMALE
OUTLET

1/2" NPT 3/4" NPT

70mm

(2-5/8)

70mm

(2-5/8)

Model 7001.000 Model 7011.000

FINISHED

WALL

64mm
(2-1/2)

3/4" NPT
FEMALE

THREADED

INLET

3/4'' NPT

MALE

THREADED

OUTLET

M 9 6 8 6 6 3 M 9 6 8 6 6 3

OPERATING THE VALVE

1

TRIM INSTALLATION

1

1

3

6

2

4

2

HANDLE INSTALLATION

3

Place ESCUTCHEON HOLDER (3) over VALVE COVER (1). Line up holes in ESCUTCHEON HOLDER (3) with THREADED TABS (4) on VALVE.

Install MOUNTING SCREWS (5) through ESCUTCHEON HOLDER (3) and into THREADED TABS (4). Tighten SCREWS securely.

Place ESCUTCHEON (6) over ESCUTCHEON HOLDER (3) and push evenly for a snap fit.

Push VALVE COVER (1) over VALVE CARTRIDGE (2) until it is seated against the stop.

5

OFF

ON

Turn HANDLE into OFF position.
Turn on water supplies, and check all connections for leaks.

Operate HANDLE to flush water lines thoroughly.

Turn handle OFF.

2

Install KNOB MOUNT (1) onto VALVE STEM (2). Thread HANDLE SCREW (3) into VALVE STEM (2) and tighten.

Align HANDLE (4, 4a) and push onto KNOB MOUNT (1).

Tighten SET SCREW in handle with HEX WRENCH (5) SUPPLIED.

3

4

5

4a
