American Standard M968628 User Manual
Installation
Instructions
STUDIO
PRESSURE BALANCING
BATH AND SHOWER
TRIM KITS
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
Phillips Screwdriver
T590.50X
Certified to comply with ANSI A112.18.1
M968628 REV.1.3
Plumbers' Putty or Caulking
Teflon Tape
Flat Blade Screwdriver

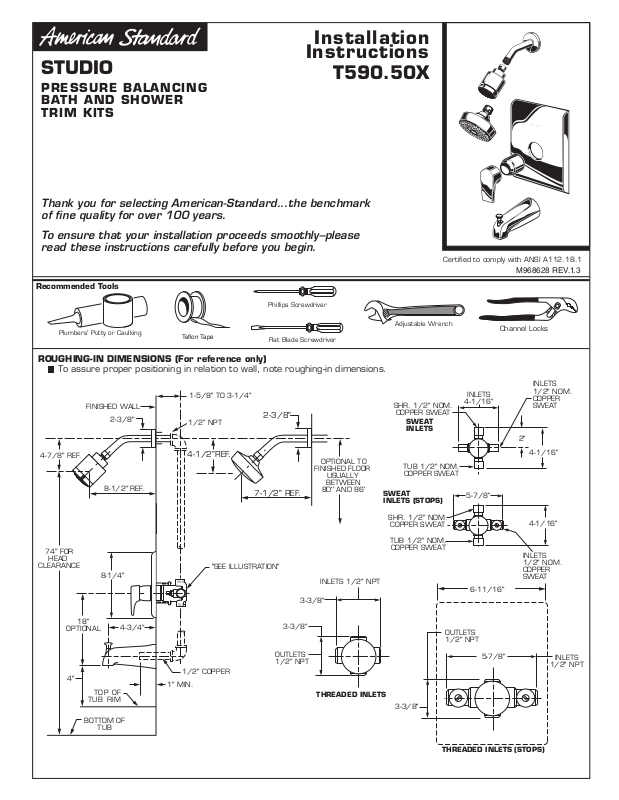

ROUGHING-IN DIMENSIONS (For reference only)
To assure proper positioning in relation to wall, note roughing-in dimensions.
1-5/8" TO 3-1/4"
4-7/8" REF.
74" FOR
HEAD
CLEARANCE
FINISHED WALL
2-3/8"
8-1/2" REF.
8-1/4"
1/2" NPT
4-1/2"REF.
"SEE ILLUSTRATION"
SHR
TUB
2-3/8"
7-1/2" REF.
OPTIONAL TO
FINISHED FLOOR
USUALLY
BETWEEN
80'' AND 86'
INLETS 1/2" NPT
3-3/8"
Adjustable Wrench
SHR. 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS
TUB 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS (STOPS)
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
INLETS
4-1/16"
5-7/8"
6-11/16"
Channel Locks
INLETS
1/2" NOM.
COPPER
SWEAT
2"
4-1/16"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
18"
OPTIONAL
4"
TUB RIM
BOTTOM OF
TOP OF
TUB
4-3/4"
1/2" COPPER
1" MIN.
3-3/8"
OUTLETS
1/2" NPT
THREADED INLETS
3-3/8"
OUTLETS
1/2" NPT
5-7/8"
THREADED INLETS (STOPS)
INLETS
1/2" NPT
INSTALL VALVE TRIM
1
Figure 1. Remove plaster guard from valve. Push CAP (1)
over VALVE CARTRIDGE (2) until seated against stop.
Figure 2. Make sure O-RING (8) is secure within
ESCUTCHEON HOLDER (3). Push ESCUTCHEON HOLDER
(3) onto CAP (1) and attach with LONG SCREWS (4).
Mount ESCUTCHEON SUPPORT (5) to ESCUTCHEON
HOLDER (3) with 4 SHORT SCREWS (6).
Figure 3. Install ESCUTCHEON (7) onto CAP (1) and push
flush against finished wall. Escutcheon (7) will snap fit onto
ESCUTCHEON SUPPORT (5).
1
3
Figure 2.
8
4
5
PLSTER
GUARD
Figure 1.
Figure 3.
1
2
7
1
5
INSTALL DIVERTER KNOB, TUB SPOUT, SHOWER HEAD,
2
SHOWER ARM WITH FLANGE
Remove pipe cap and plug from shower and tub
rough piping.
Install TUB SPOUT (1) onto tub nipple.
CAUTION: Protect finish on TUB SPOUT when
installing.
Install SHOWER ESCUTCHEON (2) onto SHOWER
ARM (3). Apply sealant or Teflon tape to threads on
both ends of SHOWER ARM (3) and thread longer
leg of SHOWER ARM (3) into shower elbow.
Thread SHOWER HEAD (4) onto SHOWER ARM (3).
CAUTION: Protect finish on SHOWER HEAD and
ARM when installing.
Install HANDLE (5) onto CARTRIDGE STEM (6). Tighten
SET SCREW (7) with HEX WRENCH (8) supplied.
6
2
SHR.
ELBOW
4
3
PIPE
PLUG
5
7
6
TUB FILLER
NIPPLE
1" MIN.
PIPE
CAP
8
1
M968628 REV.1.3
