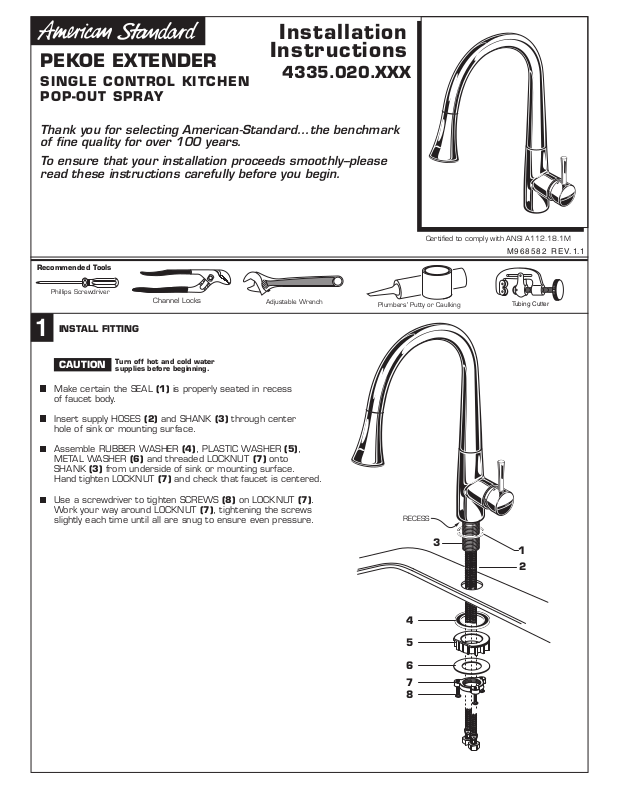

American Standard M968582 User Manual
Installation
PEKOE EXTENDER
Instructions
SINGLE CONTROL KITCHEN
POP-OUT SPRAY
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
Phillips Screwdriver
INSTALL FITTING
1
Channel Locks
4335.020.XXX
Adjustable Wrench
Plumbers' Putty or Caulking
Certified to comply with ANSI A112.18.1M
M 9 6 8 5 8 2 R E V. 1.1
Tubing Cutter
CAUTION
Make certain the SEAL (1) is properly seated in recess
of faucet body.
Insert supply HOSES (2) and SHANK (3) through center
hole of sink or mounting surface.
Assemble RUBBER WASHER (4), PLASTIC WASHER (5),
METAL WASHER (6) and threaded LOCKNUT (7) onto
SHANK (3) from underside of sink or mounting surface.
Hand tighten LOCKNUT (7) and check that faucet is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (7).
Work your way around LOCKNUT (7), tightening the screws
slightly each time until all are snug to ensure even pressure.
Turn off hot and cold water
supplies before beginning.
RECESS
4
5
3
1
2
6
7
8
MAKE WATER SUPPLY CONNECTIONS
2
Turn off hot and cold water supplies before beginning.
Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection
on fitting supplies are 3/8" compression. Connect left supply
(Marked with a Red Stripe) to Hot and right supply (Marked with
Blue Stripe) to Cold wall supply. Use adjustable wrench to
tighten connections. Do not over tighten.
RED
STRIPE
BLUE
STRIPE
Faucet supplies are 27-1/2" long from faucet base.
Note: If additional supply length
is required, installer must
purchase additional parts
separately.
Important: If SUPPLY HOSES
(1, 2) are too long, loop as
illustrated to avoid kinking.
TEST INSTALLED FAUCET
3
3
Move HANDLE (1) into "off" position.
Unthread SPRAY END (2) from SPOUT (3).
Turn on water supplies and check connections for leaks
Operate HANDLE (1) on and off, hot and cold to flush water
lines thoroughly. Replace SPRAY END (2).
Check all drain connections for leaks.
Move HANDLE (1) to "off" position.
2
1
HOT
.
3
COLD
2
1
HOT & COLD SUPPLIES
M 9 6 8 5 8 2 R E V. 1.1
