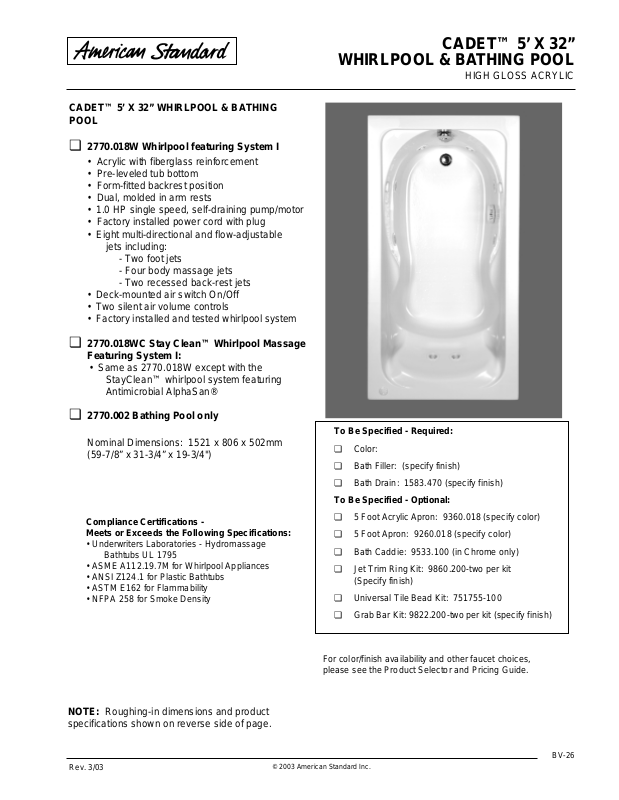

CADET™ 5’ X 32”
WHIRLPOOL & BATHING POOL
HIGH GLOSS ACRYLIC
CADET™ 5’ X 32” WHIRLPOOL & BATHING
POOL
❏ 2770.018W Whirlpool featuring System I
• Acrylic with fiberglass reinforcement
• Pre-leveled tub bottom
• Form-fitted backrest position
• Dual, molded in arm rests
• 1.0 HP single speed, self-draining pump/motor
• Factory installed power cord with plug
• Eight multi-directional and flow-adjustable
jets including:
- Two foot jets
- Four body massage jets
- Two recessed back-rest jets
• Deck-mounted air switch On/Off
• Two silent air volume controls
• Factory installed and tested whirlpool system
❏ 2770.018WC Stay Clean™ Whirlpool Massage
Featuring System I:
• Same as 2770.018W except with the
StayClean™ whirlpool system featuring
Antimicrobial AlphaSan®
❏ 2770.002 Bathing Pool only
Nominal Dimensions: 1521 x 806 x 502mm
(59-7/8” x 31-3/4” x 19-3/4")
© 2003 American Standard Inc.
BV-26
NOTE: Roughing-in dimensions and product
specifications shown on reverse side of page.
Rev. 3/03
Compliance Certifications Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
To Be Specified - Required:
❏ Color:
❏ Bath Filler: (specify finish)
❏ Bath Drain: 1583.470 (specify finish)
To Be Specified - Optional:
❏ 5 Foot Acrylic Apron: 9360.018 (specify color)
❏ 5 Foot Apron: 9260.018 (specify color)
❏ Bath Caddie: 9533.100 (in Chrome only)
❏ Jet Trim Ring Kit: 9860.200-two per kit
(Specify finish)
❏ Universal Tile Bead Kit: 751755-100
❏ Grab Bar Kit: 9822.200-two per kit (specify finish)
For color/finish availability and other faucet choices,
please see the Product Selector and Pricing Guide.
CADET™ 5’ X 32”
WHIRLPOOL & BATHING POOL
HIGH GLOSS ACRYLIC
© 2003 American Standard Inc.
NOTES:
BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA
TYPE INSTALLATION. SUMP OF BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT
REQUIRED. ENCLOSING MATERIAL BY OTHERS.
REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL
INFORMATION.
OPTIONAL 3 WALL TILING BEAD. KIT AND APRON No. 9260.018 or 9360.018 AVAILABLE AND MUST BE
ORDERED SEPARATELY.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.
IMPORTANT:
Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI
Standard Z124.1
These measurements are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided leaflet.
■
222 mm
(8-3/4)
19 mm
FINISHED
WALL
SEE FITTING
SPECS FOR
DIMENSIONS
806 mm
(31-3/4)
403 mm
(15-7/8)
C/L OF
SUPPLIES
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
1651 & 1981mm
(65 & 78)
(3/4)
C/L OF
OVERFLOW
70mm
(2-3/4)
ROUGH
FLOOR
INTEGRAL
SUPPORT
305 mm
(12)
502 mm
(19-3/4)
FEET
60mm
(2-3/8)
38 mm
(1-1/2)
C/L OF DRAIN
229 mm
(9)
CUTOUT IN FLOOR
FOR DRAIN
(8) JETS
305 mm
(12)
102 mm
1-1/2 N.P.T.M.
THREADS
1-1/2 O.D.TAILPIECE
PROVIDE ACCESS TO PUMP FOR
SERVICING ON ALL INSTALLATIONS
1521 mm
(59-7/8)
OUTLINE OF CUTOUT
1483 mm x 768 mm
(58-3/8 X 30-1/4 )
PUMP
(2) AIR VALVES
C/L OF
SHOWER ARM
C/L OF
VALVES
C/L OF
SPOUT
(4)
70 mm
(2-3/4)
117 mm
(4-5/8)
■ LEVELING
STRINGER
NOT FOR
SUPPORT
464 mm
(18-1/4)
ON/OFF
SWITCH
222 mm
(8-3/4)
FINISHED
SEE FITTING
SPECS FOR
DIMENSIONS
WALL
806 mm
(31-3/4)
403 mm
(15-7/8)
C/L OF
SUPPLIES
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
1651 & 1981mm
(65 & 78)
19 mm
(3/4)
305 mm
(12)
60mm
(2-3/8)
C/L OF DRAIN
C/L OF
OVERFLOW
70mm
(2-3/4)
502 mm
(19-3/4)
ROUGH
FLOOR
INTEGRAL
SUPPORT
FEET
229 mm
(9)
CUTOUT IN FLOOR
FOR DRAIN
305 mm
38 mm
(1-1/2)
1-1/2 N.P.T.M.
1-1/2 O.D.TAILPIECE
1521 mm
(59-7/8)
(12)
102 mm
THREADS
■ LEVELING STRINGER
(4)
OUTLINE OF CUTOUT
1473 mm x 768 mm
(58 X 30-1/4 )
C/L OF
SHOWER ARM
C/L OF
VALVES
C/L OF
SPOUT
NOT FOR SUPPORT
464 mm
(18-1/4)
70 mm
(2-3/4)
117 mm
(4-5/8)
GENERAL SPECIFICATIONS FOR 2770 WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
MIN. OPERATING GAL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
59-7/8 x 31-3/4 x 19-3/4 In. (1521 x 806 x 502mm)
20 x 40 In. (508mm x 1016mm)
53-1/2 x 26 In. (1359mm x 699mm)
41 Lbs./Sq. Ft. (197 Kgs/Sq. m.)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
535 Lbs. (243 Kg.)
1.1 HP, 9.9 AMPS, 120V.SYSTEM I PUMP
85 Lbs. (39 Kg.)
54 Gal. (204 L.)
49 Gal. (186 L.)
14 In. (356mm)
15.6
29.6
GENERAL SPECIFICATIONS FOR 2770 BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT3)
59-7/8 x 31-3/4 x 19-3/4 In.
(1521mm x 806 mm x 502mm)
62 Lbs. (28 Kg.)
512 Lbs. (233 Kg.)
54 Gal. (204 L.)
20 x 40 In. (508mm x 1016mm)
53-1/2 x 26 In. (1359mm x 699mm)
14 In. (356mm)
39 Lbs./Sq. Ft. (189 Kgs/Sq. m.)
15.6
29.6
