B-2

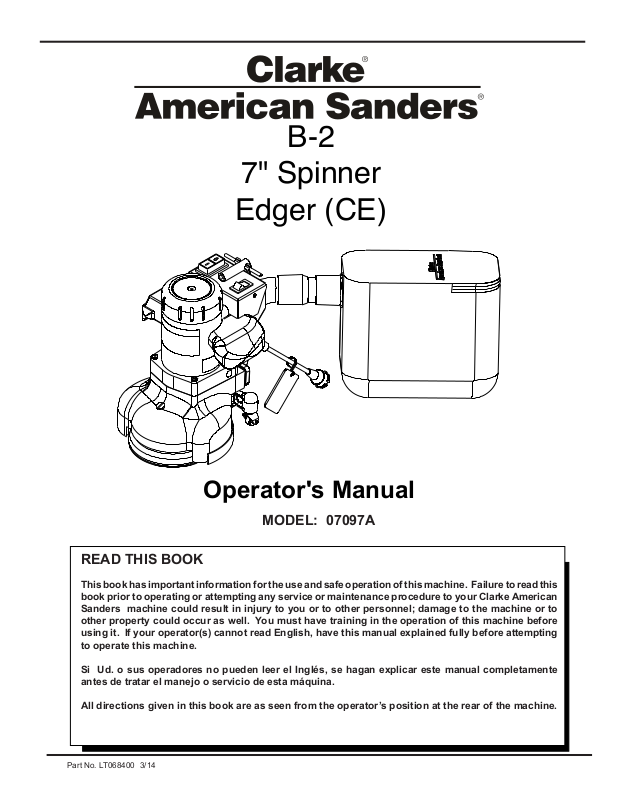

7" Spinner
Edger (CE)
Operator's Manual
MODEL: 07097A
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke American
Sanders machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. You must have training in the operation of this machine before
using it. If your operator(s) cannot read English, have this manual explained fully before attempting
to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
Part No. LT068400 3/14
Page 2
Contents of this Book
Operator Safety Instructions ........................................................ 3
Introduction and Machine Specications ..................................... 5
Machine Set-Up ........................................................................... 6
How to Operate the Machine ....................................................... 8
Sanding Cuts and Sandpaper .................................................... 9
Maintenance .............................................................................. 10
The Dust Control System ..................................................... 10
How to Adjust the Angle of the Sandpaper Disc to the Floor 10
How to Change Adjustment of Machine ............................... 10
How to Clean Ventilation Plug .............................................. 10
Lubrication.............................................................................11
How to change the Lubricant in the Gearbox ........................11
How to Check the Carbon Brushes .......................................11
Lower Assy ........................................................................... 14-15
Upper Assy ........................................................................... 16-17
Wiring Diagram .......................................................................... 18
WARNING!
The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of
California, as identied in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm. In
certain locations (including the State of California) purchasers of these Products that place them in service at an employment job site
or a publicly accessible space are required by regulation to make certain notices, warnings or disclosures regarding the chemicals
that are or may be contained in the Products at or about such work sites. It is the purchaser’s responsibility to know the content of,
and to comply with, any laws and regulations relating to the use of these Products in such environments. The Manufacturer disclaims
any responsibility to advise purchasers of any specic requirements that may be applicable to the use of the Products in such
environments.
- 2 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 3
OPERATOR SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGER means: Severe bodily injury or death can occur to you or other personnel if the
DANGER statements found on this machine or in this Operator's Manual are
ignored or are not adhered to. Read and observe all DANGER statements
found in this Operator's Manual and on your machine.
WARNING means: Injury can occur to you or to other personnel if the WARNING statements
found on your machine or in this Operator's Manual are ignored or are not
adhered to. Read and observe all WARNING statements found in this
Operator's Manual and on your machine.
CAUTION means: Damage can occur to the machine or to other property if the CAUTION state-
ments found on your machine or in this Operator's Manual are ignored or are
not adhered to. Read and observe all CAUTION statements found in this
Operator's Manual and on your machine.
DANGER: Failure to read the Operator's Manual before operating or servicing this sanding equip-
ment could result in injury to the operator or to bystanders and could cause damage to
the equipment. Read and observe all safety statements found in this manual and on the
sanding equipment. Make sure all labels, decals, warnings, cautions and instructions are
fastened to the equipment. Replace any that are damaged or missing. You must have
training in the operation of this equipment before using it. If the operator is unable to
read this manual, have it explained fully before they attempt to use this equipment.
DANGER: Sanding/nishing wood oors can create an environment that can be explosive. The fol-
lowing safety procedures must be adhered to:
• Cigarette lighters, pilot lights and any other source of ignition can create an explosion
when active during a sanding session. All sources of ignition should be extinguished
or removed entirely if possible from the work area.
• Work areas that are poorly ventilated can create an explosive environment when
certain combustible materials are in the atmosphere, i.e., solvents, thinners, alcohol,
fuels, certain nishes, wood dust and other combustible materials. Floor sanding
equipment can cause ammable material and vapors to burn. Read the manufactur-
er's label on all chemicals used to determine combustibility. Keep the work area well
ventilated.
• Spontaneous combustion or an explosion can occur when working with sanding dust.
The sanding dust can self-ignite and cause injury or damage. Sanding dust should
be disposed of properly. Always empty the sanding dust into a metal container that is
located outside of any building(s).
• Remove the contents of the dust bag when the bag is 1/3 full. Remove the contents of
the dust bag each time you nish using the equipment. Never leave a dust bag unat-
tended with sanding dust in it.
• Do not empty the contents of the dust bag into a re.
• Hitting a nail while sanding can cause sparks and create an explosion or re. Always
use a hammer and punch to countersink all nails before sanding oors.
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 3 -
Page 4
DANGER: Operating partially assembled sanding equipment could result in injury to the operator or by-
stander and could cause damage to the equipment or to other property.
• Do not operate this equipment unless it it fully assembled and all guards, doors and covers
are secured.
• Keep all fasteners tight.
• Keep all adjustments within manufacturers specications.
DANGER: Moving parts on this sanding equipment can cause injury to the operator or bystanders.
• Keep hands, feet and loose clothing away from all moving parts.
• Do not change or adjust the abrasive while the sanding equipment is running.
• Do not service the sanding equipment while it is running.
DANGER: This sanding equipment requires a supply of electricity. Improper use could result in electrical
shock or re.
• Connect only to an electrical source matching what is shown on the equipment nameplate.
• Do not use this sanding equipment on an ungrounded electrical circuit. Consult an electri-
cian if you suspect the circuit is not properly grounded.
• Do not use this sanding equipment with a damaged electrical cord. Inspect before each
use.
• Avoid striking the elelctrical cord with the abrasive. Always lift the electrical cord over the
sanding equipment.
• Do not use the electrical cord to move the sanding equipment.
• Disconnect the electrical source before servicing this equipment.
WARNING: Injury to the operator or bystander can occur if protective gear is not worn while sanding. Always
use eye, ear, and respiratory protection while performing any sanding operation.
WARNING: Bodily injury could occur if power is applied to the equipment with the power switch already in
the "ON" position. Always check to assure that the power switch is in the "OFF" position before
connecting power supply.
CAUTION: Maintenance and repairs performed by unauthorized personnel could result in damage or injury.
Maintenance and repairs performed by unauthorized personnel will void your warranty. Servicing
of this unit must always be referred to an authorized Clarke American Sanders distributor.
CAUTION: Use of this equipment to move other objects or to climb on could result in injury or damage. Do
not use this equipment as a step or furniture. Do not ride on this equipment.
CAUTION: Damage could occur to the equipment if not properly kept in a dry building for storage. Store
the equipment in a dry building.
CAUTION: Serious damage to the oor can occur if the sanding equipment is left running in one spot while
the sanding disc is in contact with the oor. To avoid damage to the oor, do not dwell while
lowering or raising the sanding disc. Always sand with a constant motion.
- 4 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 5
INTRODUCTION AND MACHINE SPECIFICATIONS
The B-2 is specically designed for nishing oor edges, stairs, and other hard-to-reach surfaces. The handle location and low center of gravity
make the B-2 easy to operate.
The excellent cutting power comes from a powerful universal type motor. A motor that delivers maximum performance without slowing down or
overheating. Its exclusive two speed control when switched to hi-speed produces 3200 rpm for fast, rough sanding. At low speed, the B-2 operates
at 2800 rpm for ne, nish sanding. A non-marking disc guard protects the rubber pad, permitting the edger to work right up to the baseboard or wall.
1-Powerful Universal Motor
2-Comfortable Operating Handles
3-Aluminum Alloy Casting
4-Balanced Sanding Disc for perfectly matched job
5-Non-Marking Roller Guard
6-Non-Marking Swivel Type Casters
7-High Low Switch
*-Hardened Steel Alloy Pinon and Drive Gear
*-Powerful Vacuum Fan for efcient dust pickup
1
7
2
3
4
5
SPECIFICATIONS
Model 07097A
Voltage / Frequency 220V-240V / 50-60Hz
Amperage 6.5
Motor 1450W (1HP)
Sound Level 91dB (A)
Vibration 14.3 m/s2 rms
Abrasive Size 178mm x 22 mm Dia. (7” x 7/8” Dia.)
Disc Rate High 3200 RPM
Disc Rate Low 2800 RPM
Gears Hardened steel alloy pinion and drive gear.
Bearings Sealed ball bearings, lifetime lubricated.
Dust Collector Powerful vacuum fan, full aluminum skirt
Power Cord 12m H07RN F3G 1.5mm
Dimensions
Weight 14.5 kg (32 lbs.)
Shipping Weight 21 kg. (46 lbs.)
356 x 260 x 343mm (14 x 10½ x 13½)
2
6
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 5 -
Page 6
Machine Set-up
This sanding machine is designed to be operated with a
remote vacuum dust collection sytem or with the included
dust bag.
Preparing Remote Vacuum Dust Collection Sytems
To prepare the machine for remote vacuum dust collection
systems that have a 2" hose end, follow this procedure:

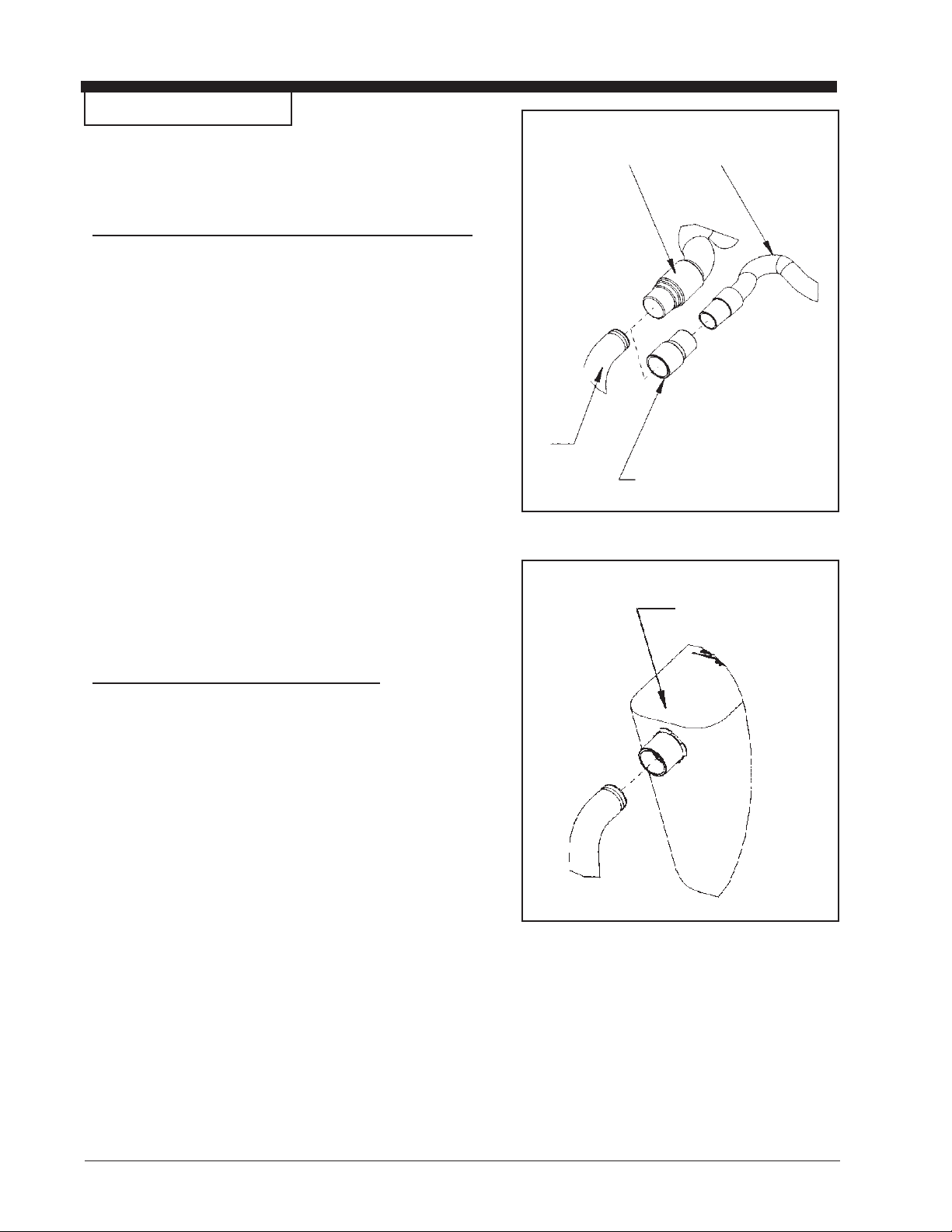

1. Install 2" hose end (gure 1, A) directly over the ex-
haust tube (gure 1, B).
2. The exhaust tube can be rotated for optimum convenience.
2" Hose from
vacuum system
(not included)
1.5" Hose from
A
D
vacuum system
(not included)
To prepare the machine for remote vacuum dust collection
systems that have a 1 ½" hose end, follow this procedure:
1. Install the 2" x 1½" hose end adaptor (Part No.
30563A) (gure 1, C) over the exhaust tube (gure 1,
B).
2. Insert 1 ½" hose end (gure 1, D) into the adaptor
(gure 1, C).
NOTE: Start the remote vacuum collection system
before operation.
Preparing to use the included dust bag
To prepare the machine for use with the included dust bag
(Part No. 53544B), follow this procedure:
1. Install the dust bag by pressing the end onto the ex-
haust tube until the ring locks into the groove (gure
2). This is best done by pressing on the back of the
bag opening with the palm of your hand.
2. The exhaust tube can be rotated for optimum convenience.
B
Exhaust Tube
C
(30563A) 2" Tube x 1.5" hose adaptor
Figure 1
Install the dust bag by
pressing the end onto the
exhaust tube until the ring
locks into the groove.
3. To remove the dust bag from the exhaust tube, pry
up the end of the bag opening to partially release the
Figure 2
internal rib from the groove, then pull.
4. To empty the dust bag, unzip the disposal ap and
force contents out by inverting the bag.
NOTE: For best results, empty frequently. Follow all
warnings posted in this manual and on the dust bag.
- 6 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 7
MACHINE SET-UP
To prepare the machine for use, follow this procedure:
1. Familiarize yourself with the machine. Read all danger, warning and caution statements and the Owner's
Manual. If operator is unable to read English, have
the manual explained before operating.

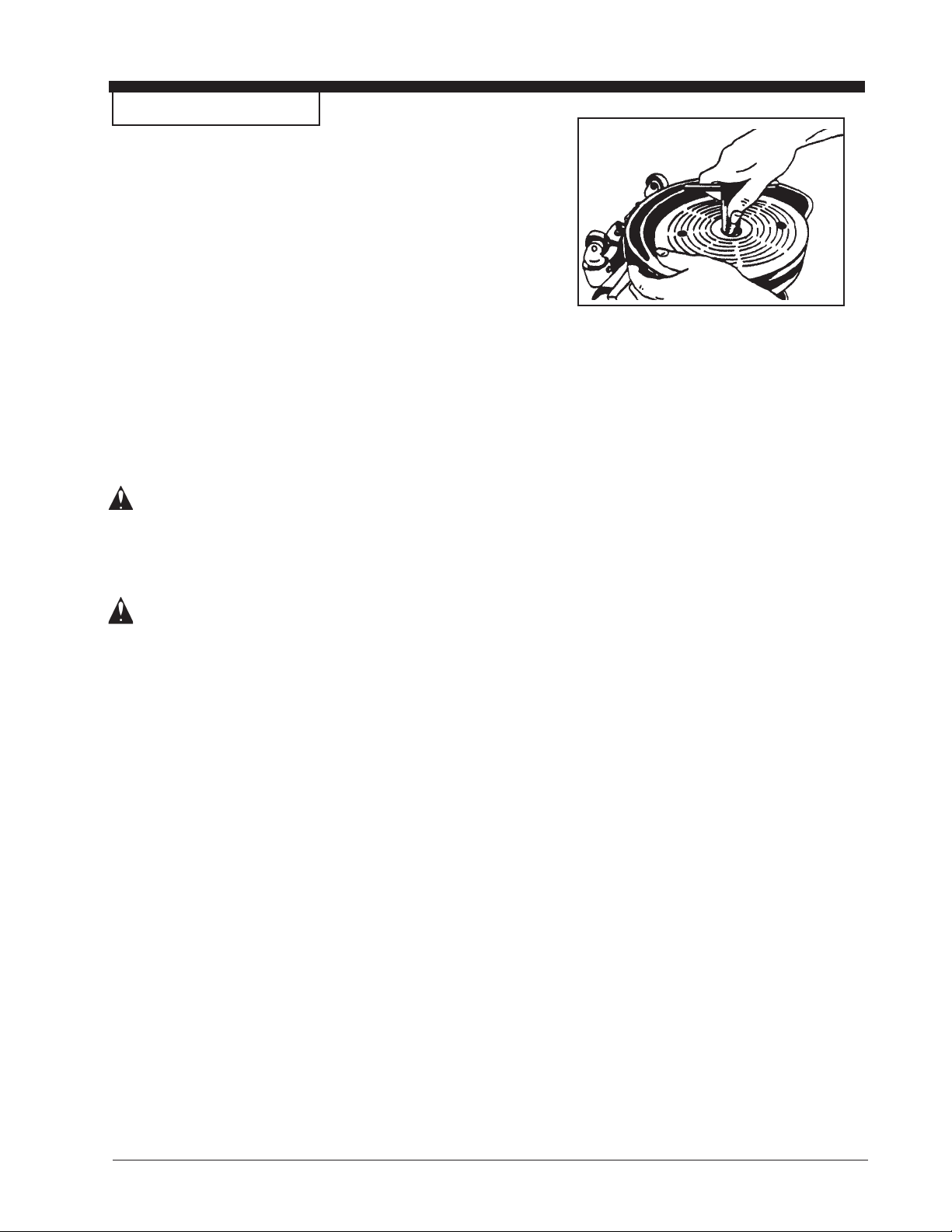

2. To install or replace abrasive, turn the machine
upside down and let it rest on the motor cover. With
the wrench supplied, remove the screw and abrasive
retainer. Hold pad to prevent it from rotating and turn
wrench. See gure 3.
3. Center abrasive on pad and install the abrasive retainer and screw. Tighten screw.
4. Return machine to upright position.
WARNING: Serious injury could occur when attempt-
ing to replace abrasive while machine is
connected to power supply. Always disconnect power before installing abrasive.
Figure 3
CAUTION: Gearbox damage could result from ma-
chine resting upside down for extended
periods of time. Lubricant may drain
from gearbox. Always return machine to
upright position after installing abrasive.
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 7 -
Page 8

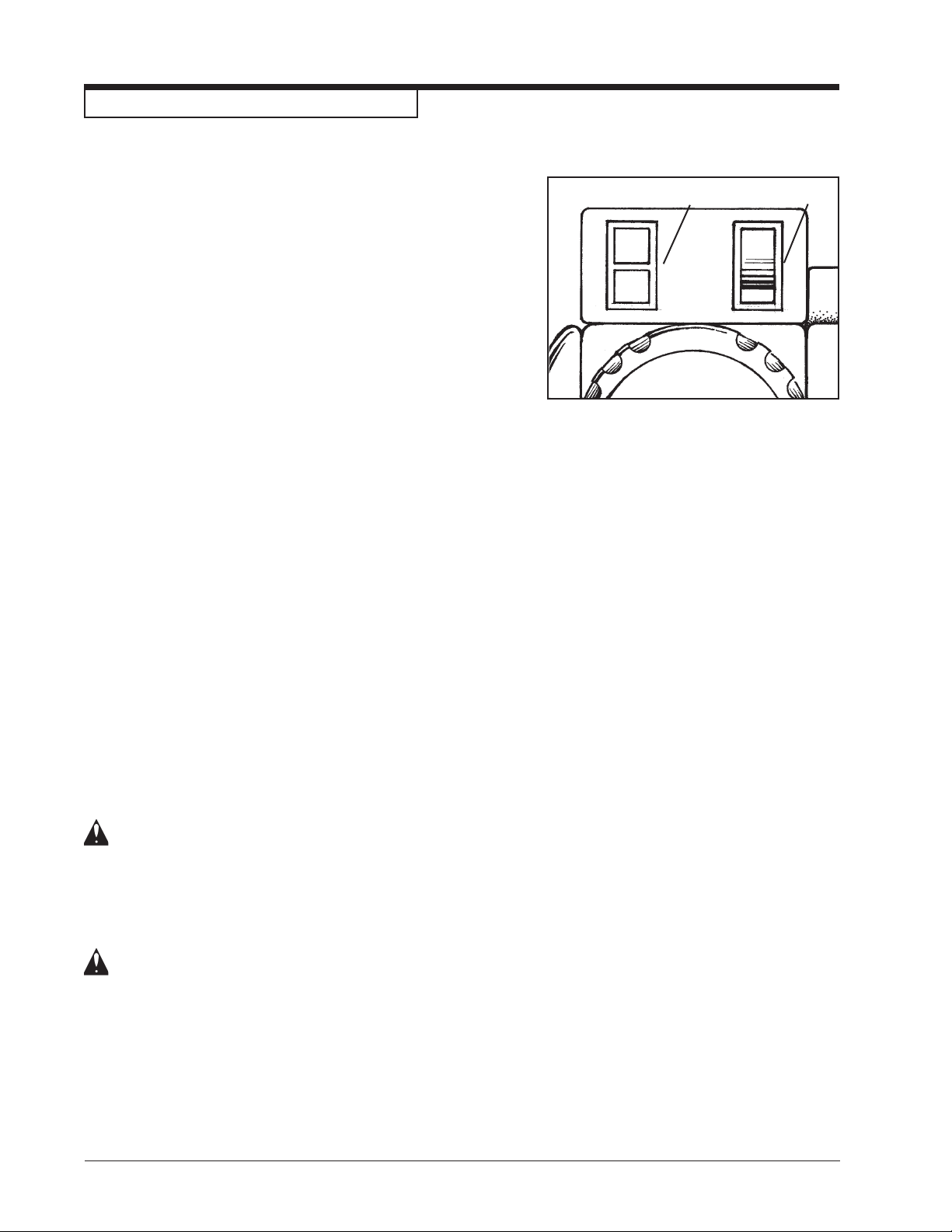

OPERATING INSTRUCTIONS
To operate the machine, follow this procedure:
1. Set any exposed nails with a hammer and punch to
avoid encounter with sanding pad.
2. Connect the machine to an appropriately grounded
and fused circuit (power supply).
3. Tilt the machine back so that the sanding pad does
not contact the oor. Select cutting speed. Use high
speed for fast stock removal. Use low speed for n-
ish cuts and custom work. See
gure 4 (A).
4. Depress and release the start/stop push button to
start the machine. See gure 4 (B).
5. Gradually lower sanding pad to the oor. Make sure
the machine is in motion while the sanding pad is
engaged with the oor. Broad circular motions can be
used as you sand along the length of the oor or you
may use a combination of forward and sideway motions. In time you will develop your own technique to
optimize coverage and dust control. It is advisable to
not add effort to the pad as this may lead to "nosing"
or "tipping" which produces grooves or lines on the
oor.
B
Figure 4
A
6. When replacing abrasive; emptying the contents of
the dust bag; or the sanding operation is completed,
return the machine to the reclined position and ip the
control switch to the off (O) position. Disconnect the
machine from the power supply.
7. Empty dust bag whenever it becomes 1/3 full.
DANGER: Failure to disconnect the supply cable
from machine whenever servicing, replacing abrasive, or emptying the dust bag
could result in electrocution or severe
injury. Never leave machine unattended
while the supply cable is connected.
DANGER: Never leave dust bag unattended with
sanding dust in it. Sanding dust can
spontaneously ignite and cause a re or
explosion. Empty dust bag into a metal
container, clear of any combustibles. Do
not empty content into a re. Do not overll dust bag.
- 8 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 9
SANDING CUTS AND SANDPAPER
Initial Cut
The purpose of the initial cut is to remove old nish and gross imperfections on the oor surface. A coarse
abrasive should be used. If the surface is severely damaged by deep scratches, pre-existing dwell marks,
uneven planks, etc., it may be necessary to sand across or diagonally to the grain to restore evenness to the
surface. If these conditions are not present, the initial cut should be done in the direction of the grain.
If glazing, loading, or burning takes place immediately into an initial cut, select a coarser abrasive. If this
should occur during an initial cut, the abrasive has dulled and must be replaced.
Final Cuts
The purpose of a nishing cut is to remove the scratches produced during the initial cut. Use a ne (60 - 80
grit) grain abrasive.
If the surface remains rough after a nishing cut, it may be necessary to use an even ner grain of abrasive
(80 - 100 grit). Care should be taken in selecting the grit size of the abrasive. A very ne grain will close
the pores on a wood oor making admission of a stain difcult.
If glazing or burning should occur immediately into a nishing cut, increase pace. If it should occur during a
nishing cut, the abrasive has dulled and must be replaced.
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 9 -
Page 10
MAINTENANCE
CAUTION: Maintenance and repairs performed by
unauthorized personnel could result
in damage or injury. Maintenance
and repairs performed by unauthorized personnel will void your warranty.
Servicing of these units must always be
referred to an authorized Clarke American Sanders distributor.
The Dust Control System
Remove the dust from the bag when the bag is 1/
3
full or when the efciency of the dust control system
decreases.
If the exhaust pipe gets an obstruction, follow this procedure:
1. Remove the four screws that hold the exhaust
pipe to the housing. See gure 5.
2. Remove the obstruction from the exhaust pipe.
3. Install the exhaust pipe.

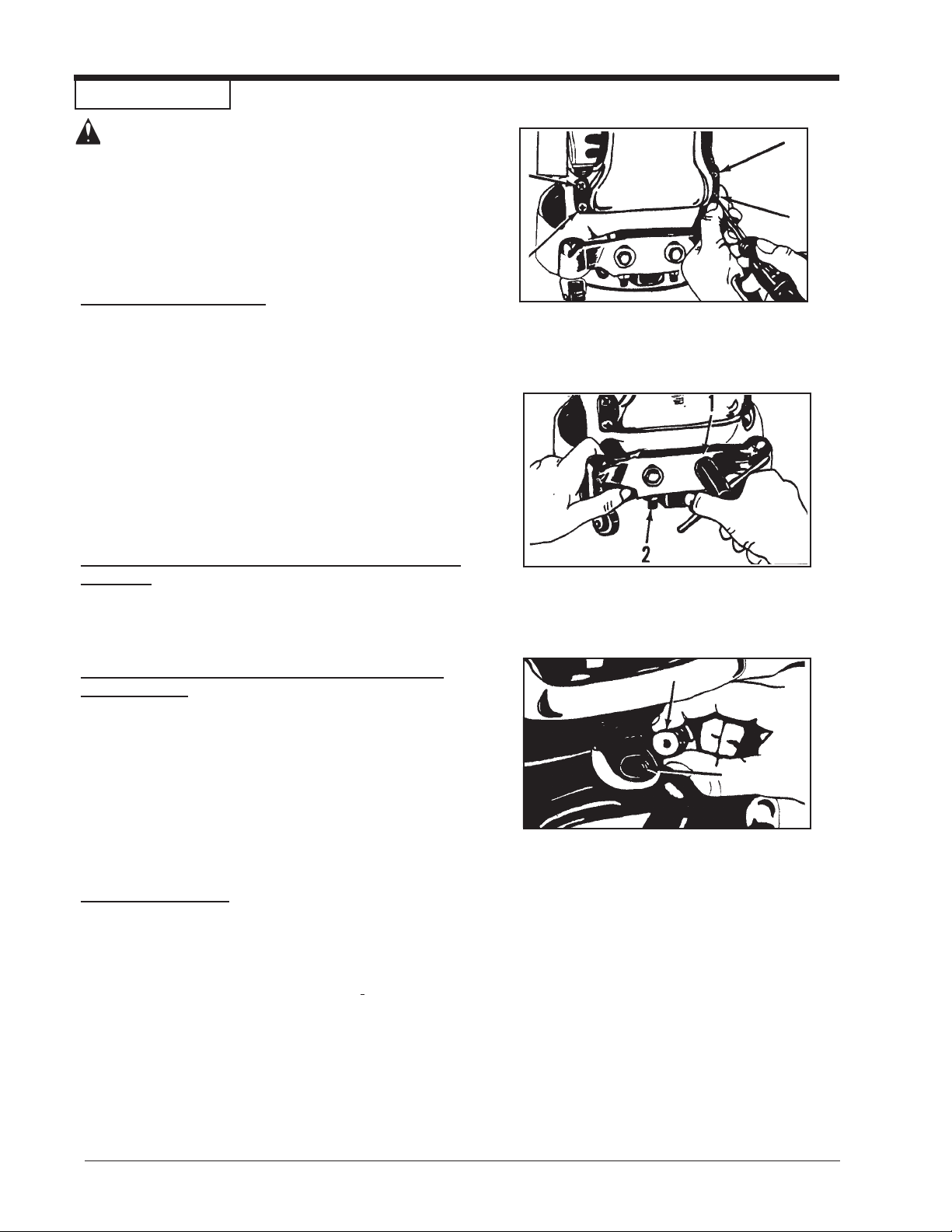

How to Adjust the Angle Of The Sandpaper Disc To
The Floor
The adjustment of the machine is correct when the front
part of the sandpaper disc makes contact with the oor.
To change the adjustment of the machine, follow
this procedure:
1. Using the special wrench, loosen the lock nut on
each caster. See (1) gure 6.1.
2. Loosen the jam nut. See (2) gure 6.2.
3. Raise or lower the casters as needed.
4. Tighten the jam nut on each caster.
5. Tighten the lock nut on each caster.
Figure 5
Figure 6
Figure 7
The Ventilation Plug
1. To clean the ventilation opening in the center of
the plug, remove the plug from the machine. With
the plug removed, also inspect the grease in the
gearbox. See gure 7.
- 10 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 11
MAINTENANCE
Lubricants
Lubrication
The machine is completely lubricated. The bearings and
gears in the gear unit have enough lubricant for approximately six months of normal operation. All other bearings
are sealed and have enough lubricant for the life of the machine. No lubricant is needed for the rotating disc guard.
How To Change The Lubricant In The Gearbox
To change the lubricant in the gearbox, follow this procedure:
1. Put the machine upside down on a bench.
2. Align one of the two holes in the rubber pad with one
of the three holes in the rotating disc guard.
3. Align both holes with one of the three screws in the
gear housing cover. Remove the screw from the gear
housing cover. See gure 9.
4. Align the holes with each of the other two screws, then
remove screws.
CAUTION: Make sure no dust enters the gear
box. Damage could occur to the gear
box.
Qty Part No.
1 Qt. 16610A
1 Gal. 16611A
Figure 9
5. Remove the cover from the gear housing.
6. Remove the old lubricant from the gearbox.
7. Add ten ounces of Clarke American Sanders lubricant
to the gearbox.
CAUTION: To prevent damage to the motor,
do not add more than ten ounces
of lubricant to the gearbox.
8. Using the three screws removed above, install the
cover on the gear housing.
9. Start the machine and let it run for 15 minutes. A small
amount of excess lubricant should ow out the vent
hole. If none appears it may be necessary to add additional lubricant.
10. Wipe off excess lubricant and clear vent hole.

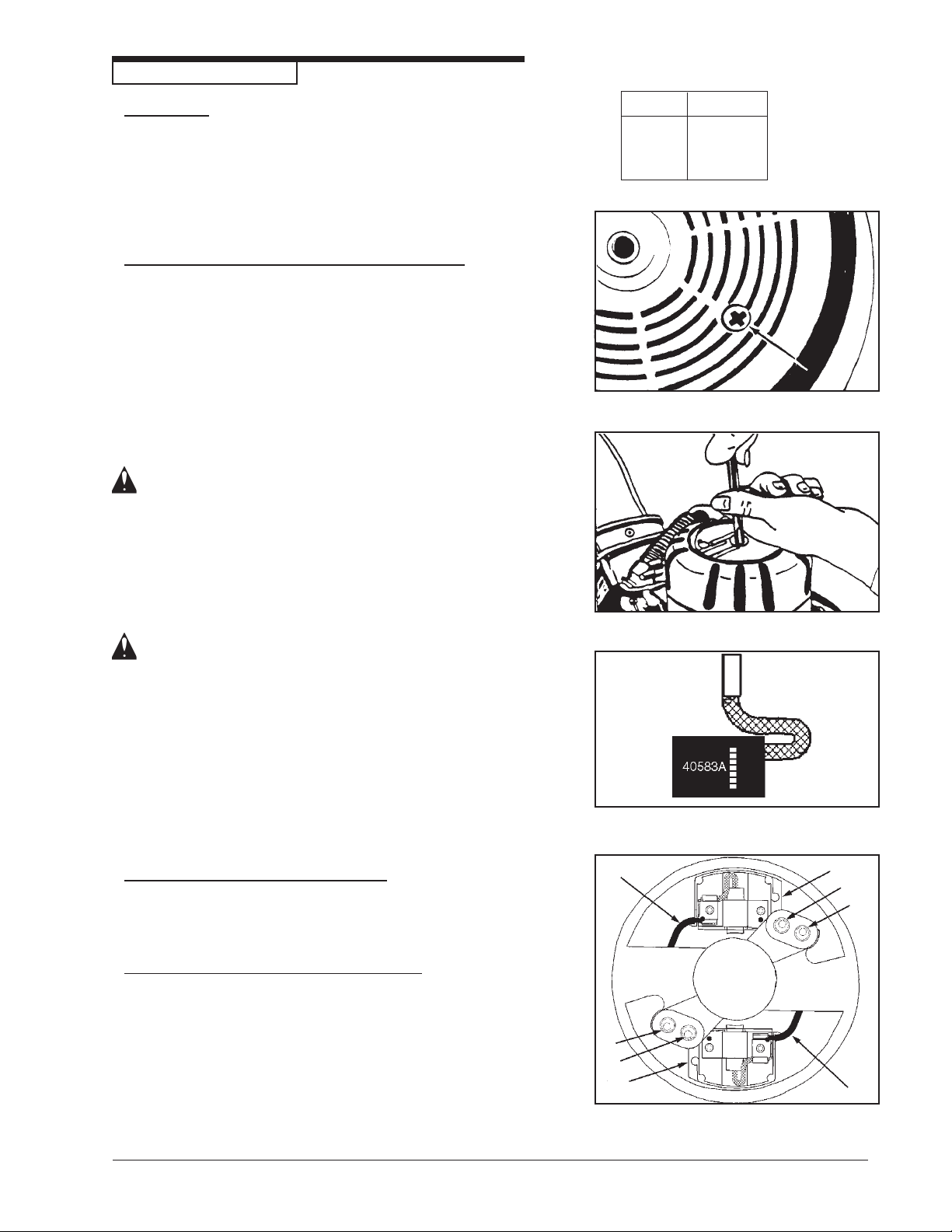

How To Check The Carbon Brushes
Depending on use, a set of brushes can be expected to last
250 hours and should be inspected sometime prior to that
time.
To check the brushes, follow this procedure:
1. Remove the motor cover. See gure 10.
2. Inspect the carbon brushes. Replace both brushes if
either brush has worn to 3/8" in length, or is worn to
the wear indicator. See gure 11.
3. To replace the brushes, disconnect the eld wire
(A) from the brush holder (B). Then remove the two
screws and washers (C) securing the holder to the
motor housing. See gure 12.
Figure 10
Figure 11
A
B
C
C
C
C
B
Figure 12
A
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 11 -
Page 12
MAINTENANCE
How To Check The Carbon Brushes (cont)
4. Gently pry the holder down from the motor housing.
5. Rotate holder from beneath the motor housing
and lift out.
6. Disconnect the brush shunt wire from the holder.
For convenience, cut the terminal from the shunt
wire and remove brush.
7. To put in a new carbon brush, negotiate the
terminal on the shunt wire by the spring and
brush holder guide. Take care not to damage the
spring. See gure 13.
8. Depress the brush into the guide and connec the
shunt wire to the holder.
9. Depress the brush and insert the holder into the
motor housing.
10. Rotate holder beneath motor housing. Relax
brush against commutator.
11. Align posts on holder with holes in housing.
12. Gently pry the holder into the housing.
13. Reattach screws and washers.
14. Start up the machine, if sparking between either
brush and the commutator occurs, use a brush
seating stone on the commutator to promote full
engagement between the brushes and commutator.
15. Install the motor cover.
Figure 13
- 12 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 13
B-2
7" Spinner
Edger (CE)
Section II
Parts Manual
(56042618)
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 13 -
Page 14

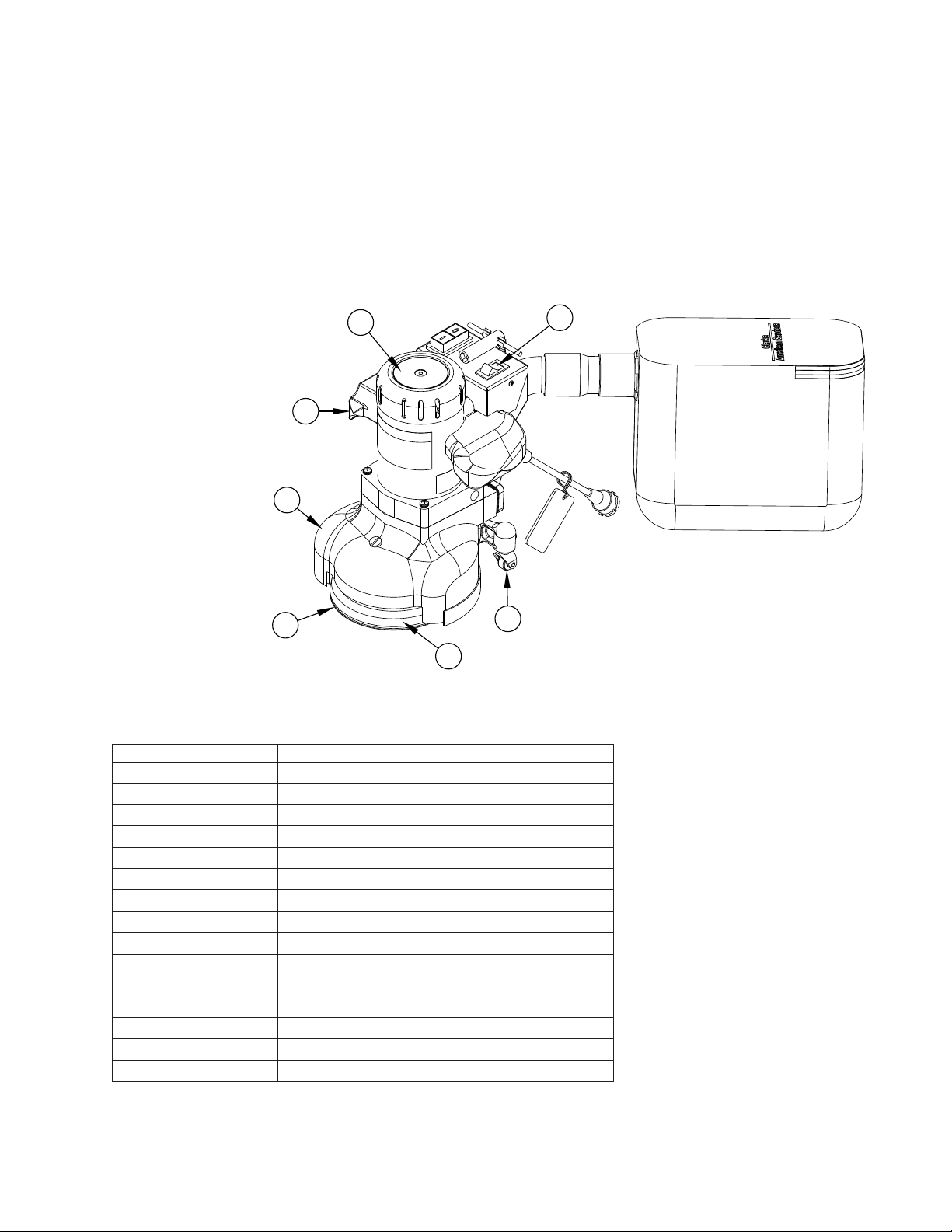

LOWER ASSY
16
9
34
13
21
7
20
38
8
30
12
10
14
35
18
32
31
39
3
6
22
25
26
33
42
19
2
24
17
11
1
27
15
23
28
37
40
29
4
36
41
- 14 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 15
LOWER ASSY
Item Ref. No. Qty Description
1 902550 1 Bearing Ball-6203
2 962015 2 Screw 10-24 X 3/8 Pn St Ph
3 962454 4 Scr 1/4 -20x1 Sc St Cap
4 56382755 1 Disc 7 Sanding 60 Cs=100
[5] 30050A 1 B-2 Ce Sander Case
6 30563A 1 2” X 1.50” Hose Adaptor
7 34232A 1 Gasket-Gear Case Cover
8 34233A 6 Gasket-Discharge Pipe
9 38103A 1 Seal-Dust
10 51127A 1 Bearing-Ballshield & Seal
11 51128A 2 Bearing-Dbl Row Unground
12 52853A 1 Skirt B-2 Edger
13 57702A 1 Ring Retaining Internal
14 58114A 1 Seal-Shaft
15 59817A 3 Washert.500x.317x.032nylon
16 66130A 1 Plug-Gear Hsg. Vent
17 85701A 2 Scr 1/4 -20x1&1/2 Hx St Cap
18 86203A 2 Scr 5/16-18x1&1/4 St St
19 87000A 2 Washer .39x.75x.09 Flat St
20 467308 1 Ring, Retainer 189
21 915028 1 Key, 1/8 X 5/8 Woodruff
22 920160 2 Nut, 5/16 Jam Hex
23 962098 3 Screw, 1/4-20 X 3/4 F.H.
24 980650 2 Washer, #10 Lock
25 980657 2 Washer, Lock 1/4
26 10212A 2 Wheel & Yoke Asm
27 12906A 1 Cover, Asm - Gear Case
28 15000A 1 Assembly, Roller Guard
29 21067A 1 Disc Sanding
30 21078A 1 Exhaust Adaptor
31 21106A 1 Bracket, Caster
32 30613A 2 Seal, Pipe
33 53544B 1 Bag, Edger
34 61568A 1 Gear, Drive, B2, (Rh)
35 61712A 1 Tube, Exhaust, B-2
36 62411A 1 Washer
37 66917A 1 Retainer-Roller Guard
38 67426A 1 Shaft-Gear
39 80276A 1 Nut-Slip Joint 2 X 2
40 84200A 3 Screw, 8-32 F.H.C.S
41 85715A 1 Screw, 5/16-18x1 Hx Hd
42 85814A 2 Screw 5/16-18 X 1 1/4 Hh
[ ] = Not Shown
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 15 -
Page 16

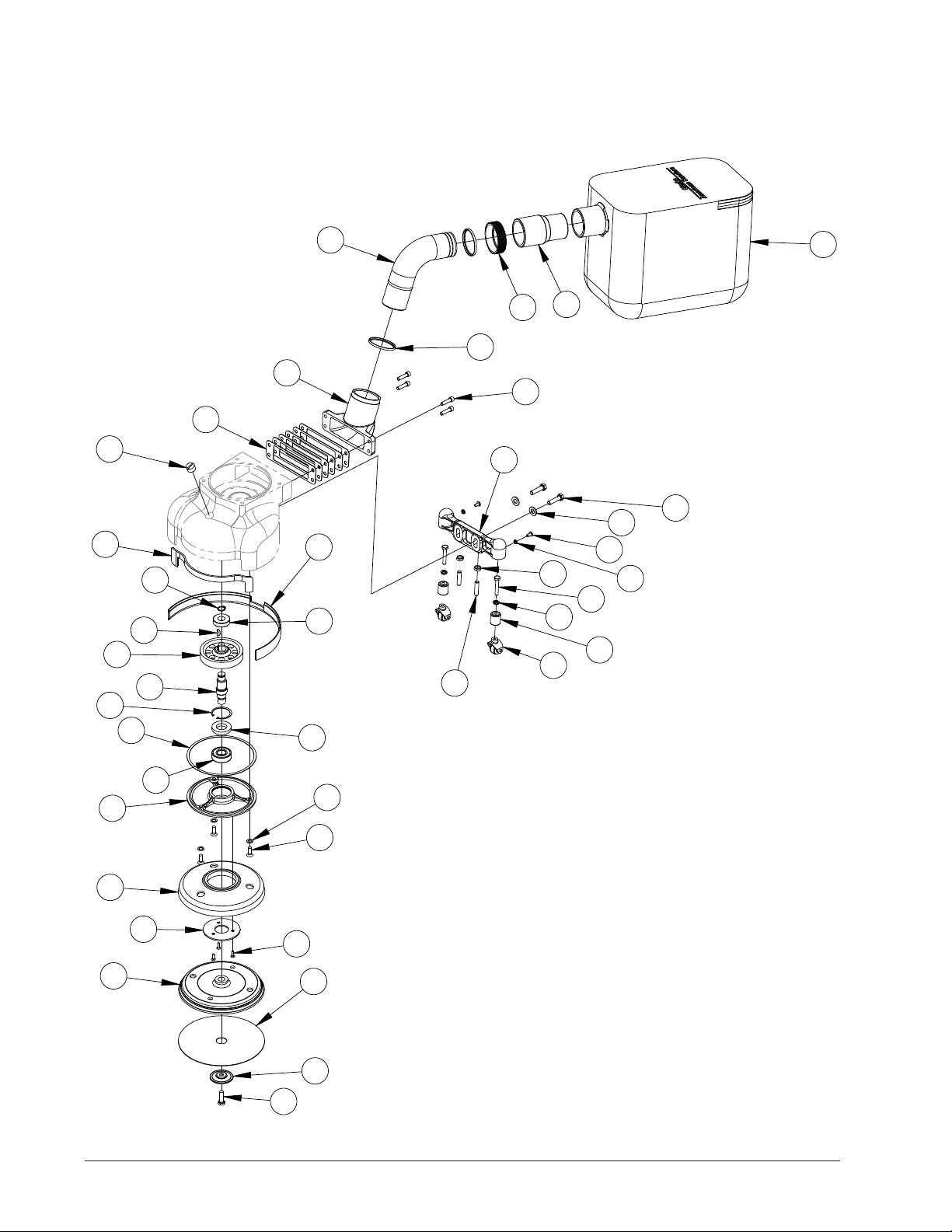

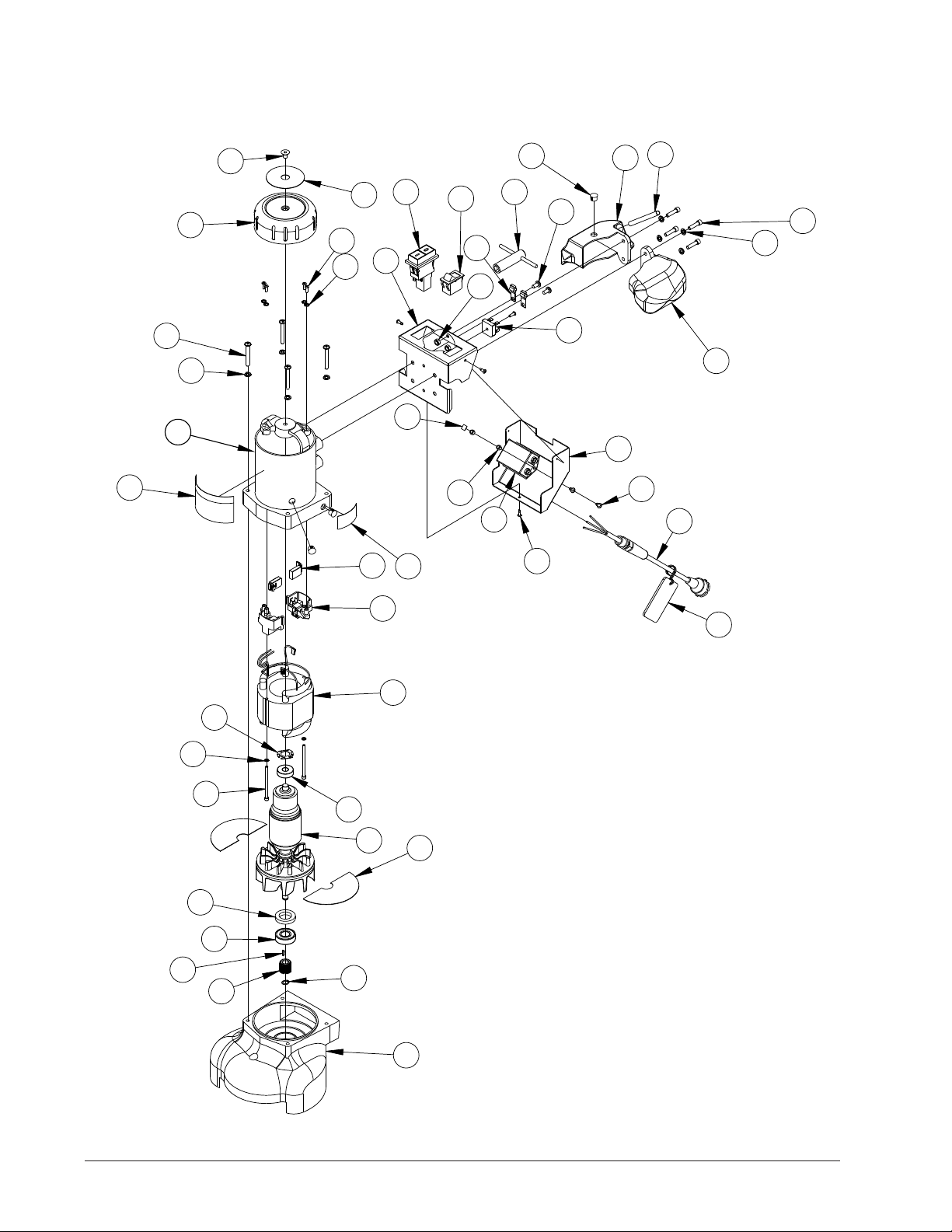

UPPER ASSY
20
23
6
16
30
21
26
28
19
31
17
11
43
5
35
18
25
22
34
41
4
44
27
24
8
13
10
3
30
9
2
12
29
15
40
37
45
1
39
36
14
7
32
42
33
38
6
- 16 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 17
UPPER ASSY
Item Ref. No. Qty Description
1 902550 1 Bearing Ball-6203
2 962015 2 Screw 10-24 X 3/8 Pn St Ph
3 962454 4 Scr 1/4 -20x1 Sc St Cap
4 56323560 3 Plug, Cap
5 56380216 1 Decal Power Tool Cautionary Ma
6 10080A 1 Housing Asm B-2+Ce
7 10112A 1 Armature & Fan Asm.. B-2
8 24302A 1 Handle-Right Hand
9 24303A 1 Handle-Left Hand
10 39305A 1 Tube-Insulation
11 40114A 1 Switch Pushbutton W/10a Ovld
12 40115A 1 Cordset Power W/Eu1-16p
13 50826A 1 Cover-Enclosure
14 57701A 1 Ring-Retaining
15 58113A 1 Sealoil-0.984 X 1.575 X 0.276
16 62009A 1 Cap Wldmtmtr Hsg Uk B-2
17 62906A 1 Enclosurerelay Uk B-2
18 64601A 2 Holder-Wrench
19 70686A 1 Platename B-2+ Cas
20 73285A 1 Label-Warning
21 80081A 1 Screw 5/16-24 X 1/2
22 81217A 2 Nut, 1/4-20 Hex Esna
23 85333A 4 Scr 1/4 -20x2 Pn St Mach
24 912287 1 Rectier Full Wave 50a 600v
25 920296 2 Nut 10-24 Elastic Stop
26 962727 5 Screw, 8-32 X 1/2
27 962823 2 Screw, 1/4-20 X 1/2 P.H.
28 980603 4 Washer, #10 Lock External Tooth
29 980650 2 Washer, #10 Lock
30 980657 8 Washer, Lock 1/4
31 40583A 2 Brush, Carbon Terminated
32 40717A 2 Brush Holder
33 40719A 1 Field 240v
34 46739A 1 Rf Suppressor, 240v
35 47365A 1 Switch, Rocker
36 51126A 1 Bearing-Balldbl Seal 6201
37 58602A 1 Spring, Bearing
38 60800A 2 Bafe_Half
39 63701A 1 Gear, Pinion
40 65302A 1 Key Woodruff Special#3
41 68705A 1 Wrench-T-Handle, 1/2 In
42 70175A 1 Tag Warning
43 77094A 1 Label Ground Symbol
44 85520A 3 Screw8-00 X 1/2 Pan Hd Sd
45 86117A 2 Scr 10-24x3 Shms
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 17 -
Page 18

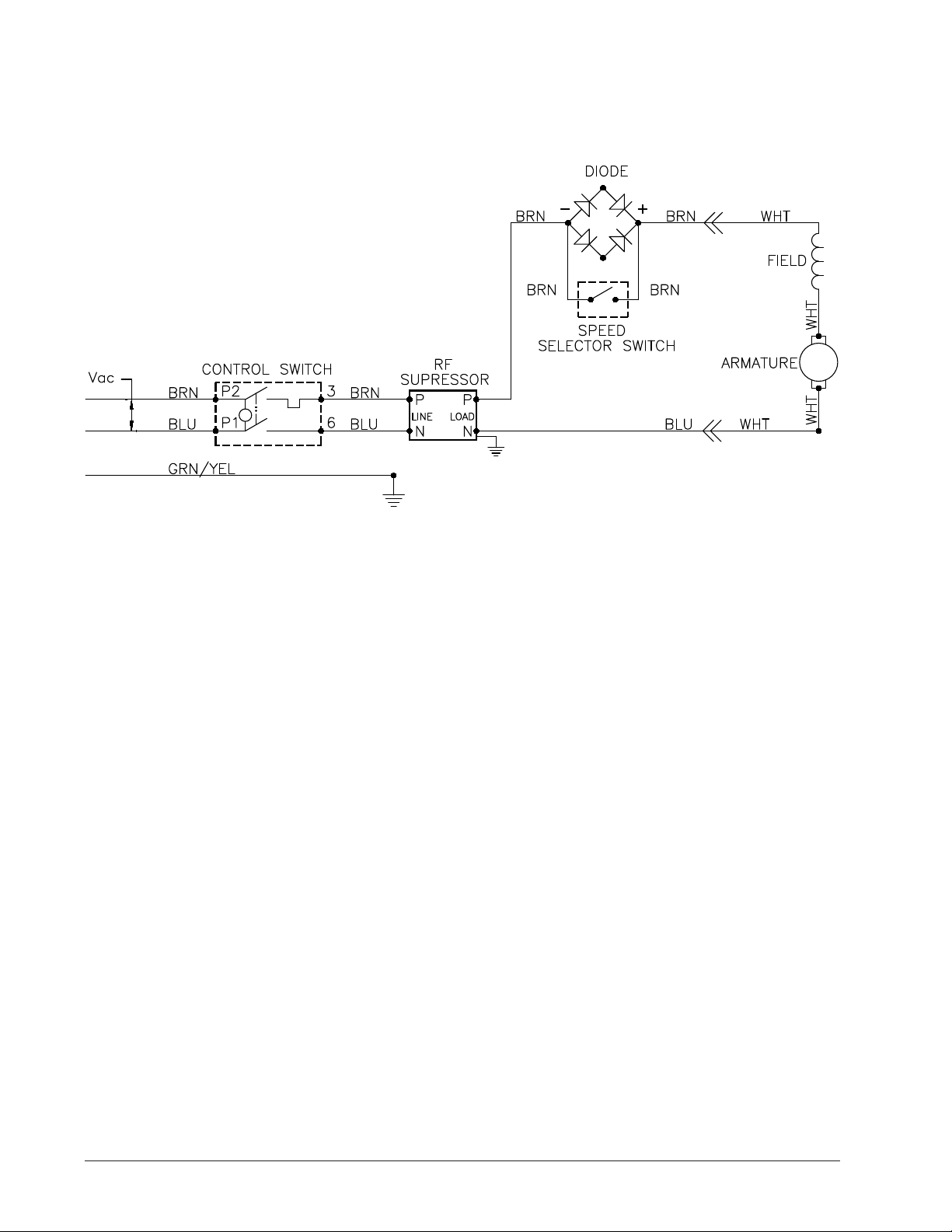

WIRING DIAGRAM
Item Ref. No. Qty Description
40114A 1 Control Switch
46739A 1 RF Suppressor
912287 1 Diode
47365A 1 Speed Selector Switch
40719A 1 Field
10112A 1 Armature
- 18 - Clarke® American Sanders Operator's Manual (CE) - American B-2
Page 19
Clarke® American Sanders Operator's Manual (CE) - American B-2 - 19 -
Page 20
CLARKE AMERICAN SANDERS U.S. AND CANADA LIMITED WARRANTY
GROUP
Parts
1,2
Labor
2
Big Machines (belt and drum)
1 year
1 year
Rotary Sanders
5 years
5 years
Dust Control
Vacs
4
2 years
2 years
Edger, Orbital, 3DS
1 year
1 year
Power Booster
2 years
2 years
Accessories/Replacement Parts
3
90 Days
EXCEP TIONS
NOTES:
Amano Pioneer Eclipse, Inc. warrants to the original end user, each new machine, new accessories and genuine replacement parts against defects in material and
workmanship under normal use and service. Our obligation under this warranty is limited to repair or replacement of the defective item at our factory or by an Authorized
Service Center. Warranty coverage shall begin on the date of purchase by the original end user (as evidenced by your invoice from the factory or Authorized Dealer) or one
(1) year from the date the machine was shipped from the factory, whichever is earlier. The warranty registration card must be completed and returned within 30 days of
purchase. The warranty coverage period is specified below.
1-Parts repaired or replaced are guaranteed for the remainder of the original machine warranty period.
2-Coverage only applicable to products sold and used in the United States and Canada.
3-Applies to replacement parts only after machine warranty coverage has expired.
4-Backplates on are warranted for the life of the machine
This warranty shall not apply to repairs resulting from accidents or misuse, damage in transit, overloading the capacity of the machine, failure due to lack of proper
maintenance or care as described in the operating and maintenance instructions. Minor adjustments, such as tightening of screws or bolts not connected with the
replacement of parts, are not covered. Replacement of expendable wear items such as scrub brushes, pad holders, carbon motor brushes, bulbs, bags, filters and various
rubber/plastic parts are also not covered. Repairs or alterations by an organization other than the factory or an Authorized Service Center are not covered and will void any
Amano Pioneer Eclipse, Inc. warranty as to the parts or systems repaired or altered by a non-authorized organization.
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE LIMITED WARRANTIES STATED WITHIN. NO OTHER WARRANTY, EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE EXCEPT
AS EXPRESSLY STATED HEREIN. ANY STATUTORY IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, THAT ARE IMPOSED BY LAW DESPITE THE EXPRESS LIMITATION OR WARRANTIES ABOVE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE
WRITTEN WARRANTY. BUYER UNDERSTANDS, ACKNOWLEDGES AND AGREES THAT THE REMEDIES PROVIDED UNDER THIS LIMITED WARRANTY ARE THE
SOLE AND EXCLUSIVE REMEDIES AVAILABLE TO THE BUYER. AMANO PIONEER ECLIPSE, INC. WILL NOT BE LIABLE FOR ANY OTHER OR ADDITIONAL DAMAGES,
INCLUDING BUT NOT LIMITED TO INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE FURNISHING,
PERFORMANCE, USE OF OR INABILITY TO USE THE MACHINE. ANY EXTENSIONS OF OR MODIFICATIONS MADE TO THIS WARRANTY BY A
DEALER/DISTRIBUTOR OF Amano Pioneer Eclipse, INC. ARE THE SOLE RESPONSIBILITY OF THE DEALER/DISTRIBUTOR.
All transportation or shipping charges resulting from the return of machines, parts, or accessories shall be the responsibility of the end-user. When returning, please provide
an explanation of the problem and include the serial number of the machine as well as the name of the selling organization. The Technical Service department of the authorized
Dealer Service Center or the factory will investigate and then contact you.
Transportation of hazardous waste or contaminated equipment is subject to various laws and regulations. In returning machines, parts, or accessories under this limited
warranty, the end user must certify in writing that the machines, parts or accessories being returned have not been used for handling, clean up, or disposal of hazardous waste
or hazardous materials including but not limited to such things as asbestos, anthrax etc. or if the machines, parts or accessories being returned have been used for handling,
clean up, or disposal of hazardous waste or hazardous materials, then the end user must have the machines, parts or accessories decontaminated by licensed and qualified
decontamination professionals and provide written certification of this decontamination signed by the decontamination professionals. These machines, parts or accessories are
to be returned only to the local Amano Pioneer Eclipse, Inc. Authorized Service Center for
Warranty service along with decontamination certification.
Amano Pioneer Eclipse, INC. Reserves the right to change its warranty policy without notice.
Amano Pioneer Eclipse
1 Eclipse Rd
Sparta, NC 28675
336-372-8080
800-334-2246
www.pioneereclipse.com
www.americansanders.com
2014 Amano Pioneer Eclipse 3_14
Loading...
