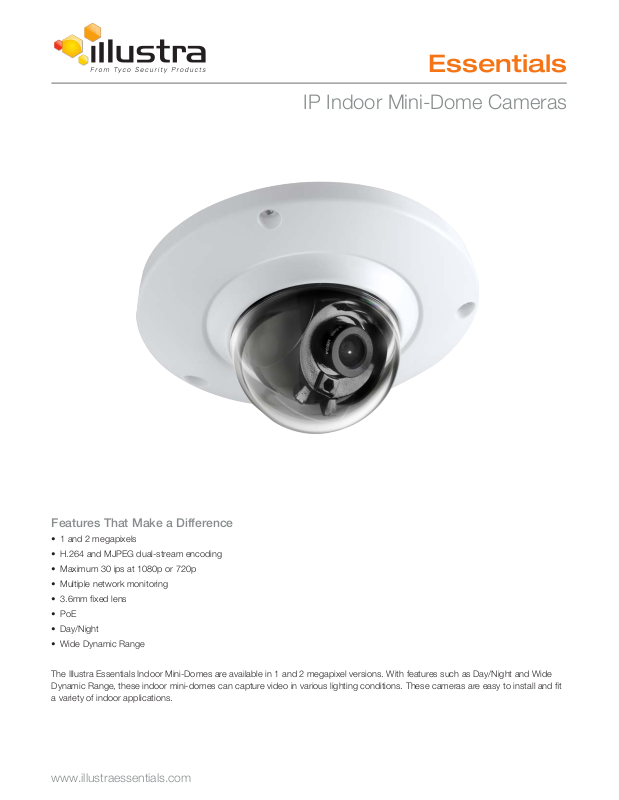

American Dynamics IPC-HD1100CN Specsheet

Essentials

IP Indoor Mini-Dome Cameras

Features That Make a Difference

• 1 and 2 megapixels

• H.264 and MJPEG dual-stream encoding

• Maximum 30 ips at 1080p or 720p

• Multiple network monitoring

• 3.6mm fixed lens

• PoE

• Day/Night

• Wide Dynamic Range

The Illustra Essentials Indoor Mini-Domes are available in 1 and 2 megapixel versions. With features such as Day/Night and Wide
Dynamic Range, these indoor mini-domes can capture video in various lighting conditions. These cameras are easy to install and fit
a variety of indoor applications.

www.illustraessentials.com

IP Indoor Mini-Dome Cameras

SPECIFICATIONS

1MP 2MP

Camera

Imager 1/4˝ 1/3˝
Resolution 1280 x 720 1920 x 1080
Shutter Speed Auto/Manual 1/3(4) – 1/10000 Auto/Manual 1/3(4) – 1/10000
Minimum Illumination Color: 0.1Lux/F1.2 Color: 0.1Lux/F1.6
S/N Ratio More than 50dB More than 50dB
Analog Video Output N/A N/A

Camera Features

IR Illuminator N/A N/A
Day/Night Auto(Electronic)/Color/B/W Auto(Electronic)/Color/B/W
Backlight Compensation Yes Yes
Wide Dynamic Range Digital WDR Digital WDR
White Balance Auto/Manual Auto/Manual
Gain Control Auto/Manual Auto/Manual
Digital Noise Reduction 3D 2D
Privacy Zones Up to 4 areas Up to 4 areas

Lens

Focal Length 3.6mm Fixed 3.6mm Fixed
Max Aperture F1.8 F1.6
Focus Control Manual Manual
Angle of View H: 70° H: 71.9°

Video

Video Compression H.264/MJPEG H.264/MJPEG

Resolutions

Max Frame Rate

Audio N/A N/A

Network

Ethernet RJ-45 (10/100Base-T) RJ-45 (10/100Base-T)
Wi-Fi N/A N/A

Supported Protocols

ONVIF-Compliant ONVIF Profile S ONVIF Profile S

Auxiliary Interface

Onboard Storage N/A N/A
Alarm Input/Output N/A N/A

General

Power Supply DC12V, PoE (802.3af) DC12V, PoE (802.3af)
Power Consumption <1.5W Max 3W
Operating Temperature -30°C to +60°C (-22°F to +140°F) -30°C to +60°C (-22°F to +140°F)
IP Rating N/A N/A
Vandal Resistant N/A N/A
Dimensions 110mm x 54mm (4.33in x 2.13in) 110mm x 54mm (4.33in x 2.13in)
Weight 0.2kg (0.44lb) 0.39kg (0.86lb)

720p (1280 x 720)
D1 (704 x 576/704 x 480)
CIF (352 x 288/352 x 240)

Main Stream: 720p (25/30ips)
Sub Stream: D1/CIF (25/30ips)

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, QoS, Bonjour

1080p (1920 x 1080)
720p (1280 x 720)
D1 (704 x 576/704 x 480)
CIF (352 x 288/352 x 240)

Main Stream: 1080p/720p (25/30ips)
Sub Stream: D1/CIF (25/30ips)

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, QoS, Bonjour

Optional Mini-Dome Accessories

Model PFA131 PFB200W
Description Junction Box Wall Mount

Dimensions

Weight 0.38kg (0.84lbs) 1kg (2.20lbs)
Load Bearing 3.0kg (6.61lbs) 1kg (2.20lbs)

© 2014 Tyco Security Products. All Rights Reserved. IL0349-DS-201409-R01-LT-EN
Tyco and the product names listed above are marks and/or registered marks. Unauthorized use is strictly prohibited.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative.

138mm x 42mm
(5.43in x 1.65in)

160mm x 120mm x 74mm
(6.30in x 4.72in x 2.91in)

Model Number Model Description

IPC-HD1100CN

IPC-HD2200CN

Illustra Essentials HD 720p indoor mini-dome, WDR,

3.6mm, PoE, white, clear bubble
Illustra Essentials 1080p indoor mini-dome, WDR,

3.6mm, PoE, white, clear bubble
