Analog Cameras

Over 175 SpeedDome

programmable dome cameras

keep tabs on major traffic

arteries throughout central

Florida. From Orlando to Tampa

and out to Cape Canaveral,

American Dynamics domes

put state transportation officials

front and center at the scene

of an accident or suspicious

activity. Video feeds supply key

information to law enforcement

and news media during

emergency situations and daily

commutes.

Analog Cameras

TZ, programmable dome cameras give you a comprehensive view that you simply cannot get

P

from a fixed camera. Our technology delivers the details of your target, zooming in or out in

less than a second to capture the image you need the instant an alarm goes off. Our innovative Zoom-

Adjusted Programming (ZAP) lets you pan, tilt, and zoom in every direction, automatically adjusting the pan

and tilt speed in proportion to the zoom. Additional features enable you to conduct a virtual patrol of your

facility whether or not someone is manning the controls. Auto-focus with manual override renders a clear

picture every time. From the most distant corner of a parking garage to the maze of hallways throughout a

building, SpeedDome programmable dome cameras take you everywhere you need to see.

Analog PTZ Dome Cameras

SpeedDome Ultra 8 Programmable Dome Cameras are

equipped with Wide Dynamic Range, True Day/Night, and Electronic

Image Stabilization (EIS). With 35x and 540 TVL allows users to see

farther and clearer than ever before. A 12x digital magnifier with 35x

optical zoom yields a total zoom of 420x. This series also features

privacy zones, on-screen programming, alarm inputs, and DirectSet

for fast access to the most frequently used functions. A choice of

black or white camera assemblies is available.

SpeedDome Ultra 8 with 22x delivers excellent color images in

scenes as dim as .02 lux. This series combines 22x optical zoom

and 11x digital zoom for 242x total zoom and has low-light capability

of .004 lux. Like the SpeedDome Ultra 8 with 35x, this series also

includes DirectSet, privacy zones, on-screen programming, and

alarm inputs.

SpeedDome Optima is powered with 22x optical zoom and 11x

digital zoom for a total of 242x zoom, producing high quality color

images. The series includes an alarm input, 96 user-programmable

presets three patterns, and a pre-wired harness for easy installation

and servicing. Compatible with any American Dynamics controller

system, Optima is available in outdoor models only.

Optima LT includes many of the same features as the standard

Optima dome - all for an impressively low price.

Analog Mini-Domes + Box Cameras

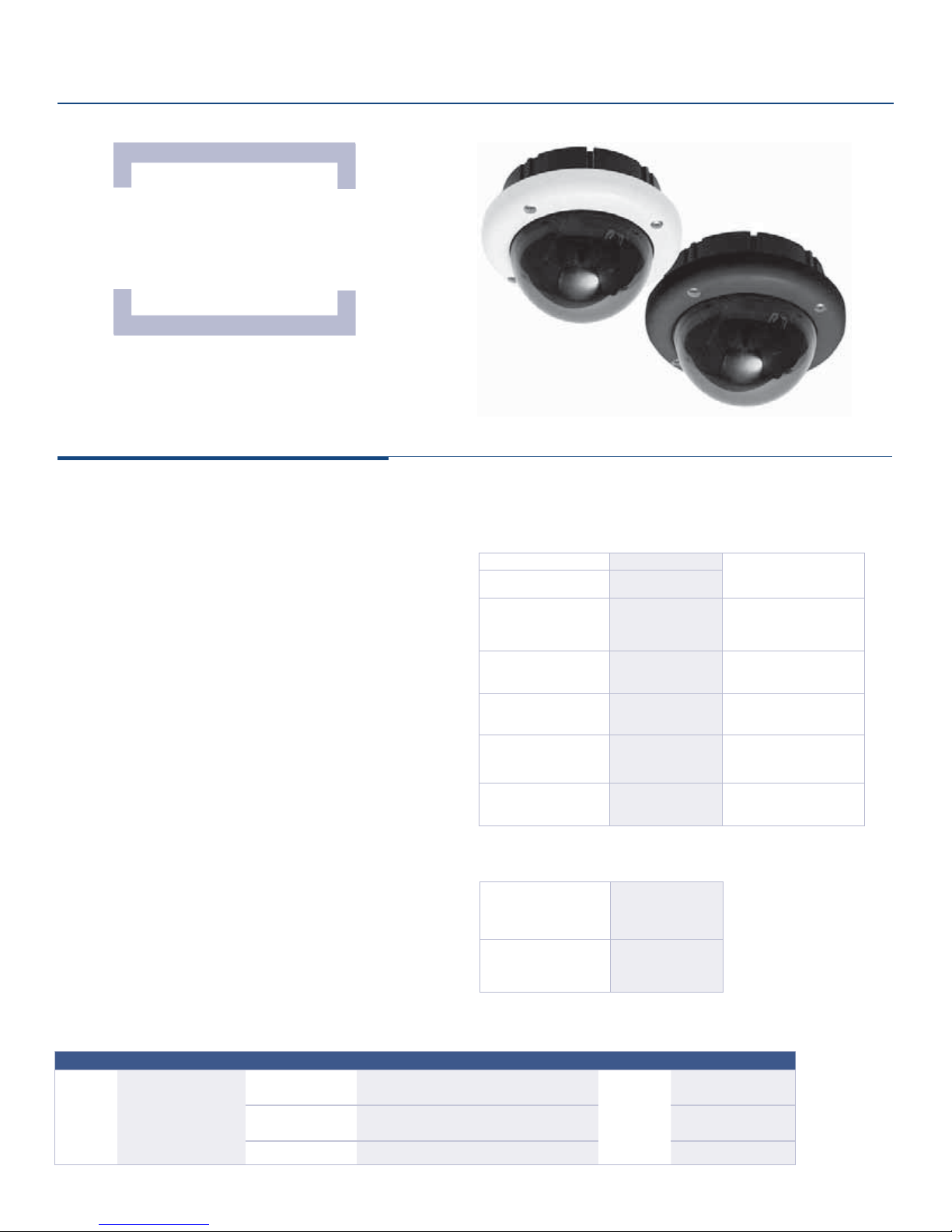

The Discover series of Mini-Domes delivers a vandal resistant

camera solution at a non-vandal resistant price. This series of high

performance mini-domes includes high impact, vandal resistant

dome housings built to withstand even the harshest environments.

Unlike other dome housings in the industry, which are made of

metal, the Discover series housing is made with extremely durable

composite and polycarbonate materials that have “shape memory”.

An advanced pivoting axis lets you position the camera at exactly

the angle you need, while optimal white balance provides the

clearest, most color-perfect images possible.

540 TVL and True Day/Night cameras provide super high resolution

images in a variety of lighting conditions. The models with Night-

Saver mode are the ideal choice for applications requiring 540 TVL

to provide super, high resolution images and true color rendition.

The Night-Saver mode automatically switches the cameras to quasi

black and white in scenes with low lighting to provide better

low-light detail performance. Internal and phase adjustable line lock

options are also included for roll-free switching. True Day/Night

models include a moving mechanical IR cut filter and advanced

features such as on-screen menu programming, advanced pixel

correction, a focus adjust mode for focus accuracy, selectable

4-zone Back Light Camera, manual shutter mode, and a monitor

mode to optimize the camera output for CRT or LCD monitors.

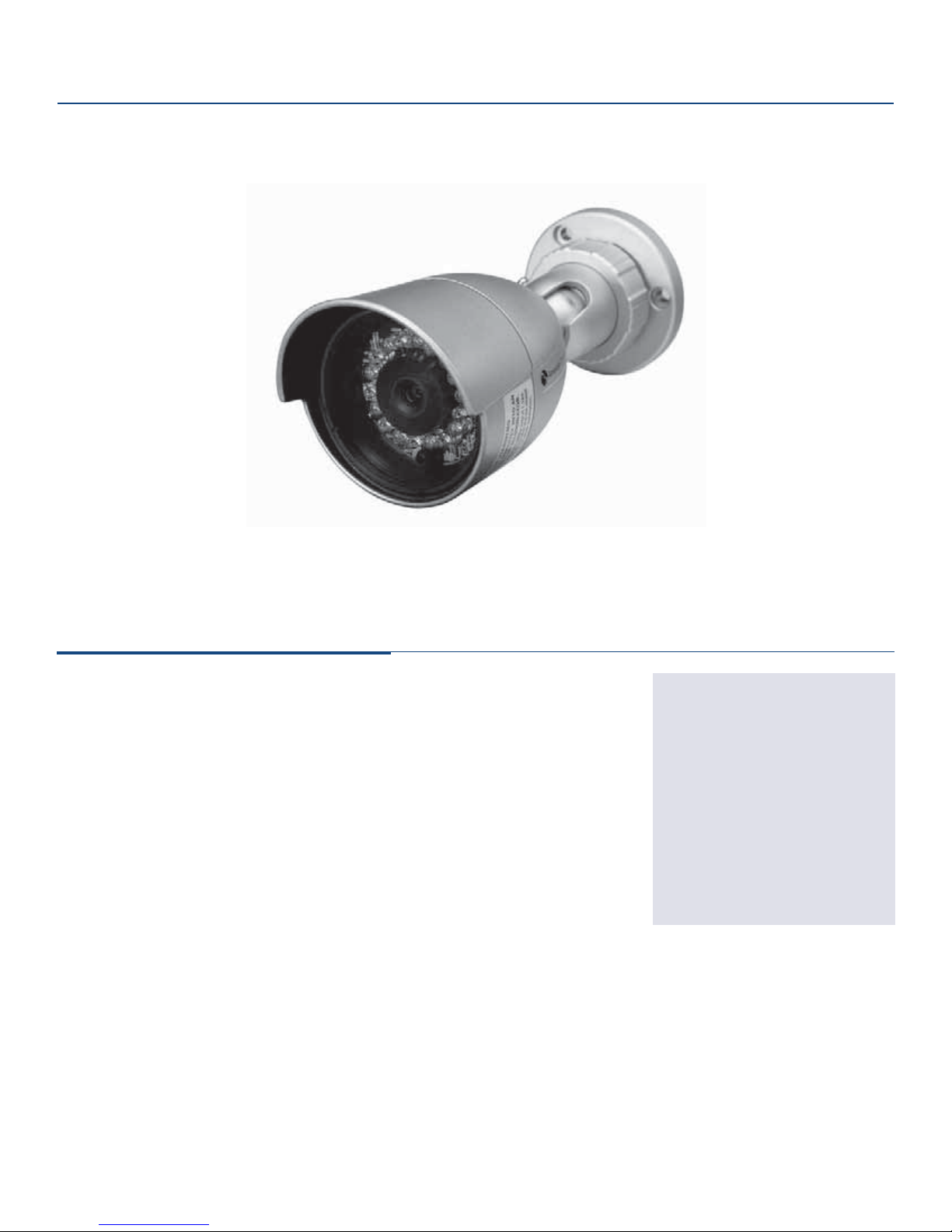

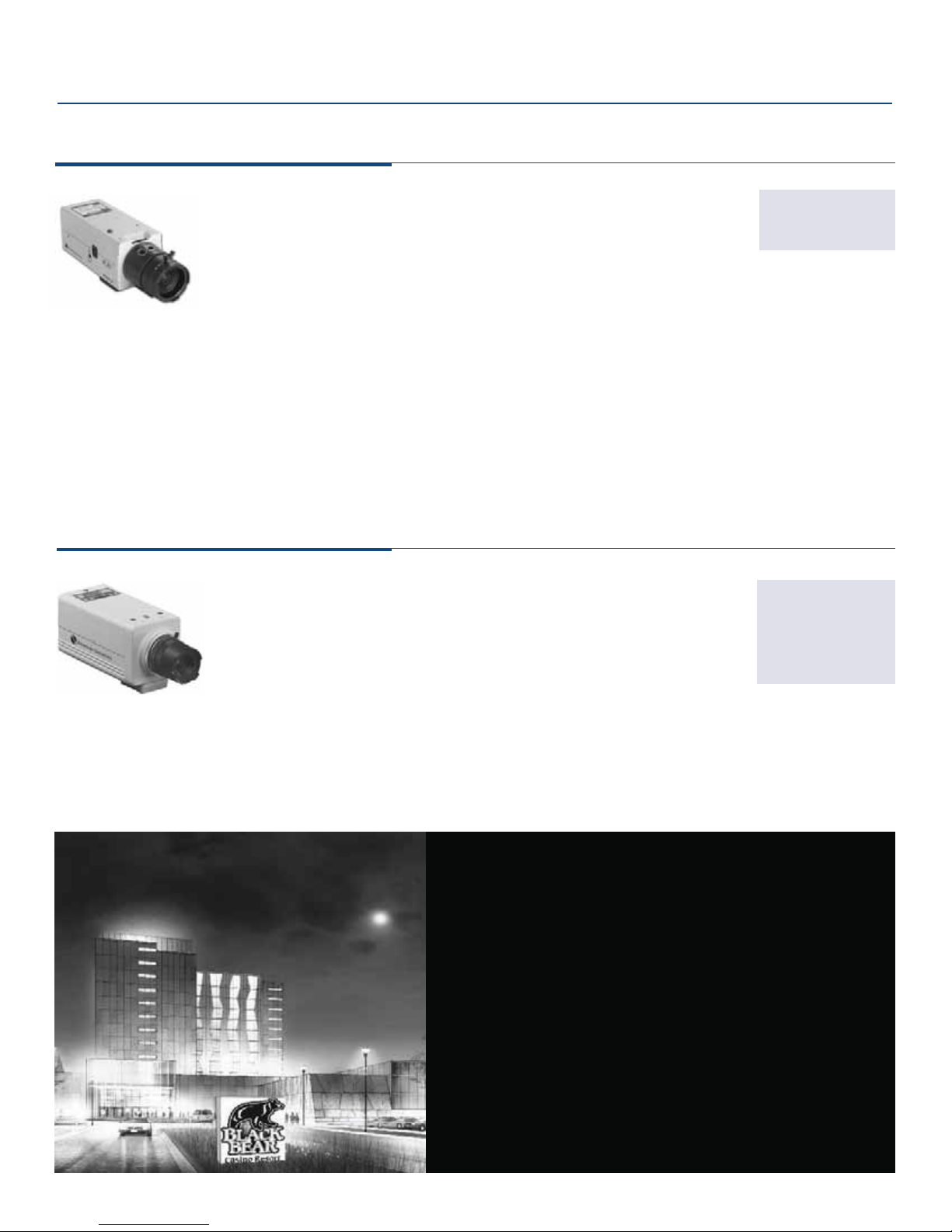

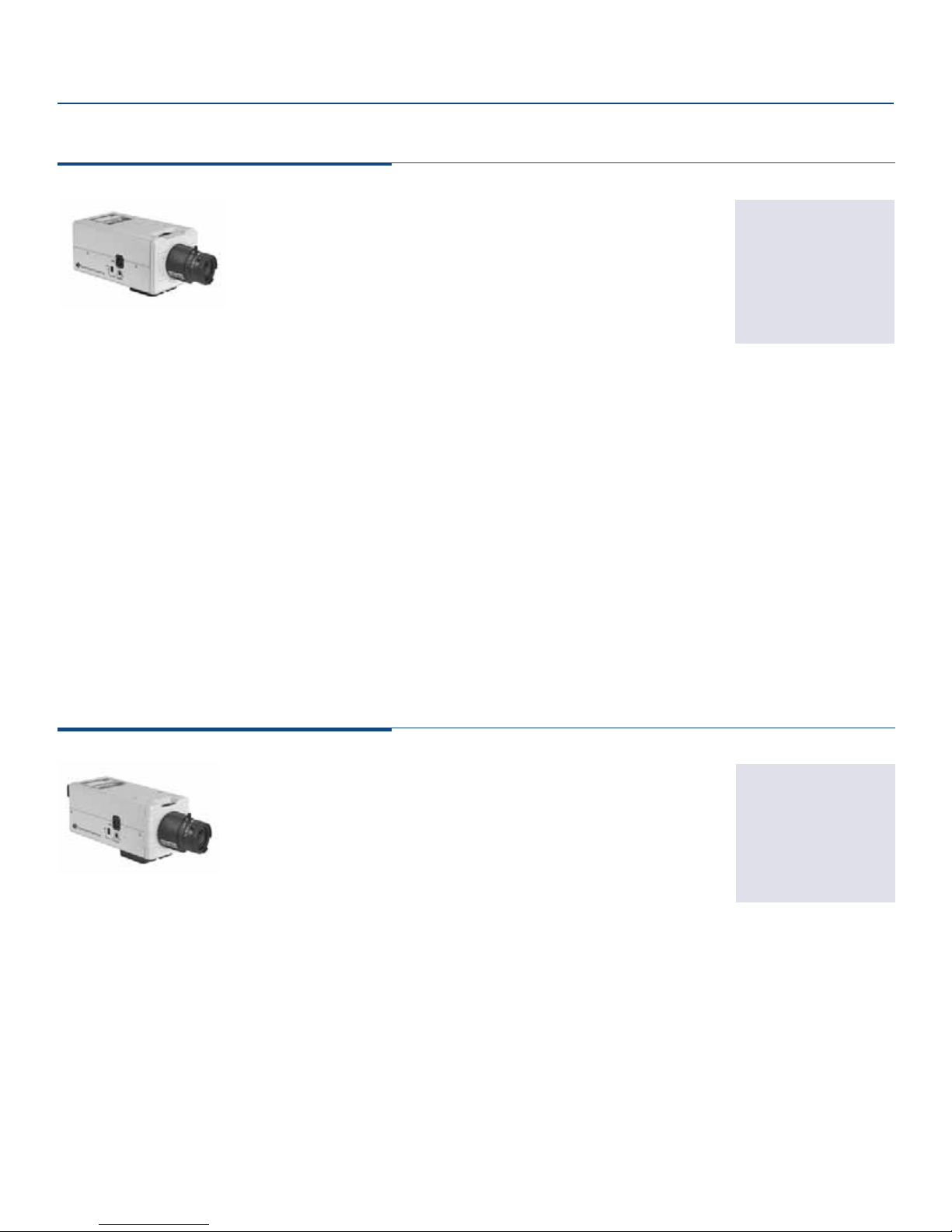

CCD Standard box cameras are ideal for a multitude of applications.

We offer economical, efficient models for entry level and general

purpose installations where cost and reliability are paramount.

Analog Pre-Packaged Cameras

Standard Pre-Packs include color, black & white, and

True Day/Night cameras (product dependent) with a choice of

lenses, as well as indoor and outdoor housing mounts. A variety of

other Speciality Pre-Packs are also available.

American Dynamics 13

Analog Cameras

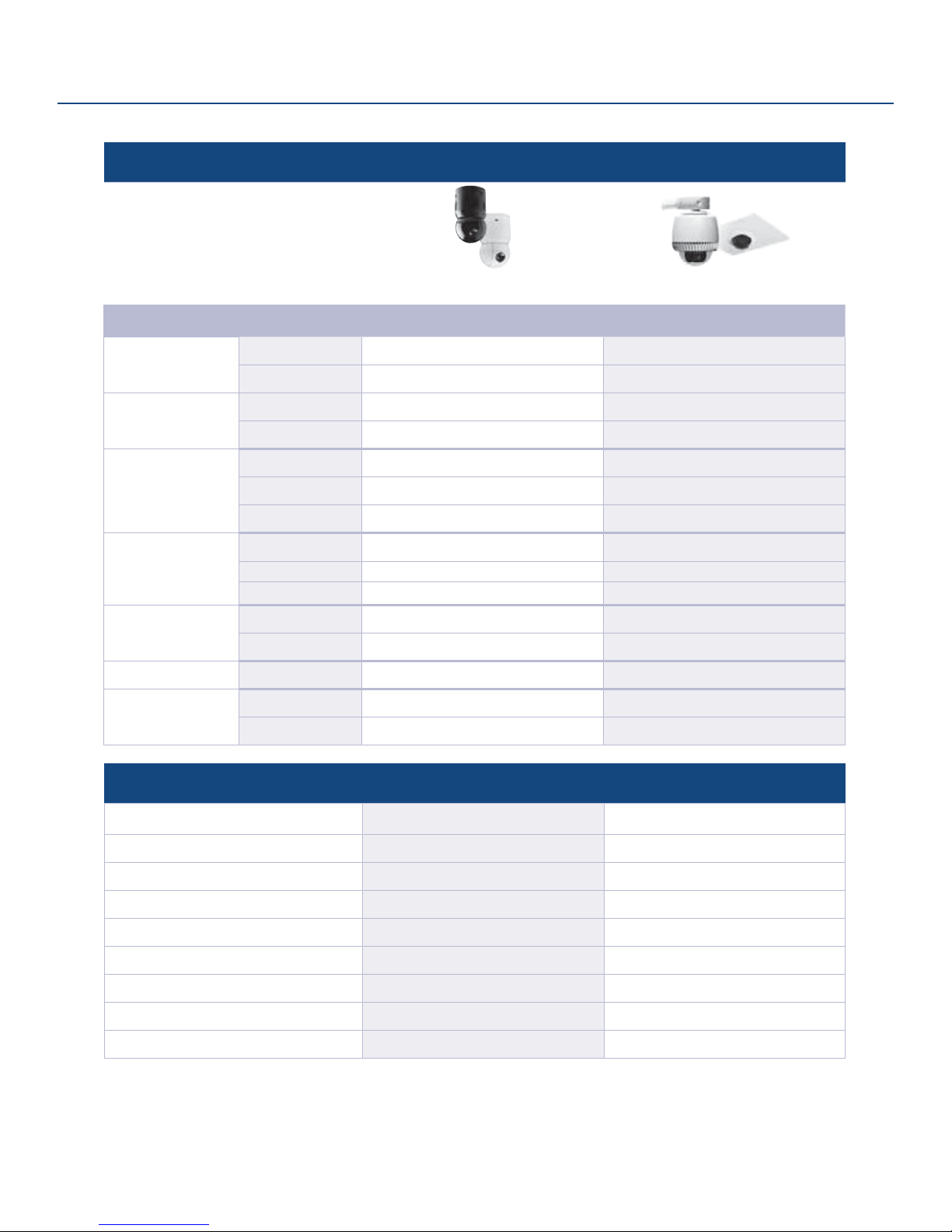

ANALOG DOME COMPARISON TABLE

SpeedDome Ultra 8 22x SpeedDome Ultra 8 35x

Total zoom 242x 420x 242x

Optical zoom 22x 35x 22x

Digital zoom 11x 12 x 11x

Day/Night No Yes No

Wide Dynamic Range No Yes No

Electronic Image Stabilization No Yes No

Programmable presets
(controller dependent)

Programmable patterns 16 16 3

Programmable sequences 16 16 No

Preset, area, pattern naming Up to 19 characters (user-defined) Up to 19 characters (user-defined) No

Motion detection No Yes No

Privacy zones Up to 8 Up to 8 No

Alarm inputs & output

Auto focus/iris Ye s Yes Yes

Password protection Yes Yes No

CCD imager (CCD center) 1/4 in, 470 TVL 1/4 in, 540 TVL 1/4 in, 470 TVL

Minimum illumination

Lens focal length 4 to 88 mm 3.4 to 119 mm 4 to 88 mm

Lens maximum aperture f1.6 f1.4 f1.6

Communication Protocols

Up to 4 inputs & outputs, base

0.3 lux (AGC on) / 0.02 lux with 1/4

RS-422/RS-485, Manchester,

Up to 96 Up to 96 Up to 96

dependent

sec. open shutter

SensorNet, & AD-UTC

Up to 4 inputs & outputs, base

dependent

Day Mode - 0.24 lux (AGC on) / 0.028
lux with 1/4 sec. open shutter B/W IR
mode – 0.021 lux (AGC on) / 0.00041

lux with 1/2 sec. open shutter

RS-422/RS-485, Manchester,

SensorNet, & AD-UTC

SpeedDome Optima +

Optima LT

One for Optima & N/A for Optima LT

1.5 Lux (AGC on)

RS-422/RS-485 (2-Wire: for Optima

LT only), Manchester & SensorNet

American Dynamics 14

Analog PTZ Dome Cameras

Two Ordering Options

1. Order each component individually

2. Order a pre-configured dome kit
which includes: Camera Module,

Mounting Base, Mount, and Indoor
or Outdoor Housing, plus Bubble.

Available

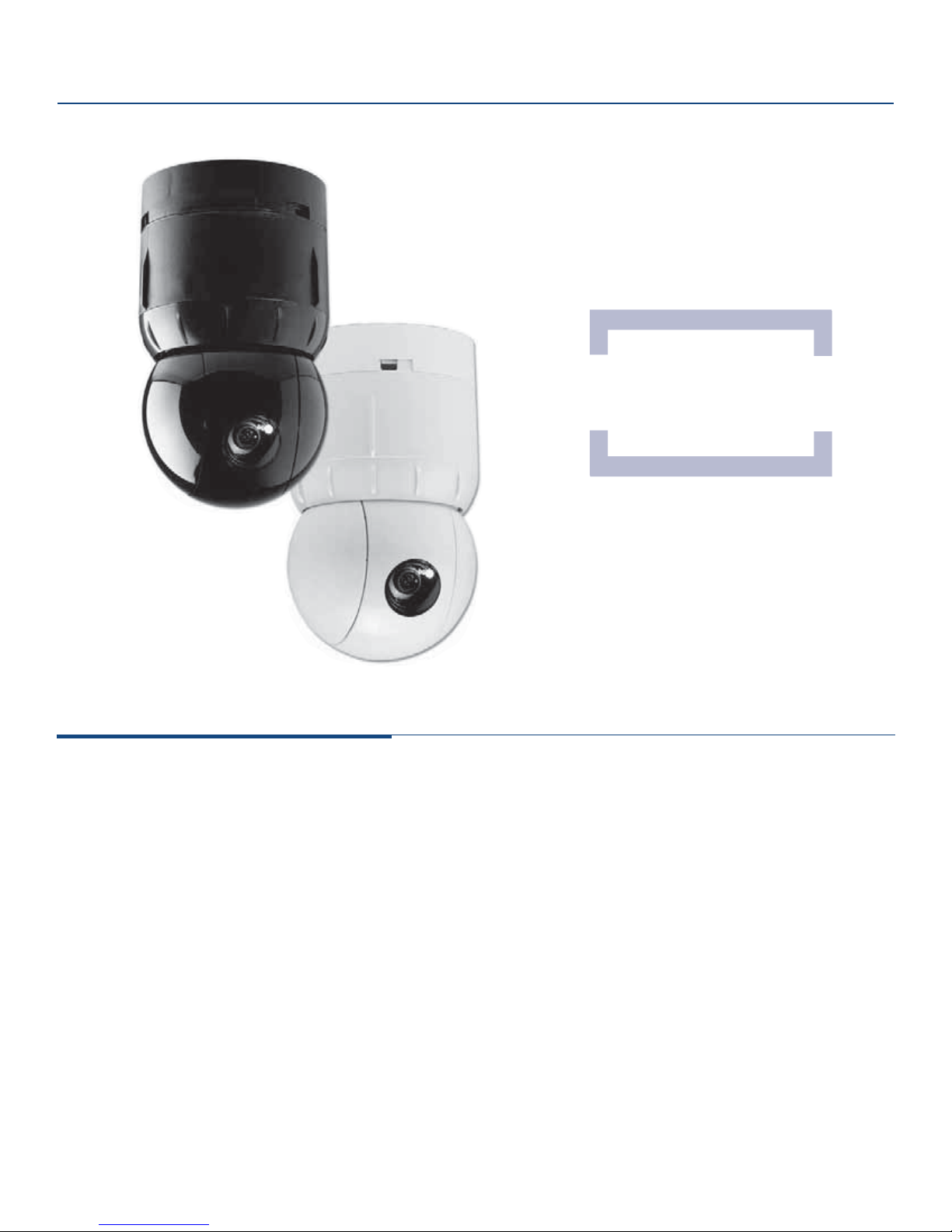

SpeedDome Ultra 8 Dome Cameras:

22x series:

t 22x optical zoom with 11x digital magnifier

(242x total zoom)

t Advanced digital signal processing (DSP)

CCD camera

t Freeze frame on presets (user-selectable

on/off)

t Open shutter to capture images in very low

directional light

t Select from two housing/eyeball assembly

colors: black or white

t Continuous auto focus

t Zoom adjusted programming

t Dome usage statistics

t Password protection

t Integrated Unshielded Twisted Pair (UTP)

simplifies wiring and installation

t Store presets and patterns with I/O base

memory

* Compat ibili ty with other m anufact urers is b ased upo n known c urrent p rotocols a nd controllers at time of tes t. However, compa tibil ity may b e affected if othe r manufa cturers m ake chan ges to thei r products.

t Supports SensorNet, RS-422, Manchester,

AD UTC, NTCIP, and other protocols*

t Dome-generated on-screen text including

direction indicators

t Up to eight privacy zones

t Programmable presets, patterns, and area

names

t DirectSet feature provides fast access to

the most frequently used dome features

t Up to 96 presets (controller dependent)

t Alarm inputs and outputs

t Automatic home position

t Automatic proportional flip and automatic

gain control, line-lock and white balance
(user-selectable on/off)

35x series; includes ALL the features (listed
left) PLUS the following:

t 35x optical zoom with 12x digital magnifier

(420x total zoom)

t Wide dynamic range

t Day/night color-to-monochrome mode

t Electronic Image Stabilization (EIS)

t Dimensions:

Height: 205 mm (8 in)
Diameter: 120 mm (4.7 in)

t Weight:

Housing and Eyeball: 1.18 kg (2.6 lbs)
Base (with I/O board): .16 kg (.35 lbs)

American Dynamics 15

Analog PTZ Dome Cameras

SpeedDome Ultra 8 (order each component):

22x Zoom, Housing /Eyeball Assembly without I/O Mounting Base

ADSDU822N

ADSDU822WN

ADSDU822P

ADSDU822WP

22x Zoom, Housing/Eyeball Assembly with I/O Mounting Base

ADSDU822ION

ADSDU822WION

ADSDU822IOP

ADSDU822WIOP

35x Zoom, Housing /Eyeball Assembly without I/O Mounting Base

ADSDU835N

ADSDU835WN

ADSDU835P

ADSDU835WP

35x Zoom, Housing/Eyeball Assembly with I/O Mounting Base

ADSDU835ION

ADSDU835WION

ADSDU835IOP

ADSDU835WIOP

I/O Mounting Base without Housing /Eyeball Assembly

ADSDUIOB

ADSDUIOBW

Accessories

> Housings

> Mounts

> Controllers

> J-Boxes

> Installation/Removal tool

> Power supplies

Model Number Guide

BRAND CAMERA CAMERA BODY COLOR MOUNTING BASE FORMAT

ADSDU8 =
American Dynamics
SpeedDome Ultra 8

22 = 22x Zoom
35 = 35x Zoom, Wide Dynamic Range,

True Day/Night, Electronic Image
Stabilization (EIS)

{blank} = Black
W = White

{blank} = None, Order

Separately

IO = I/O Mounting

Base Included

N = NTSC
P = PAL

American Dynamics 16

With the SpeedDome Ultra 8, the True Day/Night feature provides

enhanced infrared capability for night time viewing. Excellent color

video is seen by day, then automatically switches to monochrome

in the dark. This powerful feature enables you to capture scenes in

extreme darkness, undetectable to the human eye.

Analog PTZ Dome Cameras

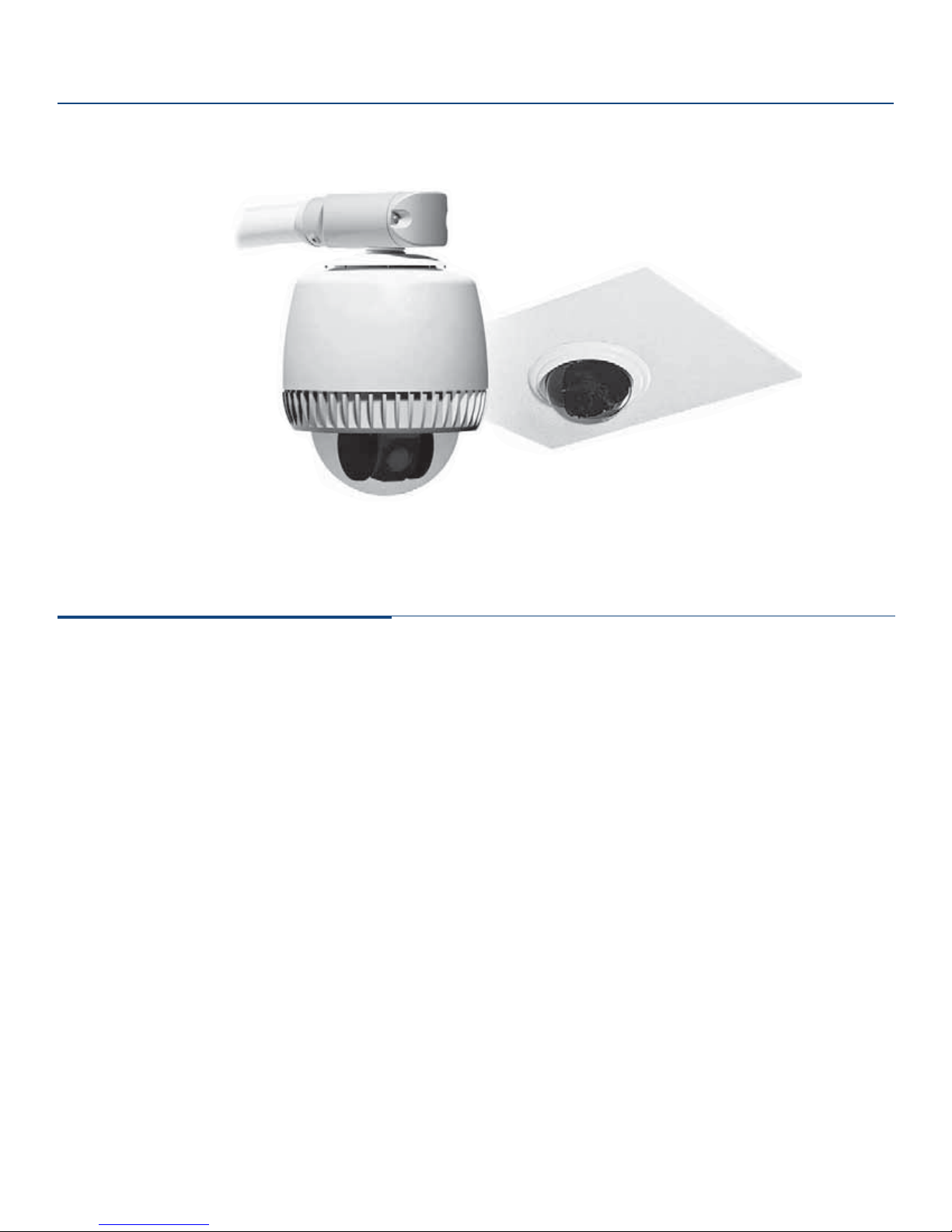

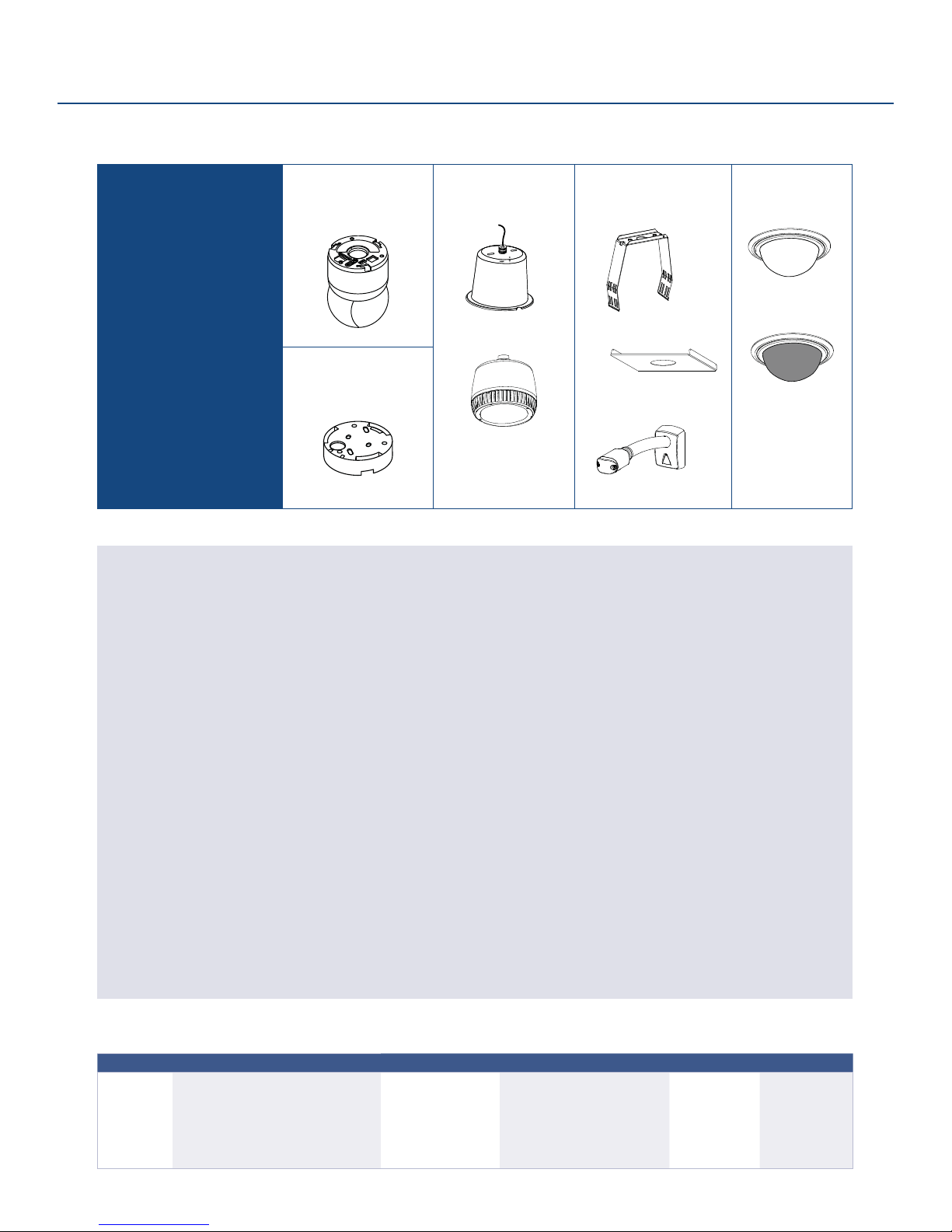

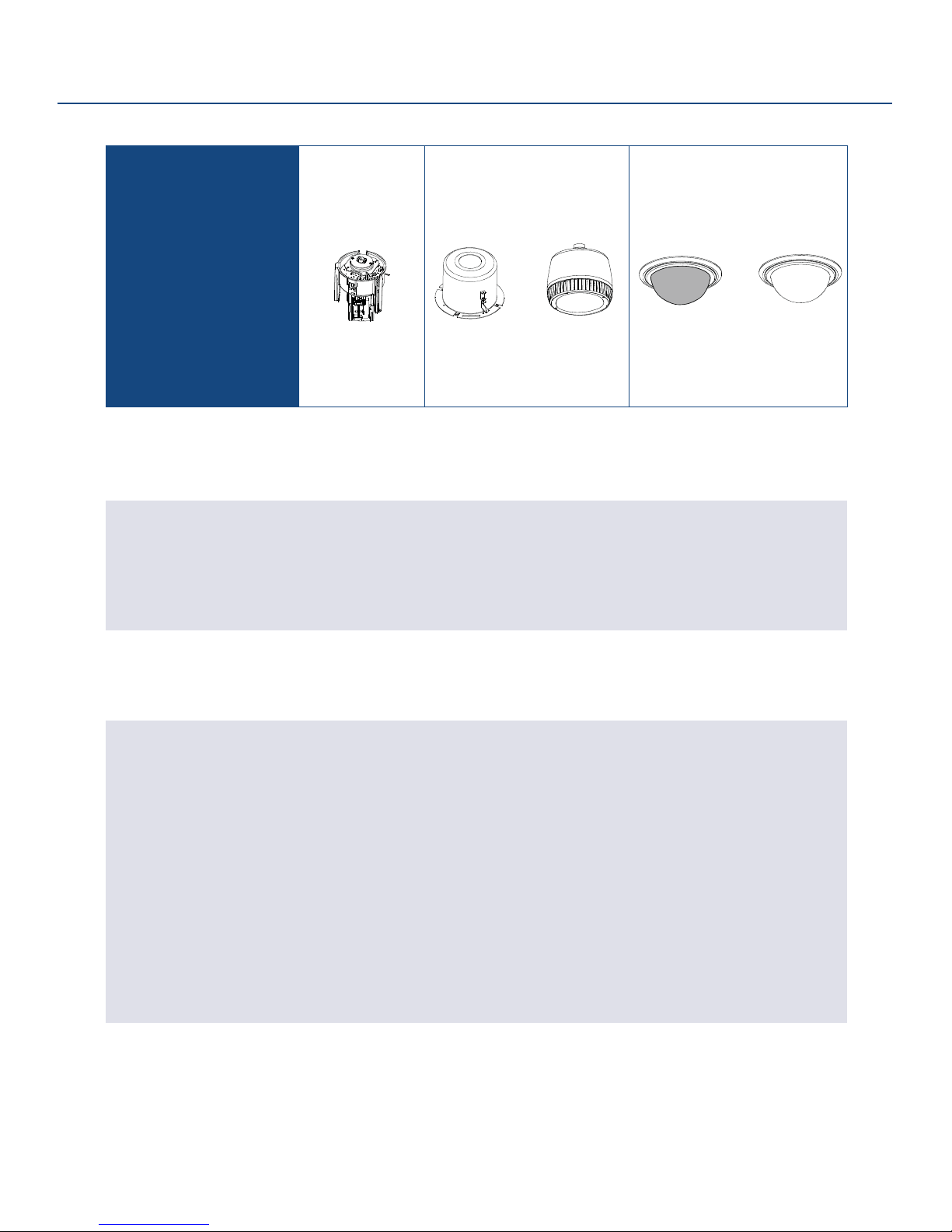

SPEEDDOME ULTRA 8 PRECONFIGURED KITS

A PRE-CONFIGURED
SPEEDDOME ULTRA

A Camera Module -

22x or 35x (Color with
Day/Night mode)

C Housing (Environ-

ment)

8 KIT INCLUDES:

A

Camera Module

B

I/O Board Mounting Base

C

Housing (Environment)

D

E

Mount

Bubble

B I/O Board Mounting

Base (if applicable)

Pre-Configured SpeedDome Ultra 8 Kits:

22x Zoom, Indoor Dome Kits

ADSDU822IHN

ADSDU822IHP

ADSDU822IHSN

ADSDU822IHSP

ADSDU822I2X2N

ADSDU822I2X2P

ADSDU822I2X2SN

ADSDU822I2X2SP

22x Zoom, Outdoor Dome Kits

ADSDU822OPCN

ADSDU822OPCP

ADSDU822OPCWN

ADSDU822OPCWP

32x Zoom, Indoor Dome Kits, (with 540 TVL WDR, Day/Night + EIS)

ADSDU835IHN

ADSDU835IHP

ADSDU835IHSN

1) Top Hat (Indoor)

2) Environmental

(Indoor & Outdoor)

D Mount E Bubble

1) Hard Ceiling (Indoor)

2) 2' x 2' Drop Ceiling
(Indoor)

3) Long Wall (Outdoor)

ADSDU835IHSP

ADSDU835I2X2N

ADSDU835I2X2P

ADSDU835I2X2SN

ADSDU835I2X2SP

35x Zoom, Outdoor Dome Kits, (with 540 TVL WDR,

Day/Night + EIS)

ADSDU835OPCN

ADSDU835OPCP

ADSDU835OPCWN

ADSDU835OPCWP

Accessories

> Controllers

> J-Boxes

> Installation/Removal tool

> Power supplies

Clear

Smoked

Model Number Guide

BRAND CAMERA ENVIRONMENT MOUNT BUBBLE FORMAT

ADSDU8 =
American
Dynamics
SpeedDome
Ultra 8

22 = 22x Zoom
35 = 35x Zoom, Wide dynamic range,

True Day/Night, Electronic Image
Stabilization (EIS)

I = Indoor
OPC = Outdoor

H = Hard Ceiling
W = Long Wall
2x2 = 2 x 2 ft, Drop Ceiling
{blank} = None, Order

Separately

{blank} = Clear
S = Smoked

N = NTSC
P = PAL

American Dynamics 17

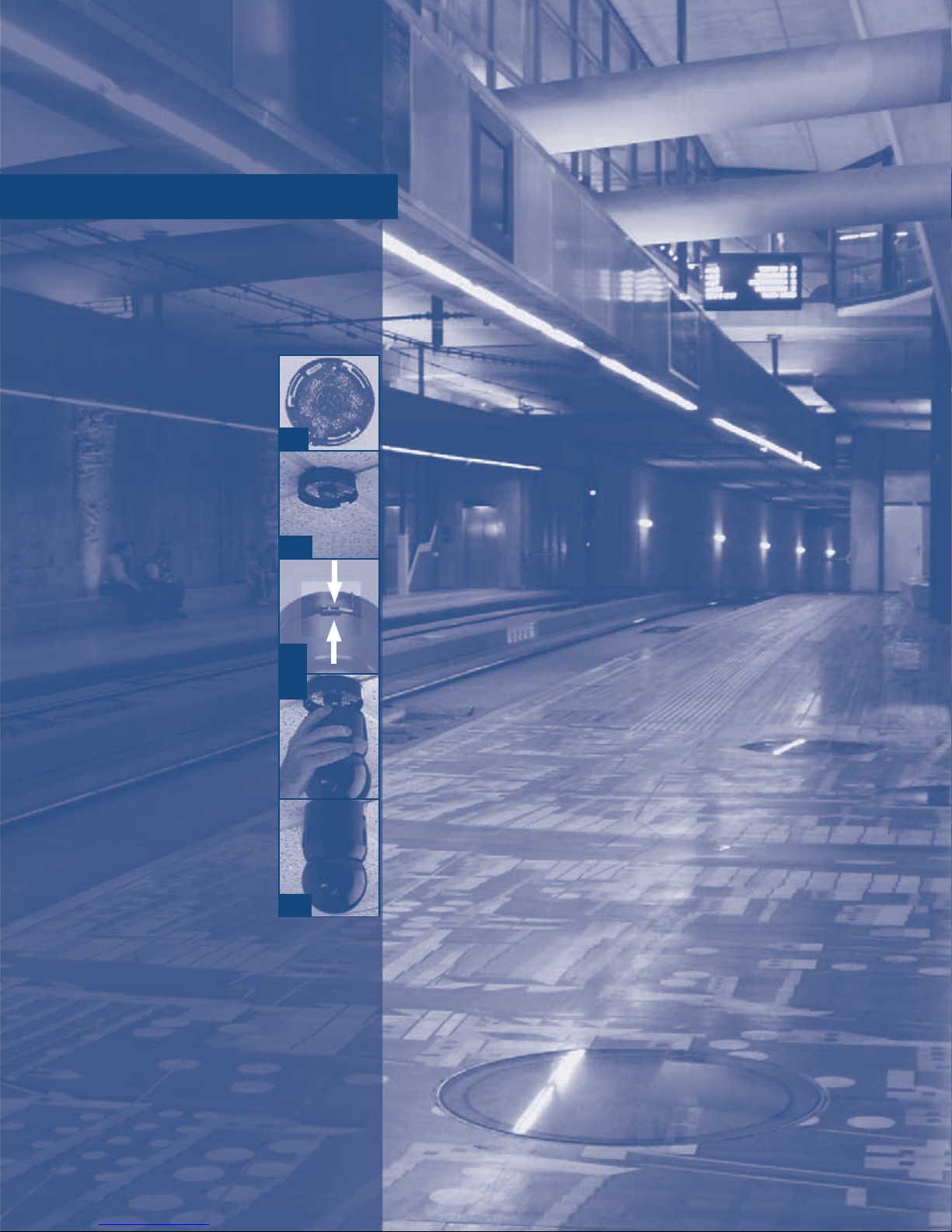

Dome Assembly

We offer an I/O Board Mounting Base which

makes installation as easy as screwing in a

light bulb in just three simple steps:

1. Connect the composite

cables for power,

communication, and

video to the I/O PC board

in the mounting base.

2. Secure the mounting

base to the ceiling or

desired location.

3. Connect the housing

and eyeball assembly to

the base by aligning the

cap and base tabs, then

1

2

3

turn, push, and click the

4

housing clockwise.

4. Dome is mounted and ready-to-go. Wait a

few seconds for dome to begin its homing

routine.

American Dynamics 18

Analog PTZ Dome Cameras

SpeedDome Optima + Optima LT Dome Cameras:

t Color camera with up to 242x zoom

(22x optical, 11x digital)

t 470+ TVL horizontal resolution

t Zoom adjusted programming

t Auto focus and auto iris

t Auto white balance

t Automatic gain control

t Line-lock

t Supports Manchester, SensorNet, and

Simplex RS-422 protocols

t Up to 96 user-definable presets

t Three user-definable patterns

t Power-on functional tests

t LED diagnostics

t Easy to install and service

t Priced comparably to a PTZ, with

more features and easier to install

t Stepper motors with micro-step control

t Automatic home position

t In-ceiling series dimensions:

Total: 301 x 190.5 mm (11.9 x 7.5 in)

t Above ceiling: 207.4 x 190.5 mm

(8.2 x 7.5 in)

t Below ceiling: 92.7 x 178 mm

(3.65 x 7 in)

t In-ceiling series weight: 2.5 kg (5.5 lbs)

t Integral housing series dimension:

303 x 243.5 mm (11.9 x 9.6 in)

t Integral housing series weight: 2.7 kg

(6.1 lbs)

American Dynamics 19

Analog PTZ Dome Cameras

A PRE-CONFIGURED
SPEEDDOME OPTIMA
+ OPTIMA LT DOME
KIT INCLUDES:

A

Color Camera Module

B

Housing

C

Bubble (smoked or clear)

Pre-Configured Optima Dome Kits (Outdoor):

RASONPC

Outdoor Pendant Mount, Clear Bubble (NTSC)

RASONPC-1

Outdoor Pendant Mount, Clear Bubble (PAL)

Module

A Color Camera

B Housings C Bubbles

In-ceiling

(Indoor)

RASONPS

Outdoor Pendant Mount, Smoked Bubble (NTSC)

RASONPS-1

Outdoor Pendant Mount, Smoked Bubble (PAL)

Pendant

(Indoor/Outdoor)

Smoked

Clear

Pre-Configured Optima LT Dome Kits (Indoor):

RASELHC

Indoor Ceiling Mount, Clear Bubble (NTSC)

RASELHC-1

Indoor Ceiling Mount, Clear Bubble (PAL)

RASELHS

Indoor Ceiling Mount, Smoked Bubble (NTSC)

RASELHS-1

Indoor Ceiling Mount, Smoked Bubble (PAL)

RASELPC

Indoor Pendant Mount, Clear Bubble (NTSC)

RASELPC-1

Indoor Pendant Mount, Clear Bubble (PAL)

RASELPS

Indoor Pendant Mount, Smoked Bubble (NTSC)

RASELPS-1

Indoor Pendant Mount, Smoked Bubble (PAL)

Accessories

> Controllers

> J-Boxes

> Installation/Removal tool

> Power supplies

American Dynamics 20

Controller, DVR or
Matrix Switcher

ADTT16E

Analog PTZ Dome Cameras

NUMBER OF PRESETS PER DOME

SpeedDome Ultra 8 22x + 35x SpeedDome Optima + Optima LT

Protocol Number of Presets

SensorNet 96 96

RS-422* 94 96

MegaPower LT

MegaPower 48 Plus

MegaPower 3200

Intellex

TVR RS-422 96 96

Third party interfaces

AD-UTC 96 96

SensorNet 96 96

SensorNet 96 96

Manchester 64 64

RS-422 96 96

Manchester** 64 64

SensorNet 64 64

†

RS-422

SensorNet

RS-422

RS-485 N/A N/A

RS-422 N/A N/A

‡

§

60 60

96 96

96 96

SUPPORTED PROTOCOLS

RS-485/RS-422 Yes

NTCIP Yes No

SpeedDome Optima: Yes

SpeedDome Optima LT: Yes, Simplex only

SensorNet Yes Yes

Manchester Yes Yes

AD-UTC Yes No

Pelco Coaxitron Yes N o

Pelco “P” Yes No

Panasonic UTC Yes No

Vicon RS-422 Yes No

* Using SensorNet-to-RS-422 converter (model number RCSN422).
** Using Se nsorn et/Manch ester cod e dist Mod el # ADACSN ETD
† Using RS 422/485 code dist mo del # ADAC422D

‡ Using USB CCTV Control Module (Model number ADACSNET).

§ Requires USB to RS-422 adaptor.

American Dynamics 21

Analog Mini-Domes

DISCOVER MINI-DOME FIXED CAMERA COMPARISON TABLE

ADCD(B)W

Indoor/Outdoor

Camera

Housing Vandal resistant Vandal resistant Vandal resistant

Imager Pixim orca sensor 1/3 in CCD 1/3 in CCD 1/3 in CCD 1/3 inch CCD 1/3 inch CCD

Video Output

Horizontal
Resolution

Active Pixel Count
(H x V)

Minimum
Illumination

Digital Slow
Shutter (DSS)

Sync System

S/N Ratio >42 dB 50 dB 50 dB 50 dB 48 dB 48 dB

White Balance

Wide Dynamic

Range

1.0 Vp-p/75-ohm,
BNC

504+ TVL 540 TVL 540 TVL 540 TVL

Universal: 720 x

540

0.95 lux @ F1.2

2x (de fa ult) – 32x N/A N/A N/A N/A N/A

Line-lock, phase-

adjustable or

internal

Automatic white

balance (AWB),

One-touch &

manual

ADCD(B)EH

Indoor/Outdoor

Super High

Resolution

1.0 Vp-p/75-ohm,
BNC

NTSC: 768 x 494

(PAL: 752 x 582)

Typ*: 0.65 lux @

F1.2

Min**: 0.19 lux @

F1.2

Line-lock,

adjustable or

internal

AWB AWB AWB AWB AWB

ADCD(B)T

Indoor/Outdoor

True Day/Night

1.0 Vp-p/75-ohm,
BNC

NTSC: 768 x 494

(PAL: 752 x 582)

Day: 0.65 lux @

F1.2

Night: 0.07 lux @

F1.2

Line-lock,

adjustable or

internal

ADCIEH

Indoor

Super High

Resolution

Non-vandal

resistant

1.0 Vp-p/75-ohm,
BNC

NTSC: 768 x 494

(PAL: 752 x 582)

Typ1: 0.65 lux @

F1.2

Min2: 0.19 lux @

F1.2

Line-lock,

adjustable or

internal

ADCD600

Indoor/Outdoor

True Day/Night High resolution

Vandal-resistant

1.0 Vp-p/75 ohm,
BNC

540 TVL (NTSC)

520 TVL (PAL)

768 x 494 NTSC

752 x 582 PAL

0.0 lux (f/1.4 lens,

AGC on, IR on)

Internal Internal

ADCD200

Indoor

Non

vandal-resistant

1.0 Vp-p/75 ohm,
BNC

480 TVL

768 x 494 NTSC

752 x 582 PAL

1.2 lux

AWB Ranges­Normal (Extended)

WDR Metering
Zone

Backlight
Compensation

Flickerless Mode Selectable on/off Selectable on/off Selectable on/off Selectable on/off On/Off N/A

Night-Saver Selectable on/off Selectable on/off N/A Selectable on/off On/Off On/Off

DVR-Saver Mode Selectable on/off N/A Selectable on/off N/A N/A N/A

Digital Zoom Scalable, up to 2x N/A N/A N/A N/A N/A

Bubble F-stop

Lens Options

Housing Color Black or White Black or White Black or White White White White

Environmental
Rating

* Spec ifie d at 178mV (for comparison purp oses)
** Specified at 78mV (usable signal level)

2200 – 7500 K

(2000 – 11000 K)

1-zone adjustab le N/A N/A N/A N/A N/A

N/A

F1.0 (tinted); F0

(clear)

2.6-6mm

3.0 – 9.0 mm or

9.0 – 22 mm auto
iris lens

Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor Only Indoor/Outdoor Indoor Only

2700 – 11000 K

(2000 – 18000 K)

Center weighted

on/off

F1.0 (tinted); F0

(clear)

2.6-6mm

3.0 – 9.0 mm or

9.0 – 22 mm auto
iris lens

2700 – 11000 K

(2000 – 18000 K)

Center weighted

on/off

F1.0 (tinted); F0

(clear)

2.9 – 10 mm or

9.0 – 22 mm auto
iris lens

2700 – 11000 K

(2000 – 18000 K)

Center weighted

on/off

F1.0 (tinted); F0

(clear)

2.6-6mm

3.0 – 9.0 mm or

9.0 – 22 mm auto
iris lens

2500 - 9500 K 2500 - 9700 K

On/Off On/Off

F0 (clear) F0 (clear)

3.7 - 12mm

4 – 9 mm, F/1.6

fixed

American Dynamics 22

Analog Mini-Domes

When light levels drop, the camera

automatically switches on the

built-in IR illuminators and

switches from color to black and

white to capture images in very

low light.

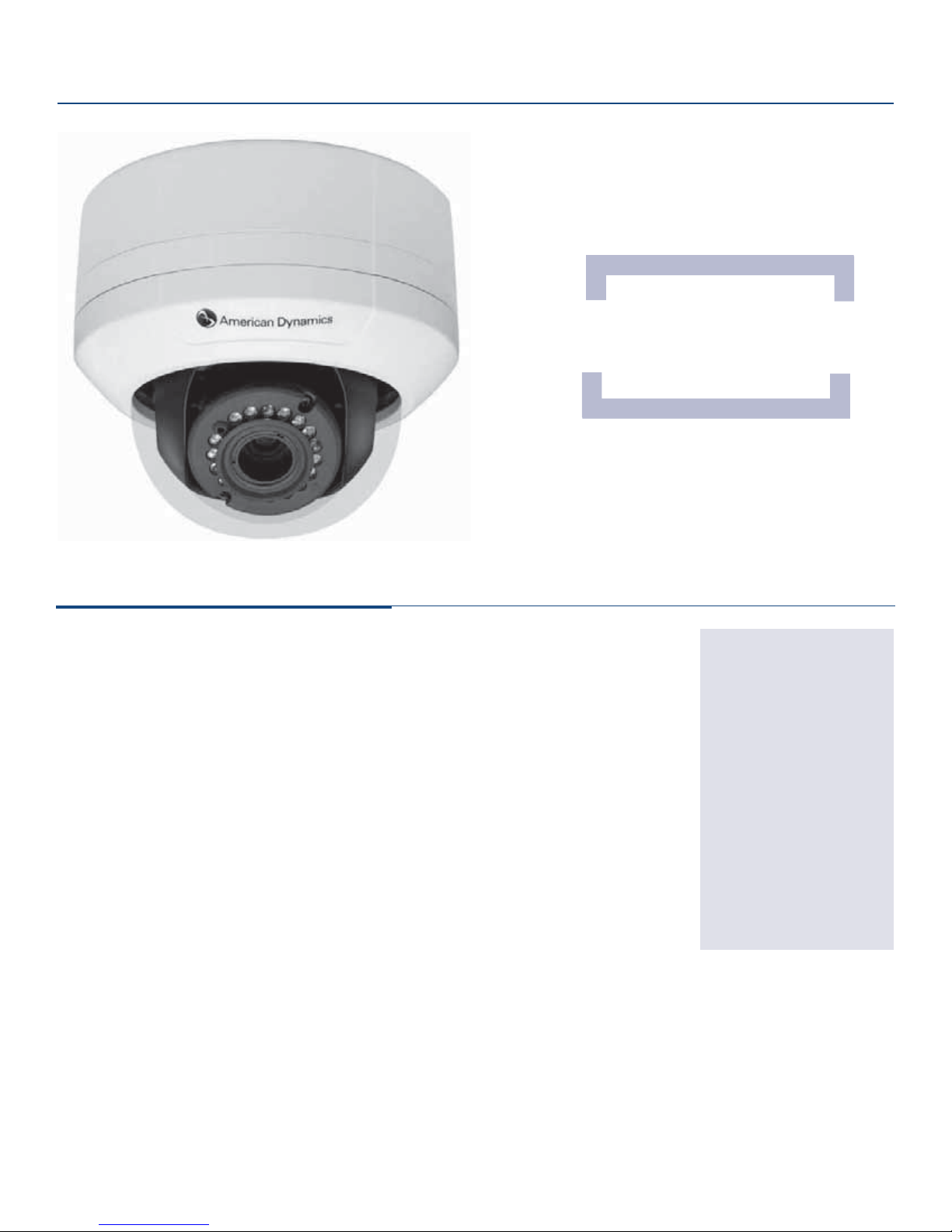

Discover 600 Vandal-Resistant Mini-Domes with IR Illumination:

t Super high resolution 540 TVL NTSC True Day/ Night (520 TVL PAL)

t Removable IR Cut Filter

t 3X vari-focal lens

t Auto Iris, IR corrected, 3.7 - 12 mm varifocal lense

t Built-in IR illumination

t Unshielded Twisted Pair (UTP) option

t IP67-rated housing for outdoor use

t Provides recessed mounting or surface mounting options as

standard

MODEL NUMBERS

ADCD600-D0001

Vandal resistant mini dome,

540TVL, 3.7-12mm, IR, 12/24V,

clear, white, NTSC

ADCD600-D0002

Vandal resistant mini dome,

520TVL, 3.7-12mm, IR, 12/24V,

clear, white, PAL

Accessories

ADC1121A

Power supply 12VDC/1 amp

ADC124

Power Supply 24VAC

American Dynamics 23

Analog Mini-Domes

For businesses that are

cost-sensitive, the 200 Series

offers a powerful price/

performance ratio.

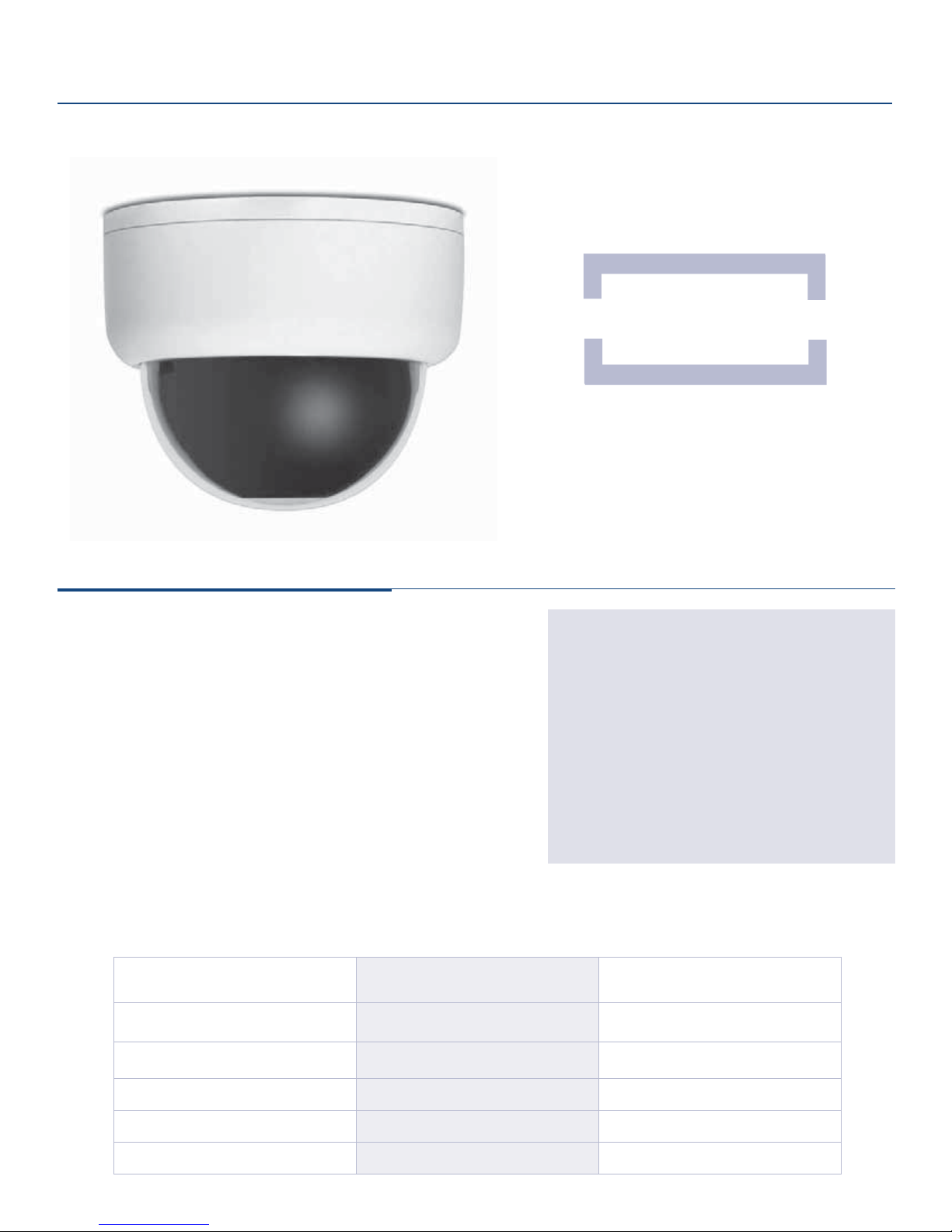

Discover 200 Indoor Mini-Domes:

t High resolution 480 TVL camera

t 1/3 inch format CCD

t 4-9 mm auto iris lens

t 3 axis gimbal

t 12VDC or 12VDC/24VAC option (201 series)

t Optional mounting accessories

Mounting Accessories ADCD200-D ADCD201-D

ADCPWMWALL Yes Yes

ADCPWMPEND No Yes

MODEL NUMBERS

ADCD200-D0001

3” mini-dome, 480TVL, 4-9mm, 12VDC, clear, white, NTSC

ADCD200-D0002

3” mini-dome, 480TVL, 4-9mm, 12VDC, clear, white, PAL

ADCD201-D0001

4” mini-dome, 480TVL, 4-9mm, 12/24V, clear, white, NTSC

ADCD201-D0002

4” mini-dome, 480TVL, 4-9mm, 12/24V, clear, white, PAL

ADCPWMRMK No Yes

ADCPWMPWM No Yes

ADCPWMCRNR No Yes

ADCPWMELEC Yes Yes

American Dynamics 24

Vandal-Resistant

The vandal resistant Indoor/Outdoor

Discover Mini-Domes are ideal for

areas where surveillance equipment is

subject to abuse. Three camera types

are available, Wide Dynamic Range,

High Resolution, and True/Day Night.

Discover ADCD(B) Indoor/Outdoor Mini-Domes:

Analog Mini-Domes

t High-impact, vandal

resistant polycarbonate
bubble (clear and tinted);
plus snap-on bubble
liner for an extra level of
covertness

t Advanced pivoting axis

provides greater viewing
flexibility

t Two auto iris lens options

for better image quality
and improved low-light
performance

t Multiple camera options,

including WDR model with
Pixim® technology

t Night-Saver mode

for extreme low-light
conditions (high resolution
& WDR models only)

t IP66 and NEMA 4X-rated

for -30° to 50°C (-22° to
122 °F)

t Discover Drone option
available

t Easy installation with eight

mounting options (surface,
flush, pendant, wall, wall­pole, wall-exterior corner,
inside corner, electrical
box)

t ADCD and ADCB series

dimensions:
[height x bubble diameter]:
93 x 95 mm (3.6 x 3.7 in)
High resolution camera
weight: 1.0 kg (2.2 lbs)
WDR & standard resolution
camera weight: 0.9 kg (1.9
lbs)

Mounts

White Black

ADCDMWALL ADCBMWALL

ADCDMCRNRO ADCBMCRNRO

ADCDMPEND ADCBMPEND

ADCDMCRNR ADCDBCRNR Corner mount

ADCDMPOLE ADCBMPOLE

ADCDMELEC ADCBMELEC

Wall mount w/pendant

Outside corner adapter for

use with ADCDMWALL or

Pendant cap, three-quarter

Pole mount for use

with ADCDMWALL or

Drone, no camera or lens

Accessories

Heater, 24V AC only,

ADCDHTR

7W

(Not used in WDR

models)

cap

ADCBMWALL

inch thread

ADCBMWALL

capability

Model Number Guide

BRAND FINISH TYPE LENS BUBBLE FORMAT

AD =
American
Dynamics

CD = Vandal resistant,

White

CB = Vandal resistant,

Black

EH = High

Resolution

W = Wide Dynamic

Range

T = True Day/Night 2910 = 2.9 – 10 mm | 0922 = 9.0 – 22 mm N = NTSC | P = PAL

ADCDSLC

2606 = 2.6 – 6.0 mm
0309 = 3.0 – 9.0 mm | 0922 = 9.0 – 22 mm

0309 = 3.0 – 9.0 mm | 0922 = 9.0 – 22 mm U = Universal

Video service lead

cable

C = Clear
T = Tinted

N = NTSC | P = PAL

American Dynamics 25

Analog Mini-Domes

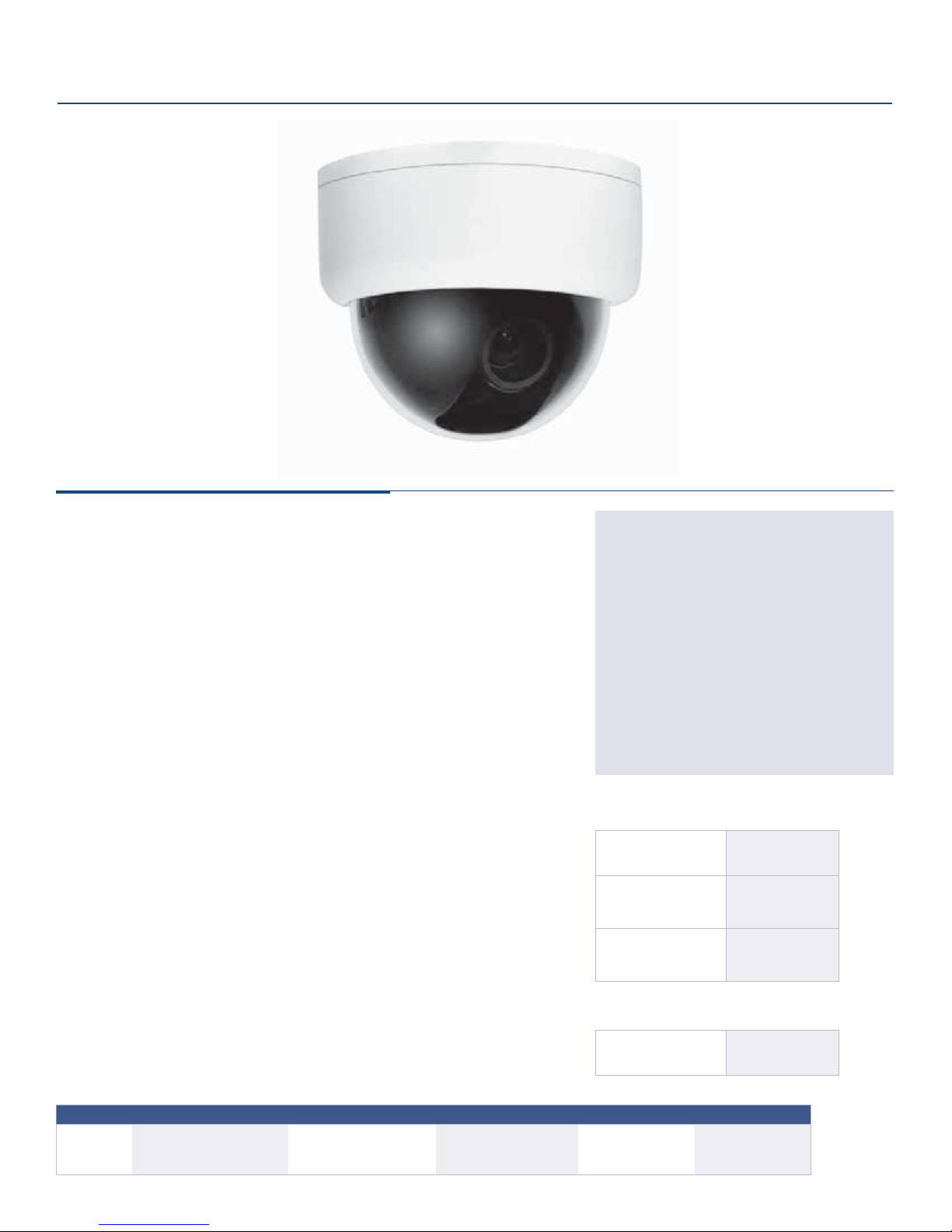

Discover ADCI Indoor Mini-Domes:

t Economical, high quality camera for

indoor applications where vandalism is
not a concern

t 540 TVL super high resolution 1/3

in camera provides superior image
quality and color reproduction

t Night-Saver mode for low light

conditions

t Two vari-focal auto iris lens options

t Snap-on bubble liner for covert

appearance

t Advanced pivoting axis provides

greater viewing flexibility

t Mounting options include pendant,

inside corner, and electrical box

t Dimensions:

[height x bubble diameter]:
100 x 95 mm (3.9 x 3.7 in)

t Weight: 0.3 kg (0.7 lbs)

MODEL NUMBERS

ADCIEH0309CN

ADCIEH0309CP

ADCIEH0309TN

ADCIEH0309TP

ADCIEH0922CN

ADCIEH2606CN

ADCIEH2606CP

ADCIEH2606TN

ADCIEH2606TP

ADCIEH0922CP

ADCIEH0922TN

ADCIEH0922TP

Accessories

ADCDSLC

(Video service lead

cable)

Mounts

ADCPWMPEND

ADCPWMCRNR Corner mount

ADCPWMELEC

Pendant cap, three-

quarter inch thread

4S electrical box

adapter

Model Number Guide

BRAND FINISH TYPE LENS BUBBLE FORMAT

AD =
American
Dynamics

American Dynamics 26

CI = White, Indoor EH = High Resolution 2606 = 2.6 - 6.0 mm

0309 = 3.0 - 9.0 mm
0922 = 9.0 - 22 mm

Accessories

C = Clear
T = Tinted

ADCDSLC

Video service lead

cable

N = NTSC
P = PAL

Analog Bullet Cameras

BULLET CAMERAS

Camera ADCD200-B ADCD601-B

Imager

Video Output 1.0 Vp-p / 75 Ohm, composite 1.0 Vp-p / 75 Ohm, composite

Horizontal Resolution 380 TVL 520 TVL

Active Pixel Count NTSC 768 x 494 pixels 768 x 494 pixels

Active Pixel Count PAL 752 x 582 pixels 752 x 582 pixels

Lens 6mm, f/2.0 fixed 3-9mm, f/1.6

Min. Scene Illumination 0.0 lux (f/2.0 lens, AGC on, IR on) 0.0 lux (f/1.6 lens, AGC on, IR on)

S/N Ratio 48 dB 48 dB

Synchronization Internal Internal

IR Wavelength 850nm 850nm

IR distance Up to 25m (80ft) Up to 25m (80ft)

White Balance Auto (2,500°K to 9,500°K) Auto (2,500°K to 9,500°K)

Electronic Shutter

Interline transfer 1/3-inch

CCD array

Auto (1/60 (1/50) ~

1/100,000 sec.)

Interline transfer 1/3-inch

CCD array

Auto (1/60 (1/50) ~

1/100,000 sec.)

Backlight Compensation Auto (Centre weighting) Auto (Centre weighting)

Day/Night Auto Auto

DC Voltage 12VDC (±10%) 12VDC (±10%)

Power 4.5 Watts maximum 5.5 Watts maximum

Construction Metal Metal

Ingress protection IP66 IP66

Color Gray Gray

American Dynamics 27

Analog Bullet Cameras

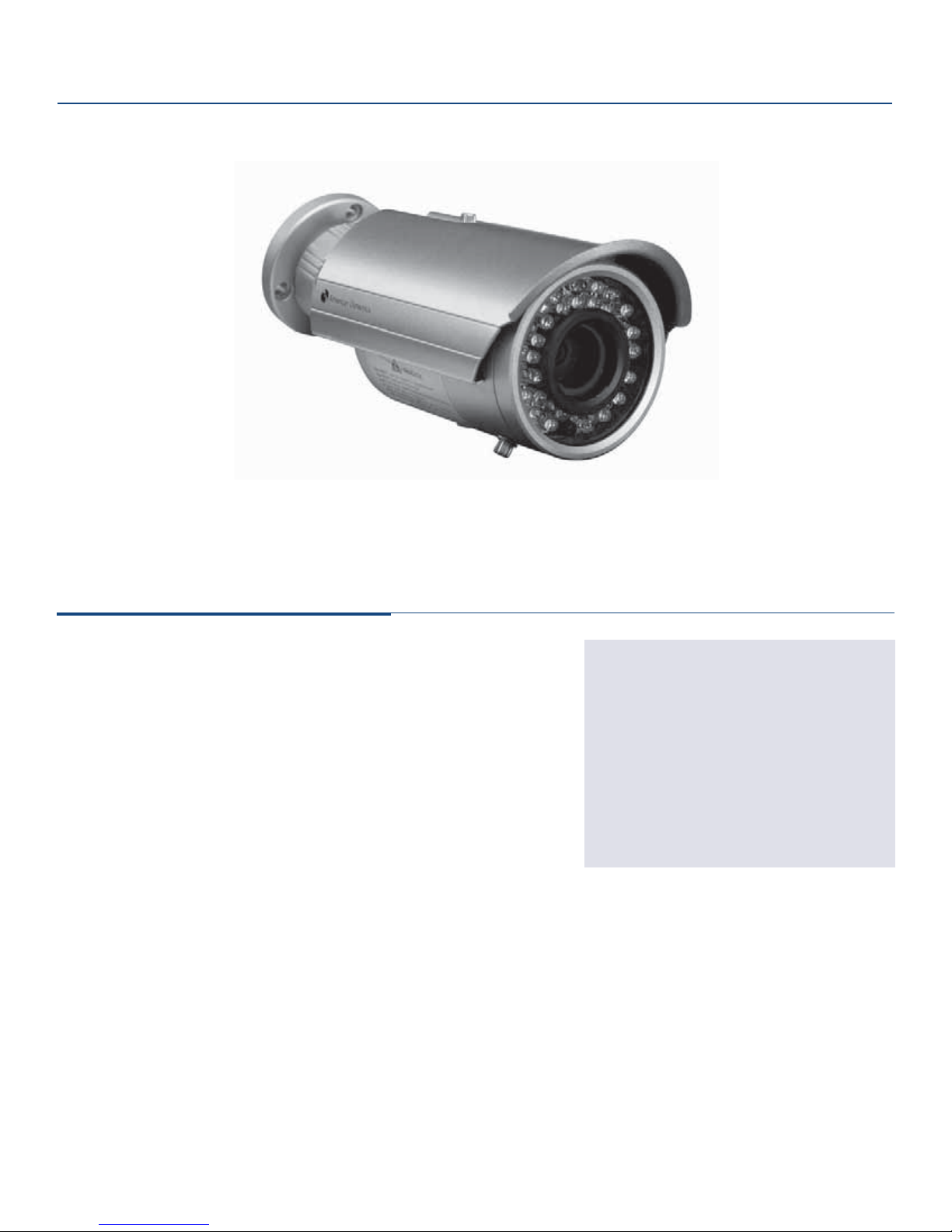

Discover 600 Bullet Cameras:

t Super high resolution 520 TVL camera

t Day/Night switching for low light conditions

t IR corrected, 3X vari-focal lens

t Built-in infrared illumination

t IP66-rated housing for outdoor use

t Complete with lens and universal mount

t Provided with a wall/ceiling mount fitted

MODEL NUMBERS

ADCD601-B0001

Bullet cam, 520TVL, 3-9mm, IR, 12VDC, NTSC

ADCD601-B0002

Bullet cam, 520TVL, 3-9mm, IR, 12VDC, PAL

Accessories

ADC1121A

Power supply for Discover 200/600 Series, 12VDC,

1 amp

American Dynamics 28

Analog Bullet Cameras

Discover 200 Bullet Cameras:

t High resolution 380 TVL camera

t Day/Night switching for low light conditions

t Complete with lens and universal mount

t Built-in IR illumination array

t IP66-rated housing for outdoor use

t Low power consumption

MODEL NUMBERS

ADCD200-B0001

Bullet cam, 380T VL, 6mm, IR, 12VDC,

NTSC

ADCD200-B0002

Bullet cam, 380T VL, 6mm, IR, 12VDC,

PAL

Accessories

ADC11211A

Power supply 12VDC, 1 amp

American Dynamics 29

Analog Box Cameras

ANALOG BOX CAMERA COMPARISON TABLE

ADCTDN

Series

Camera True Day/Night Standard Standard Standard

B&W or Color Color Color Color B&W

Video Format

Format 1/3 in interline CCD 1/3 in interline CCD 1/3 in interline CCD 1/3 in interline CCD

Resolution 540 TVL 540 TVL 330 TVL 580 TVL

Minimum Scene Illumination
Color

Minimum Scene Illumination
B&W

Light Level 0.04 lux 0.7 lux 0.5 lux 0.03 lux

Input Voltage

Standard Lens

NTSC or PAL

model dependent

0.4 lux 0.7 lux 0.5 lux N/A

0.02 lux 0.5 lux N/A 0.03 lux

24 VAC/12 VDC or 230
VAC model dependent

DC-type or

EE-type auto iris

ADCSHR

Series

NTSC or PAL

model dependent

24 VAC/12 VDC or 230
VAC model dependent

DC-type or

EE-type auto iris

ADC733 ADC660N/P

NTSC

24 VAC or 12 VDC 24 VAC or 12 VDC

DC-type auto iris

EIA or CCIR

model dependent

DC-type or

EE-type auto iris

Wide Dynamic Range No No No No

Night-Saver Mode Yes Yes No No

True Day/Night (Moving IR
Cut Filter)

Automatic Backlight
Compensation

Automatic Electronic Shutter Ye s Ye s Yes Ye s

Digital Slow Shutter No No No No

Automatic Gain Control Yes Yes Ye s Ye s

Sensitive to IR Illumination Yes N o N o Yes

Body Color Light Gray Light Gray Light Gray Light Gray

YesNoNoNo

Yes, plus 4-zones Yes Yes Yes

American Dynamics 30

Analog Box Cameras

Super High Resolution, True Day/Night Camera, 1/3 in, 540 TVL, 0.02 lux:

t 540 TVL True Day/Night with

moving mechanical IR cut
filter

t Available in 24 VAC/12 VDC

NTSC, 24 VAC/12 VDC PAL
or mains 230 VAC PAL

t Focus adjust mode for ease

of installation and focus
accuracy

t On-screen menu display for

easy programming (such as
camera titles)

t Monitor mode to optimize

output for CRT or LCD
monitors

t Advanced pixel correction

t Factory default settings

t Auxiliary input and output

t Selectable 4-zone BLC

t Manual shutter mode

t Low-light performance down

to 0.02 lux

t Auto white balance (AWB)

adjusts for accurate colors
across a multitude of lighting
conditions

t Automatic gain control

(AGC), automatic electronic
shutter (AES), and backlight
compensation (BLC)

t Phase adjustable line-lock or

internal synchronization

t Compatible with C/CS

lenses, video or DC auto Iris
versions, including American
Dynamics IR corrected
lenses (vari-focal length)

t Available as camera pre-

packs for easy ordering and
installation

t Dimensions:

67 x 63 x 126 mm
(2.56 x 2.48 x 4.96 in)

t ADCTDN2412 series:

Unit weight: 480 g (1.06 lbs)

t ADCTDN0230 series:

Unit weight: 700 g (1.54 lbs)

MODEL NUMBERS

ADCTDN2412N

ADCTDN2412P

ADCTDN0230P

Super High Resolution, 1/3 in, 540 TVL, 0.5 lux:

t 540 TVL with Night-Saver

mode

t Available in 24 VAC/12 VDC

NTSC, 24 VAC/12 VDC PAL
or mains 230 VAC PAL

t Superior low-light
performance

t Auto white balance adjusts

for accurate colors across
a multitude of lighting
conditions

t Automatic gain control,

automatic electronic shutter,
and backlight compensation

t Phase adjustable line-lock or

internal synchronization

t Compatible with C/CS

lenses, video or DC auto iris
versions

t Available in camera pre-

packs for easy ordering and
installation

t ADCSHR2412 series:

Dimensions:
52 x 58 x 126 mm
(2.0 x 2.28 x 4.96 in)
Unit weight: 370 g (0.82 lbs)

t ADCSHR0230 series:

Dimensions:
67 x 63 x 126 mm
(2.56 x 2.48 x 4.96 in)
Unit weight: 713 g (1.57 lbs)

MODEL NUMBERS

ADCSHR2412N

ADCSHR2412P

ADCSHR0230P

American Dynamics 31

Analog Box Cameras

Standard Resolution Camera, 1/3 in, 330 TVL, 0.5 lux, CCD, DSP:

t 1/3 in interline color CCD

t Digital Signal Processing

t 330 TVL resolution

t .5 lux low light sensitivity

t Exceptional Auto White

Balance (2,300°K to
10,000 °K)

t Supports DC-type auto iris

lenses

t C/CS lens mount

t Automatic electronic shutter

t Dual (H & V) edge

enhancement

t Automatic gain control

t Backlight compensation

t Phase adjustable line-lock

t Internal isolation transformer

t Low 3.6 watt power

consumption

t 24 VAC or 12 VDC input

t Dimensions:

58 x 50 x 126 mm
(2.28 x 1.97 x 4.96 in)

t Unit weight: .360 kg
(0.79 lbs)

Black & White Camera, 1/3 in, 580 TVL, 0.03 lux:

t 1/3 in interline black &

white CCD

t 580 TVL resolution

t .03 lux low light sensitivity

t Sensitive to IR illumination

t Supports DC-type or

EE-type auto iris lenses

t CS lens mount

t Automatic backlight

compensation

t 24 VAC or 12 VDC input

t Dimensions:

55 x 55 x 120 mm
(2.16 x 2.16 x 4.72 in)

t Unit weight: .400 kg (0.9 lbs

MODEL NUMBER

ADC733

MODEL NUMBERS

ADC660N

ADC660P

American Dynamics 32

“The American Dynamics cameras and the integration between them

and the DVR have been instrumental to the success of the surveillance

department here at Black Bear Casino.”

- Dennis Painter

Surveillance Manager

Black Bear Casino and Resort

When custom camera

configurations and installations

are not required, our

pre-packaged cameras are an

excellent choice. Each package

comes pre-assembled, and

includes the camera, lens,

housing mount, and mounting

hardware.

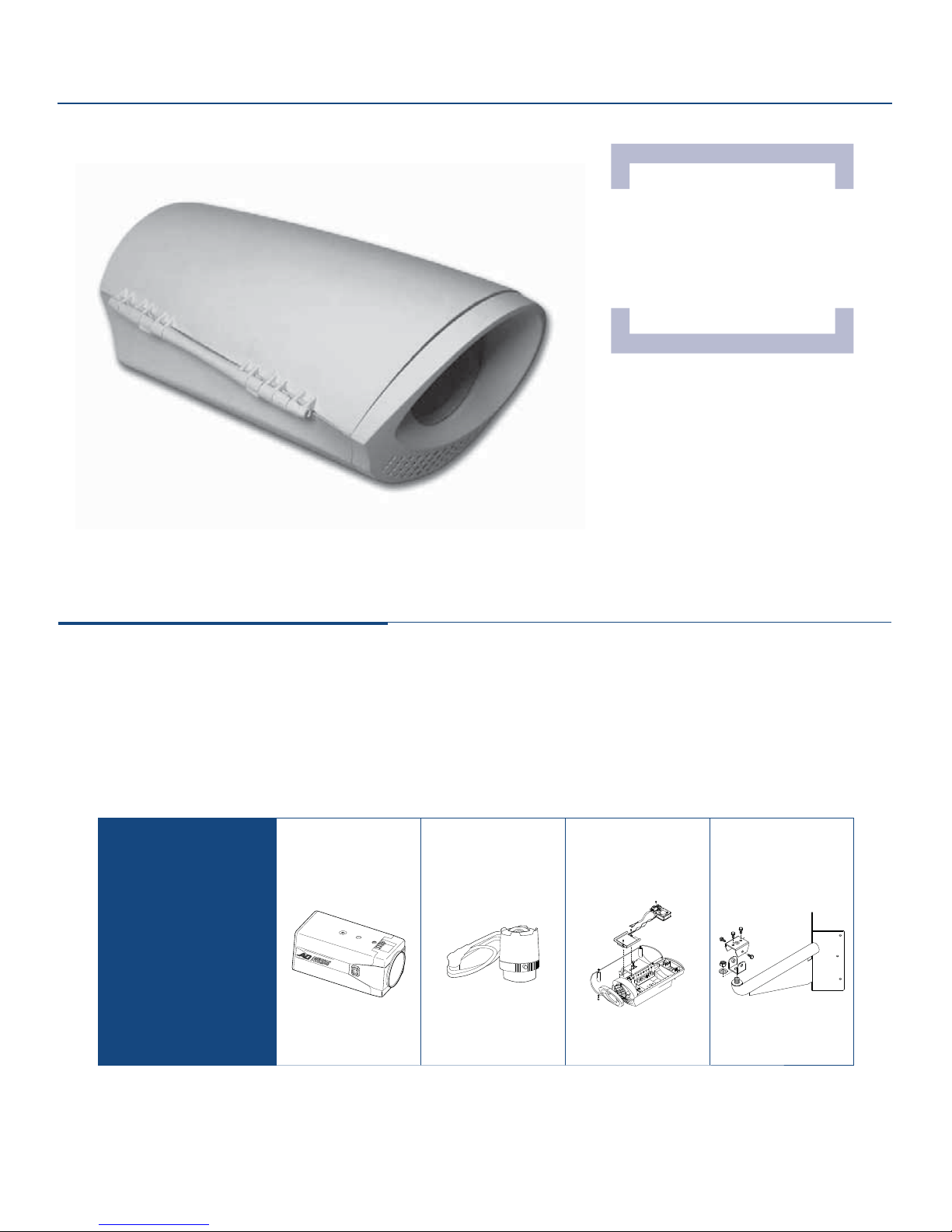

Analog Pre-Packaged Cameras

Integrated Camera,

Housing & Lens Saves

You Money

Pre-packs save you time and money.

Arriving at your door pre-assembled

and ready to go, they offer high level

performance and advanced camera

features.

Standard Camera Pre-packs:

t Choice of camera, lens, housing, and

mount combinations

t Some versions also available without

housing

CONTENTS OF
A STANDARD
PRE-PACK:

A

Camera

B

Lens

C

Housing (either indoor or

outdoor environments)

C

Mount

A Camera B Lens C Housing D Mount

t Assembled, adjusted, and tested

t Quick and easy installation

t Indoor and outdoor versions

t NTSC and EIA (Electronic Industries

Association) versions only

t Some versions include heater and blower

American Dynamics 34

Analog Pre-Packaged Cameras

STANDARD PRE-PACKAGED CAMERAS

Color, True Day/Night, 540 TVL

Auto Iris Lens Housing Mount Format Model Number

Discover 601 Box Camera ADCTDN2412

2.8 - 11 mm, IR Outdoor Wall NTSC

10 - 40 mm, IR Outdoor Wall NTSC

3- 8 mm, IR Outdoor Pole NTSC

2.8 - 11 mm, IR Outdoor Pole NTSC

10 - 40 mm, IR Outdoor Pole NTSC

Color, 540 TVL

Discover 600 Box Camera ADCSHR2412

3.5 - 8 mm Indoor Wall NTSC

2.8 – 12 mm Indoor Wall NTSC

3.5 - 8 mm Indoor Pole NTSC

2.8 - 11 mm Indoor Pole NTSC

3.5 – 8 mm Outdoor Wall NTSC

2.8 – 12 mm Outdoor Wall NTSC

5 – 50 mm Outdoor Wall NTSC

3.5 – 8 mm Outdoor Pole NTSC

2.8 – 12 mm Outdoor Pole NTSC

5 – 50 mm Outdoor Pole NTSC

3.5 - 8 mm N/A Wall NTSC

2.8 – 12 mm N/A Wall NTSC

5 – 50 mm N/A Wall NTSC

Color, 330 TVL

ACD733 Box Camera

3.5 - 8 mm Indoor Wall NTSC

2.8 - 12 mm Indoor Wall NTSC

3.5 - 8 mm Indoor Pole NTSC

2.8 - 12 mm Indoor Pole NTSC

3.5 - 8 mm Outdoor Wall NTSC

2.8 - 12 mm Outdoor Wall NTSC

5 - 50 mm Outdoor Wall NTSC

3.5 - 8 mm Outdoor Pole NTSC

2.8 - 12 mm Outdoor Pole NTSC

5 - 50 mm Outdoor Pole NTSC

3.5 - 8 mm N/A Wall NTSC

2.8 - 12 mm N/A Wall NTSC

5 - 50 mm N/A Wall NTSC

CPAKOTDN2-11N

CPAKOTDN10-40N

CPAKOPTDN3-8N

CPAKOPTDN2-11N

CPAKOPTDN10-40N

CPAKISHR3-8N

CPAKISHR3-12N

CPAKIPSHR3-8N

CPAKIPSHR2-12N

CPAKOSHR3-8N

CPAKOSHR2-12N

CPAKOSHR5-50N

CPAKOPSHR3-8N

CPAKOPSHR2-12N

CPAKOPSHR5-50N

CPAKIWSHR3-8N

CPAKIWSHR2-12N

CPAKIWSHR5-50N

CPAKI3303-8

CPAKI3302-12

CPAKIP3303-8

CPAKIP3302-12

CPAKO3303-8

CPAKO3302-12

CPAKO3305-50

CPAKOP3303-8

CPAKOP3302-12

CPAKOP3305-50

CPAKIW3303-8

CPAKIW3302-12

CPAKIW3305-50

American Dynamics 35

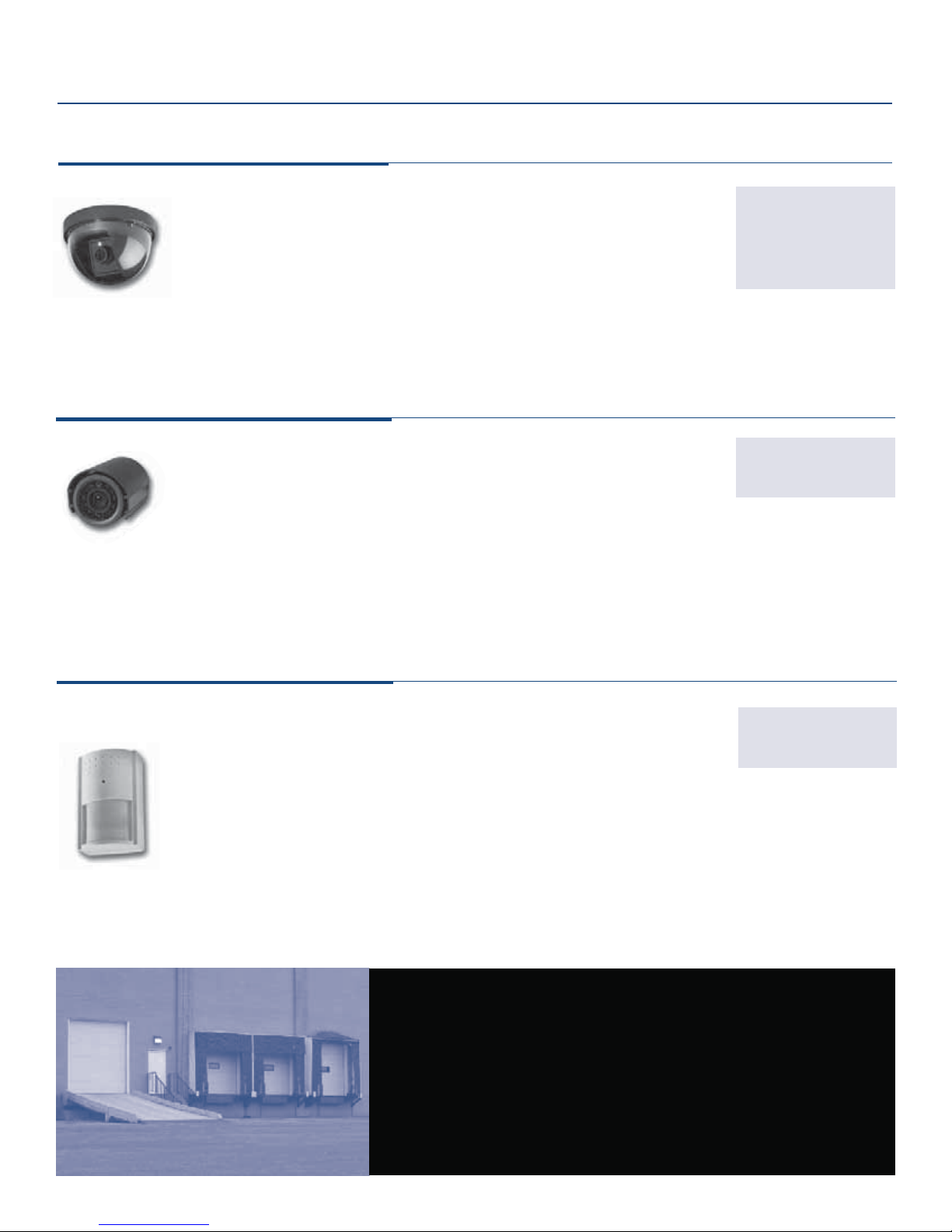

Analog Pre-Packaged Cameras

Micro-Camera Pre-Pack:

t 4 in micro-dome

t 1/3 in interline color imager,

NTSC format

t 330 TVL - color

t 1/3 in, 3.6 mm lens;

92˚ horizontal FOV

t 2.0 lux - color

t Sharp picture

t Automatic electronic shutter

Bullet Camera Pre-Pack:

t 1/3 in interline color imager,

NTSC format

t 330 TVL - color

t 1/3 in, 6 mm lens;

54˚ horizontal FOV

t 2.0 lux - color

t Sharp picture

t Sensitive to IR illumination and

weather resistant

t Automatic electronic shutter

t Automatic gain control

t For indoor use only

t Auto tracing white balance

t 12 VDC input via included

regulated power supply

t Diameter: 100 mm (3.94 in)

t Height: 57 mm (2.2 in)

t Weight: .18 kg (.40 lbs)

t Automatic gain control

t For indoor/outdoor use

t Auto tracing white balance

t 12 VDC input via included

regulated power supply

t Diameter: 65 mm (2.5 in)

t Height: 105 mm (4.1 in)

t Weight: .55 kg (1.2 lbs)

MODEL NUMBERS

ADC720D

ADC720DW

MODEL NUMBER

ADC722WP

Motion Detector Camera Pre-Pack:

t Non-functional PIR detector

housing

t 1/3 in interline color imager,

NTSC format

t 330 TVL - color

t 1/3 in, 3.7 mm lens;

90˚ horizontal FOV

t 2.0 lux - color

t Sharp picture

t For indoor use only

t Automatic electronic shutter

t Automatic gain control

t For indoor use only

t Auto tracing white balance

t 12 VDC input via included

regulated power supply

t Dimensions:

70 x 110 x 49 mm
(2.7 x 4.3 x 1.9 in)

t Weight: .18 kg (.40 lbs)

MODEL NUMBER

ADC723PIR

Warehouse managers can watch loading docks and platforms - the places

most vulnerable to theft - 24/7 with fixed cameras from American Dynamics,

even when the lights are low.

American Dynamics 36
