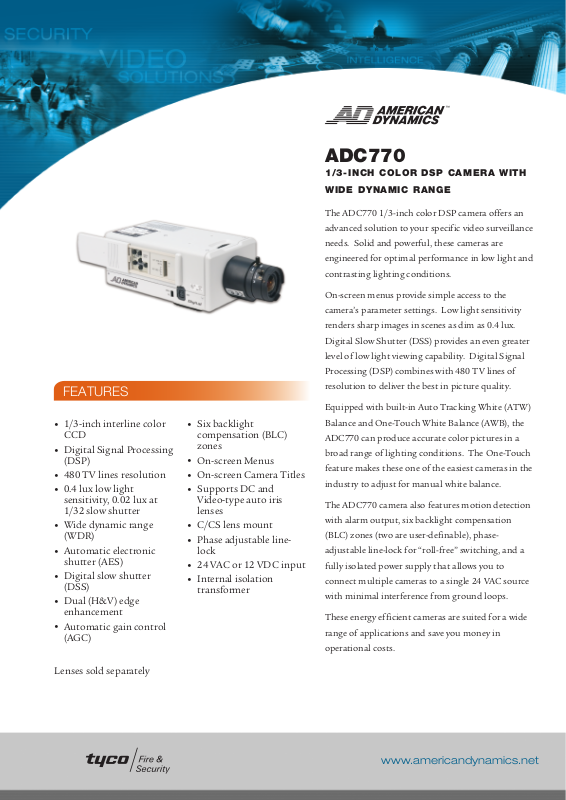

American Dynamics ADC770 User Manual 2
FEATURES
1/3-inch interline color
•
CCD
Digital Signal Processing
•
(DSP)
480 TV lines resolution
•
0.4 lux low light
•
sensitivity
1/32 slow shutter
Wide dynamic range
•
(WDR)
utomatic electronic
A
•
shutter (AES)
Digital slow shutter
•
(DSS)
Dual (H&V) edge
•
enhancement
Automatic gain control
•
(AGC)
, 0.02 lux at
Six backlight
•
compensation (BLC)
zones
On-screen Menus
•
On-screen Camera Titles
•
Supports DC and
•
Video-type auto iris
lenses
C/CS lens mount
•
Phase adjustable line-
•
lock
C or 12 VDC in
A
24 V
•
Internal isolation
•
transformer
put
ADC770
1/3-INCH COLOR DSP CAMERA WITH
WIDE DYNAMIC RANGE
The ADC770 1/3-inch color DSP camera offers an
advanced solution to your specific video surveillance
needs. Solid and powerful, these cameras are
engineered for optimal performance in low light and
contrasting lighting conditions.
On-screen menus provide simple access to the
camera’s parameter settings. Low light sensitivity
renders sharp images in scenes as dim as 0.4 lux.
Digital Slow Shutter (DSS) provides an even greater
level of low light viewing capability. Digital Signal
Processing (DSP) combines with 480 TV lines of
resolution to deliver the best in picture quality.
Equipped with built-in Auto Tracking White (ATW)
Balance and One-Touch White Balance (AWB), the
ADC770 can produce accurate color pictures in a
broad range of lighting conditions. The One-Touch
eature mak
f
industry to adjust for manual white balance.
The ADC770 camera also features motion detection
with alarm output, six backlight compensation
(BLC) zones (two are user-definable), phaseadjust
fully isolated power supply that allows you to
connect multiple cameras to a single 24 VAC source
with minimal inter
These energy efficient cameras are suited for a wide
range of applications and sa
operational costs.
es these one of the easiest cameras in the
able line-lock f
or “roll-free” switching, and a
erence from ground loops.
f
ve you money in
Lenses sold separately
www.americandynamics.net
ADC770 1/3-INCH COLOR DSP CAMERA WITH WIDE DYNAMIC RANGE
SPECIFICATIONS
Model Numbers
ADC770 . . . . . . . . . . . . . . . . . . . . . .Camera, 1/3-inch, Color, 480 TVL,
0.4 lux, WDR, NTSC, 24 VAC/12 VDC
Operational
Imager . . . . . . . . . . . . . . . . . . . . . . . .Interline transfer 1/3-inch CCD array
Video Output . . . . . . . . . . . . . . . . .1.0 Vp-p / 75 Ω, composite
Active Pixel Count
. . . . . . . . . . . . . . . . . . . . . . .768 (H) x 494 (V) pixels
NTSC
Minimum Scene Illumination . .0.4 lux (f1.2 lens)
Horizontal Resolution . . . . . . . . .480 TV lines
Light Compensation Modes . . . .Automatic electronic shutter, On/Off
(NTSC 1/60 -1/100,000 sec)
Auto Iris Drive . . . . . . . . . . . . . . . .DC and Video type
Backlight Compensation . . . . . . .6 Zones (2 definable), On/Off selectable
Aperture Correction . . . . . . . . . . .Horizontal and vertical
Synchronization Modes . . . . . . . .Internal, genlock or line-lock with 360º
phase adjustment
White Balance . . . . . . . . . . . . . . . . .Auto or One-Touch modes
(2,500º k to 8,000º k)
Geometric Distortion . . . . . . . . . .None
S/N Ratio . . . . . . . . . . . . . . . . . . . . .-50 dB
Synchronization . . . . . . . . . . . . . . .Internal, genlock or line-lock with phase
adjustment
DC Iris . . . . . . . . . . . . . . . . . . . . . . .Level control
Back Focus . . . . . . . . . . . . . . . . . . . .Adjustment ring with lock
Connectors
Input Power . . . . . . . . . . . . . . . . . . .Screw terminals
Composite Video . . . . . . . . . . . . . .BNC
Sync In . . . . . . . . . . . . . . . . . . . . . . .BNC
Y/C Out
Alarm Output . . . . . . . . . . . . . . . . .Push terminals
DC Iris . . . . . . . . . . . . . . . . . . . . . . .4 pin square connector
Electrical
AC Voltage . . . . . . . . . . . . . . . . . . . .24 VAC (+33% -15%)
60 Hz (NTSC)
DC Voltage . . . . . . . . . . . . . . . . . . . .12 VDC (+15%, -10%)
Power Consumption . . . . . . . . . . .5.2 watts
Mechanical
Lens Mount
Camera Mount . . . . . . . . . . . . . . .1/4 in x 20 in
Dimensions (H x W x L) . . . . . . . .63 x 75 x 149 mm
Unit Weight . . . . . . . . . . . . . . . . . .600 g (1.32 lbs)
Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray
. . . . . . . . . . . . . . . . . .C or CS type
(2.5 x 3.0 x 5.9 in)
Environmental
Temperature
Operating . . . . . . . . . . . . . . . . . . .-10° to 50° C (14° to 122° F)
Humidity . . . . . . . . . . . . . . . . . . . .90% RH (non-condensing)
Storage . . . . . . . . . . . . . . . . . . . . . .-20° to 60° C (-4° to 140° F)
Regulatory
Emissions . . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class B
ICES-003
Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044
Product specifications and availability subject to
change without notice.
Certain product names mentioned her
names and/or registered trademarks of other companies.
ein may be trade
©2005 Sensormatic Electronics Corporation
VS418-02 07/05 A4
