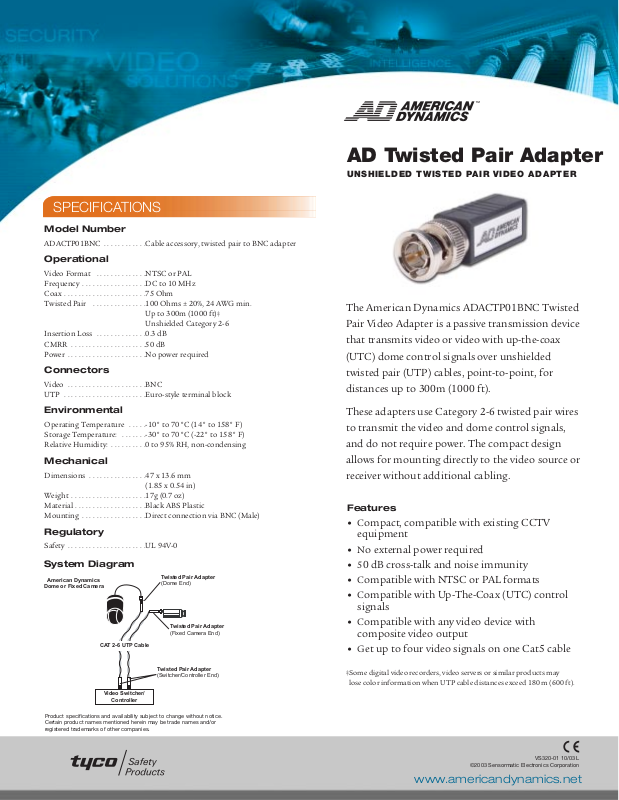

American Dynamics ADACTP01BNC User Manual

SPECIFICATIONS

AD Twisted Pair Adapter

UNSHIELDED TWISTED PAIR VIDEO ADAPTER

www.americandynamics.net

Features

•

Compact, compatible with existing CCTV

equipment

•

No external power required

•

50 dB cross-talk and noise immunity

•

Compatible with NTSC or PAL formats

•

Compatible with Up-The-Coax (UTC) control

signals

•

Compatible with any video device with

composite video output

•

Get up to four video signals on one Cat5 cable

Model Number

ADACTP01BNC . . . . . . . . . . . .Cable accessory, twisted pair to BNC adapter

Operational

Video Format . . . . . . . . . . . . . .NTSC or PAL

Frequency . . . . . . . . . . . . . . . . . .DC to 10 MHz

Coax . . . . . . . . . . . . . . . . . . . . . . .75 Ohm

Twisted Pair . . . . . . . . . . . . . . .100 Ohms ± 20%, 24 AWG min.

Up to 300m (1000 ft)

‡

Unshielded Category 2-6

Insertion Loss . . . . . . . . . . . . . .0.3 dB

CMRR . . . . . . . . . . . . . . . . . . . . .50 dB

Power . . . . . . . . . . . . . . . . . . . . . .No power required

Connectors

Video . . . . . . . . . . . . . . . . . . . . . .BNC

UTP . . . . . . . . . . . . . . . . . . . . . . .Euro-style terminal block

Environmental

Operating Temperature . . . . .-10° to 70°C (14° to 158° F)

Storage Temperature: . . . . . . .-30° to 70°C (-22° to 158° F)

Relative Humidity: . . . . . . . . . .0 to 95% RH, non-condensing

Mechanical

Dimensions . . . . . . . . . . . . . . . .47 x 13.6 mm

(1.85 x 0.54 in)

Weight . . . . . . . . . . . . . . . . . . . . .17g (0.7 oz)

Material . . . . . . . . . . . . . . . . . . . .Black ABS Plastic

Mounting . . . . . . . . . . . . . . . . . .Direct connection via BNC (Male)

Regulatory

Safety . . . . . . . . . . . . . . . . . . . . . .UL 94V-0

American Dynamics

Dome or Fixed Camera

Twisted Pair Adapter

(Dome End)

Twisted Pair Adapter

(Fixed Camera End)

Twisted Pair Adapter

(Switcher/Controller End)

Video Switcher/

Controller

CAT 2-6 UTP Cable

VS320-01 10/03 L

©2003 Sensormatic Electronics Corporation

Product specifications and availability subject to change without notice.
Certain product names mentioned herein may be trade names and/or
registered trademarks of other companies.

System Diagram

The American Dynamics ADACTP01BNC Twisted
Pair Video Adapter is a passive transmission device
that transmits video or video with up-the-coax
(UTC) dome control signals over unshielded
twisted pair (UTP) cables, point-to-point, for
distances up to 300m (1000 ft).

These adapters use Category 2-6 twisted pair wires
to transmit the video and dome control signals,
and do not require power. The compact design
allows for mounting directly to the video source or
receiver without additional cabling.

‡

Some digital video recorders, video servers or similar products may
lose color information when UTP cable distances exceed 180 m (600 ft).
