AD-30 / AD-50
Parts Manual
1987 thru 1991
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.
The following “FOR YOUR SAFETY ” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de yout autre appareil.
Important
For your convenience, log the following information:
DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________
RESELLER’S NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory, you can FAX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at (508) 678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer.
Table of Contents
AD-30 High Security Control Door Assembly ......................................................................................... 4
AD-50 High Security Control Door Assembly ......................................................................................... 5
Phase 3 OPL Microprocessor Control Panel Assembly ....................................................................... 6, 7
Phase 3 OPL Microprocessor Control Box Assembly ......................................................................... 8, 9
Phase 4 OPL Non-Reversing Microprocessor Control Panel Assembly ................................................. 10
Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly ....................................................11
Phase 4 OPL Reversing Microprocessor Control Panel Assembly.......................................................... 12
Phase 4 OPL Reversing Microprocessor Control Box Assembly............................................................ 13
Phase 4 Single Coin Microprocessor Control Panel Assembly ............................................................... 14
Phase 4 Single Coin Microprocessor Control Box Assembly ................................................................. 15
Phase 4 Dual Coin Microprocessor Control Panel Assembly ................................................................. 16
Phase 4 Dual Coin Microprocessor Control Box Assembly ................................................................... 17
Phase 4.1 Single Coin Microprocessor Control Panel Assembly ............................................................ 18
Phase 4.1 Single Coin Microprocessor Control Box Assembly .............................................................. 19
Phase 4.1 Dual Coin Microprocessor Control Panel Assembly .............................................................. 20
Phase 4.1 Dual Coin Microprocessor Control Box Assembly ................................................................ 21
Dual Timer Control Panel Assembly ................................................................................................ 22, 23
Dual Timer Control Box Assembly .................................................................................................. 24, 25
Non-Microprocessor Coin Meter Control Panel Assembly .............................................................. 26, 27
Non-Microprocessor Coin Meter Control Box Assembly ................................................................ 28, 29
AD-30/AD-50 Coin Vault Assembly ..................................................................................................... 30
AD-30 Slide Meter Case Assembly ...................................................................................................... 31
AD-30 Slide Meter Control Box Assembly
For Models Mfd. with Globar® Ignition ONLY .......................................................................... 32
AD-30 Slide Meter Control Box Assembly
For Models Mfd. with Direct Spark Ignition (DSI) ONLY........................................................ 33

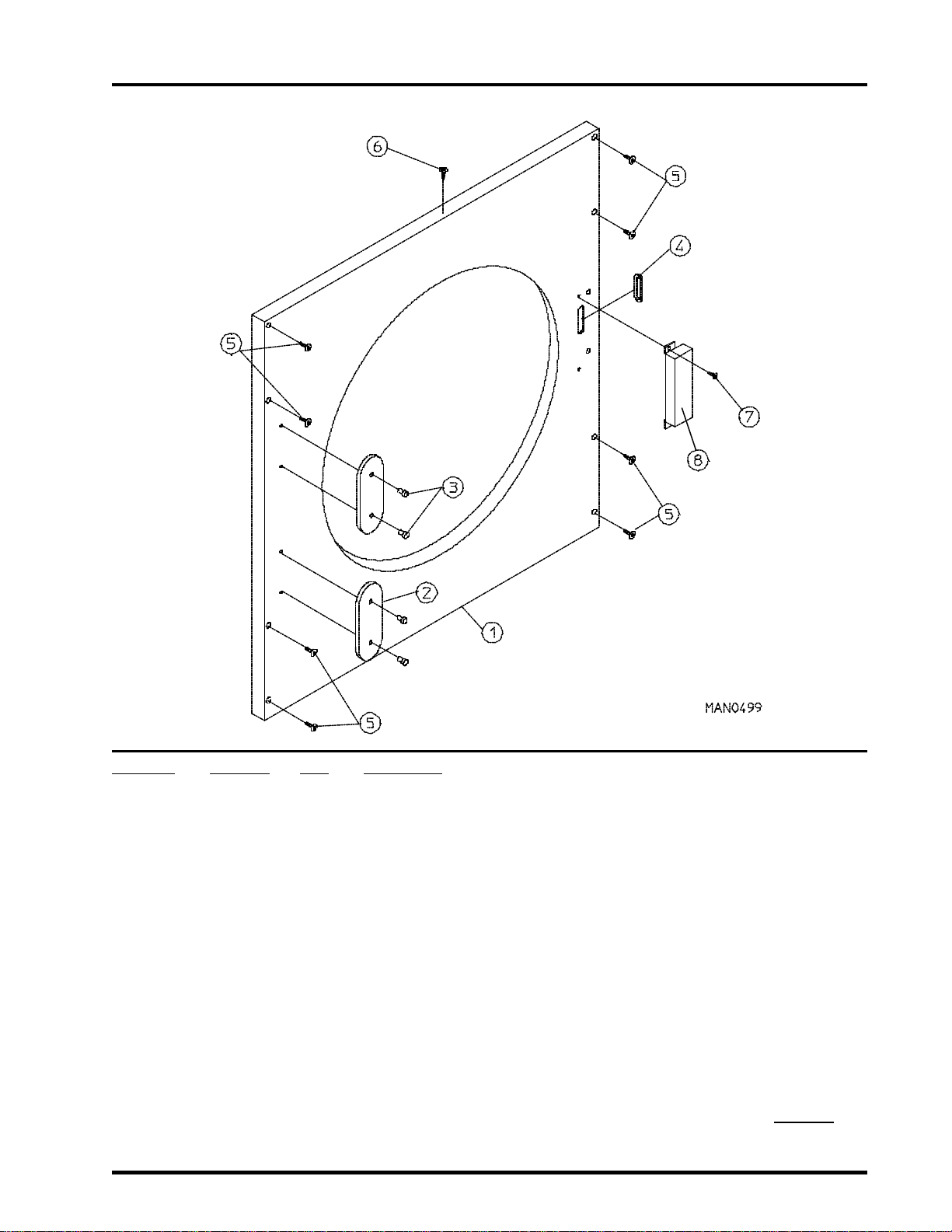

AD-30/AD-50 Main Door Assembly
For Door Magnet Type Models ONLY ...................................................................................... 34
AD-30 Front Panel Assembly
For Door Magnet Type Models ONLY ...................................................................................... 35

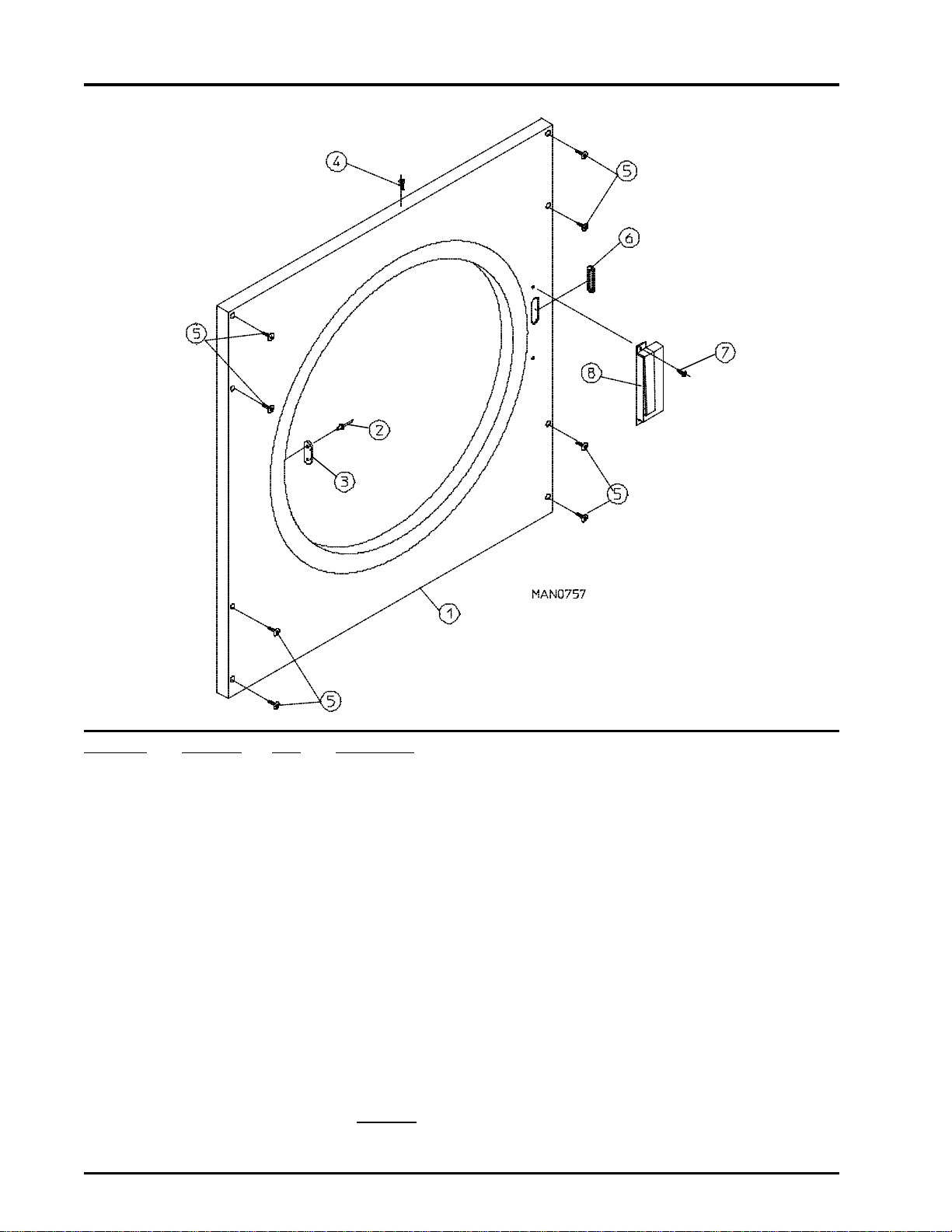

AD-30/AD-50 Main Door Assembly
For Door Latch Type Models ONLY.......................................................................................... 36
AD-50 Front Panel Assembly
For Door Magnet Type Models ONLY ...................................................................................... 37
AD-30 Front Panel Assembly
For Door Latch Type Models ONLY.......................................................................................... 38
AD-50 Front Panel Assembly
For Door Latch Type Models ONLY.......................................................................................... 39
Plunger Type Main Door Switch Assembly ............................................................................................ 40
New Style (N.S.) Series Main Door Switch Assembly........................................................................... 41
AD-30 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Non-Tapered Ribs ONLY ...................................................................... 42
AD-50 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Non-Tapered Ribs ONLY ...................................................................... 43
AD-50 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Tapered Ribs ONLY............................................................................... 44

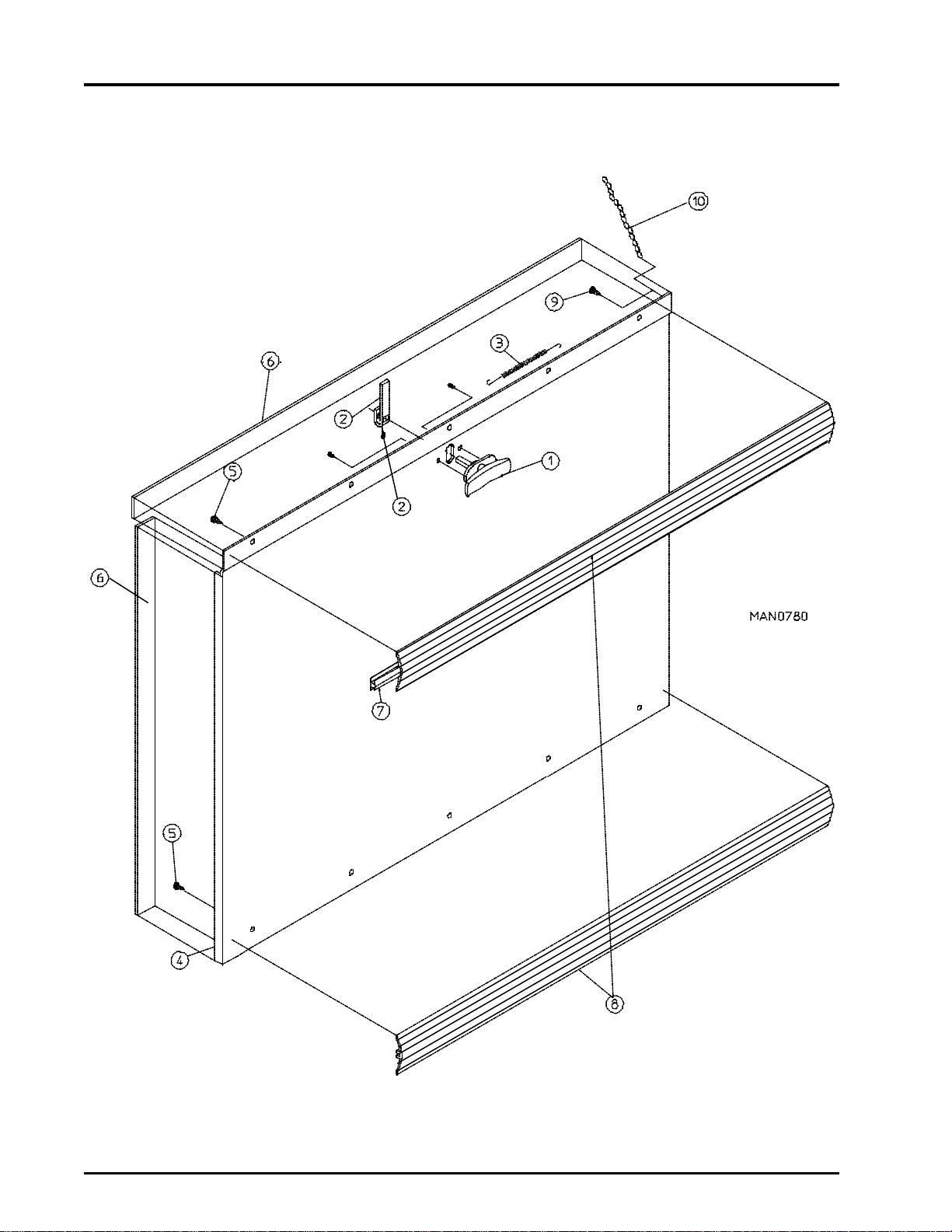

AD-30 Drop Lint Door Assembly ......................................................................................................... 45
AD-50 Drop Lint Door Assembly ................................................................................................... 46, 47

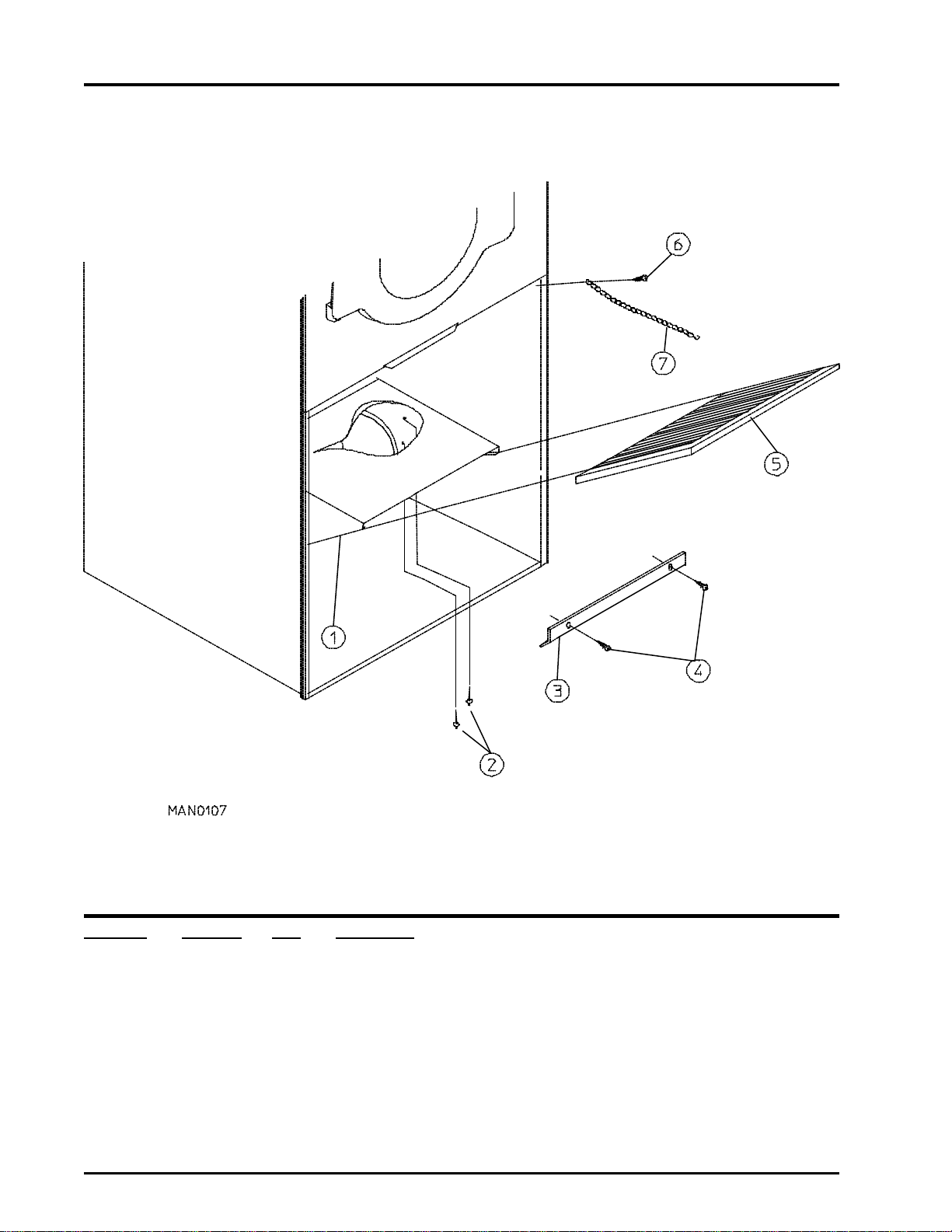

AD-30 Lint Trap Assembly ................................................................................................................... 48
AD-50 Lint Trap Assembly ................................................................................................................... 49
AD-30 Basket (Tumbler) Bearing Assembly .................................................................................... 50, 51
AD-50 Basket (Tumbler) Bearing Assembly .................................................................................... 52, 53

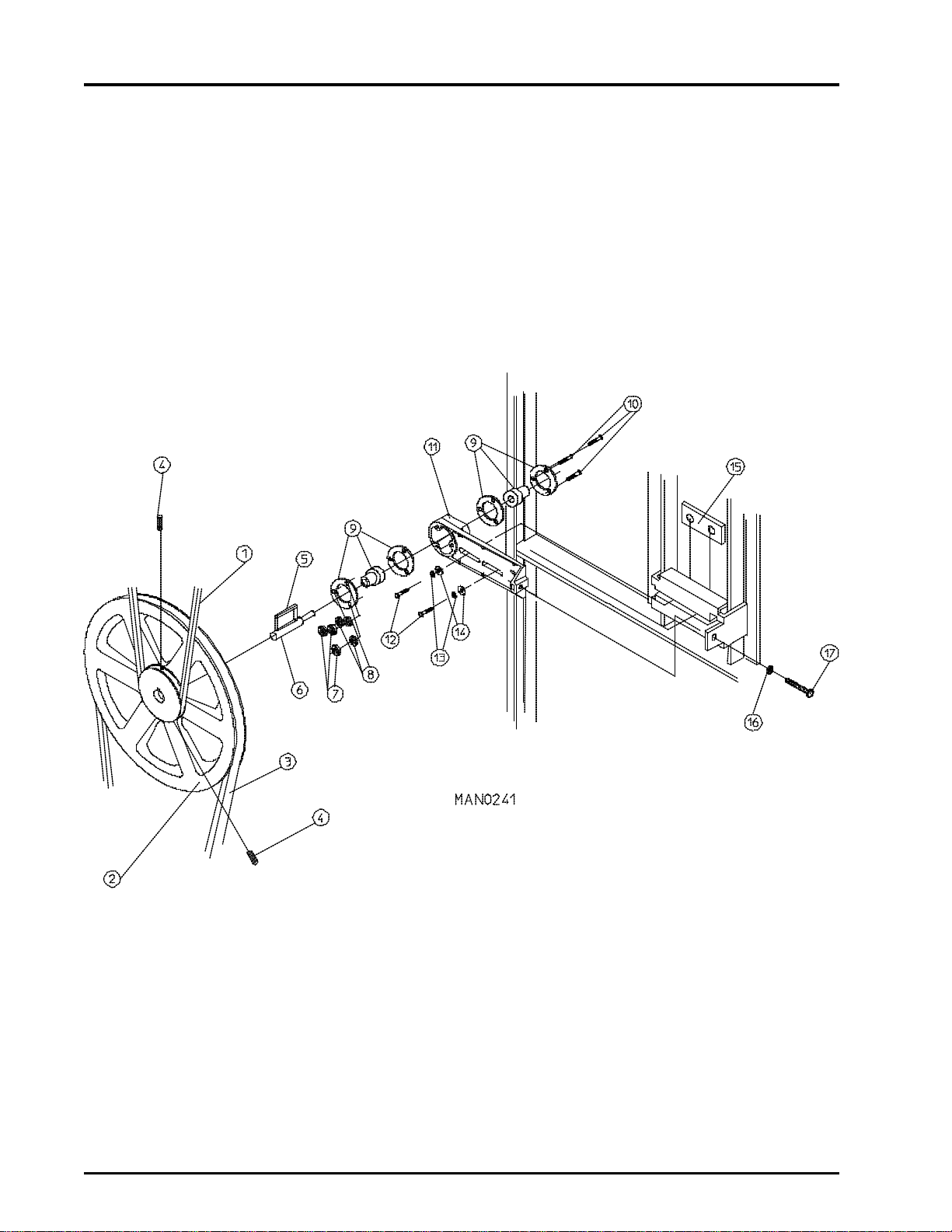

AD-30/AD-50 Idler Bearing Assembly ........................................................................................... 54, 55

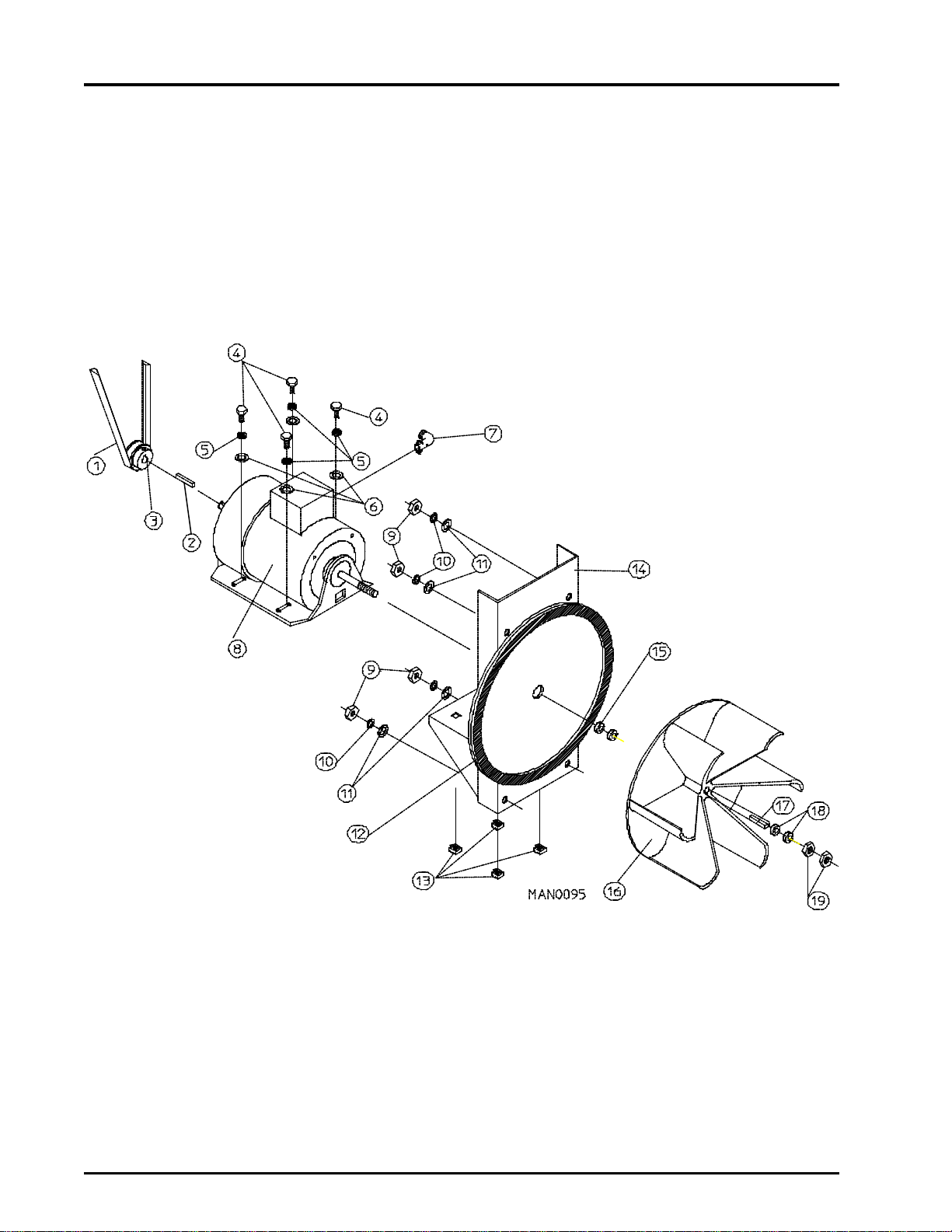

AD-30 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY ................................................................ 56, 57
AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY ................................................................ 58, 59
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY ................................................................ 60, 61
AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY......................................................................... 62, 63
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY......................................................................... 64, 65
Sensor Bracket Assemblies ............................................................................................................. 66, 67
ADG-30 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar® Ignition ONLY .................................................................... 68, 69
ADG-50 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar® Ignition ONLY .................................................................... 70, 71
ADG-30/ADG-50 Hi/Lo Computerized Burner Assembly
For Models Mfd. with Globar® Ignition ONLY .................................................................... 72, 73

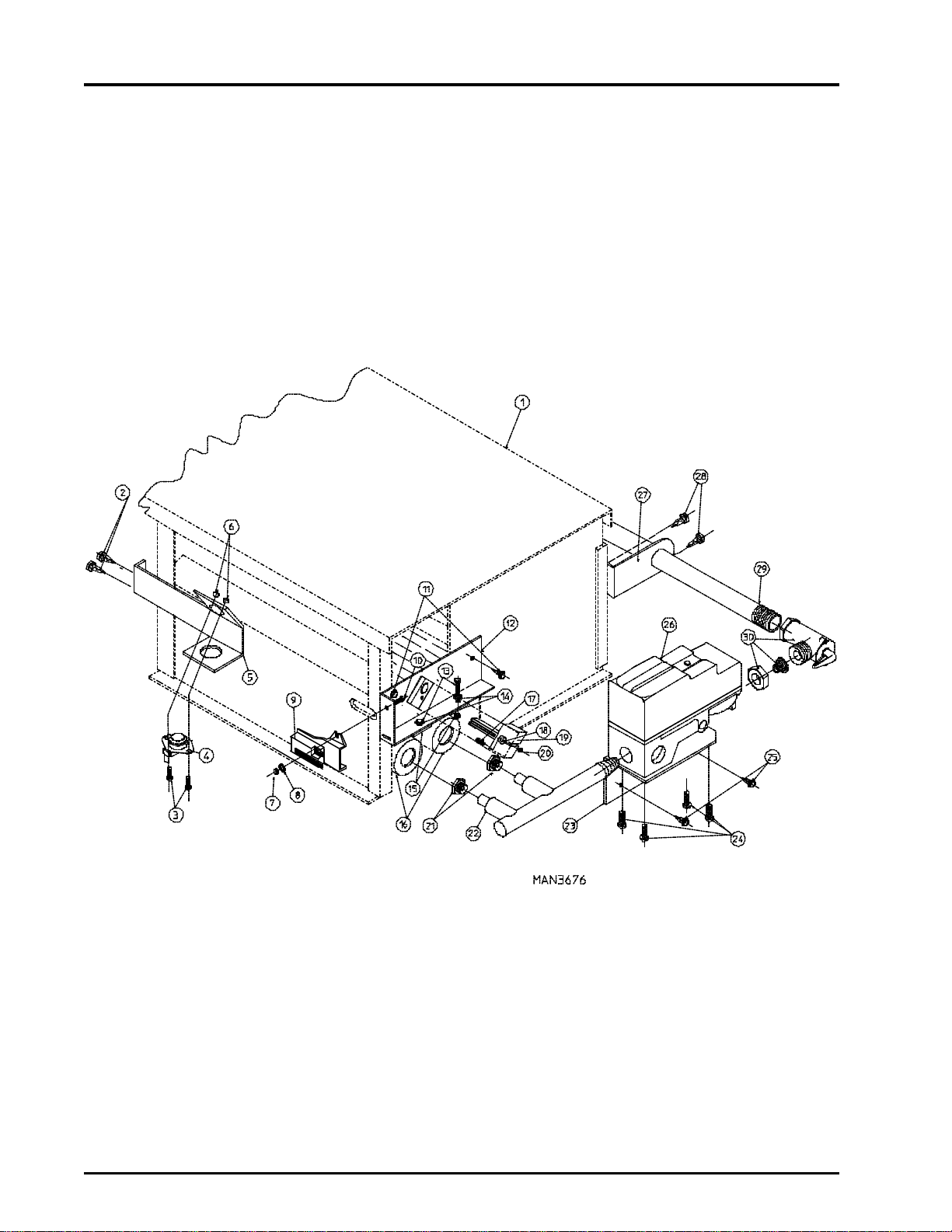

ADG-30/ADG-50 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. with Direct Spark Ignition (DSI) ONLY.................................................. 74, 75
ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. as of November 12, 1990......................................................................... 76, 77
ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. prior to November 12, 1990..................................................................... 78, 79
ADG-30/ADG-50 Sail Switch/Hi-Limit Assemblies
For Globar® Models and Direct Spark Ignition (DSI) Models ONLY...................................... 80

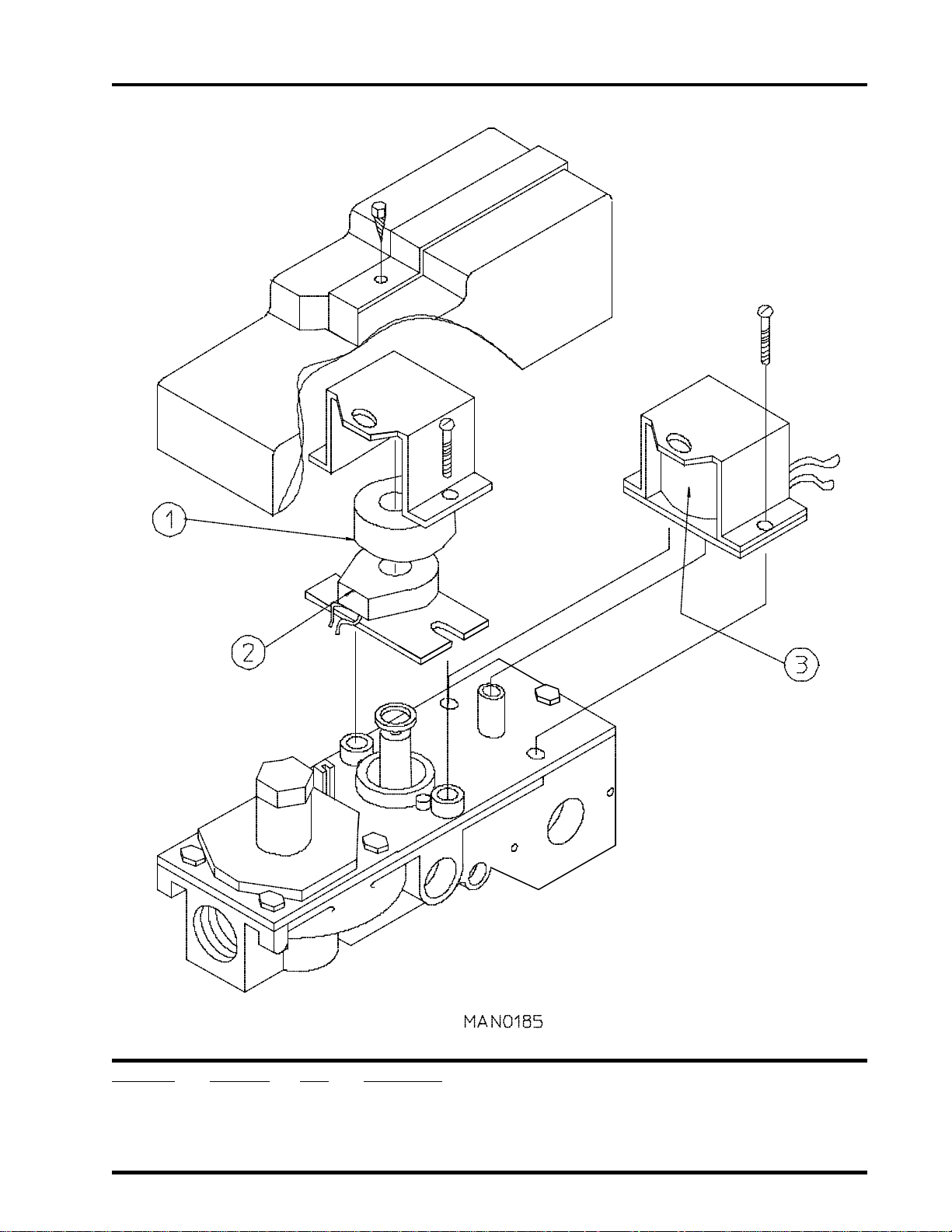

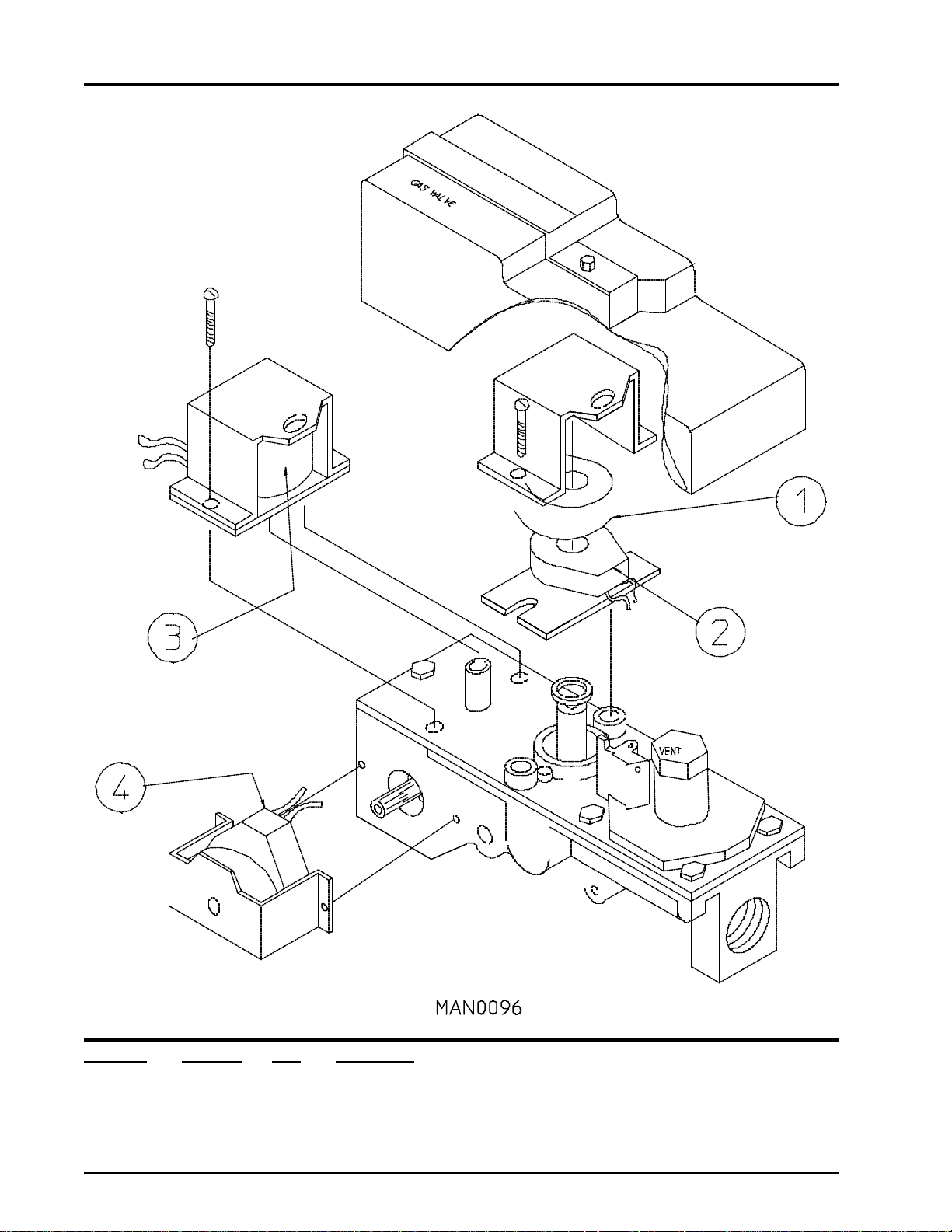

ADG-30/ADG-50 Replacement Coils For 3/8” Non-Hi/Lo Gas Valve
For Globar® Ignition Models ONLY .......................................................................................... 81
ADG-30/ADG-50 Replacement Coils For 3/8” Hi/Lo Gas Valve
For Globar® Ignition Models ONLY ........................................................................................... 82

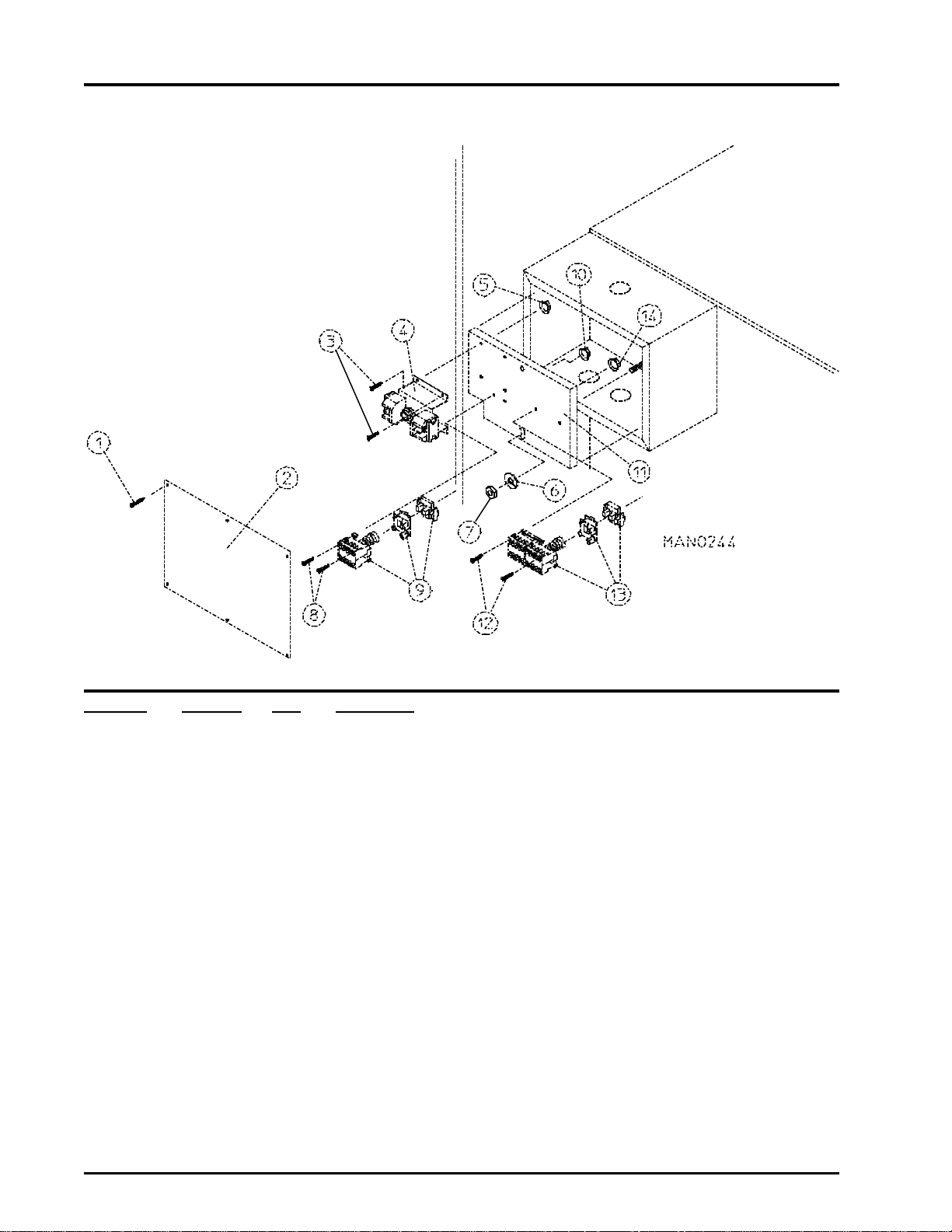

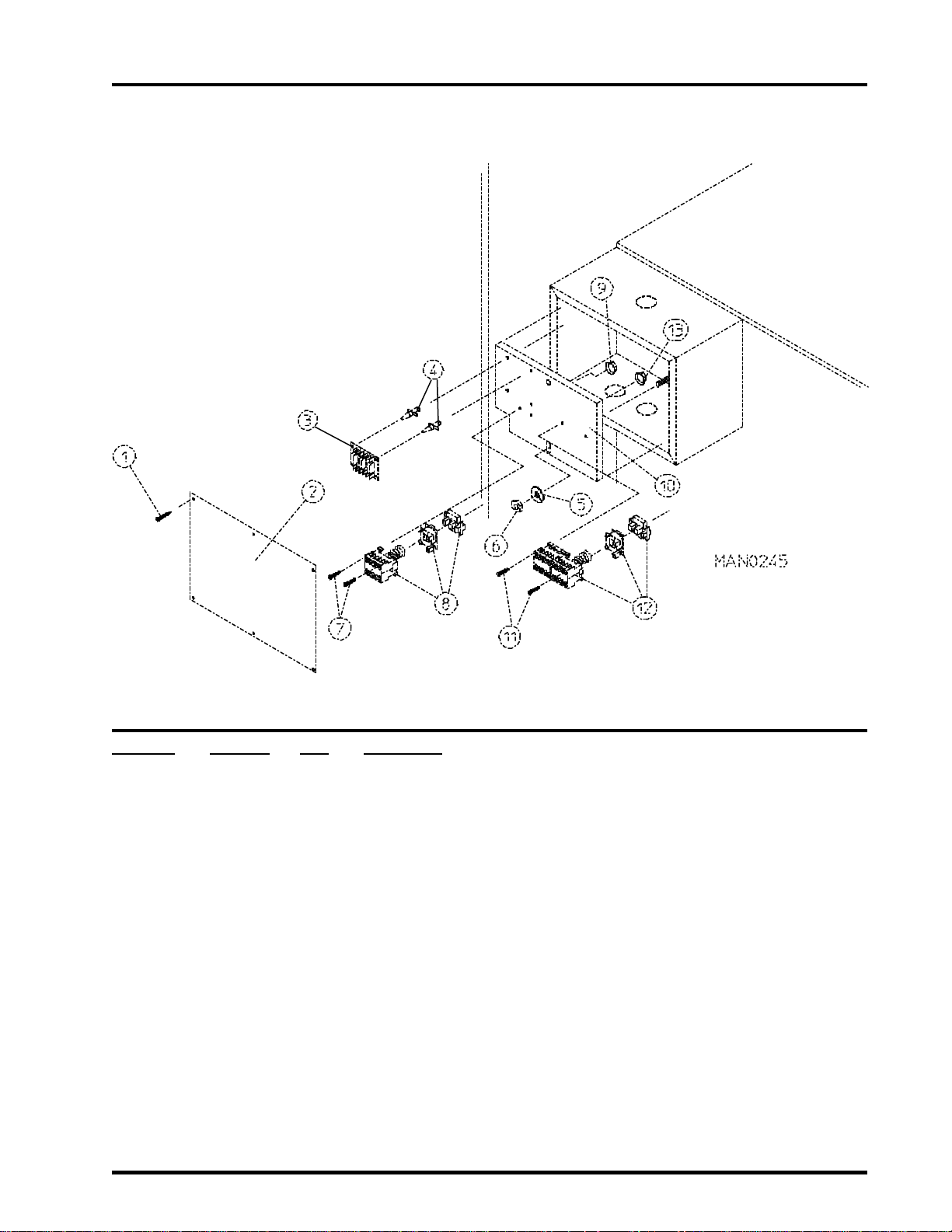

Microprocessor Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays .................. 83
Dual Timer Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays .................. 84
Microprocessor Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Dunco (Struthers-Dunn) Relays ... 85
Dual Timer Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Dunco (Struthers-Dunn) Relays ... 86

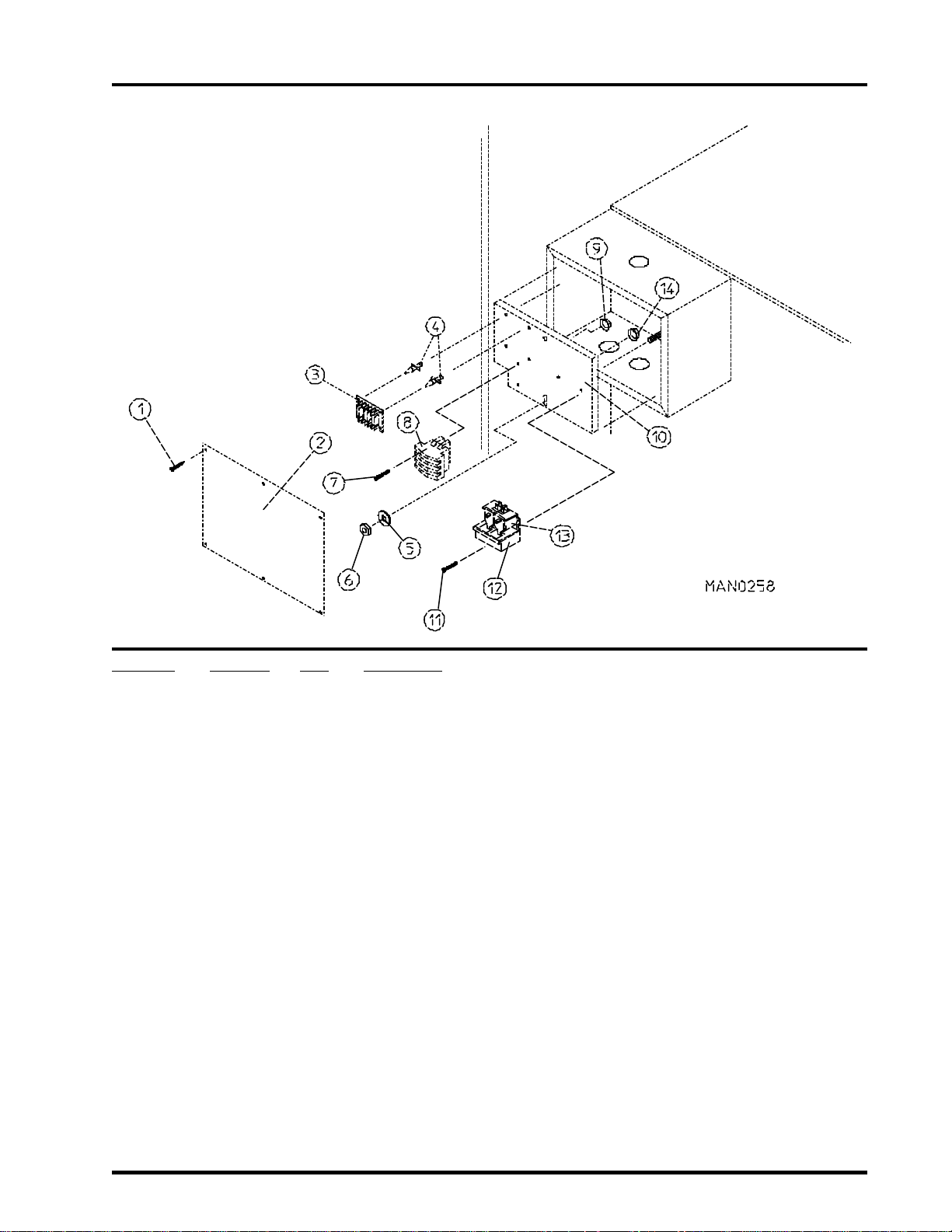

3-Phase (3Ø) Motor, Electric Relay Panel Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Furnas Relays ............................... 87
3-Phase (3Ø) Motor, Electric Relay Panel Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays .................. 88

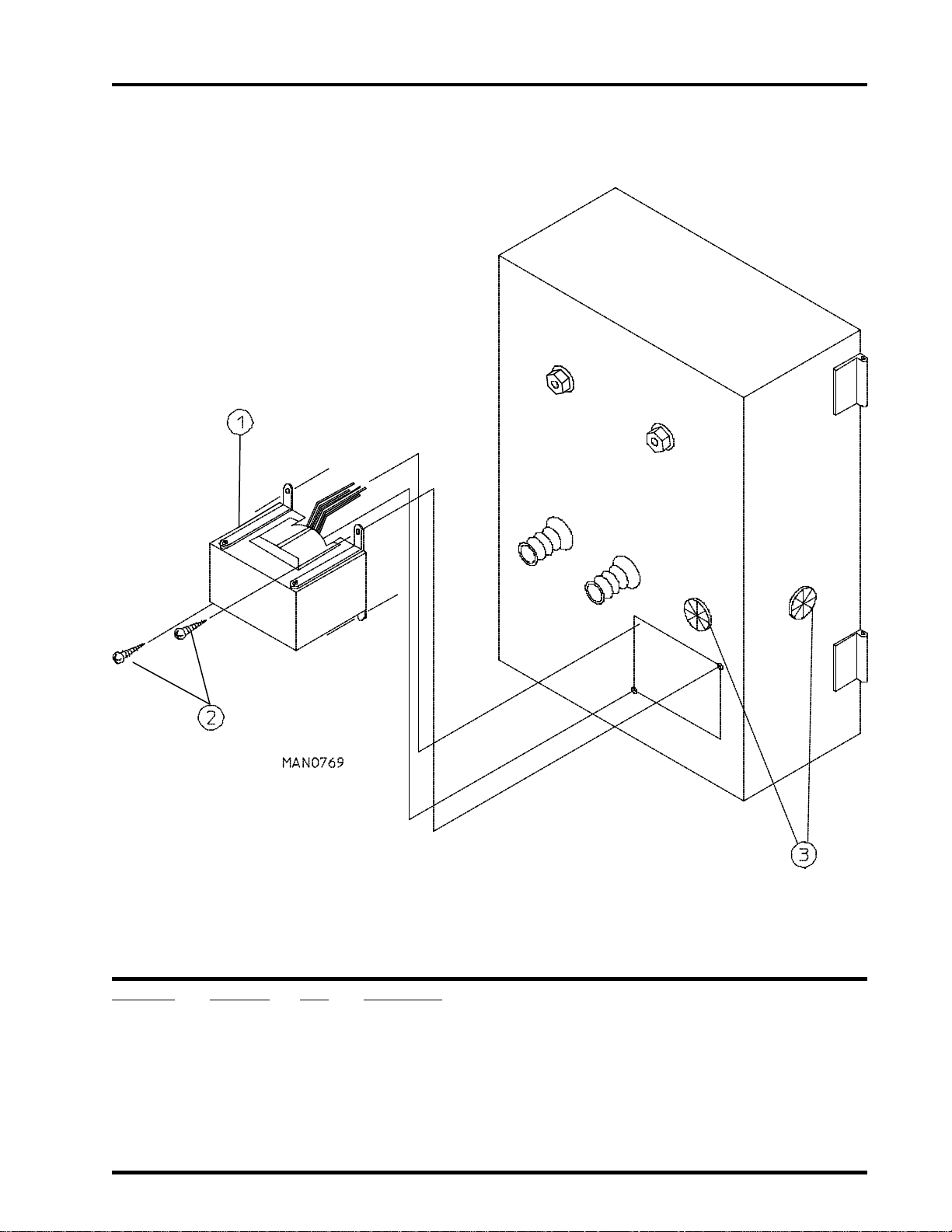

Control/Heat Step Down Transformer
For Globar® Models and High Pressure Motorized Steam Valve Models ONLY ................... 89
ADS-30 Steam Coil Damper Assembly .......................................................................................... 90, 91
ADS-50 Steam Coil Damper Assembly .......................................................................................... 92, 93

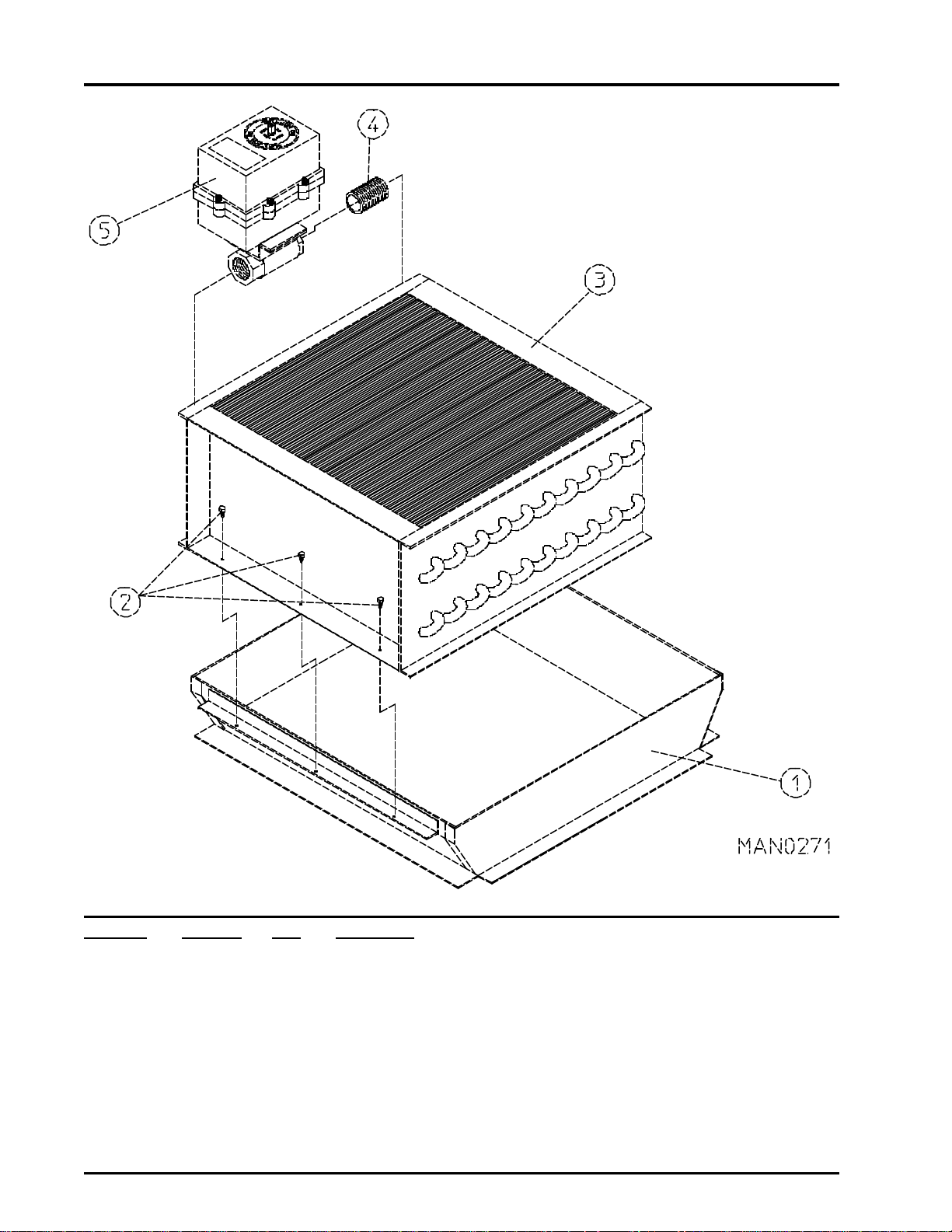

ADS-30/ADS-50 Steam Coil/Valve Assembly
For Motorized Type and Solenoid Type Models ONLY ............................................................ 94
AD-30/AD-50 Outer Top/Back Guard Assemblies ............................................................................... 95

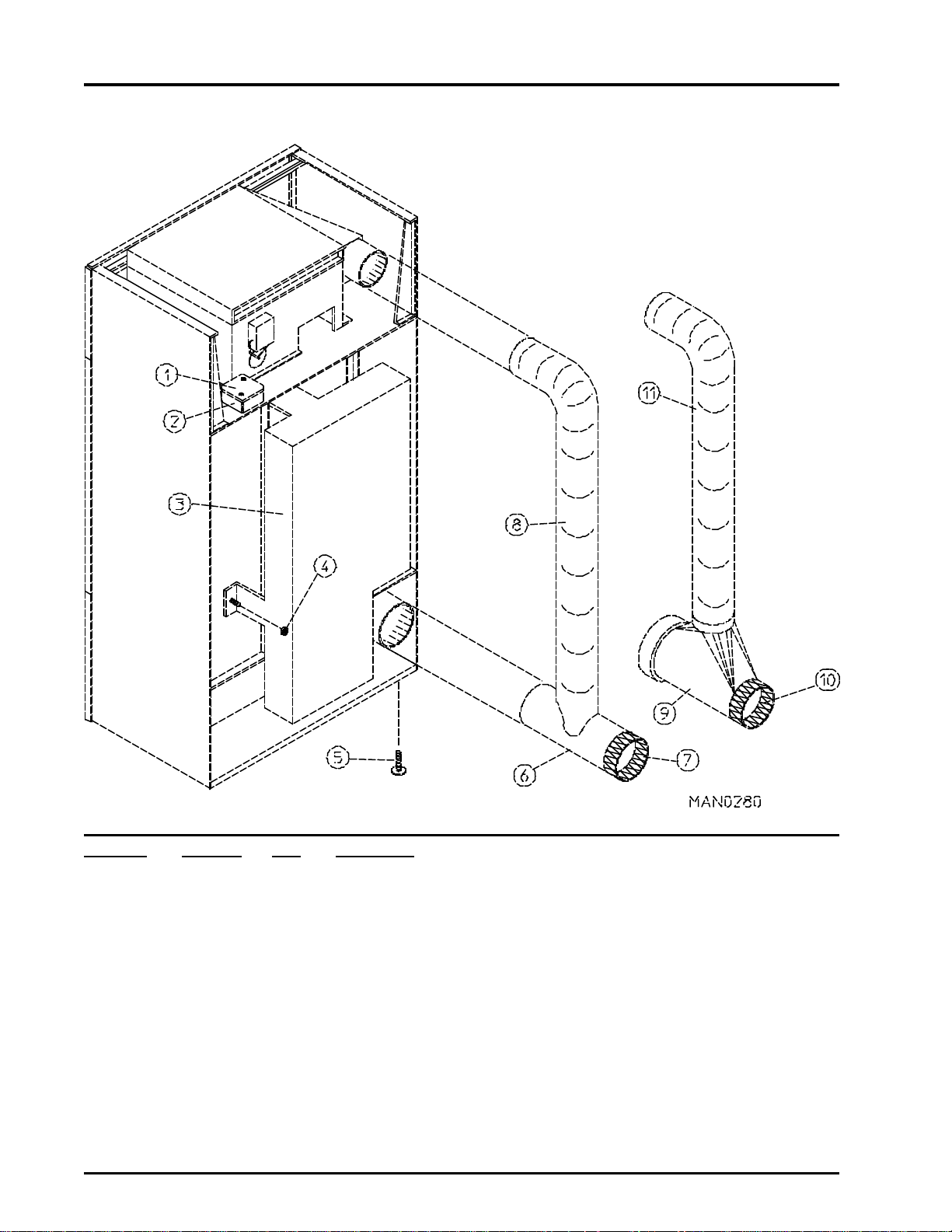

ADG-30/ADG-50 Heat Reclaimer Assembly ........................................................................................ 96
Relay Board Listing .............................................................................................................................. 97
Microprocessor Coin Acceptors Listing ................................................................................................ 98
Coin Meter Replacement Parts ............................................................................................................. 99
ADG-30/ADG-50 Globar® Burner Assembly Specifications ................................................................ 100
ADG-30/ADG-50 Direct Spark Ignition (DSI) Burner Assembly Specifications ................................... 101
ADE-30/ADE-50 Electric Oven Component Application Charts
For Models Mfd. as of November 12, 1990............................................................................. 102
ADE-30/ADE-50 Electric Oven Component Application Charts
For Models Mfd. prior to November 12, 1990......................................................................... 103
Additional Parts Available ................................................................................................................... 104
4
AD-30 High Security Control Door Assembly
Illus. No. Part No. Qty. Description
1 160015 1 High Security MK-100 Lock Assembly with Key
(for coin models Only)
160017 1 Special Dummy Lock ONLY
(for non-coin models Only)
160104 1 MK-100 Key ONLY
2 160016 1 Lock Cam ONLY 3 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
4 800023* 1 AD-30 High Security Control Door Assembly without Lock
(includes illus. nos. 4 through 7)
800140 1 AD-30 Stainless Steel High Security Control Door Assembly without Lock
(includes illus. nos. 4 through 7) 5 180200 1 AD-30 Top Gray Trim Strip with Lock Hole 6 102307 3 Trim Bumper Gasket (sold by the foot) 7 150201 5 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 9 102600 1 Control Door Rod Support Catch 10 102601 1 Control Door Rod Retainer Clip 11 102502 1 Control Door Support Rod
* Specify color when ordering.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 High Security Control Door Assembly
5
Illus. No. Part No. Qty. Description
1 160015 1 High Security MK-100 Lock Assembly with Key
(for coin models Only)
160017 1 Special Dummy Lock ONLY
(for non-coin models Only)
160104 1 MK-100 Key ONLY
2 160032 1 Lock Cam ONLY 3 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
4 800022* 1 AD-50 High Security Control Door Assembly without Lock
(includes illus. nos. 4 through 7) 5 180201 1 AD-50 Top Gray Trim Strip with Lock Hole 6 102307 3 Trim Bumper Gasket (sold by the foot) 7 150201 5 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 9 102600 1 Control Door Rod Support Catch 10 102601 1 Control Door Rod Retainer Clip 11 102502 1 Control Door Support Rod
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
6
Phase 3 OPL Microprocessor Control Panel Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 3 OPL Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112535 1 OPL English Keyboard Label Assembly
112276 1 OPL Stick-On Labels
(English Only) ... Not Illustrated
112275 1 OPL Stick-On Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 1 3 Language OPL Stick-On Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 1 5 Language OPL Stick-On Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated 2 800057 1 Microprocessor Controller (computer) Control Panel ONLY
800164 1 Microprocessor Controller (computer) Control Panel ONLY
with Battery Bracket
800161 1 Phase 3 OPL Non-Reversing Control Panel Assembly Complete
(includes illus. nos. 1 through 5)
800163 1 Phase 3 OPL Non-Reversing Control Panel Assembly Complete
with Battery Option
(includes illus. nos. 1 through 5)
865088* 1 Phase 3 OPL Reversing Control Panel Assembly Complete
(includes illus. nos. 1 through 5)
865089* 1 Phase 3 OPL Reversing Control Panel Assembly Complete
with Battery Option
(includes illus. nos. 1 through 5) 3 137092 1 Phase 3 OPL Non-Reversing Microprocessor Controller (computer) ONLY
137093 1 Phase 3 OPL Non-Reversing Microprocessor Controller (computer)
ONLY with Battery Clip
137094 1 Phase 3 OPL Reversing Microprocessor Controller (computer) ONLY 137095 1 Phase 3 OPL Reversing Microprocessor Controller (computer) ONLY
with Battery Clip 4 152001 4 #8-32 Hex Nut 5 882541 1 Spring Turn Latch Assembly
7
* Used on dryer models with reversing option ONLY.
IMPORTANT: Check label on computer chip to verify correct part number of microprocessor controller
(computer).
NOTE: OPL microprocessor controllers (computers) listed are suitable for ALL voltage applications.
Telephone: (508) 678-9000 Fax: (508) 678-9447
8
Phase 3 OPL Microprocessor Control Box Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 3 OPL Microprocessor Control Box Assembly
Illus. No. Part No. Qty. Description
1 137021 * Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 2 137020 1 15-Pin Microprocessor Connector ONLY 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 ** Nylon Standoff 6 --------- 1 Arc Suppressor (A.S.) Relay Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays 7 131916 *** P.C.B. (electromechanical) Relay ONLY
(for 120 volt models Only)
131930 *** P.C.B. (electromechanical) Relay ONLY
(for 208/230 volt models Only) 8 140150 1 Diode Logic Board (for gas models Only) 9 136052 *** 4-Amp Fuse ONLY 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131030 1 Steam Valve Relay
(for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay
(for high pressure steam models Only)
For 208/230 Volt Models ONLY 12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 13 120709 1 8-Position Terminal Strip 14 151000 2 #6-32 Pal Nut
9
* Quantity required is 13 or 15 required. ** Quantity required is 4 or 8 required. *** Quantity required is 1 or 2 required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
10
Phase 4 OPL Non-Reversing Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112535 1 OPL English Keyboard Label Assembly
112276 1 OPL Stick-On Labels
(English Only) ... Not Illustrated
112275 1 OPL Stick-On Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 1 3 Language OPL Stick-On Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 1 5 Language OPL Stick-On Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2 800057 1 Microprocessor Controller (computer) Control Panel ONLY
800164 1 Microprocessor Controller (computer) Control Panel ONLY
with Battery Bracket
800171 1 Phase 4 OPL Non-Reversing Control Panel Assembly Complete
(includes illus. nos. 1 through 5)
865095 1 Phase 4 OPL Non-Reversing Control Panel Assembly Complete
with Battery Option (includes illus. nos. 1 through 5)
3 137125 1 Phase 4 OPL Non-Reversing Microprocessor Controller (computer)
ONLY
137126 1 Phase 4 OPL Non-Reversing Microprocessor Controller (computer)
ONLY with Battery Clip 4 152001 4 #8-32 Hex Nut 5 882541 1 Spring Turn Latch Assembly
IMPORTANT: Check label on computer chip to verify correct part number of microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly
11
Illus. No. Part No. Qty. Description
1 137021 12 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 2 137020 1 15-Pin Microprocessor Connector ONLY 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Solid State Relay (SSR) Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays
131916 1 P.C.B. (electromechanical) Relay ONLY (for 120 volt models Only)
131930 1 P.C.B. (electromechanical) Relay ONLY (for 208/230 volt models Only) 7 136057 * 1/2-Amp (slo blo) Fuse ONLY
136052 * 4-Amp Fuse ONLY 8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 9 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY 12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 13 120715 1 30-Position Terminal Block 14 151000 2 #6-32 Pal Nut 15 136057 * 1/2-Amp (slo blo) Fuse ONLY 16 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 17 136008 * Fuse Block/Strip ONLY
* As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
12
Phase 4 OPL Reversing Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112535 1 OPL English Keyboard Label Assembly
112276 1 OPL Stick-On Labels
(English Only) ... Not Illustrated
112275 1 OPL Stick-On Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 1 3 Language OPL Stick-On Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 1 5 Language OPL Stick-On Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2 800057 1 Microprocessor Controller (computer) Control Panel ONLY
800164 1 Microprocessor Controller (computer) Control Panel ONLY
with Battery Bracket
865092 1 Phase 4 OPL Reversing Control Panel Assembly Complete
(includes illus. nos. 1 through 5)
865096 1 Phase 4 OPL Reversing Control Panel Assembly Complete
with Battery Option (includes illus. nos. 1 through 5)
3 137127 1 Phase 4 OPL Reversing Microprocessor Controller (computer) ONLY
137128 1 Phase 4 OPL Reversing Microprocessor Controller (computer) ONLY
with Battery Clip 4 152001 4 #8-32 Hex Nut 5 882541 1 Spring Turn Latch Assembly
IMPORTANT: Check label on computer chip to verify correct part number for microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4 OPL Reversing Microprocessor Control Box Assembly
13
Illus. No. Part No. Qty. Description
1 137021 12 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 2 137020 1 15-Pin Microprocessor Connector ONLY 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Solid State Relay (SSR) Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays
131930 1 P.C.B. (electromechanical) Relay ONLY (for 220 volt models Only) 7 136057 * 1/2-Amp (slo blo) Fuse ONLY
136052 * 4-Amp Fuse ONLY 8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 9 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY 12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 13 120715 1 30-Position Terminal Block 14 151000 2 #6-32 Pal Nut 15 136057 * 1/2-Amp (slo blo) Fuse ONLY 16 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 17 136008 * Fuse Block/Strip ONLY
* As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
14
Phase 4 Single Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112526 1 Coin Keyboard Label Assembly 2 800088 1 Phase 4 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4, 5, and 6)
800168 1 Phase 4 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4, 5, and 6) 800040 1 Coin Control Panel ONLY 800039 1 Coin Control Panel ONLY with Battery Bracket
3 150415 1 #10-16 x 1/2” Phillips Round Head Crimptite Screw 4 137110 1 Phase 4 Coin Microprocessor Controller (computer) ONLY
137115 1 Phase 4 Coin Microprocessor Controller (computer) ONLY
with Battery Clip
5 152001 4 #8-32 Hex Nut 6 153012 4 #8 Star Washer 7 --------- 1 Microprocessor Single Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 98)
8 137056 1 Optic Switch ONLY 9 137023 1 Optic Switch Connector ONLY 10 137021 3 Microprocessor Socket ONLY
865050 1 Single Coin Optical Switch Harness
-- 122800 1 Microprocessor (female) Pin Extraction Tool
IMPORTANT: Check label on computer chip to verify correct part number for microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4 Single Coin Microprocessor Control Box Assembly
15
Illus. No. Part No. Qty. Description
1 137020 1 15-Pin Microprocessor Connector ONLY 2 137021 14 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Arc Suppressor (A.S.) Relay Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays 7 131916 * P.C.B. (electromechanical) Relay ONLY (for 120 volt models Only)
131930 * P.C.B. (electromechanical) Relay ONLY (for 208/230 volt models Only) 8 136052 * 4-Amp Fuse ONLY 9 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 10 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY 11 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 12 120709 1 8-Position Terminal Strip 13 151000 2 #6-32 Pal Nut
* Quantity required is 1 or 2.
Telephone: (508) 678-9000 Fax: (508) 678-9447
16
Phase 4 Dual Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112526 1 Coin Keyboard Label Assembly 2 800088 1 Phase 4 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4, 5, and 6)
800168 1 Phase 4 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4, 5, and 6) 800040 1 Coin Control Panel ONLY 800039 1 Coin Control Panel ONLY with Battery Bracket
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw 4 137110 1 Phase 4 Coin Microprocessor Controller (computer) ONLY
137115 1 Phase 4 Coin Microprocessor Controller (computer) ONLY
with Battery Clip
5 152001 2 #8-32 Hex Nut 6 153012 2 #8 Star Washer 7 --------- 1 Microprocessor Dual Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 98)
8 137056 1 Optic Switch ONLY 9 137023 1 Optic Switch Connector ONLY 10 137021 3 Microprocessor Socket ONLY
865050 1 Single Coin Optical Switch Harness 122800 1 Microprocessor (female) Pin Extraction Tool
IMPORTANT: Check label on computer chip to verify correct part number for microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4 Dual Coin Microprocessor Control Box Assembly
17
Illus. No. Part No. Qty. Description
1 137020 1 15-Pin Microprocessor Connector ONLY 2 137021 15 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Arc Suppressor (A.S.) Relay Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays 7 131916 * P.C.B. (electromechanical) Relay ONLY (for 120 volt models Only)
131930 * P.C.B. (electromechanical) Relay ONLY (for 208/230 volt models Only) 8 136052 * 4-Amp Fuse ONLY 9 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 10 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY 11 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 12 120709 1 8-Position Terminal Strip 13 151000 2 #6-32 Pal Nut
* Quantity required is 1 or 2.
Telephone: (508) 678-9000 Fax: (508) 678-9447
18
Phase 4.1 Single Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112526 1 Coin Keyboard Label Assembly 2 865098 1 Phase 4.1 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4, 5, and 6)
865099 1 Phase 4.1 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4, 5, and 6) 800040 1 Coin Control Panel ONLY 800039 1 Coin Control Panel ONLY with Battery Bracket
3 150415 1 #10-16 x 1/2” Phillips Round Head Crimptite Screw 4 137130 1 Phase 4.1 Coin Microprocessor Controller (computer) ONLY
137131 1 Phase 4.1 Coin Microprocessor Controller (computer) ONLY
with Battery Clip
5 152001 4 #8-32 Hex Nut 6 153012 4 #8 Star Washer 7 --------- 1 Microprocessor Single Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 98)
8 137056 1 Optic Switch ONLY 9 137023 1 Optic Switch Connector ONLY 10 137021 3 Microprocessor Socket ONLY
--- 865050 1 Single Coin Optical Switch Harness
--- 122800 1 Microprocessor (female) Pin Extraction Tool
IMPORTANT: Check label on computer chip to verify correct part number for microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4.1 Single Coin Microprocessor Control Box Assembly
19
Illus. No. Part No. Qty. Description
1 137021 12 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 2 137020 1 15-Pin Microprocessor Connector ONLY 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Arc Suppressor (A.S.) Relay Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays
131916 1 P.C.B. (electromechanical) Relay ONLY (for 120 volt models Only)
131930 1 P.C.B. (electromechanical) Relay ONLY (for 208/230 volt models Only) 7 136057 * 1/2-Amp (slo blo) Fuse ONLY
136052 * 4-Amp Fuse ONLY 8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 9 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY 12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 13 120715 1 30-Position Terminal Block 14 151000 2 #6-32 Pal Nut 15 136057 * 1/2-Amp (slo blo) Fuse ONLY 16 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 17 136008 * Fuse Block/Strip ONLY
* As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
20
Phase 4.1 Dual Coin Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1 112526 1 Coin Keyboard Label Assembly 2 865098 1 Phase 4.1 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4, 5, and 6)
865099 1 Phase 4.1 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4, 5, and 6) 800040 1 Coin Control Panel ONLY 800039 1 Coin Control Panel ONLY with Battery Bracket
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw 4 137130 1 Phase 4.1 Coin Microprocessor Controller (computer) ONLY
137131 1 Phase 4.1 Coin Microprocessor Controller (computer) ONLY
with Battery Clip
5 152001 2 #8-32 Hex Nut 6 153012 2 #8 Star Washer 7 --------- 1 Microprocessor Dual Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 98)
8 137056 1 Optic Switch ONLY 9 137023 1 Optic Switch Connector ONLY 10 137021 3 Microprocessor Socket ONLY
865051 1 Dual Coin Optical Switch Harness 122800 1 Microprocessor (female) Pin Extraction Tool
IMPORTANT: Check label on computer chip to verify correct part number for microprocessor controller
(computer).
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 4.1 Dual Coin Microprocessor Control Box Assembly
21
Illus. No. Part No. Qty. Description
1 137021 12 Microprocessor Socket ONLY
122800 1 Microprocessor (female) Pin Extraction Tool 2 137020 1 15-Pin Microprocessor Connector ONLY 3 150315 1 #6 x 3/8” Phillips Pan Head Screw 4 137022 1 15-Pin Strain Relief ONLY 5 137013 4 Nylon Standoff 6 --------- 1 Arc Suppressor (A.S.) Relay Board
(refer to Relay Board Listing on page 97)
137061 1 Arc Suppressor (A.S.) Board ONLY without Relays
131916 1 P.C.B. (electromechanical) Relay ONLY (for 120 volt models Only)
131930 1 P.C.B. (electromechanical) Relay ONLY (for 208/230 volt models Only) 7 136057 * 1/2-Amp (slo blo) Fuse ONLY
136052 * 4-Amp Fuse ONLY 8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 9 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY 12 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 13 120715 1 30-Position Terminal Block 14 151000 2 #6-32 Pal Nut 15 136057 * 1/2-Amp (slo blo) Fuse ONLY 16 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 17 136008 * Fuse Block/Strip ONLY
* As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
22
Dual Timer Control Panel Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Dual Timer Control Panel Assembly
Illus. No. Part No. Qty. Description
1 123000 1 Red Indicator Light (for 120 volt models Only)
123001 1 Red Indicator Light (for 230 volt models Only) 2 122400 1 Rocker Heat Selector Switch 3 865550 1 Dual Timer Control Panel Assembly Complete
(includes illus. nos. 1 through 21) For 120 Volt Models ONLY
865551 1 Dual Timer Control Panel Assembly Complete
(includes illus. nos. 1 through 21) For 230 Volt Models ONLY
800051 1 Dual Timer Control Panel ONLY 4 131812 1 Push To Start Relay (for 120 volt models Only)
131813 1 Push To Start Relay (for 230 volt models Only) 5 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw 6 154001 2 #10-24 Speed Nut 7 152013 2 #6-32 Hex Nut 8 153010 2 #6 Star Washer 9 120713 1 18-Position Terminal Block
(for models mfd. as of May 3, 1989)
120708 1 3-Position Terminal Strip
(for models mfd. prior to May 3, 1989) 10 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 11 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw 12 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw 13 131030 1 Dual Timer Relay (for 120 volt models Only)
131031 1 Dual Timer Relay (for 230 volt models Only) 14 151000 2 #6-32 Pal Nut 15 112050 1 Dual Timer Label ONLY 16 882541 1 Spring Turn Latch Assembly 17 124103 2 Arrow Timer Knob 18 124020 1 60 Minute Timer (for 120 volt models Only)
124021 1 60 Minute Timer (for 230 volt models Only) 19 124022 1 15 Minute Timer (for 120 volt models Only)
124023 1 15 Minute Timer (for 230 volt models Only) 20 122602 1 9-Pin Connector ONLY 21 122700 8 Pin Terminal ONLY
--- 122801 1 Pin/Socket Extraction Tool
23
Telephone: (508) 678-9000 Fax: (508) 678-9447
24
Dual Timer Control Box Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Dual Timer Control Box Assembly
Illus. No. Part No. Qty. Description
1 122603 1 9-Pin Socket Connector ONLY 2 122701 9 Socket Terminal ONLY
122801 1 Pin/Socket Extraction Tool 3 315010 1 9-Pin Connector Bracket 4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 5 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 6 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 7 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 8 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY
131031 1 Steam Valve Relay (for high pressure steam models Only)
For 230 Volt Models ONLY 9 131814 1 Motor Control Relay (for 120 volt controls Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 136008 * Fuse Block/Strip ONLY
875250 * In-Line Fuse Holder Assembly ONLY
12* 136057 ** 1/2-Amp (slo blo) Fuse ONLY
136052 ** 4-Amp Fuse ONLY 136054 ** 15-Amp (slo blo) Fuse
136056 ** 20-Amp (slo blo) Fuse 13 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 14 136002 2 Panel Mount Fuse Holder Assembly 15* 136052 ** 4-Amp Fuse ONLY
136054 ** 15-Amp (slo blo) Fuse
136056 ** 20-Amp (slo blo) Fuse 16 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 17 120715 1 30-Position Terminal Block
120709 1 8-Position Terminal Strip 18 151000 2 #6-32 Pal Nut
25
* As required. ** Check fuse rating for verification.
Telephone: (508) 678-9000 Fax: (508) 678-9447
26
Non-Microprocessor Coin Meter Control Panel Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Non-Microprocessor Coin Meter Control Panel Assembly
Illus. No. Part No. Qty. Description
1 123000 1 Red Indicator Light (for 120 volt models Only)
123001 1 Red Indicator Light (for 230 volt models Only) 2 122400 1 Rocker Heat Selector Switch 3 800070 1 Coin Meter Control Panel Assembly Complete
(includes illus. nos. 1 through 6 and 8 through 12) For 120 Volt Models ONLY
800071 1 Coin Meter Control Panel Assembly Complete
(includes illus. nos. 1 through 6 and 8 through 12)
For 230 Volt Models ONLY 800054 1 Coin Meter Control Panel (for 12-position terminal block Only) 800052 1 Coin Meter Control Panel (for 2-position terminal strip Only)
4 131812 1 Push To Start Relay (for 120 volt models Only)
131813 1 Push To Start Relay (for 230 volt models Only)
5 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw 6 154001 2 #10-24 Speed Nut 7* 125000 1 25¢ Coin Meter (specify timing) For 120 Volt Models ONLY
125003 1 25¢ Coin Meter (specify timing) For 230 Volt Models ONLY
8 150303 2 #4 x 3/4” Phillips Pan Head “A” Machine Screw 9 120712 1 12-Position Terminal Block
(for models mfd. as of May 15, 1989) 120707 1 2-Position Terminal Strip
(for models mfd. prior to May 15, 1989)
10 882541 1 Spring Turn Latch Assembly 11 122602 1 9-Pin Connector ONLY 12 122700 9 Pin Terminal ONLY
--- 122801 1 Pin/Socket Extraction Tool
27
* Consult factory for coin meters not listed.
NOTE: For Coin Meter Replacement Parts refer to page 99.
Telephone: (508) 678-9000 Fax: (508) 678-9447
28
Non-Microprocessor Coin Meter Control Box Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Non-Microprocessor Coin Meter Control Box Assembly
Illus. No. Part No. Qty. Description
1 122603 1 9-Pin Socket Connector ONLY 2 122701 9 Socket Terminal ONLY
122801 1 Pin/Socket Extraction Tool
3 315010 1 9-Pin Connector Bracket 4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 5 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 6 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only)
7 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 8 131030 1 Steam Valve Relay (for high pressure steam models Only)
For 120 Volt Models ONLY 131031 1 Steam Valve Relay (for high pressure steam models Only)
For 208/230 Volt Models ONLY
9 131814 1 Motor Control Relay (for 120 volt controls Only) 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 136008 * Fuse Block/Strip ONLY
875250 * In-Line Fuse Holder Assembly ONLY
12* 136057 ** 1/2-Amp (slo blo) Fuse ONLY
136052 ** 4-Amp Fuse ONLY 136054 ** 15-Amp (slo blo) Fuse 136056 ** 20-Amp (slo blo) Fuse
13 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw 14 136002 2 Panel Mount Fuse Holder Assembly 15* 136052 ** 4-Amp Fuse ONLY
136054 ** 15-Amp (slo blo) Fuse 136056 ** 20-Amp (slo blo) Fuse
16 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 17 120715 1 30-Position Terminal Block
120709 1 8-Position Terminal Strip
18 151000 2 #6-32 Pal Nut
29
* As required. ** Check fuse rating for verification.
Telephone: (508) 678-9000 Fax: (508) 678-9447
30

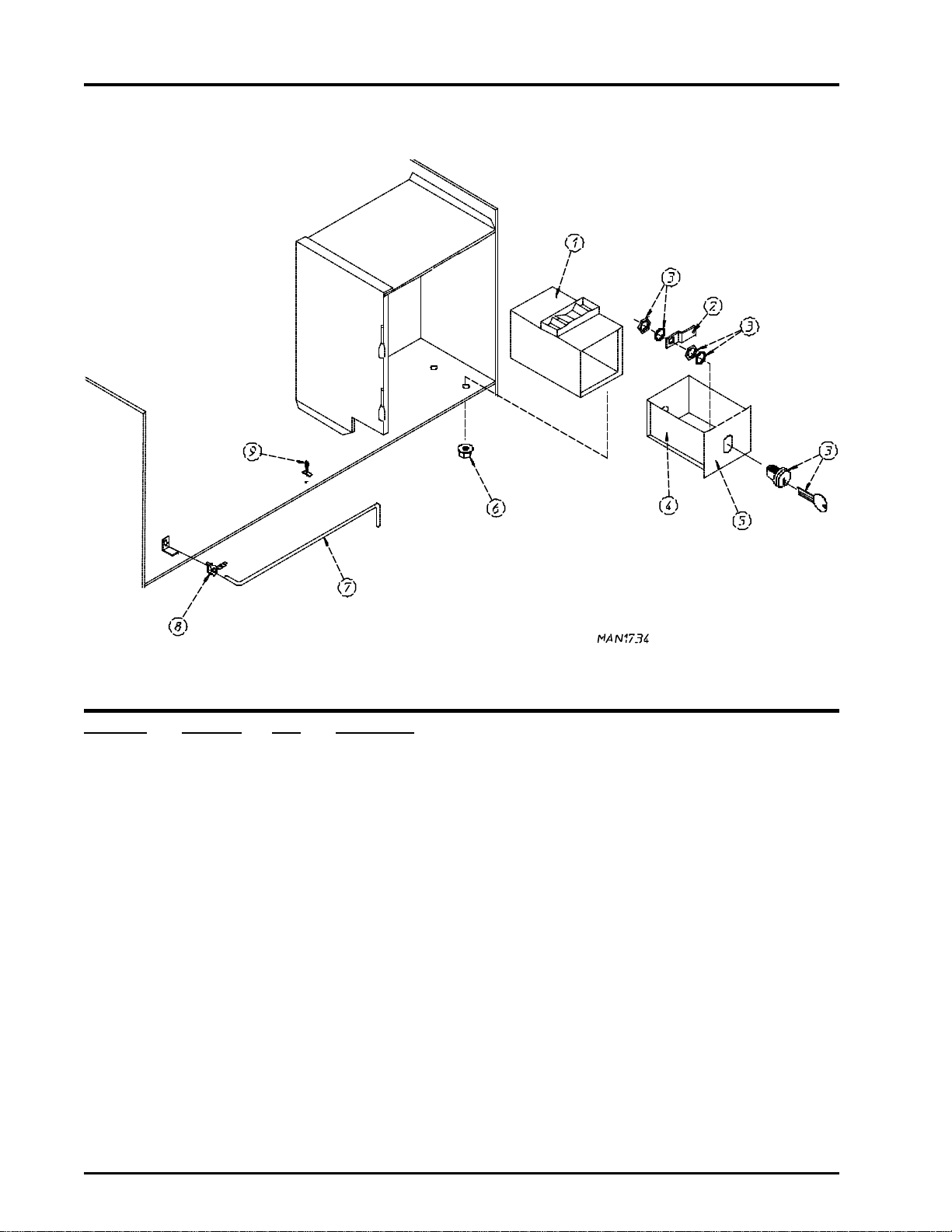

AD-30/AD-50 Coin Vault Assembly
Illus. No. Part No. Qty. Description
1 802112 1 Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6) 802117 1 Microprocessor Coin Vault ONLY 802110 1 Non-Microprocessor Coin Vault Assembly Complete
(includes illus. nos. 1 through 6) 802115 1 Non-Microprocessor Coin Vault ONLY
2 160028 1 Cam for 1/4 Turn Lock ONLY 3 875061 1 1/4 Turn Lock with Key and Cam
160105* 1 1/4 Turn Mer-Pel Key ONLY
4 802020 1 1/4 Turn Coin Box Assembly
(includes illus. nos. 2 through 5) 802019 1 1/4 Turn Coin Box ONLY without Face Plate 125915 1 High Security (Greenwald) Coin Box ONLY with Key
5 802018 1 1/4 Turn Coin Box Face Plate ONLY 6 152014 4 1/4-20 Free Spin Wash Nut 7 102502 1 Control Door Support Rod 8 102601 1 Control Door Rod Retainer Clip 9 102600 1 Control Door Rod Support Catch
* Specify key number when ordering.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

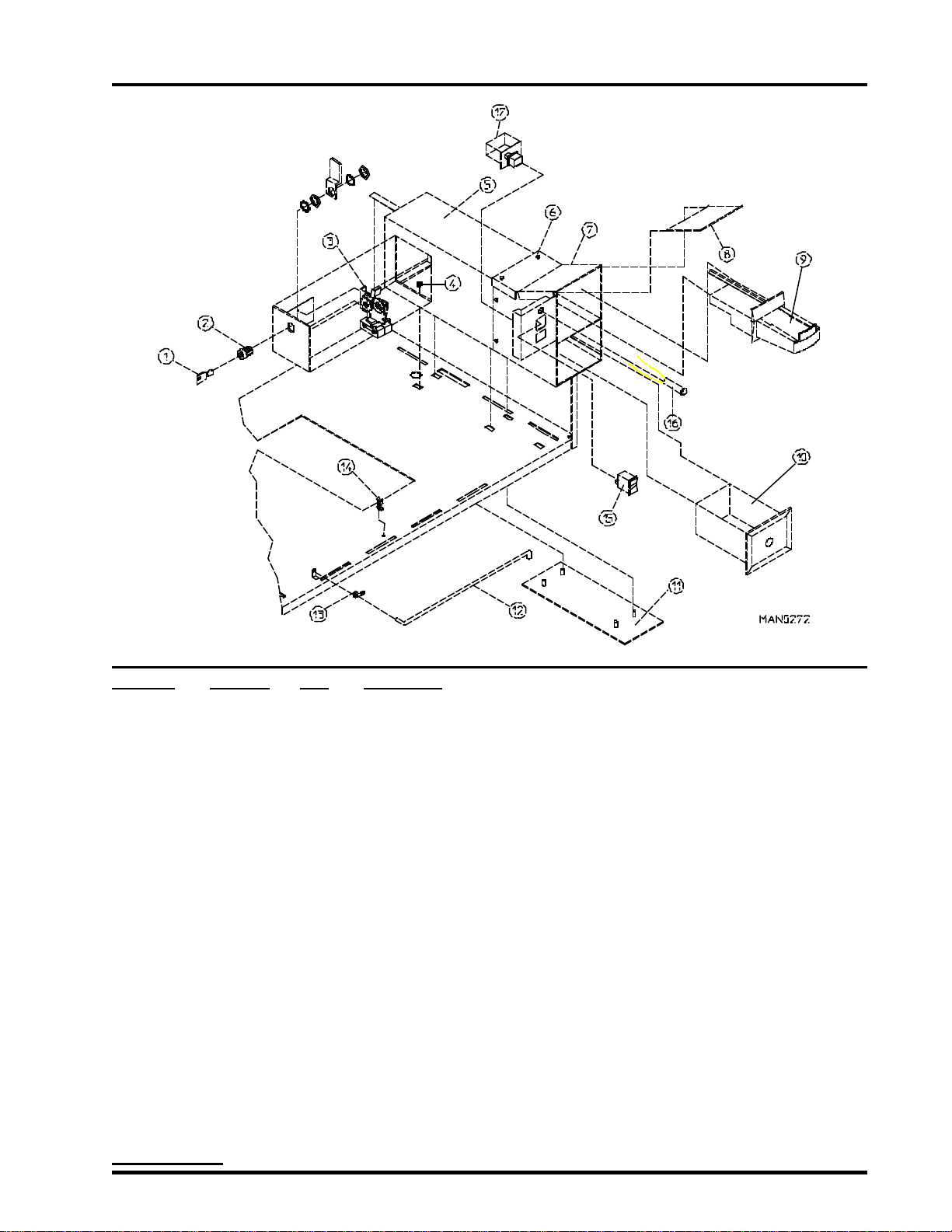

AD-30 Slide Meter Case Assembly
31
Illus. No. Part No. Qty. Description
1* 160199 1 Key ONLY for Slide Meter Lock 2 160099 1 Lock, Key, Cam, and Hardware 3 125908 1 Slide Meter Accumulator - 120 Volt 4 152014 4 1/4-20 Free Spin Wash Nut 5 125900 1 Slide Meter Case ONLY with Door Less Lock 6 154203 6 1/4” Drive Rivet 7 801700 1 Slide Meter Extension ONLY with Mirror
(includes illus. nos. 7 and 8)
8 315404 1 Stainless Steel Mirror ONLY 9 --------- 1 Typical Slide Meter Coin Chute (not available from ADC) 10 --------- 1 Typical Slide Meter Coin Box (not available from ADC) 11 801701 1 Slide Meter Case Mounting Plate 12 102502 1 Control Door Support Rod 13 102601 1 Control Door Rod Retainer Clip 14 102600 1 Control Door Rod Support Catch 15 122400 1 Rocker Heat Selector Switch 16 123005 1 Red Indicator Light (for 120 volt models Only) 17 131812 1 Push To Start Relay (for 120 volt models Only)
* Specify key number when ordering.
IMPORTANT: Parts listed are for 120 volt controls ONLY...for other voltages contact factory.
Telephone: (508) 678-9000 Fax: (508) 678-9447
32

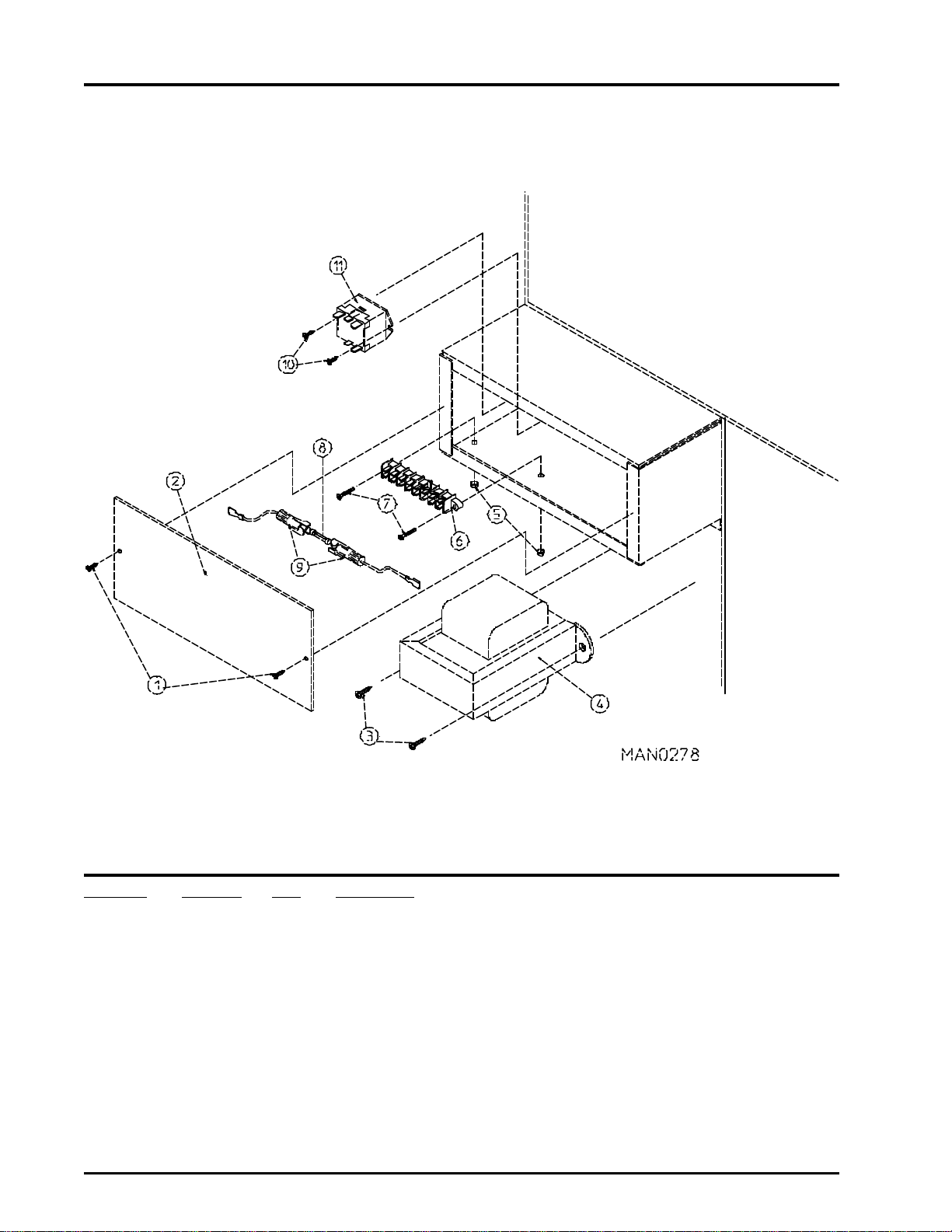

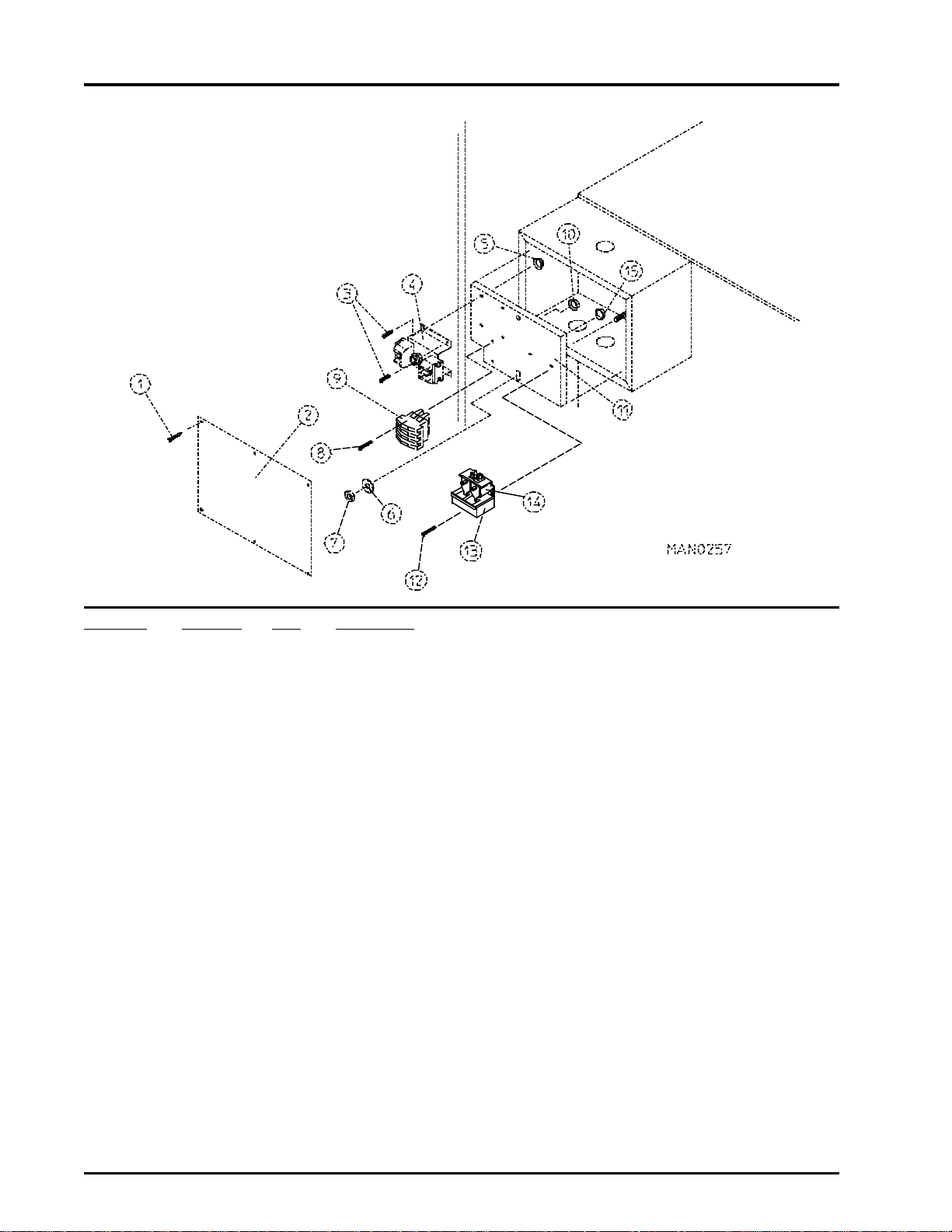

AD-30 Slide Meter Control Box Assembly
For Models Mfd. with Globar® Ignition ONLY
Illus. No. Part No. Qty. Description
1 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 2 311913 1 Service Box Cover Plate ONLY (9-7/8” x 4-3/8”)
311921 1 Service Box Cover Plate ONLY (9-7/8” x 5-3/4”)
3 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 4 132002 1 200 Watt Transformer (terminals are not included) 5 151000 2 #6-32 Pal Nut 6 120709 1 8-Position Terminal Strip 7 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 8 136052 1 4-Amp Fuse ONLY 9 875250 1 In-Line Fuse Holder Assembly ONLY 10 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 11 131814 1 Motor Control Relay (for 120 volt controls Only)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30 Slide Meter Control Box Assembly
For Models Mfd. with Direct Spark Ignition (DSI) ONLY
33
Illus. No. Part No. Qty. Description
1 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 2 311913 1 Service Box Cover Plate ONLY (9-7/8” x 4-3/8”)
311921 1 Service Box Cover Plate ONLY (9-7/8” x 5-3/4”) 3 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 4 141403 1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for gas models with Direct Spark Ignition [DSI] Only) 5 151000 2 #6-32 Pal Nut 6 120715 1 30-Position Terminal Block 7 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 8 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 9 131814 1 Motor Control Relay (for 120 volt contols Only) 10 136008 * Fuse Block/Strip ONLY
875250 * In-Line Fuse Holder Assembly ONLY
11* 136057 ** 1/2-Amp (slo blo) Fuse ONLY
136054 ** 15-Amp Fuse (for 120 volt models Only) 136056 ** 20-Amp (slo blo) Fuse (for 208/230 volt models Only)
12* 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw
* As required. ** Check fuse rating for verification.
Telephone: (508) 678-9000 Fax: (508) 678-9447
34
AD-30/AD-50 Main Door Assembly
For Door Magnet Type Models ONLY
Illus. No. Part No. Qty. Description
1 800136 1 AD-30/AD-50 Main Door Assembly Complete
(includes illus. nos. 1 through 12)
800133 1 AD-30/AD-50 Main Door Assembly Less Accessories
(includes illus. nos. 1 through 3)
800134 1 AD-30/AD-50 Main Door with Glass and Gasket ONLY
(includes illus. nos. 1, 2, 3, 5, and 6) 2 103050 1 12-1/2” Stainless Steel Main Door Hinge 3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw 4 152014 4 1/4-20 Free Spin Wash Nut 5 102350 1 Main Door Gasket 6 102210 1 20-7/16” Door Glass 7 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 8 102105 2 Magnet Holder ONLY 9 152013 2 #6-32 Hex Nut 10 306802 6 Magnet Keeper 11 102102 4 0.215 Door Magnet 12 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw 13 800131 2 Cast Aluminum Magnet Holder Assembly Complete
(includes illus. nos. 7 through 11)
--- 170730 1 Main Door Glass Adhesive (10.3 oz. cartridge)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30 Front Panel Assembly
For Door Magnet Type Models ONLY
35
Illus. No. Part No. Qty. Description
1 800369* 1 AD-30 Right Hand Front Panel (magnet type) Assembly Complete
(includes illus. nos. 1 through 4)
800366* 1 AD-30 Right Hand Insulated Front Panel (magnet type) Assembly
Complete (includes illus. nos. 1 through 4)
800383 1 AD-30 Stainless Steel Right Hand Front Panel (magnet type) Assembly
Complete
(includes illus. nos. 1 through 4) 2 170340 2 3-1/2” Stainless Steel Striker Pad 3 154200 4 5/32” Pop Rivet 4 121405 1 Rubber Grommet 5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw 6 150300 1 #10-16 x 1/2” Hex Washer TEK Screw 7 150201 2 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 --------- 1 Main Door Switch
(refer to Plunger Type Main Door Switch Assembly on page 40)
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
36

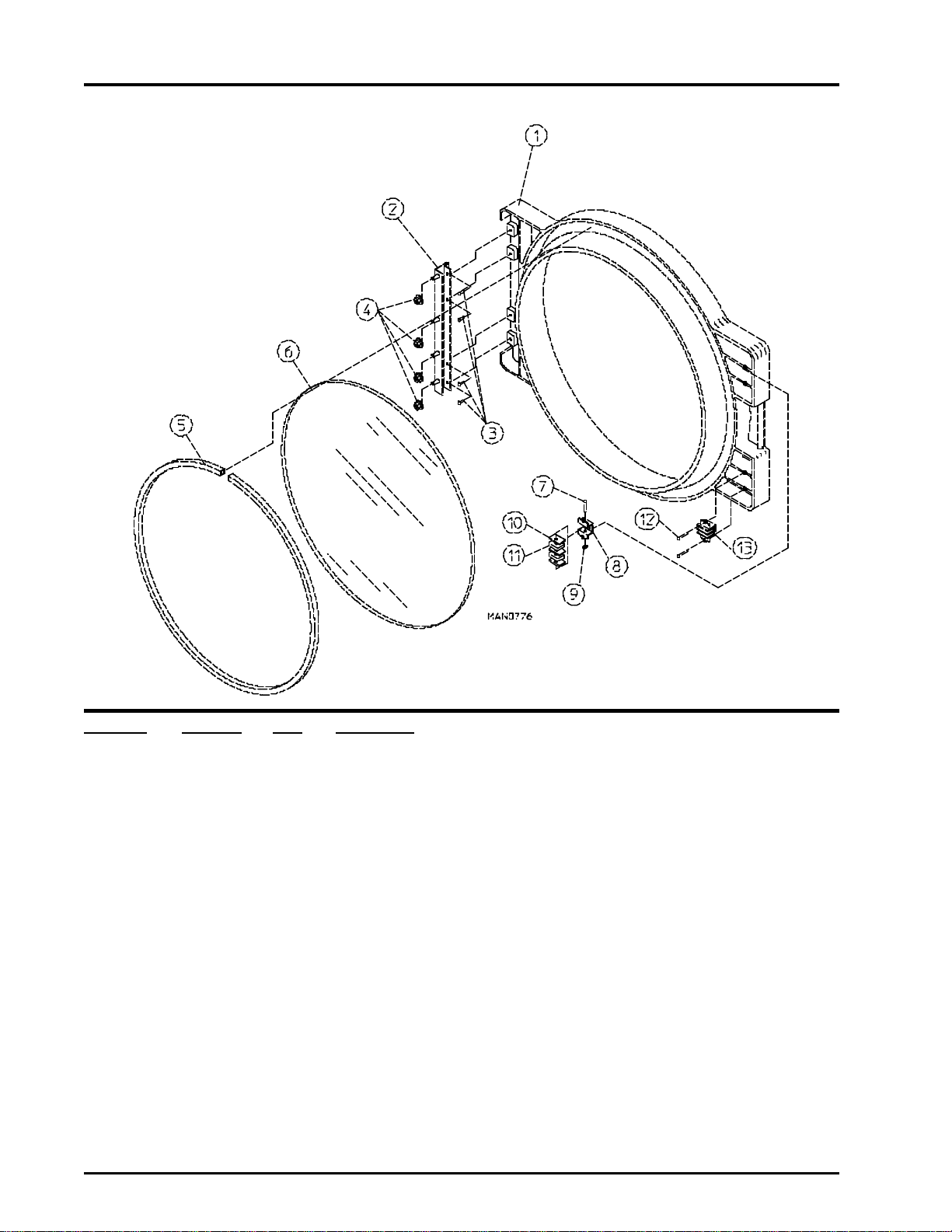

AD-30/AD-50 Main Door Assembly
For Door Latch Type Models ONLY
Illus. No. Part No. Qty. Description
1 881421 1 Gray Plastic Main Door Assembly Complete with Mechanical Fasteners
(includes illus. nos. 1 and 5 through 9) 2 800448 1 12-1/2” Stainless Steel Main Door Hinge Assembly 3 150410 4 #10-24 x 3/8” Phillips Pan Head Taptite Screw 4 152014 4 1/4-20 Free Spin Wash Nut 5 102349 1 Main Door Gasket 6 102212 1 20-7/16” Door Glass with Four (4) Holes
170730 1 Main Door Glass Adhesive (10.3 oz. cartridge) 7 150448 4 Door Glass (nylon) Spacer 8 170319 4 1/2” Stainless Steel Flat Head Allen Screw 9 150431 1 Main Door Latch Screw
(#10 x 7/16” dome hex head screw)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

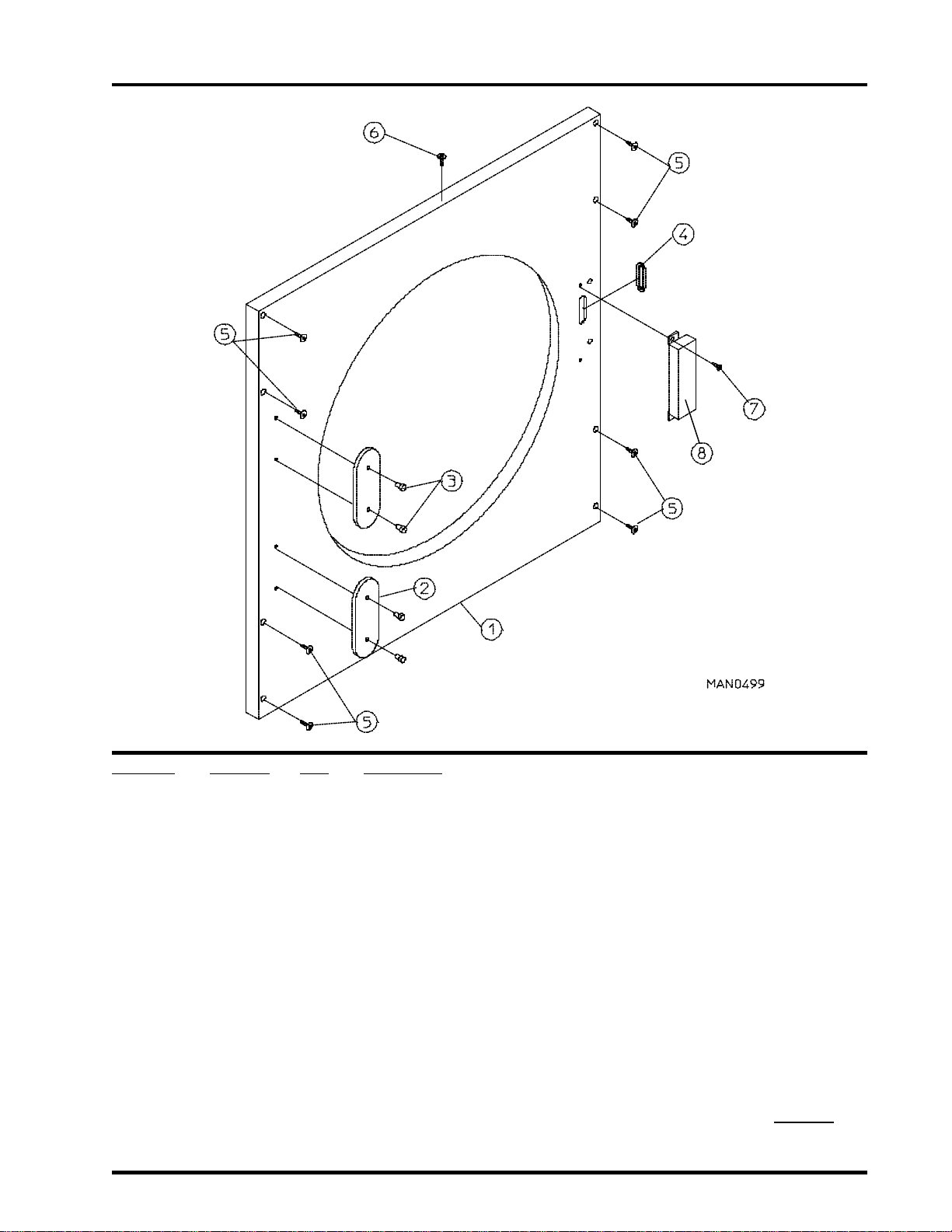

AD-50 Front Panel Assembly
For Door Magnet Type Models ONLY
37
Illus. No. Part No. Qty. Description
1 800368* 1 AD-50 Right Hand Front Panel (magnet type) Assembly Complete
(includes illus. nos. 1 through 4)
800371* 1 AD-50 Right Hand Insulated Front Panel (magnet type) Assembly
Complete (includes illus. nos. 1 through 4)
800388 1 AD-50 Stainless Steel Right Hand Front Panel (magnet type) Assembly
Complete
(includes illus. nos. 1 through 4) 2 170340 2 3-1/2” Stainless Steel Striker Pad 3 154200 4 5/32” Pop Rivet 4 121405 1 Rubber Grommet 5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw 6 150300 1 #10-16 x 1/2” Hex Washer TEK Screw 7 150201 2 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 --------- 1 Main Door Switch
(refer to Plunger Type Main Door Switch Assembly on page 40)
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
38
AD-30 Front Panel Assembly
For Door Latch Type Models ONLY
Illus. No. Part No. Qty. Description
1 875300* 1 AD-30 Right Hand Insulated Front Panel (latch type) Assembly
Complete (includes illus. nos. 1, 2, 3, and 6)
875311 1 AD-30 Stainless Steel Right Hand Insulated Front Panel (latch type)
Assembly Complete
(includes illus. nos. 1, 2, 3, and 6) 2 154215 2 5/32” Pop Rivet 3 170330 1 Friction Door Catch 4 150300 1 #10-16 x 1/2” Hex Washer TEK Screw 5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw 6 121405 1 Rubber Grommet 7 150201 2 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 --------- 1 New Style (N.S.) Series Main Door Switch
(for microprocessor models mfd. as of November 21, 1990 and
non-microprocessor models mfd. as of November 15, 1990)
Refer to New Style (N.S.) Series Main Door Switch Assembly
on page 41
* Specify color when ordering.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Front Panel Assembly
For Door Latch Type Models ONLY
39
Illus. No. Part No. Qty. Description
1 875301* 1 AD-50 Right Hand Insulated Front Panel (latch type) Assembly
Complete (includes illus. nos. 1, 2, 3, and 6)
875312 1 AD-50 Stainless Steel Right Hand Insulated Front Panel (latch type)
Assembly Complete
(includes illus. nos. 1, 2, 3, and 6) 2 154215 2 5/32” Pop Rivet 3 170330 1 Friction Door Catch 4 150300 1 #10-16 x 1/2” Hex Washer TEK Screw 5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw 6 121405 1 Rubber Grommet 7 150201 2 #10-32 x 1/4” Phillips Pan Head TEK Screw 8 --------- 1 New Style (N.S.) Series Main Door Switch
(for microprocessor models mfd. as of November 21, 1990 and
non-microprocessor models mfd. as of November 15, 1990)
Refer to New Style (N.S.) Series Main Door Switch Assembly
on page 41
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
40
Plunger Type Main Door Switch Assembly
Illus. No. Part No. Qty. Description
1 137003 1 Plunger Type Main Door Switch ONLY
(includes illus. nos. 1, 2, and 4) 2 401551 * Door Switch Spacer Washer 3 870010 1 Plunger Type Main Door Switch Assembly Complete
(includes illus. nos. 1 through 4)
For Microprocessor Models Mfd. prior to November 21, 1990 and
Non-Microprocessor Models Mfd. prior to November 15, 1990
313209 1 Main Door Switch Housing ONLY
4 152003 1 3/8-32 x 1/2” Door Switch Nut
* As required.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
New Style (N.S.) Series Main Door Switch Assembly
41
Illus. No. Part No. Qty. Description
1 312215 1 Door Switch Actuator Arm 2 800445* 1 New Style (N.S.) Series Microprocessor Main Door Switch Housing
Assembly Complete (includes illus. nos. 1 through 7) For Models Mfd. as of November 21, 1990
880446* 1 New Style (N.S.) Series Non-Microprocessor Main Door Switch
Housing Assembly Complete (includes illus. nos. 1 through 7) For Models Mfd. as of November 15, 1990
313217 1 Main Door Switch Housing ONLY 3 150025 2 #4-40 x 1” Phillips Pan Head Machine Screw 4 153045 2 #4 Lock Washer 5* 137004 ** New Style (N.S.) Series Main Door Switch ONLY 6 153045 2 #4 Lock Washer 7 152016 2 #4-40 Hex Nut
* Microprocessor controller (computer) models require two (2) New Style (N.S.) series door switches.
Non-microprocessor controller (non-computer) models require one (1) New Style (N.S.) series door switch.
** Quantity is 1 or 2.
Telephone: (508) 678-9000 Fax: (508) 678-9447
42
AD-30 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Non-Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1* 800703** 1 AD-30 Basket (tumbler) ONLY without Felt Collar
800803** 1 AD-30 Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10) 2 150309 40 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 301304 4 AD-30 Basket (tumbler) Rib ONLY 4 150518 1 5/16-18 x 3/8” Socket Button Head Screw 5 100902 4 5/16-18 x 31” Tie Rod 6 153001 4 5/16” Flat Washer 7 800603 1 AD-30 Basket (tumbler) Support ONLY 8 152004 4 5/16-18 Hex Nut 9 153002 4 5/16” Lock Washer 10 153001 4 5/16” Flat Washer 11 116002 1 Felt Collar ONLY
--- 401010 1 #847 Adhesive For Felt Collar (5.0 oz. tube)
* For stainless steel basket (tumbler), contact factory. ** Felt collar is not included and must be ordered separately.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Non-Tapered Ribs ONLY
43
Illus. No. Part No. Qty. Description
1* 800705** 1 AD-50 Basket (tumbler) ONLY without Felt Collar
800820** 1 AD-50 Non-Reversing Basket (tumbler) and Support Assembly
Complete (includes illus. nos. 1 through 10)
800817** 1 AD-50 Reversing Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10) 2 150309 40 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 301302 2 AD-50 Basket (tumbler) Rib ONLY (low rib)
301310 2 AD-50 Basket (tumbler) Baffle Rib ONLY (high rib) 4 150518 1 5/16-18 x 3/8” Socket Button Head Screw 5 100902 4 5/16-18 x 31” Tie Rod 6 153001 4 5/16” Flat Washer 7 800616 1 AD-50 Non-Reversing Basket (tumbler) Support ONLY
800614 1 AD-50 Reversing Basket (tumbler) Support ONLY 8 152004 4 5/16-18 Hex Nut 9 153002 4 5/16” Lock Washer 10 153001 4 5/16” Flat Washer 11 116002 1 Felt Collar ONLY
--- 401010 1 #847 Adhesive For Felt Collar (5.0 oz. tube)
* For stainless steel basket (tumbler), contact factory. ** Felt collar is not included and must be ordered separately.
Telephone: (508) 678-9000 Fax: (508) 678-9447
44
AD-50 Basket (Tumbler)/Support Assemblies
For Models Mfd. with Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1* 800838** 1 AD-50 Basket (tumbler) ONLY with Tapered Ribs without Felt Collar
800837** 1 AD-50 Non-Reversing Basket (tumbler) and Support Assembly
Complete with Tapered Ribs (includes illus. nos. 1 through 10)
800839** 1 AD-50 Reversing Basket (tumbler) and Support Assembly
Complete with Tapered Ribs
(includes illus. nos. 1 through 10) 2 150309 40 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 301302 2 AD-50 Basket (tumbler) Rib ONLY (low rib)
301311 2 AD-50 Basket (tumbler) Baffle Rib ONLY (high rib) 4 150518 1 5/16-18 x 3/8” Socket Button Head Screw 5 100902 4 5/16-18 x 31” Tie Rod 6 153001 4 5/16” Flat Washer 7 800616 1 AD-50 Non-Reversing Basket (tumbler) Support ONLY
800614 1 AD-50 Reversing Basket (tumbler) Support ONLY 8 152004 4 5/16-18 Hex Nut 9 153002 4 5/16” Lock Washer 10 153001 4 5/16” Flat Washer 11 116002 1 Felt Collar ONLY
--- 401010 1 #847 Adhesive For Felt Collar (5.0 oz. tube)
* For stainless steel basket (tumbler), contact factory. ** Felt collar is not included and must be ordered separately.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30 Drop Lint Door Assembly
45
Illus. No. Part No. Qty. Description
1 160001 1 AD-100 Lock Assembly with Key
160103 1 AD-100 Key ONLY 800150 1 Knob Latch Kit Assembly (for non-coin models Only) 160200 1 Knob Latch ONLY with Two (2) Screws (for non-coin models Only) 160003 1 Dummy Lock ONLY (for non-coin models Only) 160104 1 MK-100 Key ONLY
2 160008 1 Lock Cam For AD-100 Lock
160009 1 Knob Latch Adjustable Cam (for non-coin models Only) 150425 1 #12-24 x 3/8” Phillips Round Head Machine Screw
(for knob latch adjustable cam) 3 157000 1 Drop Lint Door Spring 4 800216* 1 AD-30 Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800233* 1 AD-30 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800240 1 AD-30 Stainless Steel Drop Lint Door Assembly 5 150201 10 #10-32 x 1/4” Phillips Pan Head TEK Screw 6 117600 7 Noise Suppressor Tape (sold by the foot) 7 117603 3 Suppressor Tape/Gasket (sold by the foot) 8 180210 2 AD-30 Trim/Kick Plate (31-1/8” length) 9 150419 2 #6 x 1/2” Tamperproof TEK Screw
150418 1 Tamperproof Screw Hand Driver 10 108120 1 Chain For Drop Lint Door
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
46
AD-50 Drop Lint Door Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Drop Lint Door Assembly
Illus. No. Part No. Qty. Description
1 160001 1 AD-100 Lock Assembly with Key
160103 1 AD-100 Key ONLY
800150 1 Knob Latch Kit Assembly (for non-coin models Only)
160200 1 Knob Latch ONLY with Two (2) Screws (for non-coin models Only)
160003 1 Dummy Lock ONLY (for non-coin models Only)
160104 1 MK-100 Key ONLY 2 160008 1 Lock Cam For AD-100 Lock
160009 1 Knob Latch Adjustable Cam (for non-coin models Only)
150425 1 #12-24 x 3/8” Phillips Round Head Machine Screw
(for knob latch adjustable cam) 3 157000 1 Drop Lint Door Spring 4 800219* 1 AD-50 Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800232* 1 AD-50 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800243 1 AD-50 Stainless Steel Drop Lint Door Assembly 5 150201 10 #10-32 x 1/4” Phillips Pan Head TEK Screw 6 117600 7 Noise Suppressor Tape (sold by the foot) 7 117603 3 Suppressor Tape/Gasket (sold by the foot) 8 180210 2 AD-30 Trim/Kick Plate (31-1/8” length) 9 150419 2 #6 x 1/2” Tamperproof TEK Screw
150418 1 Tamperproof Screw Hand Driver 10 108120 1 Chain For Drop Lint Door
47
* Specify color when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
48
AD-30 Lint Trap Assembly
Illus. No. Part No. Qty. Description
1 800408 1 AD-30 Lint Trap Assembly Complete
(includes illus. nos. 1, 3, 4, and 5)
800409 1 AD-30 Lint Trap ONLY 2 154200 7 5/32” Pop Rivet 3 304102 1 AD-30 Lint Screen Holder ONLY 4 150300 3 #10-16 x 1/2” Hex Washer TEK Screw 5 800503 1 AD-30 Lint Screen ONLY 6 150419 2 #6 x 1/2” Tamperproof TEK Screw 7 108120 1 Chain For Drop Lint Door (10-1/2” length)
- 150418 1 Tamperproof Screw Hand Driver
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Lint Trap Assembly
49
Illus. No. Part No. Qty. Description
1 800402 1 AD-50 Lint Trap Assembly Complete
(includes illus. nos. 1, 3, 4, and 5) 800404 1 AD-50 Non-Reversing Lint Trap ONLY 800407 1 AD-50 Reversing Lint Trap Assembly Complete
(includes illus. nos. 1, 3, 4, and 5) 800406 1 AD-50 Reversing Lint Trap ONLY
2 154200 7 5/32” Pop Rivet 3 304101 1 AD-50 Lint Screen Holder ONLY 4 150300 3 #10-16 x 1/2” Hex Washer TEK Screw 5 800501 1 AD-50 Lint Screen ONLY 6 150419 2 #6 x 1/2” Tamperproof TEK Screw 7 108120 1 Chain For Drop Lint Door
- 150418 1 Tamperproof Screw Hand Driver
Telephone: (508) 678-9000 Fax: (508) 678-9447
50

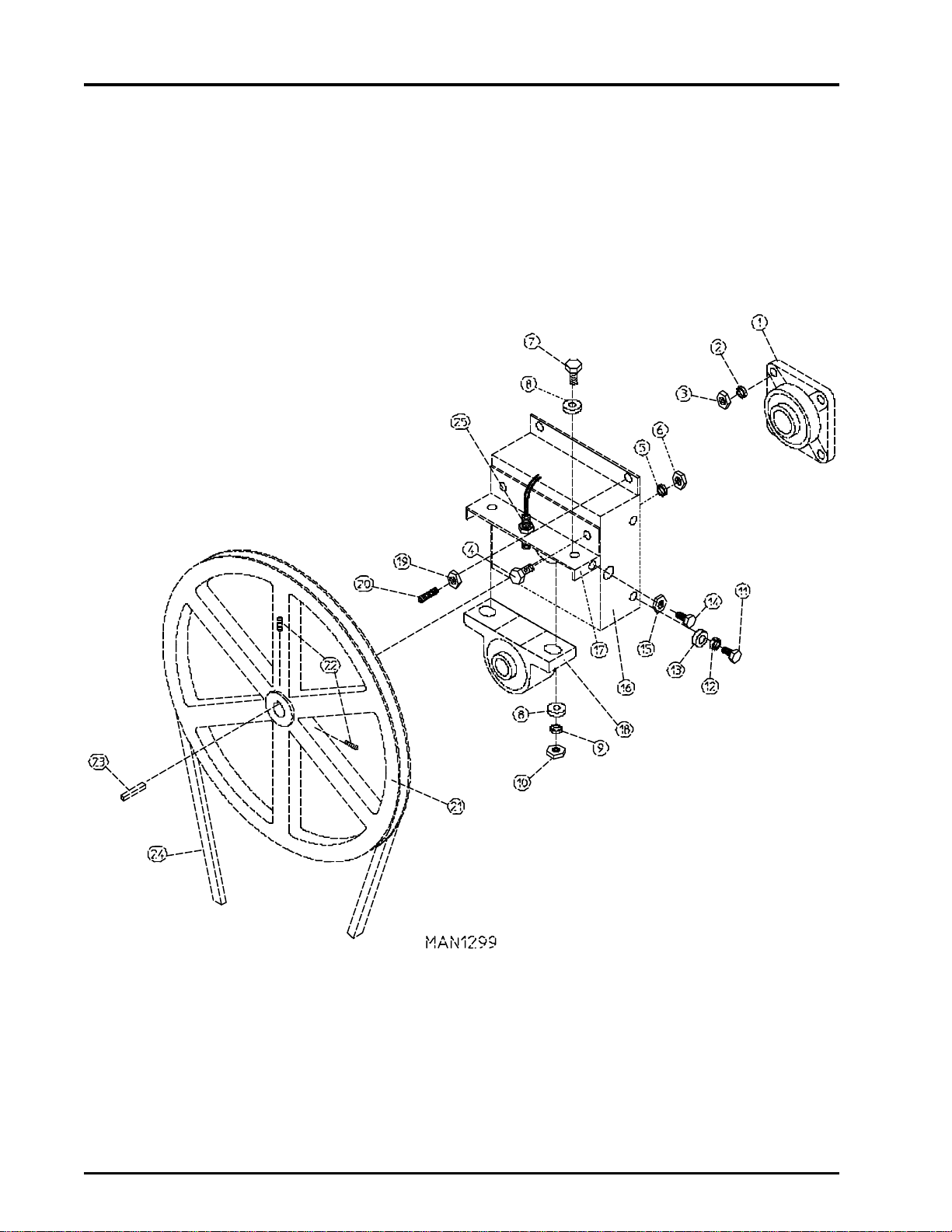

AD-30 Basket (Tumbler) Bearing Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30 Basket (Tumbler) Bearing Assembly
Illus. No. Part No. Qty. Description
1 880203 1 1-3/8” Flange Bearing with Nylock Setscrew 2 153005 4 3/8” Lock Washer 3 152005 4 3/8-16 Hex Nut 4 150508 2 3/8-16 x 3/4” Hex Head Machine Bolt 5 153005 2 3/8” Lock Washer 6 152005 2 3/8-16 Hex Nut 7 150600 2 3/8-16 x 1-1/2” Hex Head Machine Bolt 8 153004 * 3/8” Flat Washer 9 153005 2 3/8” Lock Washer 10 152005 2 3/8-16 Hex Nut 11 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 12 153002 4 5/16” Lock Washer 13 153001 4 5/16” Flat Washer 14 150621 2 5/16-18 x 1-1/2” Hex Head Machine Bolt 15 152004 2 5/16-18 Hex Nut 16 801101 1 1-3/8” Bearing Box Assembly Complete
(includes illus. nos. 4 through 20) 801103 1 1-3/8” Bearing Box and Support ONLY
(includes illus. nos. 4, 5, 6, 16, and 17) 801105 1 1-3/8” Bearing Box ONLY
17 801104 1 Pillow Block Bearing Support ONLY 18 880779 1 1-3/8” Pillow Block Bearing Assembly with Magnet
(for models mfd. with rotational sensor) 880202 1 1-3/8” Pillow Block Bearing ONLY
19 152004 2 5/16-18 Hex Nut 20 150610 2 5/16-18 x 1-1/2” Allen Setscrew 21 101100 1 18” Pulley 22 154301 2 5/16-18 x 1” Allen Setscrew 23 100713 1 1/4” x 1/4” x 7/8” Key 24 100108 1 5L-680 V-Belt (basket [tumbler] to idler) 25 824807 1 Rotational Sensor Assembly
* As required.
51
Telephone: (508) 678-9000 Fax: (508) 678-9447
52

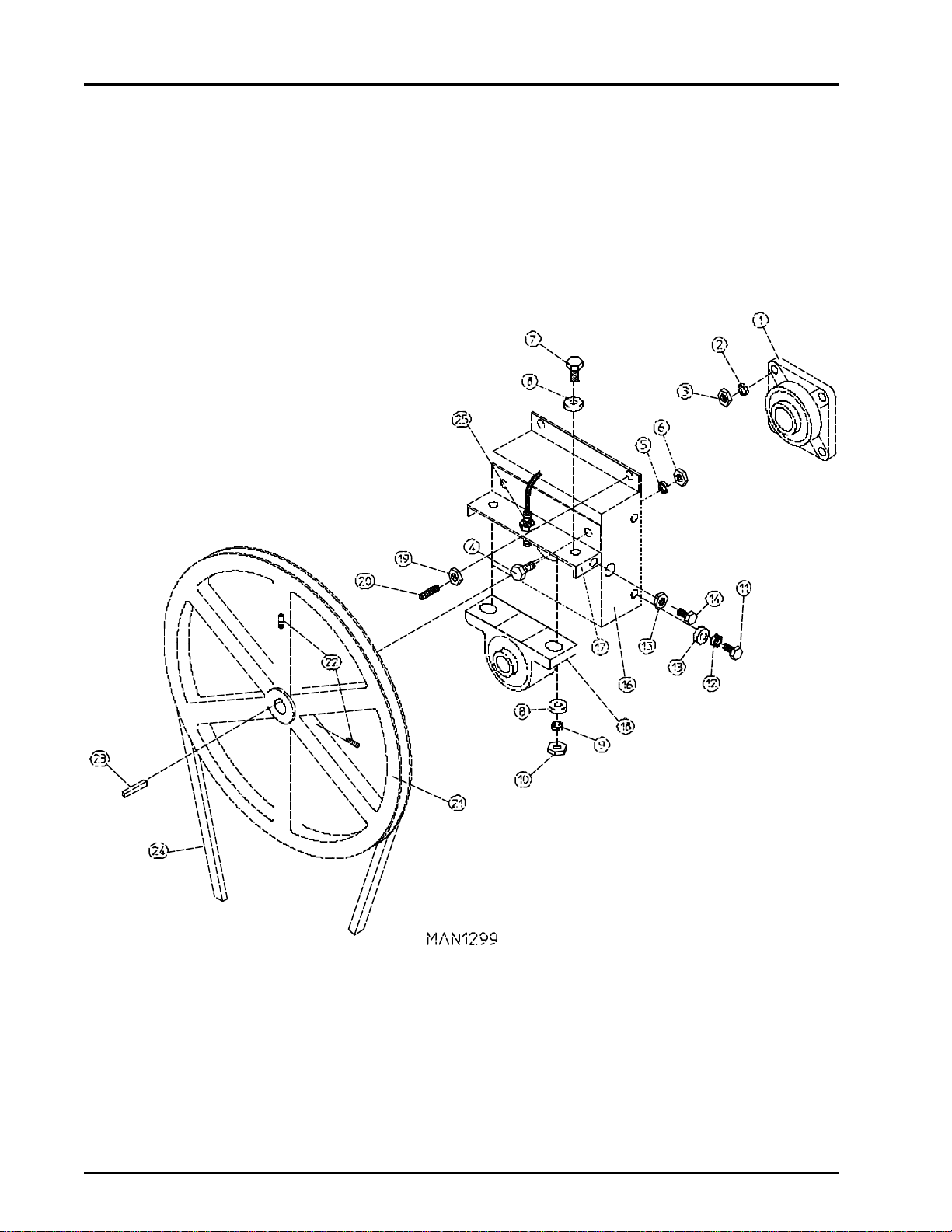

AD-50 Basket (Tumbler) Bearing Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Basket (Tumbler) Bearing Assembly
Illus. No. Part No. Qty. Description
1 880220 1 1-3/4” Flange Bearing with Nylock Setscrew 2 153025 4 9/16” Lock Washer 3 152050 4 9/16-12 Hex Nut 4 150508 2 3/8-16 x 3/4” Hex Head Machine Bolt 5 153005 2 3/8” Lock Washer 6 152005 2 3/8-16 Hex Nut 7 150600 2 3/8-16 x 1-1/2” Hex Head Machine Bolt 8 153004 * 3/8” Flat Washer 9 153005 2 3/8” Lock Washer 10 152005 2 3/8-16 Hex Nut 11 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 12 153002 4 5/16” Lock Washer 13 153001 4 5/16” Flat Washer 14 150621 2 5/16-18 x 1-1/2” Hex Head Machine Bolt 15 152004 2 5/16-18 Hex Nut 16 801101 1 1-3/8” Bearing Box Assembly Complete
(includes illus. nos. 4 through 20) 801103 1 1-3/8” Bearing Box and Support ONLY
(includes illus. nos. 4, 5, 6, 16, and 17) 801105 1 1-3/8” Bearing Box ONLY
17 801104 1 Pillow Block Bearing Support ONLY 18 880779 1 1-3/8” Pillow Block Bearing Assembly with Magnet
(for models mfd. with rotational sensor) 880202 1 1-3/8” Pillow Block Bearing ONLY
19 152004 2 5/16-18 Hex Nut 20 150610 2 5/16-18 x 1-1/2” Allen Setscrew 21 101100 1 18” Pulley (for non-reversing models Only)
101118 1 18-3/4” Pulley (for reversing models Only) 101119 1 1-3/8” Taper Lock Hub (for reversing models Only)
22 154301 2 5/16-18 x 1” Allen Setscrew 23 100713 1 1/4” x 1/4” x 7/8” Key 24 100108 1 5L-680 V-Belt (basket [tumbler] to idler) 25 824807 1 Rotational Sensor Assembly
53
* As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
54
AD-30/AD-50 Idler Bearing Assembly
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30/AD-50 Idler Bearing Assembly
Illus. No. Part No. Qty. Description
1 100108 1 5L-680 V-Belt (idler to basket [tumbler]) For Use On AD-30
and AD-50 Models
2 101129 1 9” x 2-1/2” Compound Pulley (for use on AD-30 models Only)
101140 1 14” x 3” Compound Pulley (for use on AD-50 models Only)
3 100110 1 4L-500 V-Belt (idler to motor) For Use On AD-30 Models ONLY
100112 1 4L-610 V-Belt (idler to motor) For Use On AD-50 Models ONLY
4 154301 2 5/16-18 x 1” Allen Setscrew 5 100705 1 3/16” x 3/16” x 1-3/8” Key 6 301850 1 5/8” x 3/4” Idler Shaft 7 152002 3 1/4-20 Hex Nut 8 153007 3 1/4” Lock Washer 9 100214 2 5/8” Flange Bearing 10 150521 3 1/4-20 x 2” Carriage Bolt 11 801007 1 Idler Bearing Assembly Complete
(includes illus. nos. 5 through 17)
12 150617 2 3/8-16 x 1” Hex Head Machine Bolt 13 153005 2 3/8” Lock Washer 14 153004 2 3/8” Flat Washer 15 801009 1 Idler Square Washer 16 152004 1 5/16-18 Hex Nut 17 150509 1 5/16-18 x 3” Hex Head Machine Bolt
55
Telephone: (508) 678-9000 Fax: (508) 678-9447
56
AD-30 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-30 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1 100110 1 4L-500 V-Belt (motor to idler) 2 100701 1 3/16” x 3/16” x 1” Key (for use on 3-phase [3ø] models Only) 3 101104 1 1/2” x 2” Motor Pulley (for use on 1-phase [1ø] models Only)
101132 1 5/8” x 2” Motor Pulley (for use on 3-phase [3ø] models Only)
4 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 5 153002 4 5/16” Lock Washer 6 153001 4 5/16” Flat Washer 7* 100065 1 1/2 HP 100-230v 1ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor with Plug
8 122701 8 Socket Terminal ONLY
122801 1 Pin/Socket Extraction Tool
9 137030 1 8-Pin Housing Connector 10 152004 4 5/16-18 Hex Nut 11 153002 4 5/16” Lock Washer 12 153001 4 5/16” Flat Washer 13 117600 4 Noise Suppressor Tape (sold by the foot) 14 154000 4 5/16-18 Tinnerman Nut 15 800908 1 AD-30 Non-Reversing Motor Mount ONLY (56Z frame)
803938* 1 1/2 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 7 and 13 through 20)
Plug Type Motor 803883* 1 1/2 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 7 and 13 through 22)
Non-Plug Type Motor 803809* 1 1/2 HP 208/230/380/460v 3ø 60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 7 and 13 through 22)
Non-Plug Type Motor
16 153050 2 1/2” S.A.E. Flat Washer 17 100604 1 12-1/2” Impellor (fan/blower) with 1/2” Bore 18 100702 1 1/8” x 1/8” x 1-1/2” Key 19 153050 2 1/2” S.A.E. Flat Washer 20 152006 2 1/2-20 Left Hand Jam Nut 21 120200 1 3/8” x 90° Connector 22* 100004 1 1/2 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor (56Z frame) Non-Plug Type Motor 100007 1 1/2 HP 208/230/380/460v 3ø 60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor (56Z frame) Non-Plug Type Motor
57
* Specify voltage when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
58

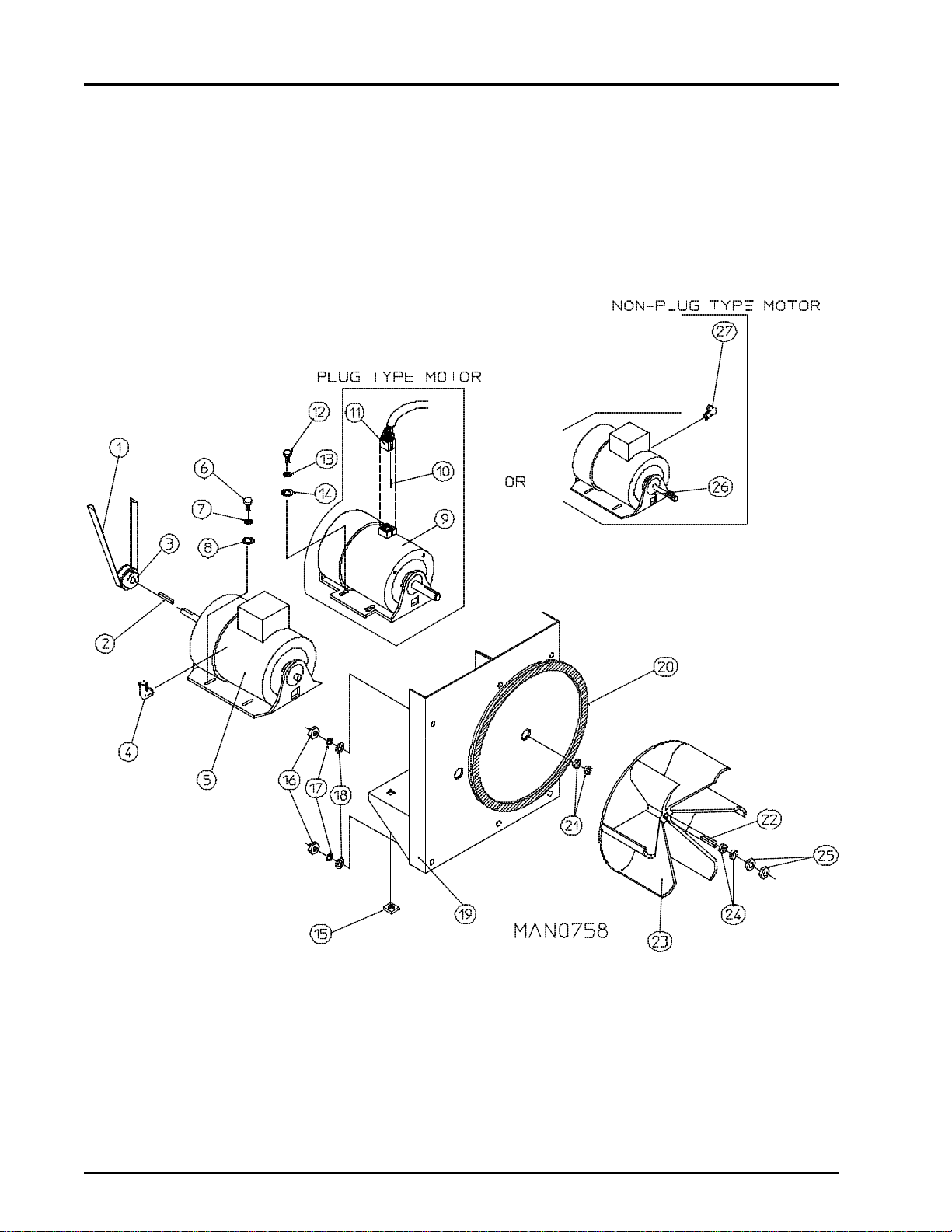

AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1 100112 1 4L-610 V-Belt (motor to idler) 2 100701 1 3/16” x 3/16” x 1” Key (for use on 3-phase [3ø] models Only) 3 101133 1 5/8” x 2-1/4” Motor Pulley (for use on 60 Hz models Only)
101130 1 5/8” x 2-1/2” Motor Pulley (for use on 50 Hz models Only)
4 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 5 153002 4 5/16” Lock Washer 6 153001 4 5/16” Flat Washer 7 120200 1 3/8” x 90° Connector 8 100033* 1 3/4 HP 120/230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor (56Z frame) 100034 1 3/4 HP 230v 1ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor
(56Z frame) 100007* 1 1/2 HP 208/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor (56Z frame)
9 152004 4 5/16-18 Hex Nut 10 153002 4 5/16” Lock Washer 11 153001 4 5/16” Flat Washer 12 117600 4 Noise Suppressor Tape (sold by the foot) 13 154000 4 5/16-18 Tinnerman Nut 14 800905 1 AD-50 Non-Reversing Motor Mount ONLY (56Z frame)
803852* 1 3/4 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19) 803793* 1 3/4 HP 230v 1ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 1 through 19) 803849* 1 1/2 HP 208/230/380/460v 3ø 60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19) 803856* 1 1/2 HP 208/230/380/460v 3ø 50 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19)
15 153050 2 1/2” S.A.E. Flat Washer 16 100604 1 12-1/2” Impellor (fan/blower) with 1/2” Bore 17 100702 1 1/8” x 1/8” x 1-1/2” Key 18 153050 2 1/2” S.A.E. Flat Washer 19 152006 2 1/2-20 Left Hand Jam Nut
59
* Specify voltage when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
60
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Non-Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1 100112 1 4L-610 V-Belt (motor to idler) 2 100701 1 3/16” x 3/16” x 1” Key 3 101133 1 5/8” x 2-1/4” Motor Pulley (for use on 60 Hz models Only)
101130 1 5/8” x 2-1/2” Motor Pulley (for use on 50 Hz models Only) 4 120200 1 3/8” x 90° Connector 5 181003* 1 1/2 HP 208/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor (56Z frame) Non-Plug Type Motor 6 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 7 153002 4 5/16” Lock Washer 8 153001 4 5/16” Flat Washer
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly (continued)
For Models Mfd. with Non-Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
9 100065 1 1/2 HP 100-230v 1ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor - Plug Type Motor
10 122701 8 Socket Terminal ONLY
122801 1 Pin/Socket Extraction Tool 11 137030 1 8-Pin Housing Connector 12 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 13 153002 4 5/16” Lock Washer 14 153001 4 5/16” Flat Washer 15 154000 8 5/16-18 Tinnerman Nut 16 152004 4 5/16-18 Hex Nut 17 153002 4 5/16” Lock Washer 18 153001 4 5/16” Flat Washer 19 800912 1 AD-50 Reversing Motor Mount ONLY
803873* 1 AD-50 1ø 50/60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly Complete - Plug Type Motor (includes illus. nos. 2 through 15 and 19 through 25)
803869* 1 AD-50 1ø 60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly Complete - Non-Plug Type Motor (includes illus. nos. 2 through 8, 12 through 15, and 19 through 27)
803940 1 AD-50 3ø 50 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly Complete - Non-Plug Type Motor
(includes illus. nos. 2 through 8, 12 through 15, and 19 through 27) 20 117600 4 Noise Suppressor Tape (sold by the foot) 21 153050 2 1/2” S.A.E. Flat Washer 22 100702 1 1/8” x 1/8” x 1-1/2” Key 23 100604 1 12-1/2” Impellor (fan/blower) with 1/2” Bore 24 153050 2 1/2” S.A.E. Flat Washer 25 152006 2 1/2-20 Left Hand Jam Nut 26 100004* 1 1/2 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor (56Z frame) Non-Plug Type Motor
100035 1 1/2 HP 230v 3ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor
(56Z frame) Non-Plug Type Motor 27 120200 1 3/8” x 90° Connector
61
* Specify voltage when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
62
AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1 100112 1 4L-610 V-Belt (motor to idler) 2 100701 1 3/16” x 3/16” x 1” Key (for use on 3-phase [3ø] models Only) 3 101130 1 5/8” x 2-1/2” Motor Pulley (for use on 60 Hz models Only)
101139 1 5/8” x 2-3/4” Motor Pulley (for use on 50 Hz models Only) 4 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 5 153002 4 5/16” Lock Washer 6 153001 4 5/16” Flat Washer 7 120200 1 3/8” x 90° Connector 8 100033* 1 3/4 HP 120/230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor (56Z frame)
100034 1 3/4 HP 230v 1ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor
(56Z frame)
100007* 1 1/2 HP 208/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor (56Z frame) 9 152004 4 5/16-18 Hex Nut 10 153002 4 5/16” Lock Washer 11 153001 4 5/16” Flat Washer 12 117600 4 Noise Suppressor Tape (sold by the foot) 13 154000 4 5/16-18 Tinnerman Nut 14 800905 1 AD-50 Non-Reversing Motor Mount ONLY
803972* 1 3/4 HP 120-230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19)
803973* 1 3/4 HP 230v 1ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 1 through 19)
803970* 1 1/2 HP 208/230/380/460v 3ø 60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19)
803971* 1 1/2 HP 208/230/380/460v 3ø 50 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Non-Reversing Motor Mount Assembly Complete
(includes illus. nos. 3 through 8 and 12 through 19) 15 153050 2 1/2” S.A.E. Flat Washer 16 100604 1 12-1/2” Impellor (fan/blower) with 1/2” Bore 17 100702 1 1/8” x 1/8” x 1-1/2” Key 18 153050 2 1/2” S.A.E. Flat Washer 19 152006 2 1/2-20 Left Hand Jam Nut
63
* Specify voltage when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
64
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
AD-50 Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
For Models Mfd. with Tapered Ribs ONLY
Illus. No. Part No. Qty. Description
1 100112 1 4L-610 V-Belt (motor to idler) 2 100701 1 3/16” x 3/16” x 1” Key 3 101130 1 5/8” x 2-1/2” Motor Pulley (for use on 30 Hz models Only)
101139 1 5/8” x 2-3/4” Motor Pulley (for use on 50 Hz models Only) 4 120200 1 3/8” x 90° Connector 5 181003* 1 1/2 HP 208/230/380/460v 3ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor (56Z frame) Non-Plug Type Motor 6 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 7 153002 4 5/16” Lock Washer 8 153001 4 5/16” Flat Washer 9 100065 1 1/2 HP 100-230v 1ø 50/60 Hz Totally Enclosed, Fan-Cooled
(T.E.F.C.) Motor - Plug Type Motor 10 122701 8 Socket Terminal ONLY
122801 1 Pin/Socket Extraction Tool 11 137030 1 8-Pin Housing Connector 12 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt 13 153002 4 5/16” Lock Washer 14 153001 4 5/16” Flat Washer 15 154000 8 5/16-18 Tinnerman Nut 16 152004 4 5/16-18 Hex Nut 17 153002 4 5/16” Lock Washer 18 153001 4 5/16” Flat Washer 19 800912 1 AD-50 Reversing Motor Mount ONLY
803974* 1 AD-50 1ø 50/60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly Complete - Plug Type Motor (includes illus. nos. 2 through 9, 12 through 15, and 19 through 25)
803977 1 AD-50 3ø 50/60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly Complete - Non-Plug Type Motor
(includes illus. nos. 2 through 8, 12 through 15, and 19 through 27) 20 117600 4 Noise Suppressor Tape (sold by the foot) 21 153050 2 1/2” S.A.E. Flat Washer 22 100702 1 1/8” x 1/8” x 1-1/2” Key 23 100604 1 12-1/2” Impellor (fan/blower) with 1/2” Bore 24 153050 2 1/2” S.A.E. Flat Washer 25 152006 2 1/2-20 Left Hand Jam Nut 26 100035 1 1/2 HP 230v 3ø 50 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor
(56Z frame) Non-Plug Type Motor 27 120200 1 3/8” x 90° Connector
65
* Specify voltage when ordering.
Telephone: (508) 678-9000 Fax: (508) 678-9447
66

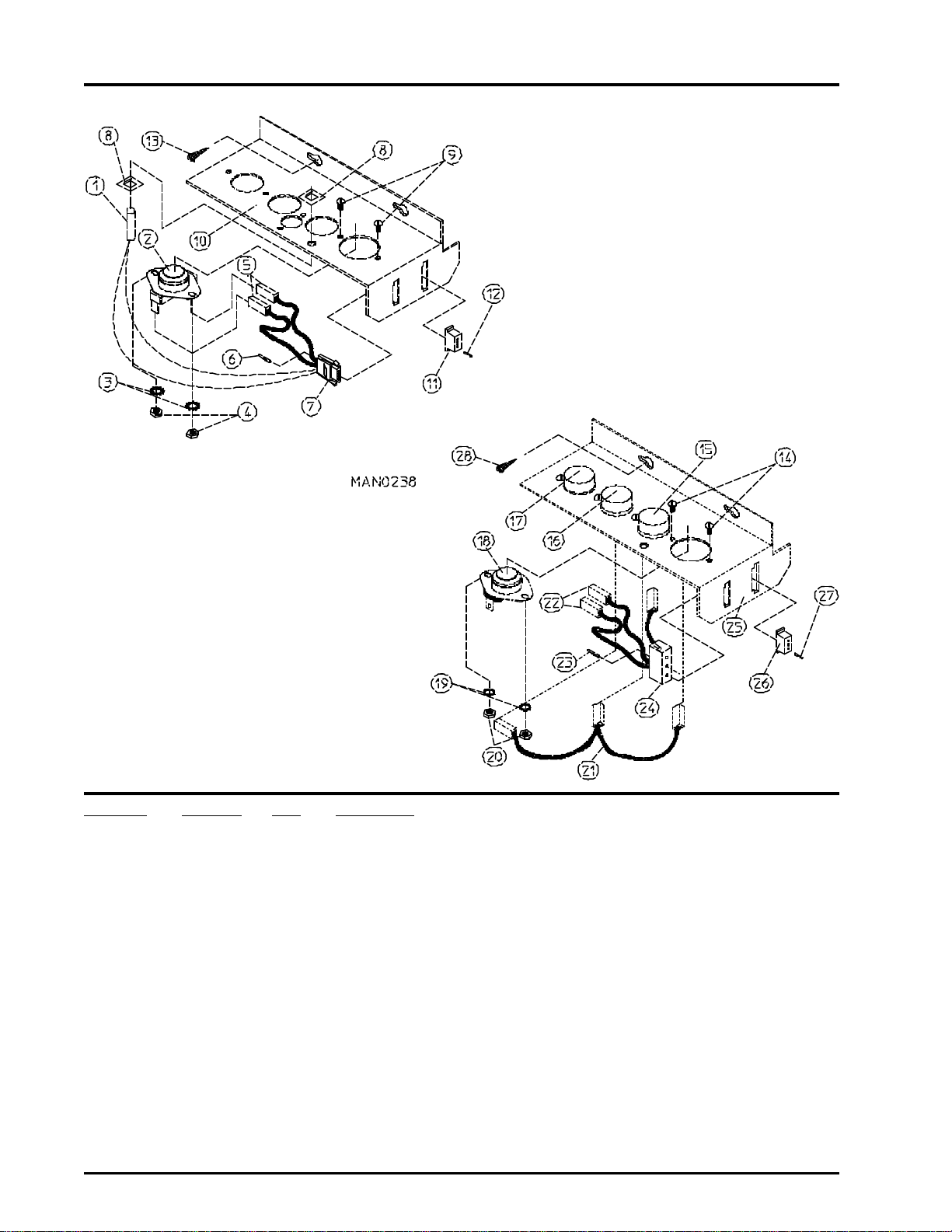

Sensor Bracket Assemblies
Microprocessor Sensor Bracket
Assembly
Non-Computer
Sensor Bracket
Assembly
Illus. No. Part No. Qty. Description
1 880251 1 1/4” Temperature Sensor Probe Assembly
(includes illus. nos. 1 and 5 through 8) 2 130301 1 225° Large Manual Reset Thermostat 3 153010 2 #6 Star Washer 4 152000 2 #6-32 Hex Nut 5 121028 2 Insulated Terminal ONLY 6 122701 4 Socket Terminal ONLY 7 122605 1 4-Pin Socket Connector ONLY 8 154007 2 1/4” Tinnerman Push On Fastener 9 150000 2 #6-32 x 1/4” Slotted Round Head Machine Screw 10 801425 1 Microprocessor Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 10)
305007 1 Universal Sensor Bracket ONLY 11 122604 1 4-Pin Connector ONLY 12 122700 4 Pin Terminal ONLY 13 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Sensor Bracket Assemblies (continued)
Illus. No. Part No. Qty. Description
14 150005 * #6-32 x 1/4” Phillips Round Head Machine Screw 15 130100 1 150° Large Thermostat
130109 1 140° Large Thermostat (for UniDryer® models Only)
16 130301 1 225° Large Manual Reset Thermostat
130107 1 160° Large Thermostat (for UniDryer® models Only) 17 130301 1 225° Large Manual Reset Thermostat (for UniDryer® models Only) 18 130101 1 180° Large Thermostat 19 153010 * #6 Star Washer 20 152000 * #6-32 Hex Nut 21 840063 1 Sensor Jumper Three (3) ONLY
840065 1 Sensor Jumper Four (4) ONLY (for UniDryer® models Only) 22 121028 ** Insulated Terminal ONLY 23 122701 *** Socket Terminal ONLY 24 122609 1 3-Pin Socket Connector ONLY
122605 1 4-Pin Socket Connector ONLY (for UniDryer® models Only)
831702 1 Sensor Three (3) Bracket Harness Assembly
(includes illus. nos. 22 through 24)
840062 1 Sensor Four (4) Bracket Harness Assembly
(includes illus. nos. 22 through 24) For UniDryer® Models ONLY
25 801405 1 Non-Computer Sensor Three (3) Bracket Assembly Complete
with Thermostats (includes illus. nos. 14 through 25) For Models Mfd. as of August 1, 1993
801411 1 Non-Computer Sensor Four (4) Bracket Assembly Complete
with Thermostats (includes illus. nos. 14 through 25) For UniDryer® Models ONLY
305007 1 Universal Sensor Bracket ONLY 26 122608 1 3-Pin Connector ONLY
122604 4-Pin Connector ONLY
(for UniDryer® models Only)
27 122700 *** Pin Terminal ONLY
122801 1 Pin/Socket Extraction Tool 28 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
67
* Quantity is 4 or 5. ** Quantity is 6 or 8. *** Quantity is 3 or 4.
Telephone: (508) 678-9000 Fax: (508) 678-9447
68
ADG-30 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar® Ignition ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
ADG-30 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar® Ignition ONLY
Illus. No. Part No. Qty. Description
1* ---------** 1 ADG-30 Standard Non-Hi/Lo Burner Assembly Complete Less Orifices
(includes illus. nos. 1 through 20 and 22 through 30) Refer to Globar® Burner Assembly Listing on page 100
804004 1 Non-Heat Reclaimer Burner Box ONLY 2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw 4 130401 1 330° Hi-Limit 5 319704 1 Hi-Limit Mounting Bracket ONLY 6 151000 2 #6-32 Pal Nut 7 152001 2 #8-32 Hex Nut 8 153012 1 #8 Star Washer 9 130500 1 Infrared (IR) Sensor ONLY 10 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 12 802705 1 Infrared (IR)/Globar® Mounting Bracket ONLY 13 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 14 153000 2 #8 Steel Burr 15 151001 2 #8-32 Pal Nut 16 141105 2 Large Burner Tube 17 150002 1 #6-32 x 1” Phillips Round Head Machine Screw 18 153017 1 #6 Steel Burr 19 128910 1 Globar® ONLY 20 151000 2 #6-32 Pal Nut 21* --------- 2 Burner Orifice
(refer to Globar® Burner Orifice Listing on page 100)
22 141206 1 3/8” Swage Manifold ONLY 23 319501 1 3/8” Gas Valve Mounting Bracket ONLY 24 150301 3 #8-18 x 7/16” Phillips Pan Head TEK Screw 25 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 26 140004 1 3/8” Globar® (natural gas) Gas Valve
140402 1 3/8” Valve Liquid Propane (L.P.) Conversion Kit 27 318700 2 Pipe Bracket (bent) 28 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 29 142809 1 1/2” x 29-1/8” Pipe 30 881367 1 1/2” Union Shutoff with Tail Piece
--- ---------* 1 Conversion Kit
(refer to Globar® Liquid Propane [L.P.] Conversion Kit Listing on page 100)
--- 410000 1 3/8” Allen Wrench
69
* Consult factory for elevations over 2,000 feet. ** Burner orifices are not included and must be ordered separately.
Telephone: (508) 678-9000 Fax: (508) 678-9447
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
70

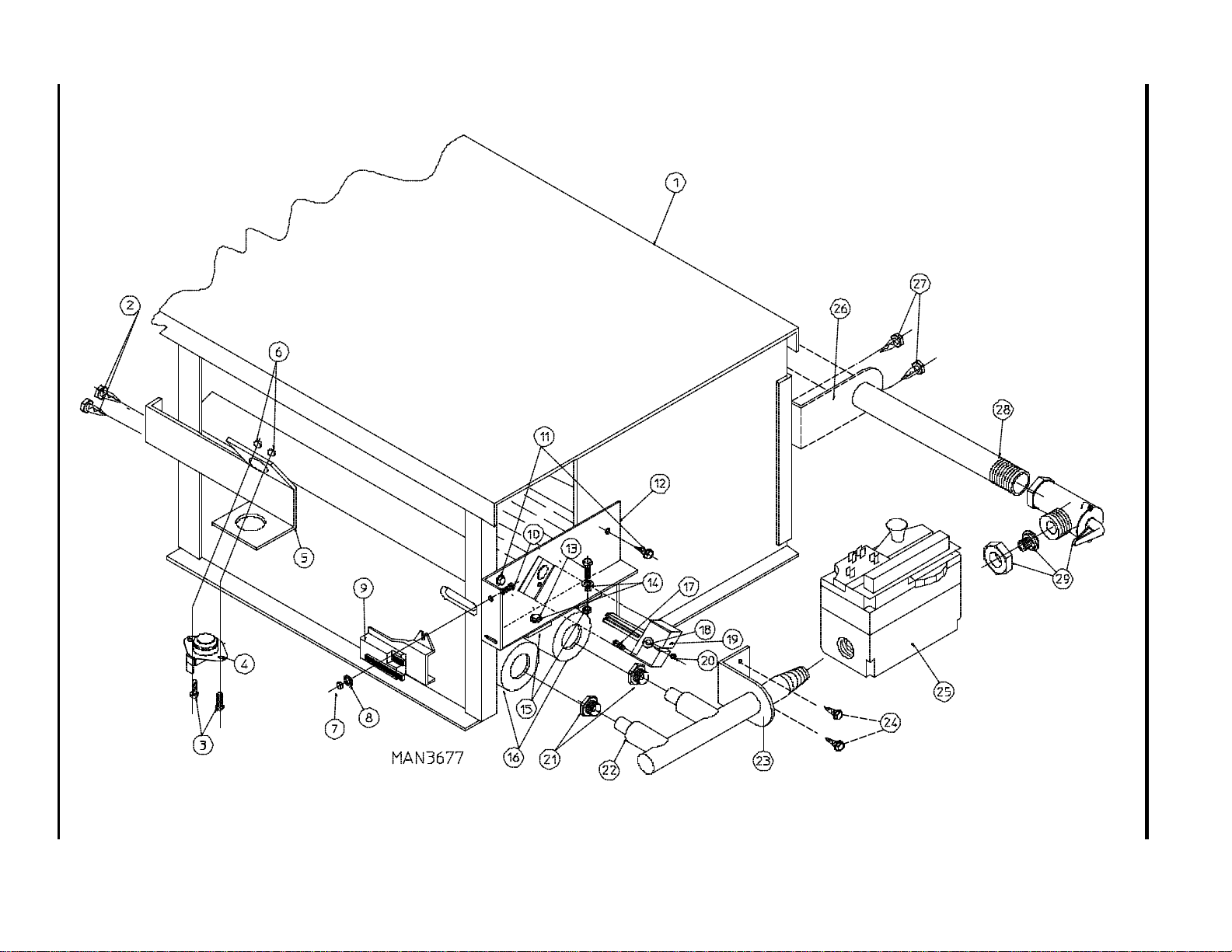

ADG-50 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar
®
Ignition ONLY
ADG-50 Standard Non-Hi/Lo Burner Assembly
For Models Mfd. with Globar® Ignition ONLY
Illus. No. Part No. Qty. Description
1* ---------** 1 ADG-50 Standard Non-Hi/Lo Burner Assembly Complete Less Orifices
(includes illus. nos. 1 through 20 and 22 through 29) Refer to Globar® Burner Assembly Listing on page 100
804004 1 Non-Heat Reclaimer Burner Box ONLY 2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw 4 130401 1 330° Hi-Limit 5 319704 1 Hi-Limit Mounting Bracket ONLY 6 151000 2 #6-32 Pal Nut 7 152001 2 #8-32 Hex Nut 8 153012 1 #8 Star Washer 9 130500 1 Infrared (IR) Sensor ONLY 10 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 12 802705 1 Infrared (IR)/Globar® Mounting Bracket ONLY 13 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 14 153000 2 #8 Steel Burr 15 151001 2 #8-32 Pal Nut 16 141105 2 Large Burner Tube 17 150002 1 #6-32 x 1” Phillips Round Head Machine Screw 18 153017 1 #6 Steel Burr 19 128910 1 Globar® ONLY 20 151000 2 #6-32 Pal Nut 21* --------- 2 Burner Orifice
(refer to Globar® Burner Orifice Listing on page 100)
22 141205 1 1/2” Manifold ONLY (2-port) 23 318700 1 Pipe Bracket (bent) 24 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 25 140005 1 1/2” Globar® (natural gas) Gas Valve
140411 1 1/2” Valve Liquid Propane (L.P.) Conversion Kit 26 318700 2 Pipe Bracket (bent) 27 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 28 142809 1 1/2” x 29-1/8” Pipe 29 881367 1 1/2” Union Shutoff with Tail Piece
--- ---------* 1 Conversion Kit
(refer to Globar® Liquid Propane [L.P.] Conversion Kit Listing on page 100)
--- 410001 1 1/2” Allen Wrench
71
* Consult factory for elevations over 2,000 feet. ** Burner orifices are not included and must be ordered separately.
Telephone: (508) 678-9000 Fax: (508) 678-9447
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
72
ADG-30/ADG-50 Hi/Lo Computerized Burner Assembly
For Models Mfd. with Globar
®
Ignition ONLY
ADG-30/ADG-50 Hi/Lo Computerized Burner Assembly
For Models Mfd. with Globar® Ignition ONLY
Illus. No. Part No. Qty. Description
1* ---------** 1 ADG-50 Standard Non-Hi/Lo Burner Assembly Complete Less Orifices
(includes illus. nos. 1 through 20 and 22 through 29) Refer to Globar® Burner Orifice Listing on page 100
804004 1 Non-Heat Reclaimer Burner Box ONLY 2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw 4 130401 1 330° Hi-Limit 5 319704 1 Hi-Limit Mounting Bracket ONLY 6 151000 2 #6-32 Pal Nut 7 152001 2 #8-32 Hex Nut 8 153012 1 #8 Star Washer 9 130500 1 Infrared (IR) Sensor ONLY 10 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 12 802705 1 Infrared (IR)/Globar® Mounting Bracket ONLY 13 150108 2 #8-32 x 1/2” Phillips Pan Head Screw 14 153000 2 #8 Steel Burr 15 151001 2 #8-32 Pal Nut 16 141105 2 Large Burner Tube 17 150002 1 #6-32 x 1” Phillips Round Head Machine Screw 18 153017 1 #6 Steel Burr 19 128910 1 Globar® ONLY 20 151000 2 #6-32 Pal Nut 21* --------- 2 Burner Orifice
(refer to Globar® Burner Assembly Listing on page 100)
22 141205 1 1/2” Manifold ONLY (2-port) 23 318700 1 Pipe Bracket (bent) 24 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 25 140010 1 1/2” Hi/Lo Globar® (natural gas) Gas Valve
140011 1 1/2” Hi/Lo Globar® Liquid Propane (L.P.) Gas Valve 26 318700 2 Pipe Bracket (bent) 27 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 28 142809 1 1/2” x 29-1/8” Pipe 29 881367 1 1/2” Union Shutoff with Tail Piece
--- ---------* 1 Liquid Propane (L.P.) Conversion Kit
(refer to Globar® Liquid Propane [L.P.] Conversion Kit Listing on page 100)
--- 410001 1 1/2” Allen Wrench
73
* Consult factory for elevations over 2,000 feet. ** Burner orifices are not included and must be ordered separately.
Telephone: (508) 678-9000 Fax: (508) 678-9447
74
ADG-30/ADG-50 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. with Direct Spark Ignition (DSI) ONLY
Direct Spark Ignition (DSI) module may be mounted on the left outside wall (as shown) or it may be mounted on the inside of the left side panel.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
ADG-30/ADG-50 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. with Direct Spark Ignition (DSI) ONLY
Illus. No. Part No. Qty. Description
1 318030 1 Direct Spark Ignition (DSI) Burner Shield (2-tube) 2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 3 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 4 128915 1 Direct Spark Ignition (DSI) Ignitor/Flame-Probe Assembly
880134 1 Ignitor/Flame-Probe Kit Assembly
(includes high voltage [HV] wire and connector assembly) 5 880330 1 High Voltage (HV) Wire and Connector Assembly 6 150103 2 #8-32 x 1/2” Pan Head Machine Screw 7 153000 2 #8 Steel Burr 8 151001 2 #8-32 Pal Nut 9 141105 2 Large Tube Burner ONLY 10* --------- 2 Burner Orifice
(refer to Direct Spark Ignition [DSI] Burner Orifice Listing
on page 101) 11 141230 1 1/2” Direct Spark Ignition (DSI) Manifold (2-port) 12 318700 1 Pipe Bracket (bent) 13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 14 128927 1 1/2” Direct Spark Ignition (DSI) 24 VAC Redundant (natural gas)
Gas Valve
140411 1 1/2” Valve Liquid Propane (L.P.) Conversion Kit 880960 1 1/2” Direct Spark Ignition (DSI) Gas Valve/Liquid Propane (L.P.)
Conversion Kit Combination 15 881367 1 1/2” Union Shutoff with Tail Piece 16 142809 1 1/2” x 29-1/8” Pipe 17 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw 18 318700 2 Pipe Bracket (bent) 19* ---------** 1 Direct Spark Ignition (DSI) Burner Assembly Complete Less Orifices
(includes illus. nos. 1 through 9 and 11 through 23)
Refer to Direct Spark Ignition (DSI) Burner Assembly Listing
on page 101
850851 1 Non-Heat Reclaimer Burner Box ONLY 850861 1 Heat Reclaimer Burner Box ONLY
20 880815 1 ADC Direct Spark Ignition (DSI) Module ONLY (50/60 Hz) 21 150299 4 #10 x 1” Hex Washer TEK Screw 22 319505 1 Direct Spark Ignition (DSI) Module Mounting Bracket ONLY 23 150301 *** #8-18 x 7/16” Phillips Pan Head TEK Screw
--- --------- 1 Conversion Kit
(refer to Direct Spark Ignition [DSI] Liquid Propane [L.P.]
Conversion Kit Listing on page 101)
75
* Consult factory for elevations over 2,000 feet. ** Burner orifices are not included and must be ordered separately. *** As required.
Telephone: (508) 678-9000 Fax: (508) 678-9447
76
ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. as of November 12, 1990
ELECTRIC OVEN (FRONT VIEW)
ELECTRIC OVEN (REAR VIEW)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. as of November 12, 1990
Illus. No. Part No. Qty. Description
1 803005 1 Large Electric Oven Box ONLY
---------* 1 Electric Oven Assembly Complete 2 ---------* - Electric Element 3 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 4 802800 1 Sail Switch Box with Bracket and Cover ONLY
802801 1 Sail Switch Box Assembly Complete
(includes illus. nos. 4 through 12) 5 154004 1 Twin Speed Nut 6 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 7 802799 1 Sail Switch Box Cover and Bracket ONLY 8 122200 1 Sail Switch ONLY 9 150303 2 #4 x 3/4” Phillips Pan Head “A” Machine Screw 10 105500 1 Sail Switch Actuator Rod 11 319202 1 Sail Switch Damper (flat) 12 154002 1 1/8” Push On Fastener 13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 14 803100 1 Electric Oven Front Cover ONLY 15 320611 1 Large Relay Box Cover ONLY 16 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw 17 130400 1 290° Hi-Limit 18 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 19 154001 2 #10-24 Speed Nut 20 121012 1 L-70 Ground Lug 21 152014 3 1/4-20 Free Spin Wash Nut 22 ---------* 1 Oven Relay 23 ---------* 1 Oven Relay Replacement Coil 24 120081 - Internal Ceramic Insulator (2 per element) 25 120080 - External Ceramic Insulator (2 per element) 26 152008 - #10-32 Hex Nut (4 per element) 27 121011* - Bus Bar (sold by the foot) 28 ---------* - Terminal Lug 29 153009 - #10 Star Washer (2 per element) 30 320301 1 Large Electric Oven Right Side Cover ONLY 31 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
77
* Refer to ADE-30/ADE-50 Electric Oven Component Application Charts on page 102.
Telephone: (508) 678-9000 Fax: (508) 678-9447
78

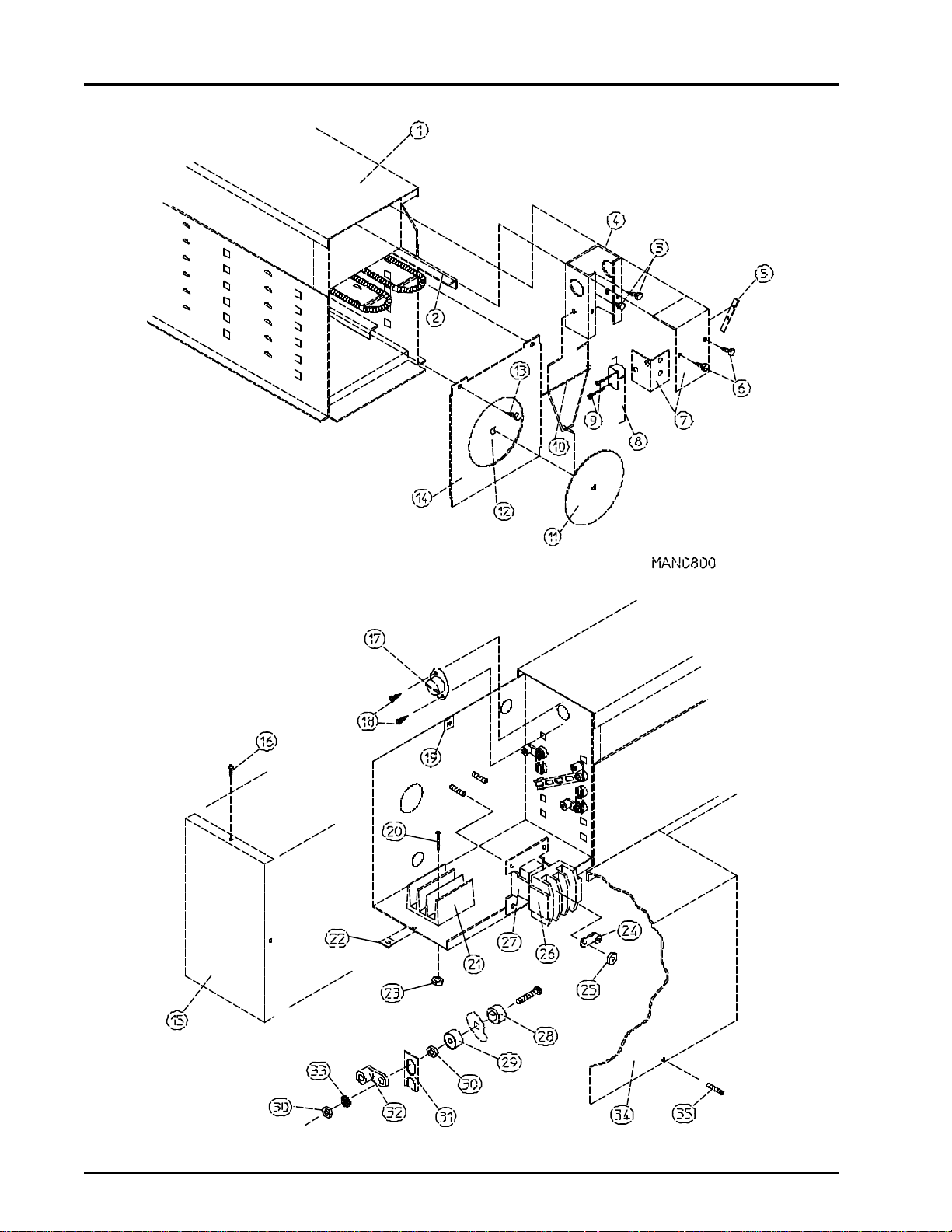

ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. prior to November 12, 1990
ELECTRIC OVEN (FRONT VIEW)
ELECTRIC OVEN (REAR VIEW)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
ADE-30/ADE-50 Electric Oven Assembly
For Models Mfd. prior to November 12, 1990
Illus. No. Part No. Qty. Description
1 803001 1 Large Electric Oven Box ONLY
---------* 1 Electric Oven Assembly Complete 2 ---------* - Electric Element 3 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 4 802800 1 Sail Switch Box with Bracket and Cover ONLY
802801 1 Sail Switch Box Assembly Complete
(includes illus. nos. 4 through 12) 5 154004 1 Twin Speed Nut 6 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 7 802799 1 Sail Switch Box Cover and Bracket ONLY 8 122200 1 Sail Switch ONLY 9 150303 2 #4 x 3/4” Phillips Pan Head “A” Machine Screw 10 105500 1 Sail Switch Actuator Rod 11 319202 1 Sail Switch Damper (flat) 12 154002 1 1/8” Push On Fastener 13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 14 803100 1 Electric Oven Front Cover ONLY 15 320611 1 Large Relay Box Cover ONLY 16 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw 17 130400 1 290° Hi-Limit 18 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 19 154001 2 #10-24 Speed Nut 20 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw 21 120704 -* Terminal Block 22 154001 2 #10-24 Speed Nut 23 152001 2 #8-32 Hex Nut 24 121012 1 L-70 Ground Lug 25 152014 3 1/4-20 Free Spin Wash Nut 26 ---------* 1 Oven Relay 27 ---------* 1 Oven Relay Replacement Coil 28 120081 - Internal Ceramic Insulator (2 per element) 29 120080 - External Ceramic Insulator (2 per element) 30 152008 - #10-32 Hex Nut (4 per element) 31 121011* - Bus Bar (sold by the foot) 32 ---------* - Terminal Lug 33 153009 - #10 Star Washer (2 per element) 34 320301 1 Large Electric Oven Right Side Cover ONLY 35 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
79
* Refer to ADE-30/ADE-50 Electric Oven Component Application Charts on page 103.
Telephone: (508) 678-9000 Fax: (508) 678-9447
80

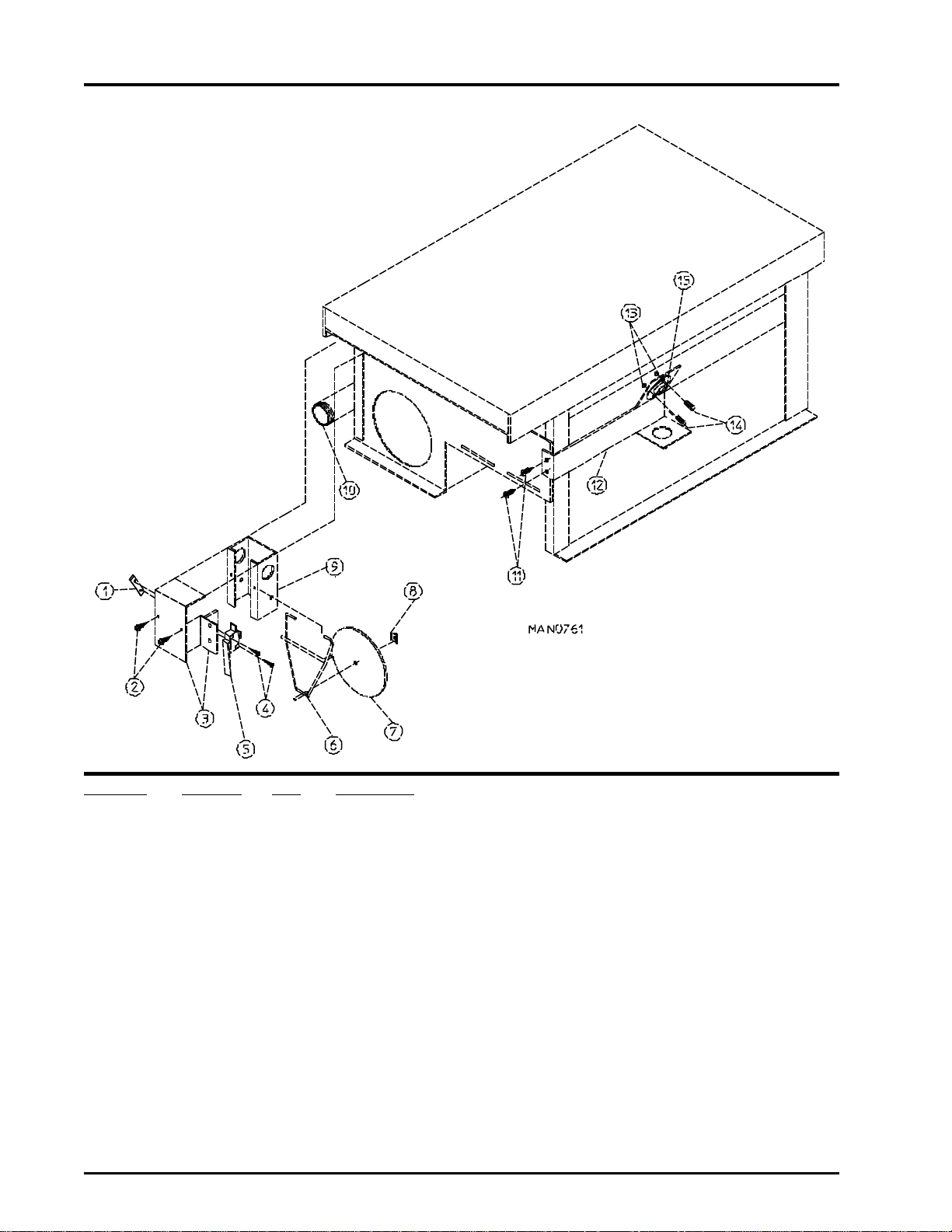

ADG-30/ADG-50 Sail Switch/Hi-Limit Assemblies
For Globar® Models and Direct Spark Ignition (DSI) Models ONLY
Illus. No. Part No. Qty. Description
1 154004 1 Twin Speed Nut 2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 802799 1 Sail Switch Box Cover and Bracket ONLY 4 150303 2 #4 x 3/4” Phillips Pan Head “A” Machine Screw 5 122200 1 Sail Switch ONLY 6 105500 1 Sail Switch Actuator Rod 7 319202 1 Sail Switch Damper (flat) 8 154002 1 1/8” Push On Fastener 9 802800 1 Sail Switch Box with Cover and Bracket ONLY
802801 1 Sail Switch Assembly Complete
(includes illus. nos. 1 through 8) 10 142809 1 1/2” x 29-1/8” Pipe 11 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 12 319704 1 Hi-Limit Mounting Bracket ONLY 13 151000 2 #6-32 Pal Nut 14 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw 15 130401 1 330° Hi-Limit ONLY
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
ADG-30/ADG-50 Replacement Coils For 3/8” Non-Hi/Lo Gas Valve
For Globar® Ignition Models ONLY
81
Illus. No. Part No. Qty. Description
1 140111 1 Holding Coil 2 140112 1 Booster Coil 3 140110 1 Secondary Coil
Telephone: (508) 678-9000 Fax: (508) 678-9447
82
ADG-30/ADG-50 Replacement Coils For 3/8” Hi/Lo Gas Valve
For Globar® Ignition Models ONLY
Illus. No. Part No. Qty. Description
1 140116 1 Holding Coil 2 140115 1 Booster Coil 3 140117 1 Secondary Coil 4 140118 1 Hi/Lo Coil
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Microprocessor Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays
83
Illus. No. Part No. Qty. Description
1 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw 2 322808 1 Control Box Cover Plate ONLY (12” x 8-1/2”) 3 137060 1 Arc Suppressor (A.S.) Board Three (3) 4 137013 4 Nylon Standoff 5 153002 2 5/16” Lock Washer 6 152004 2 5/16-18 Hex Nut 7 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 8 132425 1 Impellor (blower/fan) Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
132427 1 Impellor (blower/fan) Contactor Replacement Coil
(for 208/230/240 volt - 50/60 Hz models Only) 9 151001 2 #8-32 Pal Nut 10 322807 1 Contactor Mounting Panel ONLY 11 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 12 132426 1 Reversing Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
132427 2 Reversing Contactor Replacement Coil
(for 208/230/240 volt - 50/60 Hz models Only) 13 151001 2 #8-32 Pal Nut
Telephone: (508) 678-9000 Fax: (508) 678-9447
84
Dual Timer Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays
Illus. No. Part No. Qty. Description
1 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw 2 322808 1 Control Box Cover Plate ONLY (12” x 8-1/2”) 3 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 4 132200 1 Reversing Timer (60 Hz)
132202 1 Reversing Timer (50 Hz) 5 151001 2 #8-32 Pal Nut 6 153002 2 5/16” Lock Washer 7 152004 2 5/16-18 Hex Nut 8 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 9 132425 1 Impellor (blower/fan) Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
132427 1 Impellor (blower/fan) Contactor Replacement Coil
(for 208/230/240 volt - 50/60 Hz models Only) 10 151001 2 #8-32 Pal Nut 11 322807 1 Contactor Mounting Panel ONLY 12 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 13 132426 1 Reversing Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
132427 2 Reversing Contactor Replacement Coil
(for 208/230/240 volt - 50/60 Hz models Only) 14 151001 2 #8-32 Pal Nut
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Microprocessor Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Dunco (Struthers-Dunn) Relays
85
Illus. No. Part No. Qty. Description
1 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw 2 322808 1 Control Box Cover Plate ONLY (12” x 8-1/2”) 3 137060 1 Arc Suppressor (A.S.) Board Three (3) 4 137013 4 Nylon Standoff 5 153002 2 5/16” Lock Washer 6 152004 2 5/16-18 Hex Nut 7 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 8 132400 1 Impellor (blower/fan) Contactor
(for 208 volt models Only) 9 151001 2 #8-32 Pal Nut 10 322807 1 Contactor Mounting Panel ONLY 11 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 12 132404 1 Reversing Contactor
(for 208 volt - 60 Hz models Only)
132401 2 Reversing Contactor
(for 220/230 volt - 60 Hz models Only) 13 132416 1 Reversing Contactor Replacement Coil
(for 208 volt - 60 Hz models Only)
132415 2 Reversing Contactor Replacement Coil
(for 220/230 volt - 60 Hz models Only)
132407 2 Reversing Contactor Replacement Coil
(for 240 volt - 50 Hz models Only) 14 151001 2 #8-32 Pal Nut
Telephone: (508) 678-9000 Fax: (508) 678-9447
86
Dual Timer Reversing Rear Control Box Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Dunco (Struthers-Dunn) Relays
Illus. No. Part No. Qty. Description
1 150301 6 #8-18 x 7/16” Phillips Pan Head TEK Screw 2 322808 1 Control Box Cover Plate ONLY (12” x 8-1/2”) 3 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 4 132200 1 Reversing Timer (60 Hz)
132202 1 Reversing Timer (50 Hz) 5 151001 2 #8-32 Pal Nut 6 153002 2 5/16” Lock Washer 7 152004 2 5/16-18 Hex Nut 8 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 9 132400 1 Impellor (blower/fan) Contactor
(for 208/230/240 volt - 50/60 Hz models Only) 10 151001 2 #8-32 Pal Nut 11 322807 1 Contactor Mounting Panel ONLY 12 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw 13 132404 1 Reversing Contactor
(for 208 volt - 60 Hz models Only)
132401 2 Reversing Contactor
(for 220/230 volt - 60 Hz models Only) 14 132416 1 Reversing Contactor Replacement Coil
(for 208 volt - 60 Hz models Only)
132415 2 Reversing Contactor Replacement Coil
(for 220/230 volt - 60 Hz models Only)
132407 2 Reversing Contactor Replacement Coil
(for 240 volt - 50 Hz models Only) 15 151001 2 #8-32 Pal Nut
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

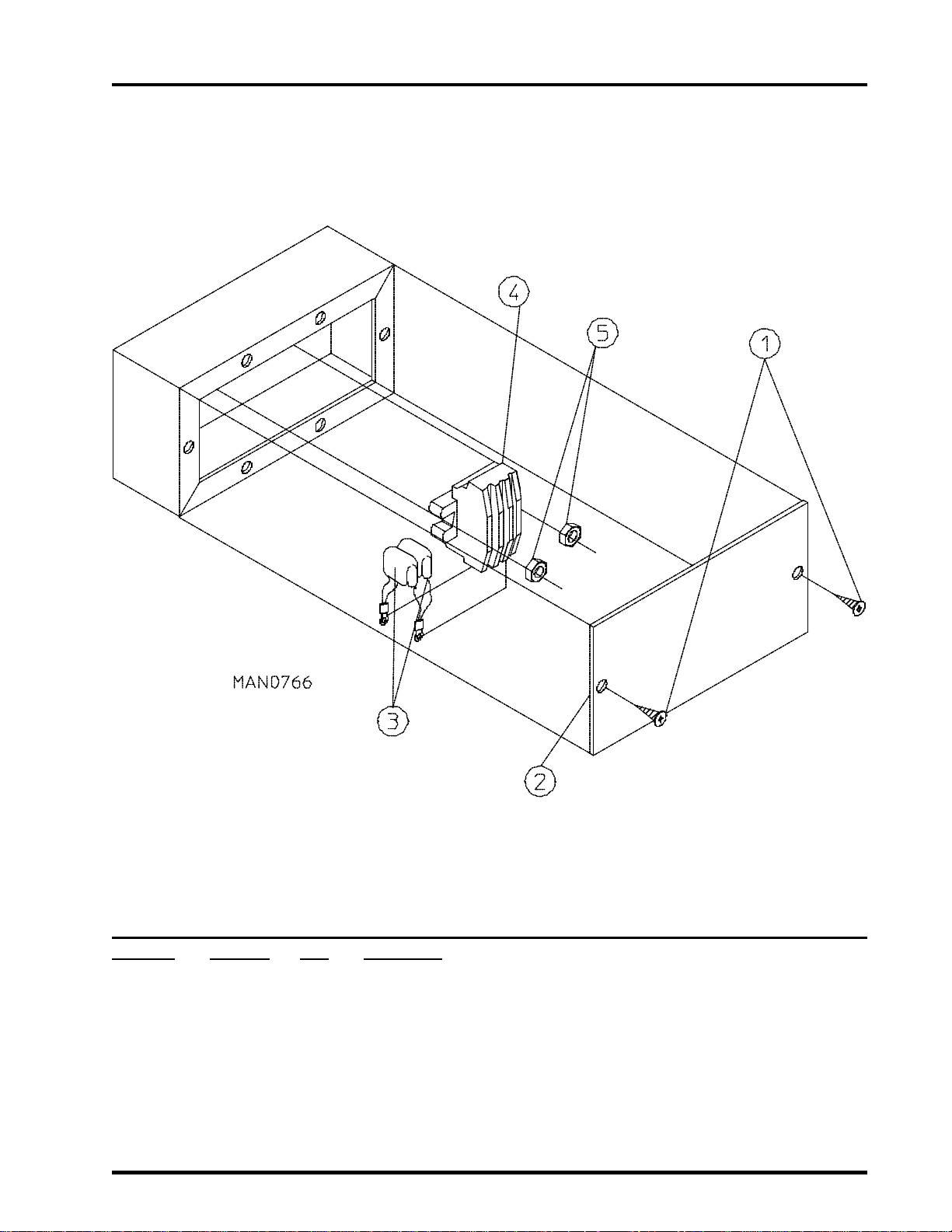

3-Phase (3Ø) Motor, Electric Relay Panel Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Furnas Relays
87
Illus. No. Part No. Qty. Description
1 150309 6 #10-16 x 1/2” Hex Head TEK Crimptite Screw 2 311913 1 Service Box Cover Plate ONLY (9-7/8” x 4-3/8”)
311921 1 Service Box Cover Plate ONLY (9-7/8” x 5-3/4”) 3* 880662 1 Dual RC Suppressor with Tab Receptacle ONLY 4 132400 1 Impellor (blower/fan) Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
5 151001 2 #8-32 Pal Nut
* Used on microprocessor controller (computer) models ONLY.
Telephone: (508) 678-9000 Fax: (508) 678-9447
88
3-Phase (3Ø) Motor, Electric Relay Panel Assembly
For Models Mfd. with 208 Volt or 230 Volt Controls with Telemecanique Relays
Illus. No. Part No. Qty. Description
1 150309 6 #10-16 x 1/2” Hex Head TEK Crimptite Screw 2 311913 1 Service Box Cover Plate ONLY (9-7/8” x 4-3/8”)
311921 1 Service Box Cover Plate ONLY (9-7/8” x 5-3/4”) 3* 137015 1 Arc Suppressor (A.S.) Capacitor ONLY 4 132425 1 Impellor (blower/fan) Contactor
(for 208/230/240 volt - 50/60 Hz models Only)
132427 1 Impellor (blower/fan) Contactor Replacement Coil
(for 208/230/240 volt - 50/60 Hz models Only) 5 150108 4 #8-32 x 1/2” Phillips Pan Head Machine Screw 6 150300 2 #10-16 x 1/2” Hex Washer TEK Screw 7 151001 4 #8-32 Pal Nut 8 311920 1 3-Phase (3ø) Non-Reversing Contactor Mounting Bracket
* Used on microprocessor controller (computer) models ONLY.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Control/Heat Step Down Transformer
For Globar® Models and High Pressure Motorized Steam Valve Models ONLY
89
Illus. No. Part No. Qty. Description
1* 132002 1 200 Watt Transformer (terminals are not included)
For 120 Volt Models ONLY
880210 1 Terminal Package for Globar® Transformer 2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw 3 121400 2 Universal Bushing
* Used on models with 208 volt and 230 volt controls ONLY.
Telephone: (508) 678-9000 Fax: (508) 678-9447
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
90
ADS-30 Steam Coil Damper Assembly
ADS-30 Steam Coil Damper Assembly
Illus. No. Part No. Qty. Description
1 165008 1 ADS-30 Steam Coil Assembly 2 153002 6 5/16” Lock Washer 3 152004 6 5/16-18 Hex Nut 4 152002 4 1/4-20 Hex Nut 5 153007 4 1/4” Lock Washer 6 820321 2 Damper Hinge Assembly 7 803416 1 ADS-30 Steam Damper Assembly
(includes illus. nos. 7, 10, and 11) 8 153007 4 1/4” Lock Washer 9 152002 4 1/4-20 Hex Nut 10 115995 36 Steam Damper Gasket (sold by the inch) 11 102350 1 Steam Damper Gasket (68-1/2” length) 12 151007 1 7/16-20 Stainless Steel Acorn Nut 13 152007 1 7/16-20 Hex Nut 14 100495 1 1-1/16” x 3” Stroke Piston 15 323365 2 Left and Right Piston Support 16 152002 2 1/4-20 Hex Nut 17 153007 2 1/4” Lock Washer 18 100472 1 1/4” x 1/8” Connector 19 143110 1 1/4” Tubing (sold by the foot) 20 100472 1 1/4” x 1/8” Connector 21 100496 1 1/8” Needle Valve 22 143238 1 1/8” Close Nipple 23 100498 1 3-Way Micro Valve - 24 VAC 24 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 25 153010 2 #6 Star Washer 26 152000 2 #6-32 Hex Nut 27 330987 1 Micro Valve Support Bracket 28 152002 2 1/4-20 Hex Nut 29 153007 2 1/4” Lock Washer 30 100520 1 1/8” N.P.T. Silencer (muffler)
91
Telephone: (508) 678-9000 Fax: (508) 678-9447
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
92
ADS-50 Steam Coil Damper Assembly
ADS-50 Steam Coil Damper Assembly
Illus. No. Part No. Qty. Description
1 165011 1 ADS-50 Steam Coil Assembly 2 153002 6 5/16” Lock Washer 3 152004 6 5/16-18 Hex Nut 4 152002 4 1/4-20 Hex Nut 5 153007 4 1/4” Lock Washer 6 820321 2 Damper Hinge Assembly 7 803417 1 ADS-50 Steam Damper Assembly
(includes illus. nos. 7, 10, and 11) 8 153007 4 1/4” Lock Washer 9 152002 4 1/4-20 Hex Nut 10 115995 36 Steam Damper Gasket (sold by the inch) 11 102350 1 Steam Damper Gasket (68-1/2” length) 12 151007 1 7/16-20 Stainless Steel Acorn Nut 13 152007 1 7/16-20 Hex Nut 14 100495 1 1-1/16” x 3” Stroke Piston 15 323365 2 Left and Right Piston Support 16 152002 2 1/4-20 Hex Nut 17 153007 2 1/4” Lock Washer 18 100472 1 1/4” x 1/8” Connector 19 143110 1 1/4” Tubing (sold by the foot) 20 100472 1 1/4” x 1/8” Connector 21 100496 1 1/8” Needle Valve 22 143238 1 1/8” Close Nipple 23 100498 1 3-Way Micro Valve - 24 VAC 24 150002 2 #6-32 x 1” Phillips Round Head Machine Screw 25 153010 2 #6 Star Washer 26 152000 2 #6-32 Hex Nut 27 330987 1 Micro Valve Support Bracket 28 152002 2 1/4-20 Hex Nut 29 153007 2 1/4” Lock Washer 30 100520 1 1/8” N.P.T. Silencer (muffler)
93
Telephone: (508) 678-9000 Fax: (508) 678-9447
94
ADS-30/ADS-50 Steam Coil/Valve Assembly
For Motorized Type and Solenoid Type Models ONLY
Illus. No. Part No. Qty. Description
1 803500 1 Large Steam Rack (for high pressure Only)
803501 1 Large Steam Rack (for low pressure Only) 2 150300 6 #10-16 x 1/2” Hex Washer TEK Screw 3 165002 1 Large Steam Coil (for high pressure Only)
165003 1 Large Steam Coil (for low pressure Only) 4 142711 1 1” Closed Nipple (for high pressure Only)
142713 1 1-1/4” Closed Nipple (for low pressure Only) 5 165107 1 1” Motorized Steam Valve (for high pressure Only)
165102 1 1-1/4” Solenoid Valve - 120 VAC (for low pressure Only)
165103 1 1-1/4” Solenoid Valve - 230 VAC (for low pressure Only)
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

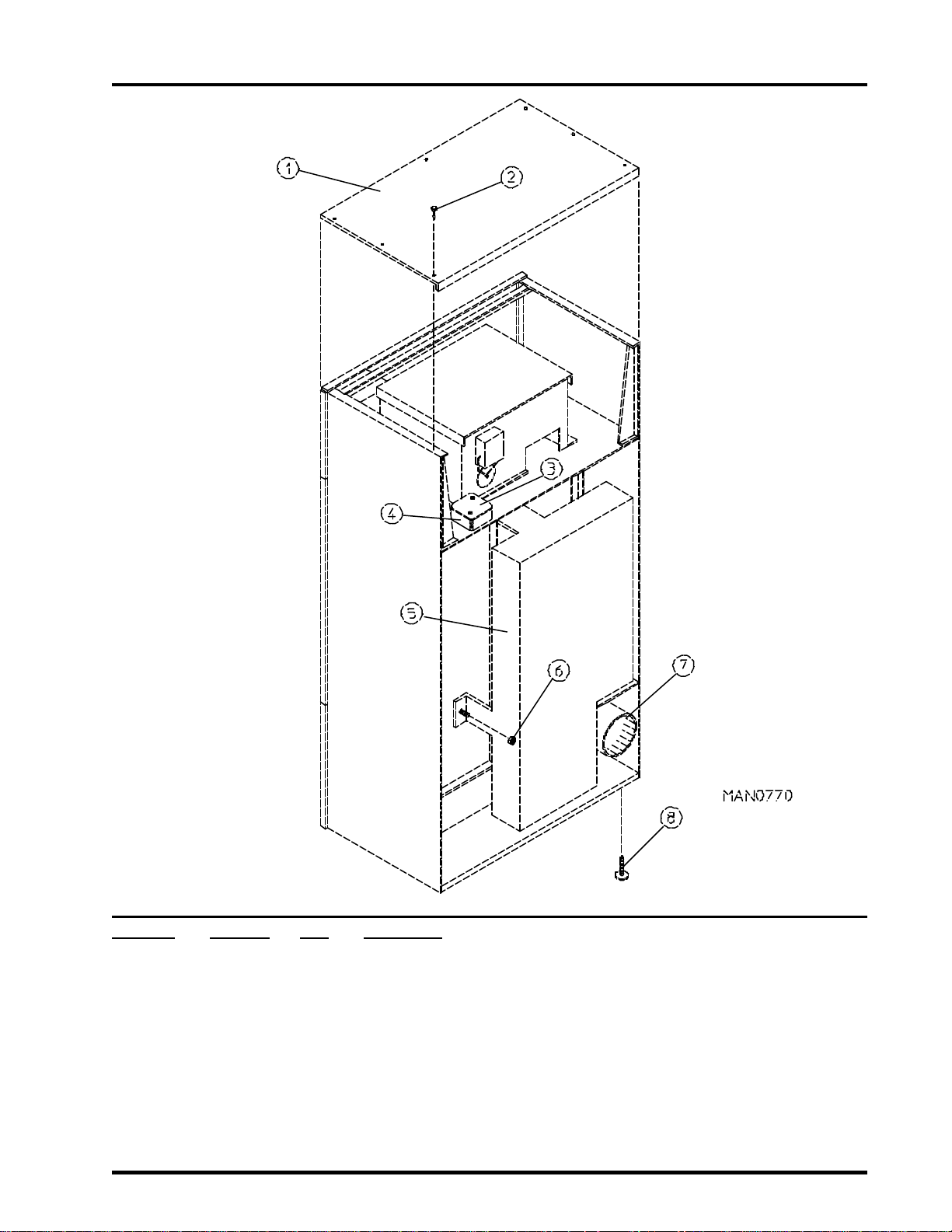

AD-30/AD-50 Outer Top/Back Guard Assemblies
95
Illus. No. Part No. Qty. Description
1 312511 1 Outer Top Assembly (for AD-30 gas models and electric models Only)
312518 1 Outer Top Assembly (for ADG-50 gas models Only)
312519 1 Outer Top Assembly (for ADE-50 electric models Only) 2 150300 7 #10-16 x 1/2” Hex Washer TEK Screw 3 121101 1 Junction Box Cover ONLY (for gas models and steam models Only) 4 121100 1 Junction Box ONLY (for gas models and steam models Only) 5 801521 1 Back Guard Assembly 6 152014 3 1/4-20 Free Spin Wash Nut 7 880501 1 8” Damper Replacement (for non-heat reclaimer models Only) 8 103500 4 Leveling Leg
Telephone: (508) 678-9000 Fax: (508) 678-9447
96
ADG-30/ADG-50 Heat Reclaimer Assembly
Illus. No. Part No. Qty. Description
1 121101 1 Junction Box Cover ONLY 2 121100 1 Junction Box ONLY 3 801521 1 Back Guard Assembly 4 152014 3 1/4-20 Free Spin Wash Nut 5 103500 4 Leveling Leg 6* 143513 1 6” x 6” x 5” Tee 7 880502 1 6” Replacement Damper Assembly 8 143509 1 6” Flexible Duct
117505 2 Aluminum Duct Tape (sold by the foot) 9* 143501 1 8” x 6” x 6” Tee 10 880502 1 6” Replacement Damper Assembly 11 143509 1 6” Flexible Duct
* Damper assembly must be purchased separately.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Relay Board Listing
TYPE
97
REL AY BOARD
ELECTRIC SERVICE
PART NUMBER
OF HEAT
VOLTAGE PHASE
WIRE
SERVICE
CONTROL VOLTAGE
120 VOLT 208/230 VOLT
GAS
Globar® Non-Hi/Lo 120 2 137077 or 137150 --------­ Globar® Non-Hi/Lo 208/230 2 --------- 137079 Globar® Non-Hi/Lo 208/480 3 --------- 137079 Globar® Hi/Lo 120 2 137077 or 137150 --------­ Globar® Hi/Lo 208/230 2 137077 --------­ Globar® Hi/Lo 208/480 3 137077 --------­ Direct Spark Ignition (DSI) 120 2 137076* --------­ Direct Spark Ignition (DSI) 208/230 2 --------- 137151 Direct Spark Ignition (DSI) 208/480 3 --------- 137078
ELECTRIC
208/230 2 --------- 137151
15 Kw through 30 Kw
208/480 3 --------- 137078*
208 4 137151 ---------
380/480 4 --------- 137078*
STEAM
Low Pressure 120 2 137151 --------­Low Pressure 208/230 2 --------- 137151
Low Pressure 208/480 3 --------- 137078 High Pressure 120 2 137151 --------­High Pressure 208/230 2 --------- 137151 High Pressure 208/480 3 --------- 137078
* May also use Part No. 137151 (Solid State Relay [SSR] Board).
IMPORTANT: Check label on relay board to verify correct part number.
NOTE: ADC Part No. 137151 (Solid State Relay [SSR] Board) cannot be used with 3-phase (3ø) motors.
Telephone: (508) 678-9000 Fax: (508) 678-9447
98
Microprocessor Coin Acceptors Listing
NOTE: Coin acceptors listed include optical switch (ADC Part No. 137056).
Single Coin*
ADC Part No. Nation Description
125100 U.S. and Canada 25¢ Optic Coin Acceptor 125127 Canada $1 Canadian Optic Coin Acceptor 125101 United Kingdom 10 New Pence Optic Coin Acceptor 125114 United Kingdom 20 New Pence Optic Coin Acceptor 125115 United Kingdom 1 Pound Optic Coin Acceptor 125106 France 1 French Franc Optic Coin Acceptor 125120 France 2 French Franc Optic Coin Acceptor 125124 France 5 French Franc Optic Coin Acceptor 125109 Denmark 1 Danish Krone Optic Coin Acceptor 125125 Netherlands 25¢ Guilder Optic Coin Acceptor 125108 Australia 10¢ Australian Optic Coin Acceptor 125107 Australia 20¢ Australian Optic Coin Acceptor 125130 Australia $1 Australian Optic Coin Acceptor 125123 New Zealand 50¢ New Zealand Optic Coin Acceptor 125104 Japan 100 Yen Optic Coin Acceptor 125103 --- 0.882 Token Optic Coin Acceptor 125121 --- 0.800 Token Optic Coin Acceptor 125129 --- Muller Token Optic Coin Acceptor 125132 Singapore 50¢ Singapore Optic Coin Acceptor 125133 Hong Kong $1 Hong Kong Optic Coin Acceptor
Dual Coin*
125116 U.S. and Canada 10¢/25¢ Dual Optic Coin Acceptor 125128 Canada 25¢/$1 Dual Optic Coin Acceptor 125112 United Kingdom 10/20 Pence Dual Optic Coin Acceptor 125110 United Kingdom 10/50 Pence Dual Optic Coin Acceptor
125111 United Kingdom 20/50 Pence Dual Optic Coin Acceptor 125113 United Kingdom 1£/20 Pence Dual Optic Coin Acceptor 125122 France 2/5 Franc Dual Optic Coin Acceptor 125117 Denmark 1/5 Danish Krone Dual Optic Coin Acceptor 125131 Denmark 5/10 Danish Krone Dual Optic Coin Acceptor 125126 Netherlands 25¢/1 Guilder Dual Optic Coin Acceptor 125118 Singapore 20¢/50¢ Singapore Dual Optic Coin Acceptor 125105 Japan 50/100 Yen Dual Optic Coin Acceptor
* Consult factory for coin acceptors not listed.
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Loading...
