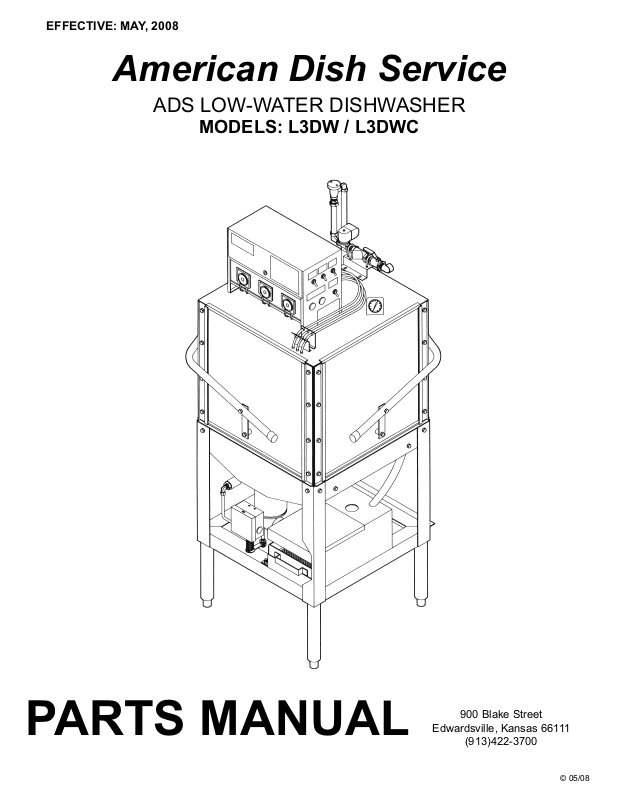

American Dish LW-3D, L3DW Parts List

EFFECTIVE: MAY, 2008

American Dish Service

ADS LOW-WATER DISHWASHER

MODELS: L3DW / L3DWC

PARTS MANUAL

900 Blake Street

Edwardsville, Kansas 66111

[phone]

© 05/08

021-0090 / 022-0090

Models:

L3DW / L3DWC

American Dish Service

2

021-0090 /022-0090

Models:

L3DW / L3DWC

American Dish Service

Ref.

No. Part No.

1 061-1200 1 Cabinet Assembly L3DW/L3DWC
2 062-1400 1 Spray System Assembly L3DW/L3DWC
3 063-1400 1 Recirculating Pump Assembly L3DW/L3DWC
4 064-2200 1 Control System Assembly L3DW/L3DWC
5 065-1400 1 Fresh Water Plumbing Assembly L3DW/L3DWC
6 066-1000 1 Drain System Assembly L3DW/L3DWC
7 067-0700 1 Lever Arm Assembly L3DW
8 067-0400 1 Lever Arm Assembly L3DWC

No.

Req. Description

3

061-1200

Cabinet Assembly

L3DW

American Dish Service

4

061-1200

Cabinet Assembly

L3DW

American Dish Service

Ref.

No. Part No.

1 085-6152 1 Hood Weldment
2 085-6146 1 Tray Track Weldment
3 085-6153 1 Frame Weldment
4 085-6154 1 Pan Weldment
5 087-6106 2 Door
6 087-6109 1 Door, Dummy
7 087-6110 4 Door Guide
8 083-6104 4 Door Strip, Nylatron

9 099-1003 4 Bullet Feet
10 086-6639 1 Tray Track Conversion Bar
11 089-9179 1 Scrap Accumulator
12 089-9182 1 Scrap Accumulator Cover
13 089-9195 1 Scrap Accumulator Tray
14 286-6178 2 Bracket
15 384-6118 2 Bushing (Dowel ½”)
16 098-1423 16 Bolt, ¼-20 x ½” HH SS
17 098-2404 42 Washer, SS, ¼”
18 098-2507 48 Locknut ¼-20 SS
19 098-1414 28 Bolt, ¼-20 x ½” Truss Head SS
20 098-1420 2 Bolt, ¼-20 x1 ¼ ” Truss Head SS

N/S 092-1112 1 Fitting, ¾” MPT x 1” Hose Barb (Overflow)
N/S 092-1061 1 Fitting, ¾” 45° Street Elbow (Overflow)
N/S 098-9024 1 Clamp, Hose (Overflow)
N/S 083-6448 1 Hose, 1 ¼” OD x 1” ID x 12” Lg. Vinyl (Overflow)
N/S 292-1028 1 No-Hub Connector, 2” Pipe to Pipe
N/S 086-6103 3 Clamp, Single
N/S 091-4146 4 Clamp, Conduit

No.

Req. Description

5

061-1200

Cabinet Assembly

L3DWC

American Dish Service

6

061-1200

Cabinet Assembly

American Dish Service

L3DWC

Ref.

No. Part No.

1 085-6152 1 Hood Weldment
2 085-6146 1 Tray Track Weldment
3 085-6153 1 Frame Weldment
4 085-6154 1 Pan Weldment
5 087-6106 2 Door
6 087-6109 1 Door, Dummy
7 087-6110 4 Door Guide
8 083-6104 4 Door Strip, Nylatron

9 099-1003 4 Bullet Feet
10 086-6639 1 Tray Track Conversion Bar
11 089-9179 1 Scrap Accumulator
12 089-9182 1 Scrap Accumulator Cover
13 089-9195 1 Scrap Accumulator Tray
14 286-6178 2 Bracket
15 384-6718 2 Bushing (Dowel ½”)
16 098-1423 16 Bolt, ¼-20 x ½” HH SS
17 098-2404 42 Washer, SS, ¼”
18 098-2507 48 Locknut ¼-20 SS
19 098-1414 28 Bolt, ¼-20 x ½” Truss Head SS
20 098-1420 2 Bolt, ¼-20 x 1 ¼” Truss Head SS

N/S 092-1112 1 Fitting, ¾” MPT x 1” Hose Barb (Overflow)
N/S 092-1061 1 Fitting, ¾” 45° Street Elbow (Overflow)
N/S 098-9024 1 Clamp, Hose (Overflow)
N/S 083-6448 1 Hose, 1 ¼” OD x 1” ID x 12” Lg. Vinyl (Overflow)
N/S 292-1028 1 No-Hub Connector, 2” Pipe to Pipe
N/S 086-6103 3 Clamp, Single
N/S 091-4146 4 Clamp, Conduit

No.

Req. Description

7

062-1400

Spray System Assembly

L3DW/L3DWC

American Dish Service

8

062-1400

Spray System Assembly

American Dish Service

L3DW/L3DWC

Ref.

No. Part No.

1 082-6208 1 Upper Spray Base
2 098-1583 6 Thumb Screws 5/16-18 x 5/8” SS
3 098-1416 12 Bolt, ¼-20 x ¾” HH SS
4 098-2507 12 Locknut, ¼-20 SS
5 081-6211 2 Spray Arm Assembly
6 081-6210 2 Spray Arm Bearing Assembly, Cleanable
7 087-6209 1 Upper Arm Supply Tube (Manifold)
8 092-1009 2 Fitting, 7/8” Comp. X 1” mpt
9 084-6203 4 Spray Arm End Plug, Brass

10 082-6206 1 Lower Spray Base
11 085-6157 2 Discharge Fitting Weldment
12 289-6610 1 Gasket
13 098-2404 16 Washer, SS ¼”
14 089-6201 1 Gasket, Spray Base
15 082-6205 2 Spray Base Adapter
16 098-1501 2 Bolt, 5/16-18 x 5/16” HH SS

No.

Req. Description

9

063-1400

Recirculating Pump Assembly

L3DW/L3DWC

American Dish Service

10

063-1400

Recirculating Pump Assembly

L3DW/L3DWC

Ref.

No. Part No.

1 091-1001 1 Motor
2 082-6301 1 Rear Housing
3 092-2001 1 Seal Assembly
4 082-6306 1 Impeller
5 089-6309 1 O-Ring
6 082-6307 1 Front Housing (Pump Cover)
7 085-6162 1 Suction Tube Elbow Weldment
8 092-1111 1 Fitting, 3/8” mpt x ½” comp 90* SS

9 092-1002 1 Petcock 1/8”
10 085-6813 1 Suction Tube Weldment
11 098-1512 4 Stud 5/16-18 x 1 5/8” SS
12 098-2503 4 Washer, Copper 5/16
13 098-1607 4 Bolt, 3/8-16 x 7/8” HH SS
14 092-2002 2 Gasket, Slipnut
15 092-1012 2 Slipnut 1 ½”
16 098-2502 4 Nut 5/16-18 SS
17 085-6157 2 Discharge Fitting Weldment
18 289-6610 1 Gasket
19 098-2404 8 Washer, SS ¼”
20 098-1416 4 Bolt, ¼-20 x ¾” HH SS
21 098-2507 4 Locknut, ¼-20 SS

No.

Req. Description

American Dish Service

11

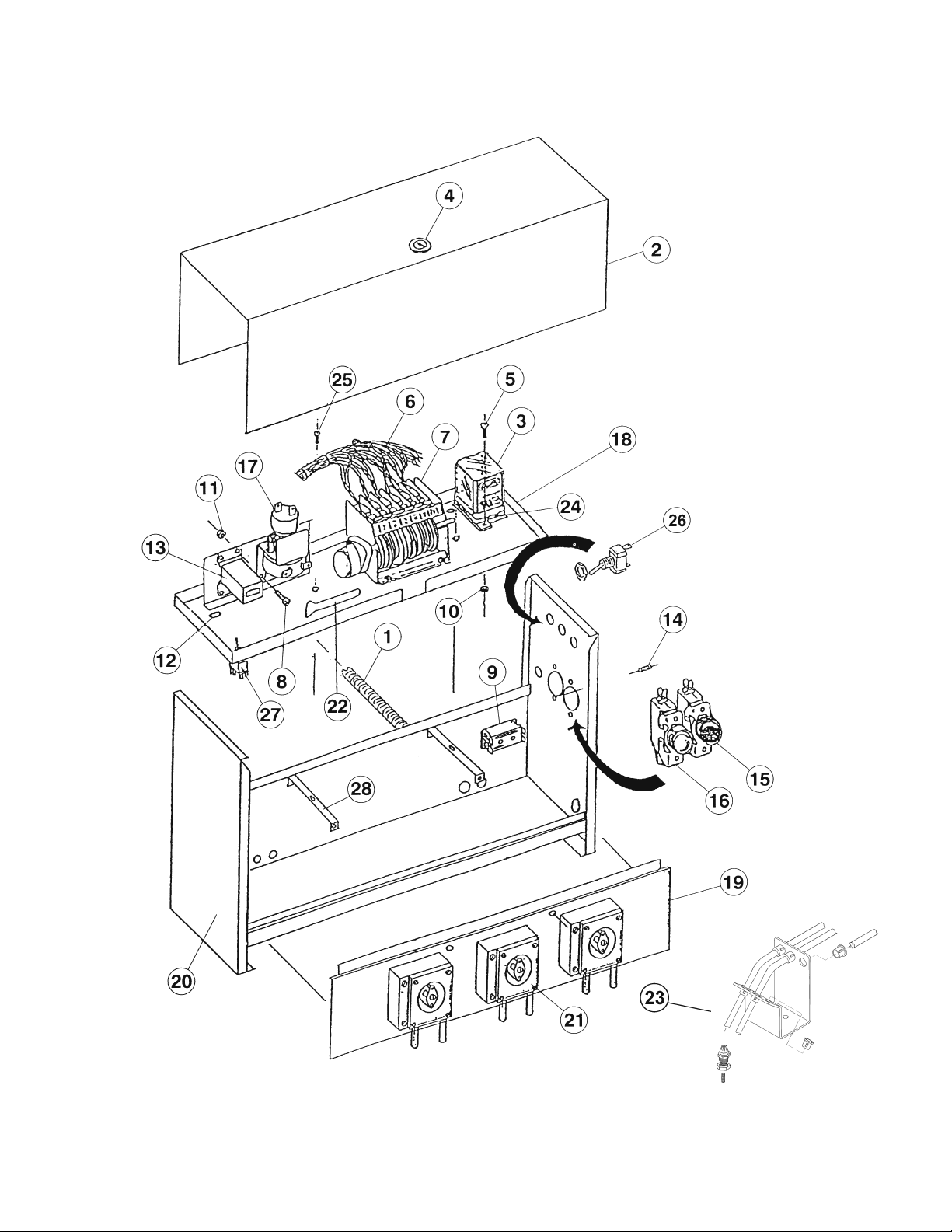

064-2200

Control System Assembly

L3DW/L3DWC

American Dish Service

12

064-2200

Control System Assembly

American Dish Service

L3DW/L3DWC

Ref.

No. Part No.

1 091-5156 1 Conduit, ½” (Sold by the Foot)

2 087-6404 1 Control Box Cover

3 091-3003 1 Instant Start Relay

4 096-1002 1 Control Box Lock

5 098-1104 2 Bolt 6-32 x ½” RH SS

6 091-5026 1 Wire Harness

7 091-3073 1 Timer, 90 Second

N/S 091-3072 Opt. Timer, 72 Second
N/S 091-3071 Opt. Timer, 60 Second

8 098-1204 6 Bolt 8-32 x ½” RH SS

9 091-3008 1 Switch, DPST (Master Switch)
10 098-2201 6 Locknut 8-32, SS
11 098-2101 2 Nut 6-32 SS
12 091-4006 2 Grommet 9/16
13 091-3049 1 Counter, Electric
14 098-1102 4 Bolt 6-32 x ¼” RH SS
15 091-3001 1 Push-Button Switch, Black Fill
16 091-3002 1 Push-Button Switch, Red Start
17 091-3007 1 Motor Relay (Mercury Relay)
18 086-6534 1 Upper Shelf, Control Box
19 087-6425 1 Pump Panel, Control Box
20 081-6415 1 Control Box Assembly
21 064-0010 3 Chemical Pump Assembly (Peristaltic)
22 099-1004 1 Timer Adjustment Key
23 064-0028 1 Chemical Feeder Assembly
24 091-3011 1 Relay Socket, Instant Start
25 098-1304 6 Bolt 10-32 x 5/8” RH SS
26 091-3009 4 Switch, SPST Momentary
27 091-3060 1 Switch, Service
28 086-6535 2 Shelf Support Bracket

N/S 089-9201 1 Decal, Wiring Diagram
N/S 089-9205 1 Decal, Clean Instruction, Inside Sump
N/S 089-9227 1 Decal, CAM Adjustment DWM
N/S 086-6166 1 Bracket, Door Cut-Off Switch

No.

Req. Description

(Not Included with Auto Start Machines)

13

064-2200

Control System Assembly

L3DW/L3DWC

American Dish Service

14

064-2200

Control System Assembly

American Dish Service

L3DW/L3DWC

Ref.

No. Part No.

N/S 089-9285 1 Decal, NSF Specifications

N/S 091-3059 Opt. Relay, Auto Start
N/S 099-4502 1 Switch, Door Cut-Off
N/S 099-4500 Rep. Switch Body, Door Cut-Off (Replacement)
N/S 099-4501 Rep. Switch Plunger, Door Cut-Off (Replacement)
N/S 099-4503 Rep. Switch Contactor, Door Cut-Off (Replacement)
N/S 083-6407 3 Tube Stiffener
N/S 098-1605 3 Hose Clamp
N/S 093-1044 Tubing, Chemical Line, ¼” Blue (By the Foot)
N/S 093-1045 Tubing, Chemical Line, ¼” Green (By the Foot)
N/S 093-1046 Tubing, Chemical Line, ¼” Red (By the Foot)
N/S 091-4003 1 Junction Box
N/S 091-4004 1 Junction Box Cover
N/S 091-4141 8 Fitting, Conduit, ½”, Straight
N/S 091-4142 2 Fitting, Conduit, ½”, 90°
N/S 292-1006 2 Pipe Locknut, ½” FPT, Brass
N/S 092-1008 1 Nipple, ½” Close Brass

No.

Req. Description

(Holds Bell Box to Control Box)

15

064-0010

Chemical Pump Assembly

L3DW/L3DWC

American Dish Service

16

064-0010

Chemical Pump Assembly

L3DW/L3DWC

American Dish Service

Ref.

No. Part No.

1 091-1002 1 Gear Motor
2 083-6703 1 Pump Housing, 3D
3 067-6702 1 Rotor Assembly, 3D

3A 098-1322 1 Set Screw, 10-32 x ¼”

4 087-6700 1 Squeeze Tube
5 083-6707 1 Cover, 3D, Chem. Pump
6 098-1606 2 Tube Clip
7 091-5222 0 Molex Female Pin
8 091-5221 0 Molex Cover

9 098-1305 2 Screw, FH, 10-32 x 1 ½”
10 098-1204 3 Screw, RH, SS, 8-32 x ½”
11 098-1321 1 Screw, RH, SS, 10-32 x 1 ¾”
12 091-5224 2 Molex Male Pin
13 091-5223 2 Cover
14 092-1146 2 Hose Barb, ¼” x 3/16”

N/S 091-5220 6 Cable Ties, Small

No.

Req. Description

(Squeeze Tube to Chemical Tube Connection)

17

064-0028

Chemical Feeder Assembly

L3DW/L3DWC

American Dish Service

18

064-0028

Chemical Feeder Assembly

L3DW/L3DWC

American Dish Service

Ref.

No. Part No.

1 091-4156 3 Tube Fitting
2 086-6142 1 Chemical Feeder Bracket
3 091-4001 6 Grommet ¼” ID
4 093-1043 3 Hose Barb, 3/16”

No.

Req. Description

19

065-1400

Plumbing Assembly

L3DW/L3DWC

American Dish Service

20

065-1400

Plumbing Assembly

L3DW/L3DWC

American Dish Service

Ref.

No. Part No.

1 092-5045 1 Vacuum Breaker Valve, Watts
2 092-3110 1 Vacuum Breaker Outlet Pipe 40 ½”
3 092-1100 2 Fitting, 5/8” comp. X ½” mpt 90° Elbow
4 092-5015 1 Solenoid Valve
5 092-1006 1 Fitting, ½” Street Elbow
6 092-9001 1 Line Strainer
7 092-5054 1 Shut Off Valve
8 092-1058 2 Fitting, 5/8” comp. x ½” mpt

9 092-5027 1 Strata-Flow Check Valve
10 092-1008 2 Nipple, ½” Close
11 092-3111 1 Check Valve Supply Tube 17”
12 092-9002 0 Screen (Replacement)
13 092-1101 1 Fitting, 5/8” comp. X 5/8” comp. 90° Elbow
14 092-1062 1 Fitting, ½” comp. X ½” mpt 90° Elbow
15 092-3112 1 Fresh Water Supply Tube 11”
16 092-3113 1 Vacuum Breaker Inlet Pipe 5 ¾”

N/S 092-5025 0 Solenoid Valve Body (Replacement)
N/S 092-5017 0 Solenoid Valve Coil (Replacement)
N/S 092-5049 0 Cap Watts Vacuum BKR ½” (Replacement)
N/S 092-5047 0 ½” Watts Vacuum Breaker Repair Kit
N/S 092-5051 0 Bonnet & Stem, Watts Vacuum Breaker ½”
N/S 092-5016 0 Solenoid Valve Repair Kit (Replacement)

18 086-6537 1 Bracket, Plumbing
19 098-9027 1 Bolt, ¼-20, U, SS
20 098-2507 2 Locknut, ¼-20, SS

LOS ANGELES OPTION

17 092-1102 1 Fitting, 5/8” Comp x 5/8” Comp x 3/8” Comp Tee

N/S 092-1104 1 Locknut, 3/8” Comp
N/S 089-6304 1 Gasket, L.A. Plumbing
N/S 086-6825 1 Bracket, Spray Deflector, L.A. Plumbing

No.

Req. Description

21

066-1000

Drain System Assembly

L3DW/L3DWC

American Dish Service

22

066-1000

Drain System Assembly

L3DW/L3DWC

American Dish Service

Ref.

No. Part No.

1 085-6160 1 Drain Screen Weldment, Secondary (to protect pump)
2 085-6165 1 Elbow Weldment, Drain to Scrap Trap
3 098-9028 1 Washer, Rubber (Reinforced)
4 098-2308 1 Locknut, Wing, ¼-20, SS, Nylon
5 098-2507 2 Washer, Lock 5/16 SS
6 084-6610 1 Drain Tube, Inside Sump
7 083-6601 1 Drain Ball, 1 ½”
8 098-9014 1 Washer, Rubber ¼” ID, Flat

9 086-6307 1 Push Rod
10 085-6611 1 Drain Shaft Weldment
11 098-2404 5 Washer, ¼” SS
12 299-1005 1 Temperature Gauge
13 089-6601 1 Sump Gasket
14 085-6156 1 Sump Assembly Weldment With Tailpiece
15 098-1507 6 Bolt, 5/16-18 x 7/8” HH SS
16 089-6602 2 Gasket, Drain Elbow
17 086-6601 1 Drain Seat
18 082-6602 1 Drain Elbow
19 098-2507 6 Locknut, ¼-20 SS
20 085-6610 1 Drain Solenoid Link Weldment
21 085-6602 1 Sump Screen
22 085-6614 1 Cover Solenoid Box Weldment
23 086-6606 1 Washer, Small Slotted
24 098-3007 1 Spring, Solenoid
25 098-1205 1 Bolt, 8-32 x 5/8” RH SS
26 098-2201 1 Locknut, 8-32
27 085-6613 1 Box Weldment, Solenoid
28 086-6607 1 Washer, Large Slotted
29 091-2001 1 Drain Solenoid
30 098-1423 1 Bolt, ¼-20 x ½” HH SS
31 098-2301 4 Locknut 10-32 SS
32 086-6139 1 Bracket, Temperature Gauge

No.

Req. Description

23

067-0700

Lever Arm Assembly

L3DW

American Dish Service

24

067-0700

Lever Arm Assembly

L3DW

American Dish Service

Ref.

No. Part No.

1 085-6701 2 Spring Extension Weldment

2 098-4002 2 Bushing, Bronze

3 098-1514 2 Bolt, 5/16-18 x 1 ½”, HH SS

4 098-2505 2 Nut, SS, 5/16-18

5 085-6703 1 Arm Support Bracket Weldment, Left

085-6707 1 Arm Support Bracket Weldment, Right
6 098-1423 4 Bolt, HH, SS, ¼-20 x ½
7 098-2404 4 Washer, ¼, SS
8 098-2507 4 Locknut, ¼-20, SS
9 085-6711 1 Door Operating Arm Weldment (Lever Arm)

10 098-1431 2 Bolt, ¼-20 x 1 3/8, HH, SS
11 098-2404 6 Washer, ¼, SS
12 084-6703 4 Bushing (Dowel 3/8)
13 086-6701 2 Door Stop
14 098-1432 2 Bolt, ¼-20 x 1/34, HH, SS
15 084-6702 2 Spacer
16 086-6702 2 Door Link
17 098-2405 4 Cap Locknut, ¼-20, SS
18 098-3003 2 Door Spring
19 086-6703 2 Spring Extension, Secondary
20 098-1581 2 Eye Bolt, 5/16-18 x 6”
21 098-2502 2 Nut, HH, SS, 5/16-18
22 099-1018 2 Lever Arm End Cap

23 086-6623 1 Lever Arm Cut-Off Bracket
N/S 098-2503 2 Washer, Copper, 5/16”
N/S 088-1036 Opt. Kit, Lever Arm Conversion, Straight to Corner

No.

Req. Description

25

067-0400

Lever Arm Assembly

L3DWC

American Dish Service

26

067-0400

Lever Arm Assembly

L3DWC

American Dish Service

Ref.

No. Part No.

1 085-6808 1 Right Pivot Weldment (Long)(Plumbing Side)
2 085-6807 1 Left Pivot Weldment (Short)
3 098-2407 8 Locknut, HH, SS, ¼-20
4 098-2404 8 Flat Washer, ¼”, SS
5 098-1423 8 Bolt, HH, SS, ¼-20 x ½”
6 085-6710 1 Door Lever Arm Weldment
7 098-8006 1 Hairpin Cotter, SS
8 085-6709 1 Spring Extension Weldment

9 098-3011 1 Door Spring
10 086-6703 1 Spring Extension, Second
11 098-1581 1 Eye Bolt, SS, 5/16-18 x 6”
12 098-2502 1 Nut, HH, SS, 5/16-18
13 092-1086 2 Heavy Duty Cap 1”
14 086-6072 2 Door Link
15 098-2405 4 Locknut Cap, SS, ¼-20
16 098-2404 4 Washer, SS, ¼”
17 084-6701 4 Bushing (Dowel 5/8”)
18 084-6702 2 Spacer
19 087-6701 2 Door Brace
20 098-1434 4 Bolt, HH, SS, ¼-20 x 2”
21 086-6701 2 Door Stop
22 098-2503 1 Washer

N/S 088-1036 Opt. Kit, Lever Arm Conversion, Corner to Straight

No.

Req. Description

27

American Dish Service

Manufacturer of low and high temperature

Commercial Dishwashers and Glasswashers

900 Blake Street

Edwardsville, Kansas 66111

Ph:[phone]

Fax:[phone]
