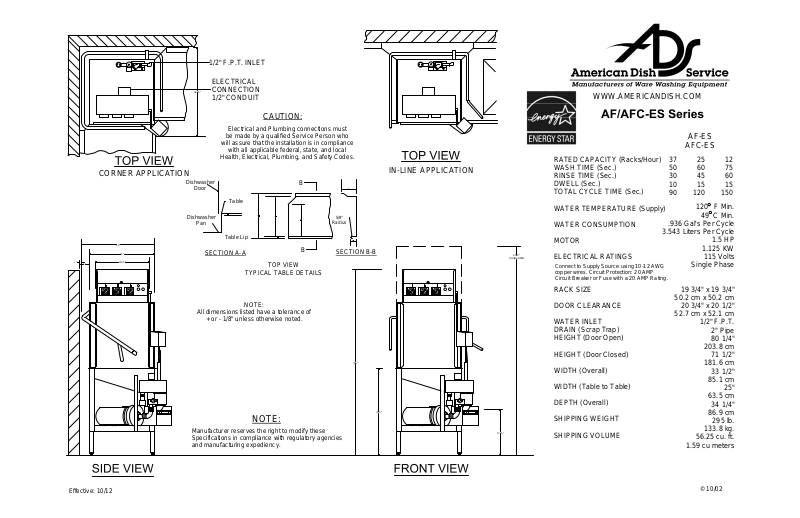

American Dish AFC-ES User Manual

1/2" F.P.T. INLET

ELECTRICAL
CONNECTION

34.25 "

1/2" CONDUIT

WWW.AMERICANDISH.COM

CAUTION:

Electrical and Plumbing connections must

be made by a qualified Service Person who

will assure that the installation is in compliance

with all applicable federal, state, and local

CORNER APPLICATION

Dishwasher

Door

Health, Electrical, Plumbing, and Safety Codes.

IN-LINE APPLICATION

B

Table

RATED CAPACITY (Racks/Hour)
WASH TIME (Sec.)
RINSE TIME (Sec.)
DWELL (Sec.)
TOTAL CYCLE TIME (Sec.)

WATER TEMPERATURE (Supply)

Dishwasher

Pan

5/8"

Radius

WATER CONSUMPTION

.936 Gal's Per Cycle

3.543 Liters Per Cycle

28 "

25 "

1 "

4 "

20.75 "

SECTION A-A

Table Lip

B

TOP VIEW

TYPICAL TABLE DETAILS

SECTION B-B

80.25 "

DOORS OPEN

MOTOR
ELECTRICAL RATINGS

Connect to Supply Source using 10-12 AWG
copper wires. Circuit Protection: 20 AMP
Circuit Breaker or Fuse with a 20 AMP Rating.

AF-ES

AFC-ES

37 25 12
50 60 75
30 45 60
10 15 15
90 120 150

120 F Min.

49 C Min.

1.5 HP

1.125 KW
115 Volts

Single Phase

NOTE:

All dimensions listed have a tolerance of

+ or - 1/8" unless otherwise noted.

NOTE:

Manufacturer reserves the right to modify these
Specifications in compliance with regulatory agencies
and manufacturing expediency.

71.5 "

33.5 "

17.75 "

RACK SIZE
DOOR CLEARANCE
WATER INLET

DRAIN (Scrap Trap)
HEIGHT (Door Open)

HEIGHT (Door Closed)
WIDTH (Overall)
WIDTH (Table to Table)
DEPTH (Overall)
SHIPPING WEIGHT
SHIPPING VOLUME

19 3/4" x 19 3/4"

50.2 cm x 50.2 cm
20 3/4" x 20 1/2"

52.7 cm x 52.1 cm

1/2" F.P.T.

2" Pipe
80 1/4"

203.8 cm
71 1/2"

181.6 cm
33 1/2"

85.1 cm
25"

63.5 cm

34 1/4"

86.9 cm

295 lb.

133.8 kg.

56.25 cu. ft.

1.59 cu meters

Effective: 10/12

© 10/02
