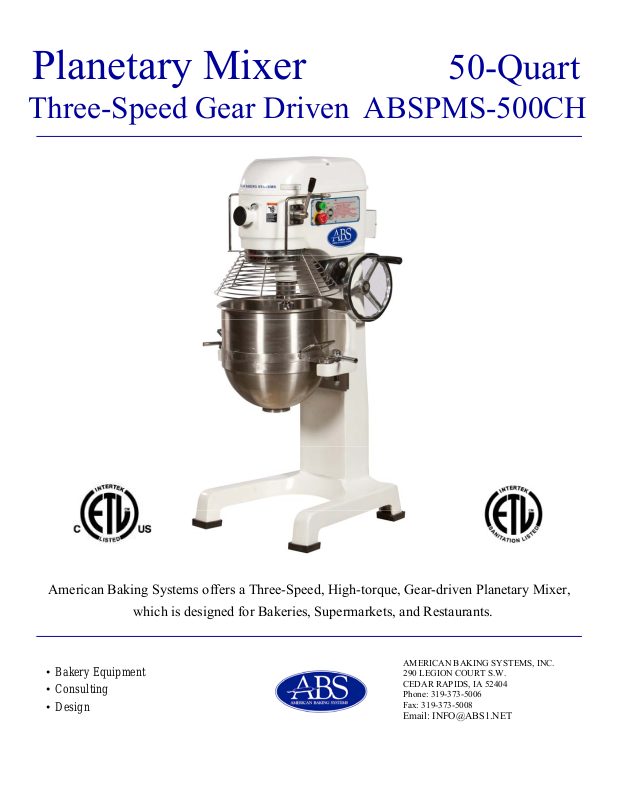

American Baking ABSPMS-500CH User Manual

Planetary Mixer 50-Quart

Three-Speed Gear Driven ABSPMS-500CH

American Baking Systems offers a Three-Speed, High-torque, Gear-driven Planetary Mixer,

which is designed for Bakeries, Supermarkets, and Restaurants.

• Bakery Equipment

• Consulting

• Design

AMERICAN BAKING SYSTEMS, INC.
290 LEGION COURT S.W.
CEDAR RAPIDS, IA 52404
Phone: [phone]
Fax: [phone]

Email: [email protected]

American Baking Systems 50-Quart Planetary Mixer

Model:

ABSPMS-500CH

Features

●Solid cast steel construction

●Three Speeds with clutch

●Full bowl cov er for safety

●Batter Capacity: 50 lbs

●Icing Capacity: 50 lbs

 Stainless steel bowl, wire whip and paddle
 Stainless steel pour spout.
 Attachment hub standard.
 ETL meets UL 763 standards
 ETL–Sanitation meets NSF 8 standards

●Not Recommended for DOUGH

Specifications Electrical Specifications

(Speed) FIRST SECOND THIRD

(RPM) 107 190 366

VOLTS PHASE Hz AMPS kW HP

208/220 3 60 10 1.2 1

Dimensions: 53” High x 26” Deep x 25” Wide

Weight of Mixer: 425 pounds.

NOTES:

 Supplied with 6-foot cord with Grounding plug
 500CH machine is supplied with bowl, hook, paddle, and whip
 Shipping Weight: 515 Pounds, Freight class 85
 All dimensions are in inches and are approximate.
 Specifications are subject to change without notice.
