Page 1

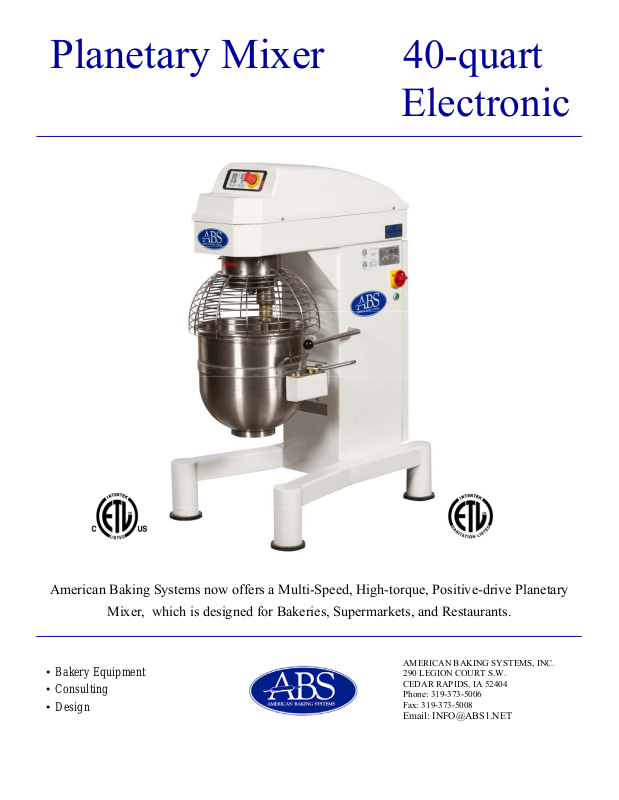

Planetary Mixer 40-quart
Electronic
American Baking Systems now offers a Multi-Speed, High-torque, Positive-drive Planetary
Mixer, which is designed for Bakeries, Supermarkets, and Restaurants.
• Bakery Equipment
• Consulting
• Design
AMERICAN BAKING SYSTEMS, INC.
290 LEGION COURT S.W.
CEDAR RAPIDS, IA 52404
Phone: 319-373-5006
Fax: 319-373-5008
Email: [email protected]
Page 2

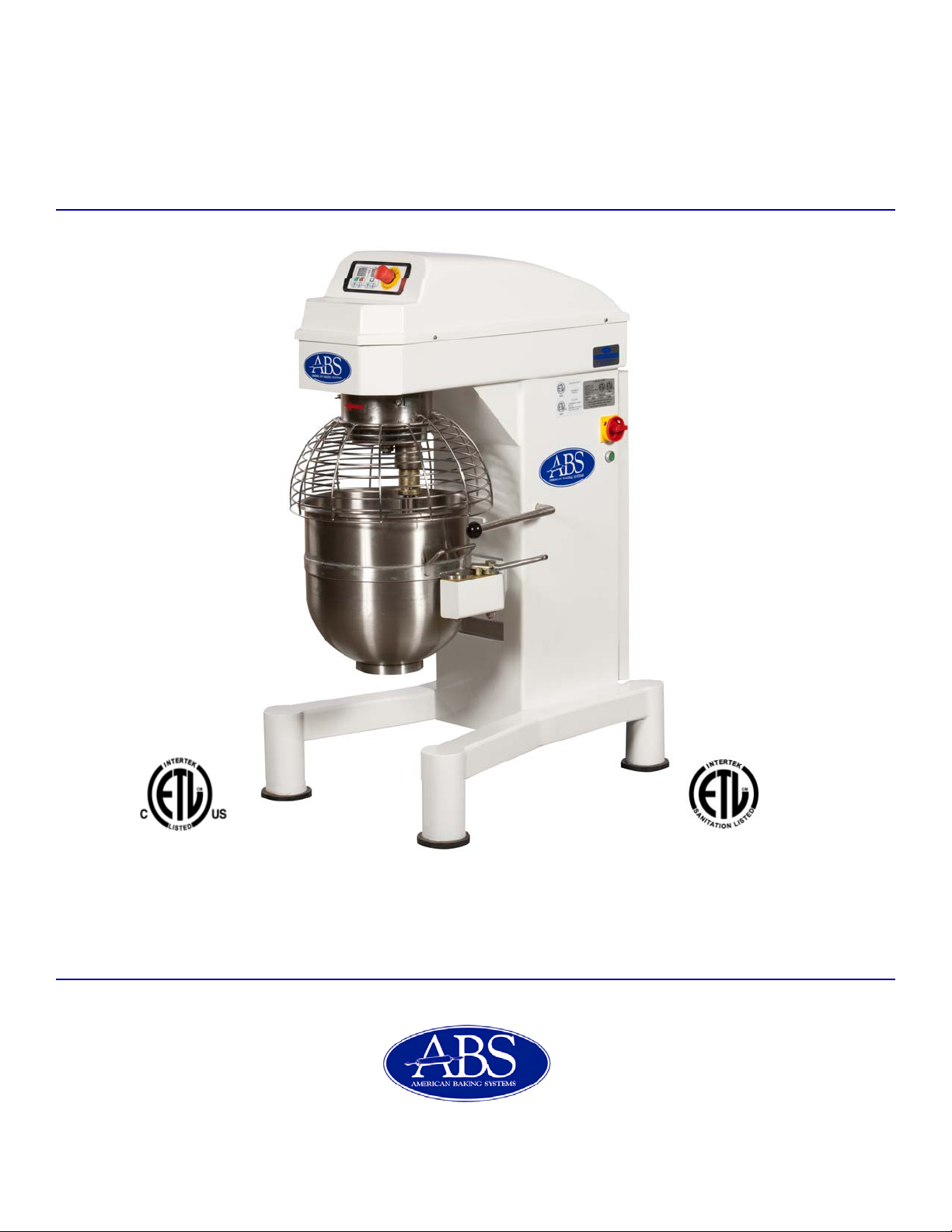

American Baking Systems 40-Quart Electronic Planetary Mixer
Models: ABSPMS-40L
ABSPMS-40/20L
Features
● Solid steel construction
● Timed or un-timed operation
● Ten Speeds - selectable without stopping
● Quiet operation
● Flour Capacity: 11.4 kg / 25 lbs
● Dough Capacity: 18.1 kg / 40 lbs
• No Gearbox to service or leak
• Stainless steel bowl and wire whip
• Stainless steel hook and paddle
• Slow start in all speeds—No product loss on
start-up
• 220 Volt 3 Phase 60 HZ 8 Amps 2 HP
NOTES:
• Supplied with 6-foot cord with grounding twist lock plug.
• 40/20L Machine is supplied with two bowls, hooks, paddles, and
whips in each size - 40 and 20 Qt.
• Shipping weight: 900 pounds, Freight Class 85

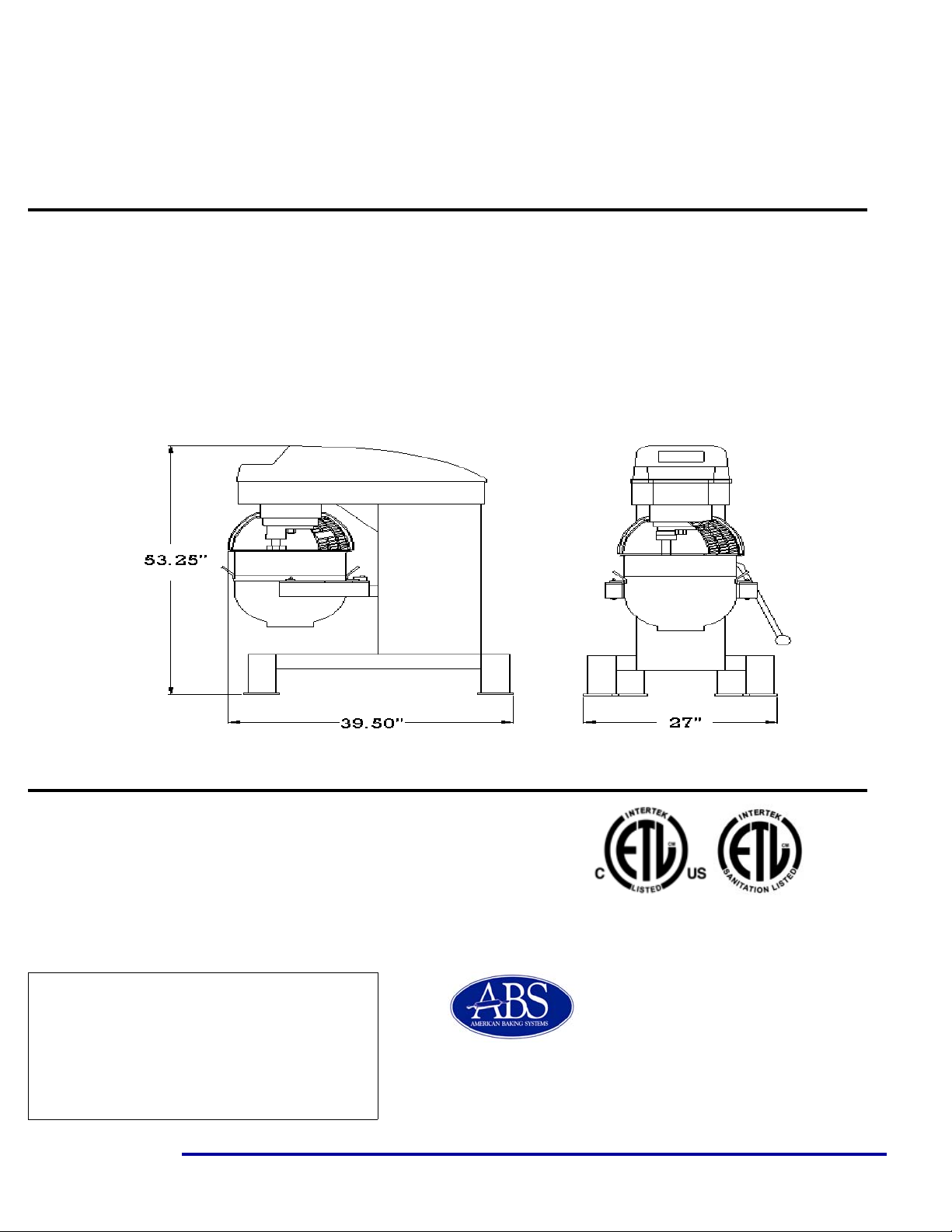

• All dimensions are in inches and are approximate.
• Specifications are subject to change without notice.
Distributed by:
Meets UL763 and NSF-8 Standards
AMERICAN BAKING SYSTEMS, INC.
290 LEGION COURT S.W.
CEDAR RAPIDS, IA 52404
Phone: 319-373-5006
Fax: 319-373-5008
Email: [email protected]
