AMD SD186ES, SD186EM User Manual

About the SD186ES/SD186EM Demonstration Board

1.1

The AMD
exceptionally small, low-cost product for demonstration of the AMD Am186ES
and Am186EM microcontrollers. See page ix for a block diagram of the board.

The SD186ES/SD186EM demonstration board is a stand-alone evaluation
platform for the Am186ES or Am186EM microcontroller. The Am186ES and
Am186EM microcontrollers integrate peripherals such as 12 chip-select
controllers, serial controllers, 32 programmable I/Os, three timers, an interrupt
controller, and watchdog timer to increase system functionality while reducing
overall cost. The memory controller supports a glueless connection to SRAM,
EPROM, Flash memory , and pseudo-static RAM. The Am186ES and Am186EM
microcontrollers also feature an innovative bus design that frees the processor to
run at nearly twice the speed of standard 80C186 processors while using
commodity memory devices.

The SD186ES/SD186EM demo nstration board is des igned with a 104-pin Am186
expansion interface that provides access to the Am186ES and Am186EM
microcontroller signals. The Am186 expansion interface facilitates prototyping
with external devices by using the SD186ES/SD186EM demonstration board as
the minimal system core of a design.

The SD186ES/SD186EM demonstration board highlights the Am186ES and

Am186EM microcontrollers’ serial ports, glueless interface to SR AM and Flash
memory, and the expansion interface to peripheral attachments. A complete
description of the board can be found in Chapter 2, “Demonstration Board
Functional Descri ption”.

®

SD186ES/SD186EM Demonstration Board is designed as an

SD186ES/SD186EM Demonstation Board User’s Manual

vii

Theory of Operation

The SD186ES/SD186EM demonstration board demonstrates the basic processor
functionality and fea tures of the Am18 6ES an d Am186E M microc ontroll ers, and
the simplicity of their system des ign. As a stand-alone platform, the bo ard enables

you to test the Am186ES and Am186EM microcontrollers’ performance and
functionality. The minimal number of components on the board exhibits the
integration present in the processor.

Demonstration Board Features

The SD186ES/SD186EM demonstration board provides the following features:

• Am186ES or Am186EM 40-MHz microcontroller

• E86™ family boot monitor (E86MON™) board-residen t utility
Information on invoking and using the E86MON software is provided in the

E86MON

• 256 Kbyte SRAM

• 256 Kbyte Am29F010-70 Flash memory

• Am186 104-pin expansion interf ace

• Two RS-232 serial ports with DB-9 connectors
Please note that the Am186EM microcontroller provides one asynchronous

serial port. Thus, when the board is populated with the Am186EM
microcontroller, only one serial port is featured.

• Activity LED indicators for PIO signals

• Power-on LED indicator

• Reset circuitry

TM

Software User’s Manual.

1.1

viii

SD186ES/SD186EM Demonstation Board User’s Manual

Am186ES or Am186EM

Microcontroller

CPU

Clock &
Reset
Circuitry

Address Bus

A/D Bus

Control

Am29F010-70
Flash Bank
(256 Kbyte)

SRAM Bank
(256 Kbyte)

Am186
Expansion
Interface

1.1

Power
& Ground

5.5-mm
Barrel

Connector

RS-232 Serial Port
Level Converter
Circuitry

RS-232 Serial Port
Level Converter
Circuitry*

*Second asynchronous serial port implemen ted only
with Am186ES microcontroller

DB-9

Connector

DB-9

Connector*

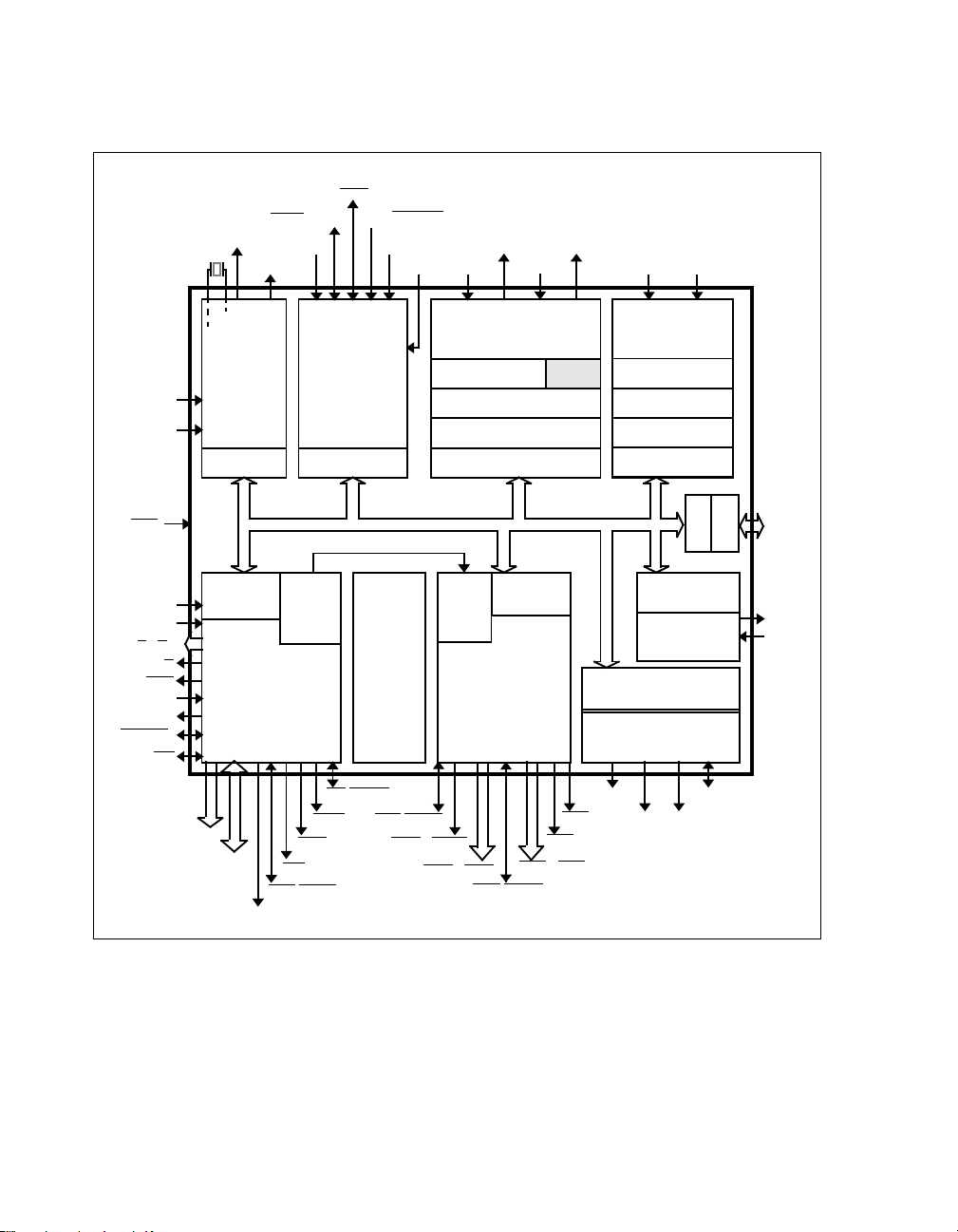

Figure 0-1. SD186ES/SD186EM Demonstration Board Block Diagram

SD186ES/SD186EM Demonstation Board User’s Manual

ix

SD186ES/SD186EM Demonstration Board Documentation

The SD186ES/SD186EM Demonstration Board User’s Manual provides
information on th e design and function of the S D186ES/SD186EM demonstr ation
board. Detailed instructions for using the E86MON software are provided in the

E86MON

is shipped with the E86MON software installed in the on-bo a rd Flash memory

About This Manual

Chapter 1, “Quick Start” provides implementation and installation information for
the demonstration board and instructions for invoking the E86MON software.
Detailed information on using the E86MON software is provided in the E86MON

Software User’s Manual included in your kit.

Chapter 2, “Demonstration Board Functional Description” contains descriptions
of the basic sections of the demonstration board: layout, pro cessor, Flash memory,
SRAM, serial ports, power and signal LED indicators, clock and reset logic,
expansion interface, and power-supply circuitry.

Chapter 3, “Product Support” provides inf ormation on reaching and using the AMD
Corporate Applications technical support serv ices, pr odu ct in for mation available
through AMD’ s World W ide W eb and FTP s ites, and support tools for the embedded
E86 family.

TM

Software User’ s Manual included in your kit. The demonstration board

.

TM

1.1

Appendix A, “Layout Diagram, Schematics , and Board Bill of Materials” contains
a board layout drawing along with schematics and a Bill of Materials (BOM) for
the SD186ES/SD186EM demonstration board.

x

SD186ES/SD186EM Demonstation Board User’s Manual

1.1

Suggested Reference Material

For information on ordering the literature listed below, see page 3-4.

• Am186EM and Am188EM Microcontrollers Data Sheet
AdvanES and Am188ES Microcontrollers Data Sheet
Advanced Micro Devices, order number 20002

• Am186EM and AM188EM Microcontrollers User’s Manual

Advanced Micro Devices, order number 19713

• Am186ES and AM18  ES Microcontrollers User’s Manual

Advanced Micro Devices, order number 21096

• Am186 and Am188 Family Instruction Set Manual
Advanced Micro Devices, order number 21267

SM

• FusionE86
Advanced Micro Devices, order number 19255

• For current application notes and technical b ulletins, see our World Wide Web
page at http://www.amd.com.

Catalog

SD186ES/SD186EM Demonstation Board User’s Manual

xi

Documentation Conventions

The Advanced Micro Devices SD186ES/SD18 6EM Demons tratio n Board User’s
Manual uses th e conventi ons shown in Table 0-1 (unless otherwise no ted). These

same conventions are used in all E86 family support product manuals.

Table 0-1. Notational Conventions

Symbol Usage
Boldface Indicates that characters must be entered

exactly as shown, except that the alphabetic case is
only significant when indicated.

Typewriter face Indicates computer text input or outpu t in an example

or listing.

1.1

xii

SD186ES/SD186EM Demonstation Board User’s Manual

1.1

Chapter 1

Quick Start

This chapter provides information that will help you quickly set up and start using
the SD186ES/SD186EM demonstration board.

The SD186ES/SD186EM demonstration board is supported by the E86MON
software. The E86MON software enables you to load, run, and debug programs
on the SD186ES/SD186EM demonstration board. For detailed information on
using the E86MON software, refer to the E86MON
included in your kit.

For information on how to:

• Connect the SD186ES/SD186EM demonstration board to a PC, see page 1-2

• Invoke the E86MON software, see page 1-4

• Troubleshoot installation problems, see page 1-5

• Locate related sources of information, see page 1-6

TM

Software User’s Manual

SD186ES/SD186EM Demonstration Board User’s Manual

1-1

Connecting to a PC

Follow the steps below to conne ct the S D186ES /SD18 6EM demonst ration bo ard
to your PC.

Installation Requirements

The items listed below are necessary to install and run the SD186ES/SD186EM
demonstration board:

• PC with an available COM port

• Terminal emulation software (such as Microsoft Windows

ProComm Plus) that supports ASCII file transfers, software flow control (Xon/
Xoff), and send break capability

• Power source for universal power supply

Board Installation

CAUTION: As with all computer equipment, the
SD186ES/SD186EM demo nstration board may be

!

damaged by electrostatic discharge (ESD). Please take
proper ESD precautions when handling any board.

®

Terminal or

1.1

1-2

1. Remove the board from the shipping carton. V isually inspect the board to verify
that it was not damaged during shipment.

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

2. Connect the demonstration board’s DB-9 serial port (either P1 or P0 on the ES
version of the board; P1 on the EM version o f the board) to an av ailable COM
port. Use the serial cable included in the SD186ES/SD186EM demonstration
board kit and note that a DB-9 to DB-25 serial connector adapter is provided
if your host system requires it. The pinout of the demonstration board’s serial
connector is shown on page 2-9.

COM1

COM2

serial
cable

DANGER: Make sure the power supply is not plugged into
an electrical outlet before connecting it to the SD186ES/
SD186EM demonstration board

!

3. Connect th e power supply to the barrel connector on the SD18 6ES/SD186EM
demonstration board.

4. Apply power to the board by connecting the power supply to an electrical outlet.
Once the board is powered up, the LEDs (CR3-CR10) should flash in an
oscillating pattern.

CAUTION: If using your own power supply, ensure that
it is a 5-V supply. Using a 9-V supply will permanently
damage the board.

!

SD186ES/SD186EM Demonstration Board User’s Manual

1-3

5. Invoke the terminal emulation program at 19200 baud, no parity, 8 data bits, and 1
stop bit; enable the software flow control (Xon/Xoff), if supported.

6. Reset t he board by depressing and releasing the RESET switch (see location in Figure
2 on page 2-3). The LEDs on the board (CR3-CR10) will again flash in an oscillating
pattern for three seconds, as they did upon power up.

During the three-second period while the LEDs are oscillating, type an a in the
terminal window to ensure that the E86MON software uses the correct baud rate.
When the E86MON software receives an a, it adjusts its baud rate (if necessary) and
displays the welcome message and prompt.

If you type a character other than an a, or type no character at all, the E86MON
software still displays the welcome mess age and prompt, but may be using an
incorrect baud rate. Depressing and releasing the RESET switch gives you another
opportunity to type an a.

7. To display the version of the monitor and the commands available, type ? and press
Enter.

For detailed infor mation about using the E86MON so ftware, refer to the E86MON
Software User’s Manual included in your kit.



1.1

1-4

SD186ES/SD186EM Demonstration Board User’s Manual

Table 1-1. Installation Troubleshooting

Problem Solution

1.1

Nothing happens when
pushing the RESET
button.

The computer does not
respond with the E86MON
software prompt.

After typing a during reset,
the terminal emulation
software displays
unreadable characters.

After a processor reset, the
LEDs do not flash in the
expected oscillating
pattern.

The terminal emulation
program locks up the
software or PC.

Sometimes it is difficult to make a good connection
when pushing the small RESET button. If all else
fails, remove the power supply from the AC
electrical outlet and disconnect and reconnect the
power supply. The LEDs will flash in an oscillating
pattern when the reset is successful.

Reset the board by pressing the R E SET switch and
typing an a while the LEDs are flashing in an
oscillating pattern. If this does not work, verify the
power, check the cables, etc.

Check the baud rate setting for the terminal
emulation software. It should be set to 19200. Also
check the word length (8), stop bits (1), parity (N),
and turn off any hardware flow control.

Check that the power LED is on and the correct
voltage is supplied to the board. Ensure that the
polarity of the power connector is correct.

Check the COM port connection with the target
board. Make sure that the same COM port is selected
in the terminal emulation software. In some PCs if
the correct COM port is not specified, the software

will fail to function—it will lock in a continuous loop
waiting for an answer from the incorrect serial port.

The power LED does not
turn on with power.

Immediately disconnect the power supply. Ensure
that the polarity of the power connector is correct.
This is a very serious fail u re of t he har dware. If the
power source is connected incorrectly, the board will
be permanently damaged.

There is a problem you
cannot resolve.

Contact the AMD Corporate Applications technical
support services. (See Chapter 3, “Product Support”
for phone numbers and more information.)

SD186ES/SD186EM Demonstration Board User’s Manual

1-5

For More Information...

If you need more information about:

• SD186ES/SD186EM demons tration board har dware,

see Chapter 2, “Demonstration Board Functional Description”

• E86MON software,

see the E86MON

• Problems with the board or the E86MON software,

see Chapter 3, “Product Support”

• SD186ES/SD186EM demons tration board layout and schematics,

see Appendix A, “Layout Diagram, Schematics, and Board Bill o f Material s”

• the Am186ES microcontroller

see the Am186ES and Am188ES Microcontrollers Data Sheet

• the Am186EM microcontroller,

see the Am186EM and Am188EM Microcontrollers Data Sheet

TM

Software User’s Manual

1.1

1-6

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

Chapter 2

Demonstration Board
Functional Description

The SD186ES/SD186EM de monstration board prov ides a completely stand-alone
microcontroller -based evaluation platform in a low-cost , exceptionally small form­factor product. The SD186ES/SD186EM demonstration board was designed to
meet the needs of customers working with the Am186ES and Am186EM
microcontrollers.

Read the following sections to learn more about the SD186ES/SD186EM
demonstratio n board hardw are:

• “Layout and Placement” on page 2-2

• “Am186ES and Am186EM Microcontrollers Implementation” on page 2-4

• “ROM Space” on page 2-7

• “SRAM” on pa ge 2-7

• “RS-232 Serial Ports” on page 2-8

• “Clock and Reset Logic” on page 2-10

• “Am186 Expansion Interface” on page 2-10

• “PIO Activity LED Indicators” on page 2-13

• “Power Supply” on page 2-14

SD186ES/SD186EM Demonstration Board User’s Manual

2-1

Layout and Placement

The design of the SD186ES/SD186EM demonstration board emphasizes ease of
use and small size. Refer to Figure 2 on page 2-3 for board layout and component
placement.

The SD186ES/SD186EM demo nstration b oard has the Flash and SRAM memory
devices (U3, U4 and U7, U8) directly below the processor . Th is placement keeps
the memory devices as close as possible to the processor to minimize noise and
trace reflections. The 40-MHz fundamental mode crystal (Y1) is located to the
right of the processor. Th e expansion interface (J2 and J3) is located at the bottom
of the board for easy connection and access. Finally, the 5.5-mm power-supply
barrel connector (J1) is positioned in the upper, left corner of the board.

The RS-232 serial interfaces are positioned on the right of the board. Please note
that the ES version of the board features two serial ports (P0 and P1), which are
driven by the two asynchronous serial interfaces on the Am186ES microcontroller .
The Am186EM microcontroller provides one asynchronous serial interface so the
EM version of the board implements the serial port with a DB-9 connector (P1).

Table 2-1. SD186ES/SD186EM Demonstration Board Parts List

1.1

2-2

Part
Number

CR1–CR10 Power and signal LEDs Page 2-13
J1 Power connector Page 2-14
J2–J3 Expansion interface Page 2-10
U1 Voltage supply supervisor (TI TL7705A) Page 2-10
U2 Am186ES or Am186EM 40-MHz

U3–U4 Flash memory Page 2-7
U5–U6 RS-232 driver/receiver devices (MAX232) Page 2-8
U7–U8 SRAM Page 2-7
Y1 40-MHz fundamental mode crystal Page 2-10

SD186ES/SD186EM Demonstration Board User’s Manual

Description For more

information, see

Page 2-4

microcontroller

GND

SW1

J1

POWER

CR1

U1

U6

U5

ES/EM

P1

CR2

1.1

Reset

Advanced

Advanced

Micro

Micro

Devices

Devices

Am186EM-40VC

CR3

CR4

CR5

CR6

CR7

CR8

CR9

CR10

1

U2

HI FLASH HI SRAM LOW FLASH LOW SRAM

U3 U7 U4

Advanced
Micro
Devices

U8

SD186ES/EM
DEMO BOARD

J2

J3

019

Y1

P0

ES Only

32

B

C
D

A

Notes:

1.On the SD186ES demonstration board, P1 is asynchronous serial port 0;
P0 is asynchronous serial port 1.

2.On the SD186EM demonstration board, P1 is an asynchronous serial port;
P0 does not exist.

Figure 2-1. SD186ES/SD186EM Demonstration Board Layout

SD186ES/SD186EM Demonstration Board User’s Manual

2-3

Am186ES and Am186EM Microcontrollers
Implementation

The SD186ES/SD186EM d emonstration bo ard support s the AMD Am186ES an d
Am186EM microcontrollers. The board is shipped with either an Am186ES or
Am186EM microcontroller that operates at 40 MHz. Although not supported by
the on-board crystal, the Am186ES and Am186EM microcontrollers are also
available in 20-, 25-, and 33-MHz operating frequencies.

The Am186ES and Am186EM microcontrollers are designed to meet the most
common requirements of embedd ed produ cts developed for the commu nications ,
office automation, mass storage, and general embedded markets. Specific
applications include feature phones, cellular phones, PBXs, multiplexers, modems,
disk drive controllers, hand-held and desktop terminals, fax m achines, line cards,
managed hubs, and industrial control. Refer to the Am186ES and Am188ES

Microcontrollers Data Sheet and the Am186EM and Am188EM
Microcontrollers Data Sheet for more information on the specific features of the

Am186ES and Am186EM microcontrollers.

See Figure 2-2 on page 2-5 for a block diagram detailing the Am186ES

microcontroller’s functionality. See Figure 2-3 on page 2-6
detailing the Am186EM microcontroller’s functionality.

for a block diagram

1.1

2-4

SD186ES/SD186EM Demonstration Board User’s Manual

CLKOUTA

INT3/INTA

INT6-INT4

CLKOUTB

INT2/INTA

1/IRQ

0

INT1/SELECT

INT0

NMI

PWD

TMROUT0 TMROUT1

TMRIN0

TMRIN1

DRQ0 DRQ1

1.1

V

CC

GND

RES

ARDY
SRDY

S2-S0

DT/R

DEN/DS

HOLD

HLDA
S6/LOCK/
CLKDIV

UZI

2

A19-A0

AD15-AD0

X2

X1

Clock and

Power

Management

Unit

Control

Registers

Control

Registers

Bus

Interface

Unit

ALE

Refresh

Control

WR

BHE

Interrupt

Control Unit

Control

Registers

Unit

RD

WHB

WLB

/ADEN

Execution

Unit

LCS/ONCE0

MCS3/RFSH

Pulse
Width

Demod-

ulator

(PWD)

PSRAM

MCS

Timer Control Unit

01 (WDT)2

Max Count B

Registers

Max Count A

16-Bit Count

Control

Registers

Unit

Chip-Select

Unit

2-MCS0

UCS

/ONCE1

Registers

Registers

Control

Registers

Control

PCS

PCS

5/A1

PCS
3-PCS0

20-Bit Destination

Registers

Asynchronous

Serial Port 0

Asynchronous

Serial Port 1

6/A2

DMA

Unit

01

20-Bit Sour ce

Pointers

Pointers

16-Bit Count

Registers

Control

Registers

Control

Control

PIO

Registers

PIO31­PIO0

TXD0
RXD0

RTS

0/RTR0

0/ENRX0

CTS

TXD1
RXD1

RTS1/RTR1

CTS1/ENRX1

Figure 2-2. Am186ES Microcontroller Block Diagram

SD186ES/SD186EM Demonstration Board User’s Manual

2-5

INT3/INTA

CLKOUTA

CLKOUTB

INT2/INTA

1/IRQ

INT4

0

INT1/SELECT

INT0

NMI

TMROUT0

TMRIN0 TMRI N1

TMROUT1

DRQ0 DRQ1

V

CC

GND

RES

ARDY
SRDY
S2-S0

DT/R

DEN

HOLD

HLDA

S6/CLKDIV2

UZI

X1

Clock and

Management

A19-A0

AD15-AD0

X2

Power

Unit

Control

Registers

Control

Registers

Bus

Interface

Unit

ALE/QS0

Refresh
Control

WR/QS1

BHE

Interrupt

Control Unit

Control

Registers

Unit

RD/QSMD

WHB

WLB

/ADEN

Execution

Unit

LCS/ONCE0

MCS3/RFSH

Timer Control Unit
01 (WDT)2

Max Count B

Registers

Max Count A

Registers

16-Bit Count

Registers

Control

Registers

Control

Registers

Chip-Select

Unit

PCS

UCS

/ONCE1

MCS

PSRAM

Control

Unit

2-MCS0

Synchronous Serial

SCLK

PCS

6/A2

5/A1

PCS
3-PCS0

DMA

Unit

01

20-Bit Source

Pointers

20-Bit Destination

Pointers

16-Bit Count

Registers

Control

Registers

Control

Registers

Control

Registers

Asynchronous

Serial Port

Control

Registers

Interface

SDATA

SDEN1

SDEN0

PIO

*PIO31-

PIO0

TXD
RXD

1.1

2-6

Figure 2-3. Am186EM Microcontroller Block Diagram

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

ROM Space

The SD186ES/SD186EM demonstration board contains on-board ROM space for
use by the E86MON software and application code. This ROM space is
implemented as two Am29F010 70-ns Flash memory devices.

The Flash memory devices are mapped to the u pper region of addressable memory
at C0000h to FFFFFh. This range represents the top sector in both Flash memory
devices. Each Flash memory device is organized as 128K x 8 bits (eight, 16K
sectors) and is connected to the UCS
microcontroller. After a valid reset, the Am186ES or Am186EM microcontroller fetches
the first instruction from the Flash memory devices by asserting UCS
address bus with the value FFFF0h.

The E86MON software enables you to program the Flash memory devices with
specific types of hex files. Intel hex and Intel extended hex format files are
supported. This software functionality is provided to eliminate the need to remove
the Flash memory devices. Do not attempt to remove the TSOP Flash memory or
SRAM devices (U3, U4, U7, and U8) because doing so may cause damage to the
board.

SRAM

(Upper Memory Chip Select) signal of the

and driving the

The SD186ES/SD186EM demonstration board utilizes SRAM for its read/write
storage. The board provi des 256 Kbyt e of SRAM using tw o 70-ns devi ces that are
mapped from 0h to 3FFFFh. The SRAM devices are organized as 128K x 8 bits
and are attached to the LCS
For every access to the abov e address range, the Am186ES a nd Am186EM
microcontrollers will assert LCS

NOTE: SRAM available to you includes 410h to 3F400h. See the E86MON
Software User’s Manual included in your kit for more information.

SD186ES/SD186EM Demonstration Board User’s Manual

(Lower Memory Chip Select) sign al of the microcontroller.

.

TM

2-7

RS-232 Serial Ports

The ES version of the SD186ES/SD186EM demonstration board provides two
on-board RS-232 serial ports (P0, P1) that are directly driven by the Am186ES
microcontroller. The serial ports are equipped with DB-9 DCE connectors. The
pin assignment for the DB-9 connectors is shown in Figure 2-4 on page 2-9.

The EM version of the SD186ES/SD186EM demonstration board provides one
on-board RS-232 serial port that is driven directly by the Am186EM
microcontroller. The RS-232 serial port (P1) is equipped with a DB-9 DCE
connector. The pin assignment fo r t he DB-9 conn ect or is s ho wn in Fi gu re 2-4 on
page 2-9.

The Am186EM serial port does not provide RTS and CTS support in hardware.
The PSC
configured as PIO outputs for limited RTS and CTS support via software.

Traditionally, PCs have Data Terminal Equipment (DTE) ports which connect
directly to the Data Communication Equipment (DCE) port on the SD186ES/
SD186EM demonstration board. A null modem cable is not requ ired to connect a
DTE port with a DCE port.

The RS-232 specification calls for signals that are driven at non-TTL levels. Single­chip RS-232 driver/receiver devices (MAX232, U5 and U6) are used to con vert to
and from the required voltages.

3 and PSC2 pins are wired to the corresponding signals and can be

1.1

2-8

SD186ES/SD186EM Demonstration Board User’s Manual

P1

2

1.1

5 GND
4 NC
3 RXD0
2 TXD0

1 NC

RTS
CTS

NC 9

01 8
01 7

NC 6

P0

NC 9

1 8

RTS

1 7

CTS

NC 6

Notes:

1

The SD186EM serial port does n ot suppor t RTS0 and CTS0 in hardware. Instead, these

signals are connected to PCS

2

The SD186EM demonstration board has only one asynchronous serial port. The serial
port is connected to P1.

3 and PCS2.

Figure 2-4. DB-9 Serial Connector Pinout

5 GND
4 NC
3 RXD1
2 TXD1

1 NC

SD186ES/SD186EM Demonstration Board User’s Manual

2-9

Clock and Reset Logic

The Am186ES and Am186EM microcontrollers can be configured for either 1x

or ½x clock mode. As configured on the SD186ES/SD186EM demonstration
board, the microcontroller is in 1x clock mode. The input is generated by a 40-MHz
fundamental mode crystal (Y1) that is connected to the X1/X2 inputs of the
microcontrollers, resulting in a 40-MHz system clock.

System reset is co ntrolled by a voltage supply sup ervisor (TI TL77 05A, U1). This
device generates the processor’s reset input, asserting the Am186ES or Am186EM
microcontroller’ s RES
supply supervisor also holds reset active when the power falls below 4.75 V .

pin for 13 ms when the RESET switch is depressed. The voltage

Am186 Expansion Interface

The SD186ES/SD186EM demonstration board supports the PC/104 form-factor
expansion-type connector for additional prototyping and testing. The traditional
PC/104 signals are not present on the board; however, the Am186 expansion
interface enables you to attach wirewrap or prototype boards that have the same
standard physical interface. The pinout of the expansion interface for the SD186 ES
is shown in the figures that follow.

NOTE: The pinout of the expansion interface is identical for both the SD186ES
and SD186EM demonstration bo ards except for t he four pins shown in Table 2-2.

1.1

2-10

Table 2-2. Expansion Interface SD186ES/SD186EM Pinout

Differences

J2 Pin Number SD186ES Pin Name SD186EM Pin Name

B19 RTS0 SCLK
B20 TXD0 SDEN0
B21 RXD0 SDEN1
B22 CTS0 SDATA

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

WHB

HLDA

CTS

RXD0*

TXD0*

RTS

MCS
MCS
MCS
MCS

TMROUT1

TMRIN1
TMRIN0

TMROUT0

RESET

* Refer to Table 2-2 for a description of these pins.

GND
GND

VCC

ALE

WLB
INT3

INT4

NMI

0*

0*

NC

UZI

RD

WR

LCS

UCS

NC

VCC

GND

J2

AB

32

31
30
29
28

27
26

25
24
23
22
21

20
19
18

0

17

1

16

2

15

3

14
13
12

11

10

9
8
7
6
5
4
3
2
1

32

31
30
29
28

27
26

25

24
23

22
21

20
19
18
17

16
15
14
13
12

11
10

5
4
3
2

1

9
8
7

6

GND

MA0
MA1
MA2
MA3

MA4
MA5

MA6
MA7

MA8
MA9

MA10
MA11
MA12
MA13
MA14

MA15
MA16
MA17
MA18

MA19
SRDY
ARDY

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
NC

Figure 2-5. Am186 Expansion Interface Pinout (J2)

SD186ES/SD186EM Demonstration Board User’s Manual

2-11

C

NC 19
AD15 18
AD14 17

AD13 16
AD12 15

AD11 14
AD10 13

AD9 12
AD8 11

NC 10
NC 9

NC 8

PCS

07
16

PCS

PCS

25

34

PCS

PCS

53

2

6

PCS

BHE

1
0GND

J3

D

19

GND

18

GND

17

DEN
VCC

16

DT/R

15

S0

14

1

S

13

2

S

12

CLKOUTB

11

CLKOUTA

10

DRQ0

9

DRQ1

8

NC

7

NC*

6

INT0

5

INT1

4

INT2

3

S6

2

HOLD

1
0GND

1.1

*This pin is connected to a no connect pin on the SRAM.

Figure 2-6. Am186 Expansion Interface Pinout (J3)

2-12

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

PIO Activity LED Indicators

The SD186ES/SD186EM demonstration board uses on-board LED indicators to
show activity on the upper eight programmable I/O (PIO) signals from the
Am186ES or Am186EM microcontroller. Table 2-3 shows which PIO signal is
represented by each LED.

Table 2-3. PIO LED Indicator Interface

LED PIO Pin Name PIO Register Bit

Number

CR3 MCS1 15
CR4 MCS0 14
CR5 DEN 5
CR6 DT/R 4
CR7 PCS5 3
CR8 PCS6 2
CR9 TMROUT1 1

CR10 TMRIN1 0

SD186ES/SD186EM Demonstration Board User’s Manual

2-13

Power Supply

When used as a stand-alone board, th e SD18 6ES/S D18 6EM demo nstrat io n boar d

requires an input power supply of 5.0 V DC, ±5%, 250 mA.

When adding components to th e SD186ES/SD186 EM demons tration b oard vi a the
expansion interface, additional power may be necessary.

The power supply connector is a 5.5-mm barrel connector where the center post

and the outer ring is GND, as shown in Figure 2-7.

is V

CC

5

+

P

O

Figure 2-7. Power Supply Polarity

D

N

G

V

E

R

W

1.1

2-14

CAUTION: Use the 5-V universal power supply included with
the kit. Using a 9-V supply will permanently damage the

!

SD186ES/SD186EM Demonstration Board User’s Manual

board.

1.1

Chapter 3

Product Support

This chapter contains information on:

• Reaching and using the AMD Corporate Applications technical support
services, on page 3-2

• Product information available through AMD’s World Wide Web and FTP sites,
on page 3-4

• Support tools for the E86 family, on page 3-5

SD186ES/SD186EM Demonstration Board User’s Manual

3-1

AMD Corporate Applications
Technical Support Services

Technical support for the E86 family of microcontrollers and corresponding
support products is available via e-mail, online (BBS and WWW), or through
telephone or fax.

E-Mail Support

Please include your name, company, telephone number, AMD product requiring
support, and question or problem in all e-mail correspondence.

In the USA and Canada, send mail to:

[e-mail]

In Europe and the UK, send mail to:

[e-mail]

Online Support

AMD offers technical sup port on our WWW site, and t hro ugh our bulletin board

services. See “Product Support” on pag e 3-4 for more on what our W WW and FTP
sites have to offer.

WWW Technical Support

Go to AMD’s home page at http://www.amd.com and click on “Service” for the
latest AMD technical support phone numbers, software, and Frequently Asked
Questions.

Bulletin Board Support

Country Number

USA and Canada [phone]
UK and Europe 44-(0) 1276-803-211

1.1

3-2

SD186ES/SD186EM Demonstration Board User’s Manual

Telephone and Fax Support

Telephone assistance is available in the U.S. from 8:00 A.M. to 5:00 P.M. Pacific
time, Monday through Friday (except major holidays). In Europe, assistance is
available during U.K. business hours. Contact the hotlines at one of the following
telephone or fax numbers.

Direct Dial Numbers

Country Number

USA and Canada Tel.: [phone]

Japan Tel.: [phone]

Far East Asia Fax: [phone]
Germany Tel.: [phone]

Fax: [phone]

Fax: [phone]

1.1

UK and Europe Tel.: [phone]

Fax: [phone]

Toll-Free Numbers

Country Number

USA and Canada [phone]
France 0590-8621
Italy 1678-77224
Japan 0031-11-1163

SD186ES/SD186EM Demonstration Board User’s Manual

3-3

Product Support

AMD’s WWW and FTP sites are described below. Questions, requests, and input
concerning these sites can be sent via e-mail to [e-mail].

WWW Site

A subset of the AMD WWW pages, the embedded processor pages are frequently
updated and include general product information, technical documentation, and
support and tool information. T o access these pages, go to the AMD home page at
http://www.amd.com and click on “Embedded Processors” or access the pages
directly at http://www.amd-embedded.com.

The “Embedded Processors” home page is divided into four sections:

• “What’s New” announces new E86 family products, and highlights new
applications using our products.

• “Product Overviews” briefly describes all the microprocessors and
microcontrollers in the E86 family, and describes how these parts are ideal in
specific focus markets.

• “Support and Tools” provides information about the tools that support our
processors, and offers online benchmarki ng tools.

1.1

3-4

• “T echnical Documentation” provides the A vailable Literature List of datasheets,
application notes, user’s manuals, and promotional literature, and describes how
to order these documents. Many are also available online in PDF form. (To
access the Literature Ordering Center via telephone, call one of the numbers
listed on the back cover of your manual).

• “Demo Board Updates” provides a link to the AMD FTP site where the latest
E86MON software releases are available.

SD186ES/SD186EM Demonstration Board User’s Manual

FTP Site

In addition to the documentation on our WWW pages, AMD provides software
through an anonymous FTP site. To download the software, ftp to ftp.amd.com

and log on as “anonymou s” us ing y our e-mail add ress as a p assword . Or v ia your
web browser, go t o ftp://ftp.amd.com. Software relating to the E86 family can be
found in the /pub/epd/e86/ directory.

Third-Party Development Support Products

The FusionE86SM Program of Partn ershi ps f or App lic ation Sol utio ns pr ovi des the
customer with an array of pr oducts design ed to m eet critical time-to -market n eeds.
Products and solutions available from the AMD FusionE86 partners include emulators,
hardware and software debug gers, board- level produ cts, and sof tware d evelo pment
tools, among others . The FusionE86
solutions.

SM

Catalog, order# 19255, describes these

1.1

In addition, mature development tools and applications for the x86 platform are
widely available in the general marketplace.

SD186ES/SD186EM Demonstration Board User’s Manual

3-5

1.1

3-6

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

Appendix A

Layout Diagram, Schematics, and
Board Bill of Materials

This appendix contains a board layout diagram, schematics, and the bill of materials
(BOM) for the SD186ES/SD186EM demonstration board.

SD186ES/SD186EM Demonstration Board User’s Manual

A-1

Board Layout Diagram

GND

J2

SW1

Reset

CR3

CR4

CR5

CR6

CR7

CR8

CR9

CR10

1

CR1

POWER

U1

Advanced

Advanced

Micro

Micro

Devices

Devices

Am186EM-40VC

U2

HI FLASH HI SRAM LOW FLASH LOW SRAM

U3 U7 U4

Advanced
Micro
Devices

J3

019

U6

U8

SD186ES/EM
DEMO BOARD

U5

P1 ES/EM

CR2

Y1

1.1

P0

ES Only

32

B

C
D

A

Notes:

1.On the SD186ES demonstration board, P1 is asynchronous serial port 0;
P0 is asynchronous serial port 1.

2.On the SD186EM demonstration board, P1 is an asynchronous serial port;
P0 does no t exist.

Figure A-1. SD186ES/SD186EM Demonstration Board Layout

A-2

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

Schematics

The SD186ES/SD186EM demon stration board sche matics have been blocked out
to separate functionality of the design onto separate pages as follows:

• Page A-4 contains the power connector and decoupling capacitors

• Page A-5 contains the Am186ES or Am186EM micr ocontroller, clock, and reset
circuitry

• Page A-6 contains the Flash devices

• Page A-7 contains the serial ports and corresponding LEDs

• Page A-8 contains the SRAM devices

• Page A-9 contains the PIO LEDs

• Page A-10 contains the Am186 interface and signal termination

NOTE: These schematics and design are subject to change.

SD186ES/SD186EM Demonstration Board User’s Manual

A-3

© AMD 1996

1.1

A-4

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

S6

© AMD 1996

SD186ES/SD186EM Demonstration Board User’s Manual

A-5

© AMD 1996

1.1

A-6

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

P0

P1

© AMD 1996

SD186ES/SD186EM Demonstration Board User’s Manual

A-7

© AMD 1996

1.1

A-8

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

© AMD 1996

SD186ES/SD186EM Demonstration Board User’s Manual

A-9

Am186 Expansion Interface

S6

© AMD 1996

1.1

A-10

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

Board Bill of Materials (BOM)

Table A-1. SD186ES/SD186EM Demonstration Board BOM

Qty Ref Description MFG1 Part No 1

1 C1 22 MFd, SMT, C case, 20 V Any
1 C12 1.0 MFd, SMT, 16 V Any
9 C13, C16, C17,

C24-C29
1 C14 15 PFd, SMT, 16 V Any
9 C15, C18-23, C30,

C31

10 C2-C11 0.01 MFd, SMT, 16 V Any
10 CR1-CR10 LED, 3 Pin, SMT Rohm SLM-23VMW

1 J1 Power Jack, 5.5 mm, RA Switchcraft RAPC-712
0 J2 Am186 Conn, 64-Pin Header Not Populated
0 J3 Am186 Conn, 40-Pin Header Not Populated
2 P0, P1 DB9 right angl e connector, Front Metal-

12 R1, R24-R34 100K Ohms, 5% Any

2 R10, R12 390 Ohms, 5% Any
8 R16-R23 220 Ohms, 5% Any
4 R2, R13, R14, R37 10K Ohms, 5% Any
7 R3-R8, R15 0K Ohms Any
4 R9, R11, R35, R36 33 Ohms, 5% Any
1 SW1 Reset Switch, (SMT-J lead) C & K KT11P3JM
1 U1 Reset Controller, SMT TI TL7705ACD
1 U2 Am186ES Microcontroller or Am186EM

2 U3, U4 128K x 8 Flash EPROM (SMT) AMD Am29F010 -70 E
1 U5, U6 RS-232 Driver, narrow SMT Maxim MAX232ACSE
2 U7, U8 128K x 8 SRAM (SMT) Hitachi HM628128T-7
1 Y1 40.0 MHz High Frequency Quartz Crystal,

0.1 MFd, SMT, 20 V Any

22 PFd, SMT, 16 V Any

AMP 787844-1

Shell

AMD

Microcontroller

Epson MA-306

16 pF

SD186ES/SD186EM Demonstration Board User’s Manual

A-11

1.1

A-12

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

Index

A

Am186 expansion interface,

See expansion interface

Am186EM microcontroller

block diagram, 2-6
operating frequency, 2-4

Am186ES microcontroller

block diagram, 2-5
operating frequency, 2-4

AM29F010 Flash, 2-7

B

baud rate setting, 1-4
BBS technical support, 3-2
bill of materials, A-11

C

clock configuration, 2-10
clock logic, 2-10
clock rates

supported, 2-10
COM ports, See ports
connect

demo board to PC, 1-2
connectors

DB-9, 1-3
conventions

documentation, xii

CR1–CR9 LEDs

on power-up, 1-4

CR3–CR10 PIO LEDs, 2-13

D

data bits setting, 1-4
DB–9 serial connector pinout, 2-9
DEN

pin, 2-13

documentation

conventions, xii
description of, x, xi, xii
manual contents, x
reference material, xi

DT/R

pin, 2-13

E

E86MON utility

invoking, 1-4

no prompt, 1-5
e-mail technical support, 3-2
expansion interface, 2-10

J2 pinout, 2-11

J3 pinout, 2-12

SD186ES/SD186EM Demonstration Board User’s Manual

Index-1

F

M

features

SD186ES/SD186EM

demonstration board, viii
Flash memory overview, 2-7
FTP site, 3-5
FusionE86 program, 3-5

H

hotline numbers, 3-3

I

installation

requirements, 1-2
troubleshooting, 1-5

interfaces

expansion, 2-10
RS-232 serial, 2-8

J

J1, J2, and J3 locations on board, 2-3

L

LED indicators, 2-13
LEDs

CR1–CR9, 1-4
flashing incorrectly, 1-5
location on board, 2-2
no power, 1-5
PIO indicators, 2-13

memory

Flash, 2-7
ROM, 2-7
SRAM, 2-7

P

parity setting, 1-4
PC

connect demo board to, 1-2

PCS

pins, 2-13

pinout

Am186 interface (J2), 2-11
Am186 interface (J3), 2-12
DB–9 serial connector, 2-9
RS-232 serial port, 2-9

PIO signals

mapped to LEDs, 2-13
overview, 2-13

ports

COM1, 1-3
COM2, 1-3
expansion, 2-10
RS-232 serial, 2-8
serial, 1-3

power supply

5-V vs. 9-V, 2-14
input requirements, 2-14
polarity, 2-14
to board, 1-3

product support

FTP site, 3-5
third party (FusionE86), 3-5
WWW site, 3-4

1.1

Index-2

SD186ES/SD186EM Demonstration Board User’s Manual

1.1

R

RES pin, 2-10
RESET button

nothing happens when pushing, 1-5

resetting board with, 1-4
reset logic, 2-10
ROM space, 2-7
RS-232 serial port, 2-8

pinout, 2-9

S

schematics, A-3
SD186ES/SD186EM demonstration board

bill of materials, A-11

block diagram, ix

clock logic, 2-10

connecting DB-9 connector to PC, 1-3

design, 2 -2

documentation, x

expansion interface, 2-10

features, viii

installing, 1-3

layout and placement, 2-2

layout illustration, 2-3, A-2

LEDs, 2-13

overview, vii

parts list, 2-2

PIOs, 2-13

power supply, 2-14

reset logic, 2-10

ROM space, 2-7

RS-232 serial port, 2-8

schematics, A-3

SRAM, 2-7

technical support, 3-1
serial ports, 1-3

SRAM, 2-7
stop bits setting, 1-4
support, product. See product support
support, technical, 3-1

T

technical support, 3-1

BBS support, 3-2
e-mail support, 3-2
hotline numbers, 3-3
WWW support, 3-2

terminal emulation program

displaying unreadable characters, 1-5

locks up, 1-5
TMRIN1 pin, 2-13
TMROUT1 pin, 2-13
troubleshooting

installation, 1-5

U

U1–U6 location on board, 2-2

(Upper Memory Chip Select) signal,

UCS

2-7

W

WWW

product support, 3-4

technical support, 3-2

Y

Y1 location on board, 2-2

SD186ES/SD186EM Demonstration Board User’s Manual

Index-3

1.1

Index-4

SD186ES/SD186EM Demonstration Board User’s Manual
