AMD NX800LX User Manual

NX800LX

AMD

Geode LX800 500MHz Nano ITX Main Board

User’s Manual

Ver. 1.00

NX800LX

Contents

Safety Information ..........................................................................................................4

Technical Support ............................................................................................................5

Conventions Used in This Guide....................................................................................5

Packing List.......................................................................................................................6

Revision History ...............................................................................................................7

Specifications Summary..................................................................................................8

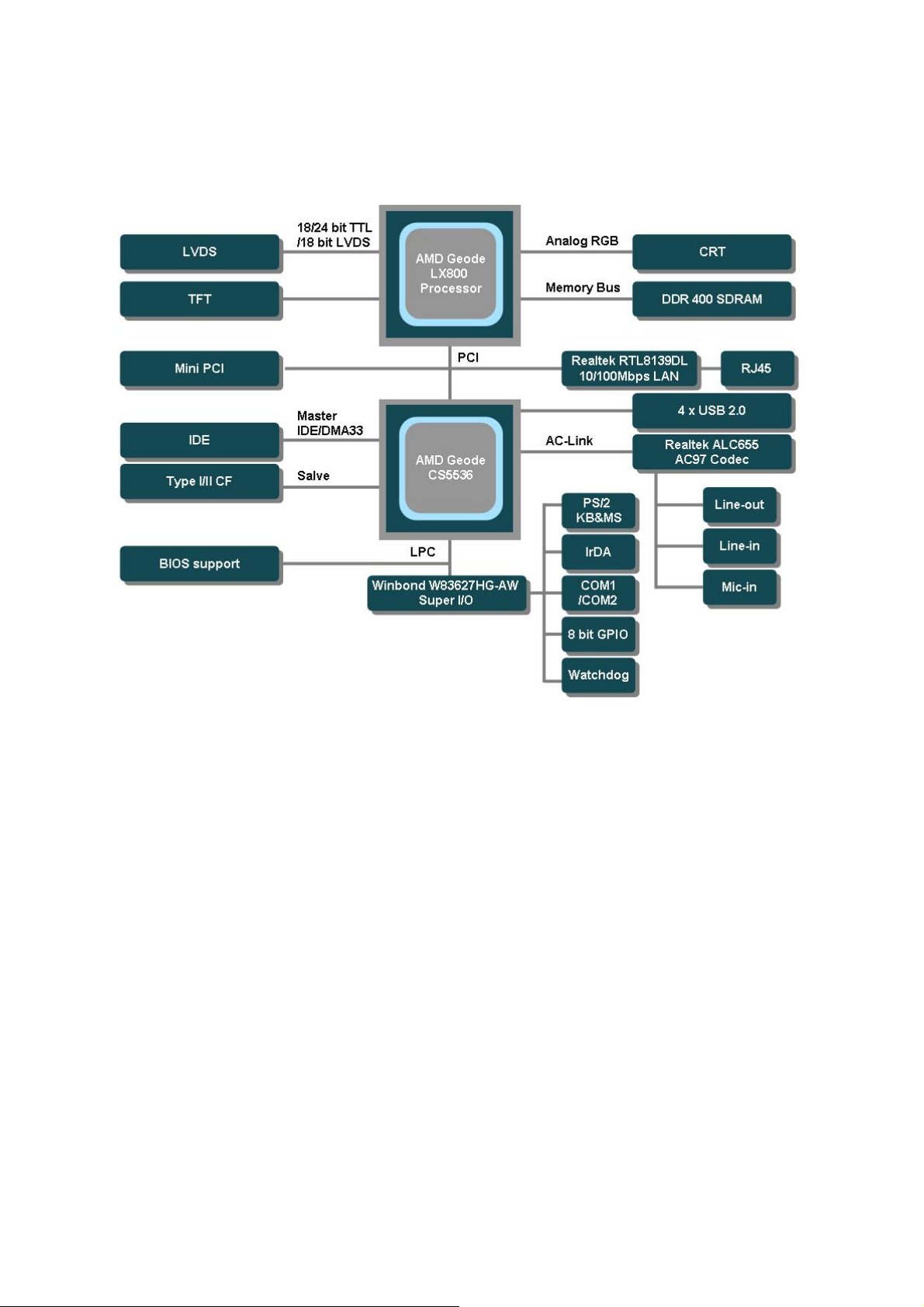

Block Diagram................................................................................................................. 10

Production Introduction ...............................................................................................12

1.1 Before you Proceed ................................................................................................12

1.2 Motherboard Overview............................................................................................13

1.2.1 Placement Direction ....................................................................................................................... 13

1.2.2 Screw Holes ................................................................................................................................... 13

1.3 Motherboard Layout ................................................................................................14

1.3.1 Layout Content List ........................................................................................................................ 15

1.4 Expansion Slots ......................................................................................................17

1.4.1 Installing an Expansion Card ......................................................................................................... 17

1.4.2 Configuring an Expansion Card ..................................................................................................... 17

1.5 Jumpers ..................................................................................................................18

1.5.1 Clear CMOS (J3)............................................................................................................................ 18

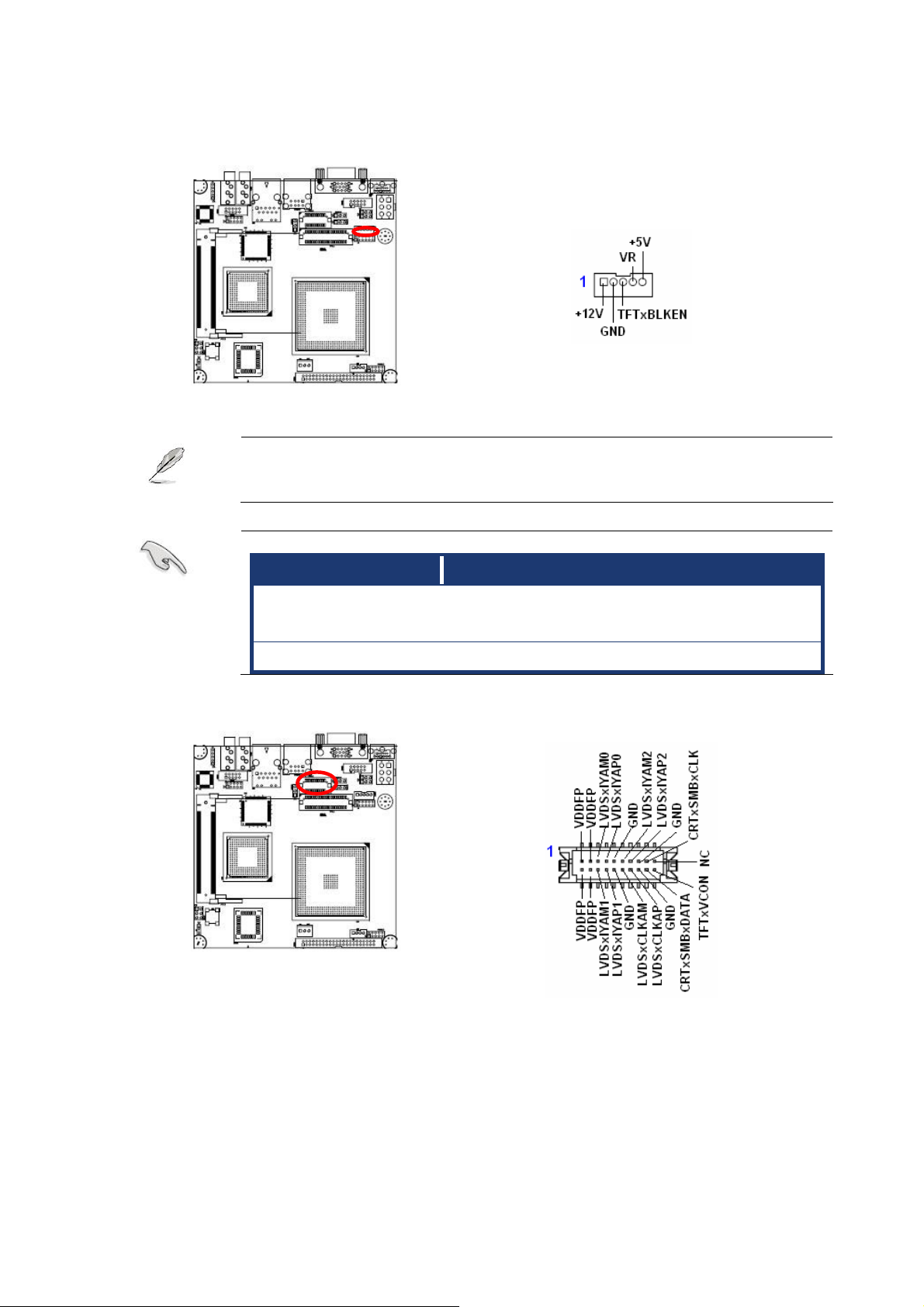

1.5.2 LCD Backlight Brightness Adjustment Connector (LCDPJ1)......................................................... 19

1.5.3 COM1/COM2 RI/+5V Selection (COMAJ1, COMBJ1)................................................................... 19

1.5.4 COM1/COM2 +5V/+12V Selection (COMAPJ1, COMBPJ1) ......................................................... 19

1.6 Connectors..............................................................................................................20

1.6.1 Rear Panel Connectors.................................................................................................................. 20

1.6.2 CF Power Connector (CFPJ1) ....................................................................................................... 21

1.6.3 ATX Power Connector (CN5)......................................................................................................... 21

1.6.4 Power Fan Connector (CN7).......................................................................................................... 21

1.6.5 SM Bus Connector (CN8) .............................................................................................................. 22

1.6.6 Serial port 1 in RS-232 mode (COMB1)......................................................................................... 22

1.6.7 Serial port 2 in RS-232 mode (COMB2)......................................................................................... 22

1.6.8 Front Panel Connector (FPANEL1)................................................................................................ 23

1.6.9 IrDA Connector (IRB1) ................................................................................................................... 24

1.6.10 Primary IDE Connector (IDEB1) ................................................................................................ 24

1.6.11 AC97 Line-in Connector (J1) .....................................................................................................25

1.6.12 GPIO Connector (J2) ................................................................................................................. 25

User’s Manual

Contents

1.6.13

LCD Inverter Connector (LCDB1).............................................................................................. 26

1.6.14 LVDS Connector (LVDS1) ......................................................................................................... 26

1.6.15 TTL Connector (TTL1) ............................................................................................................... 27

1.6.16 USB 2.0 Connector (USBB1)..................................................................................................... 27

NX800LX

Safety Information

Electrical safety

z To prevent electrical shock hazard, disconnect the power cable from the electrical

outlet before relocating the system.

z When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

z Before connecting or removing signal cables from the motherboard, ensure that all

power cables are unplugged.

z Seek professional assistance before using an adapter or extension cord. These

devices could interrupt the grounding circuit.

z Make sure that your power supply is set to the correct voltage in your area. If you are

not sure about the voltage of the electrical outlet you are using, contact your local

power company.

z If the power supply is broken, do not try to fix it by yourself. Contact a qualified service

technician or your retailer.

Operation safety

z Before installing the motherboard and adding devices on it, carefully read all the

manuals that came with the package.

z Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

z To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

z Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

z Place the product on a stable surface. z If you encounter technical problems with the product, contact a qualified service

technician or your retailer.

The symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

User’s Manual

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor. Alternatively, please try

the following help resources for further guidance. Visit the BCM TW website for FAQ,

technical guide, BIOS updates, driver updates, and other information:

http://www.bcmimb.com.tw

Conventions Used in This Guide

To make sure that you perform certain tasks properly, take note of the following symbols

used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when

trying to complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

NX800LX

Packing List

Before you begin installing your single board, please make sure that the following materials

have been shipped:

9 1 x AMD LX800 Nano ITX Main board 9 1 x CD-ROM contains the followings:

－ User’s manual (this manual in PDF file)

－ Drivers

9 2 x Serial port cable 9 1 x 6 to 20 pin power cable 9 1 x Y cable 9 1 x IDE HDD cable 9 1 x Startup Manual

If any of the above items is damaged or missing, please contact your retailer.

Revision History

Revision Revision History Date

V 1.0 First release for PCB 1.00 September 04, 2007

User’s Manual

NX800LX

Specifications Summary

Onboard AMD Geode LX800 500 MHz @ 0.9 W with 128K L2 Cache &

64K L1 Cache CPU

2 AMD Geode CS5536 Companion Chip

3 One 200-pin SODIMM up to 1GB DDR 400 SDRAM

Features

System

4 24-bit TTL, 18-bit LVDS

5 Realtek RTL8139DL 10/100Mbps LAN

6 1 Mini PCI, Type I/II CF

7 2 COM, 4 USB 2.0

CPU BIOS System Chipset I/O Chipset Memory SSD Watchdog Timer

H/W Status Monitor

Expansion Slots

I/O

MIO IrDA USB DIO

Onboard AMD Geode LX800 @ 0.9 W with 128K L2 Cache or 64K L1 Cache

Award 4 Mb Flash BIOS AMD Geode LX800/CS5536 Winbond W83627HG-AW 1 x 200-pin SODIMM socket supports up to 1 GB DDR 400 SDRAM

1 x CompactFlash Type I/II socket

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

Monitoring CPU temperature, voltage, and cooling fan status. Auto throttling

control when CPU overheats

1 x Mini PCI

1 x EIDE (DMA 33), 2 x RS-232, 1 x K/B, 1 x Mouse

115k bps, IrDA 1.0 compliant

4 x USB 2.0 ports

8-bit General Purpose I/O for 4 DI and 4 DO

Specifications Summary

I/O

1 x 6Pin ATX compatible power connector

1x LVDS 20Pin Panel Connector

1x TTL 40Pin Panel Connector

1x Front Panel Connector

User’s Manual

Internal I/O

Back Panel

Display

Display Memory

Resolution

1 x 44Pin IDE Connector

2 x COM Port Connector

1 x LCD Invert Power Connector

1 x 3Pin FAN Connector

1 x ext. USB Connector

1 x ext Line-in Connector

1 x PS/2 Keyboard+Mouse (through Y-Cable)

1 x VGA port

2 x USB 2.0/1.1

1 x RJ45 port

1 x Audio Jack for Mic-in

1 x Audio Jack for Line-out

AMD LX800 integrated graphics controller supports up to 32 MB video memory

CRT mode: 1024 x 768 @ 32 bpp (85 Hz)

TFT mode: 1600 x 1200 @ 32 bpp (100Hz)

VGA/LCD interface

Audio

Chipset Audio Codec Audio Interface

Ethernet

LAN1

Mechanical & Environmental

Power Type Operating Temperature Operating Humidity Size (L x W) Weight

* Specifications are subject to change without notice.

AMD Geode LX800 supports 18-bit Single channel LVDS

AMD Geode CS5536

Realtek ALC655 supports 2 CH AC97 Audio

Mic in, Line in, Line out

Realtek RTL8139DL 10/100Mbps LAN

ATX

0 ~ 60°C (32 ~ 140°F)

0% ~ 90% relative humidity, non-condensing

4.72" x 4.72" (120 mm x 120 mm)

0.88 lbs (0.4 Kg)

NX800LX
