Amcor ALD-12 User Manual

One Year Limited Warranty

Amcor, Inc. (“Amcor”) warrants the original retail purchaser (“Purchaser”) purchasing in the
United States that the Amcor product with which this warranty is enclosed is free from defects
in materials and workmanship.

Amcor’s sole obligation under this warranty is to replace, or at Amcor’s discretion, to repair,
free of charge, all defective parts, for a period of one (1) year from date of original purchase.
ANY IMPLIED WARRANTY OF MERCHANTABILITY IS SIMILARLY LIMITED TO ONE (1)
YEAR FROM DATE OF ORIGINAL PURCHASE AND NO ACTION BASED UPON ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR OTHERWISE MAY BE COMMENCED
AFTER EXPIRATION OF ONE (1) YEAR FROM DATE OF ORIGINAL RETAIL PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

The provisions of this warranty shall not apply to any product which in Amcor’s judgment has
been (1) subject to misuse or neglect. (2) damaged in an accident. (3) used for a purpose for
which it was not designed, or (4) repaired or altered in any way that adversely affected its
performance or reliability.

To obtain warranty service, the defective product or part must be shipped or delivered to:
Amcor’s authorized service center. All postage, insurance and shipping charges are the responsibility
of the Purchaser and are not included in this warranty.

AMCOR NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY
OTHER ( LIABILITY IN CONNECTION WITH ITS PRODUCTS, THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. NO RESPONSIBILITY
IS ASSUMED FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT MAY RESULT FROM
THE USE OF AN AMCOR PRODUCT, NOR FOR THE DAMAGES DUE TO ACCIDENT, ABUSE,
LACK OF RESPONSIBLE CARE, THE AFFIXING OF ANY UNAUTHORIZED ATTACHMENT,
LOSS OF PARTS, OR USE AT A VOLTAGE OTHER THAN SPECIFIED. Some states do not allow
the exclusion of limitation of incidental or consequential damages, so these limitations may not
apply to you.

Amcor disclaims all liabilities for defects or damages caused by use of replacement parts obtained
from or by service at any service center other than Amcor’s authorized service center.

This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.

Product: AMCOR Ultra Clean Portable Air Conditioner Model: ALD-12,000E/EH

Date Purchased:_____________________________________ Production Code:________

QUESTIONS? Call 201-460-8100 · www.amcorgroupusa.com

Amcor Inc. · 685-A Gotham Parkway · Carlstadt, NJ 07072

Made in China

11/2004

Dear Customer: Please keep this warranty for your record. DO NOT return it.

14

913123640

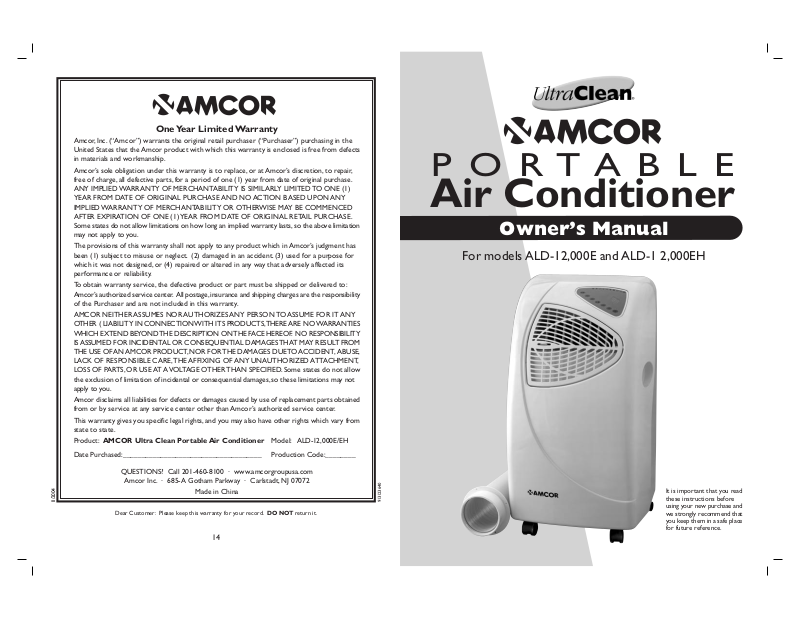

PORTABLE

Air Conditioner

Owner’s Manual

For models ALD-12,000E and ALD-1 2,000EH

It is important that you read
these instructions before
using your new purchase and
we strongly recommend that
you keep them in a safe place
for future reference.

Troubleshooting

The unit doesn’t run or • Is the machine plugged in?
only runs in fan mode • Is the electrical outlet working?

• Is the room temperature in the working range?

• Is the unit in cooling mode or heating mode
rather than auto mode when it will work
according to its own settings?

• Is the water container full?

The unit seems to do little • Is there direct sunshine? (Please close

the curtains or blinds)

• Are too many windows or doors open?

• Are there too many people in the room?

• Is there something in the room producing
lots of heat?

• Is the room temperature within 5° of the
selected temperature?

The unit seems to do nothing • Is the dust filter dirty?

• Is the air intake or outlet blocked up?

• Is the room temperature within
the selected temperature +/-5°F?

The room is not cold enough • The room being cooled should have proper

insulation. If the unit is used in UN-INSULATED
rooms such as Sunrooms, Garages, or
Attics, ideal cooling might not be attained.

Too noisy • Is the machine positioned unevenly

so as to create vibration?

• Is the floor underneath the machine uneven?

The compressor doesn’t run • The overheat protection feature on the

compressor might be on. If this occurs,
wait for the temperature of the unit to drop.

• Is the water container full? Does it need draining?

NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF

REPLACEMENT FILTERS:

To purchase Replacement Filters for this unit, contact AMCOR at

1-201-460-8100 and request model number ALD -12,000F

If this product is defective or not working properly,

please DO NOT return to your retail store.

Please contact us directly for any Service or Technical Assistance at:

1-201-460-8100

Amcor Inc.

685-A Gotham Parkway · Carlstadt, NJ 07072 · www.amcorgroupusa.com

Table of Contents

THANK YOU ...............................................................................................................................2

Energy Saving Tips .......................................................................................................................................................2

SPECIFICATIONS .......................................................................................................................3

BEFORE USE.................................................................................................................................4

PARTS ............................................................................................................................................5

Front, Back .....................................................................................................................................................................5

Accessories.....................................................................................................................................................................5

INSTALLATION ..........................................................................................................................6

Window Kit Installation..............................................................................................................................................6

Wall Connection...........................................................................................................................................................6

Mounting the Exhaust Pipe.......................................................................................................................................7

Cleaning the Filter........................................................................................................................................................7

OPERATION - ELECTRONIC CONTROL MODELS .......................................................8

Control Panel.................................................................................................................................................................8

Setting Mode / Function.............................................................................................................................................8

Auto Mode.....................................................................................................................................................................8

Setting the Temperature.............................................................................................................................................8

Setting Fan Speed........................................................................................................................................................9

Setting the Timer ..........................................................................................................................................................9

Regulating Airflow Direction ......................................................................................................................................9

DRAINAGE..................................................................................................................................10

By Draining into a Container...................................................................................................................................10

By Water Tube (Continuous Drainage) ..................................................................................................................10

MAINTENANCE ........................................................................................................................11

Cleaning the Housing ................................................................................................................................................11

Cleaning the Filter ......................................................................................................................................................11

End of Season Storage..............................................................................................................................................11

Storing the Power Cord............................................................................................................................................11

TROUBLESHOOTING..............................................................................................................12

YOUR GUARANTEE.................................................................................................................14

112

Drainage

During the process of cooling, some water will be extracted from the air into the unit. Most of this water
is used to cool the unit and make it run more efficiently. This is a feature not found in most Portable Air
Conditioners. If the unit is operated in VERY HUMID air, water will collect in the container inside the unit.
If the water container is full, the compressor will stop, but the fan will continue to circulate the air. The
POWER indicator will blink to inform you to empty the internal container. To make the cooling function
work again, please empty the water by one of the following methods:

By the Draining into a Container

Use a Shallow Container or Dish

1. Turn off the unit.

2. Position a flat container or dish under the drain hole.
Do not allow the water to drip continuously into the container,
as it might easily overflow.

3. Remove the drain knob & rubber plug from the drain hole.
The condensed water will drain out automatically.

4. When the container is almost full, replace the rubber plug
into the drain hole to stop the water. Empty the container.

5. Repeat steps 2, 3 & 4 until all the condensed water is emptied.

6. Once all the condensed water has been removed,

replace the rubber plug into the drain hole firmly.
The Full Water indicator should be off now.

7. Replace the drain knob.

By Water Tube (Continuous Drainage)

1. Remove the drain knob and rubber plug and keep them

for future use.

2. Connect a suitable water tube

(of 3/4" internal diameter - supplied) to the water hole.
The condensed water will drain out automatically.

3. If you want to extend the water tube you can connect

it with another tube (outside diameter 3/4").

Special Caution for Heating Function!

While using the heating function, please note:

1. Install the exhaust pipe securely in order to exhaust

the cool air to the outside (please see page 6).

2. Use the continuous drainage option as described above.

3. The warmer the outside air the more heat will be

pumped into the room. Working range for heat pump
function is 41°F to 81°F. When used in room temperatures
outside this range, the unit may not function properly.

4. While using the heating function during low temperatures,

sometimes the heating will stop for a while in order to melt the
internal frost. When this occurs, just wait for heating to resume.
This is normal for compressor operated devices.

Specifications

Model Number ALD-12,000E ALD-12,000EH

Cooling Capacity 12,000 BTU/hr 12,000 BTU/hr

Heating Capacity (1)(2) N/A 12,000 BTU/hr

Power Consumption 950W / 9A 950W / 9A

Humidity Removal Capacity 55 Pts. / Day 55 Pts. / Day

Recommended room size* 400 sq. ft. 400 sq. ft.

Power Supply 120V / 60Hz / 1 Phase 120V / 60Hz / 1 Phase

Compressor Rotary Rotary

Refrigerant R-22 R-22

Fan Speed 2 2

Timer 1-12 hours 1-12 hours

Thermostat 64°F - 90°F64°F - 90°F

Net Weight 65 lbs. 68 lbs.

Dimensions 16"W x 17"D x 30"H 16"W x 17"D x 30"H

Working Temperature Cooling: 64°F to 110°F Cooling: 64°F to 110°F

Heating: 41°F to 81°F

REMARKS:

1. The data may vary, please refer to the rating label on the back of the unit.

2. The above conditions are measured at:
Cooling - Indoor: RT 81°F, RH 60%
Heating - Indoor: RT 68°F, RH 60%

* Uninsulated rooms such as sunrooms, garages, or attics should be less than 400 sq. ft.

10 3
