AUTOMATIC WASHER

Use&CareGuide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-688-9900

or visit our website at...

www.amana.com

In Canada, call 1-800-807-6777, or visit our website at...

www.amanacanada.ca

LAVEUSE

AUTOMATIQUE À

CHARGEMENT FRONTAL

Guided’utilisationetd’entretien

Au Canada, pour assistance, installation ou service, composez le :

1-800-807-6777

ou visitez notre site Internet à www.amanacanada.ca

Table of Contents/Table des matières...................

2

Designed to use only HE High Ef ciency Detergent

Conçue pour l’utilisation d’un détergent haute ef cacité seulement

W10211354C

461970256141

TABLE OF CONTENTS



WASHER SAFETY ..........................................................................

3

INSTALLATION REQUIREMENTS ................................................

4

Tools and Parts ............................................................................

4

Options.........................................................................................

4

Location Requirements................................................................

4

Drain System................................................................................

6

Electrical Requirements ...............................................................

6

INSTALLATION INSTRUCTIONS ..................................................

7

Remove Transport System ..........................................................

7

Connect the Inlet Hoses...............................................................

7

Route the Drain Hose...................................................................

8

Secure the Drain Hose .................................................................

8

Level the Washer..........................................................................

8

Complete Installation ...................................................................

9

FEATURES AND BENEFITS ..........................................................

9

WASHER USE..............................................................................

10

Starting Your Washer................................................................

10

Using the Proper Detergent ......................................................

10

Using the Dispenser..................................................................

11

Pausing or Restarting................................................................

12

Changing Cycles, Options, and Modifiers................................

12

Status Lights .............................................................................

13

Cycles........................................................................................

13

Normal Washer Sounds............................................................

14

Options......................................................................................

15

Modifiers....................................................................................

15

Laundry Guide...........................................................................

16

LAUNDRY TIPS ...........................................................................

16

Loading......................................................................................

17

WASHER CARE ...........................................................................

17

Cleaning Your Washer ..............................................................

17

Water Inlet Hoses......................................................................

18

Vacation, Storage, and Moving Care........................................

18

TROUBLESHOOTING .................................................................

19

ASSISTANCE OR SERVICE........................................................

22

In the U.S.A. ..............................................................................

22

In Canada ..................................................................................

22

WARRANTY .................................................................................

23

TABLE DES MATIÈRES



SÉCURITÉ DE LA LAVEUSE.......................................................

24

EXIGENCES D’INSTALLATION ..................................................

25

Outillage et pièces.....................................................................

25

Options ......................................................................................

25

Exigences d’emplacement........................................................

25

Système de vidange..................................................................

27

Spécifications électriques .........................................................

28

INSTRUCTIONS D'INSTALLATION............................................

29

Élimination des accessoires de transport.................................

29

Raccordement des tuyaux d'alimentation................................

29

Acheminement du tuyau de vidange ........................................

30

Immobilisation du tuyau de vidange .........................................

30

Réglage de l'aplomb de la laveuse...........................................

30

Achever l'installation .................................................................

31

CARACTÉRISTIQUES ET AVANTAGES ....................................

31

UTILISATION DE LA LAVEUSE..................................................

32

Mise en marche de la laveuse...................................................

32

Utilisation du détergent approprié ............................................

32

Utilisation du distributeur ..........................................................

33

Pause ou remise en marche......................................................

34

Changement des programmes, options et modificateurs........

35

Témoins lumineux .....................................................................

35

Programmes..............................................................................

36

Sons normaux émis par la laveuse ...........................................

37

Options ......................................................................................

37

Modificateurs.............................................................................

38

Guide de lessivage ....................................................................

39

CONSEILS DE LESSIVAGE.........................................................

40

Chargement...............................................................................

40

ENTRETIEN DE LA LAVEUSE ....................................................

41

Nettoyage de la laveuse............................................................

41

Tuyaux d'arrivée d'eau..............................................................

42

Précautions à prendre avant les vacances, un entreposage



ou un déménagement ...............................................................

42

DÉPANNAGE................................................................................

43

ASSISTANCE OU SERVICE........................................................

46

Au Canada.................................................................................

46

GARANTIE....................................................................................

47

2

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

3

INSTALLATION REQUIREMENTS

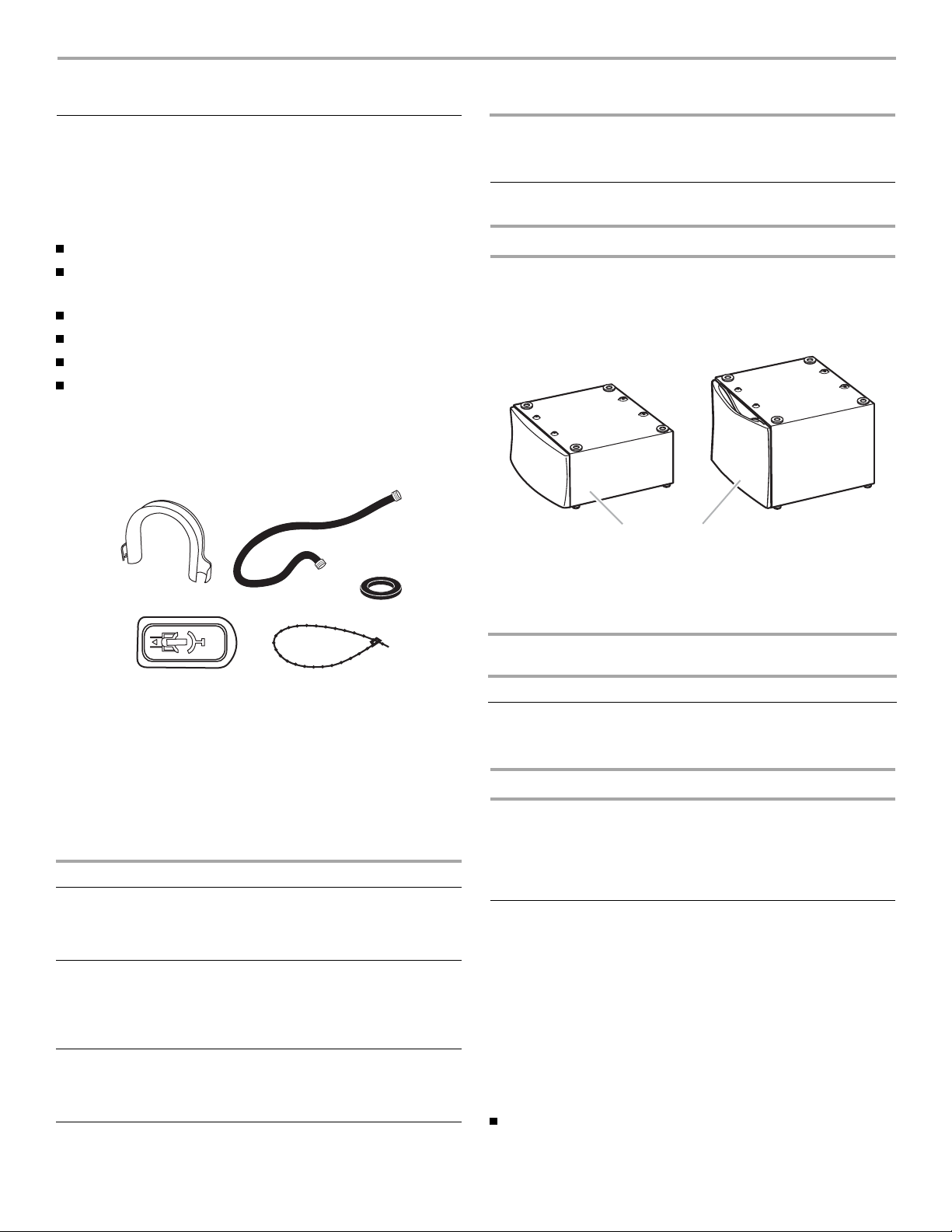

Tools and Parts

Gather the required tools and parts before starting installation. The parts supplied are in the washer drum.

Tools needed for connecting the water inlet hoses

Pliers (that open to 19/16" [39.5 mm]) Flashlight (optional)

Tools needed for installation

Open end wrenches 17 mm and 13 mm

Level

Wood block

Ruler or measuring tape

NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates for future reference.

Parts supplied:

A B

C

D E

A.Drain hose form

B.Inlet hose (2)

C.Inlet hose washer (4)

D.Transport bolt hole plug (4)

E.Beaded strap

Alternate Parts

Your installation may require additional parts. If you are interested in purchasing one of the items listed here, call the toll-free number on the cover or in the “Assistance or Service” section.

If You Have

You Will Need to Buy





Laundry tub or

Sump pump system (if not already

standpipe taller

available)

than 96" (2.4 m)







Overhead sewer

Standard 20 gal. (76 L), 30" (762 mm) tall



drain tub or utility sink and sump pump



(available from local plumbing suppliers)





Floor drain

Siphon break, Part Number 285834;



additional drain hose



Part Number 8318155; and



connector kit, Part Number 285835





Drain hose too

4 ft (1.2 m) drain hose extension kit,

short

Part Number 285863





Water faucets

2 longer water ll hoses:

beyond reach of ll 6 ft (1.8 m) Part Number 76314,

hoses

10 ft (3.0 m) Part Number 350008





Options

Pedestal

You have the option of purchasing pedestals of different heights separately for this washer. You may select a 10" (254 mm) or a 15.5" (394 mm) pedestal. These pedestals will add to the total height of the washer for a total height of approximately

48" (1219 mm) or 53.5" (1359 mm).

AB

A.10" (254 mm) pedestal

B.15.5" (394 mm) pedestal

To order, call the dealer from whom you purchased your washer or refer to the “Assistance or Service” section.

Pedestal

Color

Part Number

Height











10" (254 mm)

White

WHP1000SQ







15.5" (394 mm)

White

XHP1550VW

Stack Kit

Are you planning to stack your washer and dryer? To do so you will need to purchase a Stack Kit.

To order, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section. Ask for Part Number 8541503.

Location Requirements

Selecting the proper location for your washer improves performance and minimizes noise and possible washer “walk.”

Your washer can be installed under a custom counter, or in a basement, laundry room, closet, or recessed area. See “Drain System.”

Companion appliance location requirements should also be considered. Proper installation is your responsibility.

You will need

A water heater set to deliver 120°F (49°C) water to the washer.

A grounded electrical outlet located within 6 ft (1.8 m) of where the power cord is attached to the back of the washer. See “Electrical Requirements.”

Hot and cold water faucets located within 4 ft (1.2 m) of the hot and cold water ll valves, and water pressure of 20-100 psi (137.9-689.6 kPa).

4

A level floor with a maximum slope of 1" (25 mm) under entire washer. Installing the washer on soft floor surfaces, such as carpets or surfaces with foam backing, is not recommended.

A sturdy and solid floor to support the washer with a total weight (water and load) of 400 lbs (180 kg).

Do not operate your washer in temperatures below 32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures.

Installation clearances

The location must be large enough to allow the washer door to be fully opened.

Additional spacing should be considered for ease of installation and servicing.

Additional clearances might be required for wall, door, and floor moldings.

Additional spacing of 1" (25 mm) on all sides of the washer is recommended to reduce noise transfer.

Companion appliance spacing should also be considered.

Washer Dimensions

27"

51" (686 mm)

(1295 mm)

38"

(965 mm)

31½"

(800 mm)

Recommended installation spacing for custom undercounter installation

The dimensions shown are for the recommended spacing.

Custom undercounter installation - Washer only

39" min.

(990 mm)

1"



27"



1"

(25 mm)

(686 mm)

(25 mm)

Recommended installation spacing for recessed or closet installation, with or without a pedestal

The dimensions shown are for the recommended spacing.

Recessed area or closet installation









3"









(76 mm)





34"

48 in.2 *





(864 mm)

(310 cm2)









24 in.2 *

3"







(155 cm2)









(76 mm)

1"

31½"

4"





(25 mm) (800 mm)(102 mm)





A





B

A.Side view - closet or confined area

B.Closet door with vents

*Min. top and bottom air openings for closet door.

Recessed or closet installation - Washer on pedestal

18" min.

(457 mm)

1"



27"



1"

1"



31½"





4"













(25 mm)

(686 mm)

(25 mm) (25

mm)(800 mm)(102 mm)





A







B









A.Recessed area

B.Side view - closet or confined area

Recommended installation spacing for recessed or closet installation, with stacked washer and dryer

The dimensions shown are for the recommended spacing.

48 in.2 * (310 cm2)

3"* (76 mm)



3"* (76 mm)

24 in.2 *

1"* (25 mm)

(155 cm2)



*Required spacing

5

6"* (152 mm)

76"

(1930 mm)

5½"**







1"



27"



1"









(140 mm)





(25 mm)

(686 mm)

(25 mm)

* Required spacing

** For venting out the side, 1" (25 mm) spacing is allowed.

Recommended installation spacing for cabinet installation

The dimensions shown are for the recommended spacing.

For cabinet installation, with a door, the minimum ventilation openings in the top are required.

7" (178 mm)

7" (178 mm)















9"

(229 mm)

































































4"

31½"

1"

1"

27"

1"



(102 mm)

(800 mm)

(25 mm) (25 mm) (686 mm)

(25 mm)

Drain System

The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See “Tools and Parts.”

Standpipe drain system - wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of 2" (50 mm). The minimum carry-away capacity can be no less than 17 gal. (64 L) per minute.

The top of the standpipe must be at least 30" (762 mm) high and no higher than 96" (2.4 m) from the bottom of the washer.

30" min.

(762 mm)

A B

Laundry tub drain system (view C)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 30" (762 mm) above the floor.

Floor drain system (view D)

The floor drain system requires a siphon break that may be purchased separately. See “Tools and Parts.”

The siphon break must be a minimum of 28" (710 mm) from the bottom of the washer. Additional hoses might be needed.

28" min.

30" min. (711 mm)

(762 mm)

C D

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120 volt, 60 Hz., AC only, 15or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided.

This washer is equipped with a power supply cord having a 3 prong grounding plug.

6

To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, ground-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the washer is properly grounded.

Do not have a fuse in the neutral or ground circuit.

INSTALLATION INSTRUCTIONS

Remove Transport System

WARNING

Excessive Weight Hazard

Use two or more people to move and install washer. Failure to do so can result in back or other injury.

IMPORTANT: Position the washer so that the rear of the washer is within approximately 3 ft (900 mm) of its final location.

There are 4 bolts in the rear panel of the washer that support the suspension system during transportation. These bolts also retain the power cord inside the washer until the bolts are removed.

1.Using a 13 mm wrench, loosen each of the bolts.

2.Once the bolt is loose, move it to the center of the hole and completely pull out the bolt, including the plastic spacer covering the bolt.

3.Once all 4 bolts are removed, discard bolt and spacers. Then pull the power cord through the opening of the rear panel and close the hole with the attached cap.

4.Close the bolt holes with the 4 transport bolt hole plugs.

NOTE: If the washer is to be transported at a later date, call your local service center. To avoid suspension and structural damage to your washer, it must be properly set up for relocation by a certified technician.

Connect the Inlet Hoses

1.Insert new flat washers (supplied) into each end of the inlet hoses. Firmly seat the washers in the couplings.

AB

A.Coupling

B.Washer

2.Make sure the washer drum is empty.

3.Attach the hose with the red color indicator to the Hot (left) inlet valve. Attaching the red coupling first makes it easier to tighten connection with pliers. Screw on coupling by hand until it is seated on the washer.

7

4.Attach the hose with the blue color indicator to the Cold (right) water inlet valve. Screw on coupling by hand until it is seated on the washer.

HC

H. Hot water inlet

C.Cold water inlet

5.Using pliers, check the tightness of the hose couplings already attached to the washer.

NOTE: Do not overtighten. Damage to the coupling can result.

6.Attach hot water hose to the hot water faucet. Screw on coupling by hand until it is seated on the washer.

7.Attach cold water hose to the cold water faucet. Screw on coupling by hand until it is seated on the washer.

8.Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten. Damage to the coupling can result.

9.Turn on the water faucets and check for leaks.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Route the Drain Hose

Proper routing of the drain hose protects your floors from damage due to water leakage. Read and follow these instructions.

Remove drain hose from washer cabinet

Gently pull the corrugated drain hose from the shipping clips.

Laundry tub drain or standpipe drain

Connect the drain hose form to the corrugated drain hose.

A B

A.Snap either end of the drain hose form to the drain hose at the point where the corrugation begins.

B.Bend drain hose over drain hose form and snap into place.

To keep drain water from going back into the washer:

Do not straighten the drain hose, and do not force excess drain hose into standpipe. Hose should be secure, but loose enough to provide a gap for air.

Do not lay excess hose on the bottom of the laundry tub.

Floor drain

You may need additional parts. See Floor drain under “Tools and Parts.”

Secure the Drain Hose

1.Drape the power cord over the washer top.

2.Secure the drain hose to the laundry tub leg or standpipe with the beaded strap provided. (See illustrations A and B.)

A B C

If the washer faucets and the drain standpipe are recessed (see illustration C), put the hooked end of the drain hose in the standpipe. Tightly wrap the beaded strap around the water inlet hoses and the drain hose.

Do not force excess drain hose into the standpipe.

Level the Washer

Properly leveling your washer avoids excessive noise and vibration.

1.Check the levelness of the washer by placing a level on the top edge of the washer, first side to side, then front to back.

If the washer is against a wall, move the washer out slightly before tipping back. If the washer is not level, first prop the front with a wood block and adjust the feet as necessary; then prop the back and adjust feet as necessary. Repeat this step until washer is level.

8

2.Make sure all four feet are stable and resting on the floor. Then check that the washer is perfectly level (use a level).

3.After the washer is level, use a 17 mm open-end wrench to turn the nuts on the feet tightly against the washer cabinet.

IMPORTANT: All four feet must be tightened. If the nuts are not tight against the washer cabinet, the washer may vibrate.

4.The washer should not move front to back, side to side, or diagonally when pushed on its top edges.

5.Slide the washer to its final location.

6.Confirm the levelness of the washer.

Complete Installation

1.Check the electrical requirements. Be sure that you have the correct electrical supply and the recommended grounding method. See “Electrical Requirements.”

2.Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.

3.Check that you have all of your tools.

4.Dispose of/recycle all packaging materials.

5.Check that the water faucets are on.

6.Check for leaks around faucets and inlet hoses.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

7.Plug into a grounded 3 prong outlet.

8.Read “Washer Use.”

9.To test and clean your machine, make sure there are no clothes in the washer and add one AFFRESH™ tablet to the washer drum. Select Power, the Clean Washer cycle and then select START. This cycle will take approximately 50 minutes to complete. Allow the washer to complete the entire cycle without interruption.

FEATURES AND BENEFITS

Electronic Controls

Flexible electronic controls are easy to use whether you are a beginner or an expert.

Smart Dispensers

The Smart Dispensers make your washer truly automatic. This washer provides a three-compartment dispenser which includes separate compartments for main wash detergent, fabric softener, and bleach. The dispenser has large pour zones. The dispenser is self-cleaning, and can be easily removed. Laundry products are diluted with fresh water and added to the load at the proper time in the wash cycle.

Auto Water Level

This washer automatically adjusts water level for optimal cleaning and rinsing performance. Two sensors determine load size, load composition, and suds level, then the sensors adjust the water level to the proper setting. This eliminates guesswork. The water level is just right for every wash load size.

Larger Load Size

Since there is no agitator, you can wash larger, bulkier items such as a king-sized bedspread. You are also able to wash more clothes at one time, which means fewer loads.

Stainless Steel Drum

The stainless steel drum eliminates corrosion and enables higher spin speeds for more water extraction, helping to reduce drying time compared to traditional top-load washers.

High-Efficiency Wash System

Your new front-loading, high-efficiency washer saves time with fewer, larger loads. It also lowers your water and energy bills by helping conserve resources.

Spin Speeds

This washer automatically selects the spin speed based on the cycle selected. This factory setting can be changed, however. This washer offers up to five different spin speed choices.

Heating Element

This washer has a heating element that automatically heats the water to the optimal temperature on select cycles. This enables stepped cleaning, a process in which warm water is brought in and mixed with detergent first, then the water is heated. Stepped cleaning starts the wash cycle with warm water to remove stains (such as blood and grass).

Auto Load Sensing Technology

Intuitive intelligence “knows every load” determining load sizes, water levels, and how much cleaning time is needed.

Add Clothes

When this option is available at the beginning of the cycle, the Add Clothes Status Light will glow for the first 8 minutes. This washer allows an 8-minute period in which other garments may be added to a load.

Direct Injection Wash System

This washer channels 100% of the water through the dispensers to assure thorough rinse-out and mixture of all the laundry products before they touch any garments. The water is then sprayed from the top front onto the center of the load, providing even distribution and optimum cleaning performance. It is normal for small amounts of water to remain in the dispensers when the wash cycle is complete.

9

Efficient Detergent System with Anti-Escape Valve

This washer has a specially designed valve that closes during the wash portion of the cycle so that 100% of the water and detergent mixture is used on the load. The Efficient Detergent System ensures that no water or detergent is wasted.

6-Point Suspension System

Shock absorbers, 2 springs, and electronic controls are specially designed to help redistribute the load automatically and minimize movement of the wash drum during the spin cycle. The 6-Point Suspension System reduces the amount of force transmitted to the floor by the washer, resulting in reduced noise and vibration.

WASHER USE

NOTE: The panel shown above may be different from that of your model.

Starting Your Washer

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

The following is a guide to using your washer. Please refer to specific sections of this manual for more detailed information.

Do not store laundry products on the top surface of this washer. Vibration is normal during operation.

Using the Proper Detergent

Use only High Efficiency detergents. The package for this type of detergent will be marked “HE” or “High Efficiency.” This wash system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times, and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

Use only HE High Efficiency detergent.

First Wash Cycle Without Laundry

Before washing clothes for the first time, if not completed during the final installation step, choose the Normal/Casual cycle and run it without clothes. Use only HE High Efficiency detergent. Use ½ the manufacturer’s recommended amount for a medium-size load. This initial cycle serves to ensure the interior is clean before washing clothes.

For All Wash Cycles

1.Open the washer door by pulling on the handle. Sort laundry according to color and type of fabric. Place a load of sorted clothes in the washer. Do not overload washer. Overloading can cause poor cleaning.

The washer can be fully loaded, but not tightly packed. Washer door should close easily.

Mix large and small items and avoid washing single items. Load evenly.

10

Wash small items, such as infant socks, in mesh garment bags. It is recommended that more than one garment bag be used, and that each garment bag be filled with equal amounts of material.

When unloading garments, check under the gray colored seal at the front of the tub for small items.

2.Close the washer door by pushing it firmly until the lock clicks. The washer door will remain locked during the wash cycle.

NOTES:

After any wash cycle is completed, the door must be opened and then closed before a new cycle can begin.

The door can be opened only if STOP is selected while the Add Clothes light is glowing or if the cycle has been canceled.

See “To cancel a cycle” in “Changing Cycles, Options, and Modifiers” section.

3.Open the dispenser drawer and add laundry products to the detergent, bleach, or fabric softener compartments. Close drawer slowly to avoid spills. See “Using the Dispenser.”

4.Turn on the washer by selecting POWER. Select one of the cycles by turning the cycle selector. The indicator light for the selected cycle will glow green. When selecting a wash cycle, the preset options and modifiers (such as Wash Temp, Spin Speed, and Soil Level) for the selected cycle will glow green. Selectable options will glow amber. If an option or modifier is unavailable with a selected cycle, the light will not illuminate. The display shows the estimated time remaining. The preset settings provide the recommended fabric care for the selected cycle. See “Cycles.”

5.Select the desired Options. Not all options are available with all cycles. See “Options.”

6.Select the desired modifiers such as Wash Temp, Spin Speed, and Soil Level. Not all modifiers are available with all cycles and options. See “Modifiers.”

7.If desired, select the CYCLE SIGNAL. The signal is helpful when you are washing items that should be removed from the washer as soon as it stops. Select Loud, Soft, or Off.

8.If desired, select BUTTON SOUNDS. This feature makes a sound each time a button is pressed. Select Loud, Soft, or Off.

9.Select and hold START for approximately 1 second.

If you do not select START within 5 minutes of choosing a cycle, the washer automatically shuts off.

When the wash cycle is complete, the CLOTHES CLEAN status light glows, the door unlocks, and the wash load can be removed from the washer. The washer powers down automatically 60 minutes after the cycle is complete and the CLOTHES CLEAN light goes off. To power down the washer manually after the wash cycle is complete, select STOP once.

10.To use the same cycle again, press POWER first, then select START.

11.To begin the wash cycle later

Select DELAY START until the desired delay time (in hours) shows in the Estimated Time Remaining display. Select START. The countdown to the wash cycle will show in the display window.

IMPORTANT: When delaying a cycle, use only powdered detergents in the main wash compartment since liquid detergents may seep out of the compartment during Delay Start, before the wash cycle begins.

Using the Dispenser

Your new washer has a dispenser drawer with three separate compartments for your laundry products—one is for detergent, one is for liquid chlorine bleach, and one is for liquid fabric softener. Laundry products are diluted and dispensed automatically at the proper time during the wash cycle, making it unnecessary for you to return to the washer during the

cycle to add them.

It is normal for small amounts of water to remain in the dispensers when the wash cycle is complete.

Do not put laundry products directly into the wash tub. Always use the proper dispensers when adding laundry products.

Choosing the Right Detergent

Use only High Efficiency detergents. The package for this type of detergent will be marked “HE” or “High Efficiency.” This wash system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times, and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use.

Use only HE High Efficiency detergent.

To fill dispenser compartments

1.Pull out the dispenser drawer.

2.Add the desired laundry product to the proper compartment.

3.Push in the dispenser drawer slowly and completely (to avoid a spill).

C

D

A

B

E

Dispenser

A.Detergent type selector

B.Main Wash detergent compartment

C.Dispenser release lever

D.Chlorine bleach compartment

E.Fabric softener compartment

11

Main Wash detergent compartment

(Letter B in Dispenser Illustration)

Add liquid or powdered HE detergent to this compartment for your main wash cycle. The detergent type selector (A) must always be in the correct position for the detergent type used. Slide the detergent type selector to the correct position.

IMPORTANT: If you are using the Delay Start option, powdered detergent must be used in the Main Wash compartment, since liquid detergents may seep out of the Main Wash compartment before the main wash begins.

Use the detergent manufacturer’s recommended amount for load size.

Liquid or powdered color-safe bleach may be added to the Main Wash compartment along with the same type of detergent, liquid or powdered.

Liquid detergent:

A

Selector in position for liquid detergent

A.Detergent type selector

Powdered detergent:

A

Selector in position for powdered detergent

A. Detergent type selector

Chlorine bleach compartment

(Letter D in Dispenser Illustration)

Add no more than 2/3 cup (160 mL) liquid chlorine bleach to this compartment. The bleach will be automatically diluted and dispensed at the optimum time during the first rinse after the wash cycle. This compartment cannot dilute powdered bleach.

Always measure liquid chlorine bleach. Use a measuring cup with a pour spout; do not guess.

Do not fill beyond the “MAX” level.

NOTE: Overfilling could cause garment damage.

At the end of the cycle, a small amount of water may be left in the dispenser. This is normal.

Fabric softener compartment

(Letter E in Dispenser Illustration)

Pour measured liquid fabric softener into the fabric softener dispenser, if desired.

IMPORTANT: Dilute all fabric softener with water for a total of 1/4 cup (60 mL).

Do not overfill. The dispenser holds 1/4 cup (60 mL).

Do not spill or drip any fabric softener onto the clothes.

NOTES:

Use only liquid fabric softener in this dispenser.

Do not use fabric softener dispensing balls in this washer. Dispensing balls will not operate correctly with this washer.

Pausing or Restarting

1.To pause the washer at any time, press STOP.

2.To continue the cycle, press START (for approximately 1 second).

Changing Cycles, Options, and Modifiers

Not all Options and Modifiers are available with all cycles. Available modifiers will glow amber. If an option or modifier is unavailable with a selected cycle, the light will not illuminate. Cycles, Options, and Modifiers can be changed anytime before START is selected.

Options and Modifiers can be changed anytime after START is selected and before the start of the selected Option or Modifier.

To cancel a cycle and select a new cycle

1.Press STOP twice.

2.Press POWER.

3.Select desired cycle.

4.Select the desired Options or modifiers such as Wash Temp, Spin Speed, and Soil Level.

5.Press START (for approximately 1 second) to restart the washer at the beginning of the new cycle.

To cancel a cycle

1.Press STOP twice.

2.The washer powers down, the door unlocks, and clothes can be removed.

NOTE: If the water level or the temperature is too high, the washer will drain automatically before the door unlocks.

To change Options or Modifiers after the cycle has started

1.Press STOP once.

2.Select the desired Options or modifiers such as Wash Temp, Spin Speed, and Soil Level. Available selections will glow amber.

3.Press START (for approximately 1 second) to continue the cycle.

12

+ 36 hidden pages
