Service Parts
RCB*C2A/B/C 10 SEER Remote
Condensing Units
This manual replaces RP6111003 Rev. 1.
This manual is to be used by qualified appliance technicians only.
Models and manufacturing
numbers in this manual
RCB18C2CP1247513C
RCB24C2CP1247514C
RCB30C2CP1247515C
RCB36C2CP1247516C
RCB42C2CP1247517C
RCB48C2CP1256403C
RCB60C2CP1256404C
P1247501CRCB18C2A
P1247508CRCB18C2B
P1247502CRCB24C2A
P1247509CRCB24C2B
P1247503CRCB30C2A
P1247510CRCB30C2B
P1247504CRCB36C2A
P1247511CRCB36C2B
P1247505CRCB42C2A
P1247512CRCB42C2B
P1247506CRCB48C2A
P1256401CRCB48C2B
P1247507CRCB60C2A
P1256402CRCB60C2B
Amana is a trademark of Maytag Corporation and used under
license to Goodman Company, L.P. All rights reserved.
RP6111003
Revision 2
August 2004
Copyright © 2004 Goodman Company, L.P.
Important Information
Goodman Company, L.P. is not responsible for personal injury or property damage resulting from improper service.
Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Company, L.P. also recommends contacting an authorized
technician and using authorized factory parts.
For assistance within the U.S.A. contact:
Consumer Affairs Department
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
2Copyright © 2004 Goodman Company, L.P. RP6111003 2Rev.
Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
Revision 1: Adds Manufacturing #s P1247508C, P1247509C, P1247510C, P1247511C, P1247512C,
P1256401C, and P1256402C.
Revision 2: Adds new RCB*C*C models. Paint color of cabinet changed to grey. Corrects capaictor part number
for RCB60C2B P1256402C.
Text Codes:
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
...................................................................................................
...................................................................................................
4 - 5
6 - 13
Example
M1 - Model#1 P__________
M2 - Model#2 P__________
M3 - Model#3 P__________
3 RP6111003 2Rev.
Functional Parts
Part
No:
D6789048 CAPACITOR 25/5/370 (M1, M8, M15)
D6789051 CAPACITOR 30/5/370 (M2, M9, M16)
D6789049 CAPACITOR 35/5/370 (M3, M10, M17)
D6789025 CAPACITOR 35/5/440 (M4)
D6789024 CAPACITOR 40/5/370 (M6)
D6789028 CAPACITOR 40/5/440 (M5, M12, M13, M19)
B94575600 CAPACITOR 40/5/440 (M20)
D6789043 CAPACITOR 50/5/370 (M11, M18)
D6789046 CAPACITOR 60/5/370 (M7, M14, M21)
CR16K6PFV920 COMPRESSOR, CR16KF-PFV-220*, OLD PN# 10481828 (M1, M8, M15)
CR22KFPFV920 COMPRESSOR, CR22KF-PFV-220 (M2, M9, M16)
CR28K6PFV920 COMPRESSOR, CR28K6-PFV-220, OLD PN#10481823 (M3, M10, M17)
10481817 COMPRESSOR, CR32K6-PFV-230 (M4)
CR34K6PFV920 COMPRESSOR, CR34K6-PFV-220 (M11, M18)
CR38K6PFV920 COMPRESSOR, CR38K6-PFV-220, OLD PN# 10481824 (M5, M19)
CR42K6PFV920 COMPRESSOR, CR42K6-PFV-223 (M13, M20)
ZR40KCPFV930 COMPRESSOR, ZR40KC-PFV-230, OLD PN# 11012513 (M12)
ZR45KCPFV935 COMPRESSOR, ZR45KC-PFV-235, OLD PN# 11012511 (M6)
ZR57KCPFV950 COMPRESSOR, ZR57KC-PFV-250, OLD PN# B9266355 (M7, M14, M21)
20435901 CONDENSING ASSY (M3)
20435905 CONDENSING ASSY (M18)
20411406 CONDENSING ASSY (M17)
20436001 CONDENSING ASSY (M4, M5)
20435501 CONDENSING ASSY (M2)
20410005 CONDENSING ASSY (M8, M15)
20411003 CONDENSING ASSY (M9, M16)
20435903 CONDENSING ASSY (M11)
20424803 CONDENSING ASSY (M12, M19)
20433701 CONDENSING ASSY (M1)
20437201 CONDENSING ASSY (M6, M7)
20411405 CONDENSING ASSY (M10)
11163807 CONDENSING ASSY-PPNT (M13)
11163808 CONDENSING ASSY-PPNT (M21)
11163809 CONDENSING ASSY-PPNT (M20)
11163806 CONDENSING ASSY-PPNT (M14)
10625716 FAN-CONDENSER 3BLADE,CW,27DEG (M1, M2, M8, M9)
10625703 FAN-CONDENSER 3BLADE,CW,28DEG (M11, M12)
10625706 FAN-CONDENSER 3BLADE,CW,33DEG (M4, M5, M6, M7, M13, M14)
10625717 FAN-CONDENSER 3BLADE,CW,37DEG (M3, M10)
10651509 HARNESS-COMPRESSOR (M7)
10651507 HARNESS-COMPRESSOR (M1, M2)
20430101 HARNESS-COMPRESSOR (M14, M21)
20462503 HARNESS-COMPRESSOR (M5, M6, M12, M13, M19, M20)
10651517 HARNESS-COMPRESSOR (M3, M4, M8, M9, M10, M11, M15, M16, M17, M18)
10584307 MOTOR-COND 1/2HP, 230V,825RPM (M1, M2, M8, M9, M11, M12)
10584313 MOTOR-COND 1/4HP, 230V,830RPM (M4, M5, M6, M7, M13, M14)
10584308 MOTOR-COND 1/6HP, 230V,825RPM (M3, M10)
20272613 PISTON 0530 BAG ASSY (M1, M8, M15)
20272603 PISTON 0591 BAG ASSY (M2, M9)
20272611 PISTON 0650 BAG ASSY (M3, M10)
20272612 PISTON 0710 BAG ASSY (M4, M11, M18)
20272607 PISTON 0760 BAG ASSY (M5, M12, M19)
Description:
SERVICE COMPRESSOR MAY BE DIFFERENT THAN PRODUCTION
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
4RP6111003 2Rev.
Functional Parts
Part
No:
20272614 PISTON 0820 BAG ASSY (M13, M20)
20272608 PISTON 0846 BAG ASSY (M6)
20272609 PISTON 0925 BAG ASSY (M7, M14, M21)
B1443829 RESTRICTOR 053 (M1)
B1443823 RESTRICTOR 059 (M2)
B1443821 RESTRICTOR 065 (M3)
B1443822 RESTRICTOR 071 (M4)
B1443817 RESTRICTOR 076 (M5)
B1443805 RESTRICTOR 084 (M6)
B1443810 RESTRICTOR 092 (M7)
B1219225 SINGLE-FLOW FILTER-DRIER (M6, M7, M12, M13, M14, M19, M20, M21)
B1219212 SINGLE-FLOW FILTER-DRIER (M1, M2, M3, M4, M5, M8, M9, M10, M11, M15, M16, M17, M18)
B1104807 START-CAPACITOR (M5, M20)
B1104806 START-CAPACITOR (M1, M2, M3, M4, M8, M9, M10, M11, M15, M16, M17, M18)
10142317 START-RELAY (M4, M11, M18)
10142307 START-RELAY (M1, M8, M15)
10142305 START-RELAY (M2, M3, M5, M9, M10, M16, M17, M20)
SPECIAL PARTS
RT6111006 MANUAL TECHNICAL
10652423S MANUAL-INSTAL
10659202S MANUAL-OWNERS
RS6200003 MANUAL-SERVICE
RP6111003 PARTS MANUAL
PDB-RCB PRODUCT DATA BOOK (M8, M9, M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20, M21)
20451201 RCB18C2A SPEC SHT (M1)
20451202 RCB24C2A SPEC SHT (M2)
20451203 RCB30C2A SPEC SHT (M3)
20451204 RCB36C2A SPEC SHT (M4)
20451205 RCB42C2A SPEC SHT (M5)
20451206 RCB48C2A SPEC SHT (M6)
20451207 RCB60C2A SPEC SHT (M7)
20490503S WARRANTY (M8, M9, M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20, M21)
20315606S WARRANTY (M1, M2, M3, M4, M5, M6, M7)
Description:
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
5 RP6111003 2Rev.

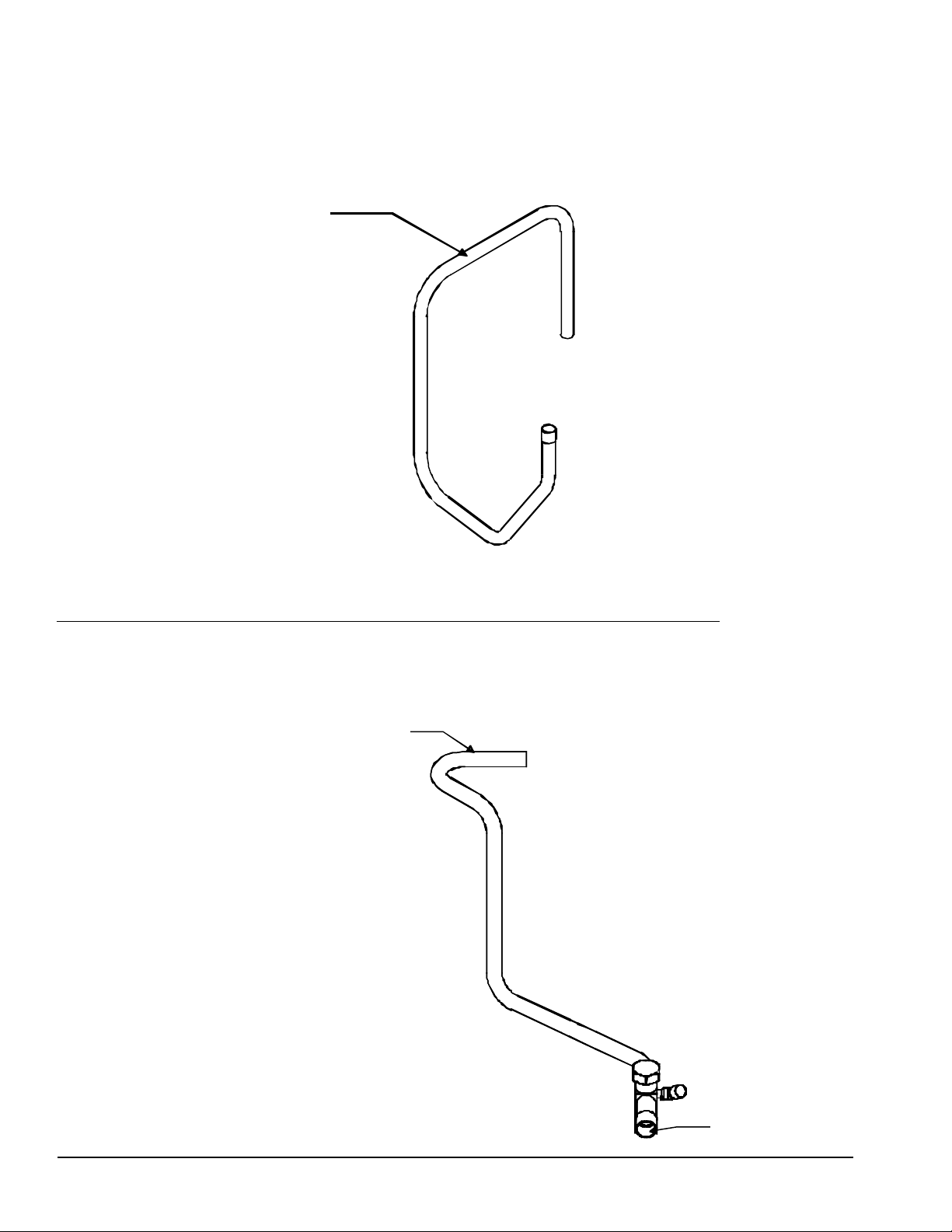

Control/Cover/Cabinet
Image 1
91
11
11
171
141
131
11

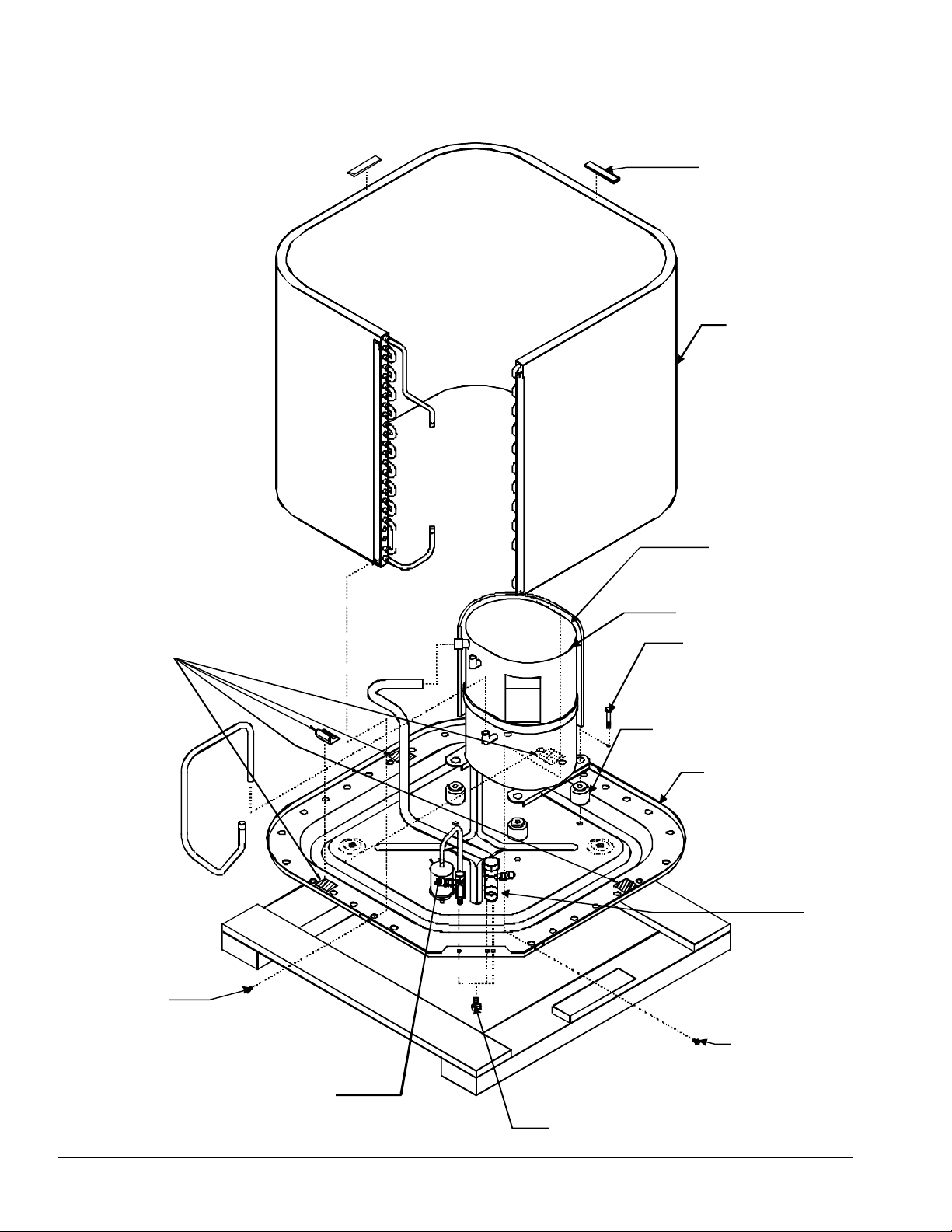

Image 2
192
282
222
242
212
262
392
342
202
62
192
6RP6111003 2Rev.
Control/Cover/Cabinet
M0220816
11
M0229303
11
20160411
91
20160412
91
10589926PDG
91
10589920
91
20160405
91
20160406
91
B1789859
131
B1789865
131
20272613
131
20272603
131
20272611
131
20272612
131
20272607
131
20272614
131
20272608
131
20272609
131
20160202
141
20160209
141
20160210
141
20160211
141
20289710
141
20160215PDG
141
20160216PDG
141
20160217PDG
141
20289711PDG
141
B1443829
171
B1443823
171
B1443821
171
B1443822
171
B1443817
171
B1443805
171
B1443810
171
10597408
NS
20187902
NS
20440001
62
20440002
62
20440003
62
20440004
62
20440005
62
20440006
62
20449305
20449307
20449308
20449315
20449317
20449318
M0220816
10576104
10576105
20160501
20160503
20161204
20160505PDG
202
20440501
212
20440502
212
20515001
212
20515002
212
B13400270
222
B13400252
222
10584307
222
10584313
222
10584308
222
B1783803
242
M0280801
242
20164301
262
M0216517
282
M0272803
282
10625716
342
10625703
342
10625706
342
10625717
342
10625730
342
10625733
342
M0229303
392
Ref.
Part
No:
No:
Image 1:
Image 2:
62
62
62
62
62
62
192
202
202
202
202
202
Description:
SCREW-SM (M1, M2, M3, M4, M5, M6, M7)
SCREW-SM (M20, M21)
COVER-BEND CONTROL (M15, M16, M19)
COVER-BEND CONTROL (M17, M18)
COVER-CONT PNT (M20, M21)
COVER-CONTROL (M13, M14)
COVER-CONTROL (M1, M2, M8, M9, M12)
COVER-CONTROL (M3, M4, M5, M6, M7, M10, M11)
FLOW CHECK PISTON K (M16)
FLOW CHECK PISTON K (M17)
PISTON 0530 BAG ASSY (M1, M8, M15)
PISTON 0591 BAG ASSY (M2, M9)
PISTON 0650 BAG ASSY (M3, M10)
PISTON 0710 BAG ASSY (M4, M11, M18)
PISTON 0760 BAG ASSY (M5, M12, M19)
PISTON 0820 BAG ASSY (M13, M20)
PISTON 0846 BAG ASSY (M6)
PISTON 0925 BAG ASSY (M7, M14, M21)
PANEL-SRVC VLV (M3)
PANEL-SRVC VLV (M1, M2, M4, M5, M8, M9, M10)
PANEL-SRVC VLV (M11)
PANEL-SRVC VLV (M6, M7, M12)
PANEL-SRVC VLV (M13, M14)
PANEL-SRVC VLV PNT (M15, M16, M17)
PANEL-SRVC VLV PNT (M18)
PANEL-SRVC VLV PNT (M19)
PANEL-VALVE PNT (M20, M21)
RESTRICTOR 053 (M1)
RESTRICTOR 059 (M2)
RESTRICTOR 065 (M3)
RESTRICTOR 071 (M4)
RESTRICTOR 076 (M5)
RESTRICTOR 084 (M6)
RESTRICTOR 092 (M7)
FILLER-CONTROL (M13, M14)
NAME PLATE, AMANA
GRILLE-FORMED (M1, M2, M8, M9)
GRILLE-FORMED (M3, M11)
GRILLE-FORMED (M4, M5)
GRILLE-FORMED (M6, M7)
GRILLE-FORMED (M15, M16)
GRILLE-FORMED (M18)
GRILLE-FORMED (M13, M14)
GRILLE-FORMED (M10)
GRILLE-FORMED (M12)
GRILLE-FORMED (M20, M21)
GRILLE-FORMED (M17)
GRILLE-FORMED (M19)
SCREW-SM (M1, M2, M3, M4, M5, M6, M7, M8, M9,
M10, M11, M12, M13, M14)
TOP (M13, M14)
TOP (M20, M21)
TOP (M1, M2, M3)
TOP (M8, M9, M10, M11, M12)
TOP (M4, M5, M6, M7)
Ref.
Part
No:
No:
Description:
TOP-PNT (M15, M16, M17, M18, M19)
GRILLE-FAN (M1, M2, M3, M8, M9, M10, M11, M12)
GRILLE-FAN (M4, M5, M6, M7, M13, M14)
GRILLE-FAN (M15, M16, M17, M18, M19)
GRILLE-FAN (M20, M21)
MOTOR (M20, M21)
MOTOR, 1/6HP, 230V, (M15, M16, M17, M18, M19)
MOTOR-COND 1/2HP, 230V,825RPM (M1, M2, M8, M9,
M11, M12)
MOTOR-COND 1/4HP, 230V,830RPM (M4, M5, M6, M7,
M13, M14)
MOTOR-COND 1/6HP, 230V,825RPM (M3, M10)
NUT, ACORN (5/16 HEX) (M8, M9, M10, M11, M12,
M13, M14)
NUT-HEX (M1, M2, M3, M4, M5, M6, M7, M15, M16,
M17, M18, M19, M20, M21)
DISK-LOGO CL
SCREW-SM (QTY AR)
WASHER-LOCK (M1, M2, M3, M4, M5, M6, M7, M15,
M16, M17, M18, M19, M20, M21)
FAN-CONDENSER 3BLADE,CW,27DEG (M1, M2, M8,
M9)
FAN-CONDENSER 3BLADE,CW,28DEG (M11, M12)
FAN-CONDENSER 3BLADE,CW,33DEG (M4, M5, M6,
M7, M13, M14)
FAN-CONDENSER 3BLADE,CW,37DEG (M3, M10)
FAN-CONDENSER BLADE 18" ALUM (M15, M16, M17,
M18, M19)
FAN-CONDENSER BLADE 22" ALUM (M20, M21)
SCREW-SM (QTY 6)
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
7 RP6111003 2Rev.
Compressor/Tubing
Image 1
381
81
371
411
31
51
41
11
21
191
191
291
191
8RP6111003 2Rev.
Compressor/Tubing
20160003
11
10258304
11
10258306
11
20159903
11
20159905
11
CR16K6PFV920
31
CR22KFPFV920
31
CR28K6PFV920
31
10481817
31
CR34K6PFV920
31
CR38K6PFV920
31
CR42K6PFV920
31
ZR40KCPFV930
31
ZR45KCPFV935
31
ZR57KCPFV950
31
10107301
41
B1315401
41
M0221641
51
20410005
81
20411003
81
20411405
81
20411406
81
20424803
81
20433701
81
20435501
81
20435901
81
20435903
81
20435905
81
20436001
81
20437201
81
11163806
81
11163807
81
11163808
81
11163809
81
M0220816
191
20460201
291
20460202
20414901
20414904
20422701
20521201
20521202
22303002
20206601
20328901
10839819
B1488806
B1488807
B1488815
411
B1488817
411
B1219212
NS
B1219225
NS
Ref.
Part
No:
No:
Image 1:
291
291
291
291
291
291
291
371
371
381
411
411
Description:
BASEPAN (M4, M5, M6, M7)
BASEPAN REM (M13, M14)
BASEPAN REM (M20, M21)
BASEPAN REM (M1, M2, M3, M8, M9, M10, M11, M12)
BASEPAN REM (M15, M16, M17, M18, M19)
COMPRESSOR, CR16KF-PFV-220*, OLD PN#
10481828 (M1, M8, M15)
SERVICE COMPRESSOR MAY BE DIFFERENT THAN
PRODUCTION
COMPRESSOR, CR22KF-PFV-220 (M2, M9, M16)
COMPRESSOR, CR28K6-PFV-220, OLD PN#10481823
(M3, M10, M17)
COMPRESSOR, CR32K6-PFV-230 (M4)
COMPRESSOR, CR34K6-PFV-220 (M11, M18)
COMPRESSOR, CR38K6-PFV-220, OLD PN#
10481824 (M5, M19)
COMPRESSOR, CR42K6-PFV-223 (M13, M20)
COMPRESSOR, ZR40KC-PFV-230, OLD PN#
11012513 (M12)
COMPRESSOR, ZR45KC-PFV-235, OLD PN#
11012511 (M6)
COMPRESSOR, ZR57KC-PFV-250, OLD PN#
B9266355 (M7, M14, M21)
GROMMET-COMP FOOT (M6, M7, M12, M14, M21)
GROMMET-COMP FOOT (M1, M2, M3, M4, M5, M8, M9,
M10, M11, M13, M15, M16, M17, M18, M19, M20)
SCREW-SHOULDER TF (QTY 4)
CONDENSING ASSY (M8, M15)
CONDENSING ASSY (M9, M16)
CONDENSING ASSY (M10)
CONDENSING ASSY (M17)
CONDENSING ASSY (M12, M19)
CONDENSING ASSY (M1)
CONDENSING ASSY (M2)
CONDENSING ASSY (M3)
CONDENSING ASSY (M11)
CONDENSING ASSY (M18)
CONDENSING ASSY (M4, M5)
CONDENSING ASSY (M6, M7)
CONDENSING ASSY-PPNT (M14)
CONDENSING ASSY-PPNT (M13)
CONDENSING ASSY-PPNT (M21)
CONDENSING ASSY-PPNT (M20)
SCREW-SM (M1, M2, M3, M4, M5, M6, M7)
LIQUID VALVE ASM (M1, M2, M3, M4, M5)
LIQUID VALVE ASM (M6, M7)
TUBE WELD-LVLV (M8, M9, M10, M11)
TUBE WELD-LVLV (M12)
TUBE WELD-LVLV (M13, M14)
TUBE WELD-LVLV (M15, M16, M17, M18)
TUBE WELD-LVLV (M19)
TUBE WELD-LVLV (M20, M21)
SUPPORT-COIL (M1, M2, M3, M4, M5, M6, M7, M8, M9,
M10, M11, M12, M15, M16, M17, M18, M19)
SUPPORT-COIL (M13, M14, M20, M21)
GASKET-.062X.50
COMPRESSOR SOUND BLANKET (M6, M7, M14, M21)
COMPRESSOR SOUND BLANKET (M12)
Ref.
Part
No:
No:
Description:
COMPRESSOR SOUND BLANKET (M4, M5, M11, M13,
M18, M19, M20)
COMPRESSOR SOUND BLANKET (M1, M2, M3, M8,
M9, M10, M15, M16, M17)
SINGLE-FLOW FILTER-DRIER (M1, M2, M3, M4, M5,
M8, M9, M10, M11, M15, M16, M17, M18)
SINGLE-FLOW FILTER-DRIER (M6, M7, M12, M13,
M14, M19, M20, M21)
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
9 RP6111003 2Rev.
Tubing
Image 1
101
Image 2
32
22
10RP6111003 2Rev.
Tubing
20206901
101
20219402
101
20232001
101
20232002
101
20443801
101
20445301
101
20494001
101
20504301
101
20504308
101
20504309
101
20504310
101
20504312
101
20504313
101
20504402
101
20523401
101
20523403
101
22311701
101
20163902
22
20163801
22
20163901
22
20163903
22
22303501
92
20423301
92
20434301
92
20435801
92
20436301
92
20436501
92
20438701
92
20505401
92
20505801
92
20521501
92
20523601
92
20523602
92
20523603
92
Ref.
Part
No:
No:
Image 1:
Image 2:
Description:
TUBE-DISCHARGE (M6)
TUBE-DISCHARGE (M3)
TUBE-DISCHARGE (M2)
TUBE-DISCHARGE (M1)
TUBE-DISCHARGE (M7)
TUBE-DISCHARGE (M4, M5)
TUBE-DISCHARGE (M14)
TUBE-DISCHARGE (M8, M15)
TUBE-DISCHARGE (M9, M16)
TUBE-DISCHARGE (M10)
TUBE-DISCHARGE (M11)
TUBE-DISCHARGE (M17)
TUBE-DISCHARGE (M18)
TUBE-DISCHARGE (M13, M20)
TUBE-DISCHARGE (M12)
TUBE-DISCHARGE (M21)
TUBE-DISCHARGE (M19)
VALVE-SERVICE 3/4 (M3, M4, M10, M11, M17, M18)
VALVE-SERVICE 3/8
VALVE-SERVICE 5/8 (M1, M2, M8, M9, M15, M16)
VALVE-SERVICE 7/8 (M5, M6, M7, M12, M13, M14,
M19, M20, M21)
SUCT/SWT WELD (M20)
TUBE WELD-SUCTION (M14, M21)
TUBE WELD-SUCTION (M1, M2)
TUBE WELD-SUCTION (M3)
TUBE WELD-SUCTION (M4)
TUBE WELD-SUCTION (M5)
TUBE WELD-SUCTION (M6, M7)
TUBE WELD-SUCTION (M12)
TUBE WELD-SUCTION (M13)
TUBE WELD-SUCTION (M8, M9, M15, M16)
TUBE WELD-SUCTION (M10)
TUBE WELD-SUCTION (M11, M17, M18)
TUBE WELD-SUCTION (M19)
Ref.
Part
No:
No:
Description:
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
11 RP6111003 2Rev.
Control Panel
Image 1
11
61
61
Image 2
241
31
181
121
61
61
41
61
312
281
111
21
291
151
141
71
261
51
61
51
71
12
82
32
92
312
32
102
312
62
312
752
52
252
112
32
12RP6111003 2Rev.
Control Panel
20187204
11
20187304
11
20187205
11
20187305
11
A4603801
21
D6789048
31
D6789051
31
D6789049
31
D6789025
31
D6789024
31
B94575600
31
D6789028
31
D6789043
31
D6789046
31
B1360321
41
C6170004
41
A9015201
51
M0216515
61
M0216529
71
10142305
111
10142307
111
10142317
111
B1104806
121
B1104807
121
M0322201
141
M0118702
151
C6300508
181
20520901
241
C6300508
241
C6300513
241
20161101
261
M0216517
281
A4554807
291
20164001
NS
11174704
12
M0216517
32
A9015201
52
A4603801
C6300508
C6300512
B94575600
D6789046
B1360321
C6170005
11156901
20521001
10142305
B1104807
20520901
M0216529
M0216515
312
A4554807
752
Ref.
Part
No:
No:
Image 1:
Image 2:
62
82
82
92
92
102
102
112
112
112
122
242
252
Description:
CONTROL BOX 14.5 (M1, M2, M8, M9, M12)
CONTROL BOX 16.5 (M3, M4, M5, M6, M7, M10, M11)
PANEL-CONT 14.5 REM (M15, M16, M19)
PANEL-CONT 16.5 REM (M17, M18)
GROMMET (M1, M2, M3, M4, M5, M6, M7, M8, M9, M10,
M11, M12, M15, M16, M17, M18, M19, M21)
CAPACITOR 25/5/370 (M1, M8, M15)
CAPACITOR 30/5/370 (M2, M9, M16)
CAPACITOR 35/5/370 (M3, M10, M17)
CAPACITOR 35/5/440 (M4)
CAPACITOR 40/5/370 (M6)
CAPACITOR 40/5/440 (M20)
CAPACITOR 40/5/440 (M5, M12, M13, M19)
CAPACITOR 50/5/370 (M11, M18)
CAPACITOR 60/5/370 (M7, M21)
CONTACTOR, 25FLA,125L (M8, M9, M10, M11, M12,
M15, M16, M17, M18, M19)
CONTACTOR-25A (M1, M2, M3, M4, M5, M6)
LUG-GROUND
SCREW-SM (QTY AR)
SCREW-SM
START-RELAY (M2, M3, M5, M9, M10, M16, M17)
START-RELAY (M1, M8, M15)
START-RELAY (M4, M11, M18)
START-CAPACITOR (M1, M2, M3, M4, M8, M9, M10,
M11, M15, M16, M17, M18)
START-CAPACITOR (M5)
TIE-ELEC
CLIP-GUIDE (M1, M2, M3, M4, M5, M6, M7, M8, M9,
M10, M11, M12, M15, M16, M17, M18, M19)
STRAP-CAPACITOR (M1, M2, M3, M4, M5, M6, M7)
STRAP-CAPACITOR (M15, M16, M17, M18, M19)
STRAP-CAPACITOR (M1, M2, M3, M8, M9, M10, M11)
STRAP-CAPACITOR (M4, M5, M6, M7, M12)
BOTTOM-CNTRL PNL (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M15, M16, M17, M18, M19)
SCREW-SM
BUSHING-SNAP
GASKET-CONT PANEL (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M15, M16, M17, M18, M19)
CONTROL BOX-1PC (M13, M14, M20, M21)
SCREW-SM (M13, M14, M20)
LUG-GROUND
GROMMET (M13, M14, M20)
STRAP-CAPACITOR (M13)
STRAP-CAPACITOR (M14)
CAPACITOR 40/5/440 (M20)
CAPACITOR 60/5/370 (M14)
CONTACTOR, 25FLA,125L (M13, M20)
CONTACTOR-40A (M7, M14, M21)
BARRIER-LOW VOLT (M13, M14)
BARRIER-LOW VOLTAGE (M20, M21)
RELAY-START (M20)
CAPACITOR-START (M20)
STRAP-CAPACITOR (M20, M21)
SCREW-SM (M13, M14, M20)
Ref.
Part
No:
No:
Description:
SCREW-SM (QTY AR)
BUSHING-SNAP
Expanded Model Nomenclature
M1 - RCB18C2A P1247501C
M2 - RCB24C2A P1247502C
M3 - RCB30C2A P1247503C
M4 - RCB36C2A P1247504C
M5 - RCB42C2A P1247505C
M6 - RCB48C2A P1247506C
M7 - RCB60C2A P1247507C
M8 - RCB18C2B P1247508C
M9 - RCB24C2B P1247509C
M10 - RCB30C2B P1247510C
M11 - RCB36C2B P1247511C
M12 - RCB42C2B P1247512C
M13 - RCB48C2B P1256401C
M14 - RCB60C2B P1256402C
M15 - RCB18C2C P1247513C
M16 - RCB24C2C P1247514C
M17 - RCB30C2C P1247515C
M18 - RCB36C2C P1247516C
M19 - RCB42C2C P1247517C
M20 - RCB48C2C P1256403C
M21 - RCB60C2C P1256404C
13 RP6111003 2Rev.
Loading...
