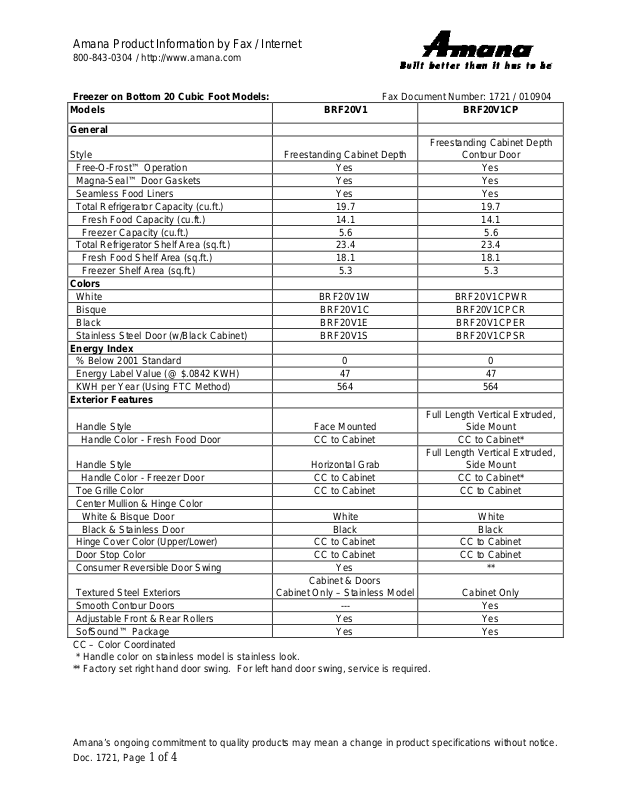

Amana Product Information by Fax / Internet
800-843-0304 / http://www.amana.com
Freezer on Bottom 20 Cubic Foot Models: Fax Document Number: 1721 / 010904
Models BRF20V1 BRF20V1CP
General
Style
Free-O-Frost™ Operation Yes Yes
Magna-Seal™ Door Gaskets Yes Yes
Seamless Food Liners Yes Yes
Total Refrigerator Capacity (cu.ft.) 19.7 19.7
Fresh Food Capacity (cu.ft.) 14.1 14.1
Freezer Capacity (cu.ft.) 5.6 5.6
Total Refrigerator Shelf Area (sq.ft.) 23.4 23.4
Fresh Food Shelf Area (sq.ft.) 18.1 18.1
Freezer Shelf Area (sq.ft.) 5.3 5.3
Colors
White BRF20V1W BRF20V1CPWR
Bisque BRF20V1C BRF20V1CPCR
Black BRF20V1E BRF20V1CPER
Stainless Steel Door (w/Black Cabinet) BRF20V1S BRF20V1CPSR
Energy Index
% Below 2001 Standard 0 0
Energy Label Value (@ $.0842 KWH) 47 47
KWH per Year (Using FTC Method) 564 564
Exterior Features
Handle Style
Handle Color - Fresh Food Door CC to Cabinet CC to Cabinet*
Handle Style
Handle Color - Freezer Door CC to Cabinet CC to Cabinet*
Toe Grille Color CC to Cabinet CC to Cabinet
Center Mullion & Hinge Color
White & Bisque Door White White
Black & Stainless Door Black Black
Hinge Cover Color (Upper/Lower) CC to Cabinet CC to Cabinet
Door Stop Color CC to Cabinet CC to Cabinet
Consumer Reversible Door Swing Yes **
Textured Steel Exteriors
Smooth Contour Doors --- Yes
Adjustable Front & Rear Rollers Yes Yes
SofSound™ Package Yes Yes
CC – Color Coordinated
* Handle color on stainless model is stainless look.
** Factory set right hand door swing. For left hand door swing, service is required.
Freestanding Cabinet Depth
Face Mounted
Horizontal Grab
Cabinet & Doors
Cabinet Only – Stainless Model
Freestanding Cabinet Depth
Contour Door
Full Length Vertical Extruded,
Side Mount
Full Length Vertical Extruded,
Side Mount
Cabinet Only
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Doc. 1721, Page 1 of 4
Amana Product Information by Fax / Internet
800-843-0304 / http://www.amana.com
Models
Fresh Food Interior
Covered Upper Lights (#) 1 1
Temp-Assure® Controls Yes Yes
Adjustable Shelves (# & Type) 4 Glass 4 Glass
Split (#) 4 4
Spillsaver™ (#) 4 4
EasyGlide™ (#) 3 3
Temperature Controlled Chiller
Fresh™Deli Drawer™
RollerGlide™ Yes Yes
Location Lower Left Lower Left
Slide Out Deli-Port™ Yes Yes
Glass Crisper Top Yes Yes
Spillsaver™ Yes Yes
Garden Fresh™ Crispers (#) 1 1
Humidity Controlled (#) 1 1
RollerGlide™ Yes Yes
Location Lower Right Lower Right
Fresh Food Door
Dairy Center (#) 2 2
Adjustable Door Buckets (#) 4 4
50% Width (#) 4 4
Door Shelves (#) 1 1
Full Width (#) 1 1
Gallon Storage (# of Gallons) 4 4
DeepFreeze®
Covered Upper Lights (#) 1 1
Freezer Controls Upfront Upfront
Pull Out Wire Shelves (# ) 1 Full Width 1 Full Width
Glide Out Wire Basket (# ) 1 Full Width 1 Full Width
Ice Service Rack Yes Yes
Wire Shelf Divider (#) 1 Vertical 1 Vertical
Deepfreeze® Door
Door Shelves (#) --- -- Pivot Bin™ Door Rack (#) 1 Full Width 1 Full Width
Tilt Out Yes Yes
BRF20V1 BRF20V1CP
Yes, Clear
Yes, Clear
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Doc. 1721, Page 2 of 4
Amana Product Information by Fax / Internet
800-843-0304 / http://www.amana.com
Models
Feature Accessory Package
“J” Shaped, Adj. Hanging Storage Rack Yes Yes
Storage Bucket w/Lid & Egg Divider Yes, Opaque Yes, Opaque
Adjustable Dividers (#) 2 2
Adjustable Bottle Huggers (#) --- -- Tall Package Retainers (#) --- -- Flex Action™ Ice Cube Trays 2 2
Ice Bucket, (# & Size) 1, Large 1, Large
Sales Accessories Kits
Ice Maker IC6 IC6
Water Filter Kit (External) WF60 WF60
Trim & Panel Kits
Warranty
Entire Unit Full 1 year - parts, labor and travel
Sealed System Full 5 years - parts, labor and travel
Food Compartment Liner Full 5 years - parts, labor and travel in lieu of replacement
Electrical Requirements
115V, 60Hz, 15 Amp Yes Yes
Installation Specifications (in Inches)
Top/Back Air Clearance 1/4 1/4
Kitchen Cabinet Opening 36 36
Side Clearance, Each Side 1/8 1/8
Power Cord Length from Strain Relief 108 108
Power Cord & Water Line Location See Drawing See Drawing
Contact Frigo Designs at
BRF20V1 BRF20V1CP
1/800-836-8746
Warranty applies only when product is
repaired by an authorized Amana servicer.
---
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Doc. 1721, Page 3 of 4
Amana Product Information by Fax / Internet
L
800-843-0304 / http://www.amana.com
Models
Dimensions (in Inches)
A: Cabinet Height with Hinge Cover 69 5/8 69 5/8
B: Cabinet Height w/o Top Hinge 68 5/8 68 5/8
C: Cabinet Depth with Door Handle 29 1/8 28 1/2
D: Cabinet Depth w/o Door Handle 26 3/4 28 1/2
E: Cabinet Depth w/o Door 24 24
F: Cabinet Width / Door Width 35 5/8 35 5/8 / 36 1/2*
G: Cabinet Depth with Door @ 90° 61 1/4 61 3/4
H: Water Line Location, Facing Back
of Unit & Distance from Right Side
I: Water Line Location from Bottom 6 1/4 6 1/4
J: Power Cord Location, Facing Back
Of Unit & Distance from Left Side
K: Power Cord Location From Bottom 8 8
L: Clearance from Side Wall for 90°
Door Opening
Approximate Shipping Weight (lbs.) 300 300
*Width increases with addition of side mounted handle/trim.
BRF20V1 BRF20V1CP
8 5/8
1
2 1/2
8 5/8
1
1 7/8
A
B
C
E
D
I & K
H
J
F
G
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Doc. 1721, Page 4 of 4
