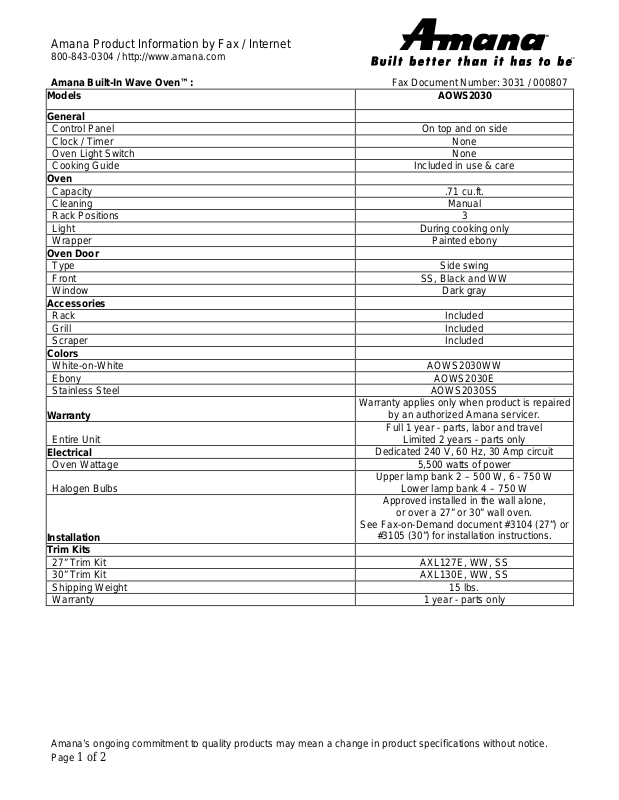

Amana AOWS2030E, AOWS2030SS, AOWS2030WW Specification Sheet

Amana Product Information by Fax / Internet

800-843-0304 / http://www.amana.com

Amana Built-In Wave Oven™: Fax Document Number: 3031 / 000807

Models AOWS2030
General

Control Panel On top and on side
Clock / Timer None
Oven Light Switch None
Cooking Guide Included in use & care

Oven

Capacity .71 cu.ft.
Cleaning Manual
Rack Positions 3
Light During cooking only
Wrapper Painted ebony

Oven Door

Type Side swing
Front SS, Black and WW
Window Dark gray

Accessories

Rack Included
Grill Included
Scraper Included

Colors

White-on-White AOWS2030WW
Ebony AOWS2030E
Stainless Steel AOWS2030SS

Warranty applies only when product is repaired

Warranty

Entire Unit

Electrical

Oven Wattage 5,500 watts of power
Halogen Bulbs

Installation
Trim Kits

27” Trim Kit AXL127E, WW, SS
30” Trim Kit AXL130E, WW, SS
Shipping Weight 15 lbs.
Warranty 1 year - parts only

by an authorized Amana servicer.

Full 1 year - parts, labor and travel

Limited 2 years - parts only

Dedicated 240 V, 60 Hz, 30 Amp circuit

Upper lamp bank 2 – 500 W, 6 - 750 W

Lower lamp bank 4 – 750 W

Approved installed in the wall alone,

or over a 27” or 30” wall oven.

See Fax-on-Demand document #3104 (27”) or

#3105 (30”) for installation instructions.

Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Page 1 of 2

Amana Product Information by Fax / Internet

800-843-0304 / http://www.amana.com

Models AOWS2030
Finished Frame Dimensions (Overall) - 27” Trim Kit (in Inches)

Height 22 1/2
Width 26 3/4
Depth 2

Finished Frame Dimensions (Overall) - 30” Trim Kit (in Inches)

Height 22 5/8
Width 29 3/4
Depth 1 3/16

Cutout - 27” Trim Kit (in Inches)

Height 20
Width 19 3/4 to 26 maximum
Depth 23 3/4
Height from Floor when Installing Alone 48 1/2

Cutout - 30” Trim Kit (in Inches)

Height 19 7/8
Width 28 3/8
Depth 23 7/8
Height from Floor when Installing Alone 48 1/2

Interior Oven Dimensions (in Inches)

Height 6 1/2
Width 13
Depth 15 1/2

Exterior Dimensions (in Inches)

Height 17 1/5
Width 19 1/2
Depth (w/o cord) 23 3/8
Approximate Shipping Weight (lbs.) 105

Amana’s ongoing commitment to quality products may mean a change in product specifications without notice.
Page 2 of 2
