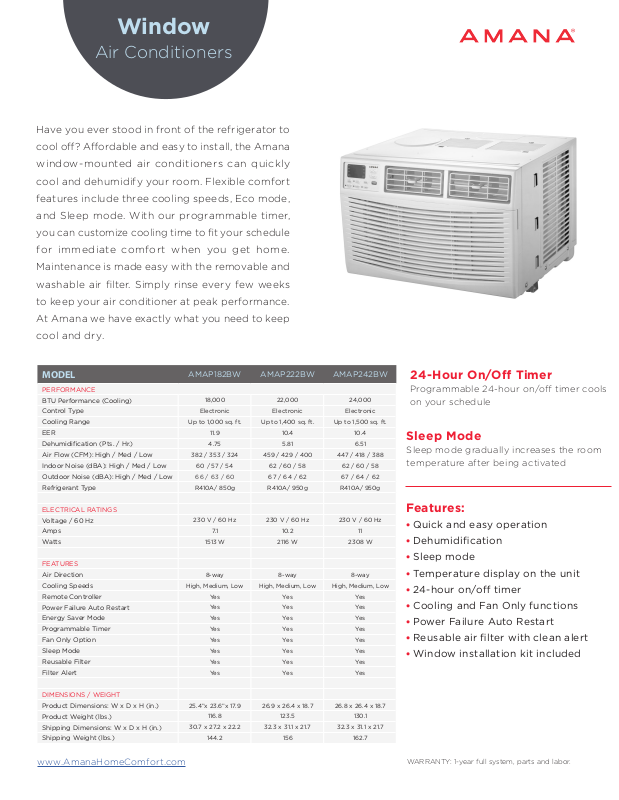

Amana AMAP242BW, AMAP222BW, AMAP182BW Specifications
Window
Air Conditioners
Have you ever stood in front of the refrigerator to
cool o? Aordable and easy to install, the Amana
window-mounted air conditioners can quickly
cool and dehumidify your room. Flexible comfort
features include three cooling speeds, Eco mode,
and Sleep mode. With our programmable timer,
you can customize cooling time to fit your schedule
for immediate comfort when you get home.
Maintenance is made easy with the removable and
washable air filter. Simply rinse every few weeks
to keep your air conditioner at peak performance.
At Amana we have exactly what you need to keep
cool and dry.
MODEL
PERFORMANCE
BTU Performance (Cooling)
Control Type
Cooling Range
EER
Dehumidification (Pts. / Hr.)
Air Flow (CFM): High / Med / Low
Indoor Noise (dBA): High / Med / Low
Outdoor Noise (dBA): High / Med / Low
Refrigerant Type
ELECTRICAL RATINGS
Voltage / 60 Hz
Amps
Watts
FEATURES
Air Direction
Cooling Speeds
Remote Controller
Power Failure Auto Restart
Energy Saver Mode
Programmable Timer
Fan Only Option
Sleep Mode
Reusable Filter
Filter Alert
AMAP182BW AMAP222BW AMAP242BW
18,000 22,000 24,000
Electronic Electronic Electronic
Up to 1,000 sq. ft. Up to 1,400 sq. ft. Up to 1,500 sq. ft.
11.9 10.4 10.4
4.75 5.81 6.51
382 / 353 / 324 459 / 429 / 400 447 / 418 / 388
60 / 57 / 54 62 / 60 / 58 62 / 60 / 58
66 / 63 / 60 67 / 64 / 62 67 / 64 / 6 2
R410A/ 850g R410A/ 950g R410A/ 950g
230 V / 60 Hz 230 V / 60 Hz 230 V / 60 Hz
7.1 10.2 11
1513 W 2116 W 2308 W
8-way 8-way 8-way
High, Medium, Low High, Medium, Low High, Medium, Low
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
Yes Yes Yes
24-Hour On/O Timer
Programmable 24-hour on/o timer cools
on your schedule
Sleep Mode
Sleep mode gradually increases the room
temperature after being activated
Features:
• Quick and easy operation
• Dehumidification
• Sleep mode
• Temperature display on the unit
• 24-hour on/o timer
• Cooling and Fan Only functions
• Power Failure Auto Restart
• Reusable air filter with clean alert
• Window installation kit included
DIMENSIONS / WEIGHT
Product Dimensions: W x D x H (in.)
Product Weight (lbs.)
Shipping Dimensions: W x D x H (in.)
Shipping Weight (lbs.)
www.AmanaHomeComfort.com
25.4”x 23.6”x 17.9 26.9 x 26.4 x 18.7 26.8 x 26.4 x 18.7
116.8 123.5 130.1
30.7 x 27.2 x 22.2 32.3 x 31.1 x 21.7 32.3 x 31.1 x 21.7
144.2 156 162.7
WARRANTY: 1-year full system, parts and labor.
