Altec Lansing iM7 BLK User Manual
Huge, crystal-clear
sound
* Playlist/Macworld.com, Dan Frakes, June 2005
“Excellent ... Impressive
sound with thumping bass”
– CNET
“Booty – shaking thump ...
Sounds great, looks great”
– iLounge
“
The best sounding – and loudest –
portable system on the market”
– Playlist*
1
/
2

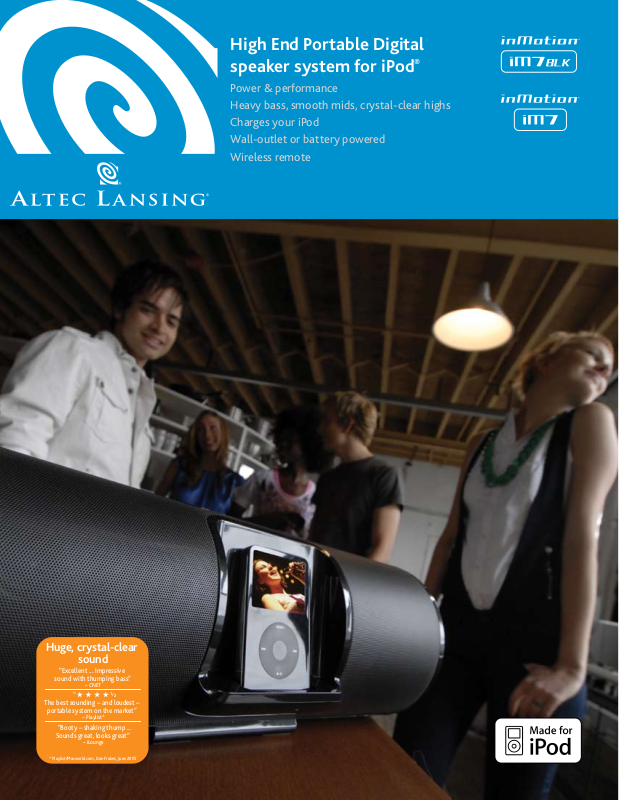

High End Portable Digital
speaker system for iPod®
Power & performance
Heavy bass, smooth mids, crystal-clear highs
Charges your iPod
Wall-outlet or battery powered
Wireless remote
Works with all
iPod models
Bass Enhancement
Technology
Wall outlet or
Battery powered
COMPOSITE
VIDEO
Playback videos and
photos on your TV
AUX
Use other MP3, CD
and DVD players
50
100
Rock the house!
Enjoy your tunes at a quiet romantic picnic or cut through the noise at any party. The versatile
iM7 delivers audiophile sound across the spectrum, anywhere you want it. The iM7 adjusts to t
all dockable iPod models and links iPod video and iPod photo players to most TV set. Comes with
a remote control that controls basic iPod functions and the iM7 speaker system.
SYSTEM SPECIFICATIONS†:
TOTAL CONTINUOUS POWER:50 WATTS RMS
TOTAL PEAK POWER: 100 WATTS
SPEAKERS: 12.5 WATTS/CHANNEL
@ 14 OHMS @ 10% THD @
300 HZ – 20 KHZ 2 CHANNELS LOADED
SUBWOOFER: 25 WATTS @ 6 OHMS
@ 10 % THD @ 70 – 300 HZ SINGLE
CHANNEL LOADED
PACKAGING SPECIFICATIONS:
MASTER CARTON QUANTITY: 2
MASTER CARTON DIMENSIONS:
19.6” (W) x 17” (D) x 11.25” (H)
497 mm (W) x 433 mm (D) x 286 mm (H)
DISPLAY CARTON DIMENSIONS:
19” (W) x 8.2” (D) x 10.4” (H)
482 mm (W) x 208 mm (D) x 265 mm (H)
MASTER CARTON WEIGHT: 19 lbs. 8.6 kg
DISPLAY CARTON WEIGHT: 8.7 lbs. 4 kg
Specications subject to change without notice.
1-year limited warranty (2 years in Europe and Asia;
see inside for details.)
Power & Performance
Patented digital amplication lls the room with
audiophile-quality sound.
Heavy Bass
Revolutionary XdB technology pumps enhanced bass
through the 4” side-ring subwoofer.
Stereophonic Imaging
Remarkably expands the audio soundstage for a
concert-like music experience.
Video Output
Lets you play your iPod photo albums and videos on
most TVs (includes S-Video and Composite outputs).
Full-function remote
Speaker and select iPod functions are at your ngertips.
Auxiliary Input
Connects other audio devices, including older iPod
models, iPod shufe, other MP3 players, or laptops
(cable included).
© 2007 Plantronics, Inc. All rights reserved.
ALTEC, ALTEC LANSING, the Altec Lansing logo, the
swirl design, and XdB are trademarks or registered
trademarks of Altec Lansing, a division
of Plantronics, Inc.
Plantronics, the logo design and Sound Innovation
are trademarks or registered trademarks of
Plantronics, Inc.
iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
All other trademarks appearing herein are the
property of their respective owners.
Designed by Altec Lansing in the USA.
Made in China.
HEADQUARTERS
535 Rte. 6 & 209. Milford, PA 18337-0277, USA
Tel: 800-ALTEC-88. 570-296-4434.
Fax: 570-296-6887
US08/07
Smooth Mids
High-denition neodymium 3“ speakers smoothly
blend mid and mid bass tones for rich, accurate
music reproduction.
Crystal-clear Highs
Custom-designed 1” neodymium tweeters cleanly
reproduce high frequencies for transparent sound.
Portable
Power up anywhere on batteries or use the included
power supply.
US08/07
R02
